6-1. Specifications
6
Vehicle specifications
Manual transaxle
Clutch
Gear oil capacity (reference) 2.6 qt. (2.5 L, 2.2 Imp. qt.)
Gear oil type
API GL-4 or 5
Recommended gear oil
viscosity SAE 75W-90
NOTICE
■
Manual transaxle gear oil
Using a manual transmission gear oil other than “Toyota Genuine Manual
Transmission Gear Oil LV API GL-4 SAE 75W” may cause occurrences of
rattling noises while idling and poor fuel consumption.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

332 6-1. Specifications
Brakes
*1: Minimum pedal clearance when depressed with a force of 66 lbf (294 N,30 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Steering
Tires and wheels
Pedal clearance*13.4 in. (87 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.06 in. (1.5 mm)
Parking brake lever travel*25  8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)
Tire sizeP205/55R16 89H, T135/70D17 102M
(spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)Driving under normal conditions
Front:
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 16  6 1/2 J, 17  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

333
6-1. Specifications
6
Vehicle specifications
Light bulbs
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs (amber) D: Single end bulbs (clear)
E: Wedge base bulbs (clear) F: Wedge base bulbs (amber)
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights
Low beam
High beam 9704
900555
60A
B
Front turn signal lights 21 C
Parking lights 5D
Front side marker
lights 
5E
Rear turn signal lights 21 F
Stop/tail lights and
rear side marker lights 7443 21/5 E
Back-up lights 921 16 E
Licence plate lights 5E
Interior Personal lights
8E
Interior lights 8G
Luggage compart-
ment lights 
5G

334
6-1. Specifications
Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Scion has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Scion dealer.
■ Gasoline quality standards
●Automotive manufacturers in the U.S.A., the Europe and Japan have
developed a specification for fuel quality called World-Wide Fuel Charter
(WWFC), which is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and improves customer satisfaction through better performance.
■ Recommendation of the use of gaso line containing detergent additives
● Scion recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S.A. contains detergent additives to clean and/
or keep clean intake systems.
You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

335
6-1. Specifications
6
Vehicle specifications
■
Recommendation of the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Scion recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Non-recommendation of the use of blended gasoline
●Scion allows the use of oxygenate blended gasoline where the oxygen-
ate content is up to 10% ethanol or 15% MTBE.
● If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Scion does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Scion does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Scion dealer for service.
■ If your engine knocks
●Consult your Scion dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.

336 6-1. Specifications
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability is encountered after using a different type of fuel (poor hot
starting, vaporization, engine knocking, etc.), discontinue the use of that type
of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

337
6-1. Specifications
6
Vehicle specifications

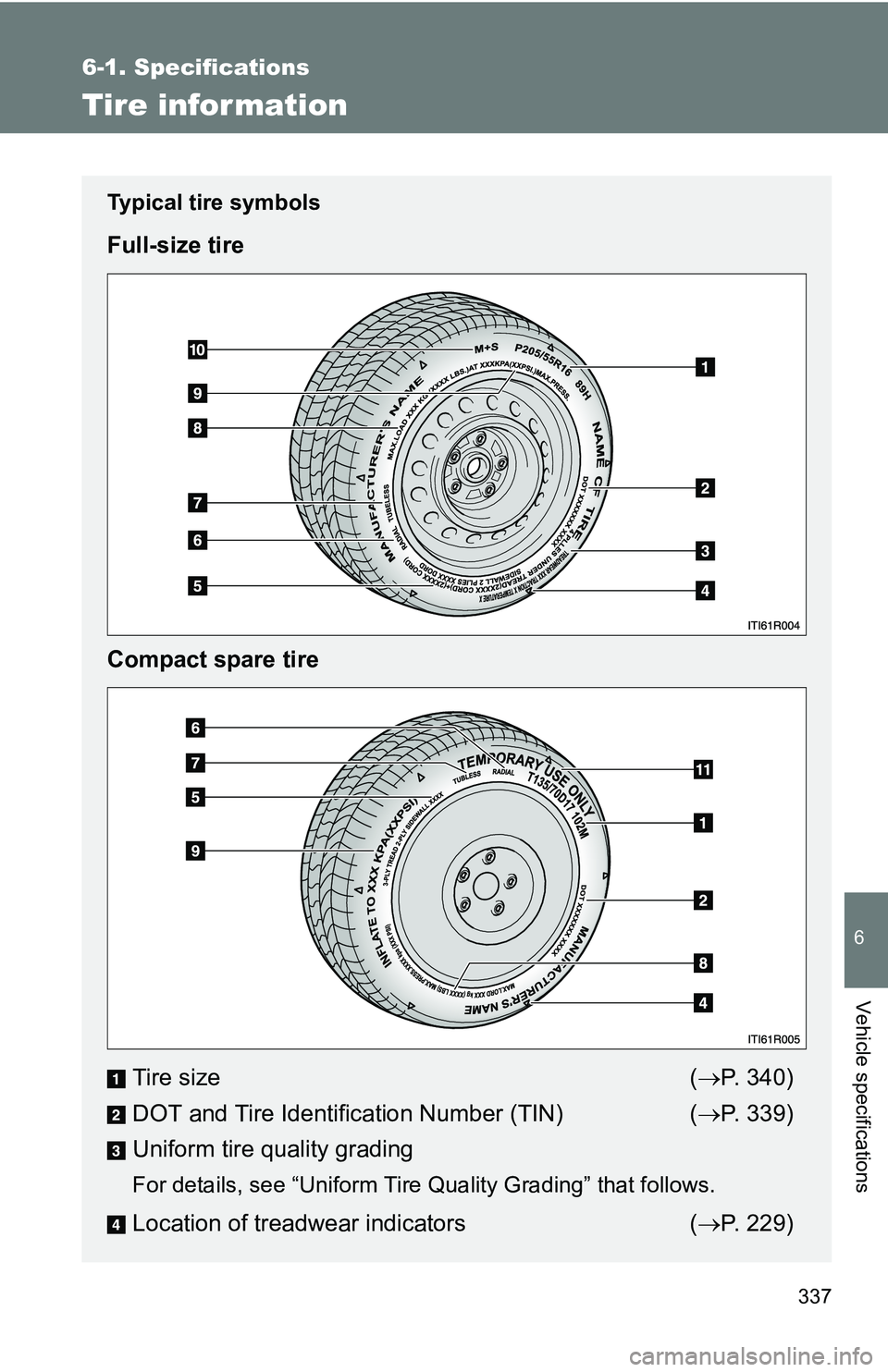

Tire infor mation
Typical tire symbols
Full-size tire
Compact spare tireTire size ( P. 340)
DOT and Tire Identification Number (TIN) ( P. 339)
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Location of treadwear indicators ( P. 229)

338 6-1. Specifications
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the
strands which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked
“RADIAL” is a bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the
tire. A tube type tire has a tube inside the tire and the tube main-
tains the air pressure.
Load limit at maximum cold tire inflation pressure
( P. 232)
Maximum cold tire in flation pressure ( P. 332)
This means the pressure to which a tire may be inflated.
Summer tires or all season tires ( P. 233)
An all season tire has “M+S” on the sidewall. A tire not marked
“M+S” is a summer tire.
“TEMPORARY USE ONLY” ( P. 303)
A compact spare tire is identified by the phrase “TEMPORARY USE
ONLY” molded on its sidewall. This tire is designed for temporary
emergency use only.

339
6-1. Specifications
6
Vehicle specifications
Typical DOT and Tire Identification Number (TIN)
DOT symbol
*
Tire Identification Number
(TIN)
Tire manufacturer’s identifica-
tion mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*: The DOT symbol certifies thatthe tire conforms to applicable
Federal Motor Vehicle Safety
Standards.

340 6-1. Specifications
Tire size■ Typical tire size information
The illustration indicates typical tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 or 3 digits)
Speed symbol
(alphabet with one letter)
■ Tire dimensions
Section width
Tire height
Wheel diameter
