2-1. Driving procedures
Tur n signal lever
■Turn signals can be operated when
The engine switch is in
the “ON” position.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intentions
of the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signal will flash
until you release the lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signal will flash
until you release the lever.

Maintenance and care4
195
4-1. Maintenance and careCleaning and protecting the vehicle exterior......... 196
Cleaning and protecting the vehicle interior.......... 199 4-2. Maintenance
Maintenance requirements .................. 202
General maintenance....... 204
Emission inspection and maintenance (I/M)
programs........................ 208
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................... 209
Hood ................................ 212
Positioning a floor jack ..... 213
Engine compartment ........ 215
Tires ................................. 229
Tire inflation pressure ...... 237
Wheels ............................. 241
Air conditioning filter......... 243
Wireless remote control battery ............................ 246
Checking and replacing fuses .............................. 248
Light bulbs........................ 258

210 4-3. Do-it-yourself maintenance
ItemsParts and tools
Engine oil levelP. 216)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 248)• Fuse with same amperage rating
as original
Light bulbs (P. 258)
• Bulb with same number and watt-
age rating as original
• Flathead screwdriver
Radiator and condenser (P. 222)
Tire inflation pressure ( P. 237)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 227)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

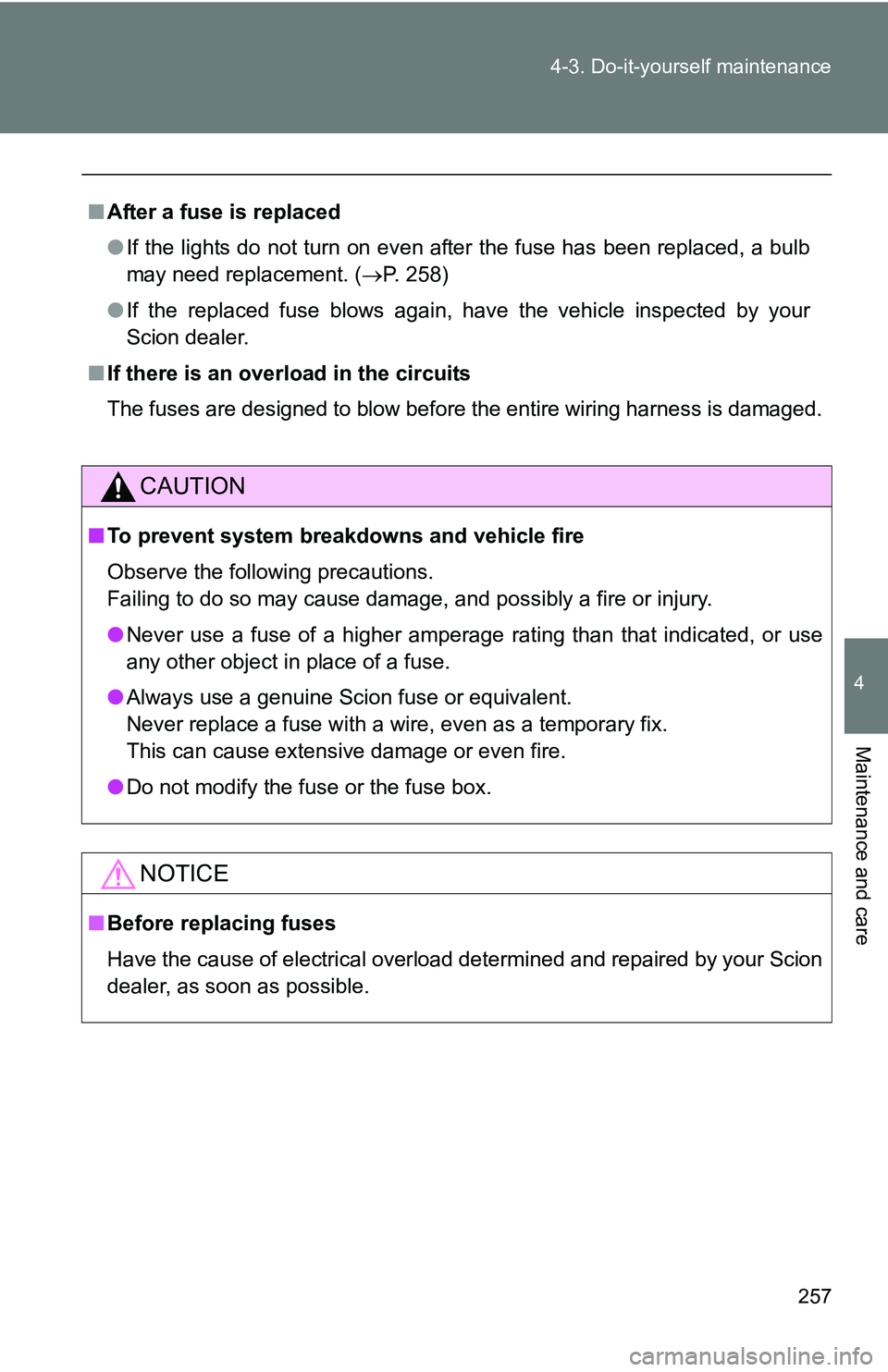

257
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 258)
● If the replaced fuse blows again, have the vehicle inspected by your
Scion dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Scion fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Scion
dealer, as soon as possible.

258
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perf orm, contact your Scion dealer.
For more information about replacing other light bulbs, contact your
Scion dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 333)
■ Front bulb locations
Parking light
Headlight high beam and
daytime running lights (if equipped)
Headlight low beam Front side
marker light
Front turn signal light

259
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Rear bulb locations
Stop/tail and rear side marker light
License plate
lights
Rear turn signal light
Back-up light

260 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlight low beams
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
STEP 1
STEP 2

261
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Headlight high beams and daytime running lights (if
equipped)
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
STEP 1
STEP 2

262 4-3. Do-it-yourself maintenance
■Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
