fuse TOYOTA xB 2011 Owners Manual (in English)

TABLE OF CONTENTSIndex
4
4-1. Maintenance and careCleaning and protecting the vehicle exterior ........... 196
Cleaning and protecting the vehicle interior ............ 199
4-2. Maintenance Maintenance requirements .................... 202
General maintenance ......... 204
Emission inspection and maintenance (I/M)
programs .......................... 208
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ...................... 209
Hood................................... 212
Positioning a floor jack ....... 213
Engine compartment .......... 215
Tires ................................... 229
Tire inflation pressure......... 237
Wheels ............................... 241
Air conditioning filter ........... 243
Wireless remote control battery .............................. 246
Checking and replacing fuses ................................ 248
Light bulbs .......................... 258 5-1. Essential information
Emergency flashers ............ 270
If your vehicle needs to be towed ....................... 271
If you think something is wrong ................................ 278
Fuel pump shut off system .............................. 279
Event data recorder ............ 280
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds .............................. 282
If you have a flat tire ........... 294
If the engine will not start .... 308
If the shift lever cannot be shifted from P (automatic
transmission) .................... 309
If you lose your keys ........... 310
If the vehicle battery is discharged ........................ 311
If your vehicle overheats..... 315
If the vehicle becomes stuck ................................. 318
If your vehicle has to be stopped
in an emergency ............... 320
4Maintenance and care5When trouble arises

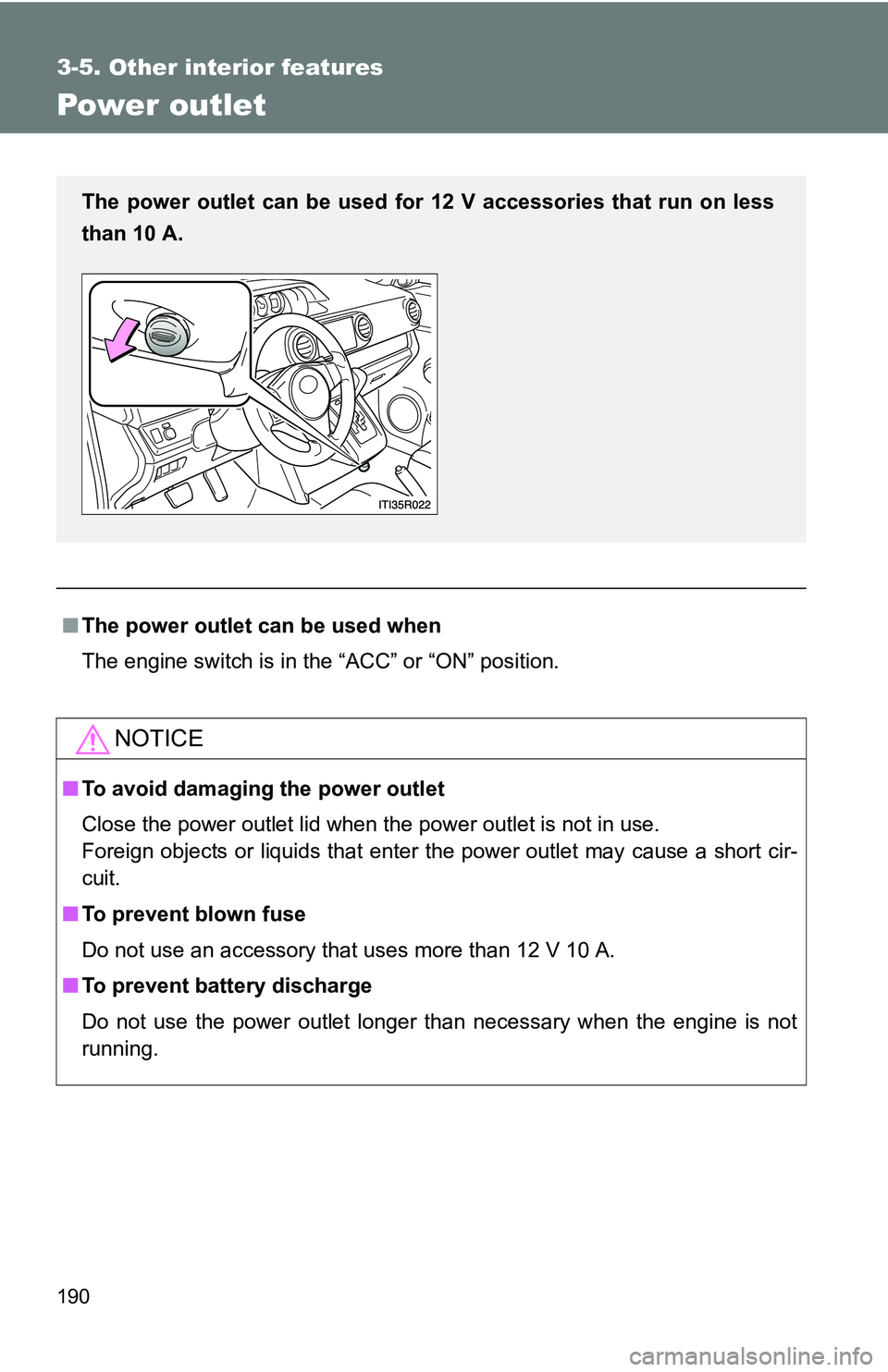

190
3-5. Other interior features
Power outlet
■The power outlet can be used when
The engine switch is in the “ACC” or “ON” position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not\
running.
The power outlet can be used for 12 V accessories that run on less
than 10 A.

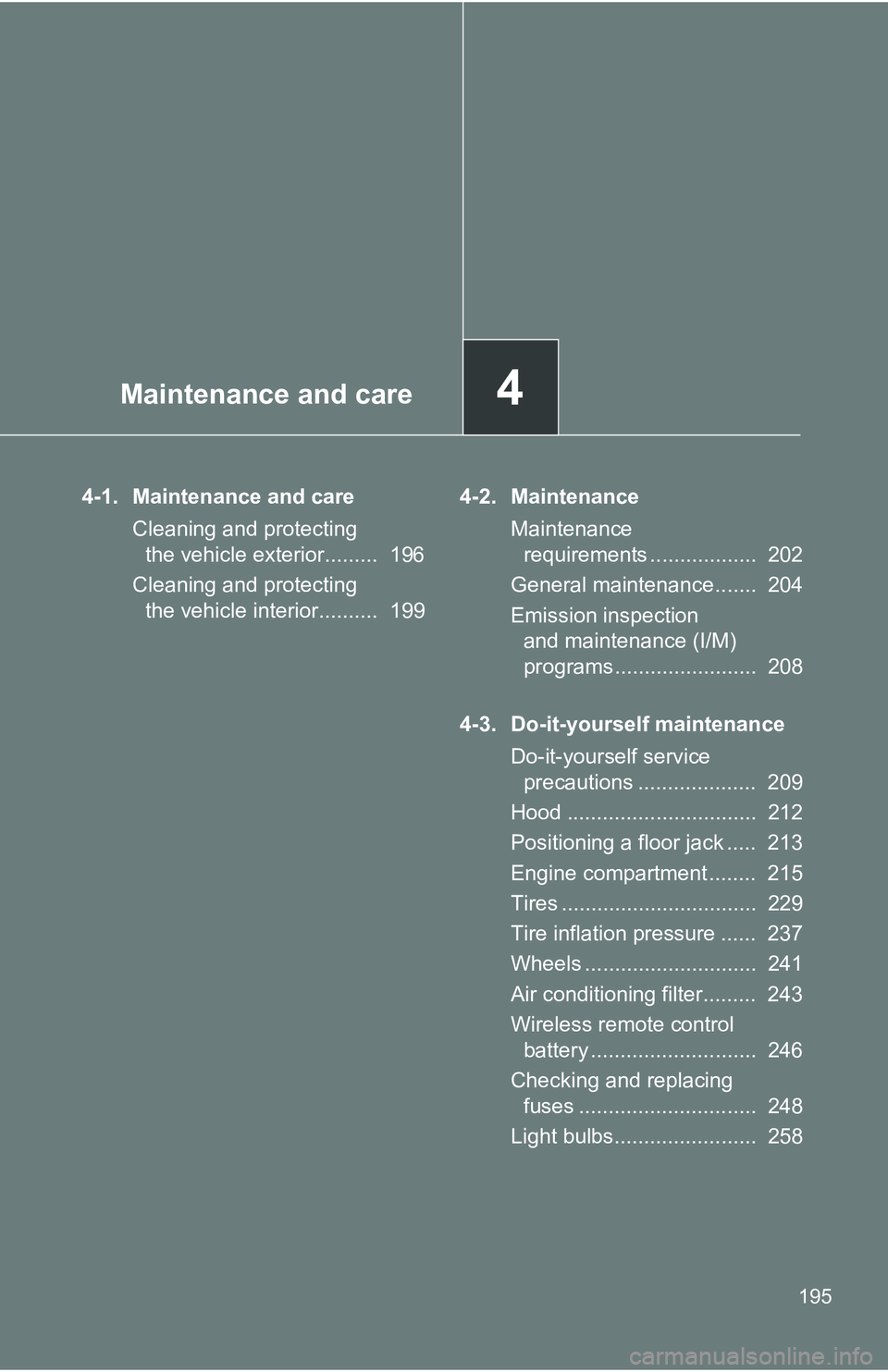

Maintenance and care4
195
4-1. Maintenance and careCleaning and protecting the vehicle exterior......... 196
Cleaning and protecting the vehicle interior.......... 199 4-2. Maintenance
Maintenance requirements .................. 202
General maintenance....... 204
Emission inspection and maintenance (I/M)
programs........................ 208
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................... 209
Hood ................................ 212
Positioning a floor jack ..... 213
Engine compartment ........ 215
Tires ................................. 229
Tire inflation pressure ...... 237
Wheels ............................. 241
Air conditioning filter......... 243
Wireless remote control battery ............................ 246
Checking and replacing fuses .............................. 248
Light bulbs........................ 258

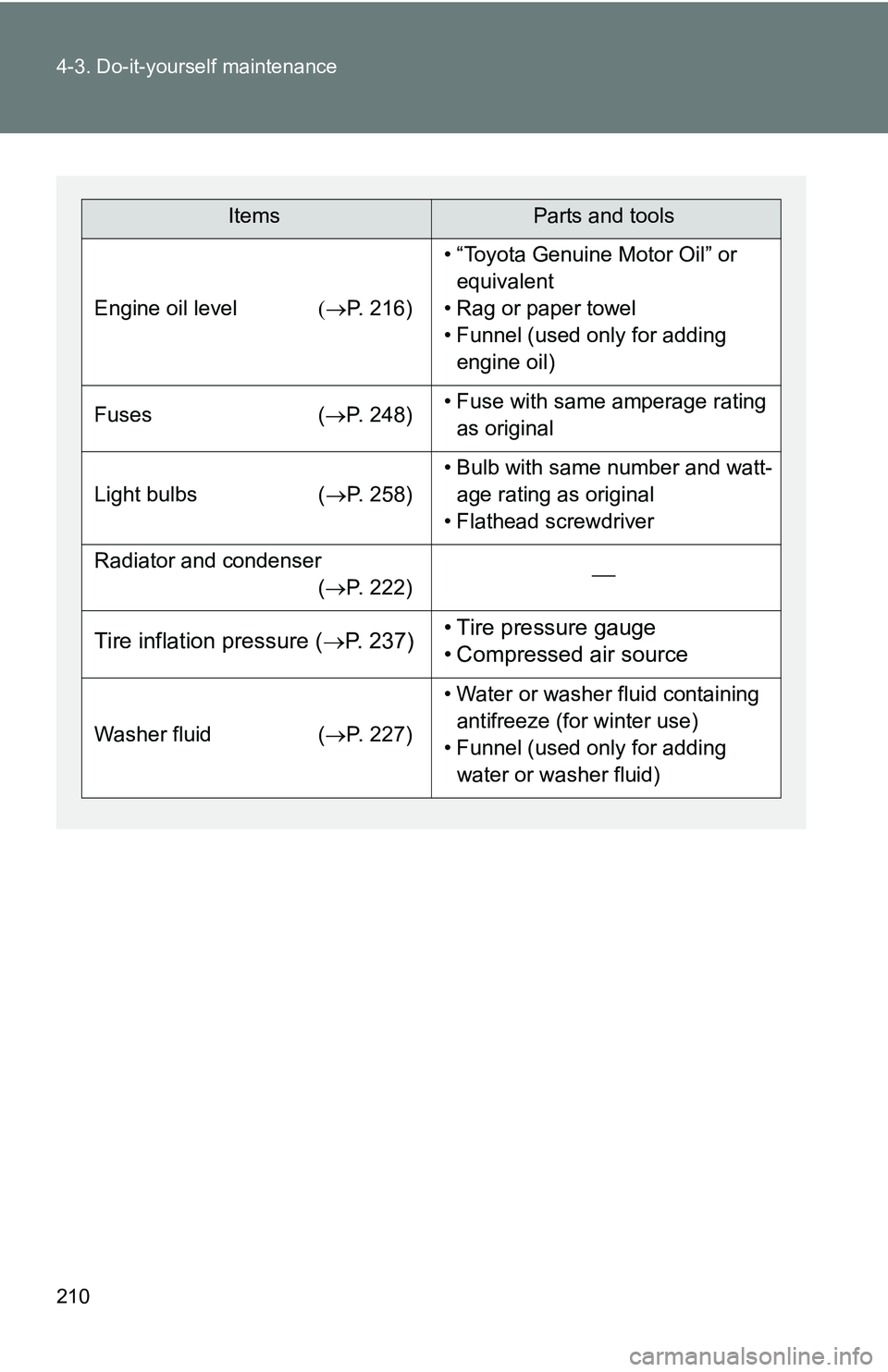

210 4-3. Do-it-yourself maintenance
ItemsParts and tools
Engine oil levelP. 216)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 248)• Fuse with same amperage rating
as original
Light bulbs (P. 258)
• Bulb with same number and watt-
age rating as original
• Flathead screwdriver
Radiator and condenser (P. 222)
Tire inflation pressure ( P. 237)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 227)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

215
4-3. Do-it-yourself maintenance
4
Maintenance and care

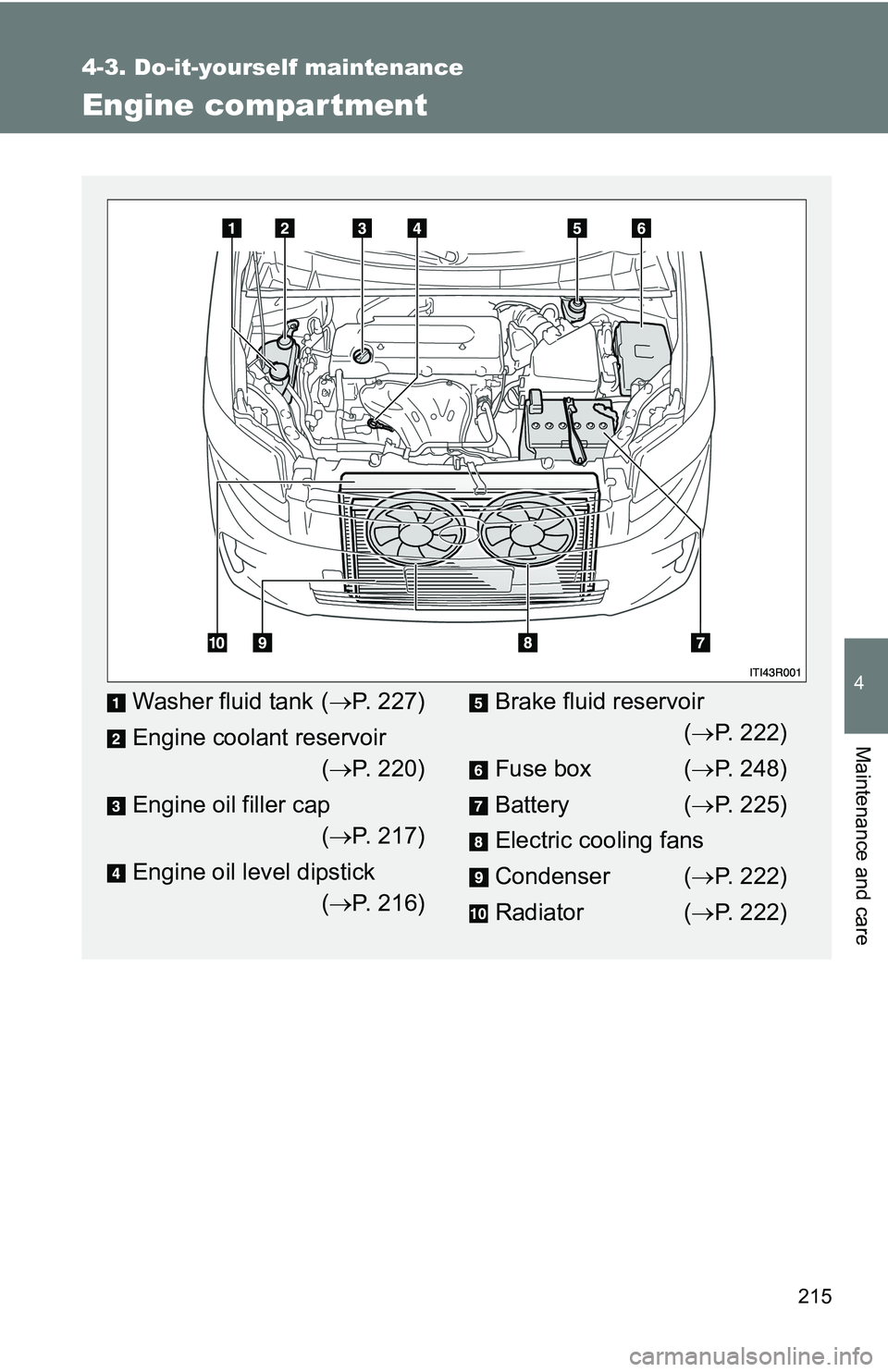

Engine compar tment
Washer fluid tank (P. 227)
Engine coolant reservoir ( P. 220)
Engine oil filler cap ( P. 217)
Engine oil level dipstick ( P. 216)Brake fluid reservoir
( P. 222)
Fuse box ( P. 248)
Battery ( P. 225)
Electric cooling fans
Condenser ( P. 222)
Radiator ( P. 222)

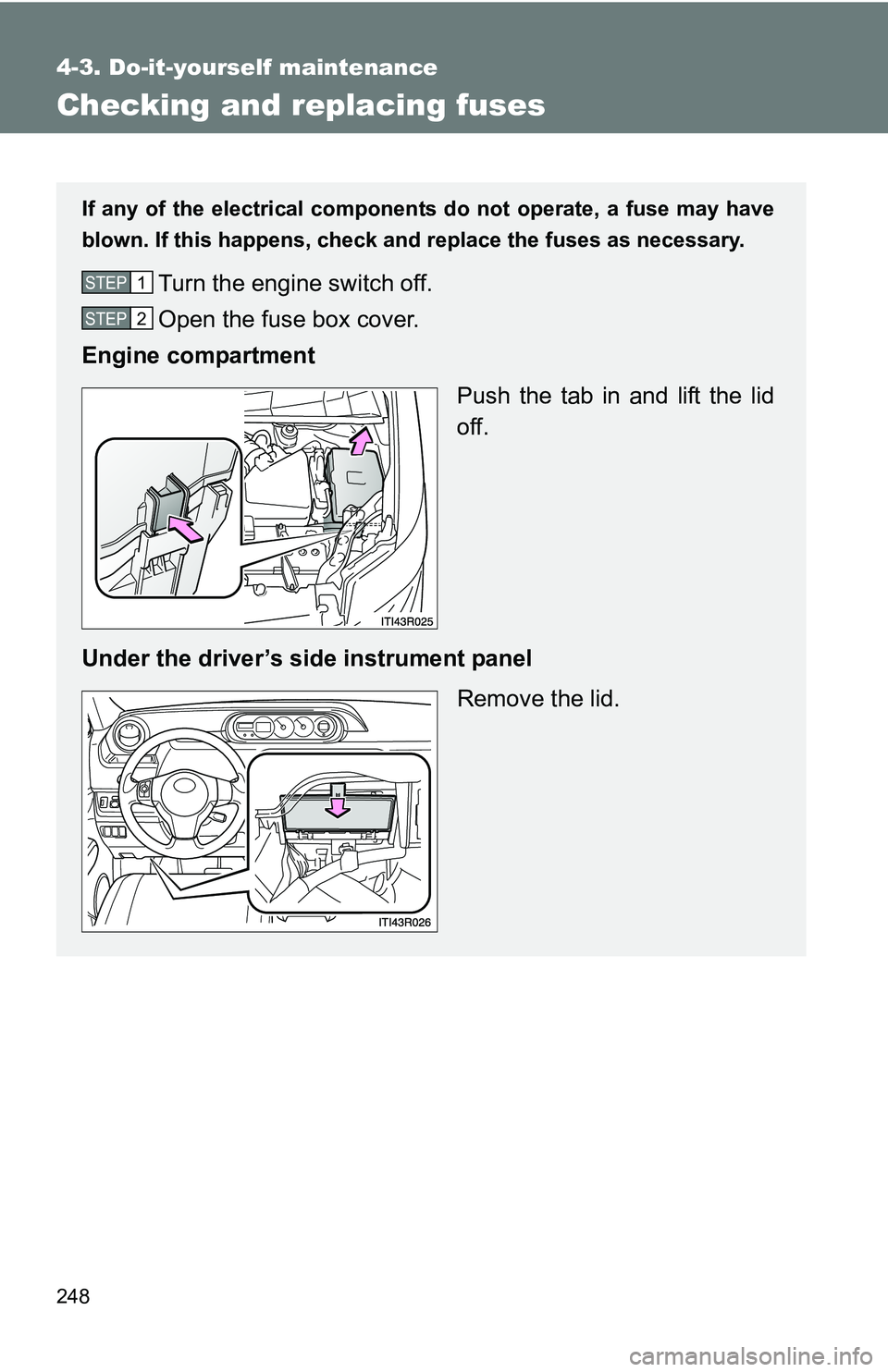

248
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel Remove the lid.STEP 1
STEP 2

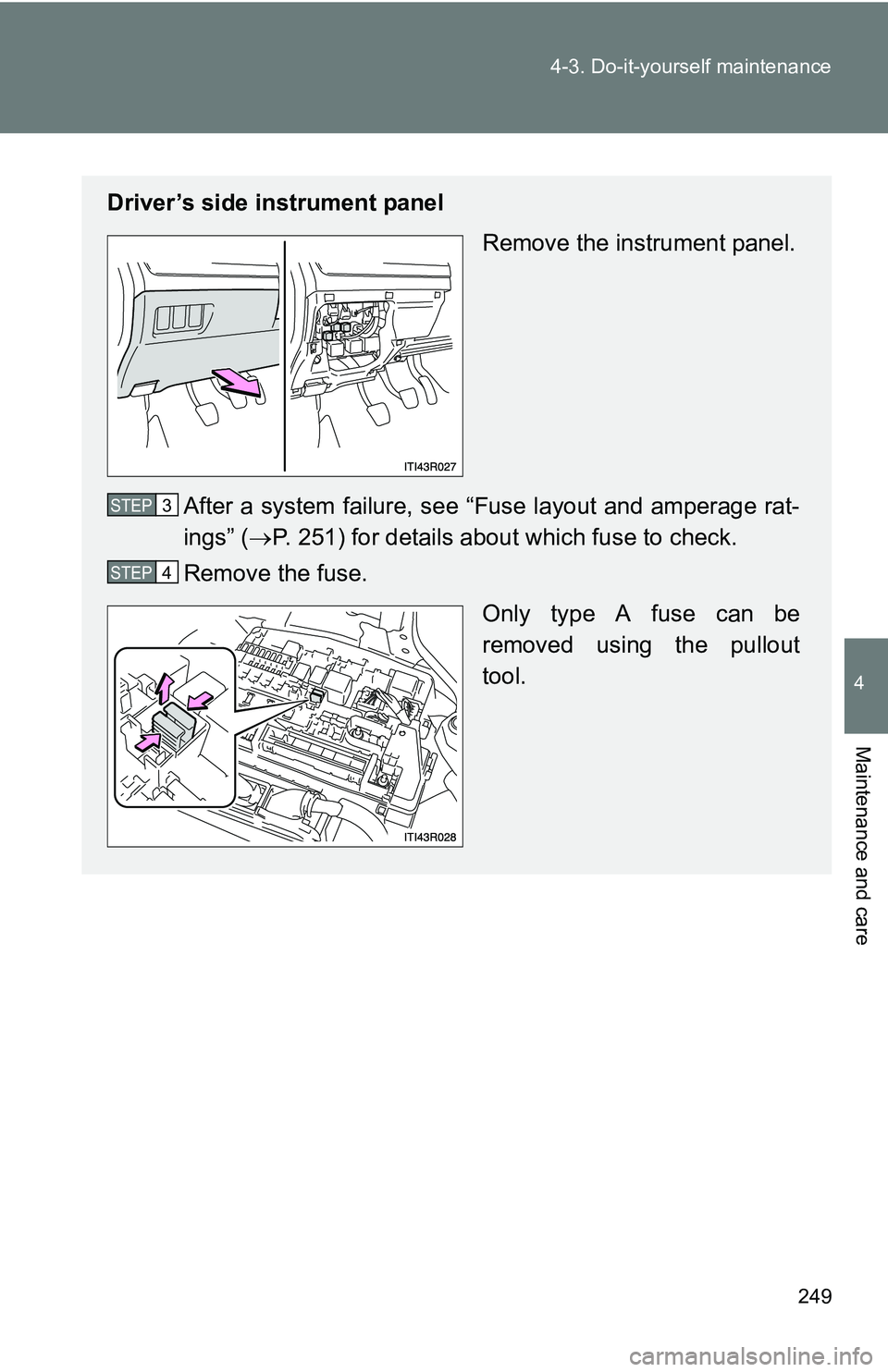

249
4-3. Do-it-yourself maintenance
4
Maintenance and care
Driver’s side instrument panel
Remove the instrument panel.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 251) for details about which fuse to check.
Remove the fuse.
Only type A fuse can be
removed using the pullout
tool.
STEP 3
STEP 4

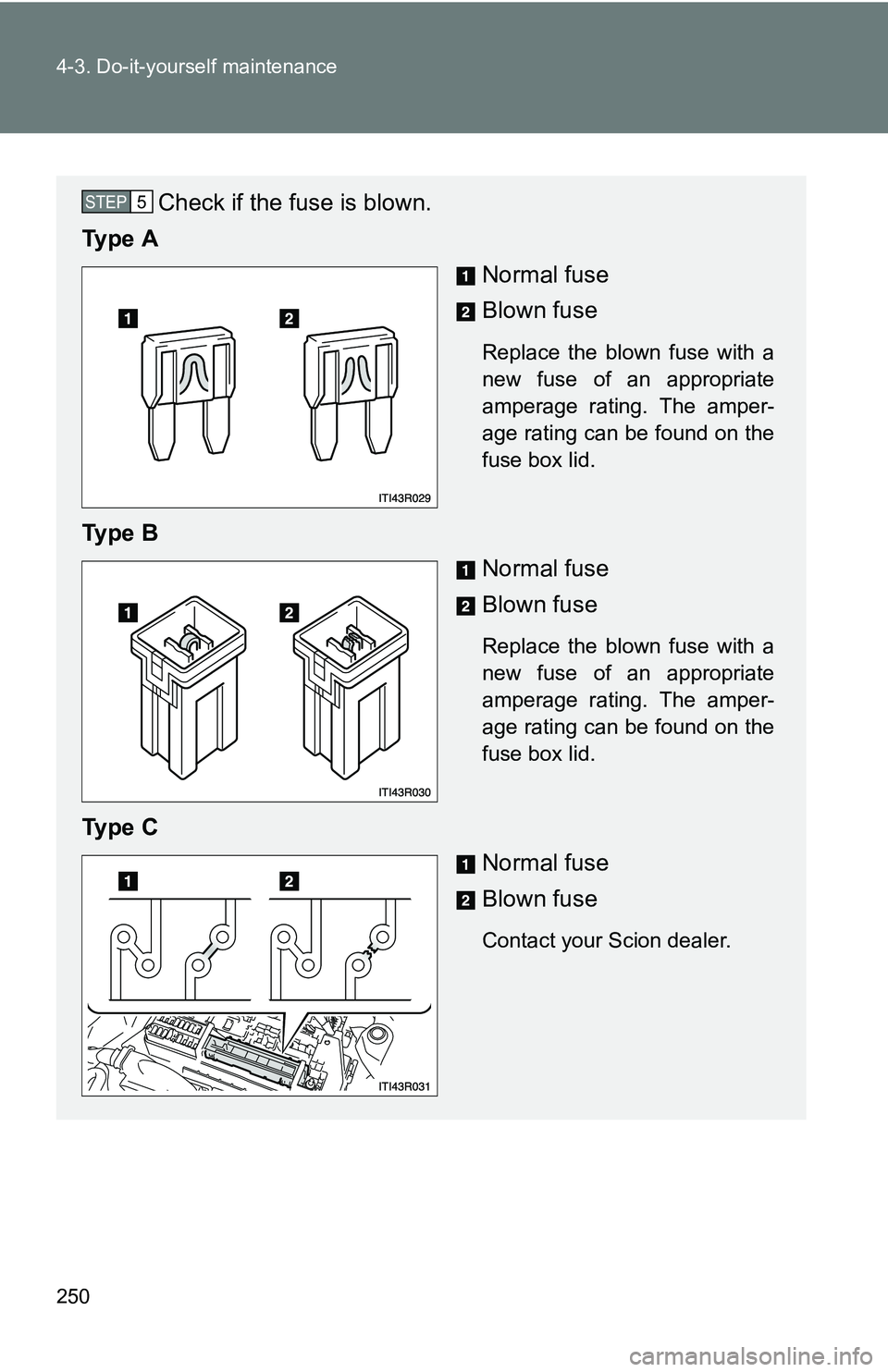

250 4-3. Do-it-yourself maintenance
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Scion dealer.
STEP 5

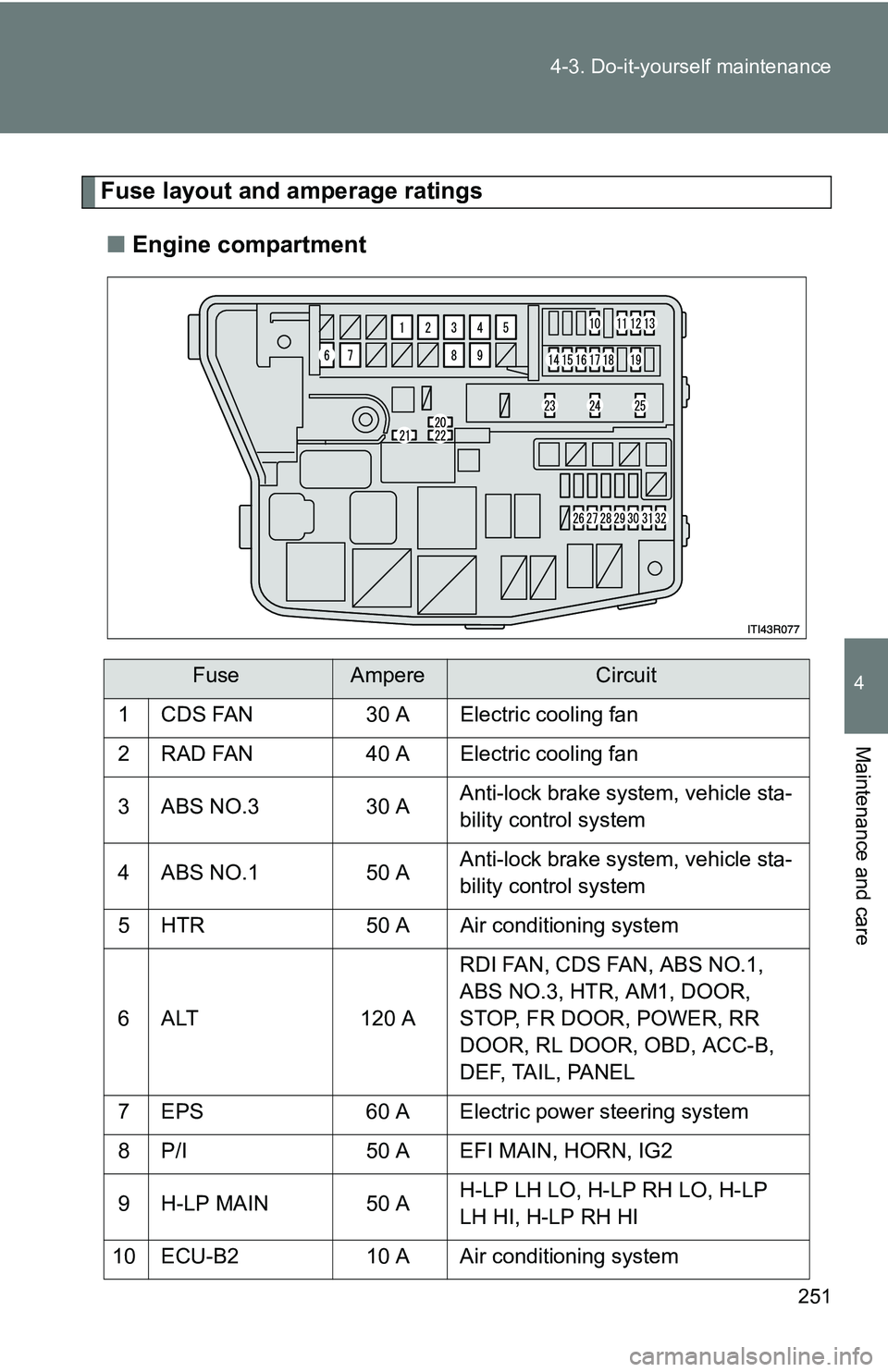

251
4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings
■ Engine compartment
FuseAmpereCircuit
1 CDS FAN 30 A Electric cooling fan
2 RAD FAN 40 A Electric cooling fan
3 ABS NO.3 30 A Anti-lock brake system, vehicle sta-
bility control system
4 ABS NO.1 50 A Anti-lock brake system, vehicle sta-
bility control system
5 HTR 50 A Air conditioning system
6 ALT 120 A RDI FAN, CDS FAN, ABS NO.1,
ABS NO.3, HTR, AM1, DOOR,
STOP, FR DOOR, POWER, RR
DOOR, RL DOOR, OBD, ACC-B,
DEF, TAIL, PANEL
7 EPS 60 A Electric power steering system
8 P/I 50 A EFI MAIN, HORN, IG2
9 H-LP MAIN 50 A H-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
10 ECU-B2 10 A Air conditioning system

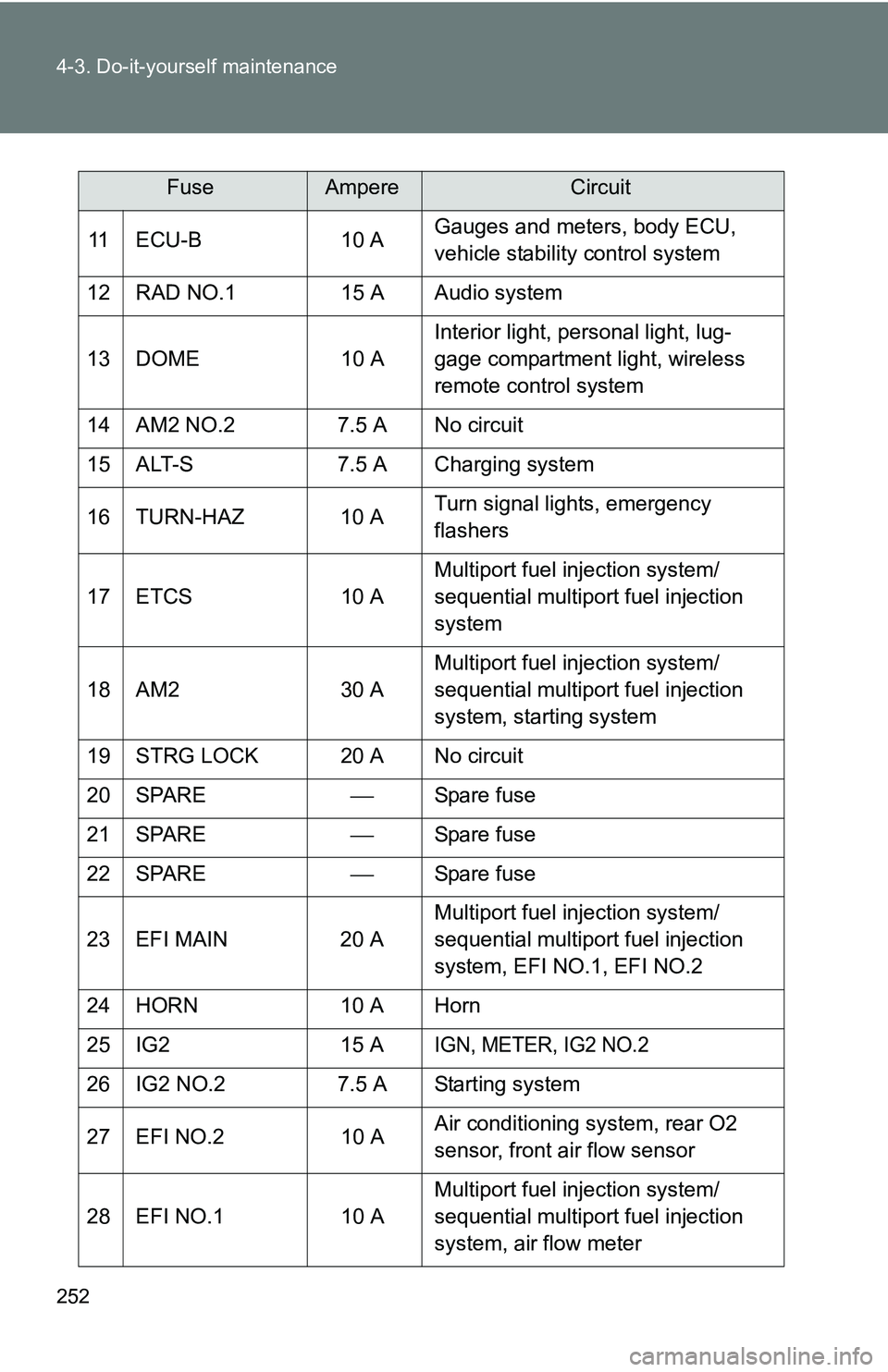

252 4-3. Do-it-yourself maintenance
11 ECU-B10 AGauges and meters, body ECU,
vehicle stability control system
12 RAD NO.1 15 A Audio system
13 DOME 10 AInterior light, personal light, lug-
gage compartment light, wireless
remote control system
14 AM2 NO.2 7.5 A No circuit
15 ALT-S 7.5 A Charging system
16 TURN-HAZ 10 A Turn signal lights, emergency
flashers
17 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
18 AM2 30 AMultiport fuel injection system/
sequential multiport fuel injection
system, starting system
19 STRG LOCK 20 A No circuit
20 SPARE Spare fuse
21 SPARE Spare fuse
22 SPARE Spare fuse
23 EFI MAIN 20 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
24 HORN 10 A Horn
25 IG2 15 A
IGN, METER, IG2 NO.2
26 IG2 NO.27.5 A Starting system
27 EFI NO.2 10 AAir conditioning system, rear O2
sensor, front air flow sensor
28 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, air flow meter
FuseAmpereCircuit
