153
2-5. Driving information
2
When driving
Capacity and distribution
Cargo capacity depends on the total weight of the occupants.
(Cargo capacity) = (Total load capacity) - (Total weight of occupants)
Steps for Determining Correct Load Limit 
(1) Locate the statement “The co mbined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your vehi-
cle’s placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity.
For example, if the “XXX” amount equals 1400 lbs. and there will
be five 150 lb passengers in your vehicle, the amount of avail-
able cargo and luggage load capacity is 650 lbs. (1400 - 750 (5 
150) = 650 lbs.)
(5) Determine the combined wei ght of luggage and cargo being
loaded on the vehicle. That weig ht may not safely exceed the
available cargo and luggage load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Cons ult this manual to determine how
this reduces the available ca rgo and luggage load capacity of
your vehicle. ( P. 163)
Scion does not recommend towing a trailer with your vehicle. Your vehi-
cle is not designed for trailer towing.

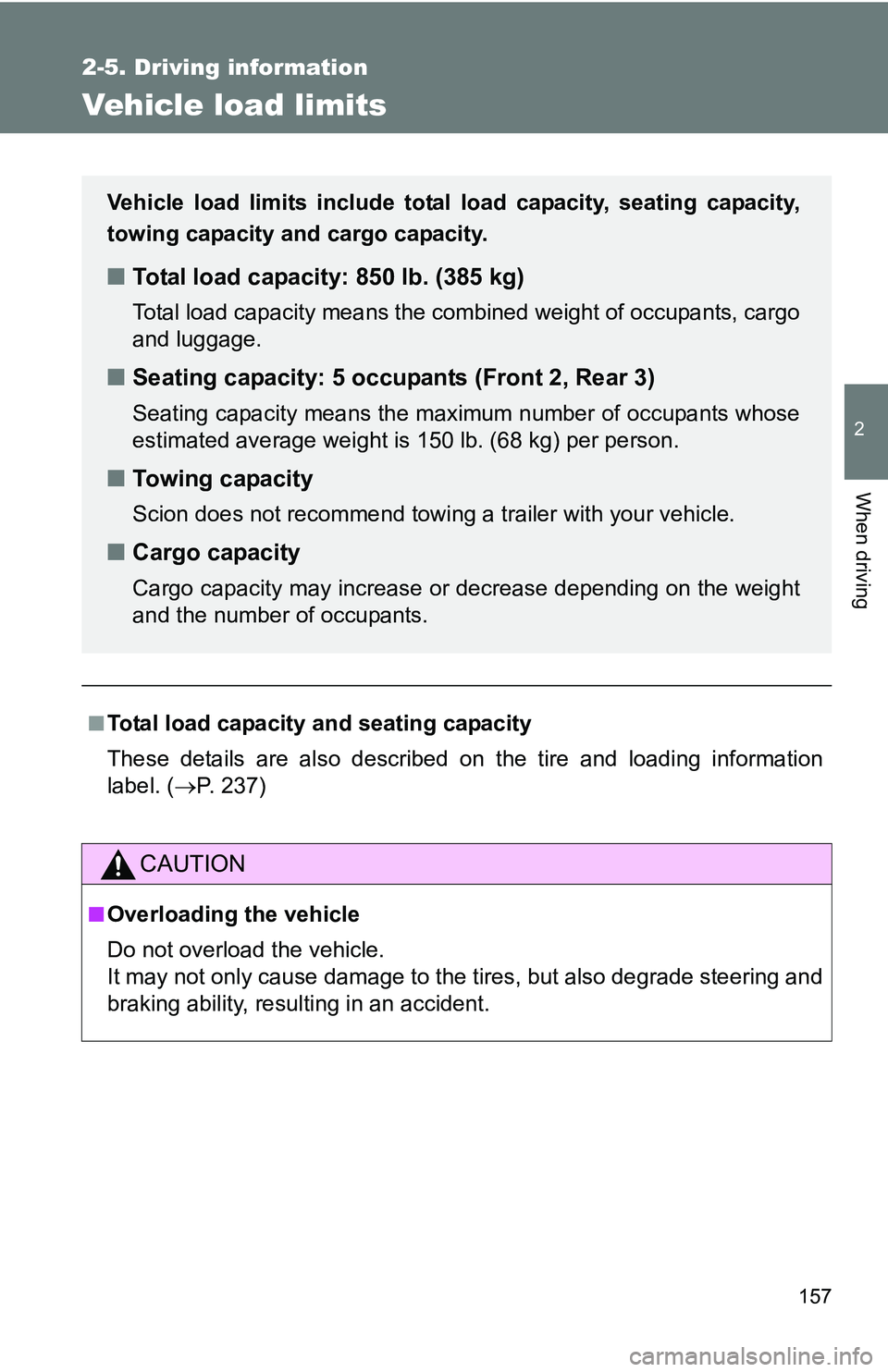

157
2-5. Driving information
2
When driving
Vehicle load limits
■Total load capacity and seating capacity
These details are also described on the tire and loading information
label. (P. 237)
CAUTION
■Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the ti res, but also degrade steering and
braking ability, resulting in an accident.
Vehicle load limits include total load capacity, seating capacity,
towing capacity and cargo capacity.
■ Total load capacity: 850 lb. (385 kg)
Total load capacity means the combined weight of occupants, cargo
and luggage.
■Seating capacity: 5 occupants (Front 2, Rear 3)
Seating capacity means the maxi mum number of occupants whose
estimated average weight is 150 lb. (68 kg) per person.
■ Towing capacity
Scion does not recommend towing a trailer with your vehicle.
■Cargo capacity
Cargo capacity may increase or decrease depending on the weight
and the number of occupants.

362 Alphabetical index
CareExterior .................................. 196
Interior ................................... 199
Seat belts .............................. 200
Cargo capacity ......................... 152
Cargo hooks ............................. 193
Chains ....................................... 158
Child restraint system
Booster seats, definition ..........86
Booster seats, installation .......91
Convertible seats, definition ...............................86
Convertible seats, installation .............................91
Front passenger occupant classification system .............80
Infant seats, definition .............86
Infant seats, installation...........91
Installing CRS with lower anchorages ...........................92
Installing CRS with seat belts ..............................94
Installing CRS with top
straps ....................................98
Child safety Airbag precautions ..................75
Battery precautions ....... 226, 313
Child restraint syst em..............86
Child-protectors .......................30
How your child should wear
the seat belt ..........................49
Installing child restraints ..........91
Power window lock switch.......57
Power window precautions .....58
Removed key battery
precautions ......................... 247
Seat belt extender precautions ...........................51
Seat belt precautions ..............50 Child-protectors ......................... 30
Cleaning
Exterior.................................. 196
Interior ................................... 199
Seat belts .............................. 200
Clock ......................................... 188
Condenser ................................ 222
Console box ............................. 181
Cooling system Engine overheating ............... 315
Cruise control .......................... 143
Cup holders .............................. 182
Curtain shield airbags ............... 68
Customizable features ............ 350
Daytime running light
system .................................... 139
Defogger Rear window ......................... 174
Side mirrors........................... 174
Dimension ................................ 324
Dinghy towing ................... 164,165
Display Multi-information display ....... 135
Do-it-yourself maintenance .... 209
Doors
Back door ................................ 35
Door glasses ........................... 57
Door lock ........................... 24, 29
Side doors ............................... 29
Side mirrors............................. 55
Driver’s seat belt reminder light ......................................... 285
Driving
Correct posture ....................... 66
Procedures............................ 104C
D

367
Alphabetical index
Tires
Chains .................................. 158
Checking .............................. 229
Compact spare tire ............... 295
If you have a flat tire ............. 294
Inflation pressure .................. 237
Inflation pressure sensor ...... 230
Information ........................... 337
Replacing ............................. 294
Rotating tires ........................ 229
Size ...................................... 332
Snow tires............................. 158
Spare tire .............................. 294
Tire pressure warning
system................................ 229
Tools......................................... 294
Total load capacity .................. 157
Towing Dinghy towing ............... 164, 165
Emergency towing ................ 272
Trailer towing ........................ 163
TRAC ........................................ 147
Traction control ....................... 147
Trailer towing........................... 163
Transmission shift switches................................. 123
Turn signal lights Replacing light bulbs ............ 258
Switch ................................... 126
Wattage ................................ 333
Valet key..................................... 22
Vanity mirrors .......................... 187
Vehicle identification number................................... 324
Vehicle stability control .......... 147
VSC ........................................... 147
Warning buzzers Brake system........................ 282
Seat belt reminder ................ 285 Warning lights
Anti-lock brake system ..........284
Brake assist system ..............284
Brake system ........................282
Charging system .... ...............283
Electric power steering system warning light........................284
Electronic engine control
system ................................284
High coolant temperature ......283
Low engine oil pressure ........283
Low fuel level ........................285
Low tire pressure...................286
Low washer fluid ...................285
Malfunction indicator lamp ....284
Open door .............................285
Pretensioners ........................284
Seat belt reminder light .........285
SRS airbags ..........................284
Tire pressure warning light ....286
Washer Checking ...............................227
Preparing and checking before winter .......................158
Switch....................................140
Washing and waxing ...............196
Weight
Cargo capacity ......................152
Load limits .............................157
Weight ...................................324
Wheels ......................................241
Window glasses ........................57
Window lock switch ...................57
Windows Power windows .......................57
Rear window defogger ..........174
Washer ..................................140
Windshield wipers ...................140
Wireless remote control key
Locking/Unlocking ...................24
Replacing the battery ............246
Wireless remote control key ....24
V
W
