6-1. Specifications
6
Vehicle specifications

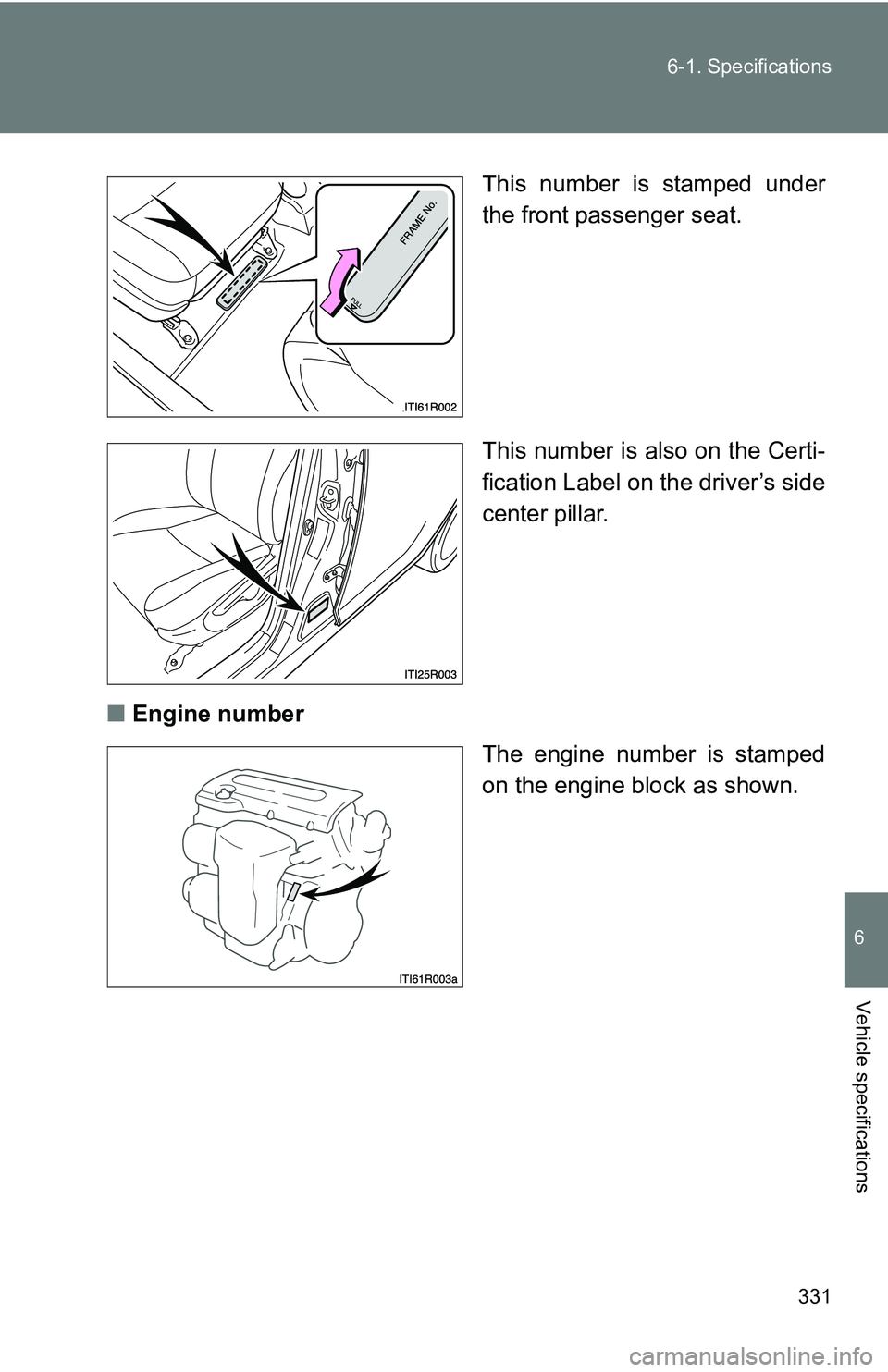

This number is stamped under
the front passenger seat.
This number is also on the Certi-
fication Label on the driver’s side
center pillar.
■ Engine number
The engine number is stamped
on the engine block as shown.

332 6-1. Specifications

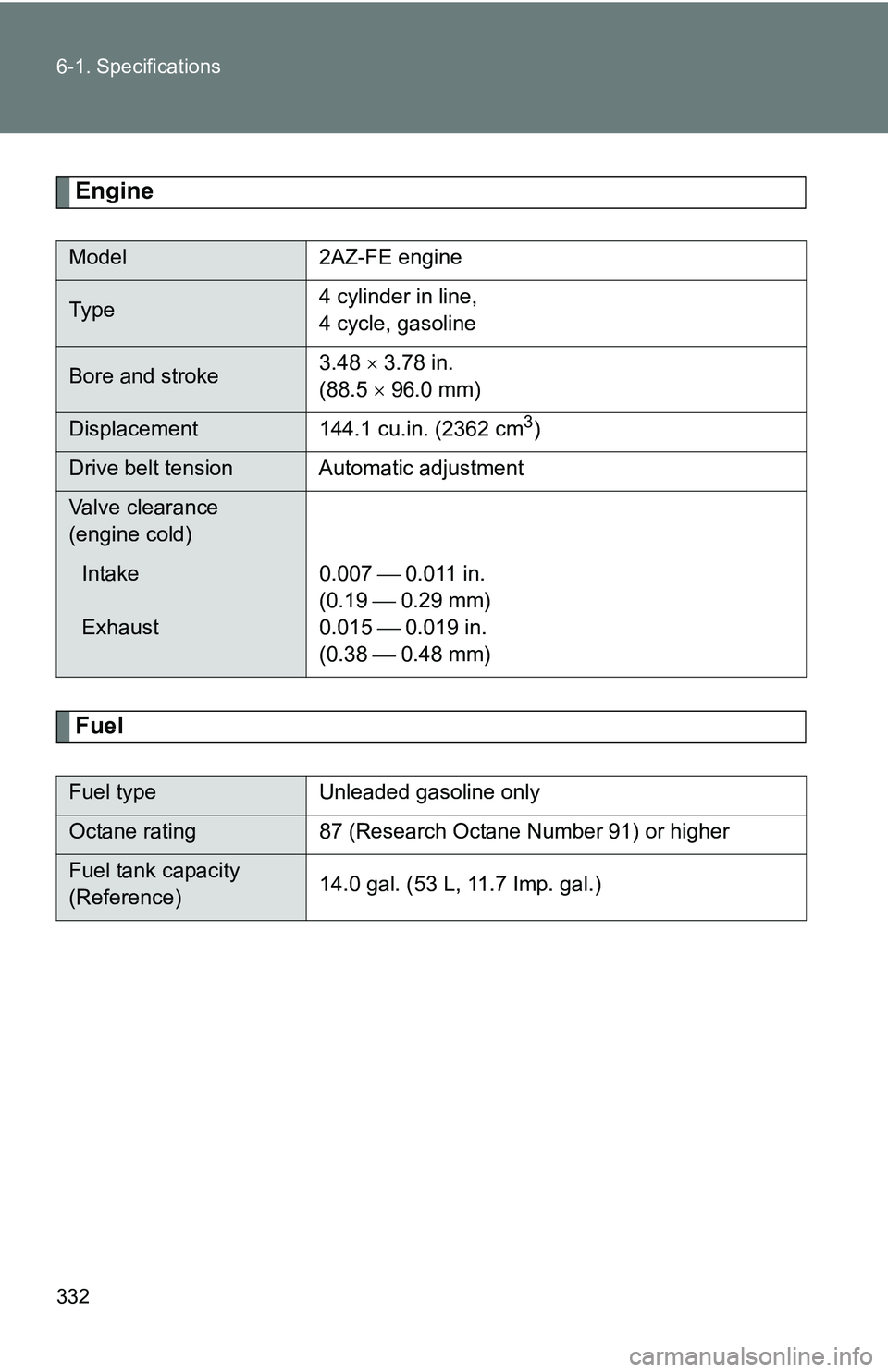

Engine
Fuel
Model2AZ-FE engine
Ty pe 4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.48 
3.78 in.
(88.5  96.0 mm)
Displacement 144.1 cu.in. (2362 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
Intake
Exhaust0.007  0.011 in.
(0.19 
0.29 mm)
0.015  0.019 in.
(0.38  0.48 mm)
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference) 14.0 gal. (53 L, 11.7 Imp. gal.)

333
6-1. Specifications
6
Vehicle specifications

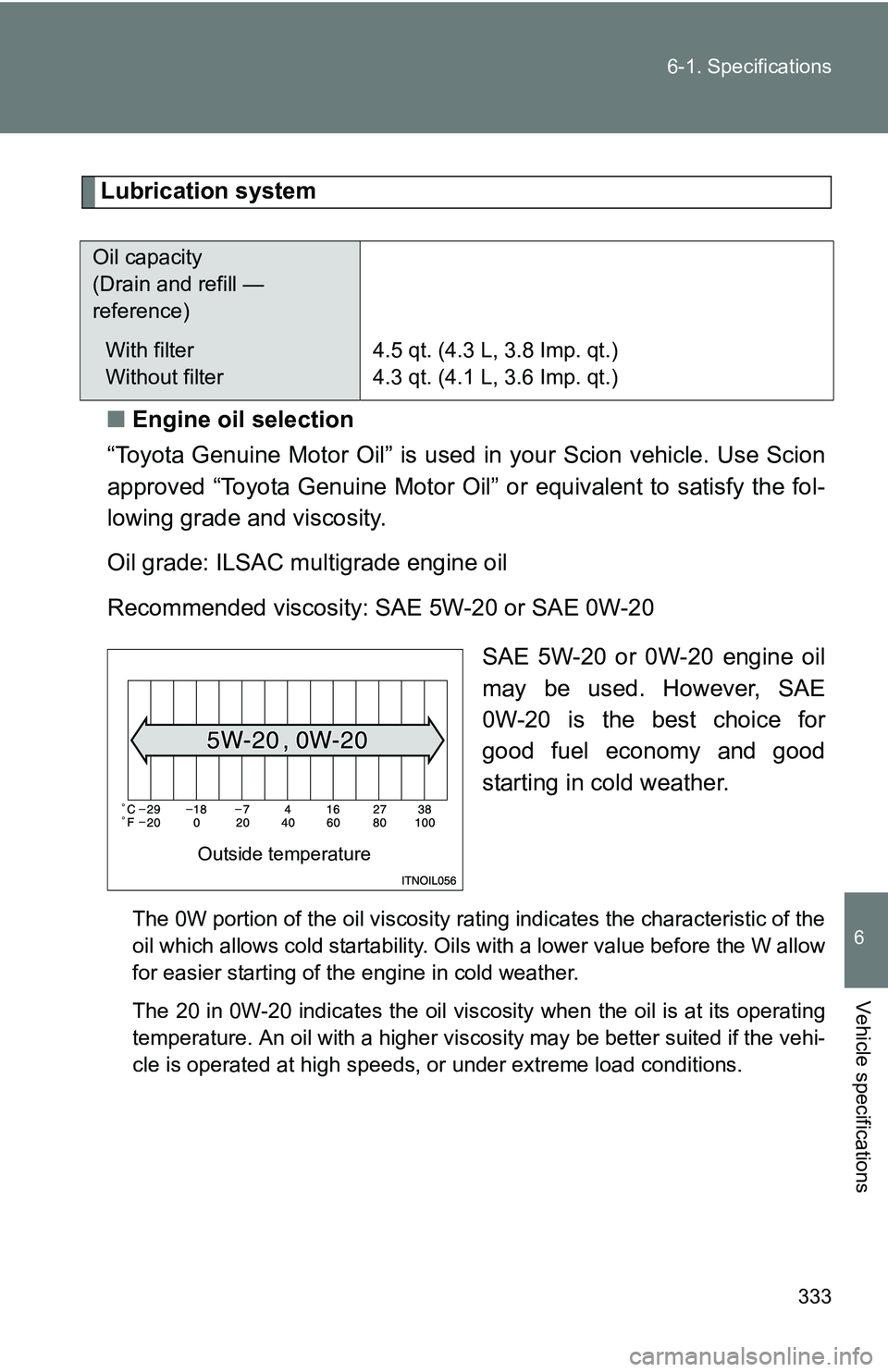

Lubrication system
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-20 or SAE 0W-20
SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.
Oil capacity
(Drain and refill —
reference)
With filter
Without filter4.5 qt. (4.3 L, 3.8 Imp. qt.)
4.3 qt. (4.1 L, 3.6 Imp. qt.)
Outside temperature

334 6-1. Specifications

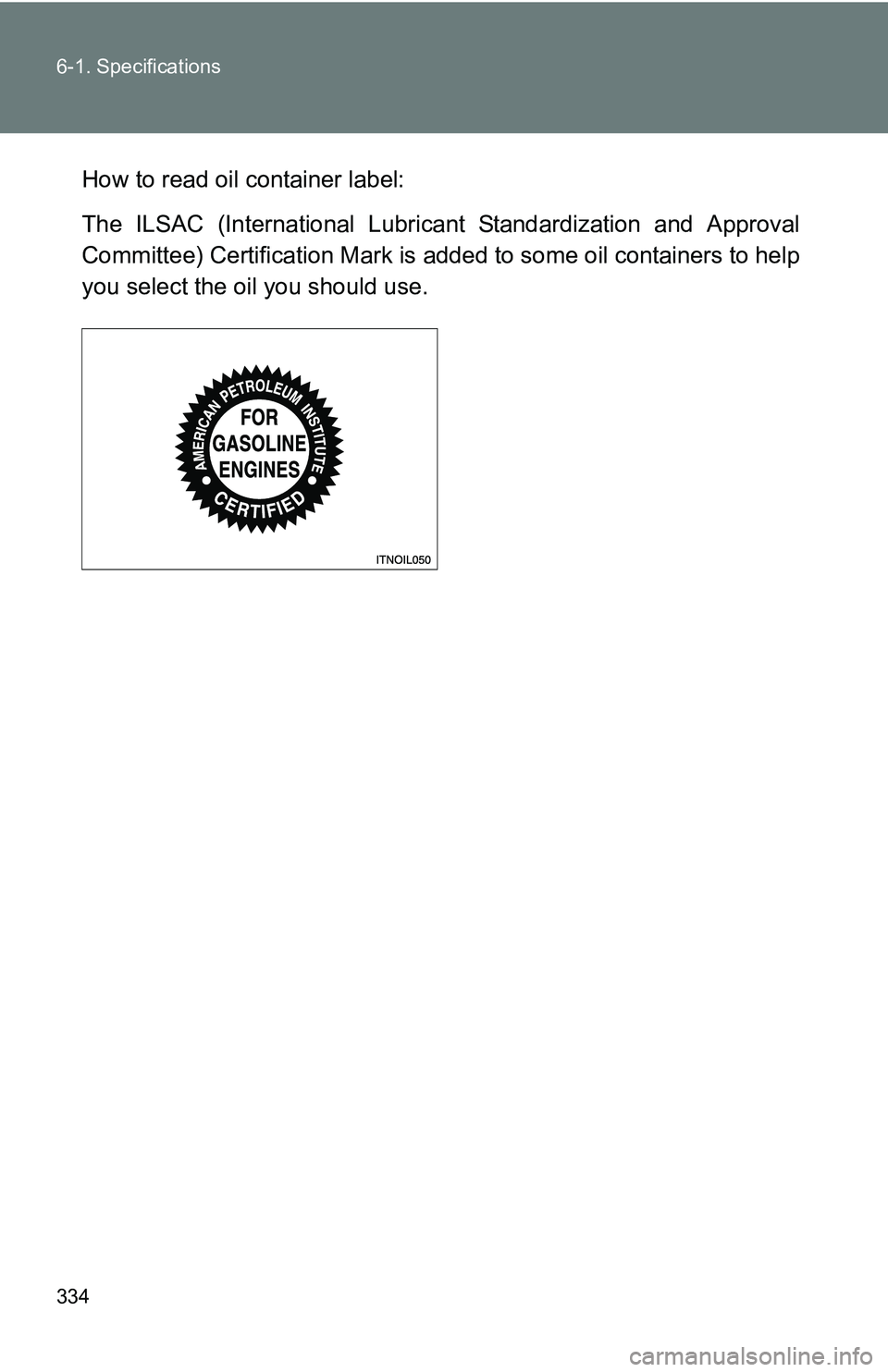

How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.

335
6-1. Specifications
6
Vehicle specifications

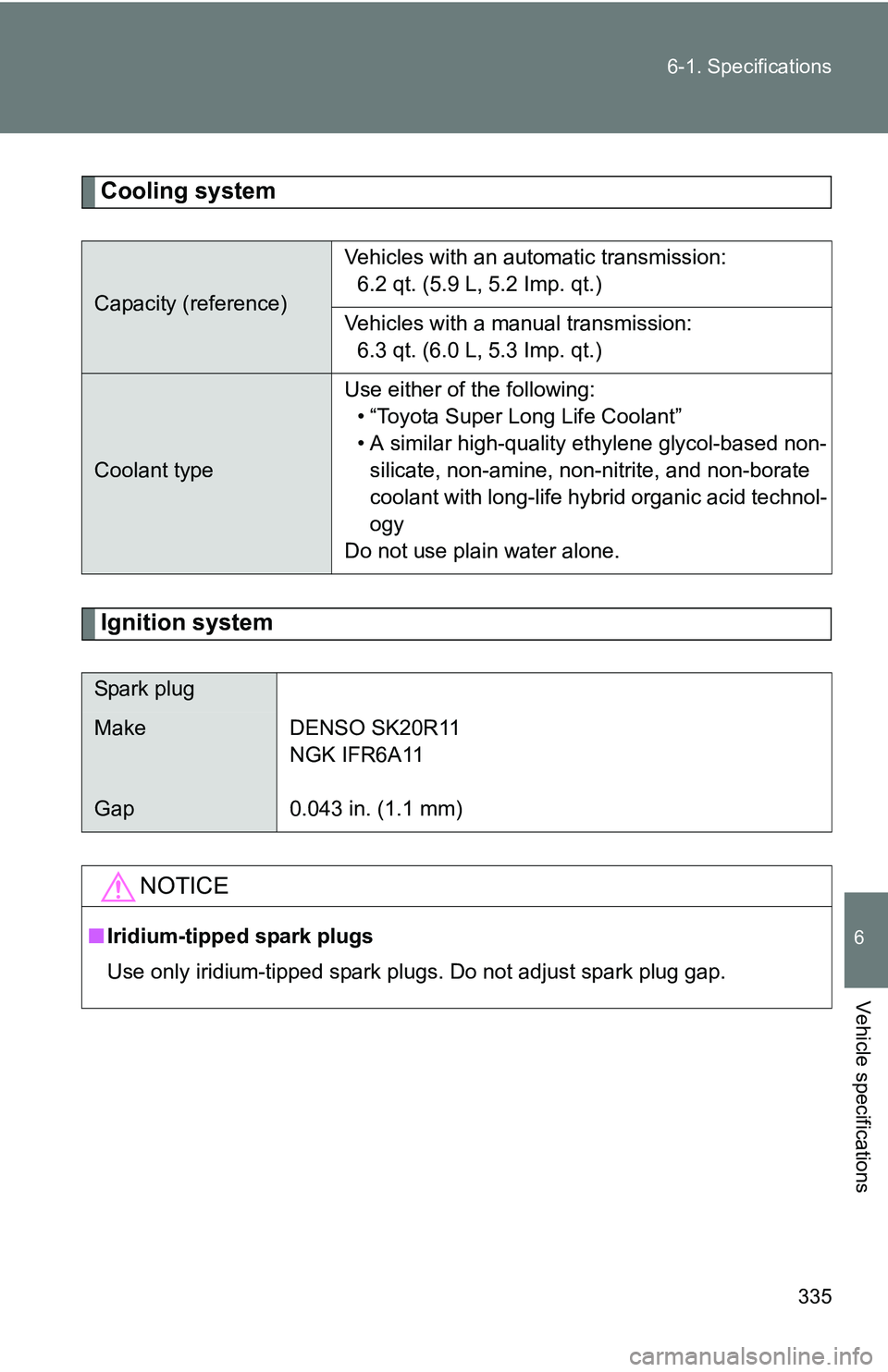

Cooling system
Ignition system
Capacity (reference)
Vehicles with an automatic transmission:
6.2 qt. (5.9 L, 5.2 Imp. qt.)
Vehicles with a manual transmission: 6.3 qt. (6.0 L, 5.3 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non- silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
Gap DENSO SK20R11
NGK IFR6A11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

336 6-1. Specifications

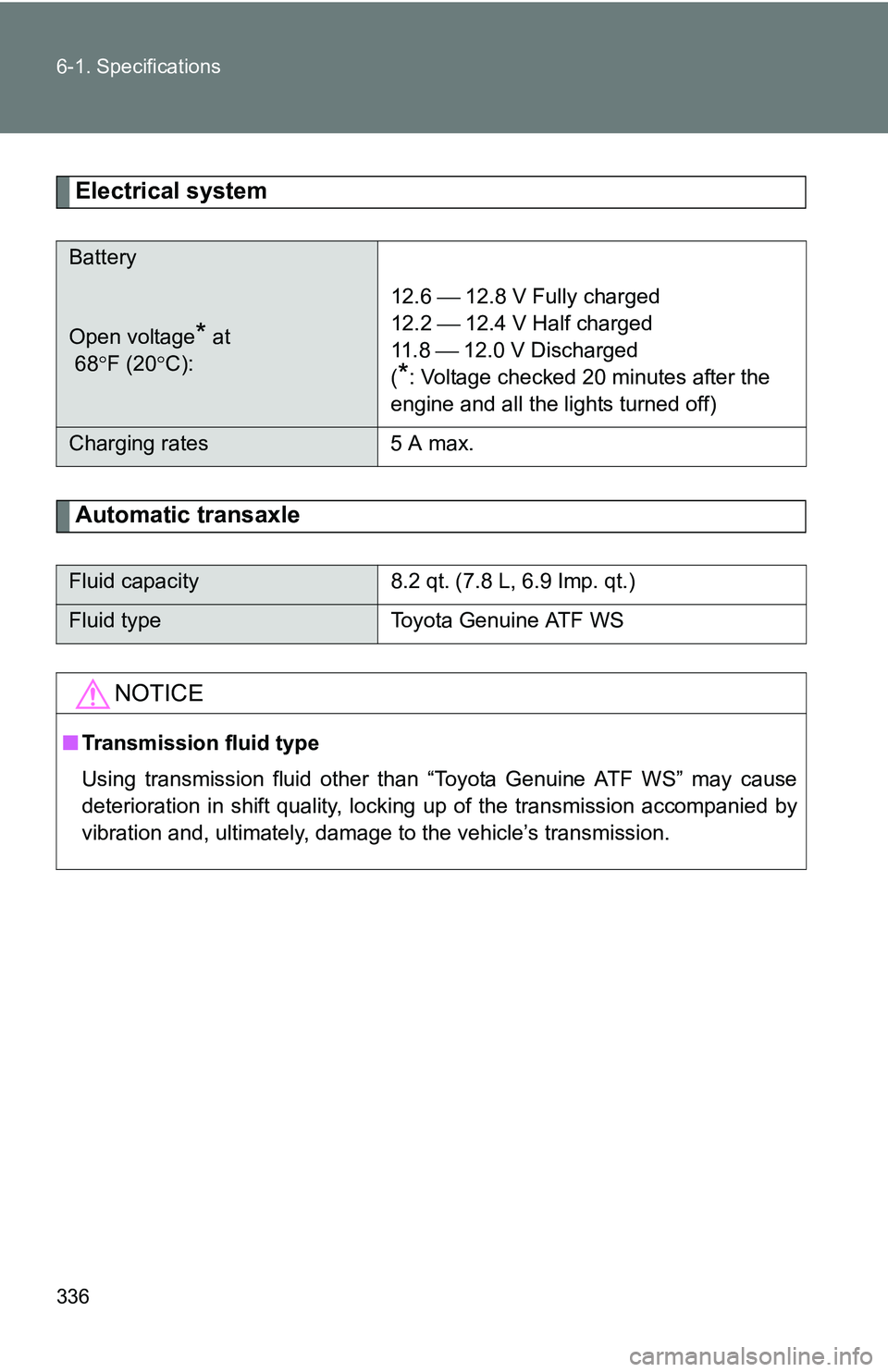

Electrical system
Automatic transaxle
Battery
Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Fluid capacity 8.2 qt. (7.8 L, 6.9 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.

337
6-1. Specifications
6
Vehicle specifications

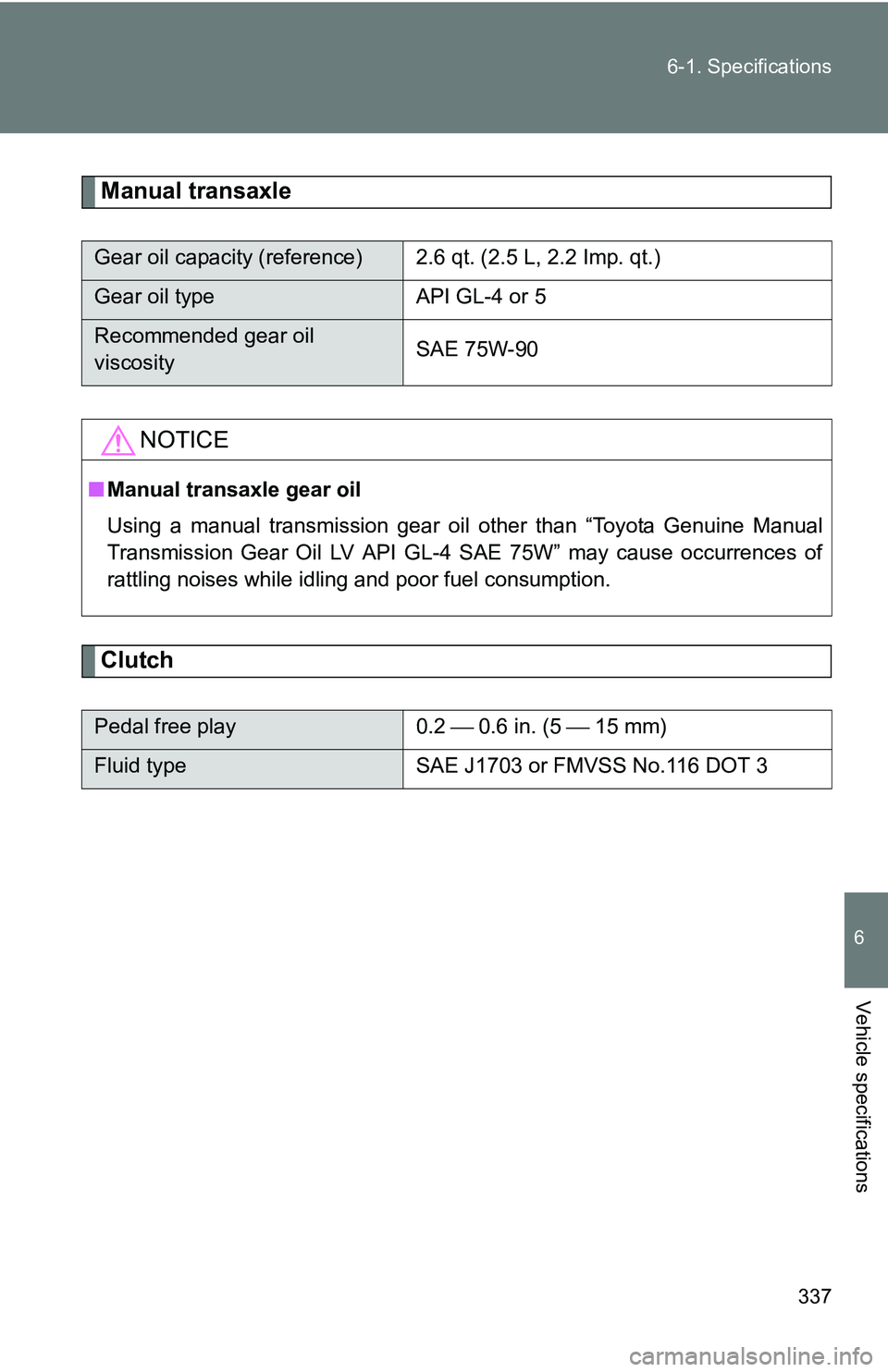

Manual transaxle
Clutch
Gear oil capacity (reference) 2.6 qt. (2.5 L, 2.2 Imp. qt.)
Gear oil type
API GL-4 or 5
Recommended gear oil
viscosity SAE 75W-90
NOTICE
■
Manual transaxle gear oil
Using a manual transmission gear oil other than “Toyota Genuine Manual
Transmission Gear Oil LV API GL-4 SAE 75W” may cause occurrences of
rattling noises while idling and poor fuel consumption.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

338 6-1. Specifications

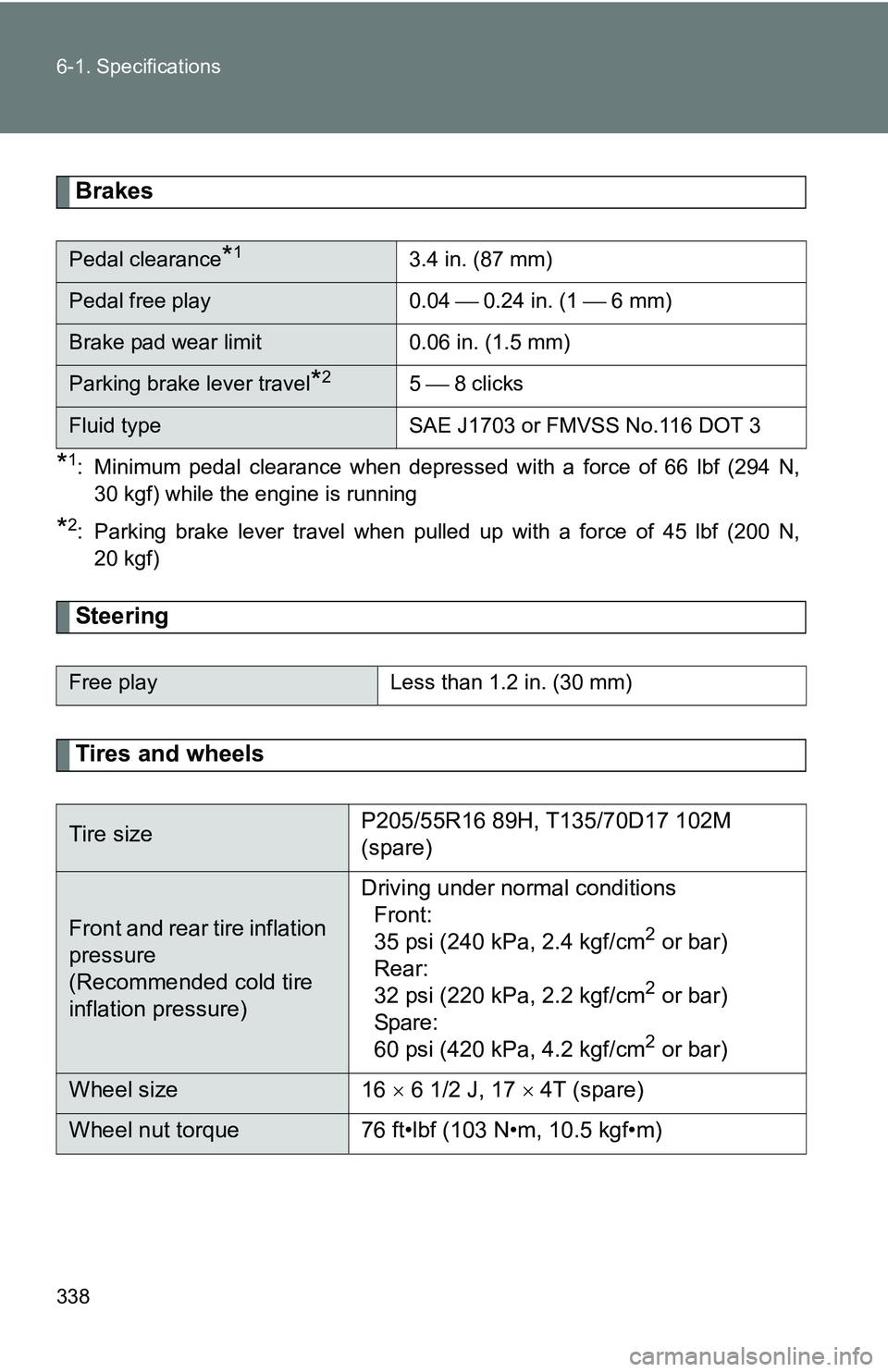

Brakes
*1: Minimum pedal clearance when depressed with a force of 66 lbf (294 N,30 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Steering
Tires and wheels
Pedal clearance*13.4 in. (87 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.06 in. (1.5 mm)
Parking brake lever travel*25  8 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)
Tire sizeP205/55R16 89H, T135/70D17 102M
(spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)Driving under normal conditions
Front:
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 16  6 1/2 J, 17  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

339
6-1. Specifications
6
Vehicle specifications

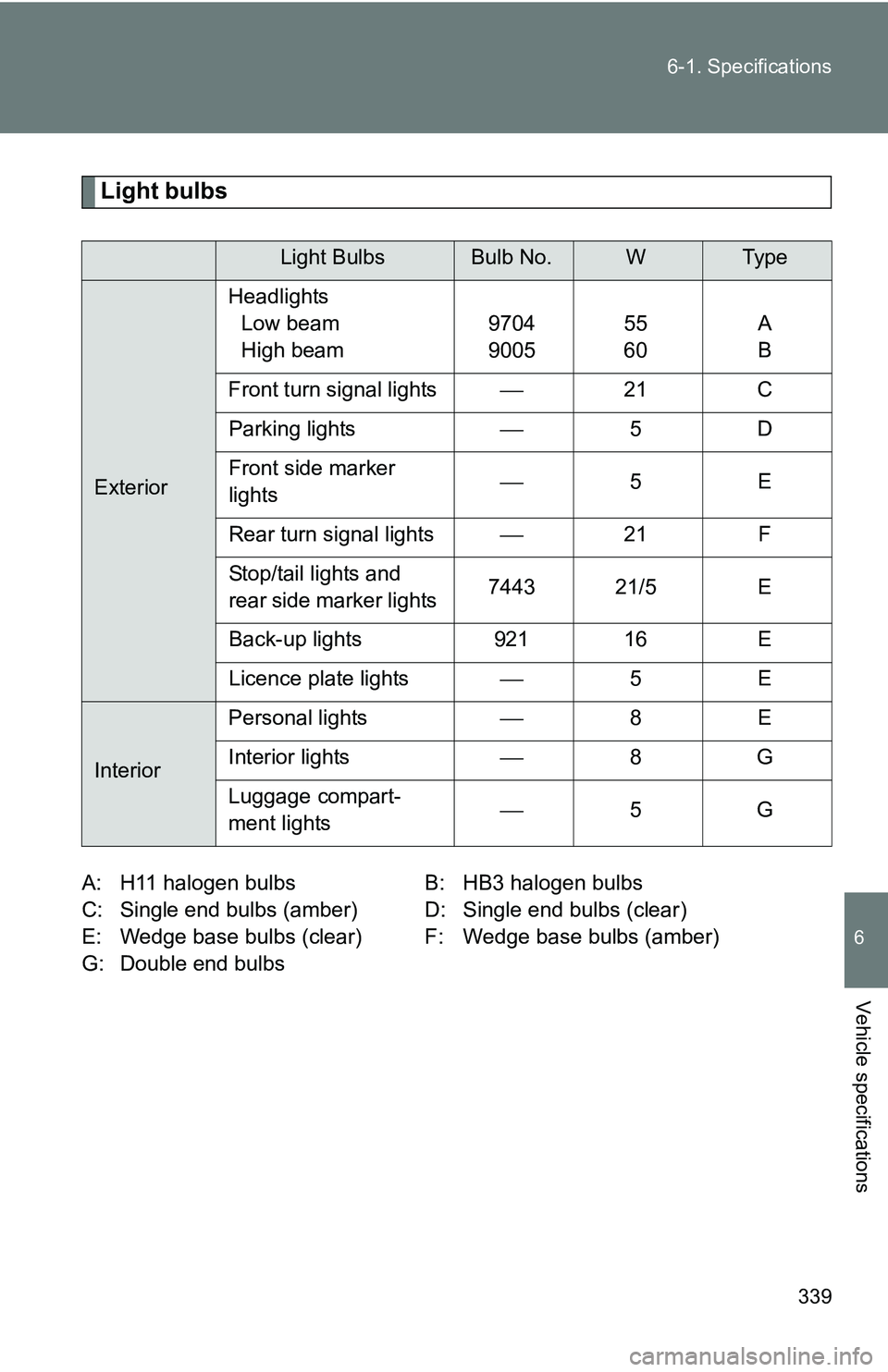

Light bulbs
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs (amber) D: Single end bulbs (clear)
E: Wedge base bulbs (clear) F: Wedge base bulbs (amber)
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights
Low beam
High beam 9704
900555
60A
B
Front turn signal lights 21 C
Parking lights 5D
Front side marker
lights 
5E
Rear turn signal lights 21 F
Stop/tail lights and
rear side marker lights 7443 21/5 E
Back-up lights 921 16 E
Licence plate lights 5E
Interior Personal lights
8E
Interior lights 8G
Luggage compart-
ment lights 
5G

340
6-1. Specifications

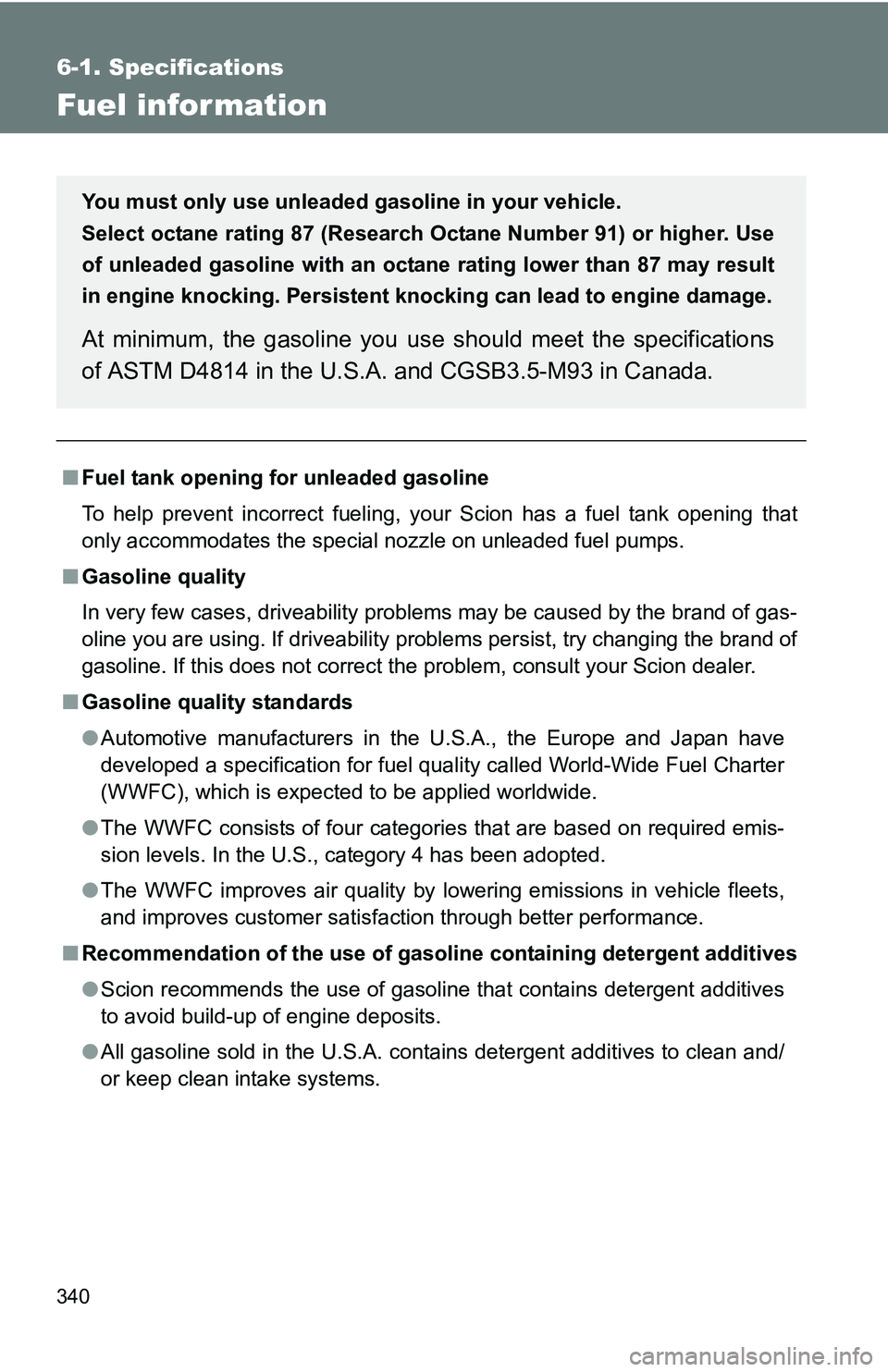

Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Scion has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Scion dealer.
■ Gasoline quality standards
●Automotive manufacturers in the U.S.A., the Europe and Japan have
developed a specification for fuel quality called World-Wide Fuel Charter
(WWFC), which is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and improves customer satisfaction through better performance.
■ Recommendation of the use of gaso line containing detergent additives
● Scion recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S.A. contains detergent additives to clean and/
or keep clean intake systems.
You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.
