TABLE OF CONTENTS
PAGE
INTRODUCTION 1
IMPORTANT INFORMATION 2–3
OPERATION
BEFORE STARTING ENGINE 4
REMOTE ENGINE START 5
REMOTE ENGINE STOP 6
AUTOMATIC ENGINE SHUTDOWN 7
REMOTE ENGINE STARTER INFORMATION 8
WARNING AND NOTICE INFORMATION 9

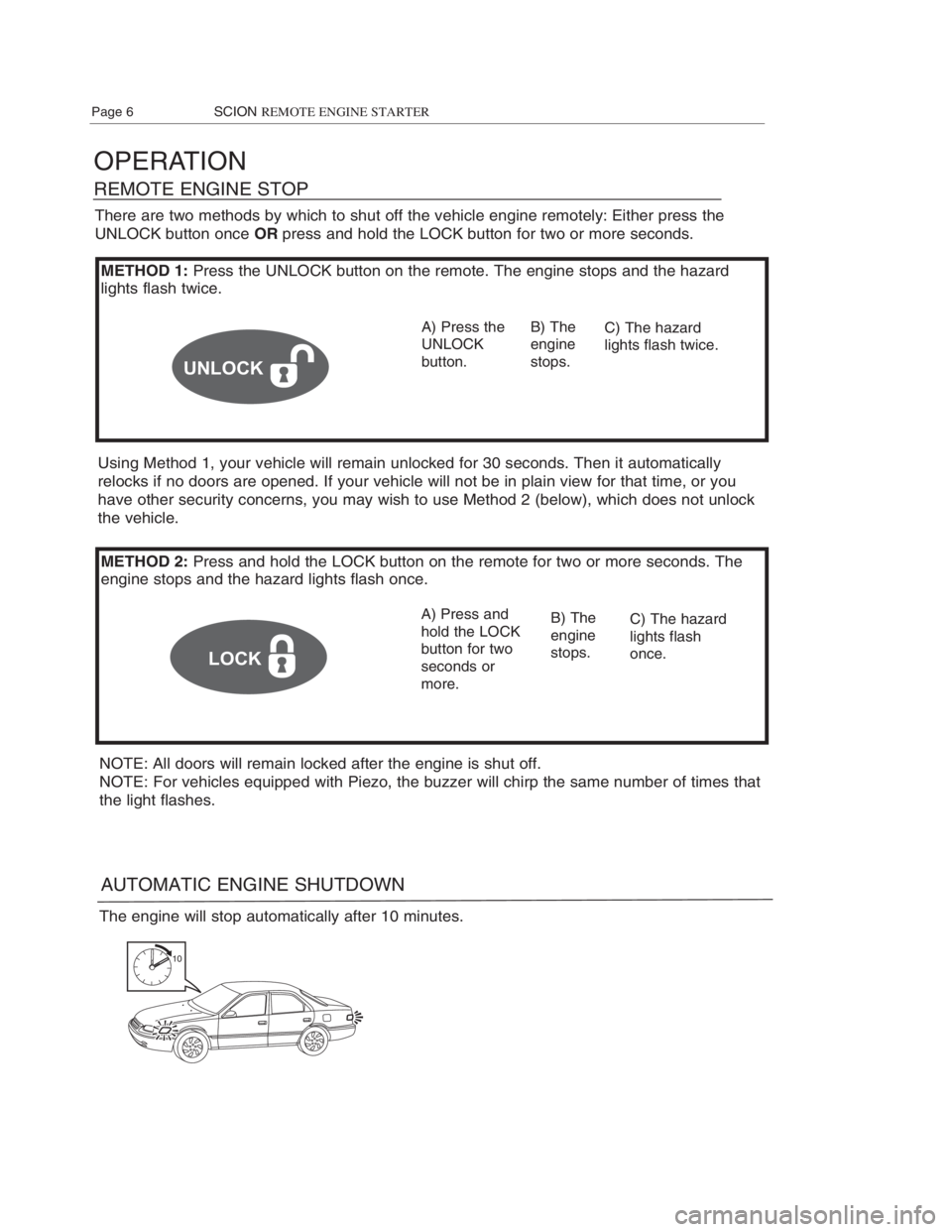

OPERATION
REMOTE ENGINE STOP
METHOD 1:Press the UNLOCK button on the remote. The engine stops and the hazard
lights flash twice.
A) Press the
UNLOCK
button.
METHOD 2:Press and hold the LOCK button on the remote for two or more seconds. The
engine stops and the hazard lights flash once.
AUTOMATIC ENGINE SHUTDOWN
The engine will stop automatically after 10 minutes.
10
B) The
engine
stops.C) The hazard
lights flash twice.
A) Press and
hold the LOCK
button for two
seconds or
more.B) The
engine
stops.C) The hazard
lights flash
once.
There are two methods by which to shut off the vehicle engine remotely: Either press the
UNLOCK button once ORpress and hold the LOCK button for two or more seconds.
Using Method 1, your vehicle will remain unlocked for 30 seconds. Then it automatically
relocks if no doors are opened. If your vehicle will not be in plain view for that time, or you
have other security concerns, you may wish to use Method 2 (below), which does not unlock
the vehicle.
NOTE: All doors will remain locked after the engine is shut off.
NOTE: For vehicles equipped with Piezo, the buzzer will chirp the same number of times that
the light flashes.
Page 6 SCIONREMOTE ENGINE STARTER
UNLOCK
UNLOCK

If any door is manually unlocked via
Smart Key.
If any door is opened.
If the shift lever is moved to any
position other than “P.”
If the hood is opened.

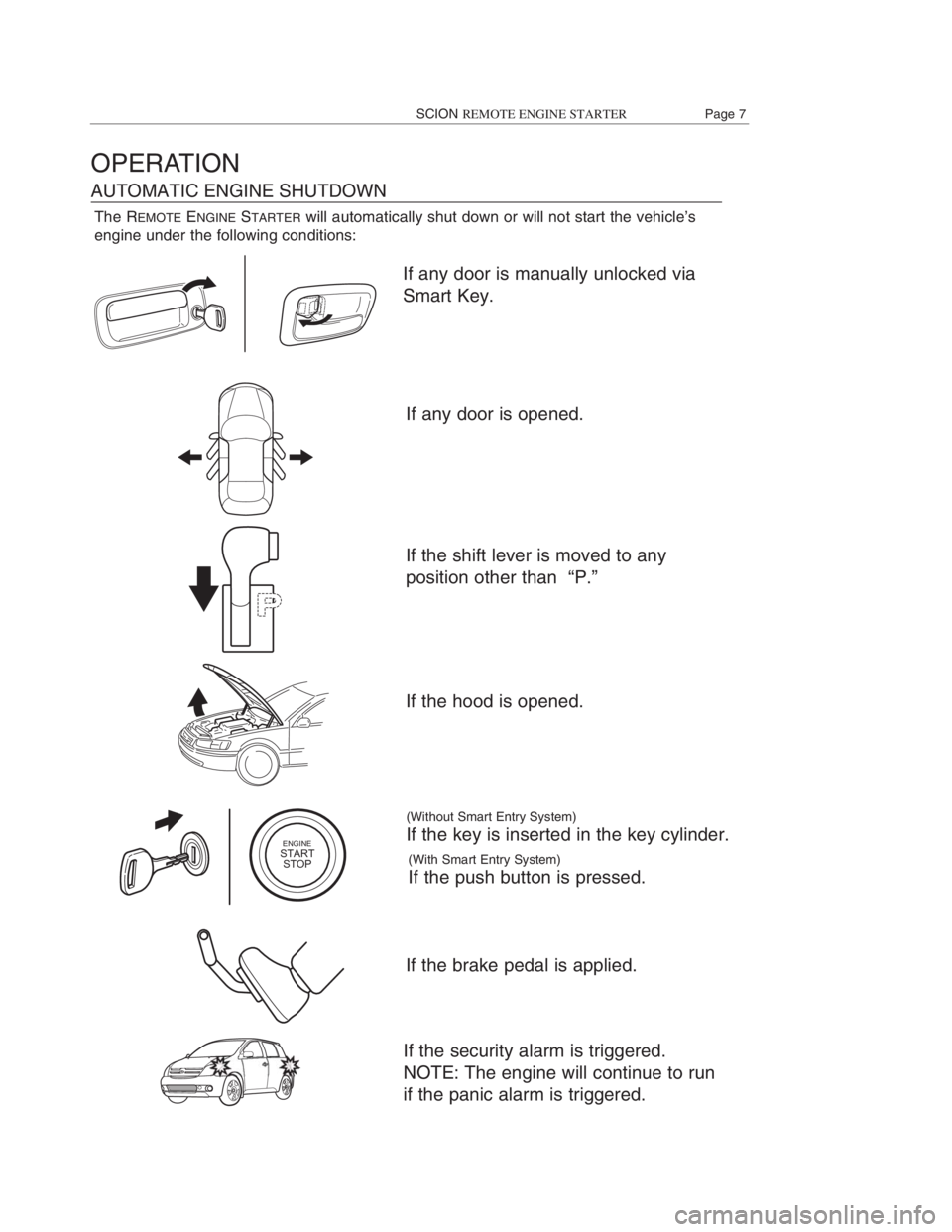

OPERATION
AUTOMATIC ENGINE SHUTDOWN
ENGINESTART
STOP
(Without Smart Entry System)
If the key is inserted in the key cylinder.
If the brake pedal is applied.
If the security alarm is triggered.
NOTE: The engine will continue to run
if the panic alarm is triggered.
The REMOTEENGINESTARTERwill automatically shut down or will not start the vehicle’s
engine under the following conditions:
(With Smart Entry System)
If the push button is pressed.
SCIONREMOTE ENGINE STARTERPage 7

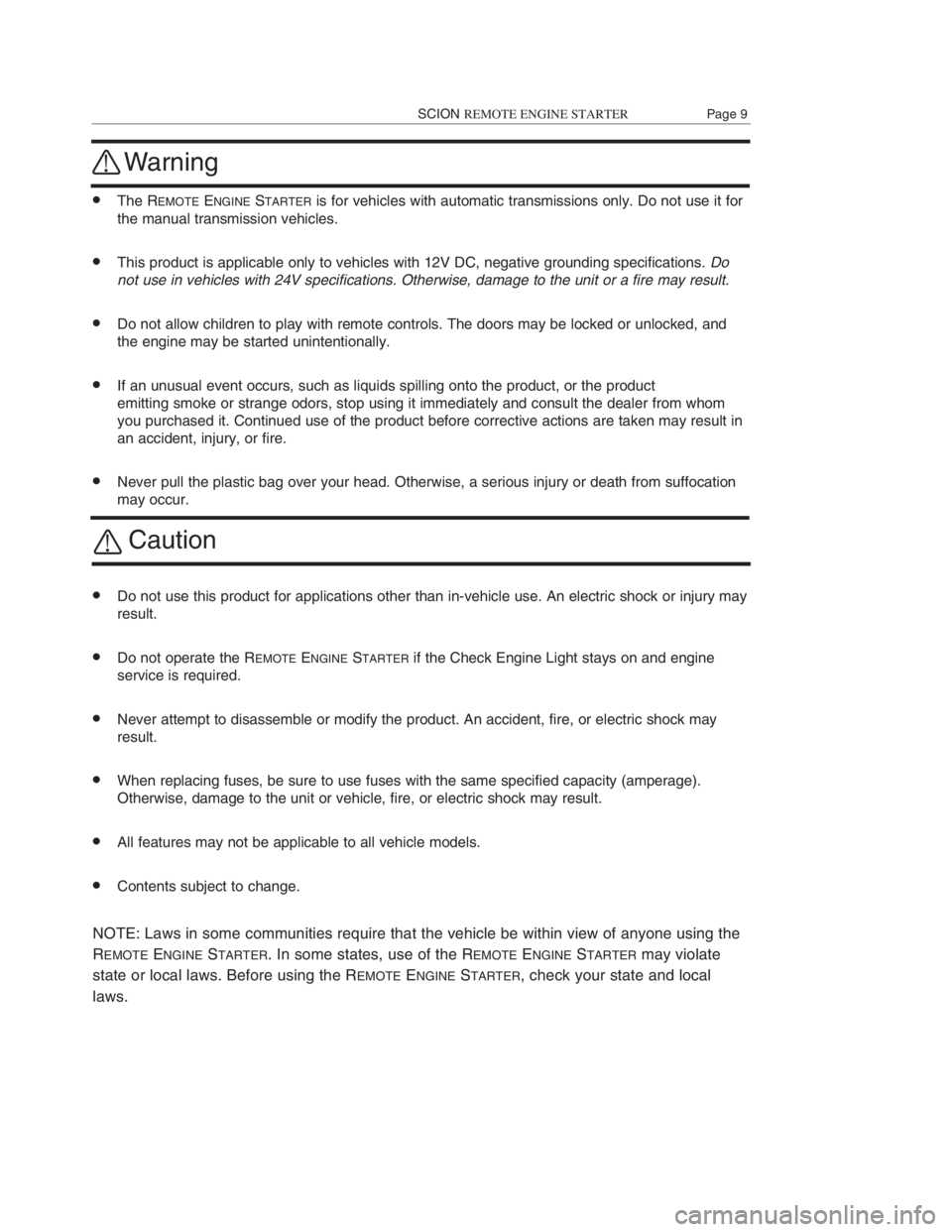

Warning
•The REMOTEENGINESTARTERis for vehicles with automatic transmissions only. Do not use it for
the manual transmission vehicles.
•This product is applicable only to vehicles with 12V DC, negative grounding specifications. Do
not use in vehicles with 24V specifications. Otherwise, damage to the unit or a fire may result.
•Do not allow children to play with remote controls. The doors may be locked or unlocked, and
the engine may be started unintentionally.
•If an unusual event occurs, such as liquids spilling onto the product, or the product
emitting smoke or strange odors, stop using it immediately and consult the dealer from whom
you purchased it. Continued use of the product before corrective actions are taken may result in
an accident, injury, or fire.
•Never pull the plastic bag over your head. Otherwise, a serious injury or death from suffocation
may occur.
Caution
•Do not use this product for applications other than in-vehicle use. An electric shock or injury may
result.
•Do not operate the REMOTEENGINESTARTERif the Check Engine Light stays on and engine
service is required.
•Never attempt to disassemble or modify the product. An accident, fire, or electric shock may
result.
•When replacing fuses, be sure to use fuses with the same specified capacity (amperage).
Otherwise, damage to the unit or vehicle, fire, or electric shock may result.
•All features may not be applicable to all vehicle models.
•Contents subject to change.
NOTE: Laws in some communities require that the vehicle be within view of anyone using the
R
EMOTEENGINESTARTER. In some states, use of the REMOTEENGINESTARTERmay violate
state or local laws. Before using the R
EMOTEENGINESTARTER, check your state and local
laws.
SCIONREMOTE ENGINE STARTERPage 9
