!A word about safe vehicle operations

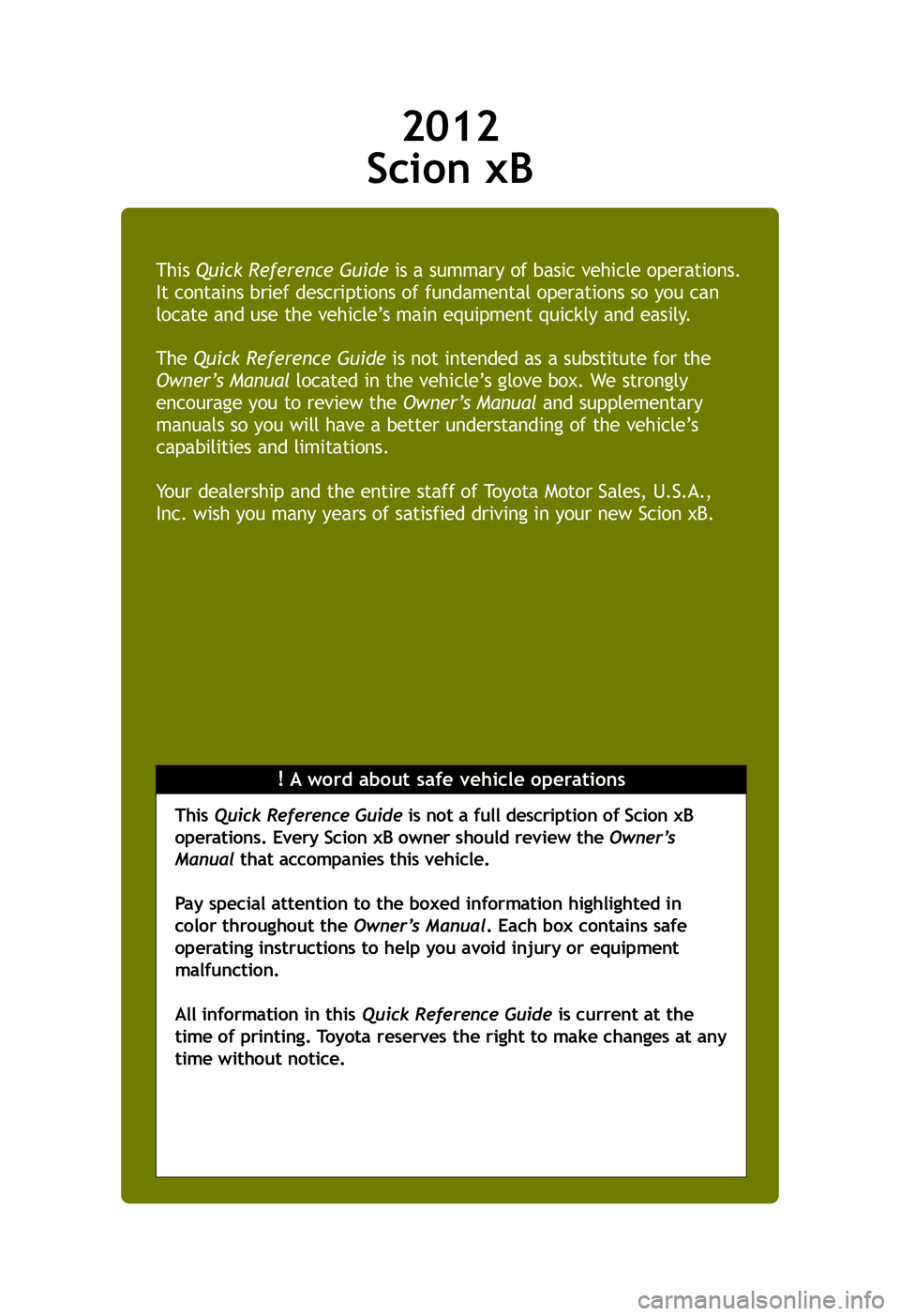

This
Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Yo u r dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Scion xB.
This Quick Reference Guide is not a full description of Scion xB
operations. Every Scion xB owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual . Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at the
time of printing. Toyota reserves the right to make changes at any
time without notice.
2012
Scion xBIND
OVE
F E AT
SAF
EME
2012-Scion-xB-QRG.qxd:2012-Scion-xB-QRG 4/7/11 10:31 PM Page 2
Page 3 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap7Hood release 6Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16
Light control-Instrument panel 6
Air Conditioning/Heating12Auto lock/unlock28Automatic Transmission 8Bottle holders13Cruise control 11Lights & turn signals10Multi-information display14Parking brake 8Power outlet14Seat adjustments-Front 9Seat-Folding down rear seat9Seats-Head restraints9Steering wheel switches13Tilt steering wheel 12AUX port/USB port 13Windows 11
Windshield wipers & washers 10
Brake override 19Door locks 15Doors-Child safety locks15Floor mat installation19Seat belts16Seat belts-Shoulder belt anchor15Spare tire & tools 17STAR Safety SystemTM18
Tire Pressure Monitoring (warning) System 16
2012-Scion-xB-QRG.qxd:4118_ 4/7/11 10:34 PM Page 1
Page 4 of 24
2
OVERVIEW

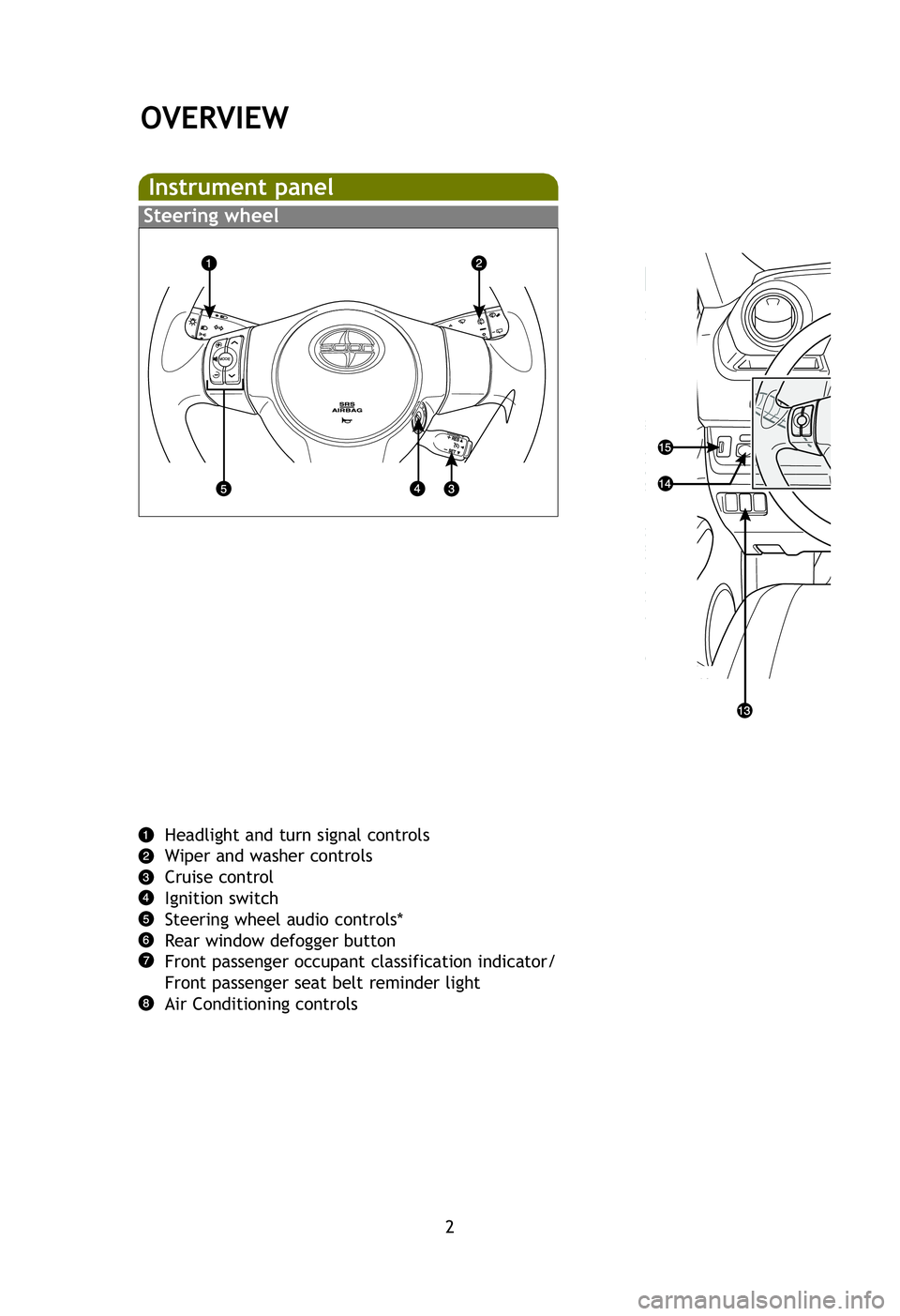

Instrument panel
Headlight and turn signal controls
Wiper and washer controls
Cruise control
Ignition switch
Steering wheel audio controls*
Rear window defogger button
Front passenger occupant classification indicator/
Front passenger seat belt reminder light
Air Conditioning controlsP
E
T
T
“
P
In
*
Steering wheel
2012-Scion-xB-QRG.qxd:4118_ 4/7/11 10:35 PM Page 2
Page 5 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3

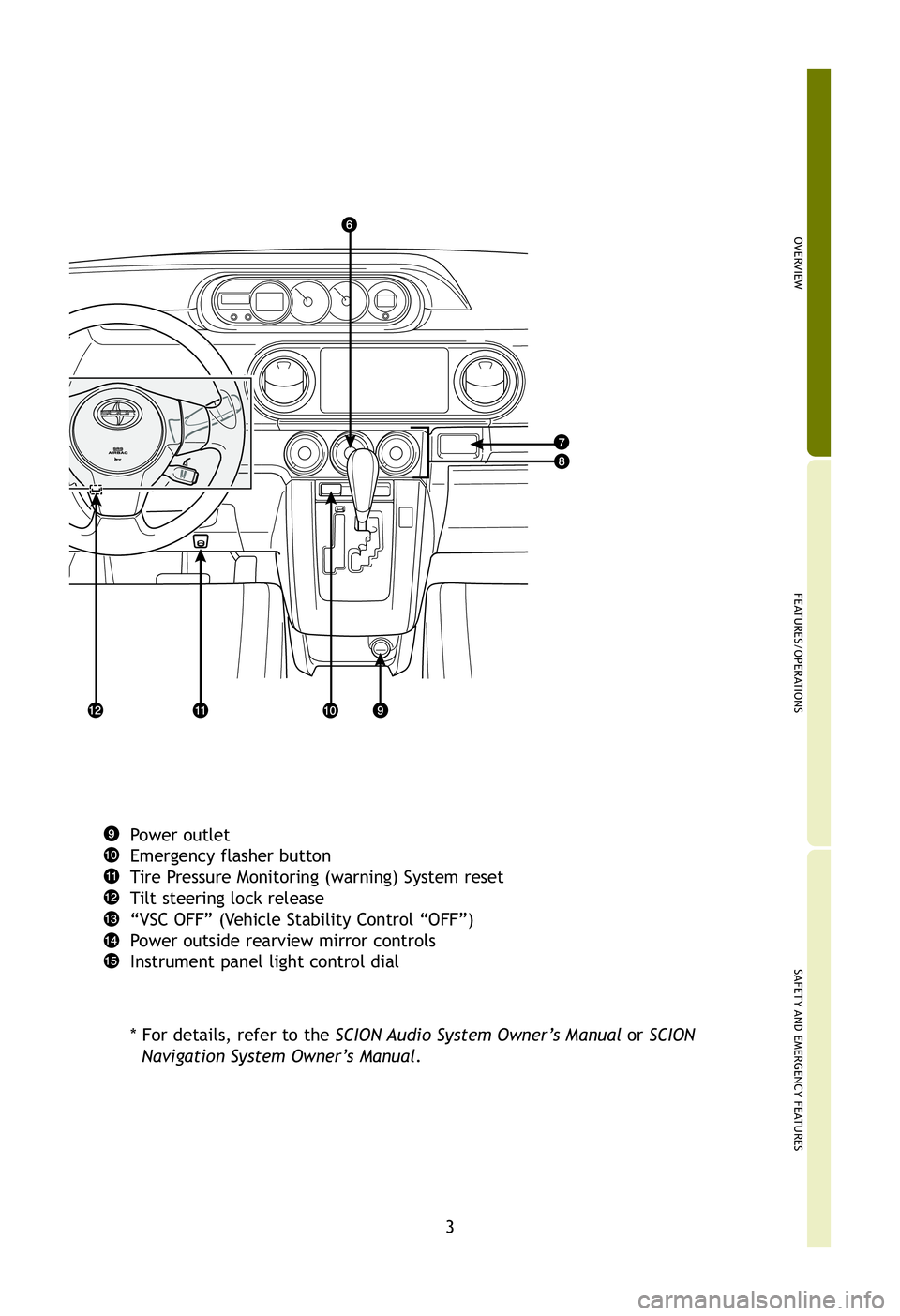

Power outlet
Emergency flasher button
Tire Pressure Monitoring (warning) System reset
Tilt steering lock release
“VSC OFF” (Vehicle Stability Control “OFF”)
Power outside rearview mirror controls
Instrument panel light control dial
* For details, refer to the SCION Audio System Owner’s Manual or SCION
Navigation System Owner’s Manual .
2012-Scion-xB-QRG.qxd:4118_ 4/7/11 10:35 PM Page 3
Page 6 of 24
4
OVERVIEW
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning1
Malfunction/Check Engine indicator1
Indicator symbols

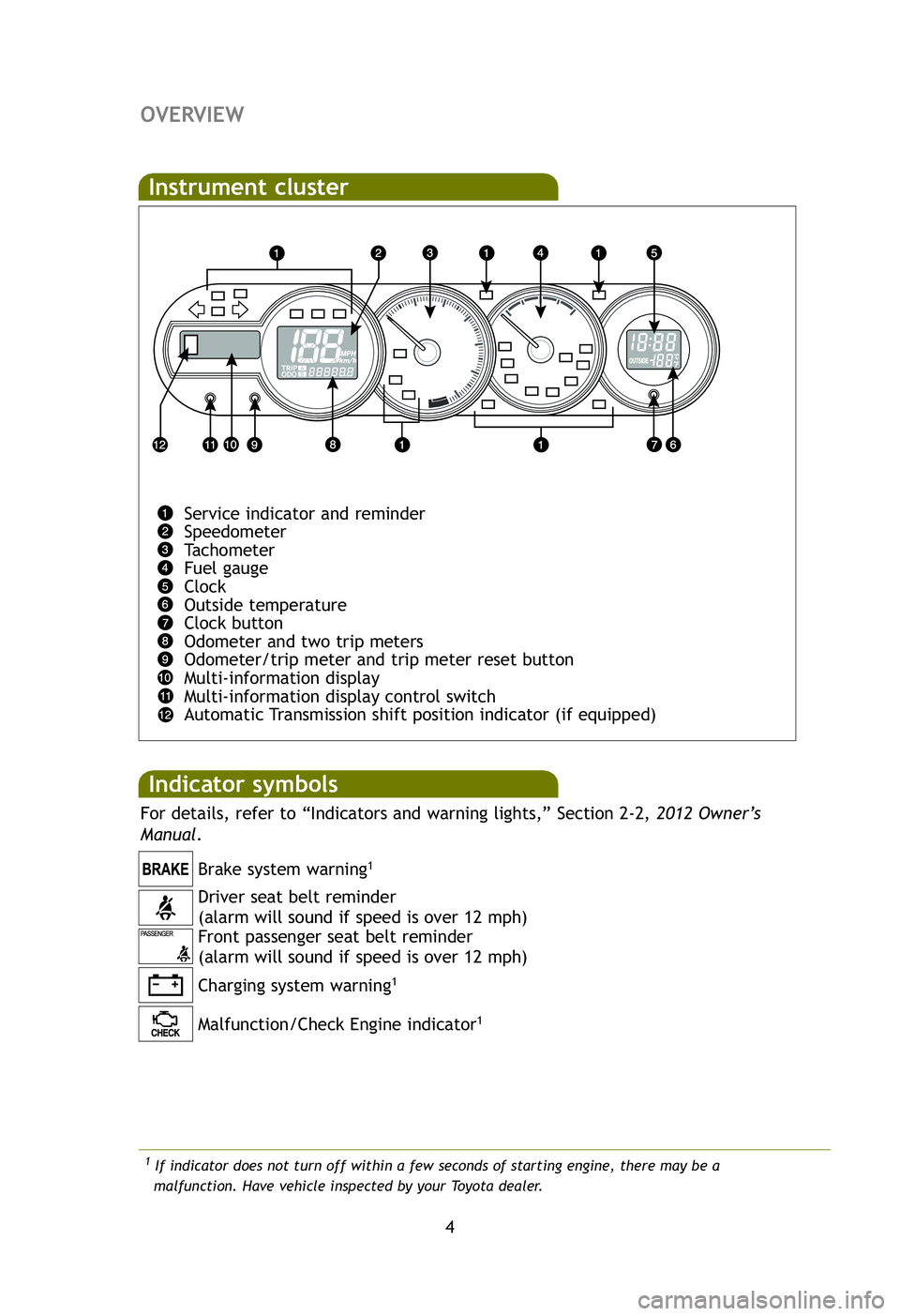

Instrument cluster
Service indicator and reminder
Speedometer
Tachometer
Fuel gauge
Clock
Outside temperature
Clock button
Odometer and two trip meters
Odometer/trip meter and trip meter reset button
Multi-information display
Multi-information display control switch
Automatic Transmission shift position indicator (if equipped)
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2012 Owner’s
Manual .
2If t
2012-Scion-xB-QRG.qxd:4118_ 4/7/11 10:35 PM Page 4
Page 7 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5

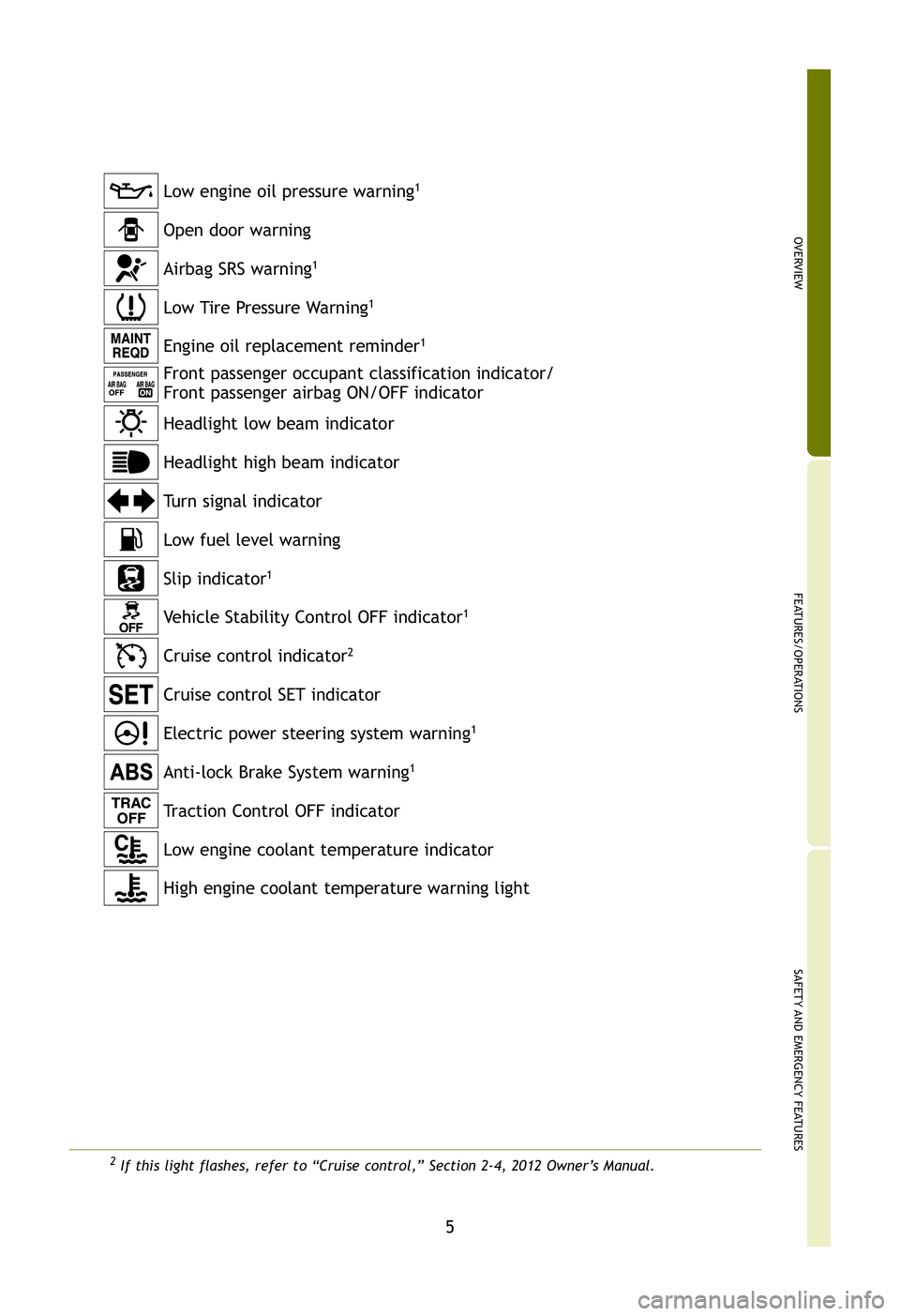

Low engine oil pressure warning1
Anti-lock Brake System warning1
Open door warning
Low Tire Pressure Warning
1
Engine oil replacement reminder1
Headlight low beam indicator
Turn signal indicator Headlight high beam indicator
Cruise control indicator
2
Electric power steering system warning1
Slip indicator1
Vehicle Stability Control OFF indicator1
Airbag SRS warning1
Low fuel level warning Front passenger occupant classification indicator/
Front passenger airbag ON/OFF indicator
High engine coolant temperature warning light Traction Control OFF indicator
Low engine coolant temperature indicator
Cruise control SET indicator
2If this light flashes, refer to “Cruise control,” Section 2-4, 201\
2 Owner’s Manual.
2012-Scion-xB-QRG.qxd:4118_ 4/7/11 10:36 PM Page 5
Page 8 of 24
6
OVERVIEW

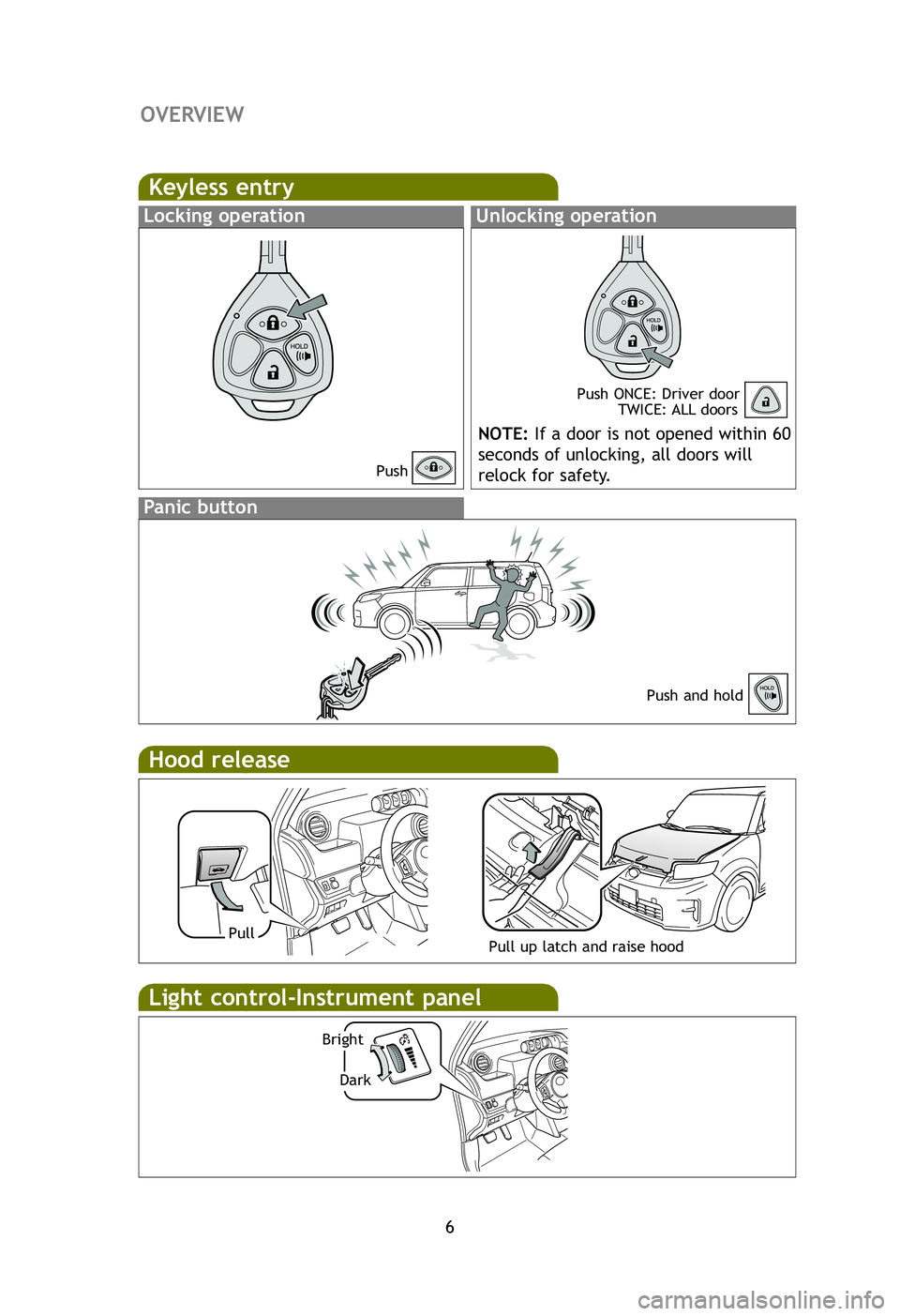

Keyless entry
Locking operationUnlocking operation
NOTE:If a door is not opened within 60
seconds of unlocking, all doors will
relock for safety.
Push Push ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
Hood release
Pull Pull up latch and raise hood
Light control-Instrument panel
Fu
W
E
E
E
NOT
( Q
Bright
Dark
2012-Scion-xB-QRG.qxd:4118_ 4/7/11 10:36 PM Page 6
Page 9 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
n 60

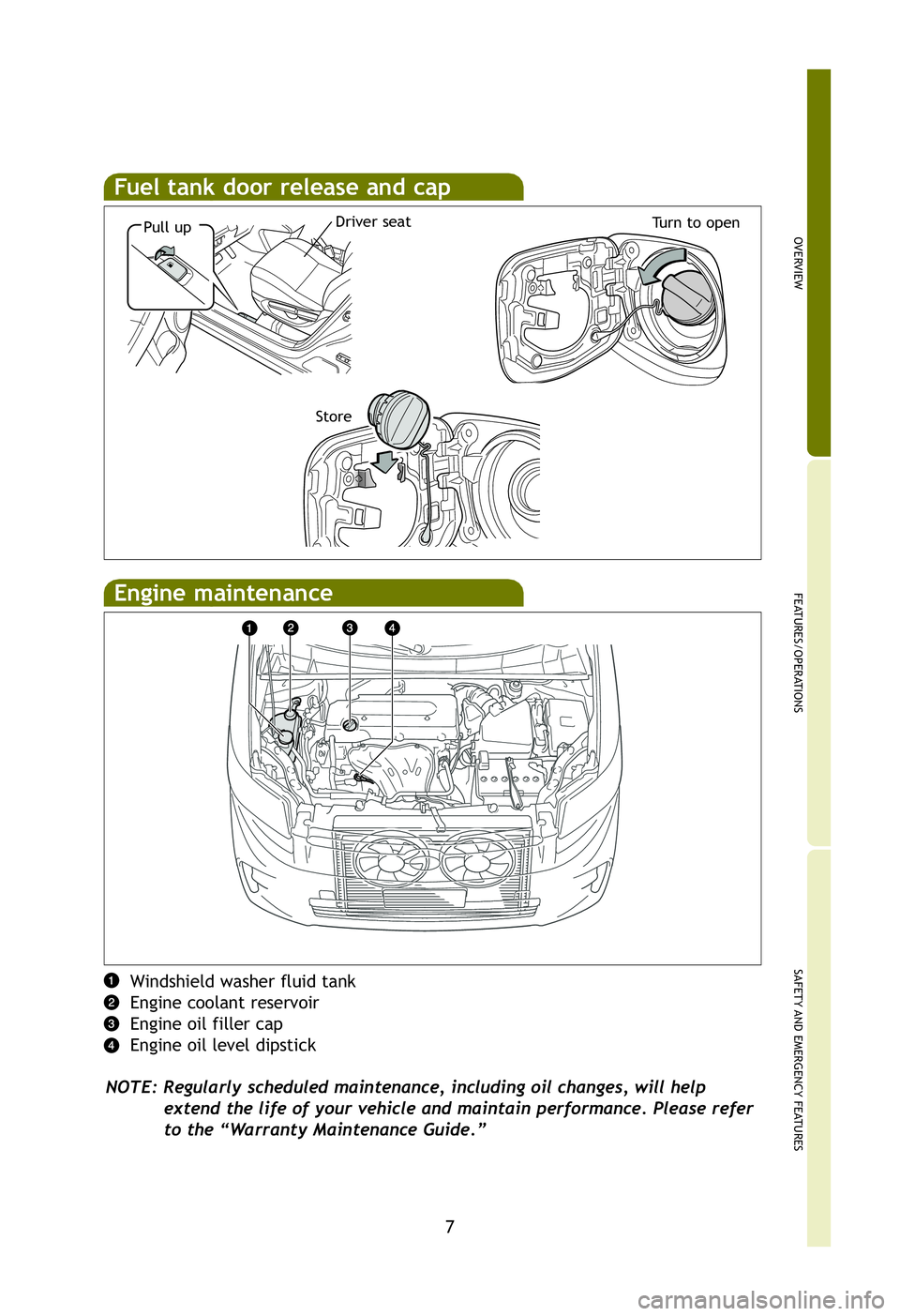

Fuel tank door release and cap
Pull upTurn to open
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Driver seat
Store
2012-Scion-xB-QRG.qxd:4118_ 4/7/11 10:36 PM Page 7
Page 10 of 24
* The ignition switch must be “ON” and the brake pedal depressed to \
shiftfrom Park.
Push shift lever to the left from “D” position. +: Upshift (push and release)-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill.
For best fuel economy during normal driving conditions, always drive wit\
h the shift
lever in the “D” position.
8
FEATURES/OPERATIONS

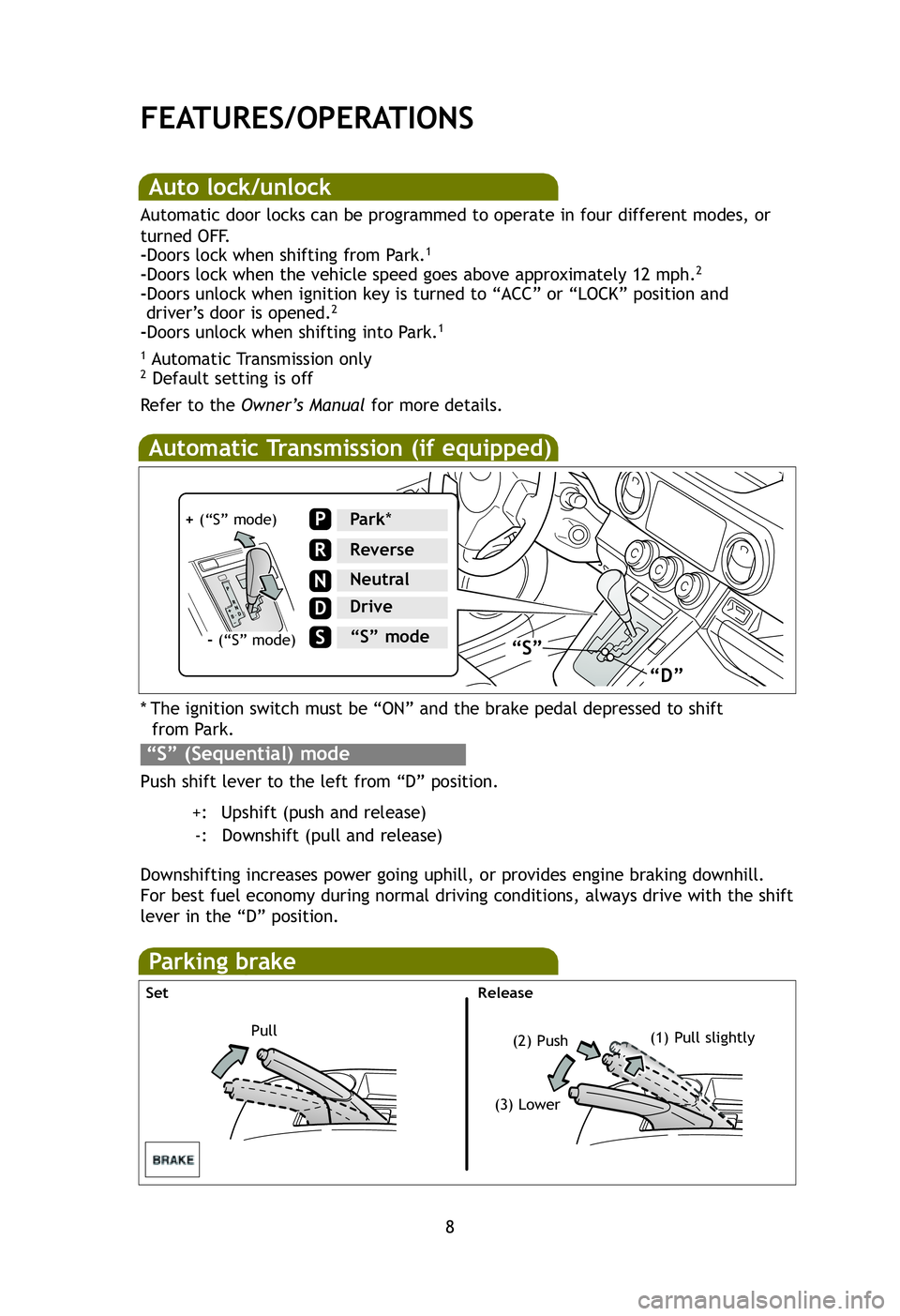

Auto lock/unlock
Automatic door locks can be programmed to operate in four different mode\
s, or
turned OFF.
-Doors lock when shifting from Park.
1
-Doors lock when the vehicle speed goes above approximately 12 mph.2
-Doors unlock when ignition key is turned to “ACC” or “LOCK” \
position anddriver’s door is opened.2
-Doors unlock when shifting into Park.1
1
Automatic Transmission only2Default setting is off
Refer to the Owner’s Manual for more details.
Automatic Transmission (if equipped)
“S” (Sequential) mode
Parking brake
Pull(2) Push (1) Pull slightly
(3) Lower
Set Release
Se
Fron
Se
S
H
S
6 H
3 D U N*
Reverse
Neutral
Drive
P
R
N
D
N
S“S” mode“S”
“D”
+(“S” mode)
-(“S” mode)
2012-Scion-xB-QRG.qxd:4118_ 4/7/11 10:37 PM Page 8
