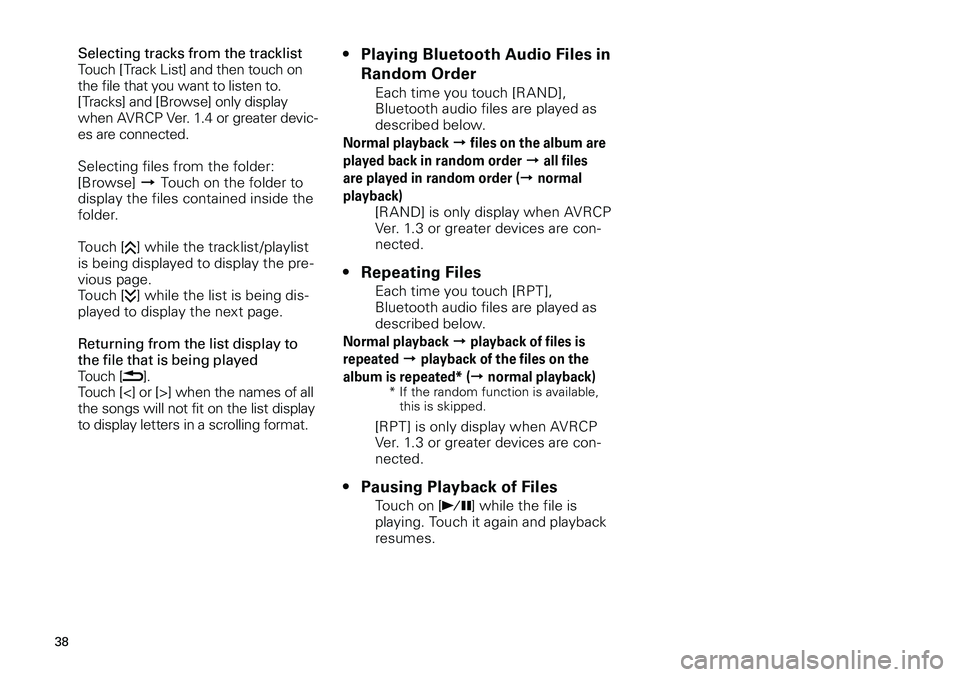

Selecting tracks from the tracklistTouch [Track List] and then touch on the file that you want to listen to.[Tracks] and [Browse] only display when AVRCP Ver. 1.4 or greater devic-es are connected.
Selecting files from the folder:[Browse] d Touch on the folder to display the files contained inside the folder.
Touch [] while the tracklist /playlist
is being displayed to display the pre-vious page.Touch [] while the list is being dis-played to display the next page.
Returning from the list display to the file that is being playedTouch [].Touch [<] or [>] when the names of all the songs will not fit on the list display to display letters in a scrolling format.
Playing Bluetooth Audio Files in
Random Order
Each time you touch [RAND], Bluetooth audio files are played as described below.
Normal playback d files on the album are
played back in random order d all files
are played in random order (d normal
playback)[RAND] is only display when AVRCP Ver. 1.3 or greater devices are con-nected.
Repeating Files
Each time you touch [RPT], Bluetooth audio files are played as described below.
Normal playback d playback of files is
repeated d playback of the files on the
album is repeated* (d normal playback)* If the random function is available, this is skipped.
[RPT] is only display when AVRCP Ver. 1.3 or greater devices are con-nected.
Pausing Playback of Files
Touch on [] while the file is playing. Touch it again and playback resumes.
•
•
•

50
50

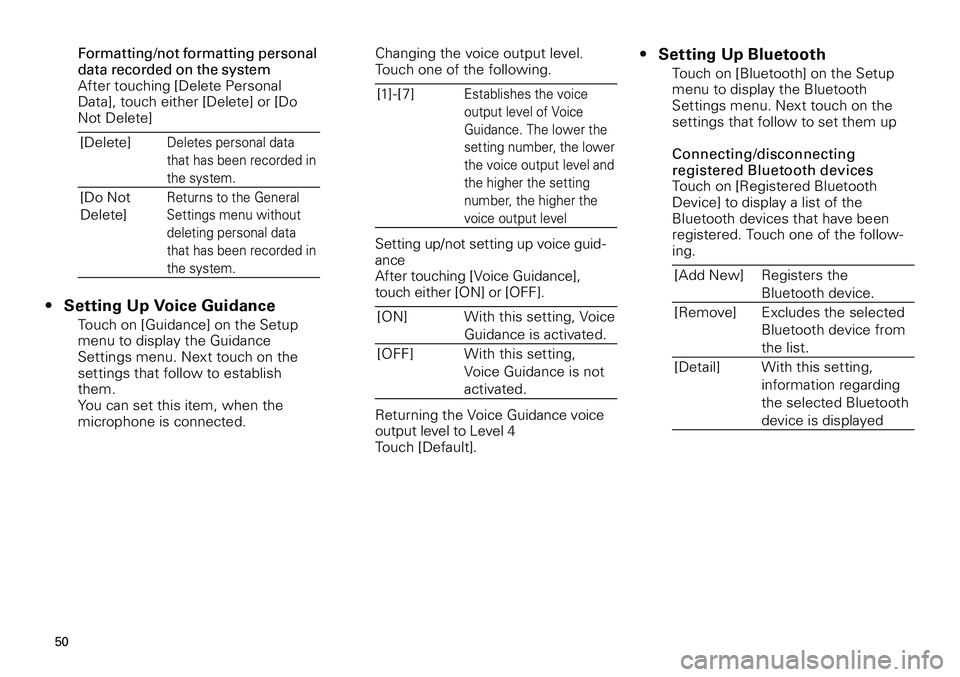

Formatting/not formatting personal data recorded on the systemAfter touching [Delete Personal Data], touch either [Delete] or [Do Not Delete]
[Delete]Deletes personal data
that has been recorded in
the system.
[Do Not
Delete]
Returns to the General
Settings menu without
deleting personal data
that has been recorded in
the system.
Setting Up Voice Guidance
Touch on [Guidance] on the Setup menu to display the Guidance Settings menu. Next touch on the settings that follow to establish them.You can set this item, when the microphone is connected.
•
Changing the voice output level. Touch one of the following.
[1]- [7]Establishes the voice
output level of Voice
Guidance. The lower the
setting number, the lower
the voice output level and
the higher the setting
number, the higher the
voice output level
Setting up/not setting up voice guid-anceAfter touching [Voice Guidance], touch either [ON] or [OFF].
[ON]With this setting, Voice
Guidance is activated.
[OFF]With this setting,
Voice Guidance is not
activated.
Returning the Voice Guidance voice output level to Level 4Touch [Default].
Setting Up Bluetooth
Touch on [Bluetooth] on the Setup menu to display the Bluetooth Settings menu. Next touch on the settings that follow to set them up
Connecting/disconnecting registered Bluetooth devicesTouch on [Registered Bluetooth Device] to display a list of the Bluetooth devices that have been registered. Touch one of the follow-ing.
[Add New]Registers the
Bluetooth device.
[Remove]Excludes the selected
Bluetooth device from
the list.
[Detail]With this setting,
information regarding
the selected Bluetooth
device is displayed
•

51
51

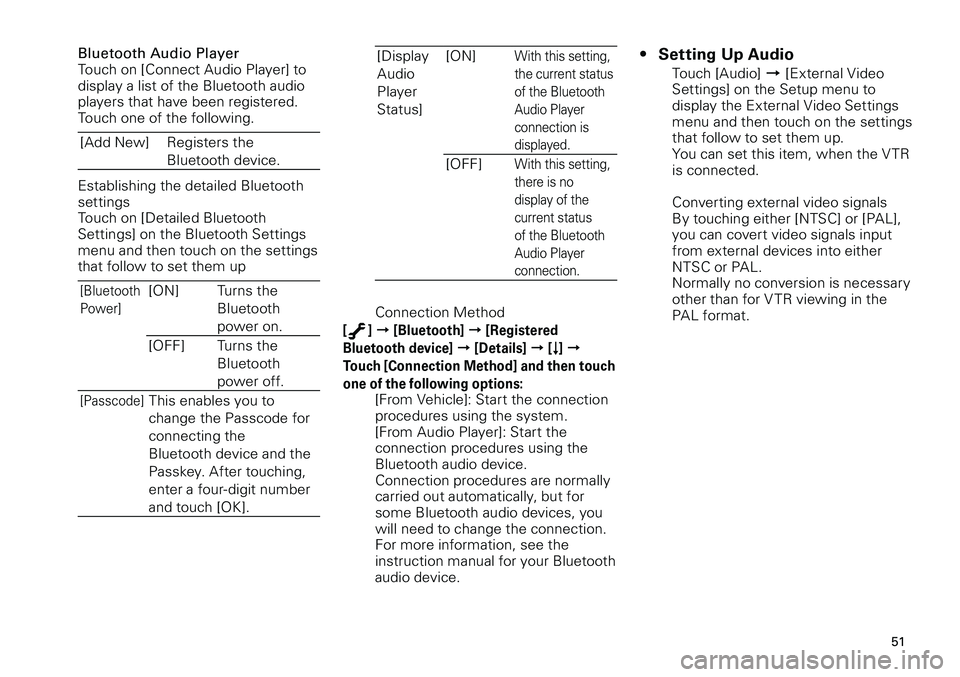

Bluetooth Audio PlayerTouch on [Connect Audio Player] to display a list of the Bluetooth audio players that have been registered. Touch one of the following.
[Add New]Registers the
Bluetooth device.
Establishing the detailed Bluetooth settingsTouch on [Detailed Bluetooth Settings] on the Bluetooth Settings menu and then touch on the settings that follow to set them up
[Bluetooth
Power]
[ON]Turns the
Bluetooth
power on.
[OFF]Turns the
Bluetooth
power off.
[Passcode]This enables you to
change the Passcode for
connecting the
Bluetooth device and the
Passkey. After touching,
enter a four- digit number
and touch [OK].
[Display
Audio
Player
Status]
[ON]With this setting,
the current status
of the Bluetooth
Audio Player
connection is
displayed.
[OFF]With this setting,
there is no
display of the
current status
of the Bluetooth
Audio Player
connection.
Connection Method
[] d [Bluetooth] d [Registered
Bluetooth device] d [Details] d [] d
Touch [Connection Method] and then touch
one of the following options: [From Vehicle]: Start the connection procedures using the system. [From Audio Player]: Start the connection procedures using the
Bluetooth audio device.
Connection procedures are normally carried out automatically, but for some Bluetooth audio devices, you will need to change the connection. For more information, see the instruction manual for your Bluetooth audio device.
Setting Up Audio
Touch [Audio] d [External Video Settings] on the Setup menu to display the External Video Settings menu and then touch on the settings that follow to set them up.You can set this item, when the V TR is connected.
Converting external video signalsBy touching either [NTSC] or [PAL], you can covert video signals input from external devices into either
NTSC or PAL.Normally no conversion is necessary other than for V TR viewing in the PAL format.
•

56
56

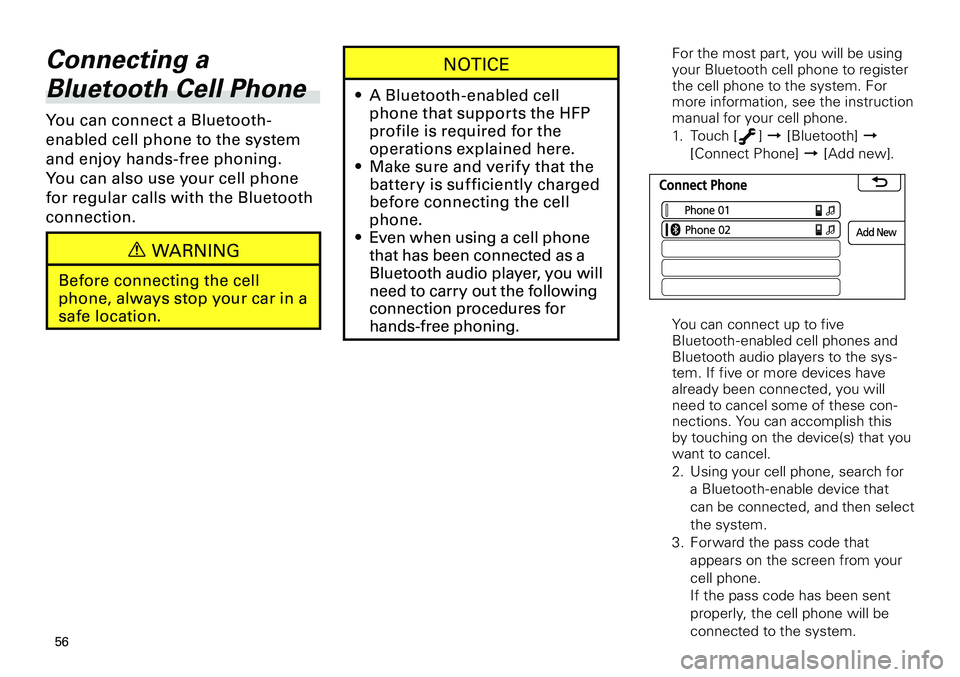

Connecting a
Bluetooth Cell Phone
You can connect a Bluetooth-
enabled cell phone to the system
and enjoy hands-free phoning.
You can also use your cell phone
for regular calls with the Bluetooth
connection.
WARNING
Before connecting the cell
phone, always stop your car in a
safe location.
NOTICE
A Bluetooth-enabled cell
phone that supports the HFP
profile is required for the
operations explained here.
Make sure and verif y that the
battery is suf ficiently charged
before connecting the cell
phone.
Even when using a cell phone
that has been connected as a
Bluetooth audio player, you will
need to carry out the following
connection procedures for
hands-free phoning.
•
•
•
For the most part, you will be using your Bluetooth cell phone to register the cell phone to the system. For more information, see the instruction manual for your cell phone.
1. Touch [
] d [Bluetooth] d
[Connect Phone] d [Add new].
Phone 01
Phone 02
You can connect up to five Bluetooth- enabled cell phones and Bluetooth audio players to the sys-tem. If five or more devices have already been connected, you will need to cancel some of these con-nections. You can accomplish this by touching on the device(s) that you want to cancel.
2. Using your cell phone, search for
a Bluetooth- enable device that
can be connected, and then select
the system.
3. Forward the pass code that
appears on the screen from your
cell phone.
If the pass code has been sent
properly, the cell phone will be
connected to the system.

57
57

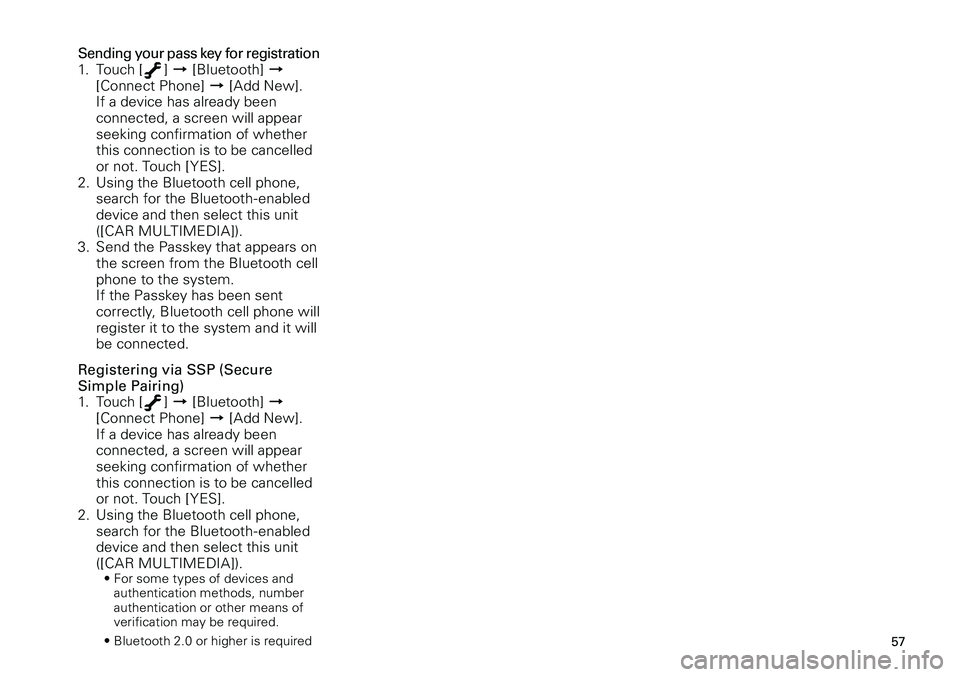

Sending your pass key for registration
1. Touch [] d [Bluetooth] d [Connect Phone] d [Add New]. If a device has already been connected, a screen will appear seeking confirmation of whether this connection is to be cancelled or not. Touch [YES].
2. Using the Bluetooth cell phone,
search for the Bluetooth- enabled device and then select this unit ([CAR MULTIMEDIA]).
3. Send the Passkey that appears on
the screen from the Bluetooth cell phone to the system.
If the Passkey has been sent
correctly, Bluetooth cell phone will register it to the system and it will be connected.
Registering via SSP (Secure Simple Pairing)
1. Touch [] d [Bluetooth] d [Connect Phone] d [Add New]. If a device has already been connected, a screen will appear seeking confirmation of whether this connection is to be cancelled or not. Touch [YES].
2. Using the Bluetooth cell phone,
search for the Bluetooth- enabled device and then select this unit ([CAR MULTIMEDIA]). • For some types of devices and authentication methods, number authentication or other means of verification may be required.
• Bluetooth 2.0 or higher is required

61
61

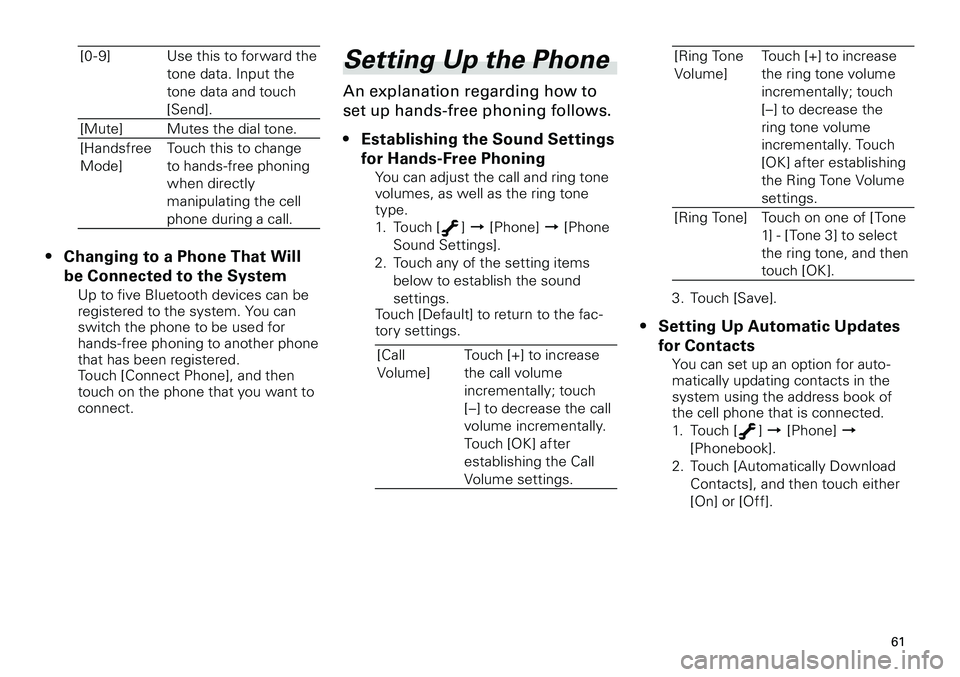

Setting Up the Phone
An explanation regarding how to
set up hands-free phoning follows.
Establishing the Sound Settings
for Hands-Free Phoning
You can adjust the call and ring tone volumes, as well as the ring tone type.
1. Touch [
] d [Phone] d [Phone
Sound Settings].
2. Touch any of the setting items
below to establish the sound
settings. Touch [Default] to return to the fac-tory settings.
[Call
Volume]
Touch [+] to increase
the call volume
incrementally; touch
[–] to decrease the call
volume incrementally.
Touch [OK] after
establishing the Call
Volume settings.
•
[Ring Tone
Volume]
Touch [+] to increase
the ring tone volume
incrementally; touch
[–] to decrease the
ring tone volume
incrementally. Touch
[OK] after establishing
the Ring Tone Volume
settings.
[Ring Tone]Touch on one of [Tone
1] - [Tone 3] to select
the ring tone, and then
touch [OK].
3. Touch [Save].
Setting Up Automatic Updates
for Contacts
You can set up an option for auto-matically updating contacts in the system using the address book of the cell phone that is connected.
1. Touch [
] d [Phone] d
[Phonebook].
2. Touch [Automatically Download
Contacts], and then touch either
[On] or [Off].
•
[0 - 9]Use this to forward the
tone data. Input the
tone data and touch
[Send].
[Mute]Mutes the dial tone.
[Handsfree
Mode]
Touch this to change
to hands-free phoning
when directly
manipulating the cell
phone during a call.
Changing to a Phone That Will
be Connected to the System
Up to five Bluetooth devices can be registered to the system. You can switch the phone to be used for hands-free phoning to another phone that has been registered. Touch [Connect Phone], and then touch on the phone that you want to connect.
•

7
7

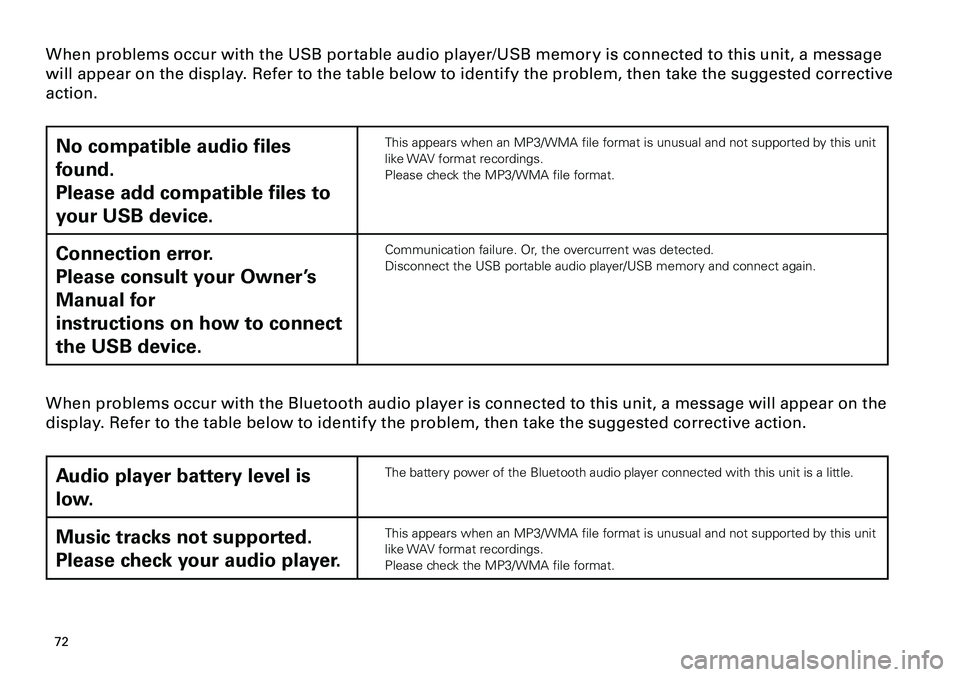

When problems occur with the USB portable audio player/USB memory is connected to this unit, a message
will appear on the display. Refer to the table below to identif y the problem, then take the suggested corrective
action.
No compatible audio files
found.
Please add compatible files to
your USB device.
This appears when an MP3/WMA file format is unusual and not supported by this unit like WAV format recordings.Please check the MP3/WMA file format.
Connection error.
Please consult your Owner’s
Manual for
instructions on how to connect
the USB device.
Communication failure. Or, the overcurrent was detected.Disconnect the USB portable audio player/USB memory and connect again.
When problems occur with the Bluetooth audio player is connected to this unit, a message will appear on the
display. Refer to the table below to identif y the problem, then take the suggested corrective action.
Audio player battery level is
low.
The battery power of the Bluetooth audio player connected with this unit is a little.
Music tracks not supported.
Please check your audio player.
This appears when an MP3/WMA file format is unusual and not supported by this unit like WAV format recordings.Please check the MP3/WMA file format.
