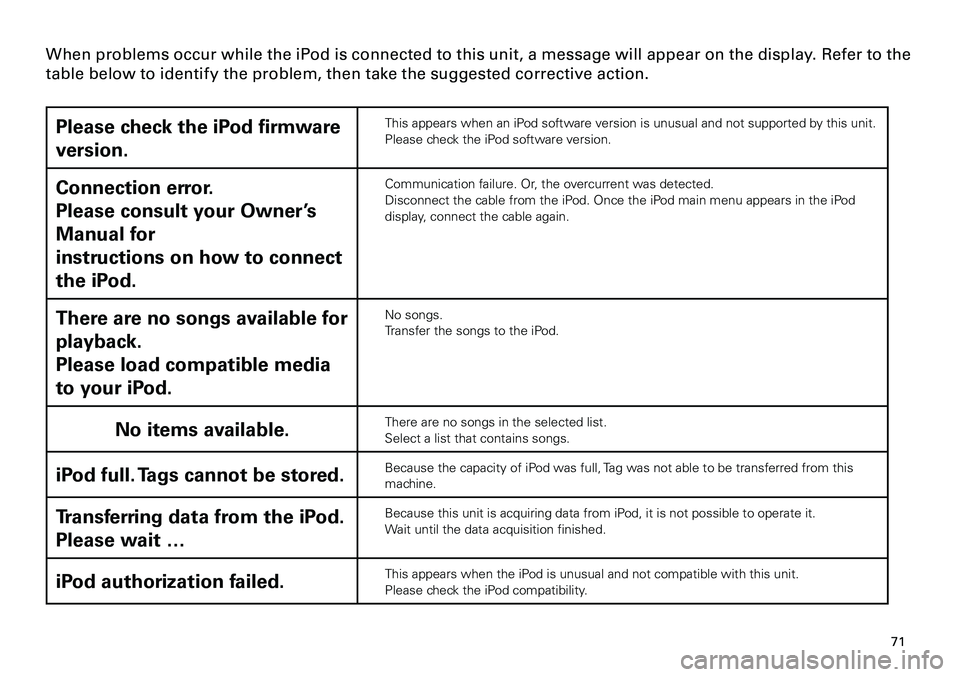

When problems occur while the iPod is connected to this unit, a message will appear on the display. Refer to the
table below to identif y the problem, then take the suggested corrective action.
Please check the iPod firmware
version.
This appears when an iPod software version is unusual and not supported by this unit.Please check the iPod software version.
Connection error.
Please consult your Owner’s
Manual for
instructions on how to connect
the iPod.
Communication failure. Or, the overcurrent was detected.Disconnect the cable from the iPod. Once the iPod main menu appears in the iPod display, connect the cable again.
There are no songs available for
playback.
Please load compatible media
to your iPod.
No songs.Transfer the songs to the iPod.
No items available.There are no songs in the selected list.Select a list that contains songs.
iPod full. Tags cannot be stored.Because the capacity of iPod was full, Tag was not able to be transferred from this machine.
Transferring data from the iPod.
Please wait …
Because this unit is acquiring data from iPod, it is not possible to operate it.Wait until the data acquisition finished.
iPod authorization failed.This appears when the iPod is unusual and not compatible with this unit.Please check the iPod compatibility.

7
7

When problems occur with the USB portable audio player/USB memory is connected to this unit, a message
will appear on the display. Refer to the table below to identif y the problem, then take the suggested corrective
action.
No compatible audio files
found.
Please add compatible files to
your USB device.
This appears when an MP3/WMA file format is unusual and not supported by this unit like WAV format recordings.Please check the MP3/WMA file format.
Connection error.
Please consult your Owner’s
Manual for
instructions on how to connect
the USB device.
Communication failure. Or, the overcurrent was detected.Disconnect the USB portable audio player/USB memory and connect again.
When problems occur with the Bluetooth audio player is connected to this unit, a message will appear on the
display. Refer to the table below to identif y the problem, then take the suggested corrective action.
Audio player battery level is
low.
The battery power of the Bluetooth audio player connected with this unit is a little.
Music tracks not supported.
Please check your audio player.
This appears when an MP3/WMA file format is unusual and not supported by this unit like WAV format recordings.Please check the MP3/WMA file format.

73
73

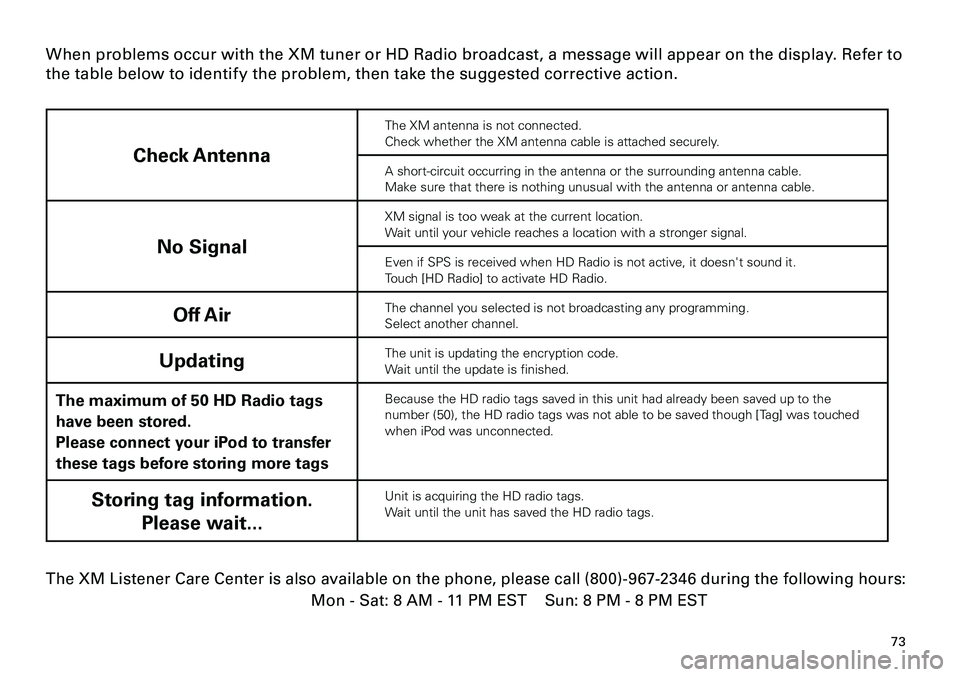

When problems occur with the XM tuner or HD Radio broadcast, a message will appear on the display. Refer to
the table below to identif y the problem, then take the suggested corrective action.
Check Antenna
The XM antenna is not connected.Check whether the XM antenna cable is attached securely.
A short-circuit occurring in the antenna or the surrounding antenna cable.Make sure that there is nothing unusual with the antenna or antenna cable.
No Signal
XM signal is too weak at the current location.Wait until your vehicle reaches a location with a stronger signal.
Even if SPS is received when HD Radio is not active, it doesn't sound it.Touch [HD Radio] to activate HD Radio.
Off AirThe channel you selected is not broadcasting any programming.Select another channel.
UpdatingThe unit is updating the encryption code.Wait until the update is finished.
The maximum of 50 HD Radio tags
have been stored.
Please connect your iPod to transfer
these tags before storing more tags
Because the HD radio tags saved in this unit had already been saved up to the number (50), the HD radio tags was not able to be saved though [Tag] was touched when iPod was unconnected.
Storing tag information.
Please wait...
Unit is acquiring the HD radio tags.Wait until the unit has saved the HD radio tags.
The XM Listener Care Center is also available on the phone, please call (800)-967-346 during the following hours:
Mon - Sat: 8 AM - 11 PM EST Sun: 8 PM - 8 PM EST

74
74

Changing or
disconnecting your
battery
About ASL settingIf the battery is changed or discon-nected, you cannot setup the ASL setup option until the vehicle is mov-ing.
Specifications
GeneralPower source . . . . . . . . . . . . . .13. V DC (10.5 V to 16.0 V allowable)Grounding system. . . . . .Negative typeMaximum current consumption . . .18 ADimensions (W × H × D) . . . . . . . . . . . . . . . 05 × 104 × 171 mm(80 in.3/8 × 41 in. × 67 in.3/8)Weight. . . . . . . . . . . . . . . . . . . . . . .06 kg(4.54155 lbs.)
AudioTone controls(Bass) . . . . . . . . . . . . .Frequency : 80 HzLevel : ±10 dB(Treble) . . . . . . . . . . .Frequency : 10 kHzLevel : ±10 dBMaximum power output. . . . . .50 W × 4Load impedance . . . . . . . . . . . . . . . .4 W
CD PlayerSystem . . .Compact disc audio systemUsable discs. . . . . . . . . . .Compact discSignal formatSampling frequency . . . . . . . . .44.1 kHz
Number of quantization bits . . . . . . . . . . . . . . . . . . . . . . . .16; linear
Number of channels . . . . . . .  (stereo)MP3 decoding format . . . . . . . . . . MPEG1 &  Audio Layer 3WMA decoding format . . . . . .Ver.7, 7.1, 8, 9, 10.11 (ch audio) (Windows Media Player)
USBSpecification. . . . . .USB .0 High speedSupply current . . . . . . . . . . . . . . 500 mAMaximum amount of memory. .50 GBFile system. . . . . . . . . . . . FAT16, FAT3MP3 decoding format . . . . . . . . .MPEG-1 &  Audio Layer 3WMA decoding format . . . . .Ver. 7, 7.1, 8, 9, 10, 11 (ch audio) (Windows Media Player)
AM tunerFrequency range . . . . . . . .530 kHz to 1 710 kHz (10 kHz)
FM tunerFrequency range . . . . . . . . . . . .87.75 MHz to 107.9 MHz
CEA2006 Specifications
Power output. . .16W RMS × 4 Channels (4 W and <= 1% THD+N)S/N ratio . . . . . . . . . . . . . . . . . . . .90 dBA(reference: 1 W into 4 W)
