Connecting the iPod
(iPhone)
Connect the USB connector.
Connect the iPod as indicated in
the figure below using an optional
cable.
Push the Dock connector into the
Dock connector port until you
hear a click to connect firmly. If it
does not go in smoothly, it may be
upside down so do not force it in
as this may result in damage.
To the vehicle's
connector
*3
*1
USB port
*2Jack port
Dock
connector iPod (iPhone) with Dock
connector port
When connecting the iPod, remove
a headphone cable from the iPod.
When connecting the iPod, it is
recommended to use a separately
purchased car kit.
*1
It is recommended to use a USB
cable which satisfies USB 2.0
standards.
(Measurements should satisfy USB
2.0 standards.)
*2 Fo

r United States model only.
Vehicle AUX jack will not function
as a AUX input.
*3 Co

nnection location differs depend -
ing on the vehicle.
Vehicle
type Connection location
tC Connect to the connector near the shift knob.
xB Connect to the connector near the parking brake.
xD Connect to the connector near the cup holder.
iQ Connect to the connector near the shift knob.
FR-S Connect to the connector near the shift knob.
As soon as the iPod is connected, its
power is automatically turned on.
While the iPod is connected to this
unit, indicates that an accessory
has been connected to the iPod. When the ignition switch is set
to ACC or ON, the iPod’s battery
is charged while the iPod is
connected to this unit.
You cannot use the iPod’s remote
control at the same time.
You may hear noise if you
disconnect during iPod playback.
NOTICE
To resolve most problems
when using your iPod with
the Scion Audio system,
disconnect your iPod from the
vehicle iPod connection and
reset it.
For instructions on how to
reset your iPod, refer to the
User Guide of your iPod.
Connect the Dock connector
directly to the iPod with
Dock connector port. Do not
connect it via the iPod Dock or
other connection.
When the iPod is connected
to this unit, sound will also be
heard from the headphone of
the iPod.
Disconnect the headphone
from the iPod before use.
•
•
•
•
•
•
•
•

3
3
NOTICE
If you install an audio system
other than a Scion Genuine
Audio, you will not be able to
use the USB connector.
If the iPod does not operate
with Scion Audio system,
disconnect the connector from
the iPod and reconnect again.
When you are using iPhone by
the multitasking, according to
the application under use, it
might not be able to charge a
battery.
When connecting a Bluetooth
enabled iPod via the Dock
connector, the iPod or
Pandora
® may not produce
any sound on this unit. If
this happens, turn the iPod
Bluetooth function off.
•
•
•
•
NOTICE
If this product does not recognize
or otherwise behaves erratically
when an iPod/iPhone that has
been updated with the latest
software/firmware (iTunes) is
connected, follow the steps
below.
1. Disconnect the iPod/iPhone cable and then reconnect it.
2. Turn the iPod/iPhone off and then turn the device back on
again.
3. Disconnect the cable from the iPod/iPhone and reset them.
After starting up the iPod/
iPhone, connect the product
using a cable.
Disconnecting the iPod
(iPhone)
Remove the connector.
When disconnecting the iPod
connector, grasp the connector
firmly and pull it towards you.

33
33

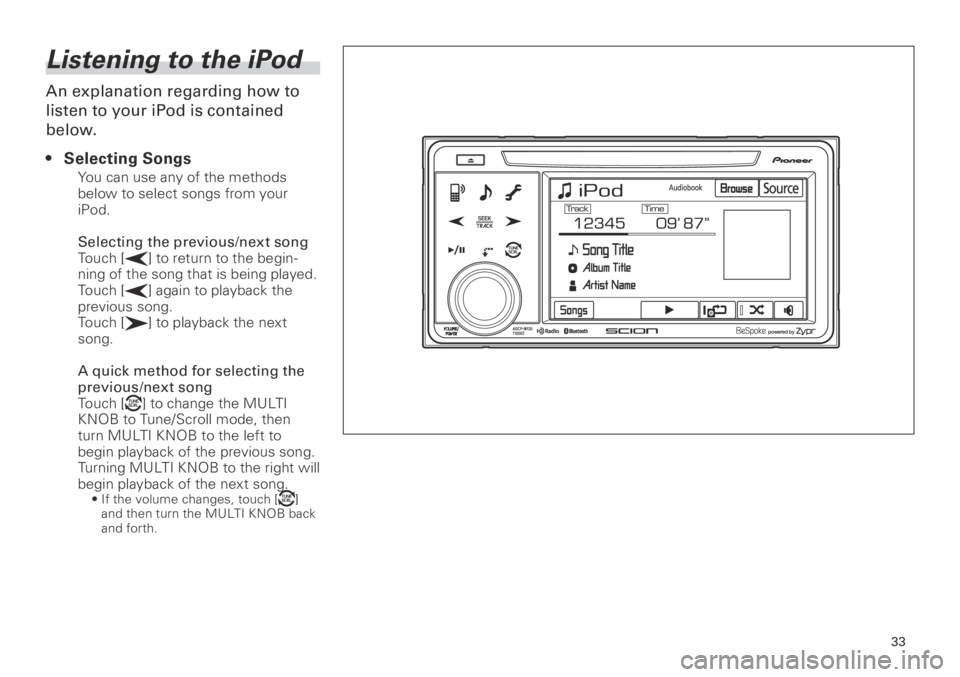

Listening to the iPod
An explanation regarding how to
listen to your iPod is contained
below.Selecting Songs
You can use any of the methods
below to select songs from your
iPod.
Selecting the previous/next song
Touch [
] to return to the begin-
ning of the song that is being played.
Touch [
] again to playback the
previous song.
Touch [
] to playback the next
song.
A quick method for selecting the
previous/next song
Touch [
] to change the MULTI
KNOB to Tune/Scroll mode, then
turn MULTI KNOB to the left to
begin playback of the previous song.
Turning MULTI KNOB to the right will
begin playback of the next song.
• If the volume changes, touch []
and then turn the MULTI KNOB back
and forth.
•

3
3

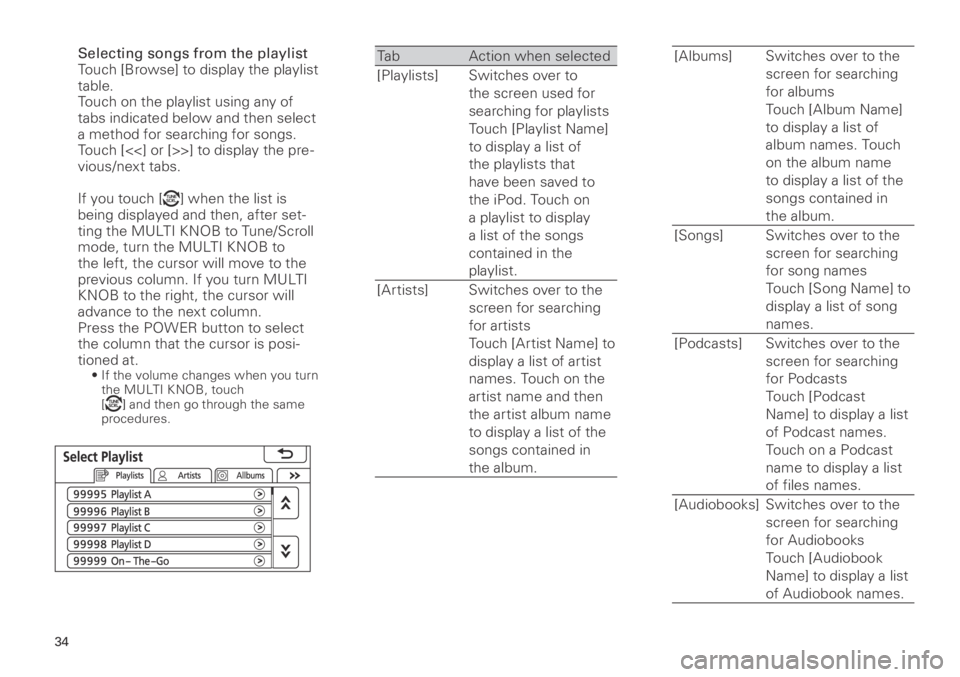

Selecting songs from the playlist
Touch [Browse] to display the playlist
table.
Touch on the playlist using any of
tabs indicated below and then select
a method for searching for songs.
Touch [<<] or [>>] to display the pre -
vious/next tabs.
If you touch [
] when the list is
being displayed and then, after set-
ting the MULTI KNOB to Tune/Scroll
mode, turn the MULTI KNOB to
the left, the cursor will move to the
previous column. If you turn MULTI
KNOB to the right, the cursor will
advance to the next column.
Press the POWER button to select
the column that the cursor is posi-
tioned at.
• If the volume changes when you turn
the MULTI KNOB, touch
[
] and then go through the same
procedures.
Tab Action when selected
[Playlists] Switches over to
the screen used for
searching for playlists
Touch [Playlist Name]
to display a list of
the playlists that
have been saved to
the iPod. Touch on
a playlist to display
a list of the songs
contained in the
playlist.
[Artists] Switches over to the screen for searching
for artists
Touch [Artist Name] to
display a list of artist
names. Touch on the
artist name and then
the artist album name
to display a list of the
songs contained in
the album.[Albums] Switches over to the screen for searching
for albums
Touch [Album Name]
to display a list of
album names. Touch
on the album name
to display a list of the
songs contained in
the album.
[Songs] Switches over to the screen for searching
for song names
Touch [Song Name] to
display a list of song
names.
[Podcasts] Switches over to the screen for searching
for Podcasts
Touch [Podcast
Name] to display a list
of Podcast names.
Touch on a Podcast
name to display a list
of files names.
[Audiobooks] Switches over to the screen for searching
for Audiobooks
Touch [Audiobook
Name] to display a list
of Audiobook names.

35
35

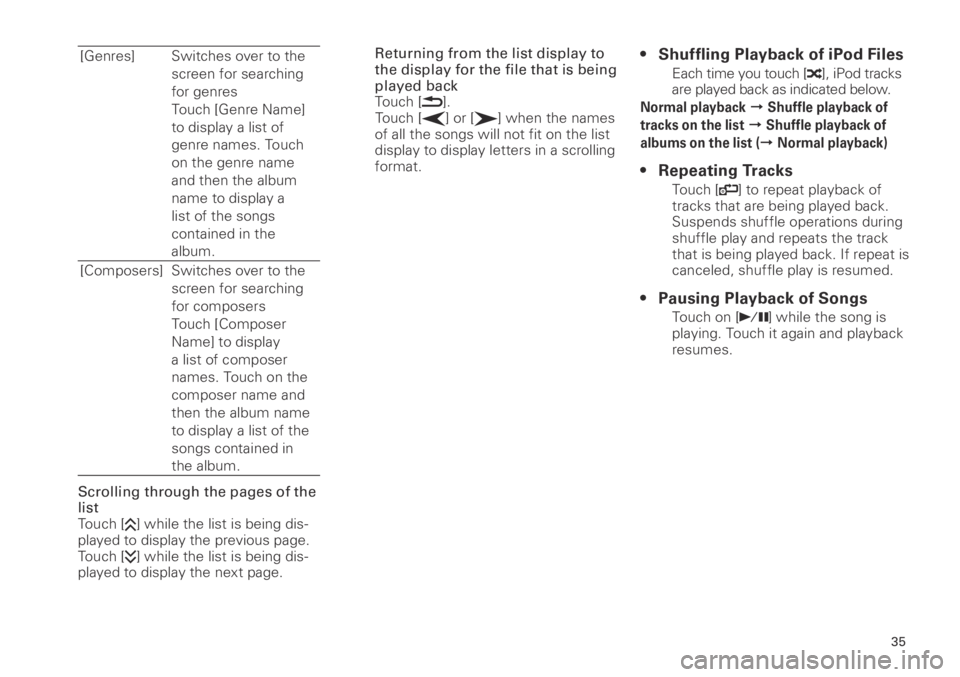

[Genres] Switches over to the screen for searching
for genres
Touch [Genre Name]
to display a list of
genre names. Touch
on the genre name
and then the album
name to display a
list of the songs
contained in the
album.
[Composers] Switches over to the screen for searching
for composers
Touch [Composer
Name] to display
a list of composer
names. Touch on the
composer name and
then the album name
to display a list of the
songs contained in
the album.
Scrolling through the pages of the
list
Touch [
] while the list is being dis-
played to display the previous page.
Touch [
] while the list is being dis-
played to display the next page. Returning from the list display to
the display for the file that is being
played back
Touch [
].
Touch [] or [] when the names
of all the songs will not fit on the list
display to display letters in a scrolling
format.
Shuffling Playback of iPod Files
Each time you touch [], iPod tracks
are played back as indicated below.
Normal playback d Shuffle playback of
tracks on the list d Shuffle playback of
albums on the list ( d Normal playback)
Repeating Tracks
Touch [] to repeat playback of
tracks that are being played back.
Suspends shuffle operations during
shuffle play and repeats the track
that is being played back. If repeat is
canceled, shuffle play is resumed.
Pausing Playback of Songs
Touch on [] while the song is
playing. Touch it again and playback
resumes.
•
•
•

36
36
Listening to the
Bluetooth Audio
In order to listen to Bluetooth
audio on this unit, you must first
hook Bluetooth audio up to the
system. An explanation regarding
how to listen to Bluetooth audio is
contained below.Bluetooth audio that can be
hooked up to the system
These are the requirements for
Bluetooth audio:
• Blu e
tooth device that loads A 2DP.
• Bluetooth Specification Version 1.1
or higher ( Version 2.1+EDR recom-
mended).
The number of Bluetooth devices
that can be registered is a total of
five units with phones and portable
devices together. It will be counted
as one unit when a phone and port-
able device is the same device.
•

37
37
Registering Bluetooth Audio
Device
There are two methods for register-
ing Bluetooth audio device to this
system, both of which are explained
below.
If another Bluetooth audio device
has already been connected, you will
need to cancel this connection prior
to beginning the registration process.
You will mainly be working with your
Bluetooth audio device to register it
with the system. For details, see the
user manual for your Bluetooth audio
device.
Sending your pass key for registration
1. Touch [
] d [Bluetooth] d
[Connect Audio Player] d [Add
New]. If a device has already been
connected, a screen will appear
seeking confirmation of whether
this connection is to be canceled
or not. Touch [YES].
2 . U s

ing the Bluetooth audio, search
for the Bluetooth enabled device
and then select this unit ([CAR
MULTIMEDIA]).
3 . Se

nd the Passkey that appears
on the screen from the Bluetooth
audio device to the system.
I
f th e P

asskey has been sent
correctly, Bluetooth audio will
register it to the system and it will
be connected.
•Registering via SSP (Secure Simple
Pairing)
1. To
uch [
] d [Bluetooth] d
[Connect Audio Player] d [Add
New]. If a device has already been
connected, a screen will appear
seeking confirmation of whether
this connection is to be canceled
or not. Touch [YES].
2 . U s

ing the Bluetooth audio, search
for the Bluetooth enabled device
and then select this unit ([CAR
MULTIMEDIA]).
• For some types of devices and
authentication methods, number
authentication or other means of
verification may be required.
• Blu

etooth 2.0 or higher is required.
Connecting a Bluetooth Audio
Device
Once the Bluetooth audio device is
registered to the System, connec-
tion takes place automatically. Up to
five Bluetooth audio devices can be
registered on the system. You can
select the device that you want to
listen to and it will be connected.
Touch [
] d [Bluetooth] d
[Connect Audio Player] to display a
list of devices.
Touch the Bluetooth audio device
that you want to connect.
Selecting Files
Any of the methods used below can
be used to select Bluetooth audio
files.
Selecting the previous/next file
Touch [
] to return to the begin-
ning of the file that is being played
back. Touch [
] again to playback
the previous file.
Touch [
] to playback the next file.
A quick method for selecting the
previous/next file
Touch [
] to change the MULTI
KNOB to Tune/Scroll mode, then
turn MULTI KNOB to the left to
begin playback of the previous file.
Turning MULTI KNOB to the right will
begin playback of the next file.
• If the volume changes when you turn
the MULTI KNOB, touch [] and
then turn the MULTI KNOB back and
forth.
•

38
38

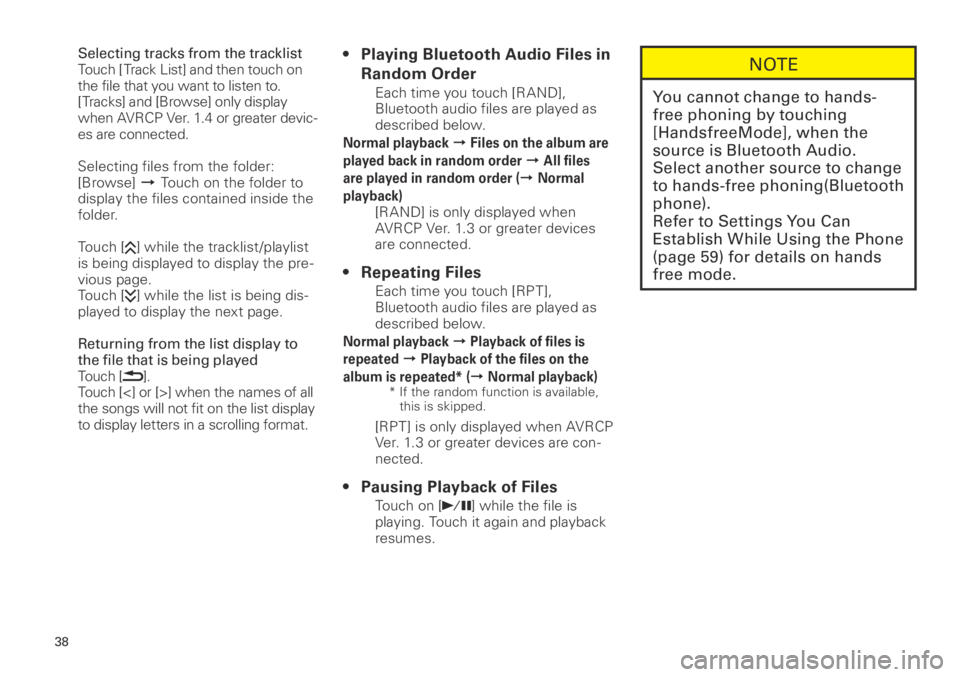

Selecting tracks from the tracklist
Touch [Track List] and then touch on
the file that you want to listen to.
[Tracks] and [Browse] only display
when AVRCP Ver. 1.4 or greater devic-
es are connected.
Selecting files from the folder:
[Browse] d Touch on the folder to
display the files contained inside the
folder.
Touch [
] while the tracklist /playlist
is being displayed to display the pre-
vious page.
Touch [
] while the list is being dis-
played to display the next page.
Returning from the list display to
the file that is being played
Touch [
].
Touch [<] or [>] when the names of all
the songs will not fit on the list display
to display letters in a scrolling format.
Playing Bluetooth Audio Files in
Random Order
Each time you touch [RAND],
Bluetooth audio files are played as
described below.
Normal playback d Files on the album are
played back in random order d All files
are played in random order ( d Normal
playback)
[RAND] is only displayed when
AVRCP Ver. 1.3 or greater devices
are connected.
Repeating Files
Each time you touch [RPT],
Bluetooth audio files are played as
described below.
Normal playback d Playback of files is
repeated d Playback of the files on the
album is repeated* ( d Normal playback)
* If the random function is available,
this is skipped.
[RPT] is only displayed when AVRCP
Ver. 1.3 or greater devices are con-
nected.
Pausing Playback of Files
Touch on [] while the file is
playing. Touch it again and playback
resumes.
•
•
•NOTE
You cannot change to hands-
free phoning by touching
[HandsfreeMode], when the
source is Bluetooth Audio.
Select another source to change
to hands-free phoning(Bluetooth
phone).
Refer to Settings You Can
Establish While Using the Phone
(page 59) for details on hands
free mode.

39
39

0
0
Listening to Pandora®
internet radio
Pandora® is an internet radio
service that utilizes an extensive
music database and song-
matching algorithms to provide
personalized radio.
To use this system to listen to
Pandora, first download the Pandora
application on your iPhone and create
a registered Pandora account, then
connect the iPhone to this system
(see detailed information below):
Requirements to access Pandora
®
internet radio using this system: Apple iPhone (first generation),
iPho
ne 3G, iPhone 3GS, iPhone
or iPhone S with firmware version
3.0 or later.
Latest version of the Pandora
application for the iPhone,
downloaded to your device.
(Search Apple iTunes App Store
for “Pandora”).
•
•
