TOYOTA xB 2013 Accessories, Audio & Navigation (in English)

1
Owner’s Manual
for AM/FM/HD Radio™ broadcast/CD Player with iPod/
USB/Bluetooth Audio
Display Audio System

2

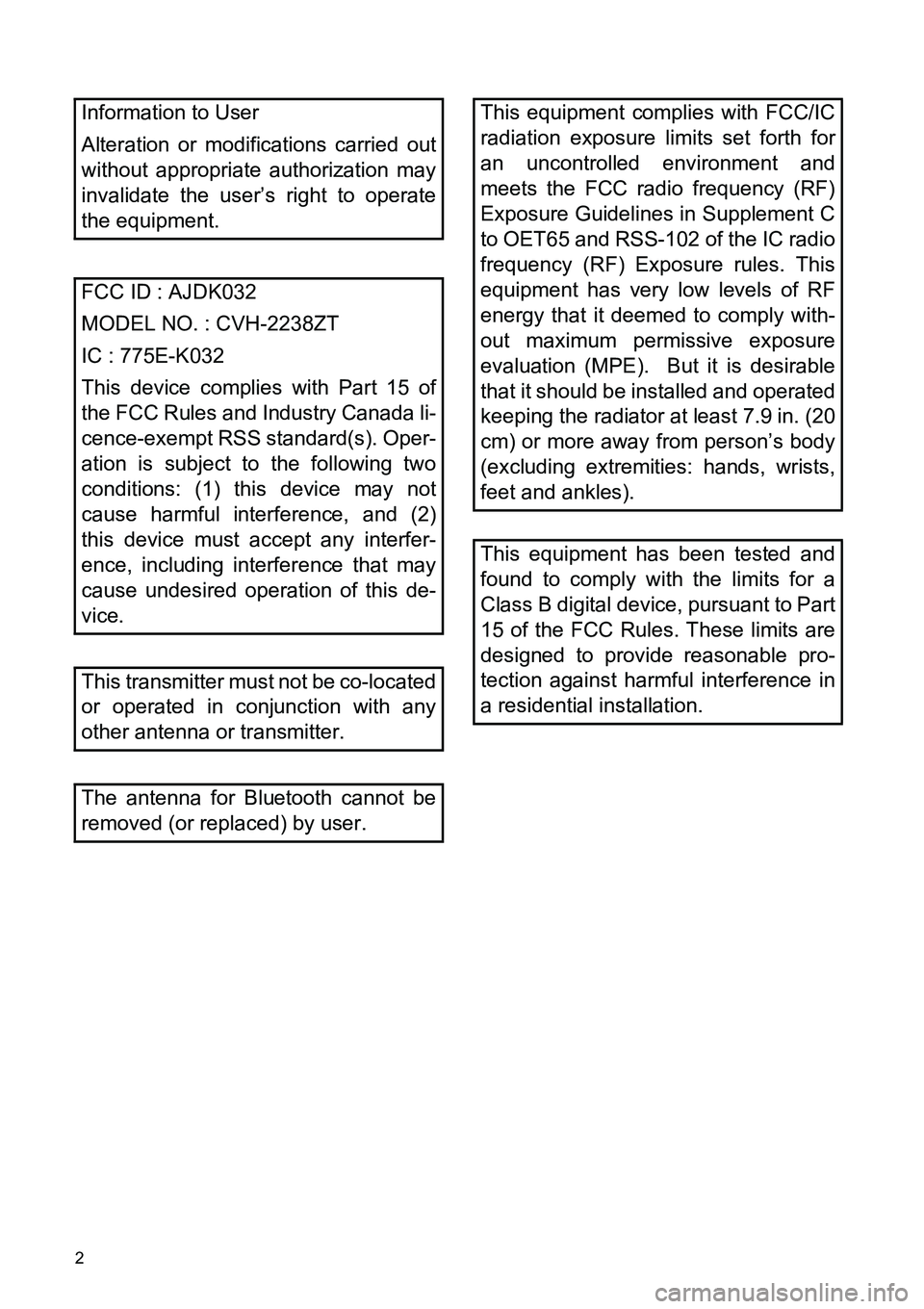

Information to User
Alteration or modifications carried out
without appropriate authorization may
invalidate the user’s right to operate
the equipment.
FCC ID : AJDK032
MODEL NO. : CVH-2238ZT
IC : 775E-K032
This device complies with Part 15 of
the FCC Rules and Industry Canada li-
cence-exempt RSS standard(s). Oper-
ation is subject to the following two
conditions: (1) this device may not
cause harmful interference, and (2)
this device must accept any interfer-
ence, including interference that may
cause undesired operation of this de-
vice.
This transmitter must not be co-located
or operated in conjunction with any
other antenna or transmitter.
The antenna for Bluetooth cannot be
removed (or replaced) by user.This equipment complies with FCC/IC
radiation exposure limits set forth for
an uncontrolled environment and
meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C
to OET65 and RSS-102 of the IC radio
frequency (RF) Exposure rules. This
equipment has very low levels of RF
energy that it deemed to comply with-
out maximum permissive exposure
evaluation (MPE). But it is desirable
that it should be installed and operated
keeping the radiator at least 7.9 in. (20
cm) or more away from person’s body
(excluding extremities: hands, wrists,
feet and ankles).
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable pro-
tection against harmful interference in
a residential installation.

3

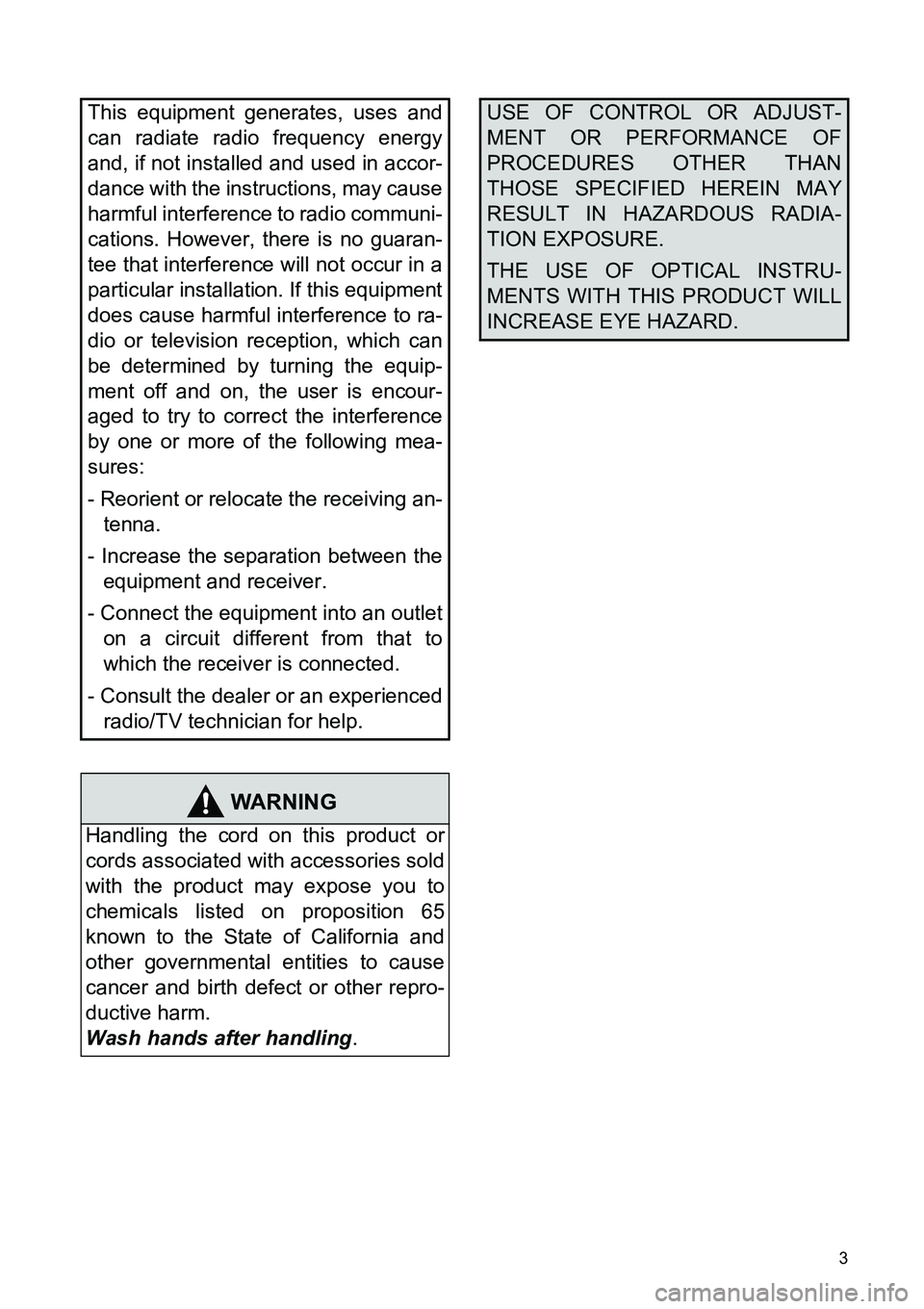

This equipment generates, uses and
can radiate radio frequency energy
and, if not installed and used in accor-
dance with the instructions, may cause
harmful interference to radio communi-
cations. However, there is no guaran-
tee that interference will not occur in a
particular installation. If this equipment
does cause harmful interference to ra-
dio or television reception, which can
be determined by turning the equip-
ment off and on, the user is encour-
aged to try to correct the interference
by one or more of the following mea-
sures:
- Reorient or relocate the receiving an-
tenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced
radio/TV technician for help.
Handling the cord on this product or
cords associated with accessories sold
with the product may expose you to
chemicals listed on proposition 65
known to the State of California and
other governmental entities to cause
cancer and birth defect or other repro-
ductive harm.
Wash hands after handling.
WARNING
USE OF CONTROL OR ADJUST-
MENT OR PERFORMANCE OF
PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIA-
TION EXPOSURE.
THE USE OF OPTICAL INSTRU-
MENTS WITH THIS PRODUCT WILL
INCREASE EYE HAZARD.

4

5

1QUICK GUIDE13
2AUDIO SYSTEM18
3Bluetooth® HANDS-FREE SYSTEM63
4SETUP81
SPECIFICATIONS / INDEX 109

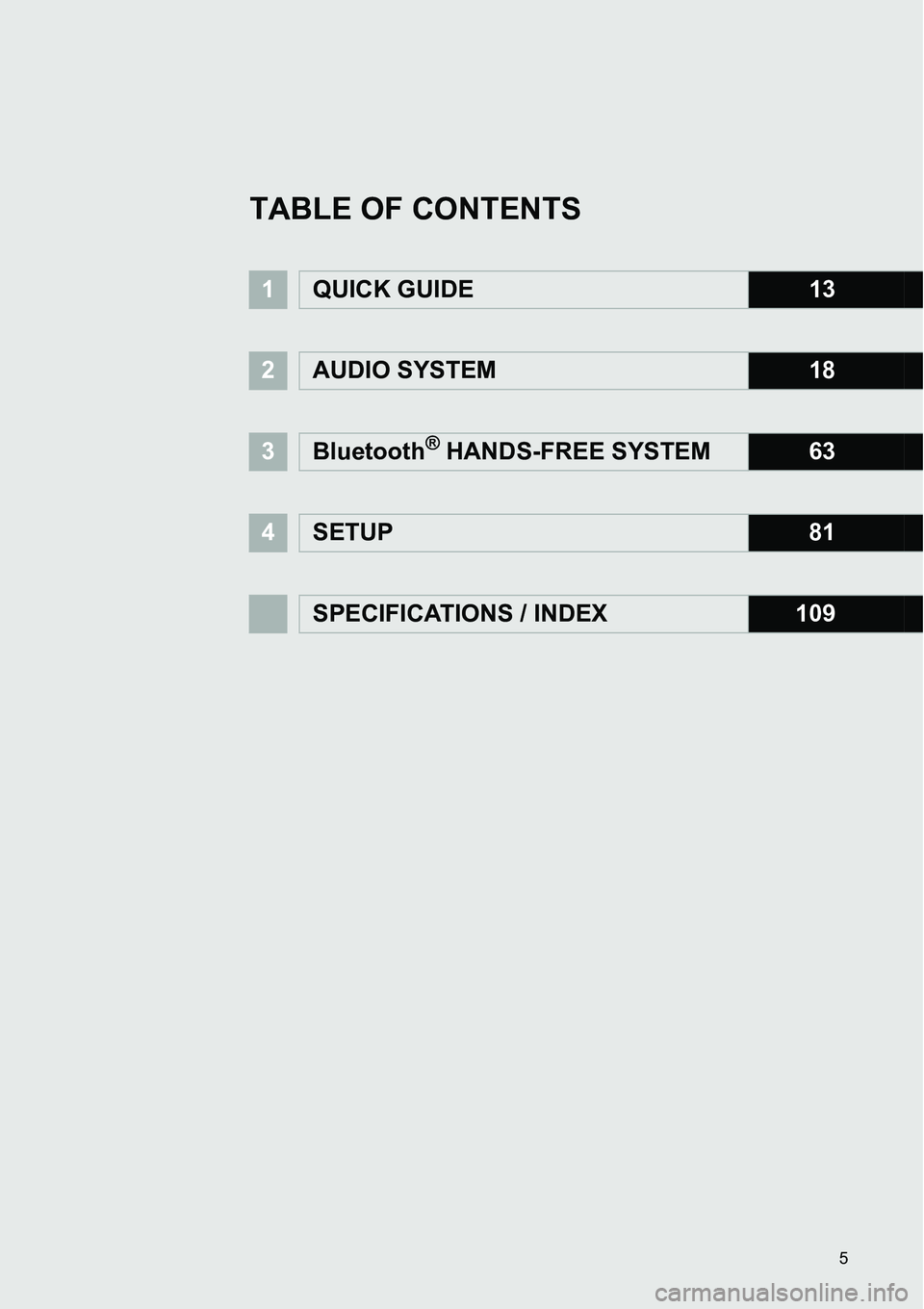

TABLE OF CONTENTS

6

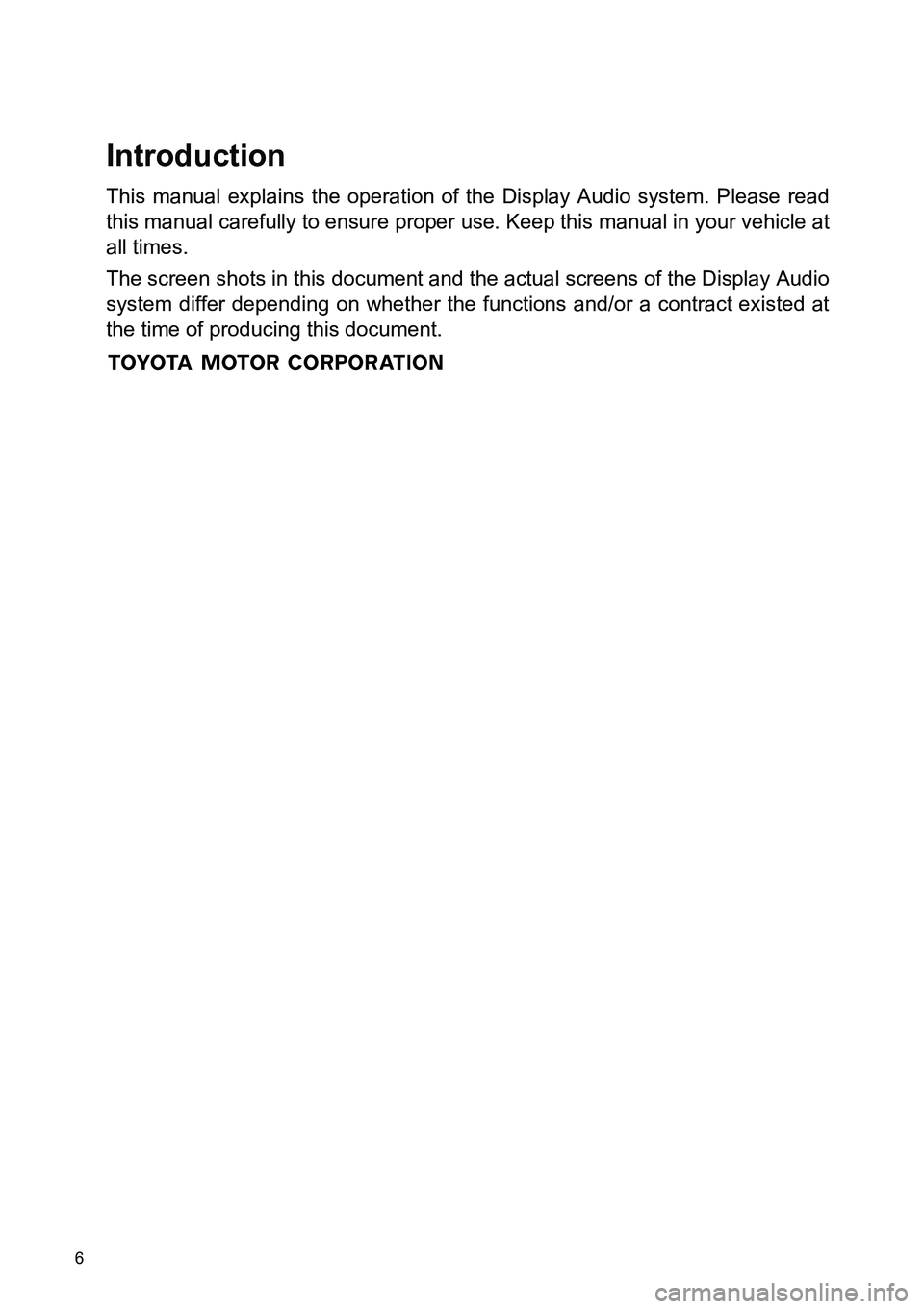

Introduction
This manual explains the operation of the Display Audio system. Please read
this manual carefully to ensure proper use. Keep this manual in your vehicle at
all times.
The screen shots in this document and the actual screens of the Display Audio
system differ depending on whether the functions and/or a contract existed at
the time of producing this document.

7

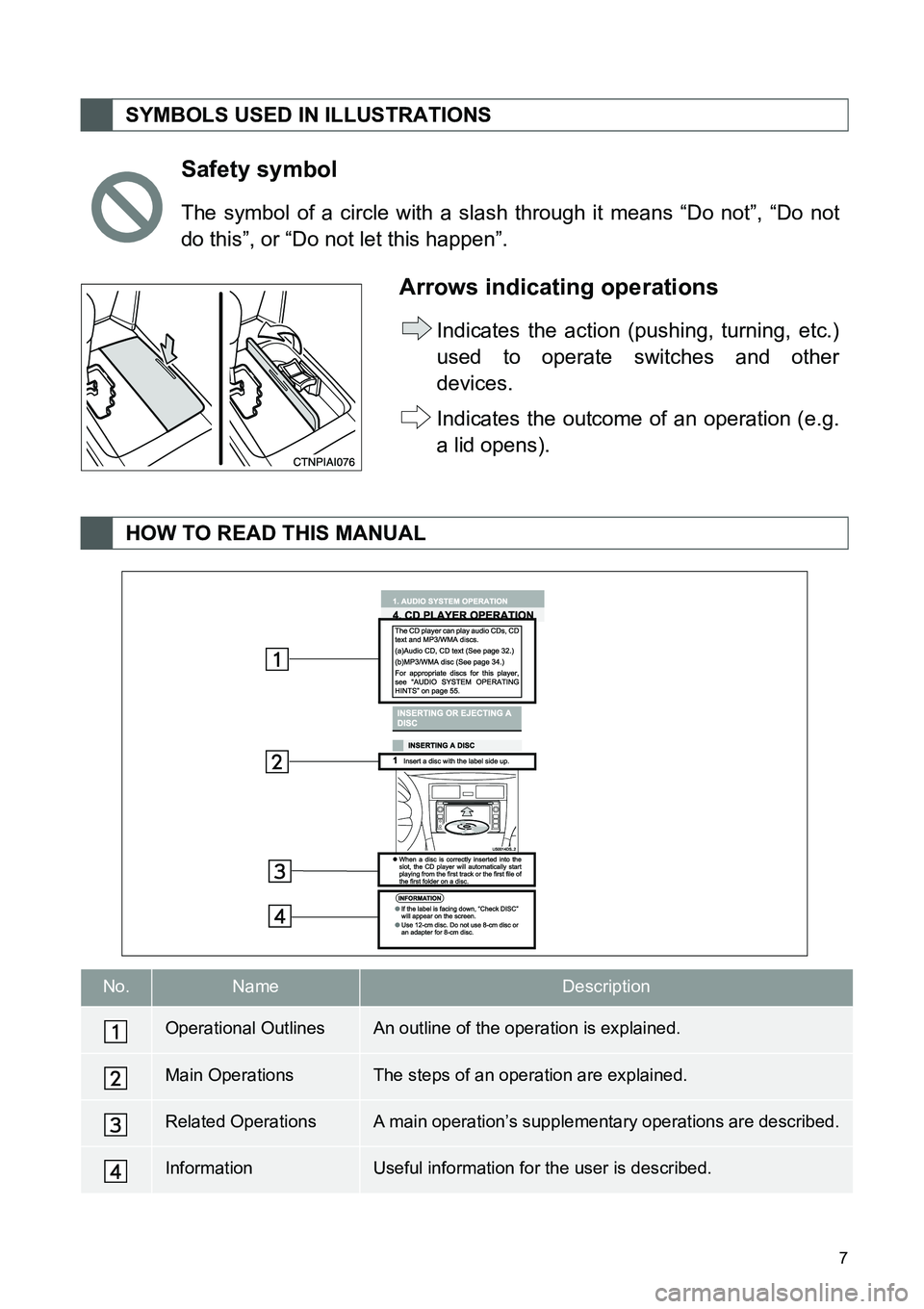

SYMBOLS USED IN ILLUSTRATIONS
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do not
do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning, etc.)
used to operate switches and other
devices.
Indicates the outcome of an operation (e.g.
a lid opens).
HOW TO READ THIS MANUAL
No.NameDescription
Operational OutlinesAn outline of the operation is explained.
Main OperationsThe steps of an operation are explained.
Related OperationsA main operation’s supplementary operations are described.
InformationUseful information for the user is described.

8

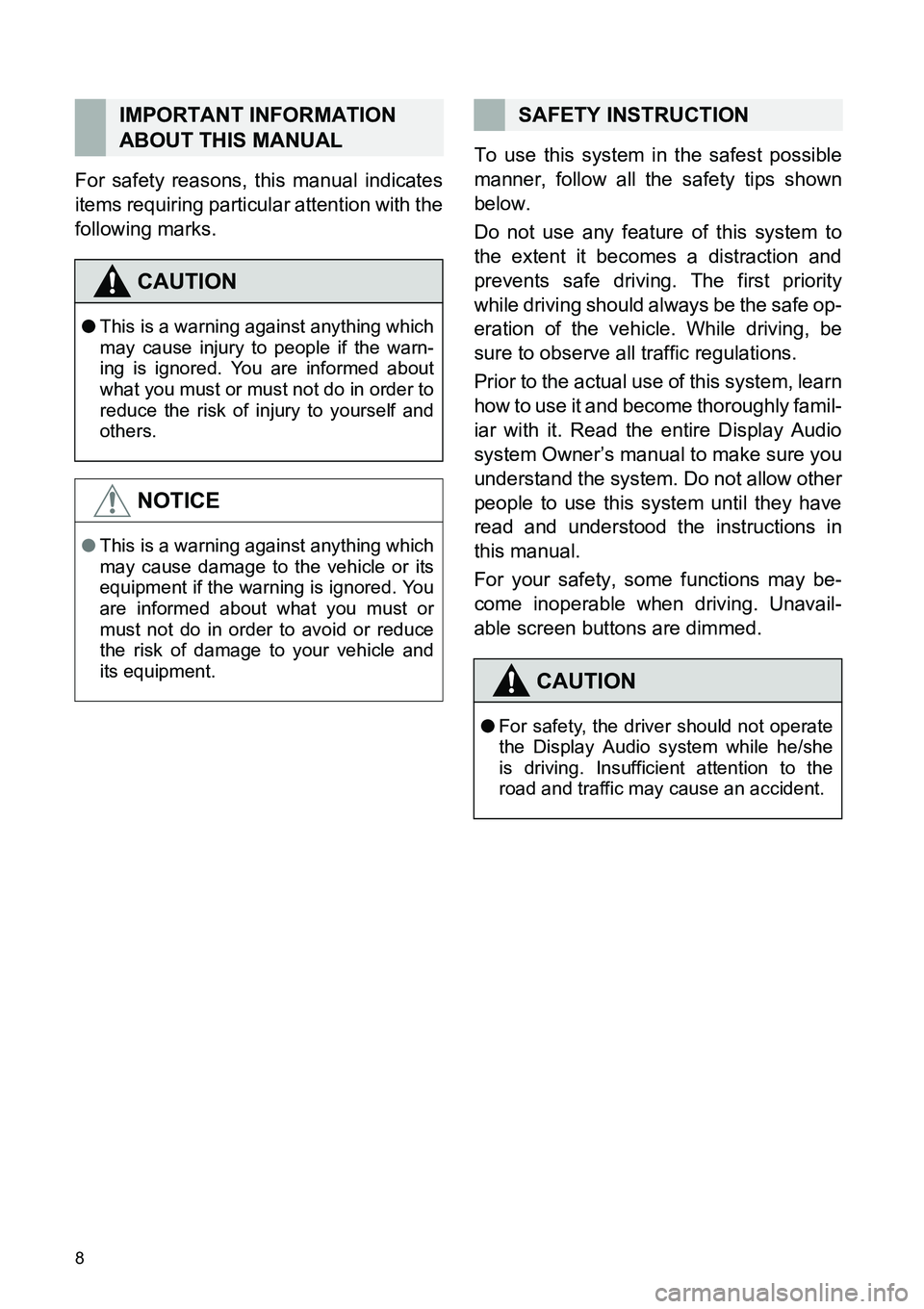

For safety reasons, this manual indicates
items requiring particular attention with the
following marks.To use this system in the safest possible
manner, follow all the safety tips shown
below.
Do not use any feature of this system to
the extent it becomes a distraction and
prevents safe driving. The first priority
while driving should always be the safe op-
eration of the vehicle. While driving, be
sure to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Display Audio
system Owner’s manual to make sure you
understand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able screen buttons are dimmed.
IMPORTANT INFORMATION
ABOUT THIS MANUAL
CAUTION
●This is a warning against anything which
may cause injury to people if the warn-
ing is ignored. You are informed about
what you must or must not do in order to
reduce the risk of injury to yourself and
others.
NOTICE
●This is a warning against anything which
may cause damage to the vehicle or its
equipment if the warning is ignored. You
are informed about what you must or
must not do in order to avoid or reduce
the risk of damage to your vehicle and
its equipment.
SAFETY INSTRUCTION
CAUTION
●For safety, the driver should not operate
the Display Audio system while he/she
is driving. Insufficient attention to the
road and traffic may cause an accident.

9

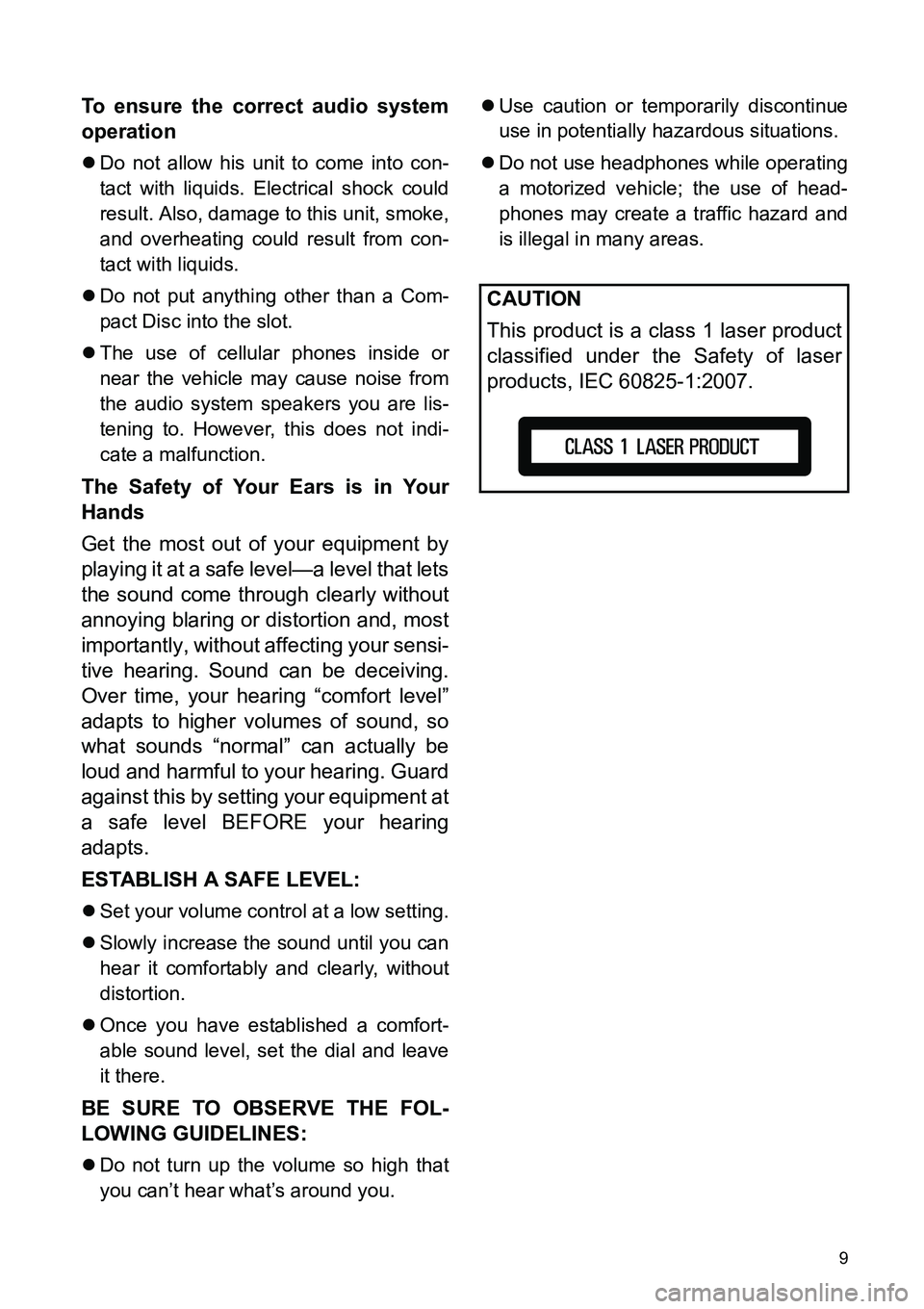

To ensure the correct audio system
operation
zDo not allow his unit to come into con-
tact with liquids. Electrical shock could
result. Also, damage to this unit, smoke,
and overheating could result from con-
tact with liquids.
zDo not put anything other than a Com-
pact Disc into the slot.
zThe use of cellular phones inside or
near the vehicle may cause noise from
the audio system speakers you are lis-
tening to. However, this does not indi-
cate a malfunction.
The Safety of Your Ears is in Your
Hands
Get the most out of your equipment by
playing it at a safe level—a level that lets
the sound come through clearly without
annoying blaring or distortion and, most
importantly, without affecting your sensi-
tive hearing. Sound can be deceiving.
Over time, your hearing “comfort level”
adapts to higher volumes of sound, so
what sounds “normal” can actually be
loud and harmful to your hearing. Guard
against this by setting your equipment at
a safe level BEFORE your hearing
adapts.
ESTABLISH A SAFE LEVEL:
zSet your volume control at a low setting.
zSlowly increase the sound until you can
hear it comfortably and clearly, without
distortion.
zOnce you have established a comfort-
able sound level, set the dial and leave
it there.
BE SURE TO OBSERVE THE FOL-
LOWING GUIDELINES:
zDo not turn up the volume so high that
you can’t hear what’s around you.zUse caution or temporarily discontinue
use in potentially hazardous situations.
zDo not use headphones while operating
a motorized vehicle; the use of head-
phones may create a traffic hazard and
is illegal in many areas.
CAUTION
This product is a class 1 laser product
classified under the Safety of laser
products, IEC 60825-1:2007.
