TOYOTA xB 2014 Owners Manual (in English)

131
2-2. Instrument cluster
2
When driving
Scion_xB_OM_OM12G56U_(U)

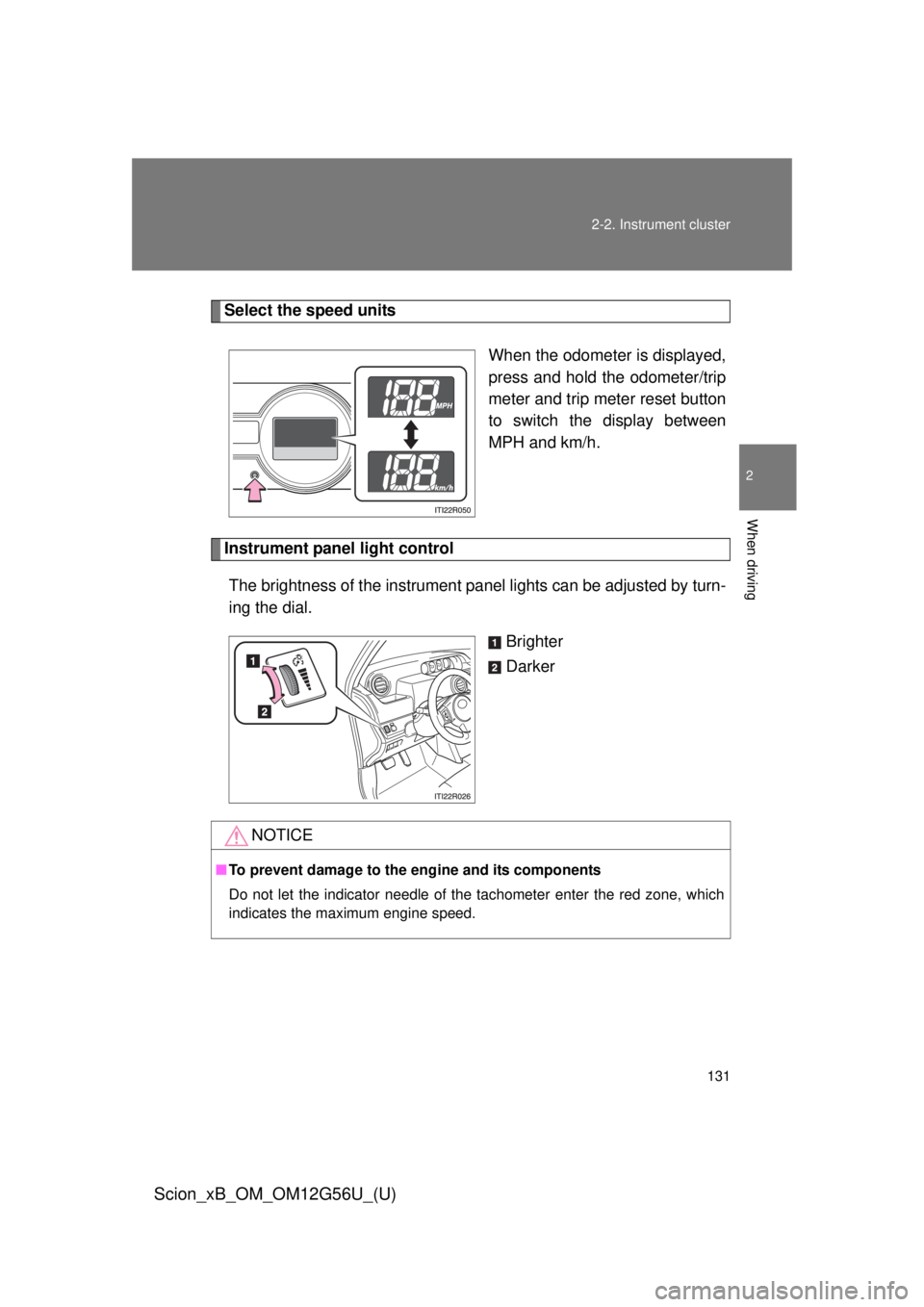

Select the speed units
When the odometer is displayed,
press and hold the odometer/trip
meter and trip meter reset button
to switch the display between
MPH and km/h.
Instrument panel light controlThe brightness of the instrument pa nel lights can be adjusted by turn-
ing the dial.
Brighter
Darker
NOTICE
■To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

132
2-2. Instrument cluster
Scion_xB_OM_OM12G56U_(U)

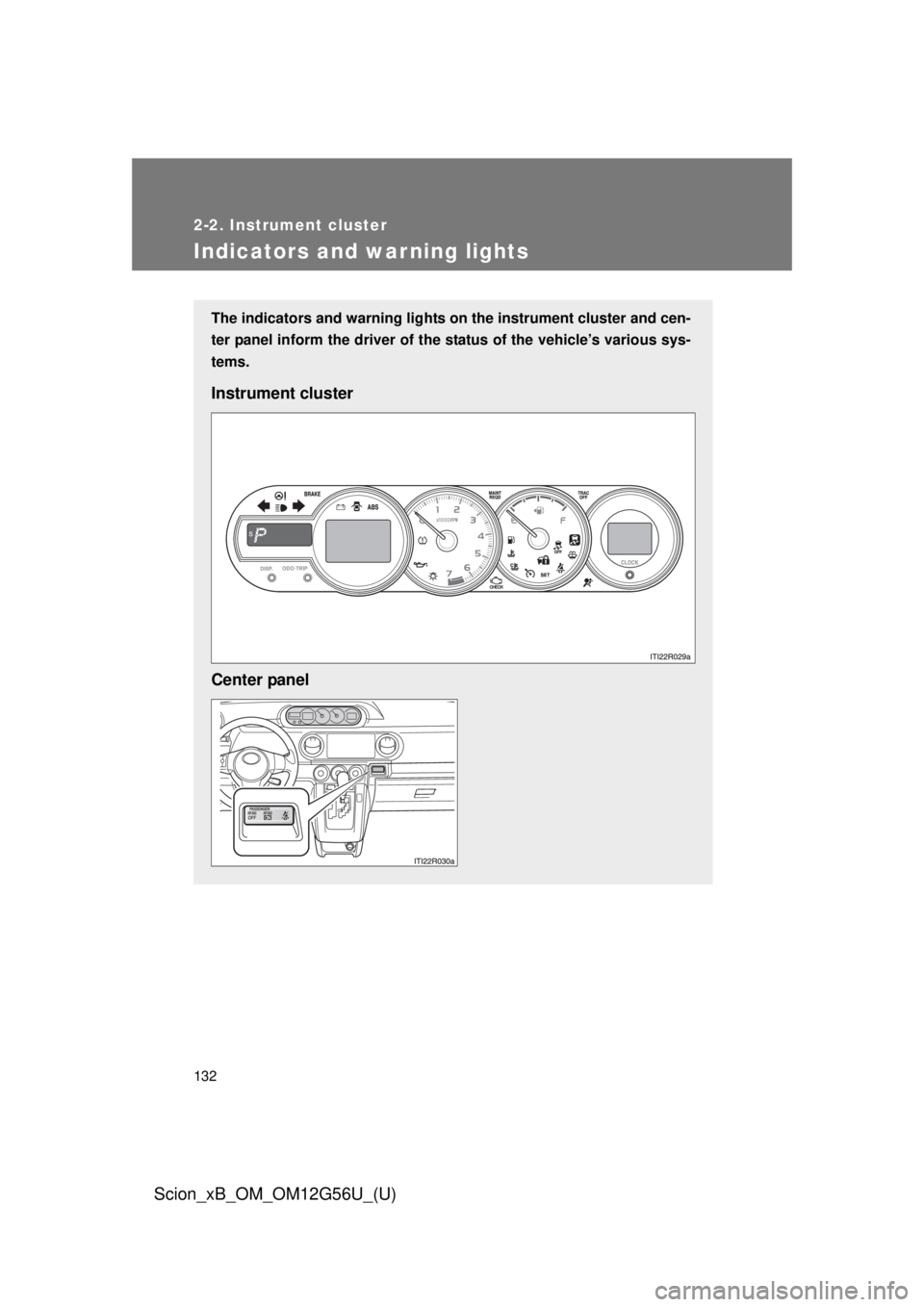

Indicators and warning lights
The indicators and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Center panel

133
2-2. Instrument cluster
2
When driving
Scion_xB_OM_OM12G56U_(U)
■

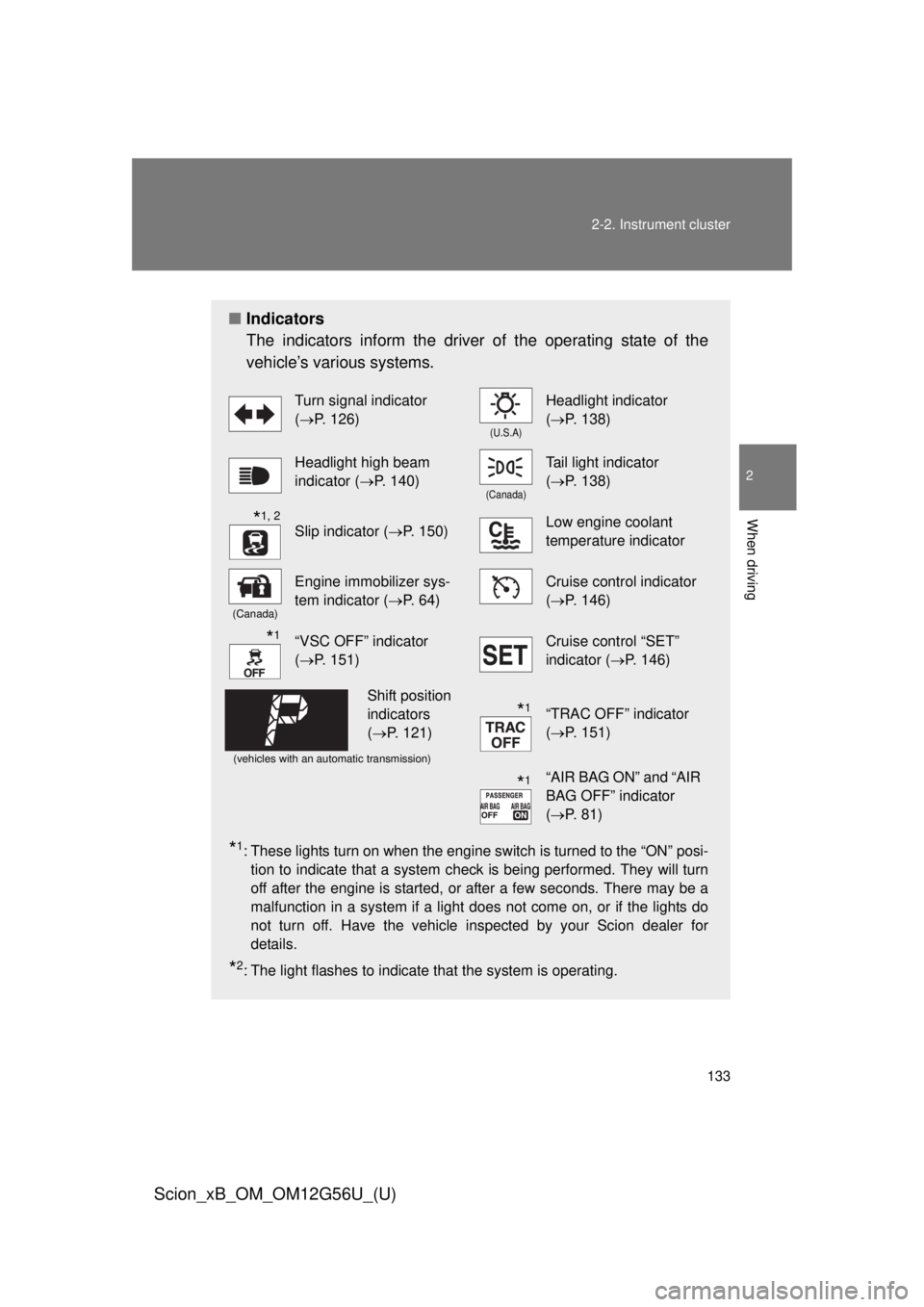

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion to indicate that a system check is being performed. They will turn
off after the engine is started, or after a few seconds. There may be a
malfunction in a system if a light does not come on, or if the lights do
not turn off. Have the vehicle inspected by your Scion dealer for
details.
*2: The light flashes to indicate that the system is operating.
Turn signal indicator
(P. 126)
(U.S.A)
Headlight indicator
(P. 138)
Headlight high beam
indicator ( P. 140)
(Canada)
Tail light indicator
(P. 138)
Slip indicator ( P. 150)Low engine coolant
temperature indicator
(Canada)
Engine immobilizer sys-
tem indicator (P. 64)Cruise control indicator
(P. 146)
“VSC OFF” indicator
(P. 151)Cruise control “SET”
indicator (P. 146)
(vehicles with an automatic transmission)
“TRAC OFF” indicator
(P. 151)
“AIR BAG ON” and “AIR
BAG OFF” indicator
(P. 81)
*1, 2
*1
Shift position
indicators
( P. 121)
*1
*1

134 2-2. Instrument cluster
Scion_xB_OM_OM12G56U_(U)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS or SRS warning light not come
on when you start the engine, this could mean that these systems are not
available to help protect you in an accident, which could result in death or
serious injury. Have the vehicle inspected by your Scion dealer immediately
if this occurs.

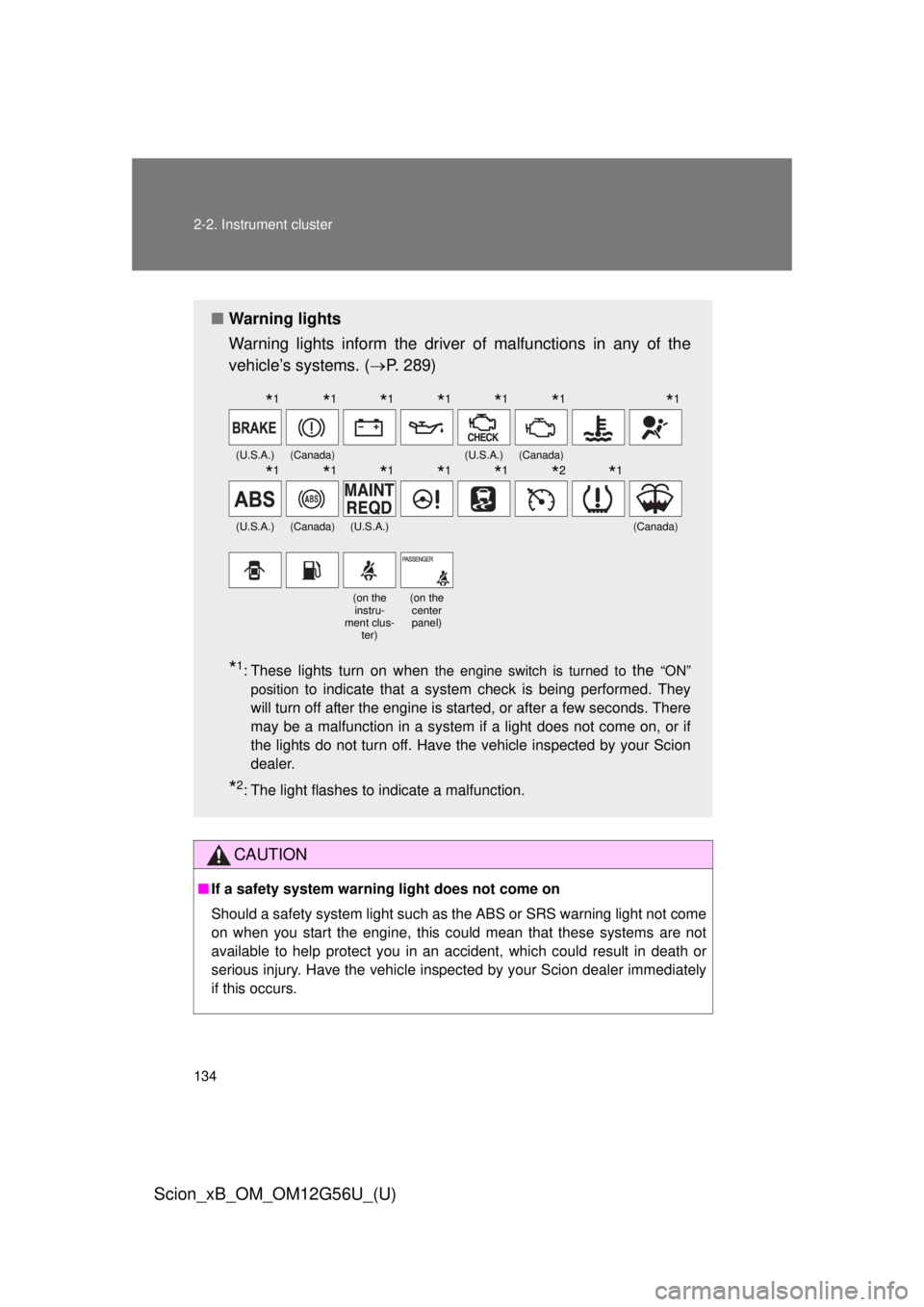

■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( P. 289)
*1: These lights turn on when the engine switch is turned to the “ON”
position
to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Scion
dealer.
*2: The light flashes to indicate a malfunction.
(U.S.A.)(Canada)(U.S.A.)(Canada)
(U.S.A.)(Canada)(U.S.A.)(Canada)
(on the instru-
ment clus- ter)(on the
center panel)
*1*1*1*1*1*1*1
*1*1*1*1*1*2*1

135
2-2. Instrument cluster
2
When driving
Scion_xB_OM_OM12G56U_(U)

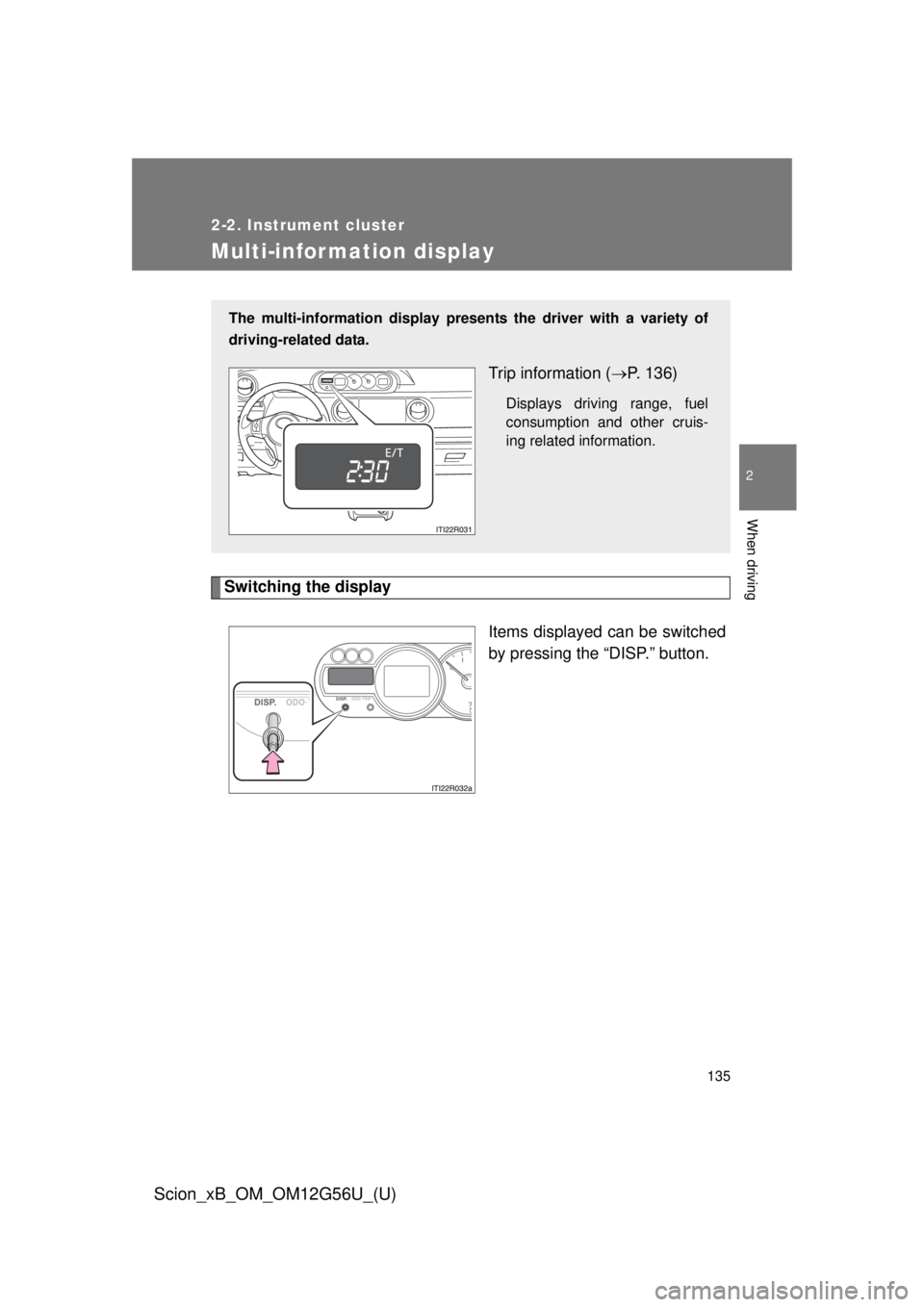

Multi-information display
Switching the displayItems displayed can be switched
by pressing the “DISP.” button.
The multi-information display presen ts the driver with a variety of
driving-related data.
Trip information ( P. 136)
Displays driving range, fuel
consumption and other cruis-
ing related information.

136 2-2. Instrument cluster
Scion_xB_OM_OM12G56U_(U)

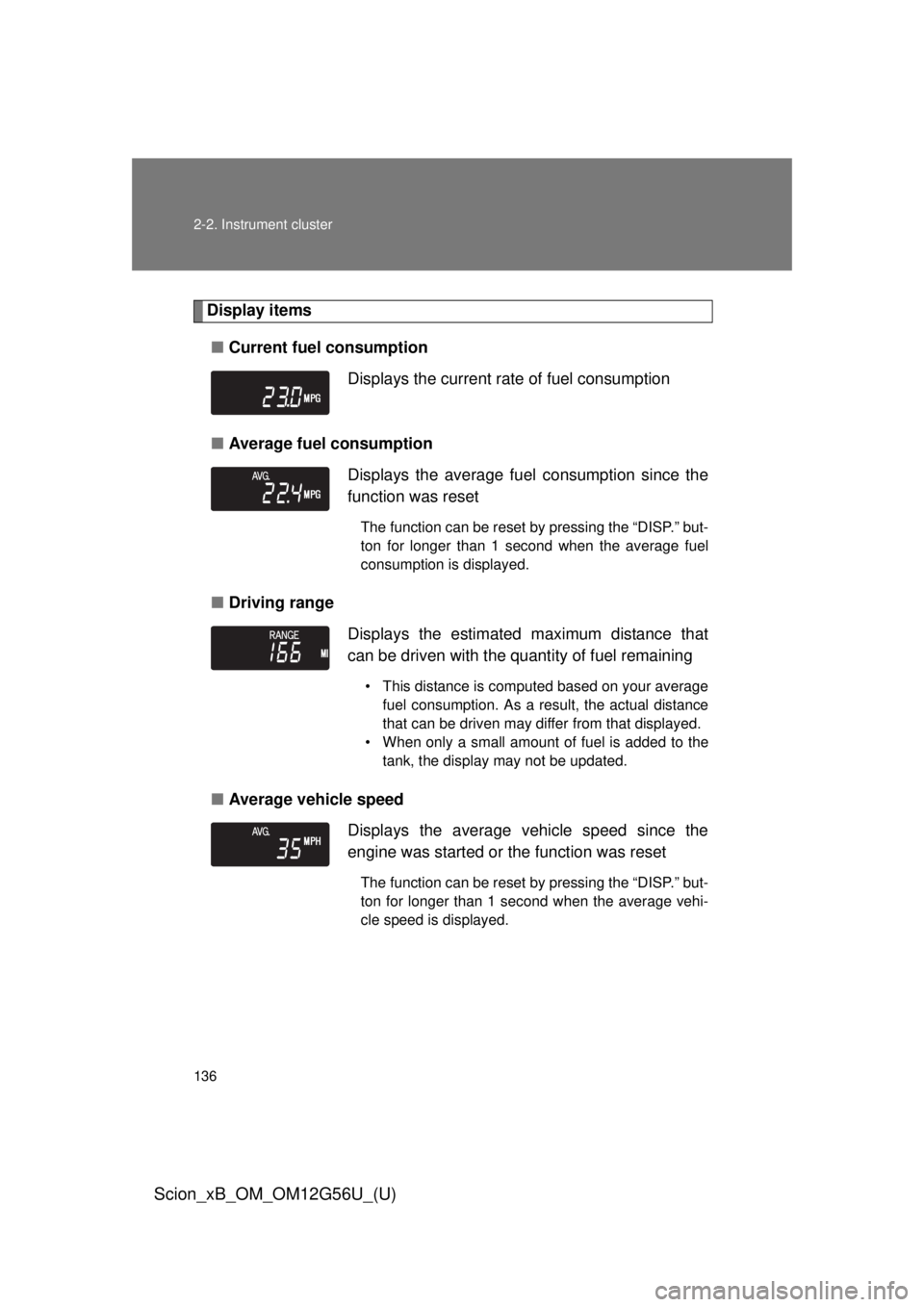

Display items■ Current fuel consumption
■ Average fuel consumption
■ Driving range
■ Average vehicle speed Displays the current rate of fuel consumption
Displays the average fuel
consumption since the
function was reset
The function can be reset by pressing the “DISP.” but-
ton for longer than 1 second when the average fuel
consumption is displayed.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
Displays the average vehicle speed since the
engine was started or the function was reset
The function can be reset by pressing the “DISP.” but-
ton for longer than 1 second when the average vehi-
cle speed is displayed.

137
2-2. Instrument cluster
2
When driving
Scion_xB_OM_OM12G56U_(U)
■

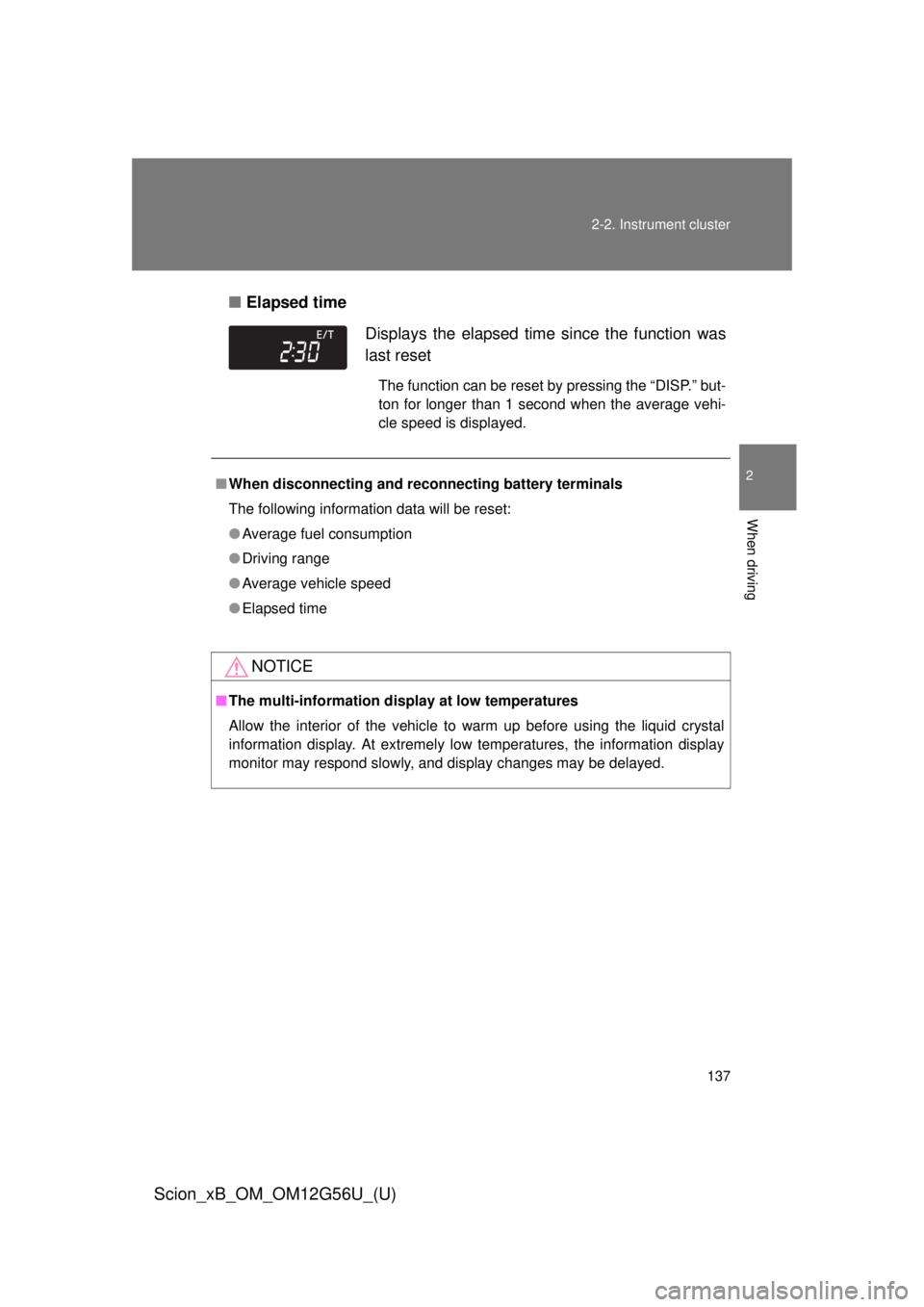

Elapsed time
Displays the elapsed time since the function was
last reset
The function can be reset by pressing the “DISP.” but-
ton for longer than 1 second when the average vehi-
cle speed is displayed.
■ When disconnecting and reco nnecting battery terminals
The following information data will be reset:
● Average fuel consumption
● Driving range
● Average vehicle speed
● Elapsed time
NOTICE
■The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

138
Scion_xB_OM_OM12G56U_(U)
2-3. Operating the lights and Windshield wipers

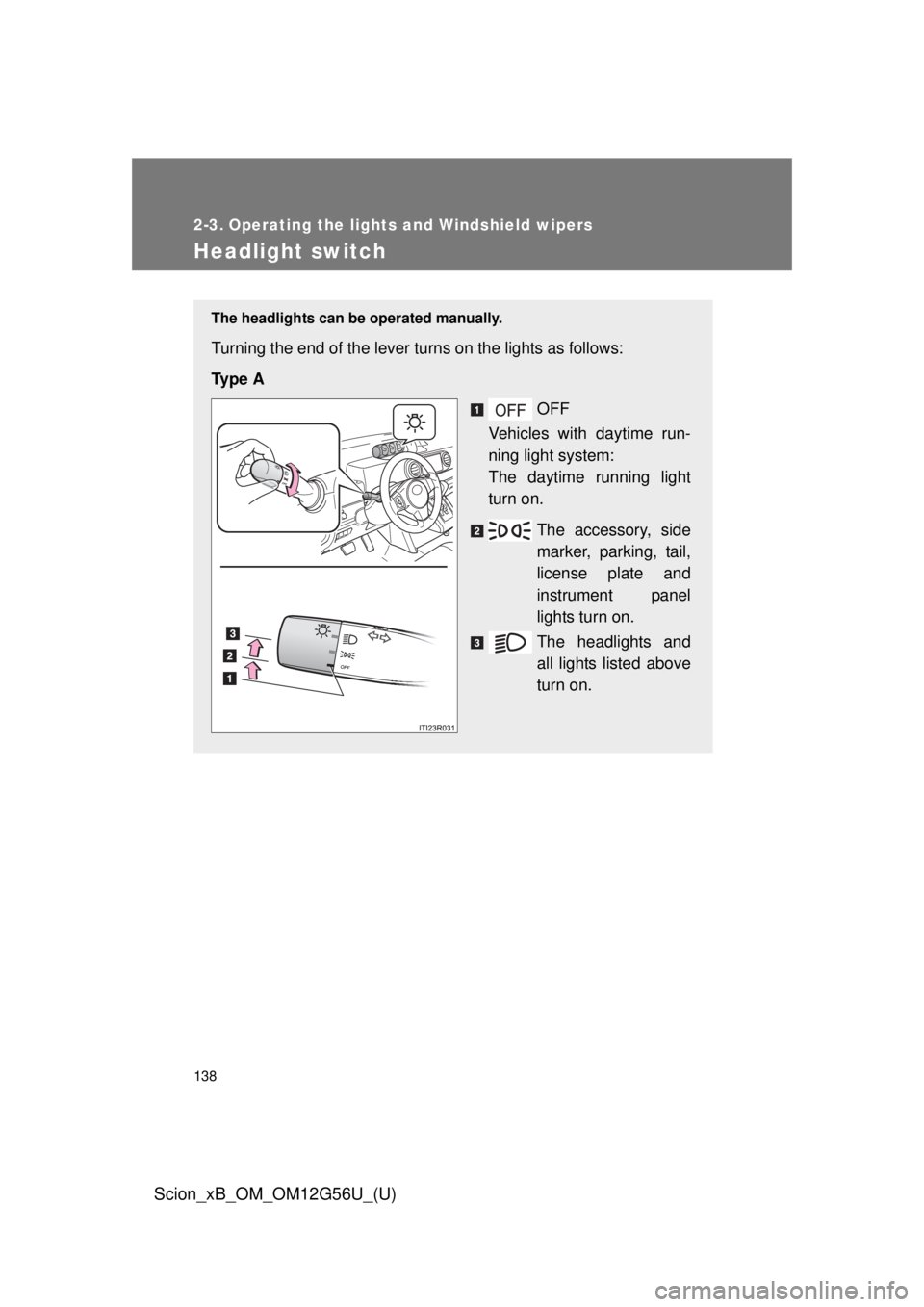

Headlight switch
The headlights can be operated manually.
Turning the end of the lever turns on the lights as follows:
Ty p e AOFF
Vehicles with daytime run-
ning light system:
The daytime running light
turn on.
The accessory, side
marker, parking, tail,
license plate and
instrument panel
lights turn on.
The headlights and
all lights listed above
turn on.

139
2-3. Operating the lights and Windshield wipers
2
When driving
Scion_xB_OM_OM12G56U_(U)

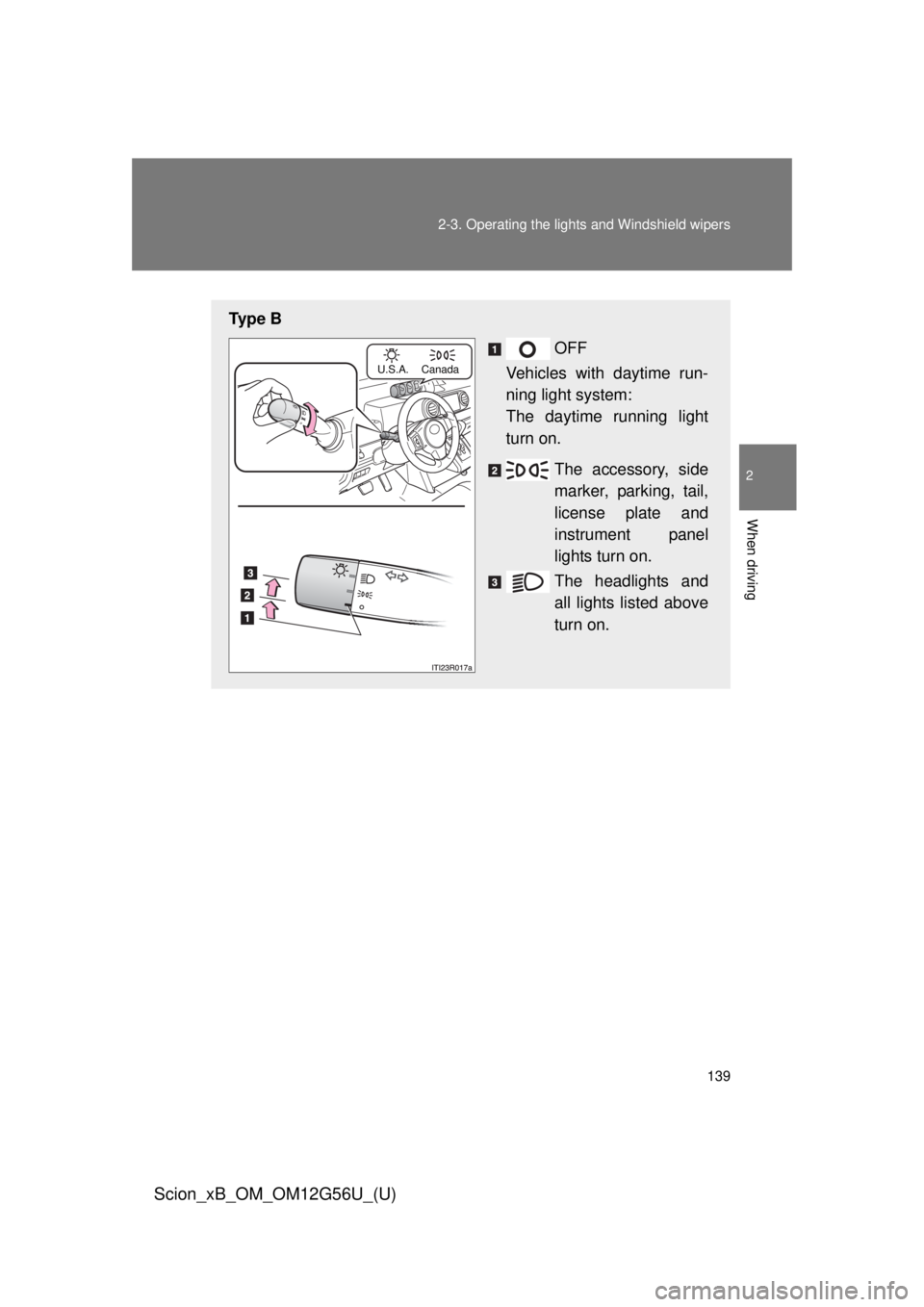

Ty p e B
OFF
Vehicles with daytime run-
ning light system:
The daytime running light
turn on.
The accessory, side
marker, parking, tail,
license plate and
instrument panel
lights turn on.
The headlights and
all lights listed above
turn on.
U.S.A. Canada

140 2-3. Operating the lights and Windshield wipers
Scion_xB_OM_OM12G56U_(U)

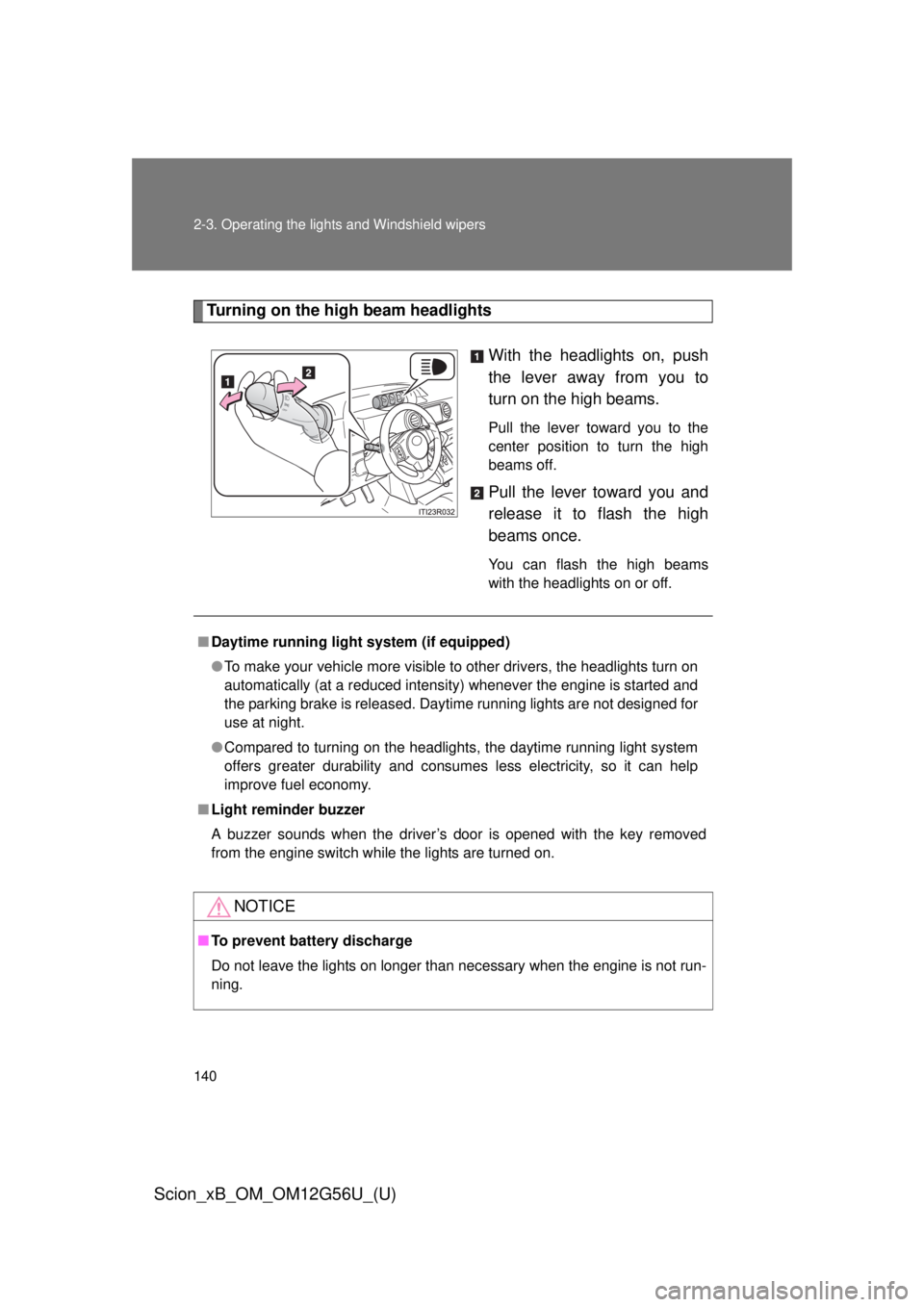

Turning on the high beam headlightsWith the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
■Daytime running light system (if equipped)
●To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and
the parking brake is released. Daytime running lights are not designed for
use at night.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Light reminder buzzer
A buzzer sounds when the driver’s door is opened with the key removed
from the engine switch while the lights are turned on.
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
