TOYOTA xB 2014 Owners Manual (in English)

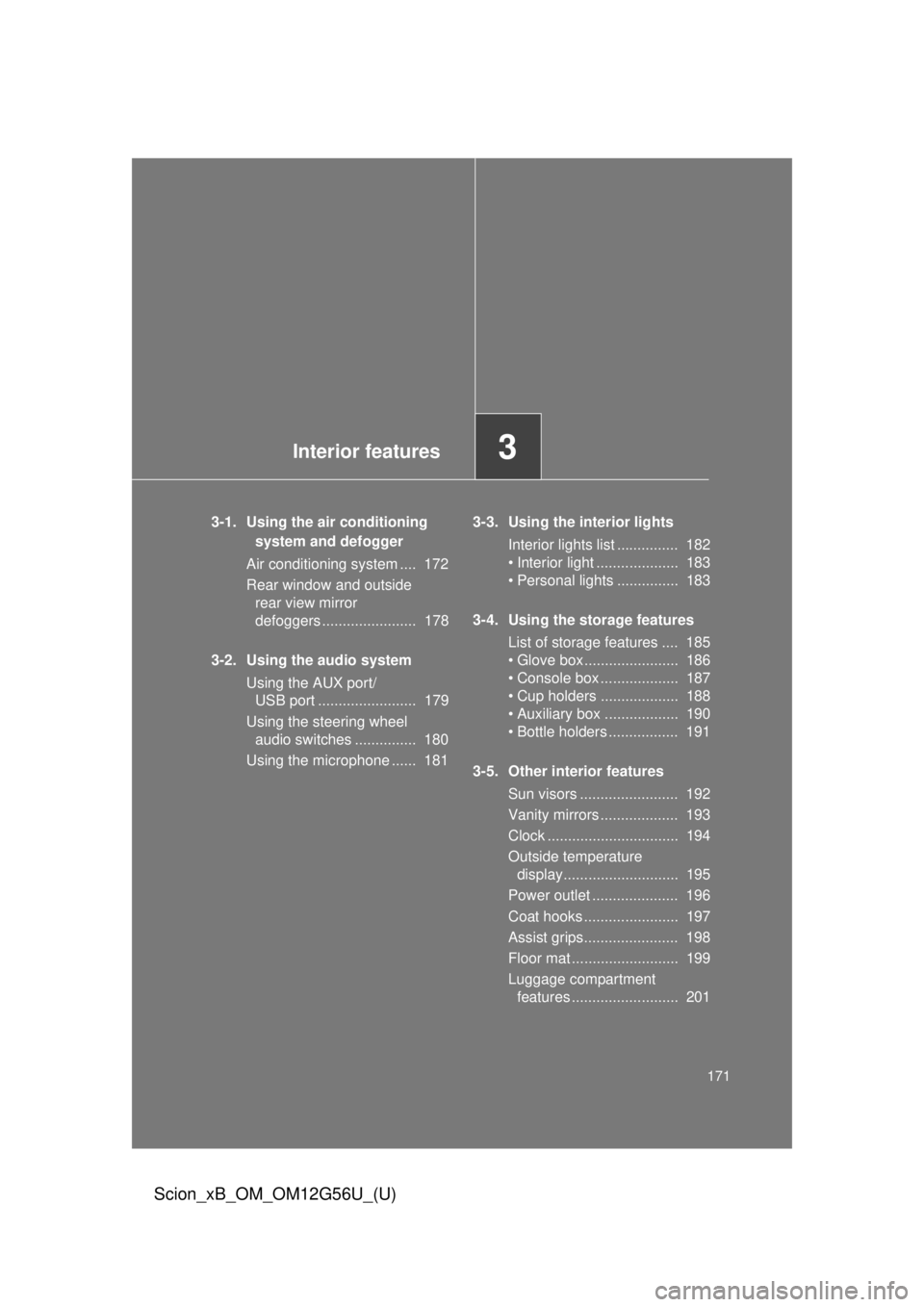

Interior features3
171
Scion_xB_OM_OM12G56U_(U)
3-1. Using the air conditioning system and defogger
Air conditioning system .... 172
Rear window and outside rear view mirror
defoggers ....................... 178
3-2. Using the audio system Using the AUX port/USB port ........................ 179
Using the steering wheel audio switches ............... 180
Using the microphone ...... 181 3-3. Using the interior lights
Interior lights list ............... 182
• Interior light .................... 183
• Personal lights ............... 183
3-4. Using the storage features List of storage features .... 185
• Glove box....................... 186
• Console box ................... 187
• Cup holders ................... 188
• Auxiliary box .................. 190
• Bottle holders ................. 191
3-5. Other interior features Sun visors ........................ 192
Vanity mirrors ................... 193
Clock ................................ 194
Outside temperature display............................ 195
Power outlet ..................... 196
Coat hooks ....................... 197
Assist grips....................... 198
Floor mat .......................... 199
Luggage compartment features .......................... 201

172
Scion_xB_OM_OM12G56U_(U)
3-1. Using the air conditioning system and defogger

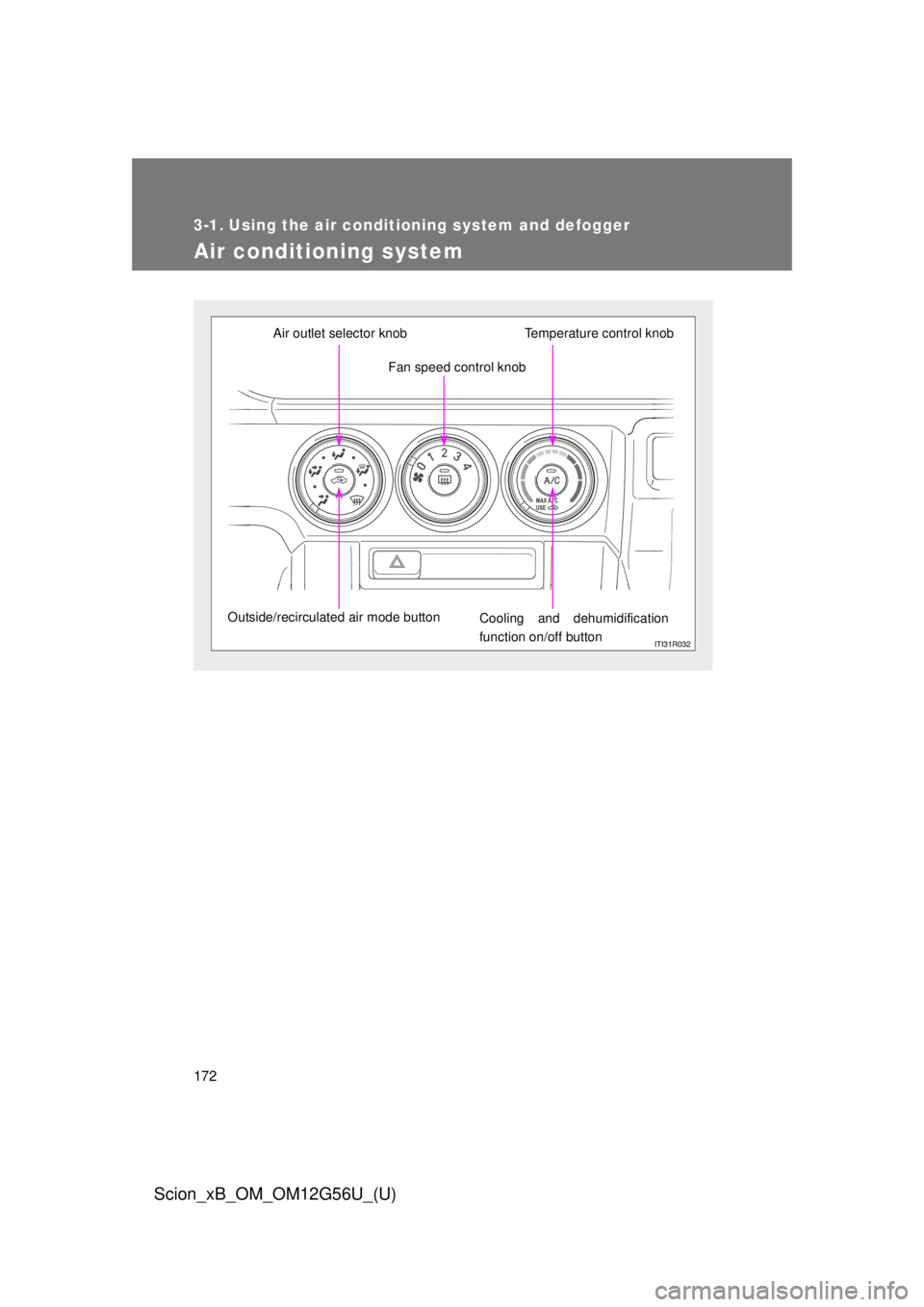

Air conditioning system
Fan speed control knob
Air outlet selector knob
Outside/recirculated air mode button Cooling and dehumidification
function on/off buttonTemperature control knob

173
3-1. Using the air conditioning system
and defogger
3
Interior features
Scion_xB_OM_OM12G56U_(U)
Adjusting the settings
■ Basic setting
To turn on the air conditioning system and adjust the fan
speed, turn the fan speed control knob clockwise (increase) or
counterclockwise (decrease).
Turning the knob to “0” turns off the fan.
To adjust the temperature setting, turn the temperature control
knob clockwise (warm) or counterclockwise (cool).
If is not pressed, the system will blow ambient temperature air
or heated air.
To select the air outlets, set th e air outlet selector knob to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
STEP 1
STEP 2
STEP 3

174 3-1. Using the air conditioning system and defogger
Scion_xB_OM_OM12G56U_(U)
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.

175
3-1. Using the air conditioning system
and defogger
3
Interior features
Scion_xB_OM_OM12G56U_(U)
Air flows to the feet and the
windshield defogger operates.
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the switch is
on.
Pressing to turn the cooling
and dehumidification function on
clears the windshield and side
windows faster.
Air flows to the windshield and
side windows.
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the switch is
on.
Pressing to turn the cooling
and dehumidification function on
clears the windshield and side
windows faster.
■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (introduces air from out-
side the vehicle) (indicator off) and recirculated air mode (recycles air
inside the vehicle) (indicator on) each time the button is pressed.

176 3-1. Using the air conditioning system and defogger
Scion_xB_OM_OM12G56U_(U)
Adjusting the position of the air outlets
Direct air flow to the left or right,
up or down.
When defrosting the side win-
dows, face the right and left side
outlets toward them.
Opening and closing the air outlets Open the vent.
Close the vent.

177
3-1. Using the air conditioning system
and defogger
3
Interior features
Scion_xB_OM_OM12G56U_(U)
■Using the system in recirculated air mode
The windows will fog up more easily if recirculated air mode is used for an
extended period of time.
■ When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the temperature setting.
■ When outside air temperature is below 32°F (0°C)
The cooling and dehumidification function may not operate even when

is pressed.
■ Air conditioning odors
●During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

178
3-1. Using the air conditioning system and defogger
Scion_xB_OM_OM12G56U_(U)
Rear window and outside rear view mirror defoggers
: If equipped
■The defoggers can be operated when
The engine switch is in the “ON” position.
■ The outside rear view mirr or defoggers (if equipped)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■ When the outside rear view mirr or defoggers are on (if equipped)
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
On/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.

179
3
Interior features
Scion_xB_OM_OM12G56U_(U)
3-2. Using the audio system

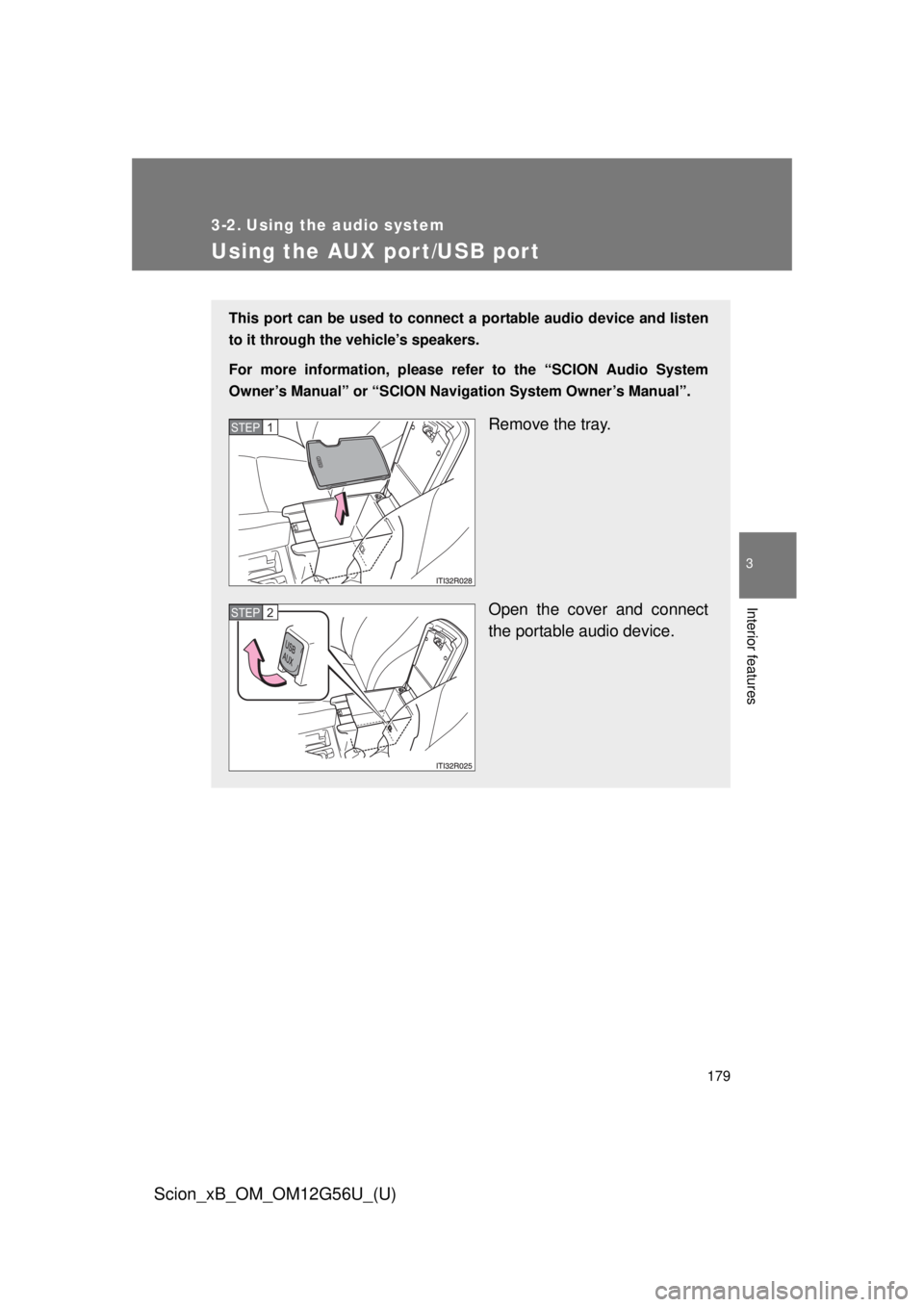

Using the AUX port/USB port
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
For more information, please refer to the “SCION Audio System
Owner’s Manual” or “SCION Navigation System Owner’s Manual”.
Remove the tray.
Open the cover and connect
the portable audio device.STEP 1
STEP 2

180
3-2. Using the audio system
Scion_xB_OM_OM12G56U_(U)
Using the steering wheel audio switches
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
Some audio features (aud io volume control, radio, CD player etc.)
can be controlled using the switches on the steering wheel.
For more information, please re fer to the “SCION Audio System
Owner’s Manual” or “SCION Navigation System Owner’s Manual”.
