Page 271 of 392
271
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G56U_(U)
■
Daytime running lights (if e quipped) and headlight high
beams
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
STEP 1
STEP 2
Page 272 of 392
272 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G56U_(U)
■Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
Page 273 of 392
273
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G56U_(U)
■
Parking lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
Page 274 of 392
274 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G56U_(U)
■Front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
Page 275 of 392
275
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G56U_(U)
■
Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb base counterclock-
wise and remove the light bulb.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light
STEP 1
STEP 2
Page 276 of 392
276 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G56U_(U)
■License plate lights
Open the back door and remove
the trim board.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb base counterclock-
wise and remove the light bulb.
STEP 1
STEP 2
Page 277 of 392

277
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G56U_(U)
■
LED lights
The accessory lights, side turn signal lights and high mounted stoplight con-
sist of a number of LEDs. If any of the LEDs burn out, take your vehicle to
your Scion dealer to have the light replaced.
■ Condensation build-up on th e inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact your Scion dealer for more information in
the following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When i\
t is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
Page 278 of 392
278 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G56U_(U)

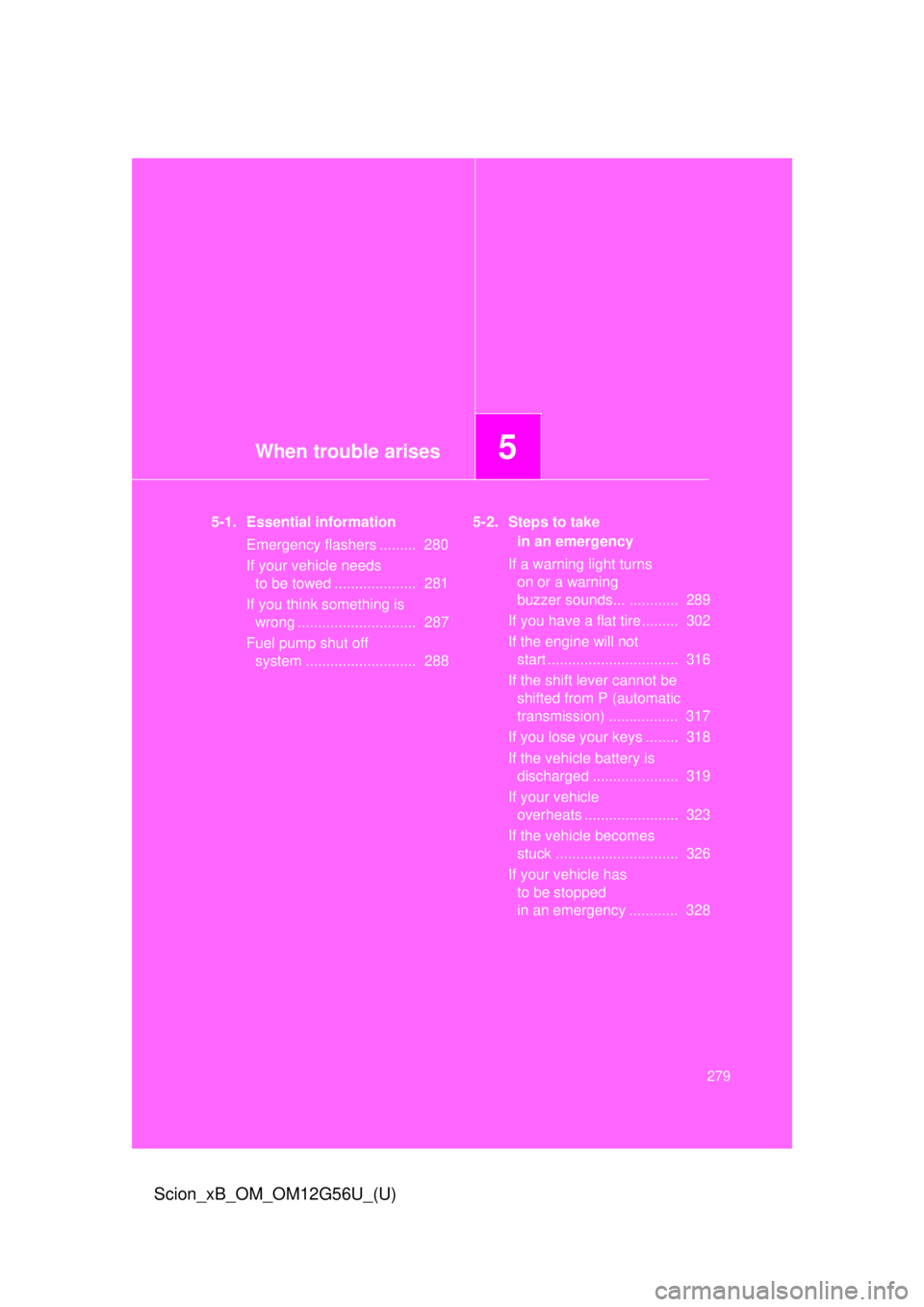

Page 279 of 392
When trouble arises5
279
Scion_xB_OM_OM12G56U_(U)
5-1. Essential informationEmergency flashers ......... 280
If your vehicle needs to be towed .................... 281
If you think something is wrong ............................. 287
Fuel pump shut off system ........................... 288 5-2. Steps to take
in an emergency
If a warning light turns on or a warning
buzzer sounds... ............ 289
If you have a flat tire......... 302
If the engine will not start ................................ 316
If the shift lever cannot be shifted from P (automatic
transmission) ................. 317
If you lose your keys ........ 318
If the vehicle battery is discharged ..................... 319
If your vehicle overheats ....................... 323
If the vehicle becomes stuck .............................. 326
If your vehicle has to be stopped
in an emergency ............ 328

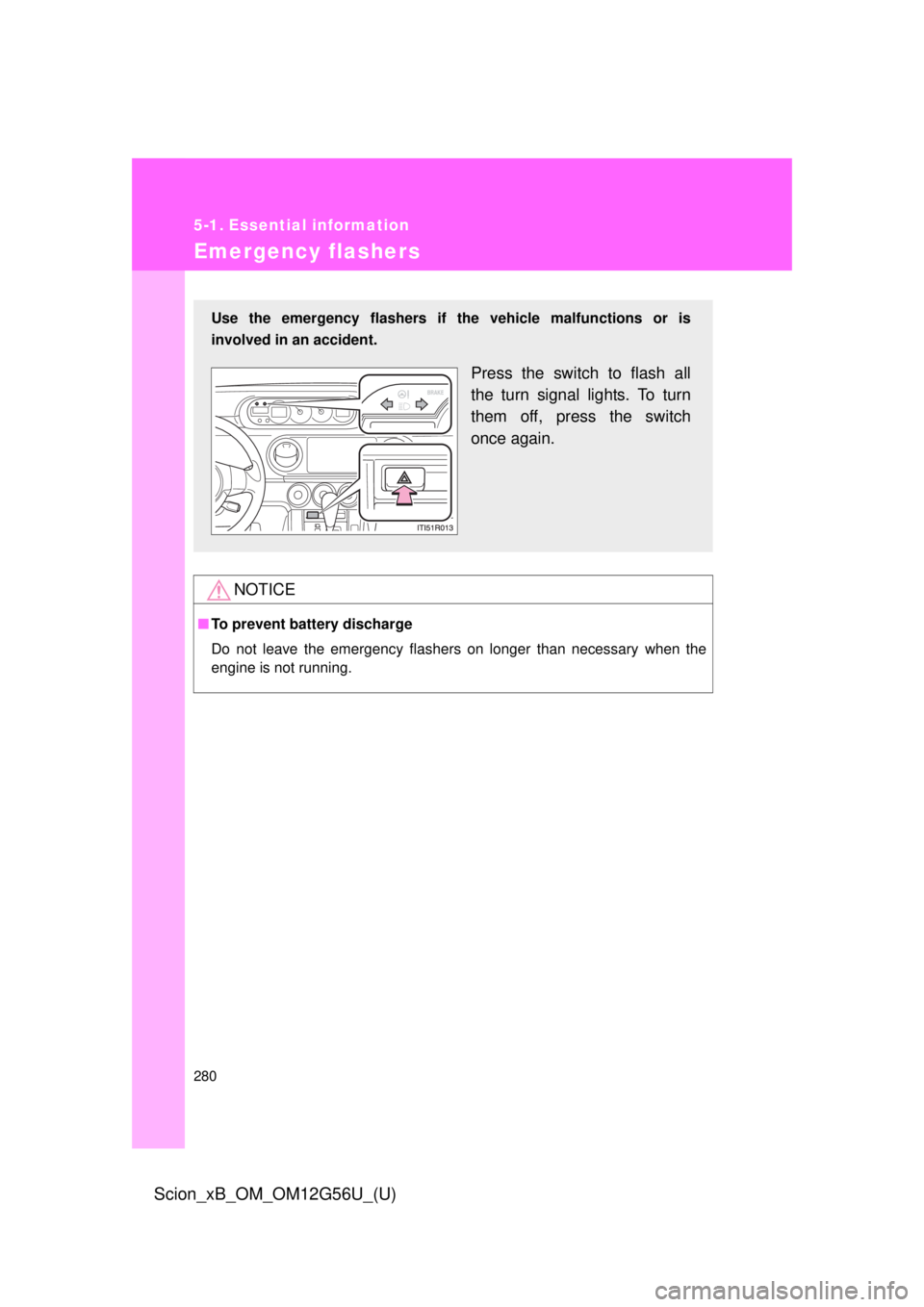

Page 280 of 392
280
Scion_xB_OM_OM12G56U_(U)
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
