TOYOTA xB 2014 Owners Manual (in English)

5
When trouble arises
301
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G56U_(U)
CAUTION
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indi
cate when the system is not operat-
ing properly. The TPMS (tire pressure warning system) malfunction indi-
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the malfunction indi cator is illumi-
nated, the system may not be able to detect or signal low tire pressure
as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different s pecifications or makers, as the tire
pressure warning system may not operate properly.

302
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G56U_(U)

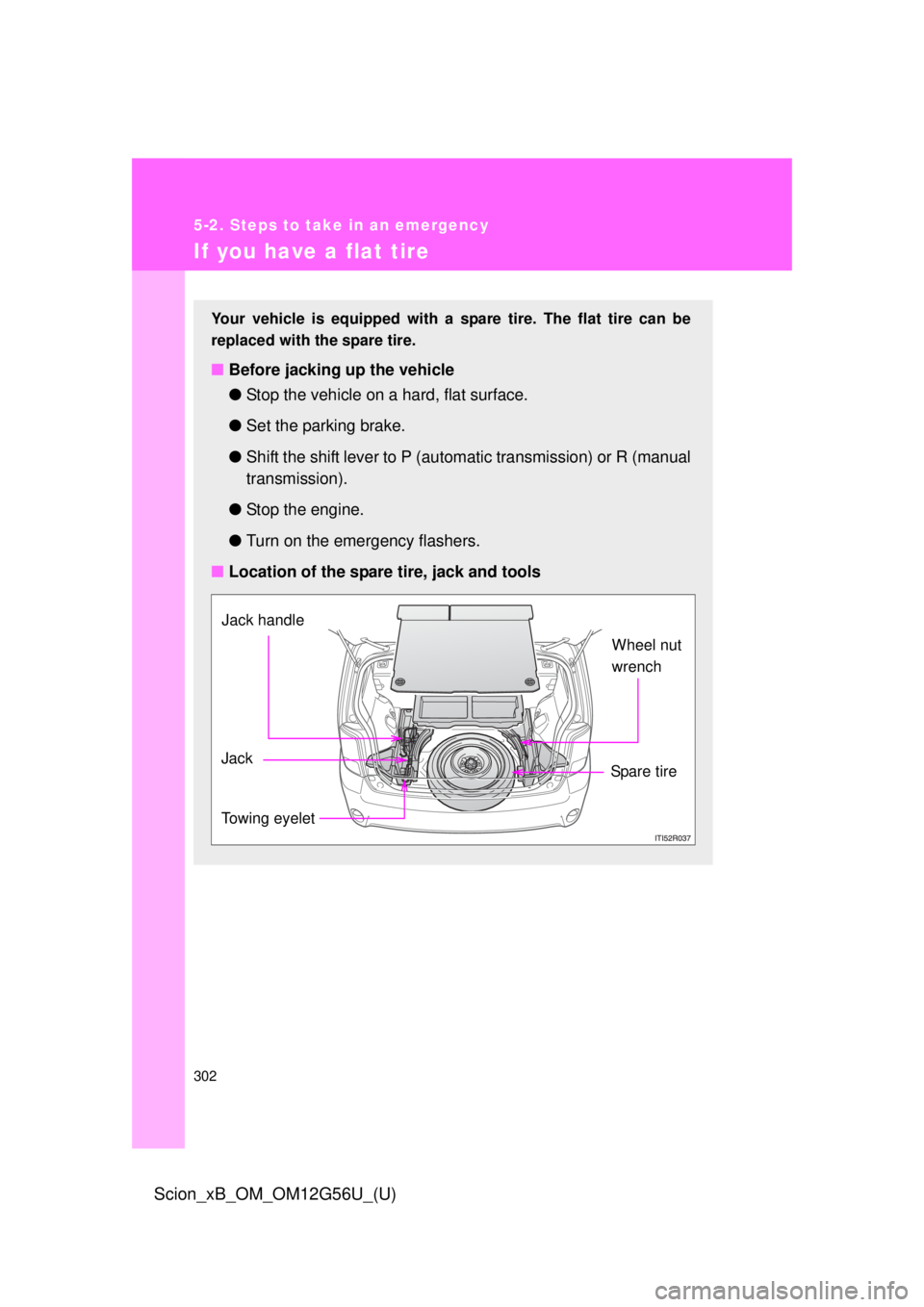

If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manual
transmission).
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Towing eyelet
Jack Wheel nut
wrench
Jack handle
Spare tire

5
When trouble arises
303
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G56U_(U)
■

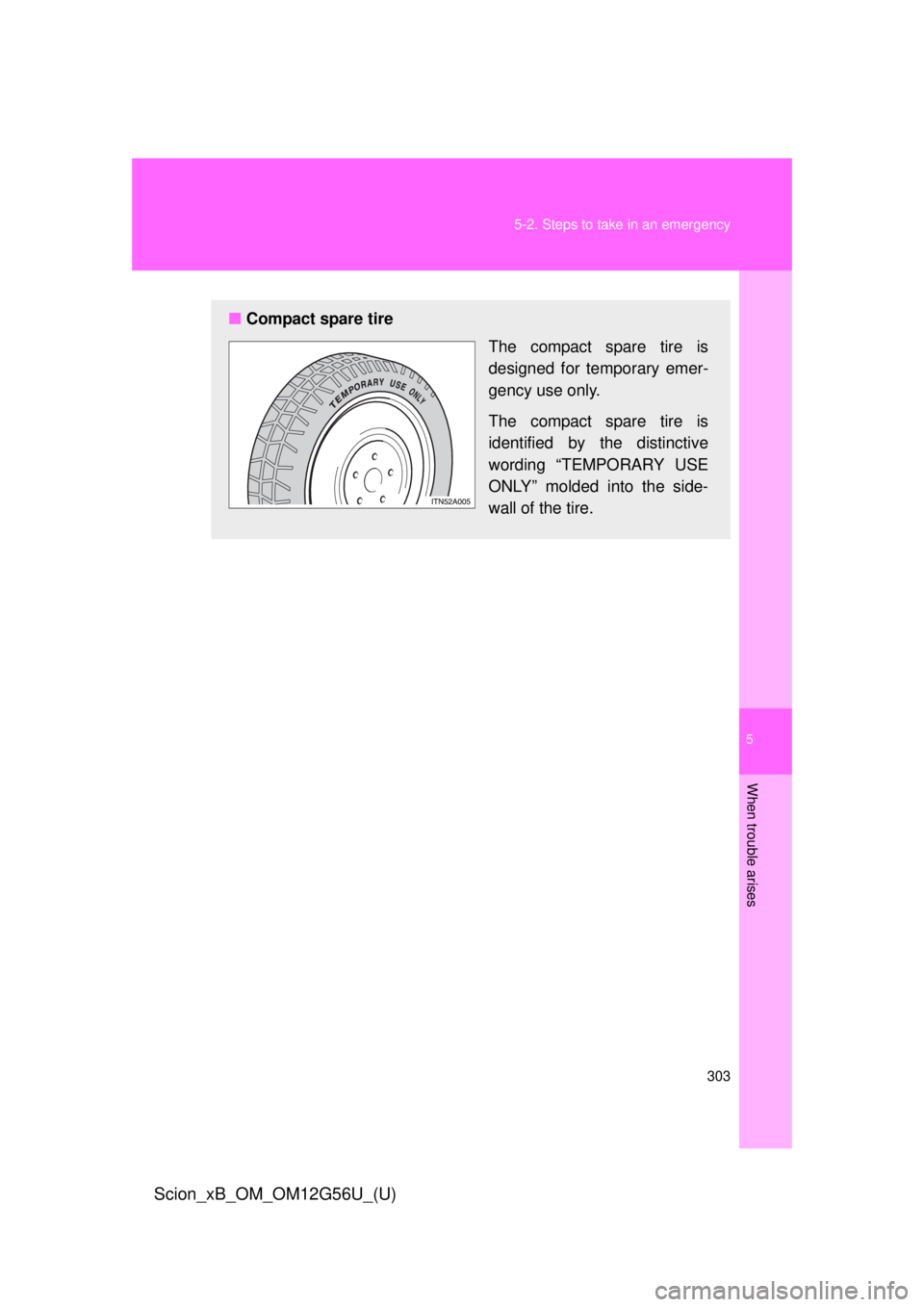

Compact spare tire
The compact spare tire is
designed for temporary emer-
gency use only.
The compact spare tire is
identified by the distinctive
wording “TEMPORARY USE
ONLY” molded into the side-
wall of the tire.

304 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G56U_(U)

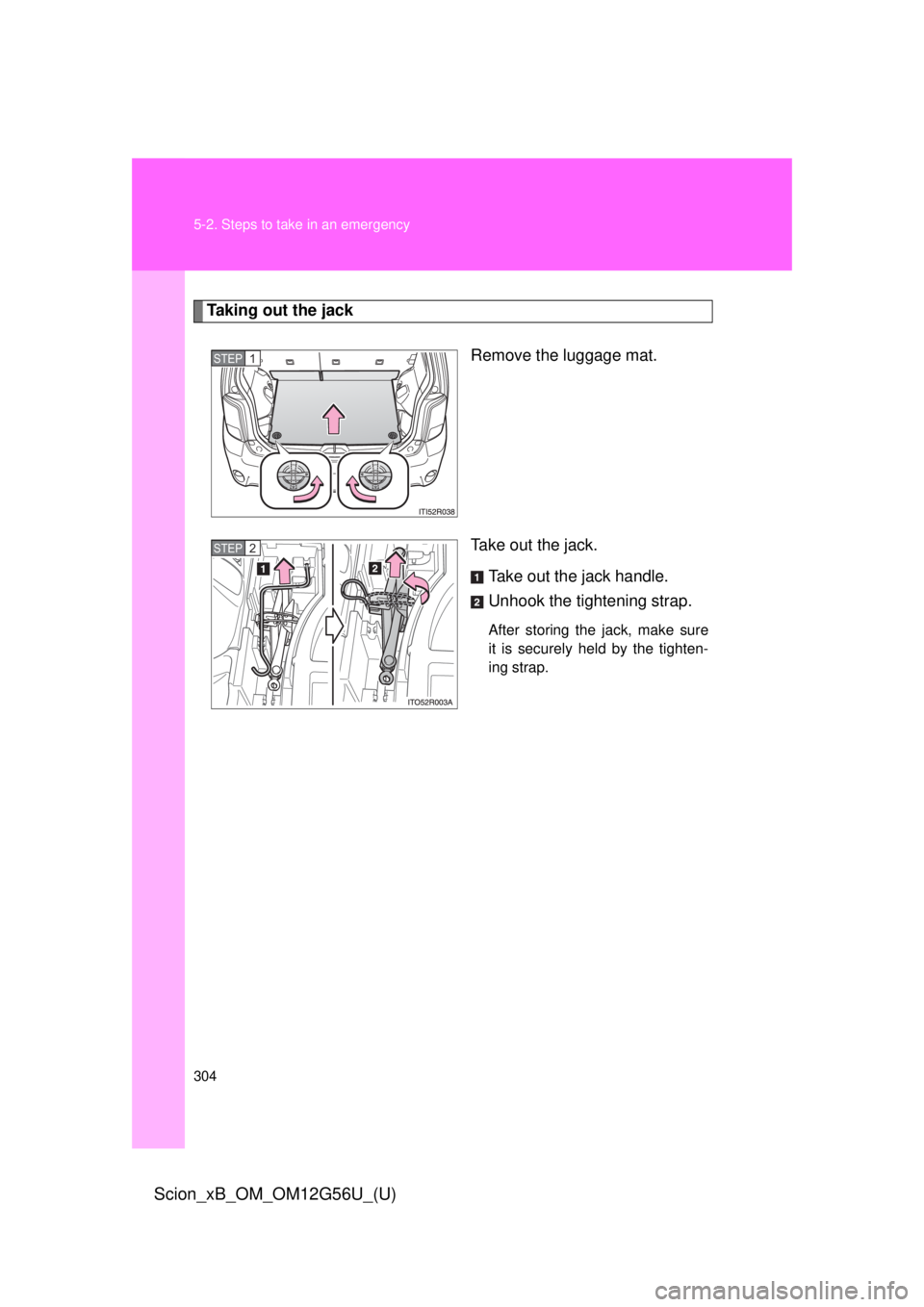

Taking out the jackRemove the luggage mat.
Take out the jack.Take out the jack handle.
Unhook the tightening strap.
After storing the jack, make sure
it is securely held by the tighten-
ing strap.
STEP 1
STEP 2

5
When trouble arises
305
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G56U_(U)

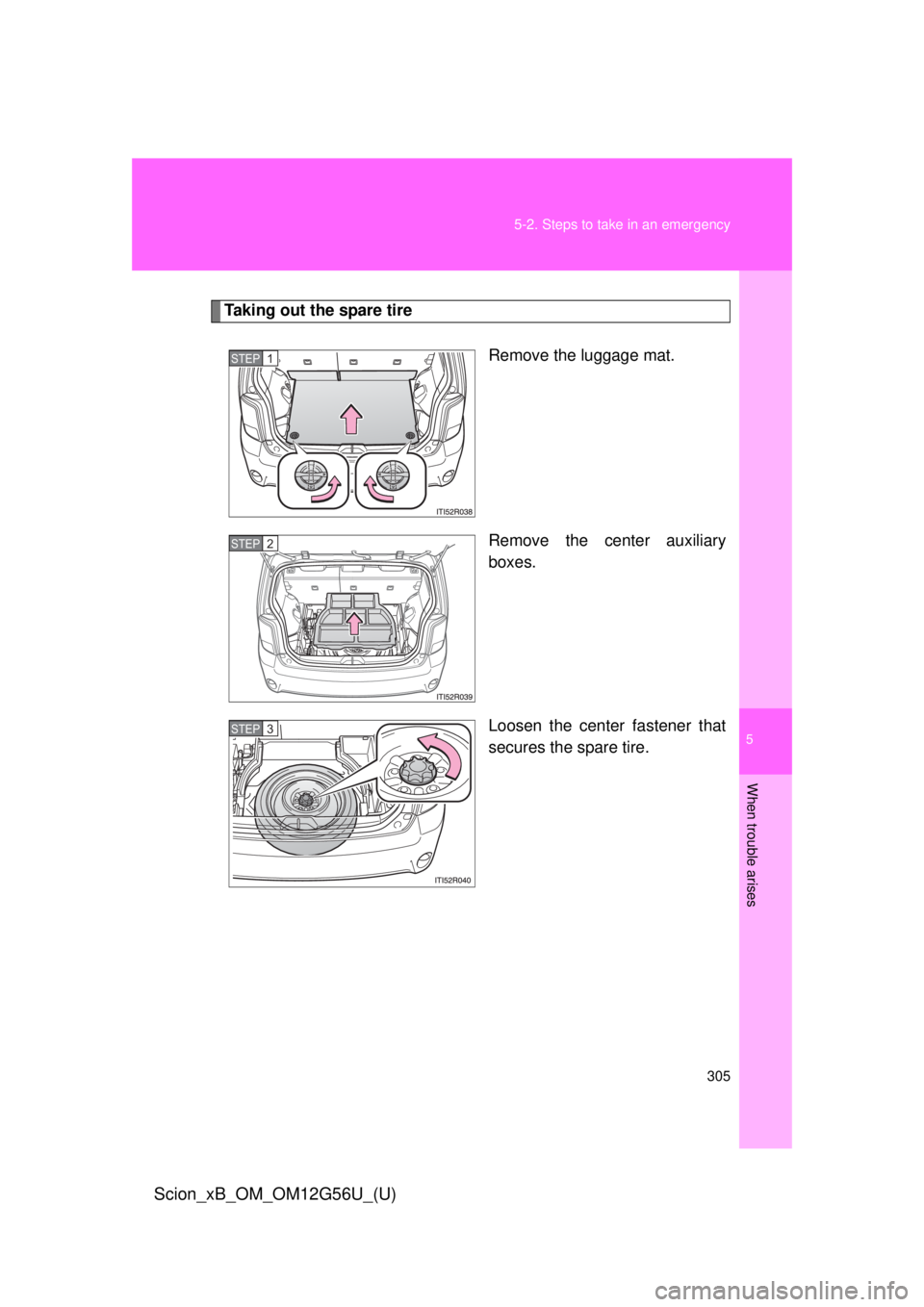

Taking out the spare tire
Remove the luggage mat.
Remove the center auxiliary
boxes.
Loosen the center fastener that
secures the spare tire.
STEP 1
STEP 2
STEP 3

306 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G56U_(U)

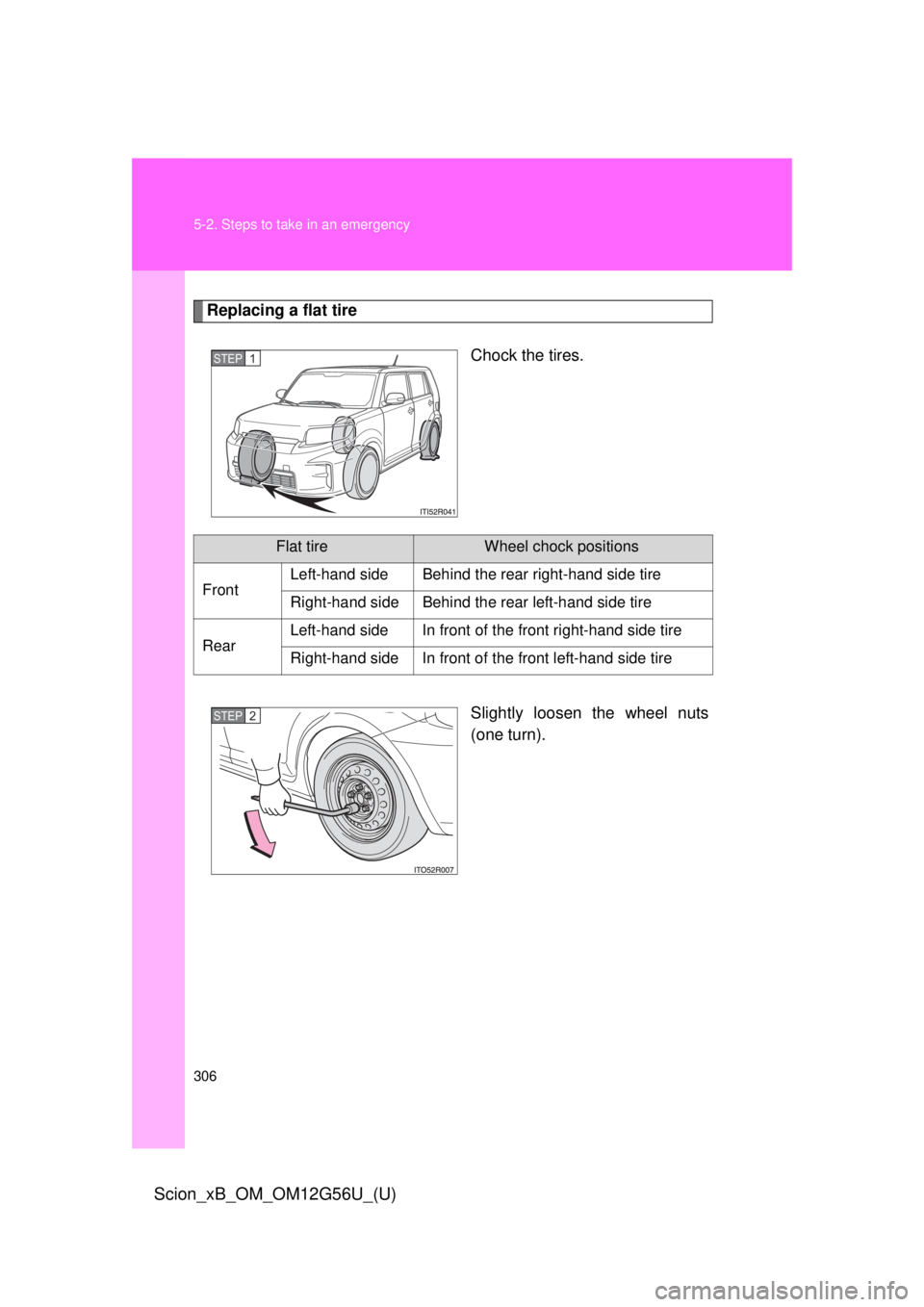

Replacing a flat tireChock the tires.
Slightly loosen the wheel nuts
(one turn).
STEP 1
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the
front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP 2

5
When trouble arises
307
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G56U_(U)

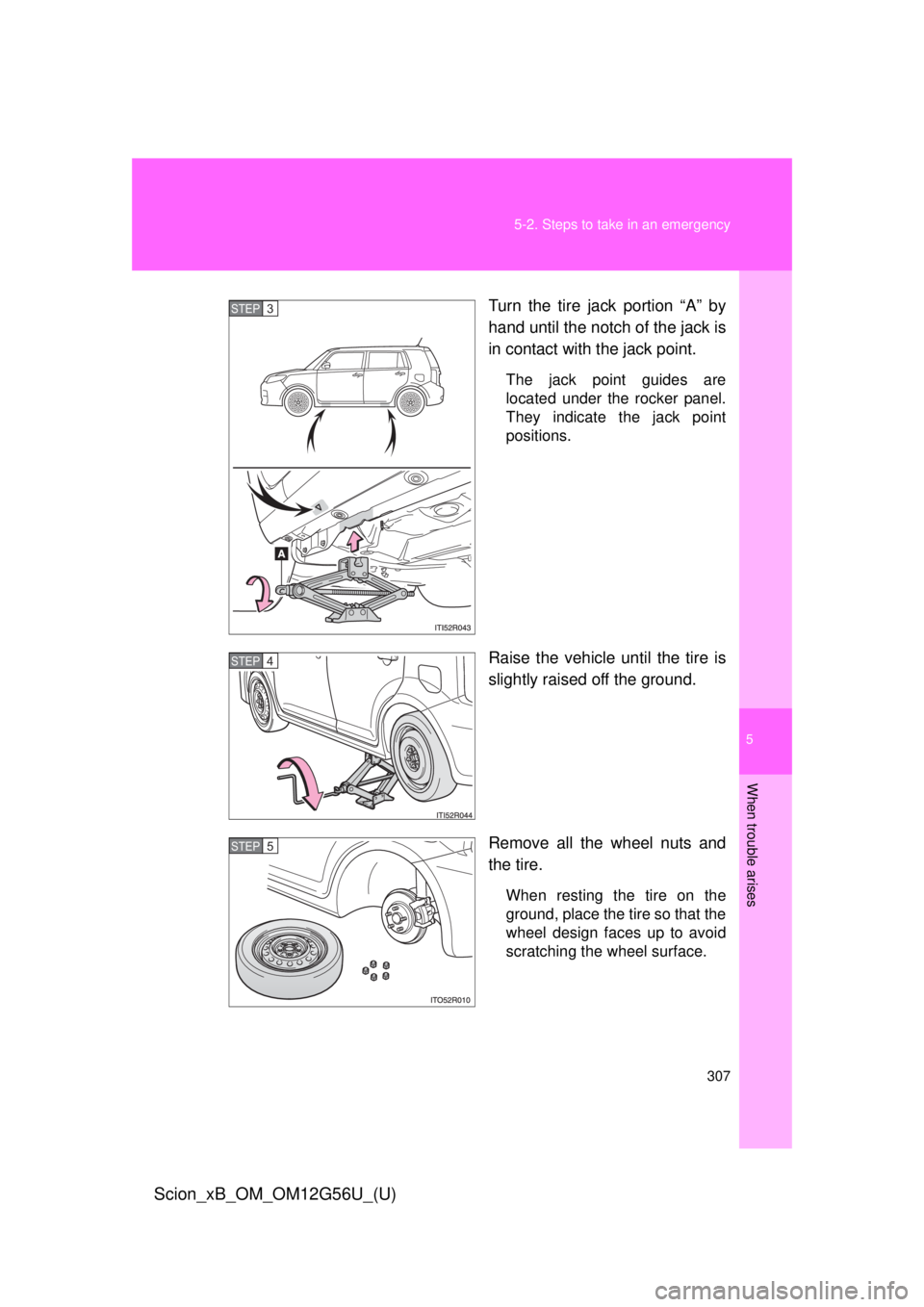

Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
The jack point guides are
located under the rocker panel.
They indicate the jack point
positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP 3
STEP 4
STEP 5

308 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G56U_(U)

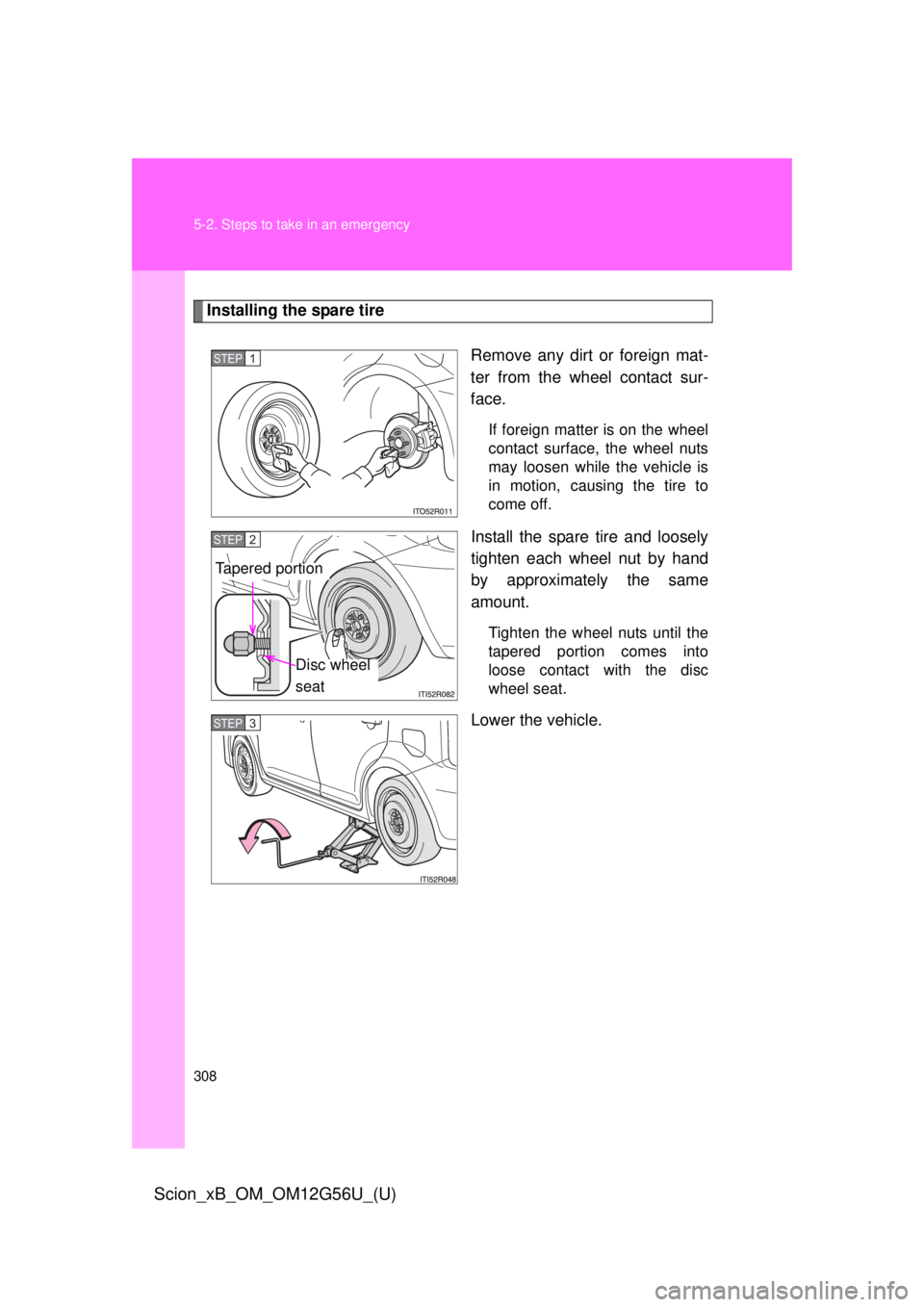

Installing the spare tireRemove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, causing the tire to
come off.
Install the spare tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
STEP 1
STEP 2
Tapered portion
Disc wheel
seat
STEP 3

5
When trouble arises
309
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G56U_(U)

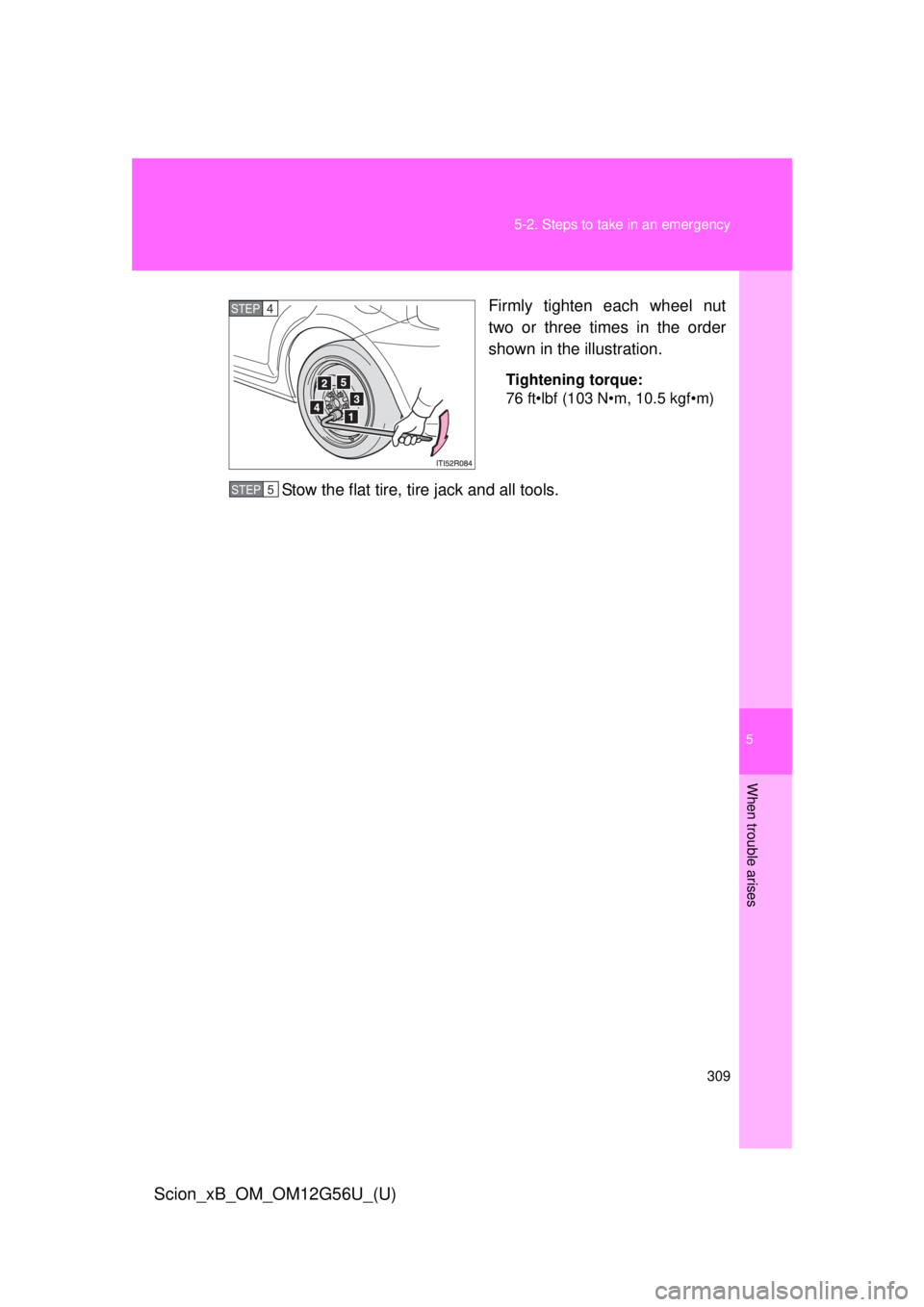

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
STEP 4
STEP 5

310 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G56U_(U)
Stowing the flat tirePut the flat tire on the center of
the luggage mat with the outer
side of the wheel facing up. Hook
one end of the belt (dark gray
portion) which is not forked to
either front cargo hook.
Pass the belts from between the
wheel spokes through the cen-
ter hole of the wheel.
Hook another end of the belt
(ivory portion) coming through
the center hole to the other front
cargo hook, and the other end
(dark gray portion) to the rear
cargo hook located diagonally to
the secondly used front hook.
STEP 1
STEP 2
STEP 3
