6-1. Specifications
Maintenance data (fuel, oil level, etc.)

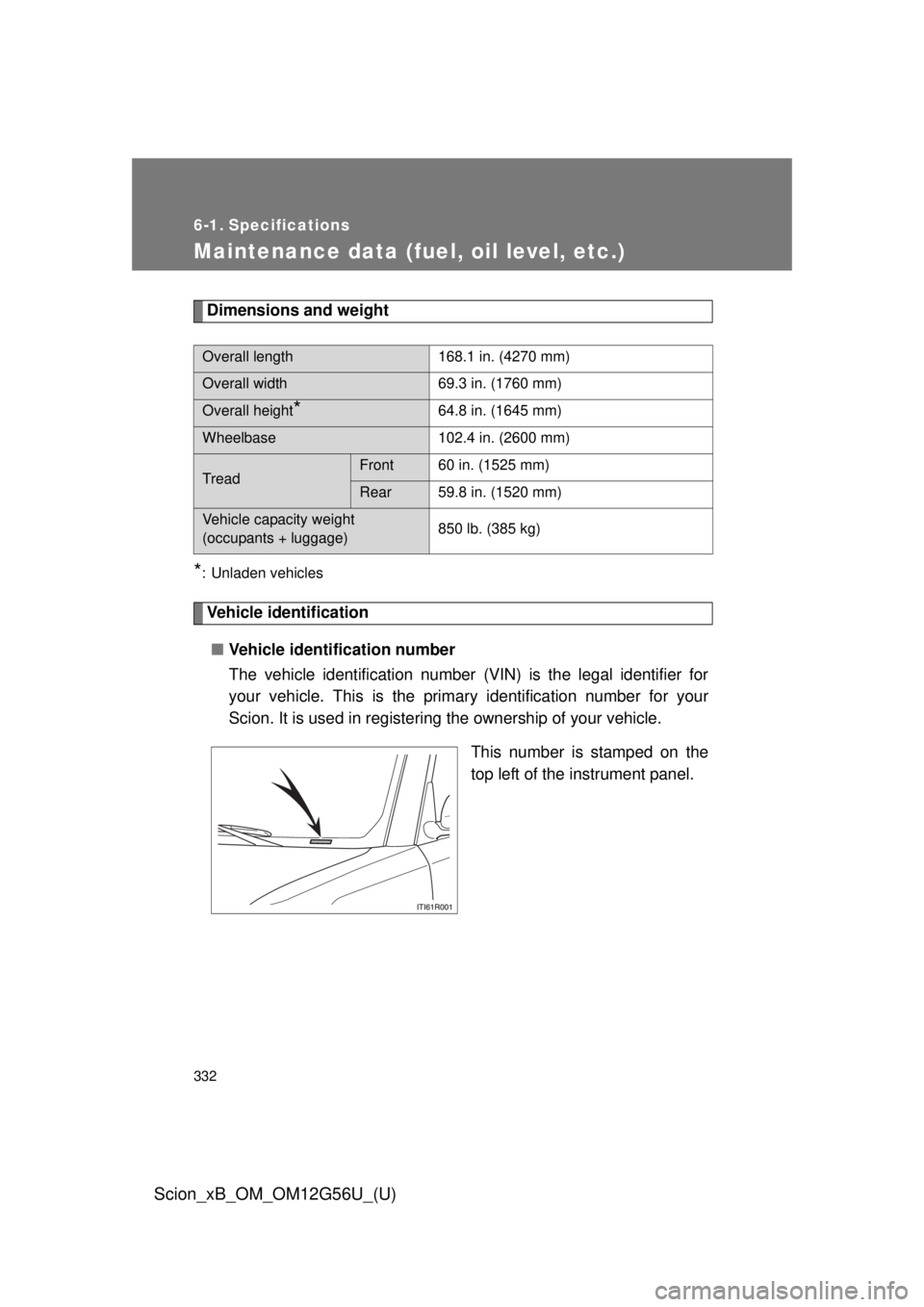

Dimensions and weight
*: Unladen vehicles
Vehicle identification■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Scion. It is used in registeri ng the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Overall length 168.1 in. (4270 mm)
Overall width69.3 in. (1760 mm)
Overall height*64.8 in. (1645 mm)
Wheelbase102.4 in. (2600 mm)
TreadFront 60 in. (1525 mm)
Rear 59.8 in. (1520 mm)
Vehicle capacity weight
(occupants + luggage) 850 lb. (385 kg)

333
6-1. Specifications
6
Vehicle specifications
Scion_xB_OM_OM12G56U_(U)

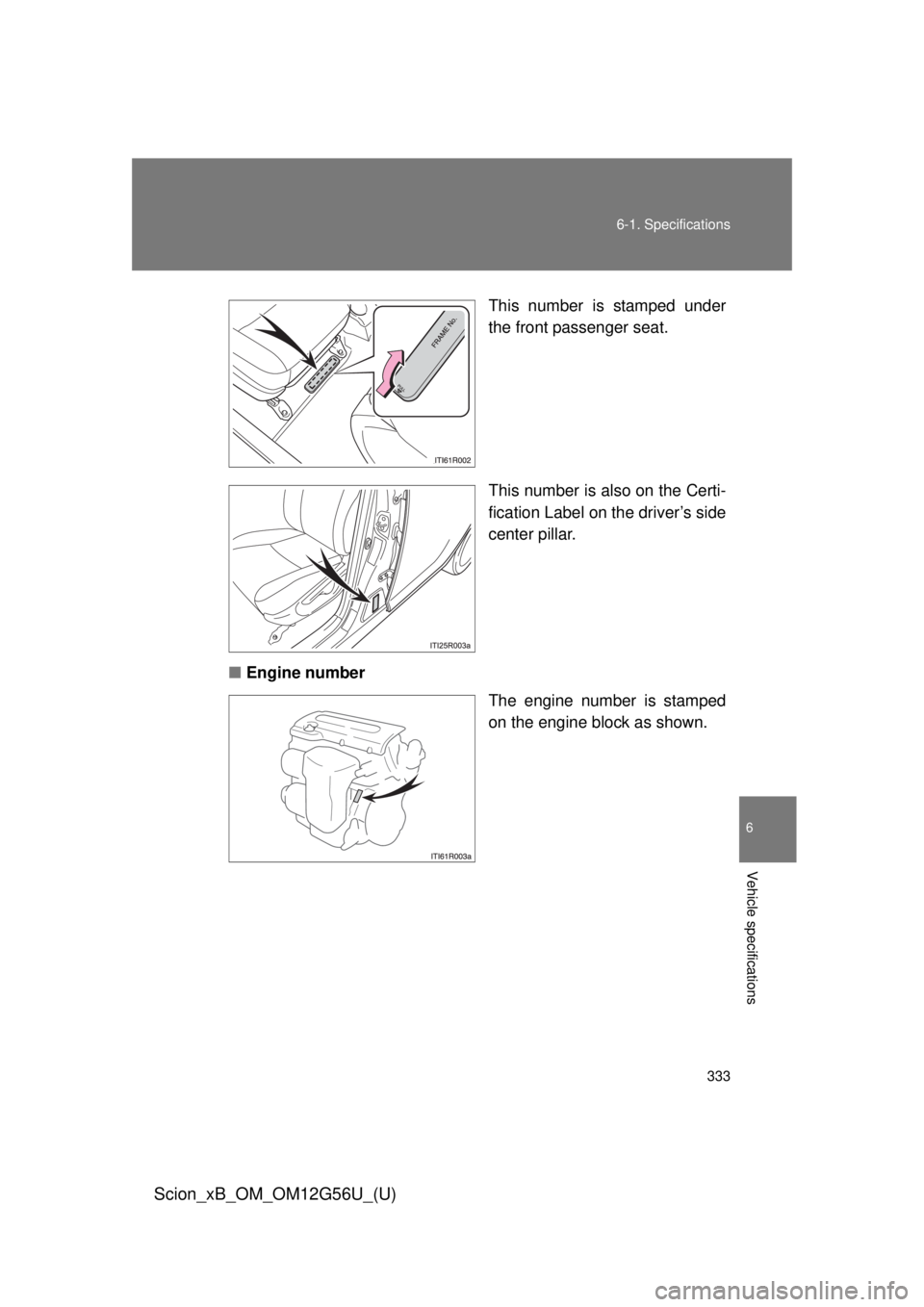

This number is stamped under
the front passenger seat.
This number is also on the Certi-
fication Label on the driver’s side
center pillar.
■ Engine number
The engine number is stamped
on the engine block as shown.

334 6-1. Specifications
Scion_xB_OM_OM12G56U_(U)
Engine
Fuel
Model2AZ-FE engine
Ty pe 4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.48 
3.78 in.
(88.5  96.0 mm)
Displacement 144.1 cu.in. (2362 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
Intake
Exhaust0.007  0.011 in.
(0.19 
0.29 mm)
0.015  0.019 in.
(0.38  0.48 mm)
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference) 14.0 gal. (53 L, 11.7 Imp. gal.)

335
6-1. Specifications
6
Vehicle specifications
Scion_xB_OM_OM12G56U_(U)
Lubrication system
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 5W-20 or 0W-20
SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.

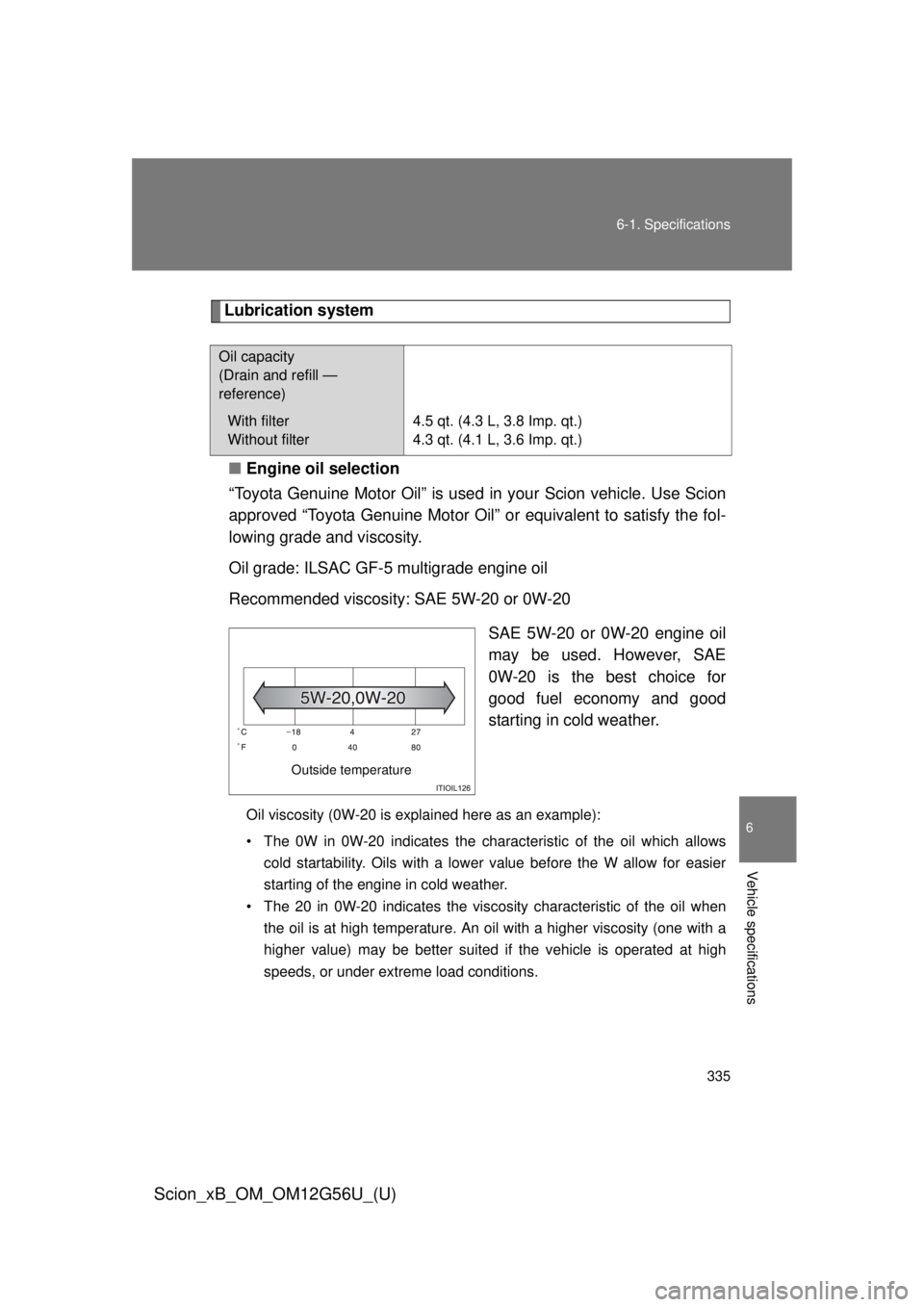

Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allowscold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Oil capacity
(Drain and refill —
reference)
With filter
Without filter 4.5 qt. (4.3 L, 3.8 Imp. qt.)
4.3 qt. (4.1 L, 3.6 Imp. qt.)
Outside temperature

336 6-1. Specifications
Scion_xB_OM_OM12G56U_(U)

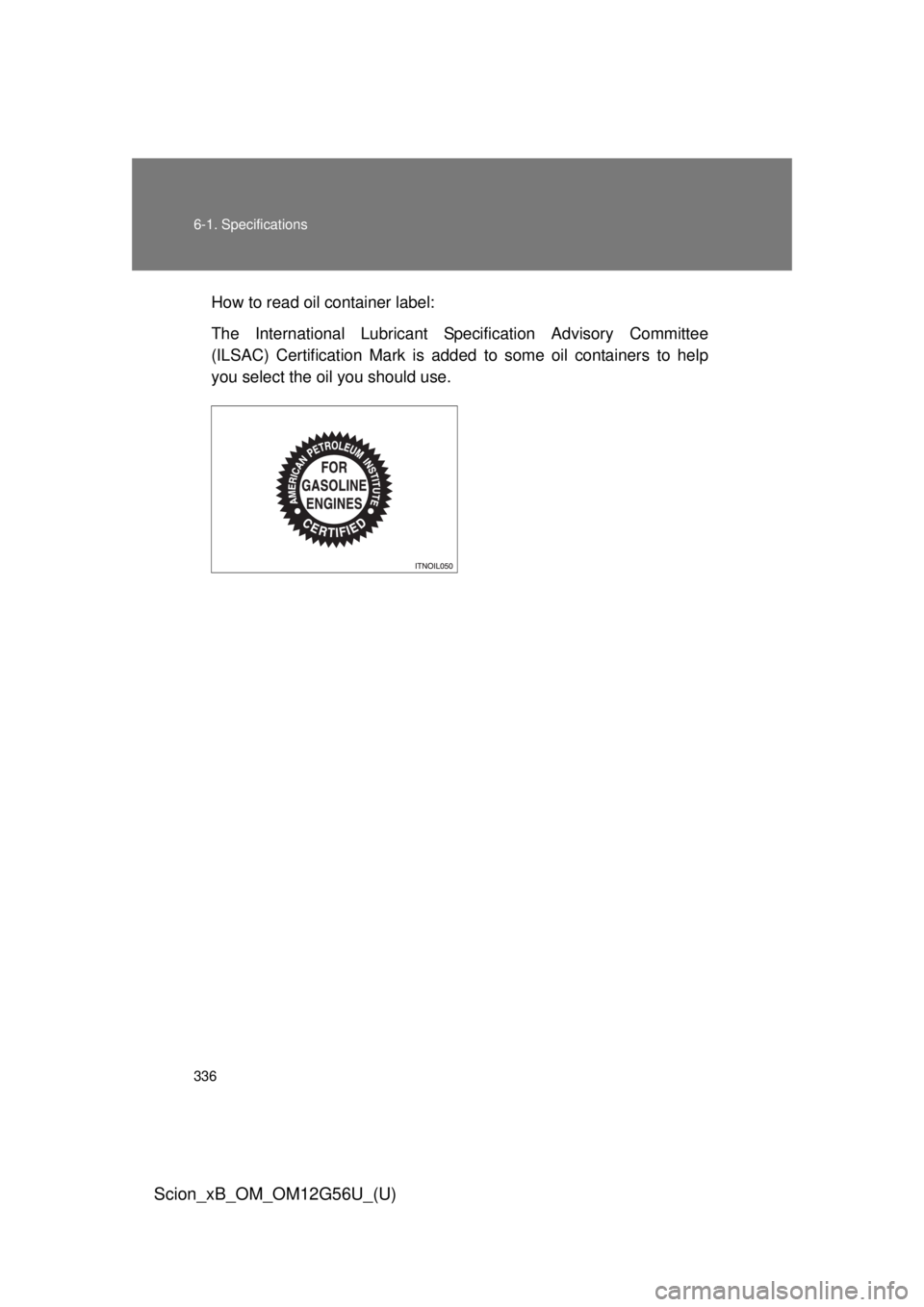

How to read oil container label:
The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oil you should use.

337
6-1. Specifications
6
Vehicle specifications
Scion_xB_OM_OM12G56U_(U)
Cooling system
Ignition system
Capacity (reference)
Vehicles with an automatic transmission:
6.2 qt. (5.9 L, 5.2 Imp. qt.)
Vehicles with a manual transmission: 6.3 qt. (6.0 L, 5.3 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non- silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
Gap DENSO SK16R11
NGK IFR5A11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

338 6-1. Specifications
Scion_xB_OM_OM12G56U_(U)
Electrical system
Automatic transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, con-tact your Scion dealer.
Battery
Open voltage* at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Fluid capacity*8.2 qt. (7.8 L, 6.9 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.

339
6-1. Specifications
6
Vehicle specifications
Scion_xB_OM_OM12G56U_(U)
Manual transaxle
Clutch
Gear oil capacity (reference) 2.6 qt. (2.5 L, 2.2 Imp. qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual Transmission
Gear Oil”
• Other gear oil that meets API GL-4 or 5 and SAE 75W-90 specifications
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Scion recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil” to achieve optimal performance.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

340 6-1. Specifications
Scion_xB_OM_OM12G56U_(U)
Brakes
*1: Minimum pedal clearance when depressed with a force of 66 lbf (294 N,30 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Steering
Tires and wheels
Pedal clearance*13.4 in. (87 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lever travel*25  8 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)
Tire sizeP205/55R16 89H, T135/70D17 102M
(spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)Driving under normal conditions
Front:
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 16  6 1/2 J, 17  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
