SCIONSECURITYSYSTEM Page2
BRIEF DESCRIPTION– SECURITYFEATUR ES
TheScion Security willarm 30seconds afterthelock button onthe
remote keyless entrysystemʼs remotecontrolispressed, andD
ISARM
when theunlock buttonispressed. Ifyour vehicle isequipped witha
buzzer thatchirps whenthelock andunlock buttons onthe remote con-
trols arepressed, thebuzzer willalso chirp when thesystem isR
EMOTE
ARMEDand DISARM ED.
The Scion Security willautomatically R
EARMatthe same timethevehi-
cleʼs remote keyless entrysystem relocksthevehicleʼs doors,ifno door
is opened within30seconds afterR
EMOTEDISARMIN G.
The Scion Security willA
RM30seconds afteryoulock thevehicleʼs
doors withthekey, andwillD
ISARMwhen youunlock adoor withthekey.
The Scion Security maybeprogrammed toautomatically A
RM30sec-
onds aftertheignition keyisremoved, thevehicle exitedandthelast
door closed, withoutthenecessity oflocking doors.
T
he Scion Security maybeDISARM EDwiththevehicleʼs ignitionkeyafter
it was P
ASSIVELYARMED.
When theScion Security hasbeen P
ASSIVELYARMED,an ENTYDELAY
(user-selectable at0,15, or30 seconds) willstart when adoor isopened
before anA
LARMisTRIGGERED.
W hen yo u lo ck th e ve hic le wit h th e ce ntr a llo ck sw it c h (w hile adoor is
o pen), th e Scio n Secu rit y will A
R M30 se co nds afte r yo u clo se all th e doors .
Forcibly unlocking oropening adoor while theScion Security isA
RMED
willTRIGGERan ALARMimmediately. (Ifthe system wasPASSIVELY
ARMED,the ENTRYDELAYmust passafteropening adoor before the
A
LARMis TRIGGERED.)
The Scion Security utilizesamicrophone usuallymounted onthe status
monitor tosense thenoise fromtapping onwindow glass,orglass
breaking, andT
RIGGERthesystem tosound anALARM.It is fine tuned to
"listen" forthis type ofnoise, andignore othersounds.
When theG
LASSBREAKAGESENSOR'Smicrophone picksuptapping or
br
eaking ofwindow glass,itTRIGGERSa WARNAWAYALARM;the
headlights andtailand marker orturn signal lightsflash, andhorn
sounds for20seconds, butthestarter isnot disabled. Ifthere isanother
detection ofglass tapping orbreaking, orifa door isopened orunlocked
without akey, theregular A
LARMisTRIGGERED.
W hile A
RM ED,th e Scio n Secu rit y m onit o rs th e ig nit io n sw it c h . If an atte m pt
i s m ade to sta rt th e ve hic le wit h out a ke y, an A
LA R Mis TRIG GER ED.
When anA
LARMisTRIGGERED,the system disables thevehicleʼs starter
and prevents enginestartuntilthesystem isreset (D
ISARM ED).
During anA
LARM,the system willlock thedoors ifone isunlocked, and
will continue todo sofor the duration ofthe A
LARM.
The user isnotified thatanA
LARMoccurred. UponDISARMINGthesys-
tem after anA
LARMwas TRIGGERED,the vehicleʼs tailand marker lights
will beturned onfor 2seconds.
The Scion Security flashesthevehicleʼs tailand marker orturn signa
l
lights during R
EMOTEARMINGandREMOTEDISARM NG,and during an
A
LARM. Also, during anALARMthe headlights flash.
REMOTE
ARMING/
DISARMING
AUTOMATIC
REARMING
KEY
ARMING/
DISARMING
PASSIVE
(AUTOMATIC)
ARMING
PASSIVE
DISARMING
ADJUSTABLE
ENTRY
DELAY
MANUAL ARMING
POINT-OF-ENTRY
PROTECTION
GLASS
BREAKAGE
SENSOR
WARN AWAY
ALARM
IGNITION SWITCH
MONITORING
STARTER
DISABLE
FORCED LOCK
DURING ALARM
TRIGGER
MEMORY
EXTERIOR
LIGHT
ACTIVATION
FEATURES FUNCTIONS
Page9SCIONSECURITY SYSTEM
ALARMINFORMA TION

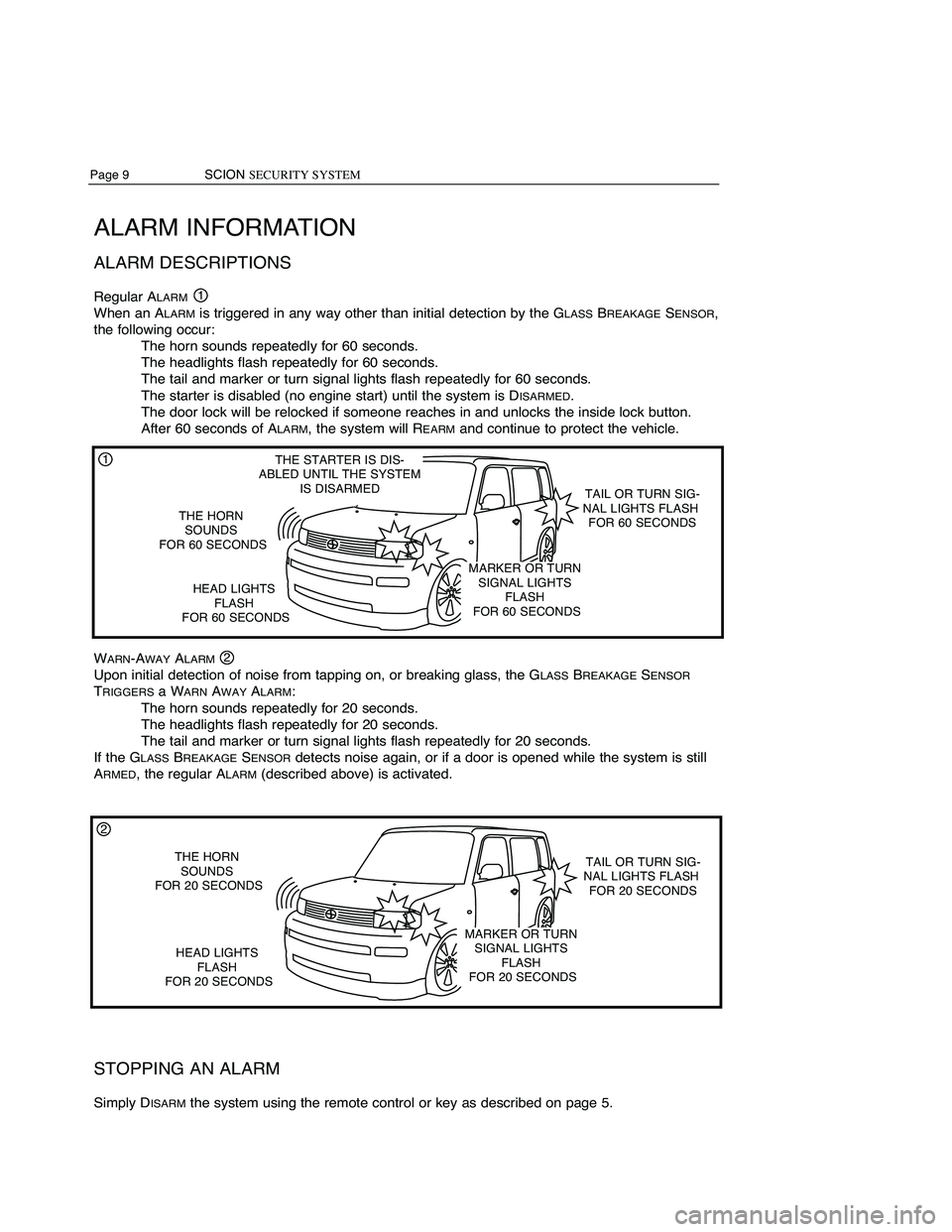

ALARM DESCRIPTIO NS
RegularALARM
WhenanALARMistriggered inany way other thaninitial detection bythe GLASSBREAKAGESENSOR,
the following occur:
The horn sounds repeatedly for60seconds.
The headlights flashrepeatedly for60seconds.
The tailand marker orturn signal lightsflashrepeatedly for60seconds.
The starter isdisabled (noengine start)untilthesystem isD
ISARMED.
The door lockwillberelocked ifsomeone
reaches inand unlocks theinside lockbutton.
After 60seconds ofA
LARM,the system willREARMand continue toprotect thevehicle.
W
ARN-AWAYALARM
Upon initialdetection ofnoise fromtapping on,orbreaking glass,theGLASSBREAKAGESENSOR
TRIGGERSaWARNAWAYALARM:
The horn sounds repeatedly for20seconds.
The headlights flashrepeatedly for20seconds.
The tailand marker orturn signal lightsflashrepeatedly for20seconds.
If the G
LASSBREAKAGESENSORdetects noiseagain,orifa door isopened whilethesystem isstill
A
RMED, the regular ALARM(described above)isactivated.
STOPPING ANALARM
Simply DISARMthesystem usingtheremote controlorkey asdescribed onpage 5.
THEHORN
SOUNDS
FOR 60SECONDS
HEAD LIGHTS
FLASH
FOR 60SECONDS
THE STARTER ISDIS-
ABLED UNTILTHESYSTEM
IS DISARMED
MARKER ORTURN
SIGNAL LIGHTS
FLASH
FOR 60SECONDS
TAIL ORTURN SIG-
NAL LIGHTS FLASH
FOR 60SECONDS
1
THE HORN
SOUNDS
FOR 20SECONDS
HEAD LIGHTS
FLASH
FOR 20SECONDS
MARKER ORTURN
SIGNAL LIGHTS
FLASH
FOR 20SECONDS TAIL
ORTURN SIG-
NAL LIGHTS FLASH
FOR 20SECONDS
2
1
2

SCIONSECURITYSYSTEM Page10
GLASS BREAKAGE SENSORINFORMA TION
TheScion Security provides protection foryour vehicle aboveandbeyond entrypointmonitoring –it
"listens" forthe noise made bytapping on,orbreaking ofglass. Usingamicrophone designed
specifically forthis task, theG
LASSBREAKAGESENSORiscapable ofignoring othernoises, which
helps toprevent "falsealarms" fromoccuring.
GLASS BREAKAGE SENSORCHECKPROCEDURE
WhentheScion Security wasinstalled inyour vehicle, carewastaken toadjust thesensitivity level
of the G
LASSBREAKAGESENSOR.You may observe howitworks following theprocedure listed
below.
1.A
RMthe system .
Press thelock button onthe remote controlorlock thedoors
with thekey.
(Remember, thesystem willnot ARM ifany door isopen.)
2. Wait untiltheSTATUSMONITORʼ SLEDstarts flashing.
The LED willflash 30seconds afterthelast door isclosed.
3. With thetipofakey, tapthecenter ofthe driver's doorwindow.
Tap theglass wi
thlight tomoderate force.
WARNING :Do not hitthe glass withexcessive force,especially incold
weather, oryou may crack orbreak it.
A W
ARNAWAYALARMshould beTRIGGERED.If the ALARMisnot
TRIGGERED, make sureyouperformed theprocedure correctlyandtry
again. Ifyou findthat thesystem didnot perform asexpected, contact
your SCION dealerformore information.
4. D
ISARMthe system tostop theWARNAWAYALARM.
Press theunlock buttononthe remote controloruse thekey to
DISARMthe system.
UNLOCK
UNLOCK
Page 1SCIONSECURITY SYSTEM
INTRODUCTION
Congratulations onyour choice ofthe Scion add-on security systemtoprotect yourvehicle! Toget
the most fromthesystem, westrongly recommend thatyouread thisOwnerʼs Guidecompletely to
learn allofits features andfunctions.
The Scion Security provides securitythroughpoint-of-entry monitoring,glassbreakage detection
and ignition switchmonitoring. WhileA
RMED,the system willbeTRIGGEREDand sound anALARM
whenadoor isforcibly unlocked oropened*, orwhen awindow istapped onorbroken. Duringthe
A
LARM, the vehicleʼs hornsounds and th e headlig hts , ta il lig hts and fr o nt m ark e r or tu rn sig nallig hts
f la sh . Also, th e ve hic le ʼs starter isdisabled, preventing enginestart.Inaddition tothe comprehen-
sive protection, theScion Security worksinconjunction withyour vehicleʼs remotekeyless entry
system, enabling youtoA
RMand DISARMthesecurity systematthe same timethedoorsare
remotely lockedandunlocked. Invehicles equipped withabuzzer, itwill chirp when thesystem is
R
EMOTEARMEDand DISARMED.
An important noteabout yoursystem:
Throughout thisguide, therearereferences tothe S
TATUSMONITORforthis system.
Illustrated below,thispanel holdstheLED indicator (forthesystemʼs operating status)andthe
G
LASSBREAKAGE SENSOR'Smicrophone.
* When thesystem isP
ASSIVELY(AUTOMAT ICALLY)ARMED,there isan ENTRYDELAYthat willelapse
when adoor isopened beforeanA
LARMisTRIGGERED.
21
SCION
SECURITY
2
SECURITY
LIGHTS
FOR 30
SEC-
ONDS (PRE-
ARMING) THEN
FLASHES (SYSTEM IS
ARMED)1

Tobetter understand thefeatures andfunctions ofthis security system,pleasereadthisOwnerʼs
Guide completely priortouse.
TABLE OFCONTENTS
DESCRIPTION PAGE
INTRODUCTION
1
BRIEF DESCRIPTION –SECURITY FEATURES2,3
OPERATION
ARMING THESECURITY (exceptPASSIVE ARMING) 4
DISARMING THESECURITY (exceptPASSIVE DISARMING) 5
PASSIVE (AUTOMAT IC)ARMING &DISARMING 6
AUTOMA TICREARMING 7
ALARMINFORMATION
ALARMTRIGGERS 8
ALARM DESCRIPTIONS 9
STOPPING ANALARM 9
GLASSBREAKAGE SENSORINFORMATION
GLASSBREAKAGE SENSORCHECKPROCEDURE 10
PROGRAMMING
PASSIVE(AUTOMAT IC)ARMING ANDENTRY DELAY 11
WARNINGandCAUTION INFORMATION12
Page11SCIONSECURITY SYSTEM
PROGRAMMING
TheScion Security isfactory-set tonot PASSIVELYARM.To change thesystemʼs operation for
P
ASSIVEARMI NGoperation, aswell asadjust theENTRYDELAYtime, follow theprocedure below.For
more information onthis feature, pleaserefertopage 6.
PASSIVE ARMINGON/OFFSELECTION, ENTRYDELAYTIMESELECTION
1.Before youbegin:
Open thedriverʼs door.Close theremaining doors
and thetrunk orhatch. Unlock alldoors withtheinsid
e
lock switch. Remove thekey from theignition switch.
Start theProgramming Procedure.(Completethesestepswithin 40seconds.)
3. Select theOperating ModeandComplete theProgramming Procedure.
a. Clo se th e driv e rʼs
d oor. b
. Lock and unlo ck all
d oors 3 tim es by ke y
o r re m ote co ntr o l.
b . Lock th en unlo ck th e
d riv e rʼs door in sid e lo ck
b utto n 1 tim e.
a . Clo se , th en Open th e driv e rʼs door:
2 tim es = P
ASSIV EAR M IN GO FF
3 tim es = P
ASSIV EAR M IN GO N,
0 Sec. E
N TR YDELA Y
4 tim es = PASSIV EAR M IN GO N,
1 5 Sec. E
N TR YDELA Y
5 tim es = PASSIV EAR M IN GO N,
3 0 Sec. E
N TR YDELA Y
c. Open and clo se
t h e driv e rʼs door.
c. The syste m lo cks th e
d oor in 2se co nds; if th is
d oes not happen, sta rt
o ve r. P ro gra m min g is now
c o m ple te .
e
. Open th e driv e rʼs
d oor. d.
Lock, th en unlo ck
t h e driv e rʼs door
i n sid e lo ck butto n
3 tim es.
2. Insert andremove thekey from
the ignition keycylinder 3
times; thismust becompleted
within 5seconds.
UNLOCK
f. The syste m lo cks th e door
i n 2se co nds; if th is does
n ot happen, sta rt ove r. g
. Unlo ck th e driv e rʼs
d oor kn ob.
UNLOCK

SCIONSECURITYSYSTEM Page12
Warni ng
•This product isapplicable onlytovehicles with12V DC,negative grounding specifications.Do
not use invehicles with24V specifications
.Otherwise, damagetothe unit orafire may result.
•Never attempt todisassemble ormodify theproduct. Otherwise, anaccident, fireorelectric
shock mayresult.
•When replacing fuses,besure touse fuses withthesame specified capacity(amperage.)
Otherwise, damagetothe unit orvehicle, fireorelectric shockmayresu
lt.
•Ifan abnormal conditionoccurs,suchasliquids spilling ontotheproduct, orthe product
emits smoke orstrange odors,stopusing itimmediately andconsult thedealer fromwhom you
purchased theproduct. Continued useofthe product beforecorrective actionsaretaken may
result inan accident, injuryorfire.
•Never pulltheplastic bagover yourhead. Otherwise, aserious injuryordeath fromsuffocation
may occur.
Caution
•Donot use thisproduct forapplicationsother thanin-vehicle use.Otherwise, anelectric shock
or injury mayresult.
•Donot allow children toplay withtheremote controls. Otherwise, thedoors maybelocked or
unlocked, thesecurity systemarmedordisarmed, oran alarm triggered unintentionally.
•Ifthis product isdropped orits case isdamaged, disconnect thepower supply leadand
contact thedealer fromwhom youpurchased itto obtain service. Otherwise, afire orelectric
shock mayresult.
•Allsecurity featuresmaynotbeapplicable toall vehicle models.
•Contents subjecttochange.

DESIGNEDFORUSEWITH YOUR VEHICLEʼS
REMOTE KEYLESS ENTRYSYSTEM
OWNERʼS GUIDE
090002-3081A700Rev.01/31/08
SECURITY SYSTEM
