This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Scion xB.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Scion xB
operations. Every Scion xB owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2015
Scion xB
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 7
Fuel tank door release and cap 7
Hood release 6
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6
Light control-Instrument panel 6

Air Conditioning/Heating 12
Auto lock/unlock
2 8
Automatic Transmission 8
AUX port/USB port 13
Bottle holders 9
Cruise control 11
Lights & turn signals 10
Multi-Information Display 14
Parking brake 8
Power outlet 13
Rear view monitor system 14
Seat adjustments-Front 9
Seat-Folding down rear seat 9
Seats-Head restraints 9
Steering wheel switches 13
Tilt steering wheel 12
Windows 11
Windshield wipers & washers 10
Door locks 15
Doors-Child safety locks 15
Floor mat installation 19
Seat belts 16
Seat belts-Shoulder belt anchor 15
Spare tire & tools 17
Star Safety System
TM 18
Tire Pressure Monitoring (warning) System 16
1 Visit your Scion dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information .

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
OVERVIEW

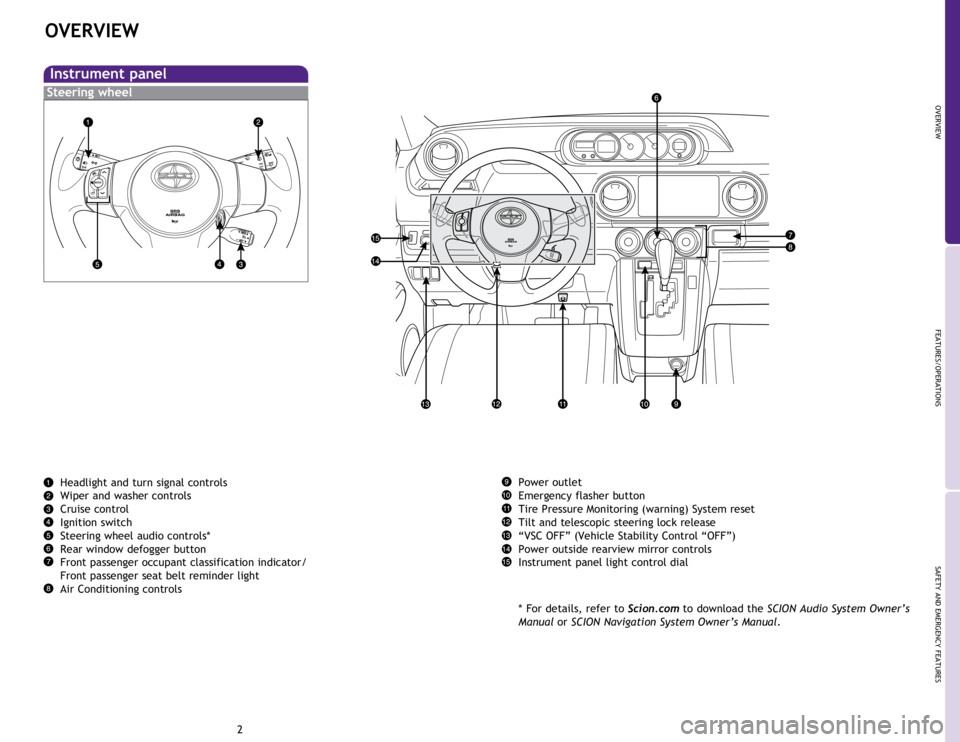

Instrument panel
Headlight and turn signal controls
Wiper and washer controls
Cruise control
Ignition switch
Steering wheel audio controls*
Rear window defogger button
Front passenger occupant classification indicator/
Front passenger seat belt reminder light
Air Conditioning controlsPower outlet
Emergency flasher button
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering lock release
“VSC OFF” (Vehicle Stability Control “OFF”)
Power outside rearview mirror controls
Instrument panel light control dial
* For details, refer to Scion.com
to download the SCION Audio System Owner’s
Manual or SCION Navigation System Owner’s Manual .
Steering wheel

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
45
OVERVIEW
Low engine oil pressure warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning1
Anti-lock Brake System warning1
Malfunction/Check Engine indicator1

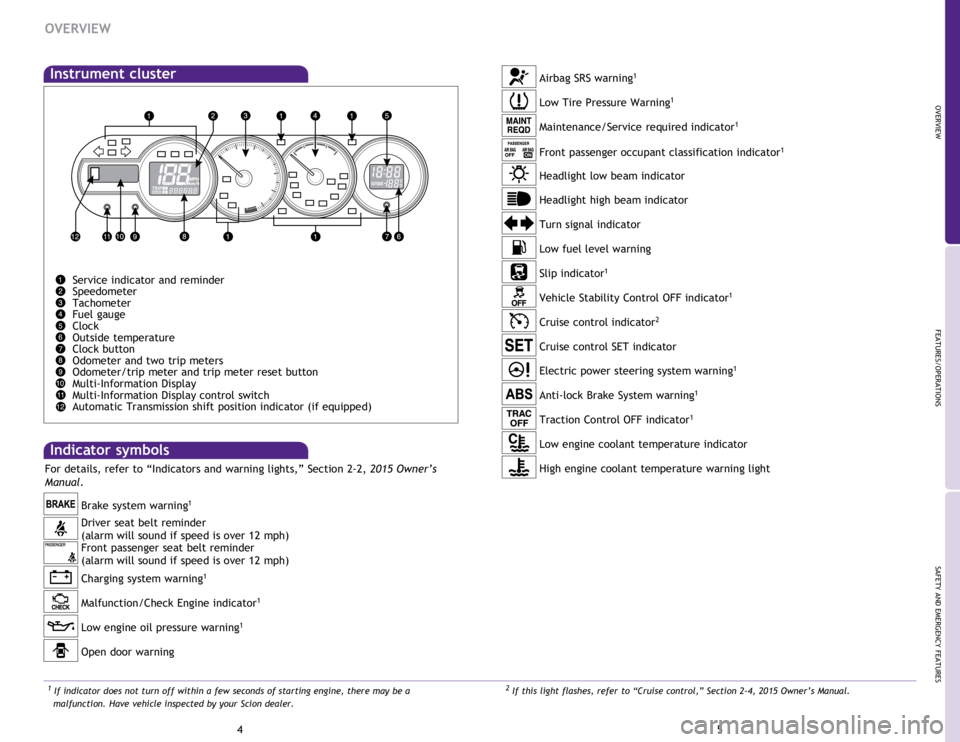

Indicator symbols
Open door warningLow Tire Pressure Warning
1
Maintenance/Service required indicator1
Headlight low beam indicator
Turn signal indicator Headlight high beam indicator
Cruise control indicator
2
Electric power steering system warning1
Slip indicator1
Vehicle Stability Control OFF indicator1
Airbag SRS warning1Instrument cluster
Service indicator and reminder
Speedometer
Tachometer
Fuel gauge
Clock
Outside temperature
Clock button
Odometer and two trip meters
Odometer/trip meter and trip meter reset button
Multi-Information Display
Multi-Information Display control switch
Automatic Transmission shift position indicator (if equipped)
Low fuel level warning
1
If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Scion dealer.
Front passenger occupant classification indicator1
For details, refer to “Indicators and warning lights,” Section 2-2, 2015 Owner’s
Manual . High engine coolant temperature warning light Traction Control OFF indicator
1
Low engine coolant temperature indicator
Cruise control SET indicator
2 If this light flashes, refer to “Cruise control,” Section 2-4, 2015 Owner’s Manual.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
67
OVERVIEW

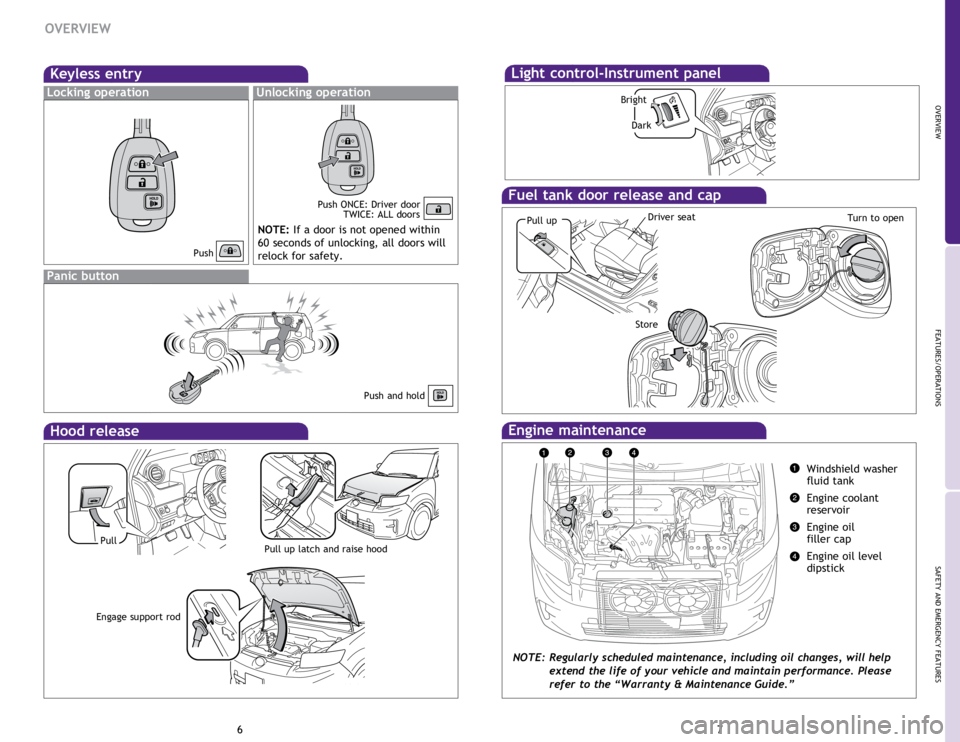

Keyless entry
Locking operationUnlocking operation
NOTE: If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
PushPush ONCE: Driver door

TWICE: ALL doors
Panic button
Push and hold
Hood release
Pull
Pull up latch and raise hood
Fuel tank door release and cap
Pull up Turn to open
Windshield washer
fluid tank
Engine coolant
reservoir
Engine oil
filler cap
Engine oil level
dipstick

Engine maintenance
Driver seat
Light control-Instrument panel
Bright
Dark
Store
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please
refer to the “Warranty & Maintenance Guide.”
Engage support rod

* The ignition switch must be “ON” and the brake pedal depressed to shift
from Park.
Push shift lever to the left from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
8 9
FEATURES/OPERATIONS

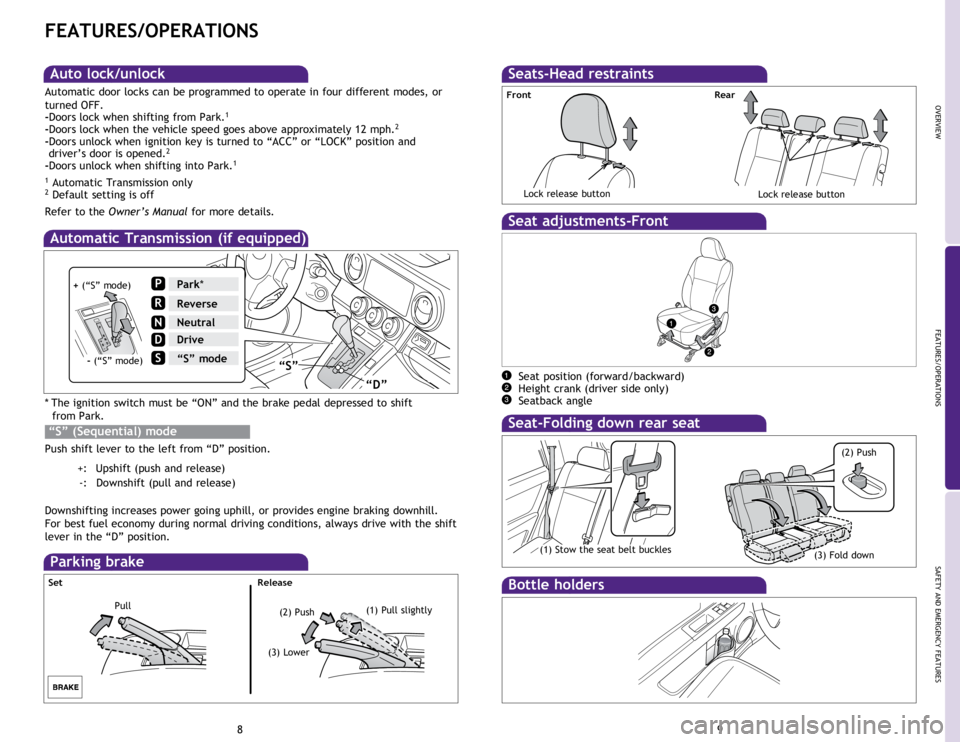

Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
1
-Doors lock when the vehicle speed goes above approximately 12 mph.2
-Doors unlock when ignition key is turned to “ACC” or “LOCK” position and
driver’s door is opened.2
-Doors unlock when shifting into Park.1
1
Automatic Transmission only2 Default setting is off
Refer to the Owner’s Manual for more details.
Automatic Transmission (if equipped)
“S” (Sequential) mode
Parking brake
Pull(2) Push (1) Pull slightly
(3) Lower
Set Release
Seats-Head restraints
Lock release buttonLock release button
FrontRear
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat-Folding down rear seat
(1) Stow the seat belt buckles(3) Fold down(2) Push
Park*
Reverse
Neutral
Drive
P
R
N
D
N
S“S” mode“S”
“D”
+ (“S” mode)
- (“S” mode)
Bottle holders

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
10
FEATURES/OPERATIONS
Windshield wipers & washers
Front
Rear

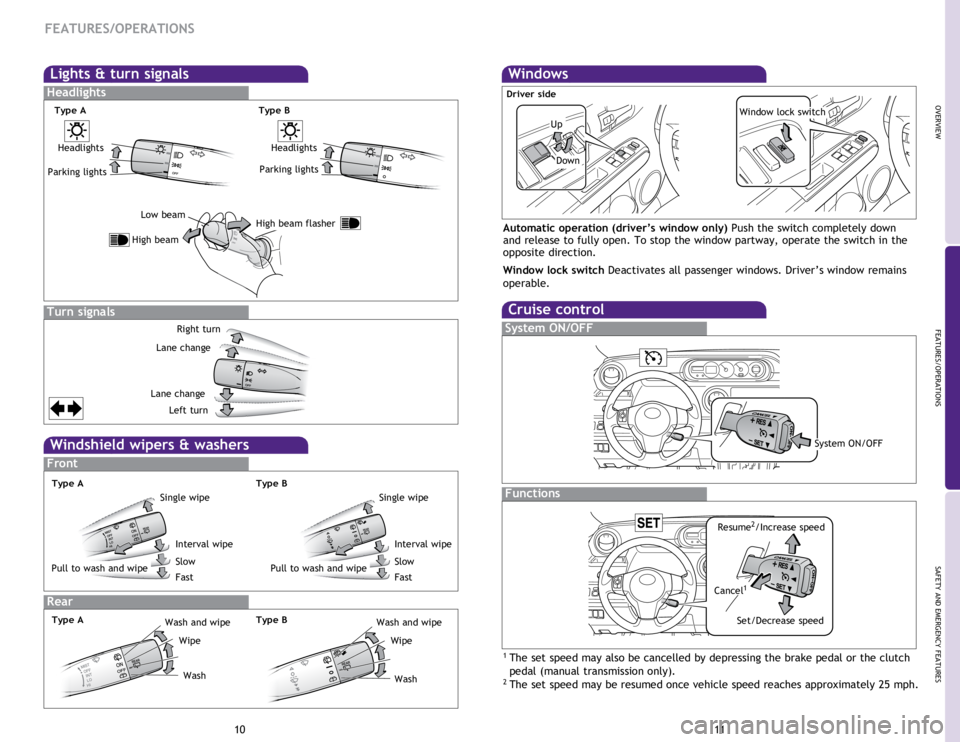

Lights & turn signals
Turn signals
Headlights
Headlights Headlights
Parking lightsParking lights
Right turn
Lane change
Lane change Left turn
High beam flasherLow beam
High beam
Windows
Automatic operation (driver’s window only) Push the switch completely down
and release to fully open. To stop the window partway, operate the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Up
Down
Driver side
Window lock switch
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal or the clutch
pedal (manual transmission only).
2 The set speed may be resumed once vehicle speed reaches approximately 25 mph.
System ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speed
Cancel1
Type A
Type A
Type A
Type B
Type B
Type B
Interval wipeInterval wipe
Slow Slow
FastFastPull to wash and wipePull to wash and wipe
Single wipe
Single wipe
Wash and wipeWash and wipe
WipeWipe
WashWash

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1213
FEATURES/OPERATIONS

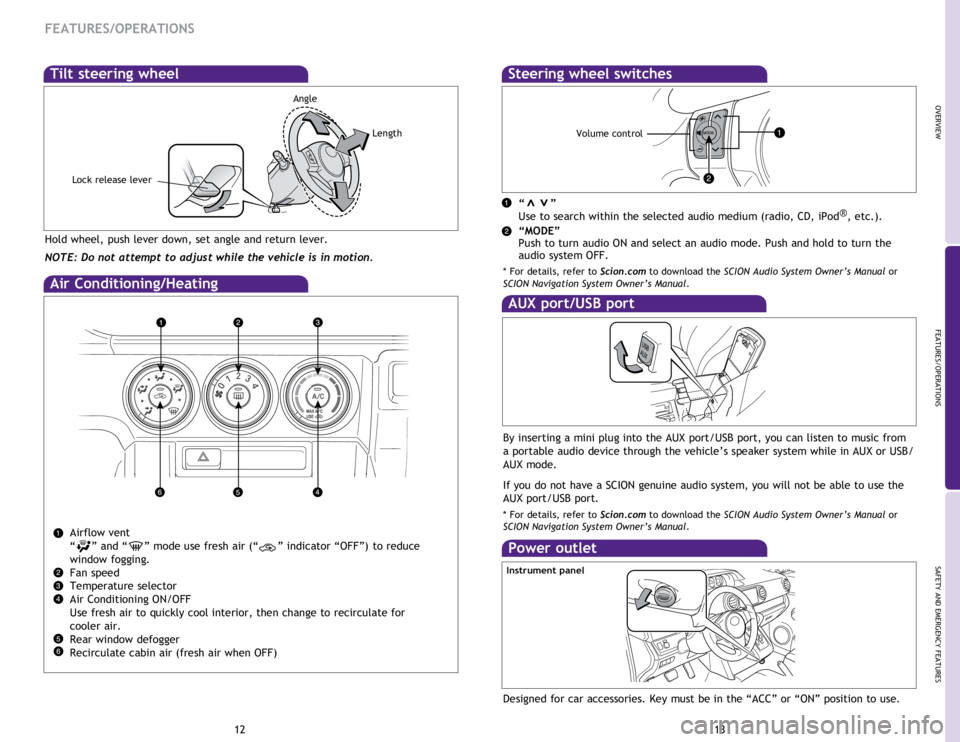

Air Conditioning/Heating
Airflow vent
“
” and “” mode use fresh air (“” indicator “OFF”) to reduce
window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Rear window defogger
Recirculate cabin air (fresh air when OFF)
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt steering wheel
Lock release lever Angle
Steering wheel switches
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®
, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
* For details, refer to Scion.com to download the SCION Audio System Owner’s Manual or
SCION Navigation System Owner’s Manual .
>>
AUX port/USB port
By inserting a mini plug into the AUX port/USB port, you can listen to music from
a portable audio device through the vehicle’s speaker system while in AUX or USB/
AUX mode.
If you do not have a SCION genuine audio system, you will not be able to use the
AUX port/USB port.
* For details, refer to Scion.com to download the SCION Audio System Owner’s Manual or
SCION Navigation System Owner’s Manual .
Volume control
Length
Power outlet
Instrument panel
Designed for car accessories. Key must be in the “ACC” or “ON” position to use.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1415
FEATURES/OPERATIONS

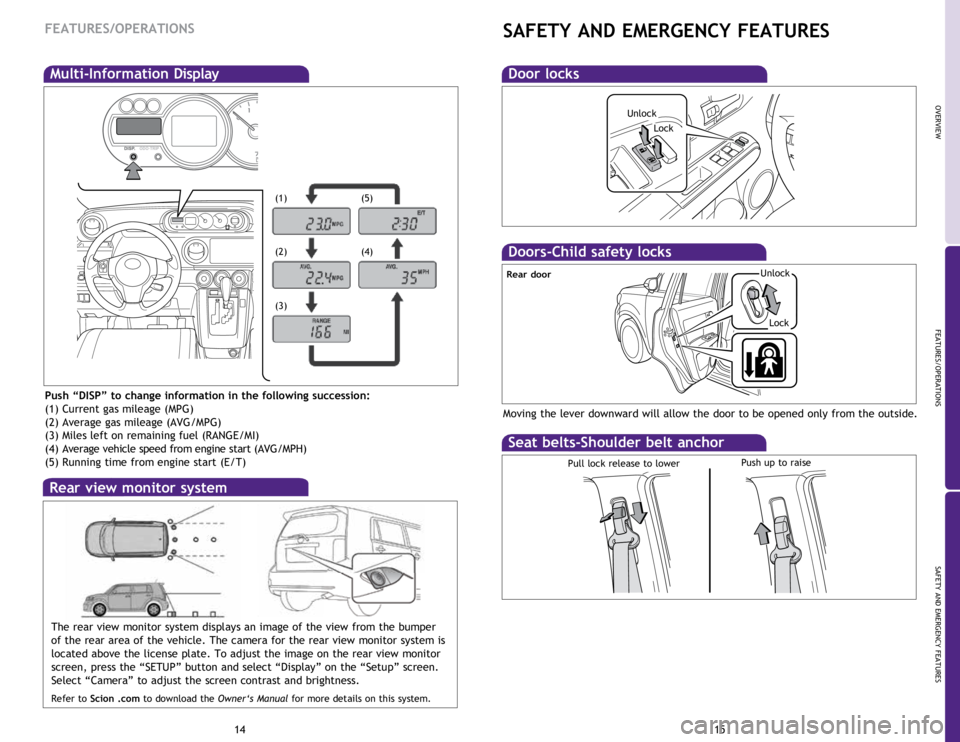

Multi-Information Display
Push “DISP” to change information in the following succession:
(1) Current gas mileage (MPG)
(2) Average gas mileage (AVG/MPG)
(3) Miles left on remaining fuel (RANGE/MI)
(4) Average vehicle speed from engine start (AVG/MPH)
(5) Running time from engine start (E/T)
(1)
(2)
(3)
(5)
(4)
SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks
Moving the lever downward will allow the door to be opened only from the outside.
Rear door
Door locks
Unlock
Unlock
Lock
Lock
Seat belts-Shoulder belt anchor
Push up to raisePull lock release to lower
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
located above the license plate. To adjust the image on the rear view monitor
screen, press the “SETUP” button and select “Display” on the “Setup” screen.
Select “Camera” to adjust the screen contrast and brightness.
Refer to Scion .com to download the Owner‘s Manual for more details on this system.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1617
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat beltsSpare tire & tools
Tool and spare tire location
Removing the spare tire
(1) Remove the luggage mat.
(2) Remove the center auxiliary boxes.
(3) Loosen the center fastener that secures the spare tire.
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
If tire pressure indicator is on, check/adjust each tire.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the ignition switch to “ON” and press and hold the “
SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initialization to
complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Scion dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the
light.
Spare tire
Jack handle
Jack
Wheel nut wrench
(1)(2)
(3)
