2-5. Driving information
2
When driving
Scion_xB_OM_OM12F03U_(U)

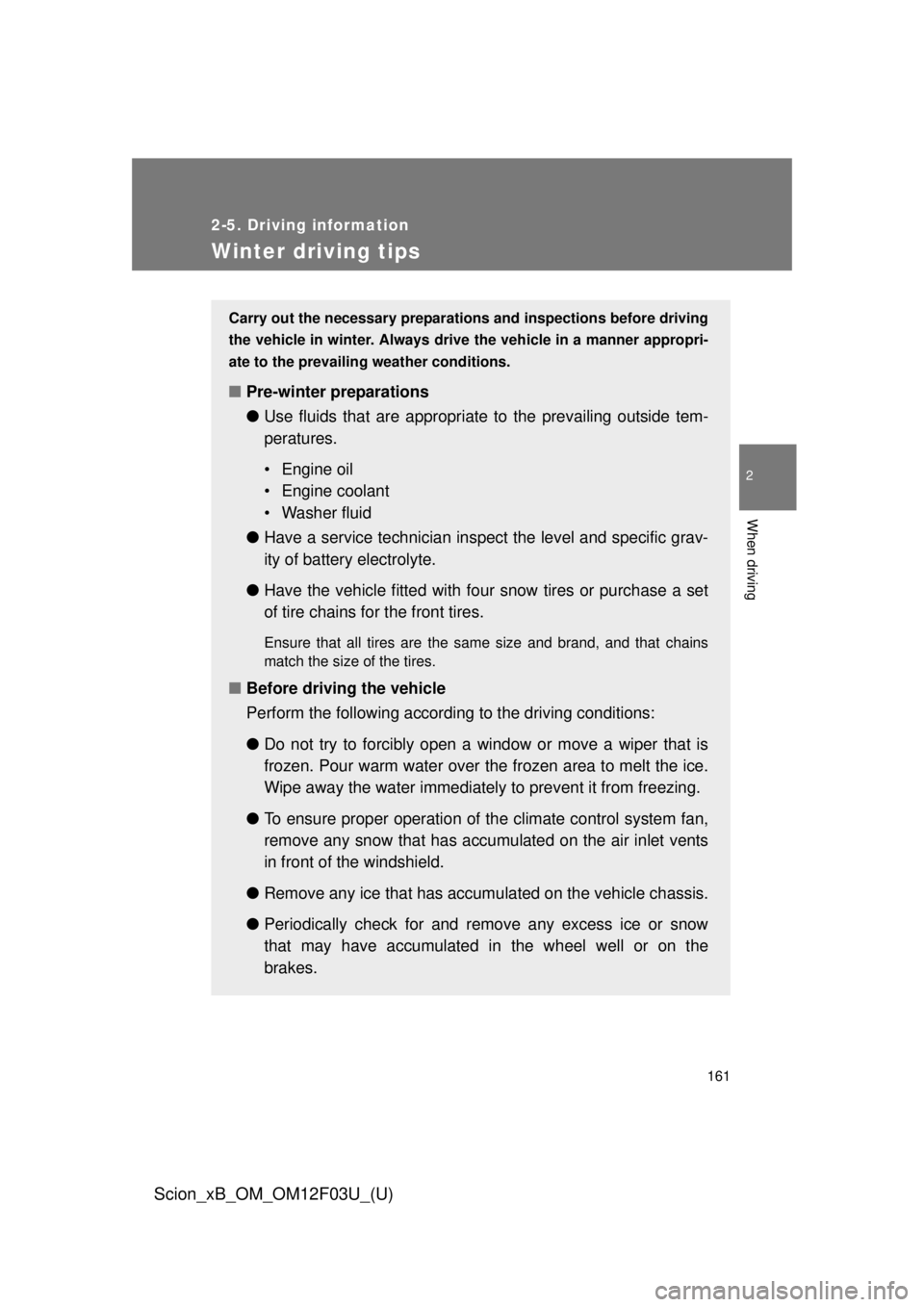

Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.
■ Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tem-
peratures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the level and specific grav-
ity of battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set
of tire chains for the front tires.
Ensure that all tires are the same size and brand, and that chains
match the size of the tires.
■Before driving the vehicle
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is
frozen. Pour warm water over the frozen area to melt the ice.
Wipe away the water immediately to prevent it from freezing.
● To ensure proper operation of th e climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of the windshield.
● Remove any ice that has accumu lated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow
that may have accumulated in the wheel well or on the
brakes.

212
4-2. Maintenance
Scion_xB_OM_OM12F03U_(U)
General maintenance
Engine compartment
ItemsCheck points
Battery Check the connections.
(P. 234)
Brake fluid Is the brake fluid at the correct
level? (
P. 231)
Engine coolant Is the engine coolant at the cor-
rect level?
(P. 229)
Engine oil Is the engine oil at the correct
level?
(P. 225)
Exhaust system There should not be any fumes or
strange sounds.
Radiator/condenser The radiator and condenser
should be free from foreign
objects.
(P. 231)
Washer fluid Is there sufficient washer fluid?
(P. 236)
Listed below are the general maintenance items that should be per-
formed at the intervals specified in the “Owner’s Warranty Informa-
tion Booklet” or “Owner’s Manual Supplement/Scheduled
Maintenance Guide”. It is recommended that any problem you notice
should be brought to the attention of your Scion dealer or qualified
service shop for advice.

218 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12F03U_(U)

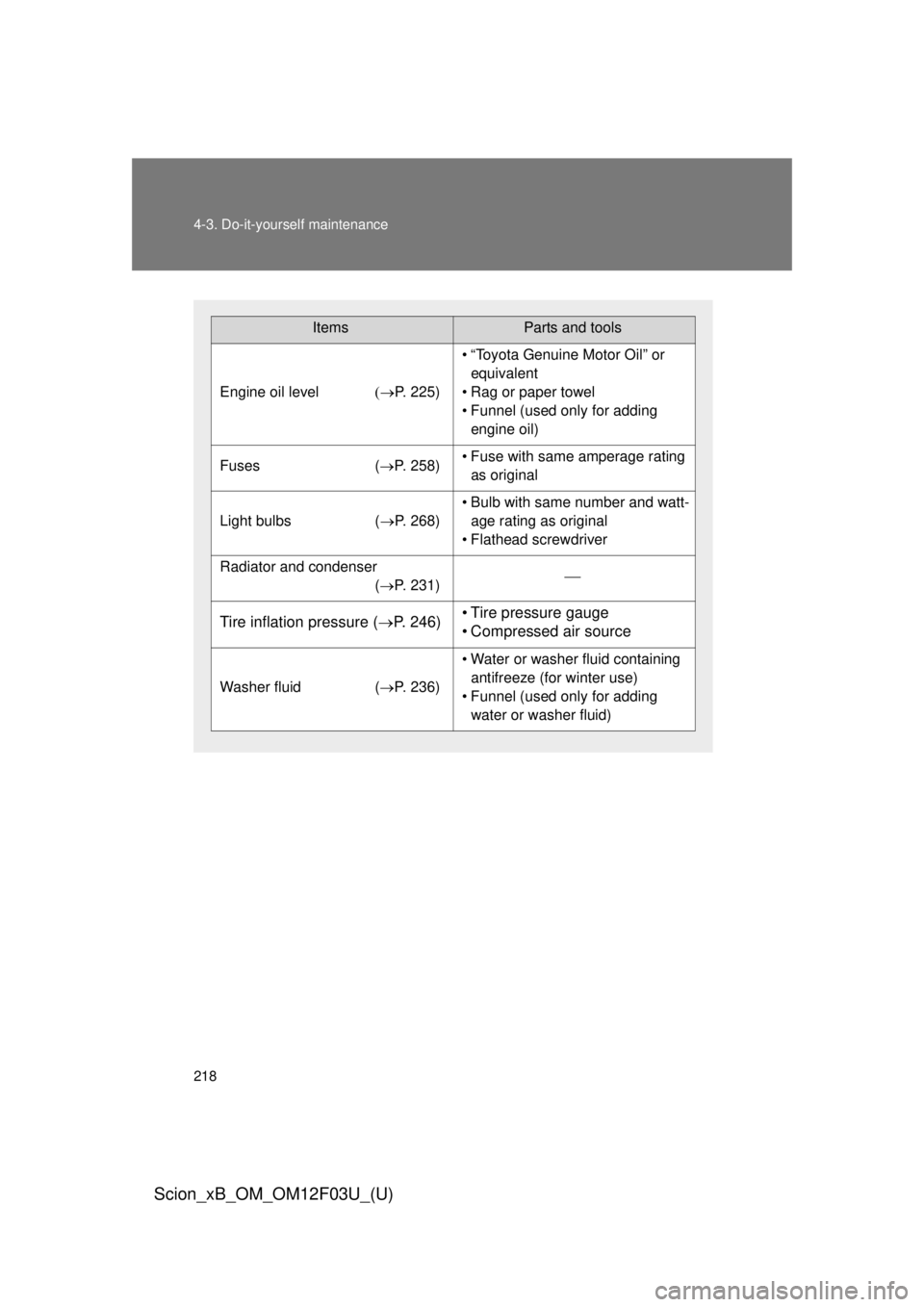

ItemsParts and tools
Engine oil levelP. 225)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 258)• Fuse with same amperage rating
as original
Light bulbs (P. 268)
• Bulb with same number and watt-
age rating as original
• Flathead screwdriver
Radiator and condenser (P. 231)
Tire inflation pressure ( P. 246)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 236)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

224
4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12F03U_(U)

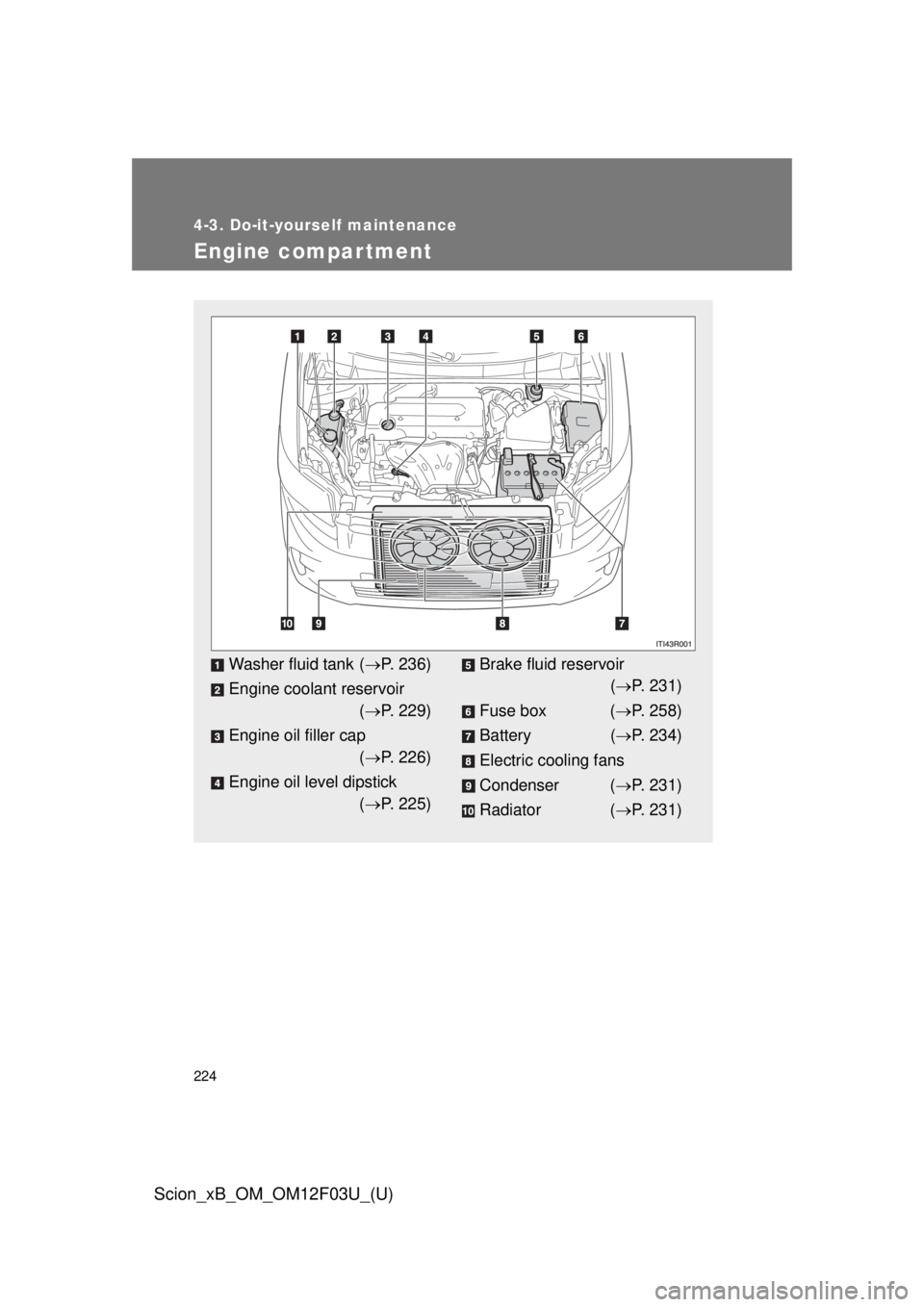

Engine compar tment
Washer fluid tank (P. 236)
Engine coolant reservoir ( P. 229)
Engine oil filler cap ( P. 226)
Engine oil level dipstick ( P. 225)Brake fluid reservoir
( P. 231)
Fuse box ( P. 258)
Battery ( P. 234)
Electric cooling fans
Condenser ( P. 231)
Radiator ( P. 231)

225
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12F03U_(U)
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.

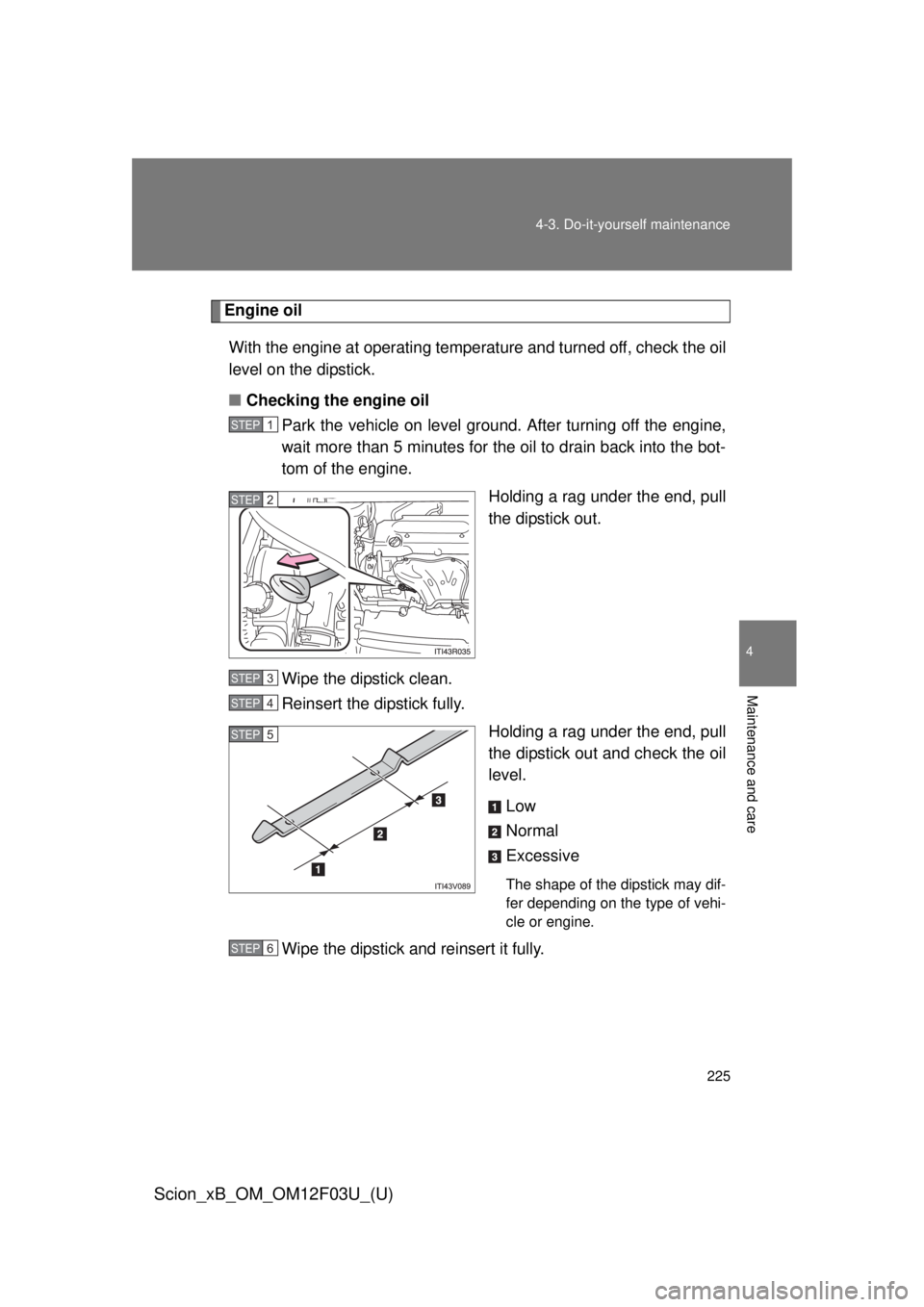

■ Checking the engine oil
Park the vehicle on level gro und. After turning off the engine,
wait more than 5 minutes for the oil to drain back into the bot-
tom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully. Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6

226 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12F03U_(U)
■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection P. 3 3 5
Oil quantity
(Low  Full) 1.2 qt. (1.1 L, 1.0 Imp. qt.)
Items Clean funnel
STEP 1
STEP 2
STEP 3

228 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12F03U_(U)
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call your Scion dealer, service station or auto parts store for infor-
mation concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.

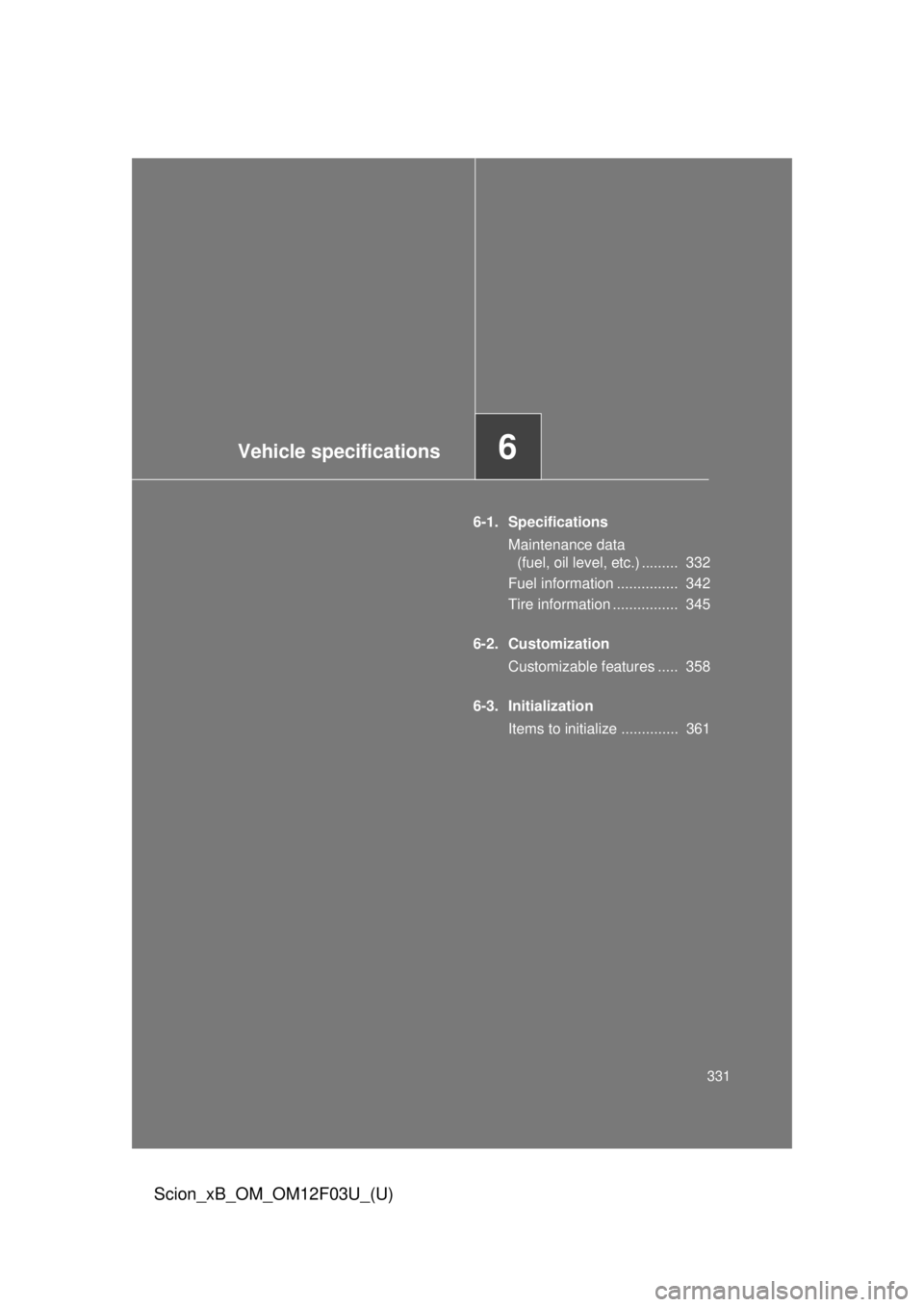

Vehicle specifications6
331
Scion_xB_OM_OM12F03U_(U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 332
Fuel information ............... 342
Tire information ................ 345
6-2. Customization Customizable features ..... 358
6-3. Initialization Items to initialize .............. 361

332
Scion_xB_OM_OM12F03U_(U)
6-1. Specifications

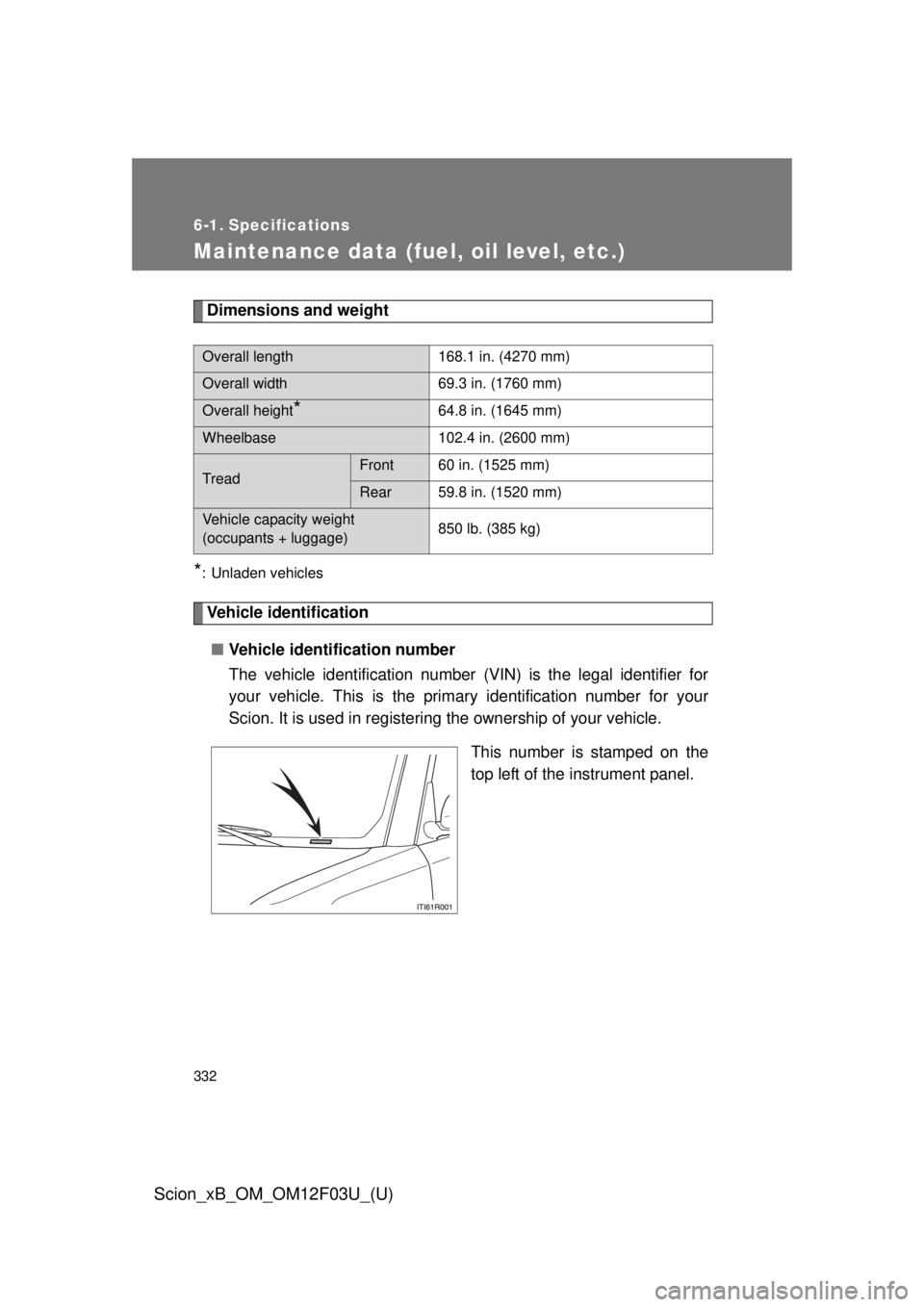

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicles
Vehicle identification■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Scion. It is used in registeri ng the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Overall length 168.1 in. (4270 mm)
Overall width69.3 in. (1760 mm)
Overall height*64.8 in. (1645 mm)
Wheelbase102.4 in. (2600 mm)
TreadFront 60 in. (1525 mm)
Rear 59.8 in. (1520 mm)
Vehicle capacity weight
(occupants + luggage) 850 lb. (385 kg)
