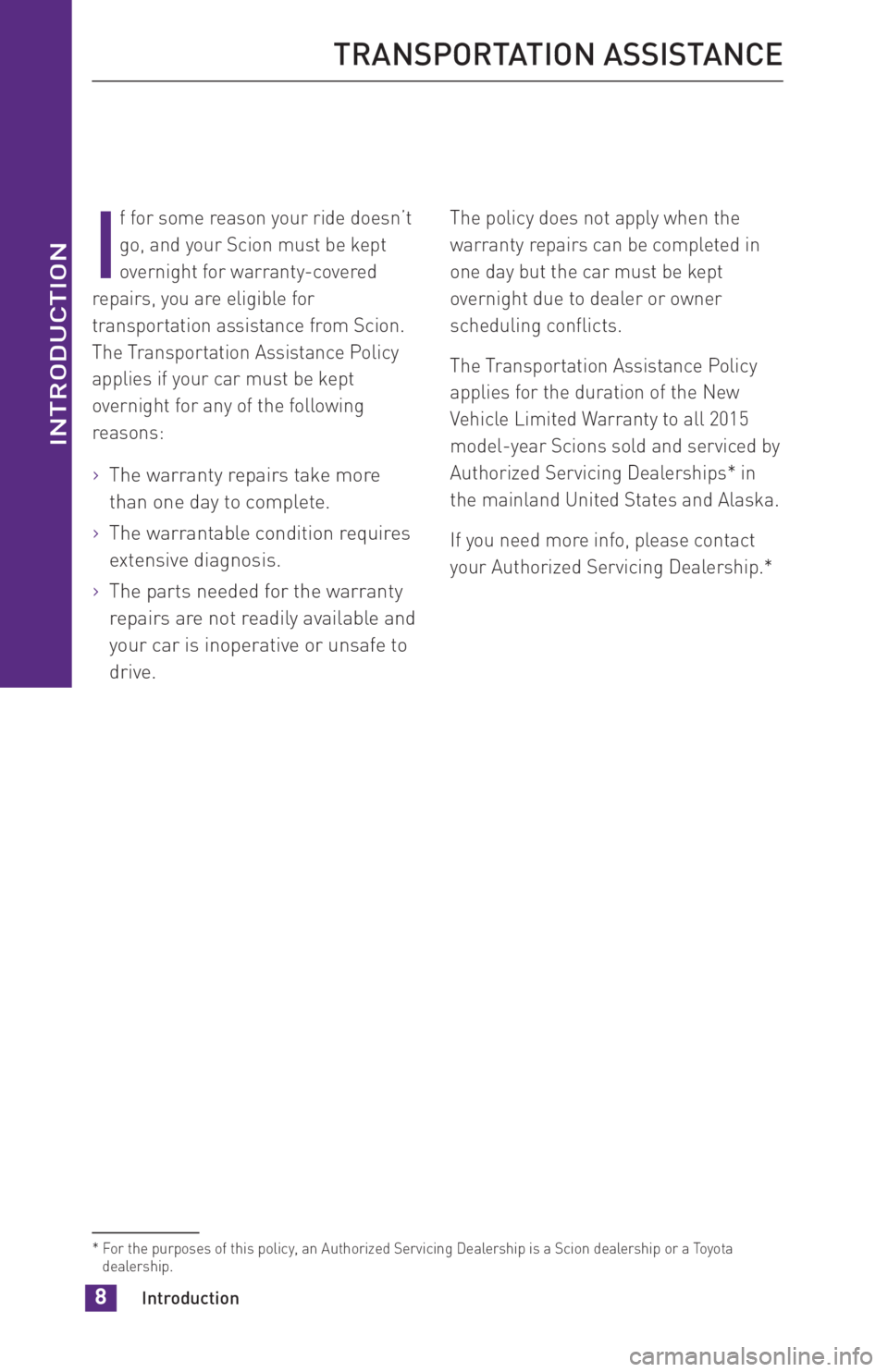

I
f for some reason your ride doesn’t
go, and your Scion must be kept
overnight for warranty-covered
repairs, you are eligible for
transportation assistance from Scion.
The Transportation Assistance Policy
applies if your car must be kept
overnight for any of the following
reasons:
>The warranty repairs take more
than one day to complete.
>The warrantable condition requires
extensive diagnosis.
>The parts needed for the warranty
repairs are not readily available and
your car is inoperative or unsafe to
drive.
The policy does not apply when the
warranty repairs can be completed in
one day but the car must be kept
overnight due to dealer or owner
scheduling conflicts.
The Transportation Assistance Policy
applies for the duration of the New
Vehicle Limited Warranty to all 2015
model-year Scions sold and serviced by
Authorized Servicing Dealerships* in
the mainland United States and Alaska.
If you need more info, please contact
your Authorized Servicing Dealership.*
* For the purposes of this policy, an Authorized Servicing Dealership is a Scion dealership or a Toyota dealership.
TRANSPORTATION ASSISTANCE
INTRODUCTION
Introduction8

JOBNAME: 1705407-2015-sxbWG-E PAGE: 9 SESS: 12 OUTPUT: Fri Oct 24 15:04:32 2014
/tweddle/toyota/sched-maint/1705407-en-sxb/wg15

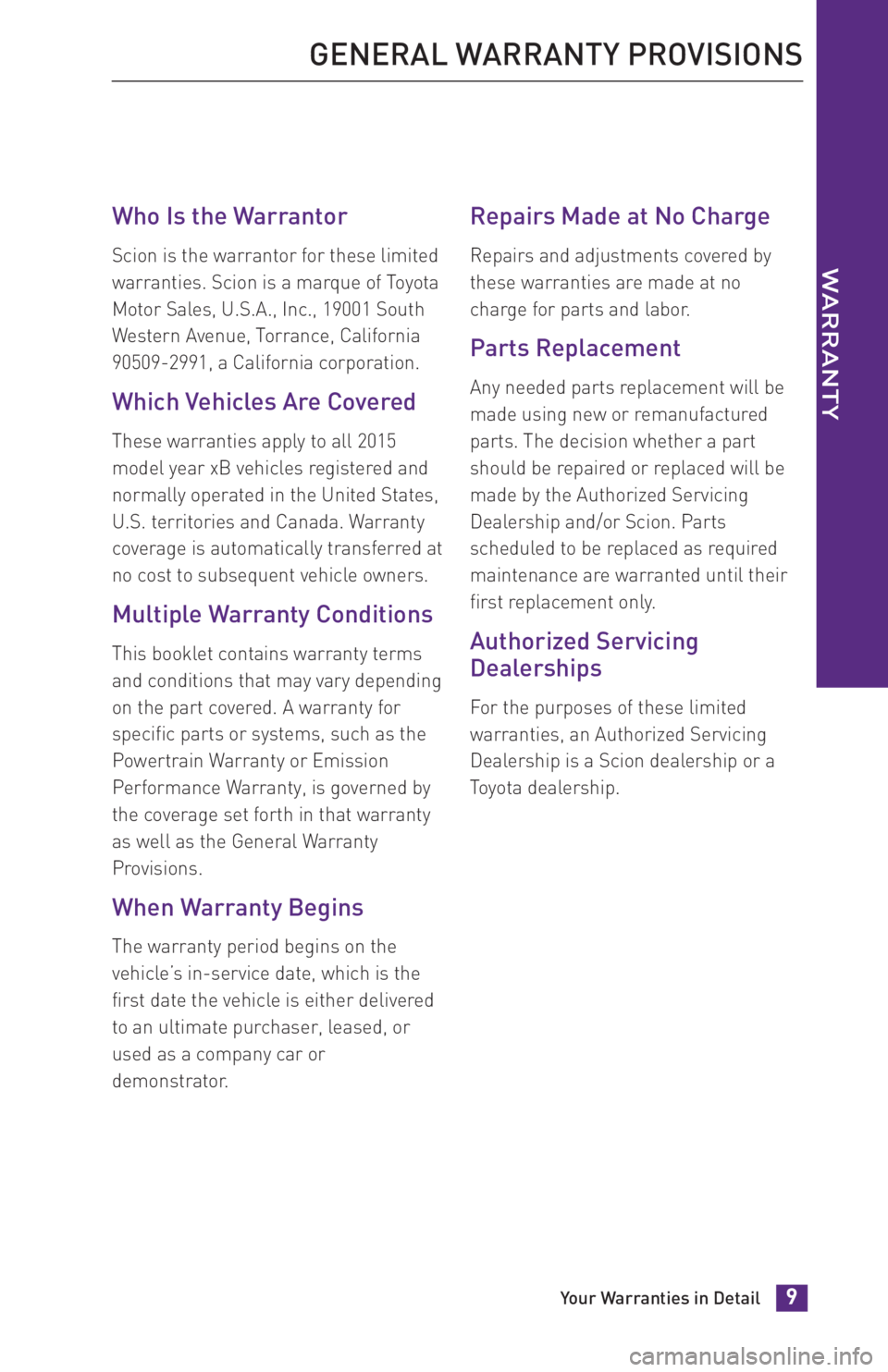

Who Is the Warrantor
Scion is the warrantor for these limited
warranties. Scion is a marque of Toyota
Motor Sales, U.S.A., Inc., 19001 South
Western Avenue, Torrance, California
90509-2991, a California corporation.
Which Vehicles Are Covered
These warranties apply to all 2015
model year xB vehicles registered and
normally operated in the United States,
U.S. territories and Canada. Warranty
coverage is automatically transferred at
no cost to subsequent vehicle owners.
Multiple Warranty Conditions
This booklet contains warranty terms
and conditions that may vary depending
on the part covered. A warranty for
specific parts or systems, such as the
Powertrain Warranty or Emission
Performance Warranty, is governed by
the coverage set forth in that warranty
as well as the General Warranty
Provisions.
When Warranty Begins
The warranty period begins on the
vehicle’s in-service date, which is the
first date the vehicle is either delivered
to an ultimate purchaser, leased, or
used as a company car or
demonstrator.
Repairs Made at No Charge
Repairs and adjustments covered by
these warranties are made at no
charge for parts and labor.
Parts Replacement
Any needed parts replacement will be
made using new or remanufactured
parts. The decision whether a part
should be repaired or replaced will be
made by the Authorized Servicing
Dealership and/or Scion. Parts
scheduled to be replaced as required
maintenance are warranted until their
first replacement only.
Authorized Servicing
Dealerships
For the purposes of these limited
warranties, an Authorized Servicing
Dealership is a Scion dealership or a
Toyota dealership.
GENERAL WARRANTY PROVISIONS
WARRANTY
Your Warranties in Detail9

JOBNAME: 1705407-2015-sxbWG-E PAGE: 14 SESS: 12 OUTPUT: Fri Oct 24 15:04:32 2014
/tweddle/toyota/sched-maint/1705407-en-sxb/wg15

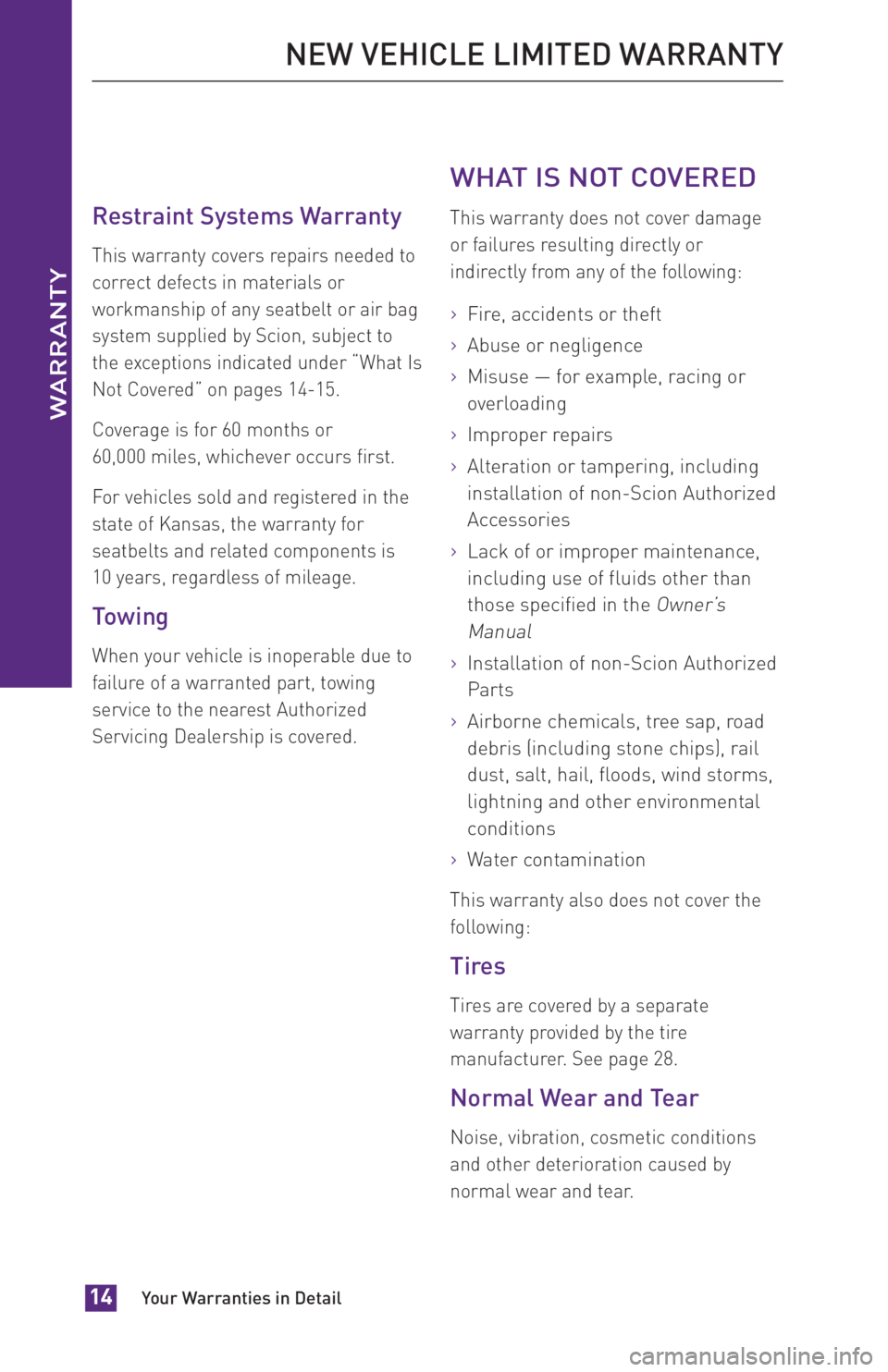

Restraint Systems Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any seatbelt or air bag
system supplied by Scion, subject to
the exceptions indicated under “What Is
Not Covered” on pages 14-15.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
For vehicles sold and registered in the
state of Kansas, the warranty for
seatbelts and related components is
10 years, regardless of mileage.
Towing
When your vehicle is inoperable due to
failure of a warranted part, towing
service to the nearest Authorized
Servicing Dealership is covered.
WHAT IS NOT COVERED
This warranty does not cover damage
or failures resulting directly or
indirectly from any of the following:
>Fire, accidents or theft
>Abuse or negligence
>Misuse — for example, racing or
overloading
>Improper repairs
>Alteration or tampering, including
installation of non-Scion Authorized
Accessories
>Lack of or improper maintenance,
including use of fluids other than
those specified in the
Owner’s
Manual
>Installation of non-Scion Authorized
Parts
>Airborne chemicals, tree sap, road
debris (including stone chips), rail
dust, salt, hail, floods, wind storms,
lightning and other environmental
conditions
>Water contamination
This warranty also does not cover the
following:
Tires
Tires are covered by a separate
warranty provided by the tire
manufacturer. See page 28.
Normal Wear and Tear
Noise, vibration, cosmetic conditions
and other deterioration caused by
normal wear and tear.
NEW VEHICLE LIMITED WARRANTY
WARRANTY
Your Warranties in Detail14

JOBNAME: 1705407-2015-sxbWG-E PAGE: 23 SESS: 12 OUTPUT: Fri Oct 24 15:04:32 2014
/tweddle/toyota/sched-maint/1705407-en-sxb/wg15

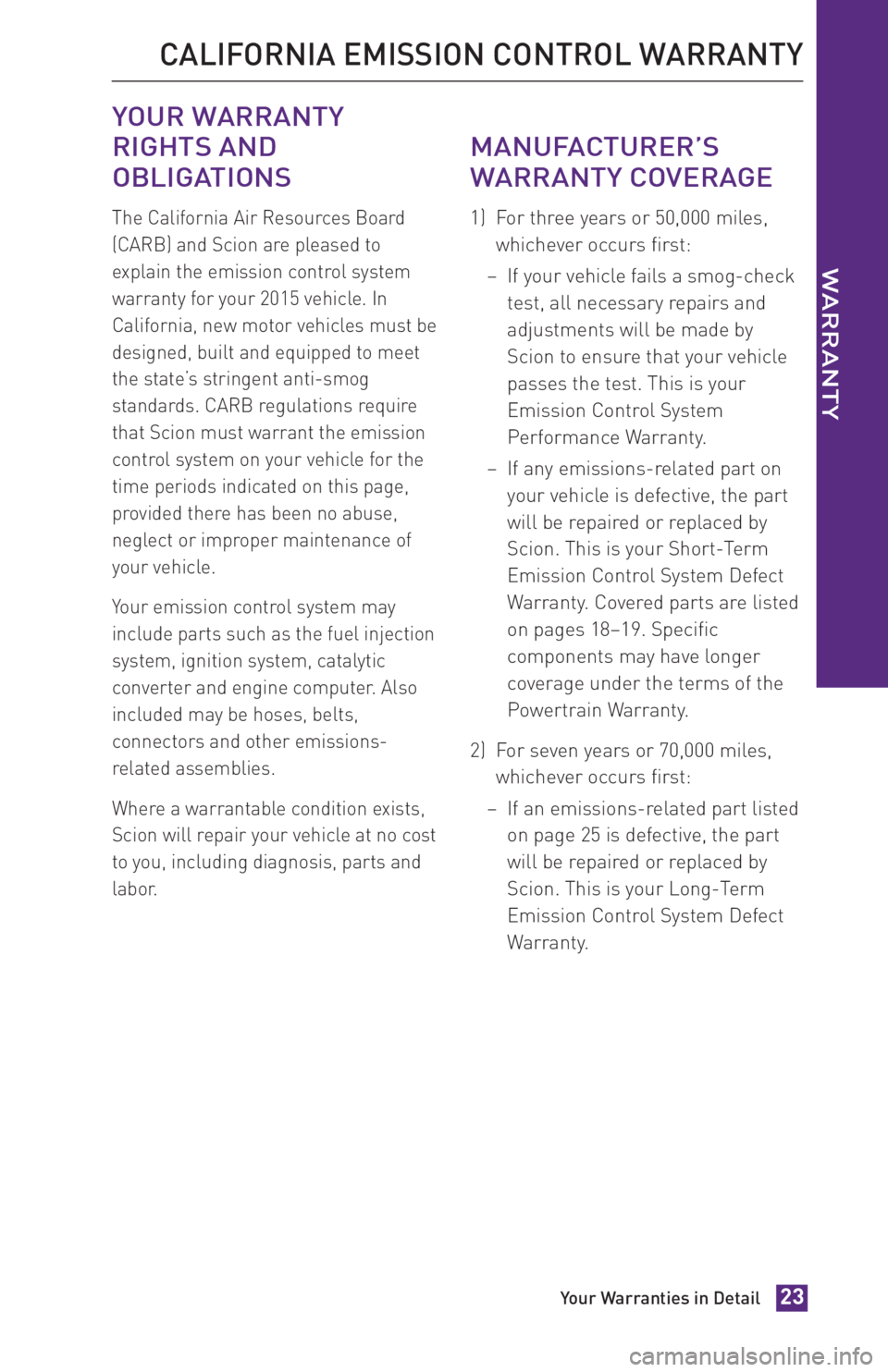

YOUR WARRANTY
RIGHTS AND
OBLIGATIONS
The California Air Resources Board
(CARB) and Scion are pleased to
explain the emission control system
warranty for your 2015 vehicle. In
California, new motor vehicles must be
designed, built and equipped to meet
the state’s stringent anti-smog
standards. CARB regulations require
that Scion must warrant the emission
control system on your vehicle for the
time periods indicated on this page,
provided there has been no abuse,
neglect or improper maintenance of
your vehicle.
Your emission control system may
include parts such as the fuel injection
system, ignition system, catalytic
converter and engine computer. Also
included may be hoses, belts,
connectors and other emissions-
related assemblies.
Where a warrantable condition exists,
Scion will repair your vehicle at no cost
to you, including diagnosis, parts and
labor.
MANUFACTURER’S
WARRANTY COVERAGE
1) For three years or 50,000 miles,whichever occurs first:
– If your vehicle fails a smog-check test, all necessary repairs and
adjustments will be made by
Scion to ensure that your vehicle
passes the test. This is your
Emission Control System
Performance Warranty.
– If any emissions-related part on your vehicle is defective, the part
will be repaired or replaced by
Scion. This is your Short-Term
Emission Control System Defect
Warranty. Covered parts are listed
on pages 18–19. Specific
components may have longer
coverage under the terms of the
Powertrain Warranty.
2) For seven years or 70,000 miles, whichever occurs first:
– If an emissions-related part listed on page 25 is defective, the part
will be repaired or replaced by
Scion. This is your Long-Term
Emission Control System Defect
Warranty.
CALIFORNIA EMISSION CONTROL WARRANTY
WARRANTY
Your Warranties in Detail23

JOBNAME: 1705407-2015-sxbWG-E PAGE: 36 SESS: 12 OUTPUT: Fri Oct 24 15:04:32 2014
/tweddle/toyota/sched-maint/1705407-en-sxb/wg15
5,000 miles or 6 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading4:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
10,000 miles or 12 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading4:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
MAINTENANCE LOG
MAINTENANCE
Maintenance Log36

JOBNAME: 1705407-2015-sxbWG-E PAGE: 37 SESS: 12 OUTPUT: Fri Oct 24 15:04:32 2014
/tweddle/toyota/sched-maint/1705407-en-sxb/wg15

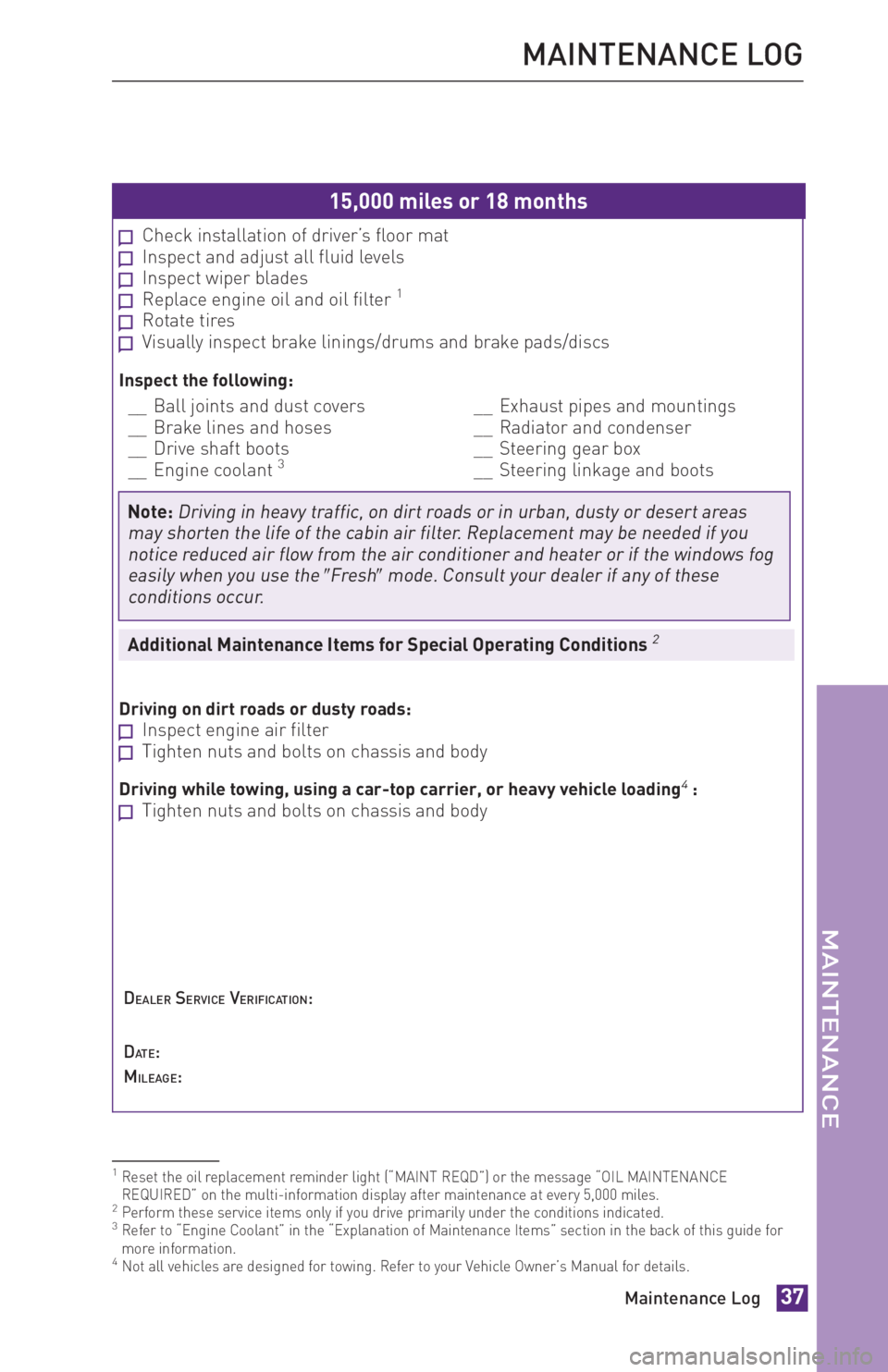

15,000 miles or 18 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and brake pads/discs
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
3
__ Exhaust pipes and mountings
__ Radiator and condenser
__ Steering gear box
__ Steering linkage and boots
Note:
Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas
may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from the air conditioner and heater or if the windows fogeasily when you use the
Freshmode. Consult your dealer if any of these
conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect engine air filterTighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading4:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE
REQUIRED” on the multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
4Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log37

JOBNAME: 1705407-2015-sxbWG-E PAGE: 38 SESS: 12 OUTPUT: Fri Oct 24 15:04:32 2014
/tweddle/toyota/sched-maint/1705407-en-sxb/wg15
20,000 miles or 24 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
25,000 miles or 30 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
MAINTENANCE LOG
MAINTENANCE
Maintenance Log38

JOBNAME: 1705407-2015-sxbWG-E PAGE: 39 SESS: 12 OUTPUT: Fri Oct 24 15:04:32 2014
/tweddle/toyota/sched-maint/1705407-en-sxb/wg15

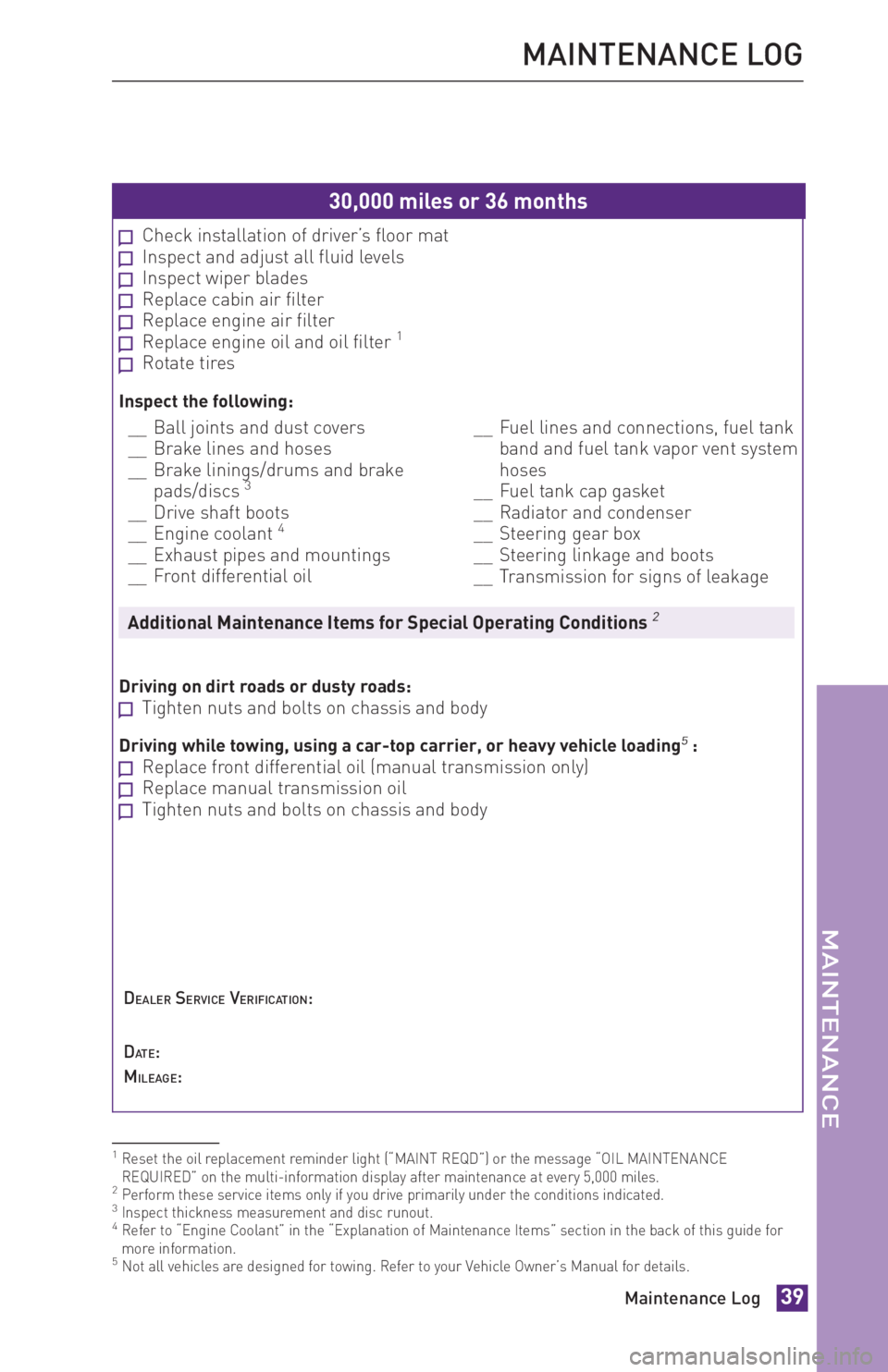

30,000 miles or 36 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Rotate tires
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brakepads/discs
3
__ Drive shaft boots
__ Engine coolant4
__ Exhaust pipes and mountings
__ Front differential oil __ Fuel lines and connections, fuel tank
band and fuel tank vapor vent system
hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission for signs of leakage
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading5:Replace front differential oil (manual transmission only)Replace manual transmission oilTighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE
REQUIRED” on the multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Inspect thickness measurement and disc runout.4Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
5Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log39

JOBNAME: 1705407-2015-sxbWG-E PAGE: 40 SESS: 12 OUTPUT: Fri Oct 24 15:04:32 2014
/tweddle/toyota/sched-maint/1705407-en-sxb/wg15

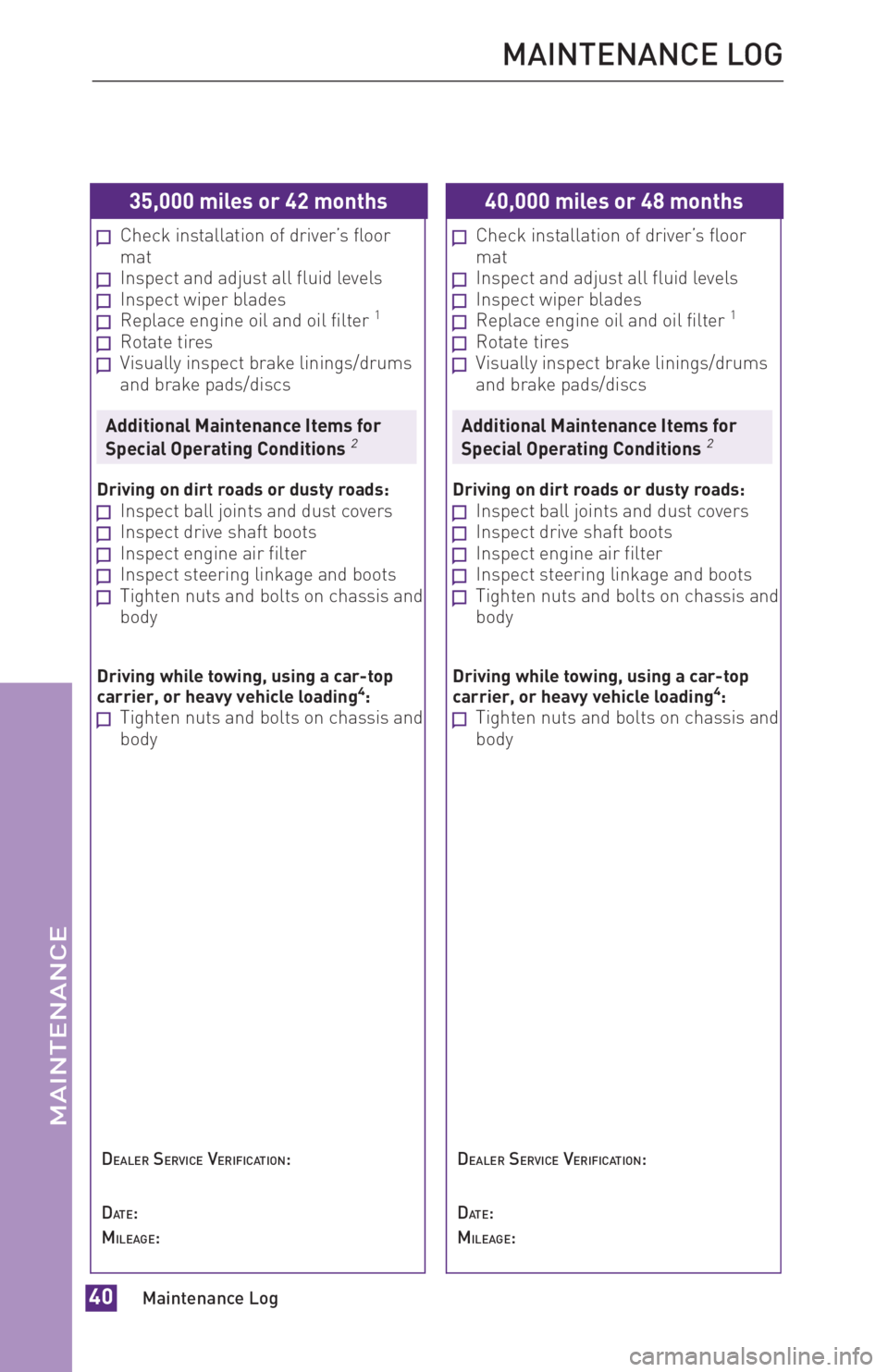

35,000 miles or 42 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading4:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
40,000 miles or 48 months
Check installation of driver’s floor
mat
Inspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading4:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
MAINTENANCE LOG
MAINTENANCE
Maintenance Log40

JOBNAME: 1705407-2015-sxbWG-E PAGE: 41 SESS: 12 OUTPUT: Fri Oct 24 15:04:32 2014
/tweddle/toyota/sched-maint/1705407-en-sxb/wg15

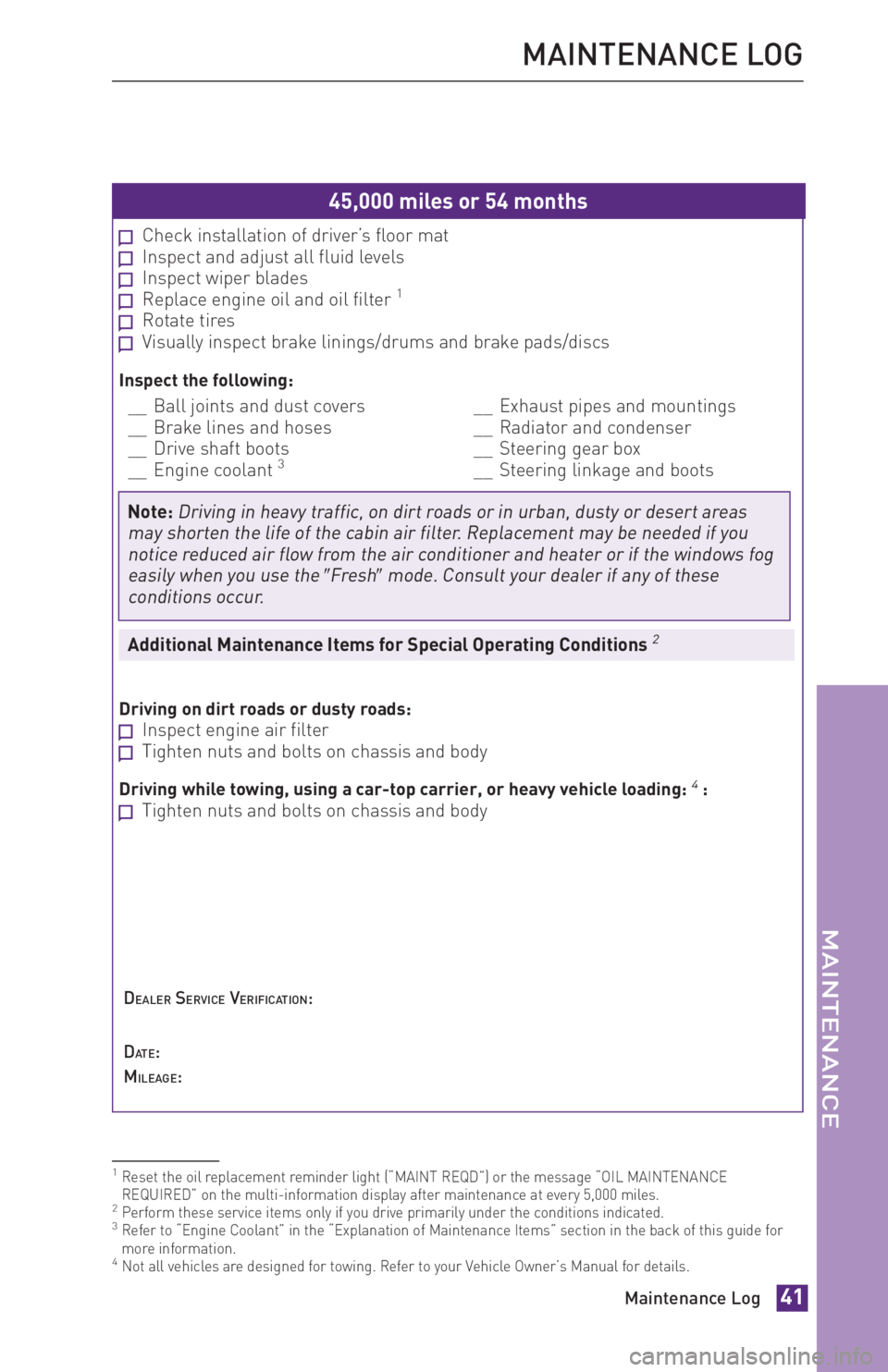

45,000 miles or 54 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and brake pads/discs
Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
3
__ Exhaust pipes and mountings
__ Radiator and condenser
__ Steering gear box
__ Steering linkage and boots
Note:
Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas
may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from the air conditioner and heater or if the windows fogeasily when you use the
Freshmode. Consult your dealer if any of these
conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect engine air filterTighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:4:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE
REQUIRED” on the multi-information display after maintenance at every 5,000 miles.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
4Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
MAINTENANCE LOG
MAINTENANCE
Maintenance Log41
