change time TOYOTA xD 2008 Accessories, Audio & Navigation (in English)

7

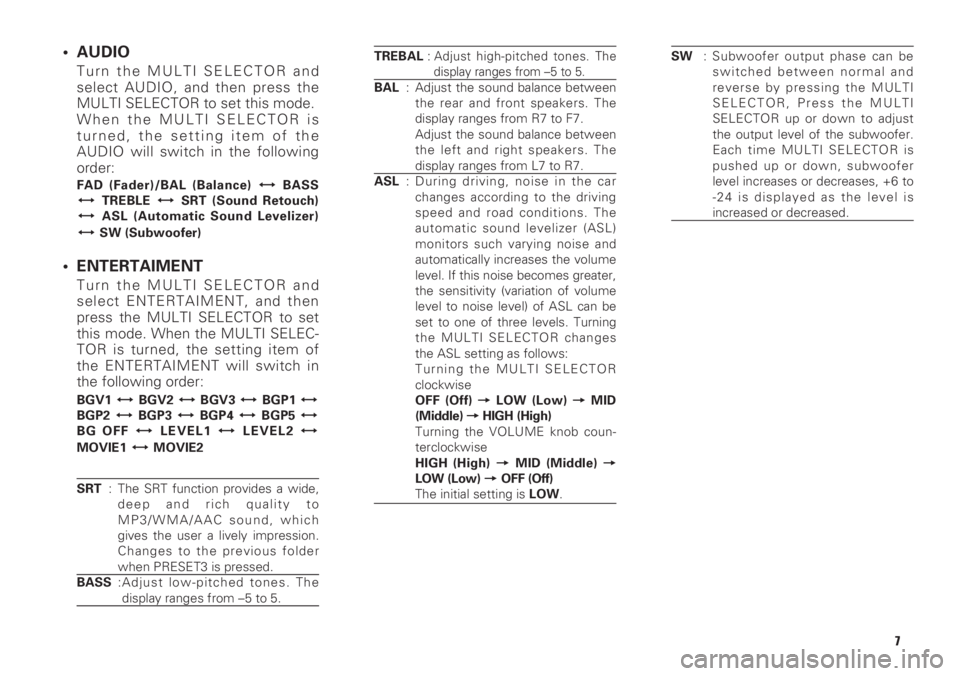

• AUDIO
Turn the MULTI SELECTOR and
select AUDIO, and then press the
MULTI SELECTOR to set this mode.
When the MULTI SELECTOR is
turned, the setting item of the
AUDIO will switch in the following
order:
FAD (Fader)/BAL (Balance) BASS
TREBLE SRT (Sound Retouch)
ASL (Automatic Sound Levelizer)
SW (Subwoofer)
• ENTERTAIMENT
Turn the MULTI SELECTOR and
select ENTERTAIMENT, and then
press the MULTI SELECTOR to set
this mode. When the MULTI SELEC-
TOR is turned, the setting item of
the ENTERTAIMENT will switch in
the following order:
BGV1 BGV2 BGV3 BGP1
BGP2 BGP3 BGP4 BGP5
BG OFF LEVEL1 LEVEL2
MOVIE1 MOVIE2
SRT: The SRT function provides a wide,
deep and rich quality to
MP3/WMA/AAC sound, which
gives the user a lively impression.
Changes to the previous folder
when PRESET3 is pressed.
BASS:Adjust low-pitched tones. The
display ranges from –5 to 5.
TREBAL :Adjust high-pitched tones. Thedisplay ranges from –5 to 5.BAL: Adjust the sound balance between
the rear and front speakers. The
display ranges from R7 to F7.
Adjust the sound balance between
the left and right speakers. The
display ranges from L7 to R7.
ASL: During driving, noise in the car
changes according to the driving
speed and road conditions. The
automatic sound levelizer (ASL)
monitors such varying noise and
automatically increases the volume
level. If this noise becomes greater,
the sensitivity (variation of volume
level to noise level) of ASL can be
set to one of three levels. Turning
the MULTI SELECTOR changes
the ASL setting as follows:
Turning the MULTI SELECTOR
clockwise
OFF (Off) =LOW (Low) =MID
(Middle) =HIGH (High)
Turning the VOLUME knob coun-
terclockwise
HIGH (High)=MID (Middle)=
LOW (Low)=OFF (Off)
The initial setting is LOW.
SW: Subwoofer output phase can be
switched between normal and
reverse by pressing the MULTI
SELECTOR, Press the MULTI
SELECTOR up or down to adjust
the output level of the subwoofer.
Each time MULTI SELECTOR is
pushed up or down, subwoofer
level increases or decreases, +6 to
-24 is displayed as the level is
increased or decreased.

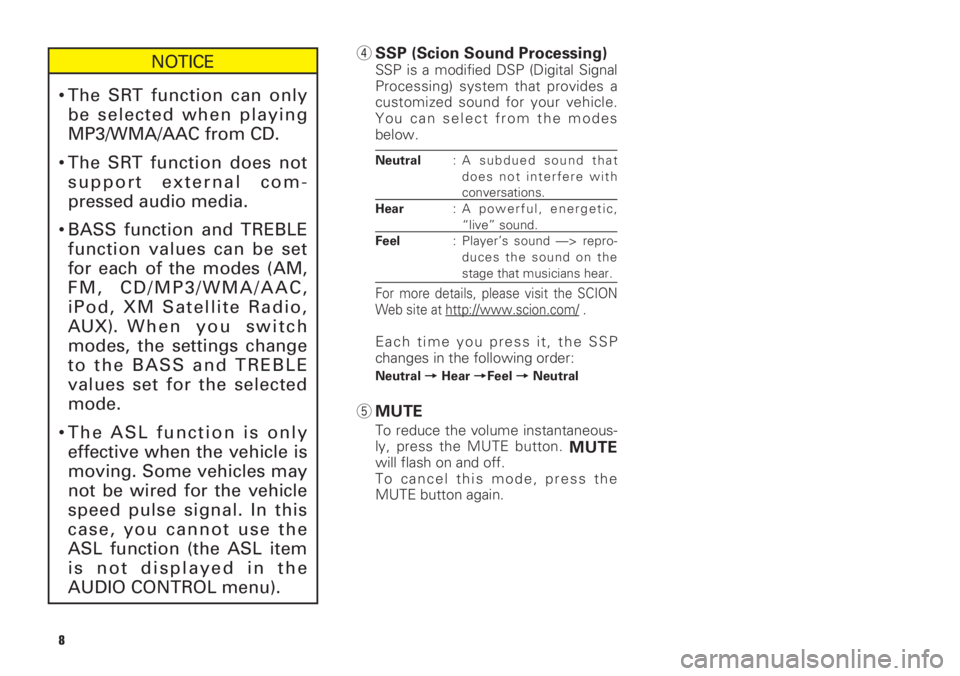

4SSP (Scion Sound Processing)SSP is a modified DSP (Digital Signal
Processing) system that provides a
customized sound for your vehicle.
You can select from the modes
below.
Neutral: A subdued sound that
does not interfere with
conversations.
Hear: A powerful, energetic,
“live” sound.
Feel: Player’s sound —> repro-
duces the sound on the
stage that musicians hear.
For more details, please visit the SCION
Web site at http://www.scion.com/.
Each time you press it, the SSP
changes in the following order:
Neutral =Hear =Feel =Neutral
5MUTE
To reduce the volume instantaneous-
ly, press the MUTE button.
MUTEwill flash on and off.
To cancel this mode, press the
MUTE button again.
NOTICE
•The SRT function can only
be selected when playing
MP3/WMA/AAC from CD.
•The SRT function does not
support external com-
pressed audio media.
•BASS function and TREBLE
function values can be set
for each of the modes (AM,
FM, CD/MP3/WMA/AAC,
iPod, XM Satellite Radio,
AUX).When you switch
modes, the settings change
to the BASS and TREBLE
values set for the selected
mode.
•The ASL function is only
effective when the vehicle is
moving. Some vehicles may
not be wired for the vehicle
speed pulse signal. In this
case, you cannot use the
ASL function (the ASL item
is not displayed in the
AUDIO CONTROL menu).
8

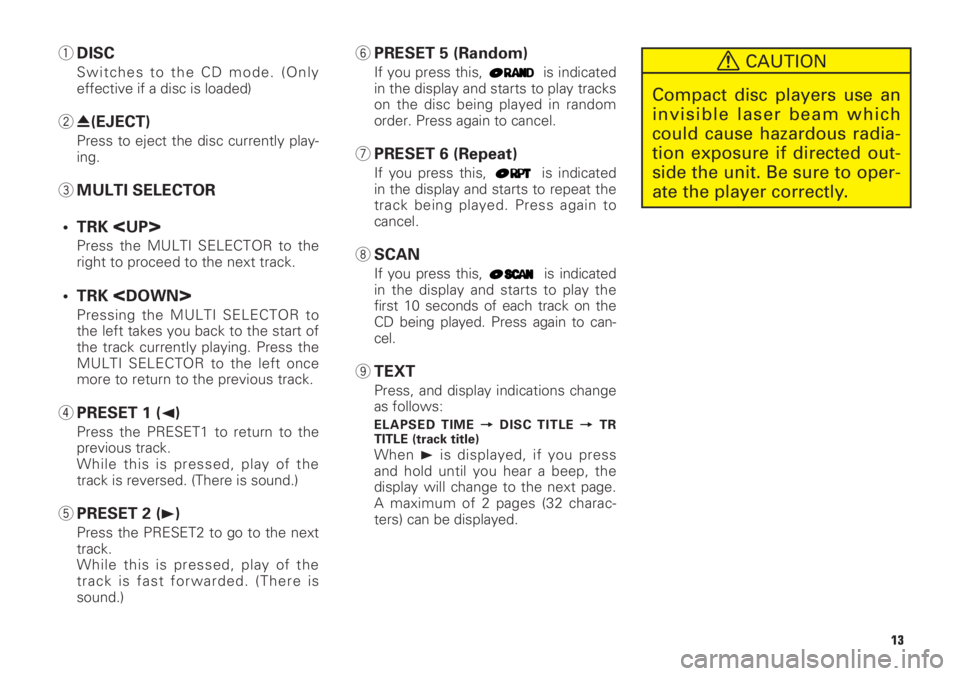

1DISC
Switches to the CD mode. (Only
effective if a disc is loaded)
20(EJECT)
Press to eject the disc currently play-
ing.
3MULTI SELECTOR
• TRK

Press the MULTI SELECTOR to the
right to proceed to the next track.
• TRK
Pressing the MULTI SELECTOR to
the left takes you back to the start of
the track currently playing. Press the
MULTI SELECTOR to the left once
more to return to the previous track.
4PRESET 1 (2)
Press the PRESET1 to return to the
previous track.
While this is pressed, play of the
track is reversed. (There is sound.)
5PRESET 2 (3)
Press the PRESET2 to go to the next
track.
While this is pressed, play of the
track is fast forwarded. (There is
sound.)
6PRESET 5 (Random)
If you press this, is indicated
in the display and starts to play tracks
on the disc being played in random
order. Press again to cancel.
7PRESET 6 (Repeat)
If you press this, is indicated
in the display and starts to repeat the
track being played. Press again to
cancel.
8SCAN
If you press this, is indicated
in the display and starts to play the
first 10 seconds of each track on the
CD being played. Press again to can-
cel.
9TEXT
Press, and display indications change
as follows:
ELAPSED TIME =DISC TITLE =TR
TITLE (track title)
When 3is displayed, if you press
and hold until you hear a beep, the
display will change to the next page.
A maximum of 2 pages (32 charac-
ters) can be displayed.
CAUTION
Compact disc players use an
invisible laser beam which
could cause hazardous radia-
tion exposure if directed out-
side the unit. Be sure to oper-
ate the player correctly.
13

15

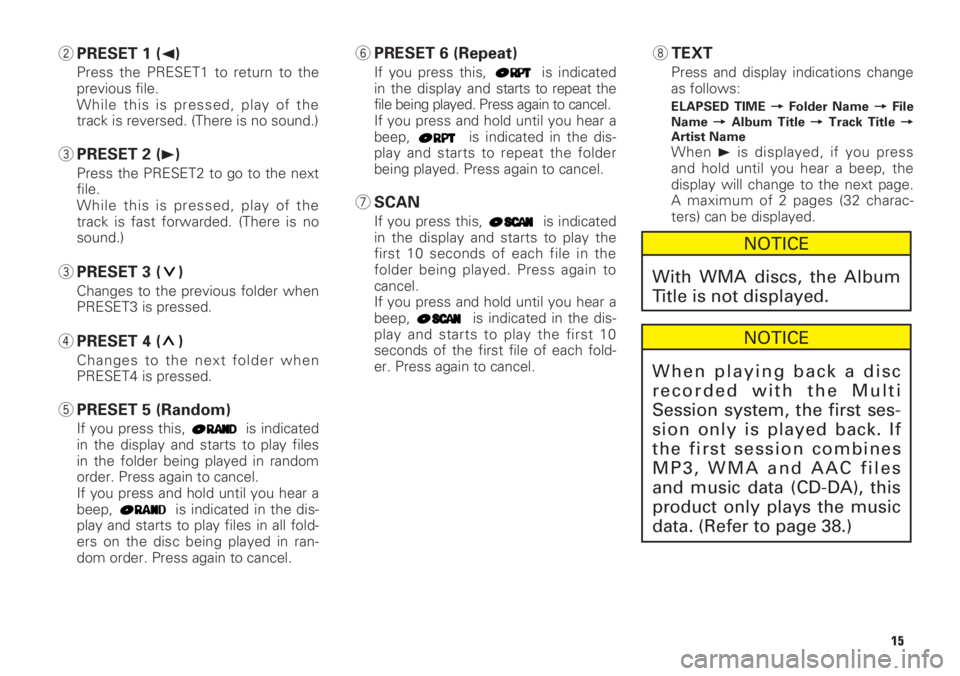

2PRESET 1 (2)
Press the PRESET1 to return to the
previous file.
While this is pressed, play of the
track is reversed. (There is no sound.)
3PRESET 2 (3)
Press the PRESET2 to go to the next
file.
While this is pressed, play of the
track is fast forwarded. (There is no
sound.)
3PRESET 3 ( )
Changes to the previous folder when
PRESET3 is pressed.
4PRESET 4 ( )
Changes to the next folder when
PRESET4 is pressed.
5PRESET 5 (Random)
If you press this, is indicated
in the display and starts to play files
in the folder being played in random
order. Press again to cancel.
If you press and hold until you hear a
beep, is indicated in the dis-
play and starts to play files in all fold-
ers on the disc being played in ran-
dom order. Press again to cancel.
6PRESET 6 (Repeat)
If you press this, is indicated
in the display and starts to repeat the
file being played. Press again to cancel.
If you press and hold until you hear a
beep, is indicated in the dis-
play and starts to repeat the folder
being played. Press again to cancel.
7SCAN
If you press this, is indicated
in the display and starts to play the
first 10 seconds of each file in the
folder being played. Press again to
cancel.
If you press and hold until you hear a
beep, is indicated in the dis-
play and starts to play the first 10
seconds of the first file of each fold-
er. Press again to cancel.
8TEXT
Press and display indications change
as follows:
ELAPSED TIME =Folder Name =File
Name =Album Title =Track Title =
Artist Name
When 3is displayed, if you press
and hold until you hear a beep, the
display will change to the next page.
A maximum of 2 pages (32 charac-
ters) can be displayed.
NOTICE
When playing back a disc
recorded with the Multi
Session system, the first ses-
sion only is played back. If
the first session combines
MP3, WMA and AAC files
and music data (CD-DA), this
product only plays the music
data. (Refer to page 38.)
NOTICE
With WMA discs, the Album
Title is not displayed.

21

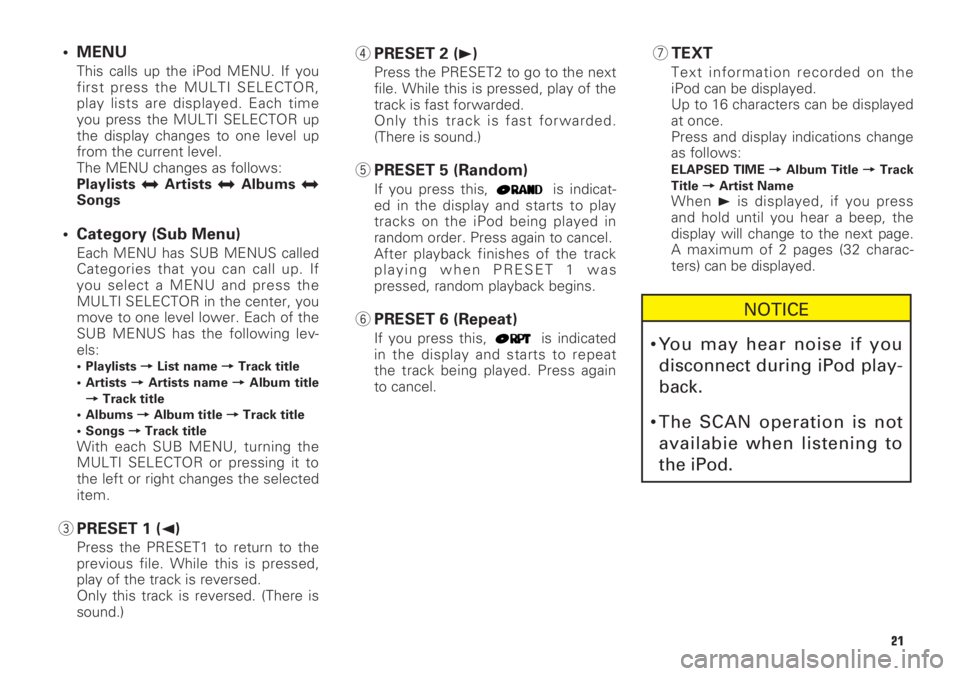

• MENU
This calls up the iPod MENU. If you
first press the MULTI SELECTOR,
play lists are displayed. Each time
you press the MULTI SELECTOR up
the display changes to one level up
from the current level.
The MENU changes as follows:
Playlists
jArtistsjAlbumsjSongs
• Category (Sub Menu)
Each MENU has SUB MENUS called
Categories that you can call up. If
you select a MENU and press the
MULTI SELECTOR in the center, you
move to one level lower. Each of the
SUB MENUS has the following lev-
els:
• Playlists =List name =Track title
• Artists =Artists name =Album title
=Track title
• Albums =Album title =Track title
• Songs =Track title
With each SUB MENU, turning the
MULTI SELECTOR or pressing it to
the left or right changes the selected
item.
3PRESET 1 (2)
Press the PRESET1 to return to the
previous file. While this is pressed,
play of the track is reversed.
Only this track is reversed. (There is
sound.)
4PRESET 2 (3)
Press the PRESET2 to go to the next
file. While this is pressed, play of the
track is fast forwarded.
Only this track is fast forwarded.
(There is sound.)
5PRESET 5 (Random)
If you press this, is indicat-
ed in the display and starts to play
tracks on the iPod being played in
random order. Press again to cancel.
After playback finishes of the track
playing when PRESET 1 was
pressed, random playback begins.
6PRESET 6 (Repeat)
If you press this, is indicated
in the display and starts to repeat
the track being played. Press again
to cancel.
7TEXT
Text information recorded on the
iPod can be displayed.
Up to 16 characters can be displayed
at once.
Press and display indications change
as follows:
ELAPSED TIME =Album Title =Track
Title =Artist Name
When 3is displayed, if you press
and hold until you hear a beep, the
display will change to the next page.
A maximum of 2 pages (32 charac-
ters) can be displayed.
NOTICE
•You may hear noise if you
disconnect during iPod play-
back.
•The SCAN operation is not
availabie when listening to
the iPod.

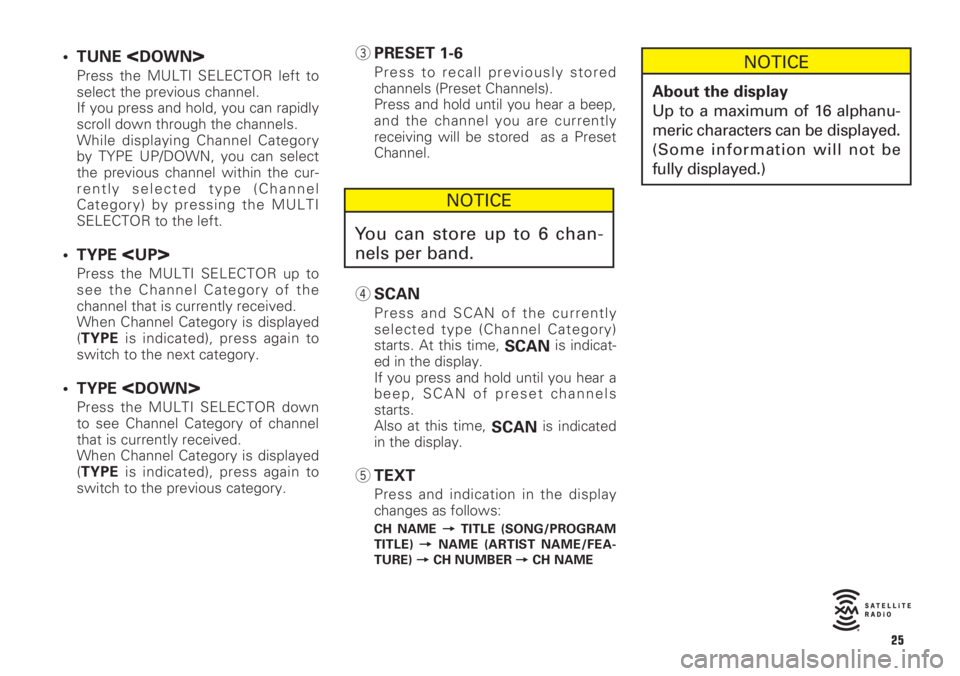

• TUNE
Press the MULTI SELECTOR left to
select the previous channel.
If you press and hold, you can rapidly
scroll down through the channels.
While displaying Channel Category
by TYPE UP/DOWN, you can select
the previous channel within the cur-
rently selected type (Channel
Category) by pressing the MULTI
SELECTOR to the left.
• TYPE
Press the MULTI SELECTOR up to
see the Channel Category of the
channel that is currently received.
When Channel Category is displayed
(TYPEis indicated), press again to
switch to the next category.
• TYPE
Press the MULTI SELECTOR down
to see Channel Category of channel
that is currently received.
When Channel Category is displayed
(TYPEis indicated), press again to
switch to the previous category.
3PRESET 1-6
Press to recall previously stored
channels (Preset Channels).
Press and hold until you hear a beep,
and the channel you are currently
receiving will be stored as a Preset
Channel.
4SCAN
Press and SCAN of the currently
selected type (Channel Category)
starts. At this time,
SCANis indicat-
ed in the display.
If you press and hold until you hear a
beep, SCAN of preset channels
starts.
Also at this time,
SCANis indicated
in the display.
5TEXT
Press and indication in the display
changes as follows:
CH NAME =TITLE (SONG/PROGRAM
TITLE) =NAME (ARTIST NAME/FEA-
TURE) =CH NUMBER =CH NAME
NOTICE
About the display
Up to a maximum of 16 alphanu-
meric characters can be displayed.
(Some information will not be
fully displayed.)
NOTICE
You can store up to 6 chan-
nels per band.
25

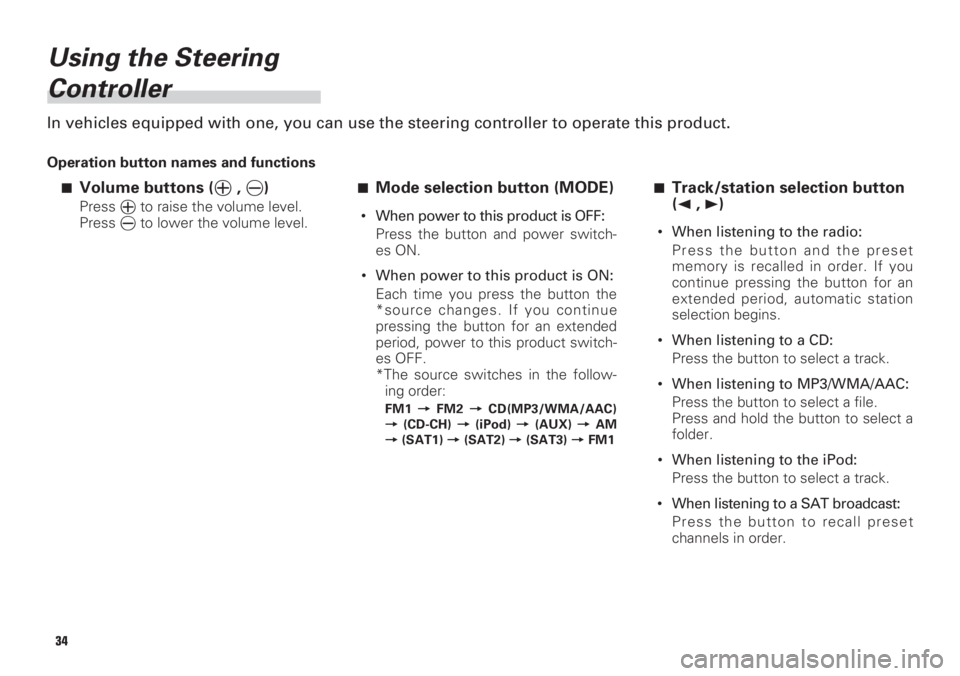

Using the Steering
Controller
In vehicles equipped with one, you can use the steering controller to operate this product.
Operation button names and functions
34
7Volume buttons (ª, ·)
Press ªto raise the volume level.
Press ·to lower the volume level.
7Mode selection button (MODE)
•When power to this product is OFF:
Press the button and power switch-
es ON.
•When power to this product is ON:
Each time you press the button the
*source changes. If you continue
pressing the button for an extended
period, power to this product switch-
es OFF.
*The source switches in the follow-
ing order:
FM1 =FM2 =CD(MP3/WMA/AAC)
=(CD-CH) =(iPod) =(AUX) =AM
=(SAT1) =(SAT2) =(SAT3) =FM1
7Track/station selection button
(2, 3)
•When listening to the radio:
Press the button and the preset
memory is recalled in order. If you
continue pressing the button for an
extended period, automatic station
selection begins.
•When listening to a CD:
Press the button to select a track.
•When listening to MP3/WMA/AAC:
Press the button to select a file.
Press and hold the button to select a
folder.
•When listening to the iPod:
Press the button to select a track.
•When listening to a SAT broadcast:
Press the button to recall preset
channels in order.
