TOYOTA xD 2008 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2008, Model line: xD, Model: TOYOTA xD 2008Pages: 20, PDF Size: 0.7 MB

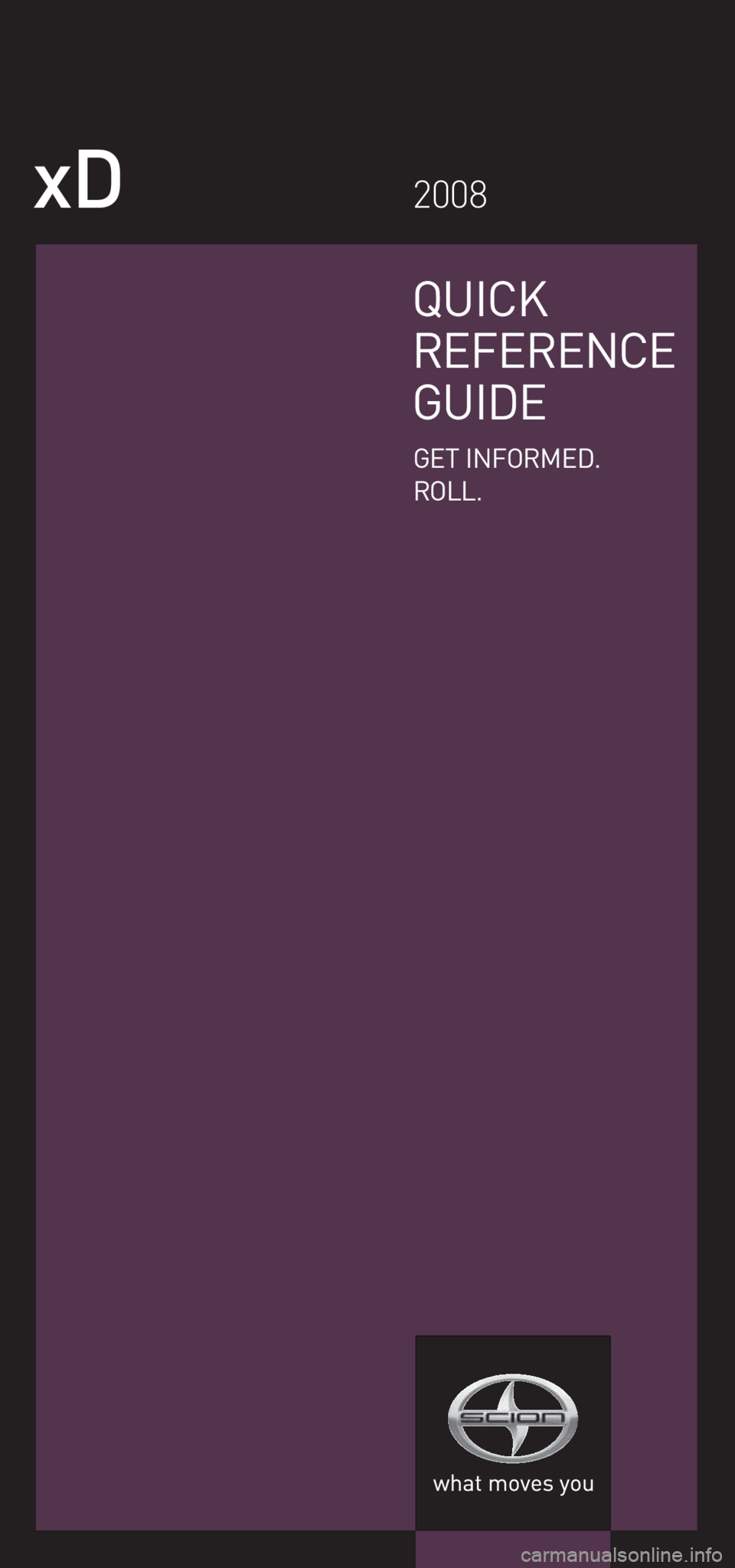

Page 1 of 20
QUICK
REFERENCE
GUIDE
GET INFORMED.
ROLL.
xD2008
Page 2 of 20

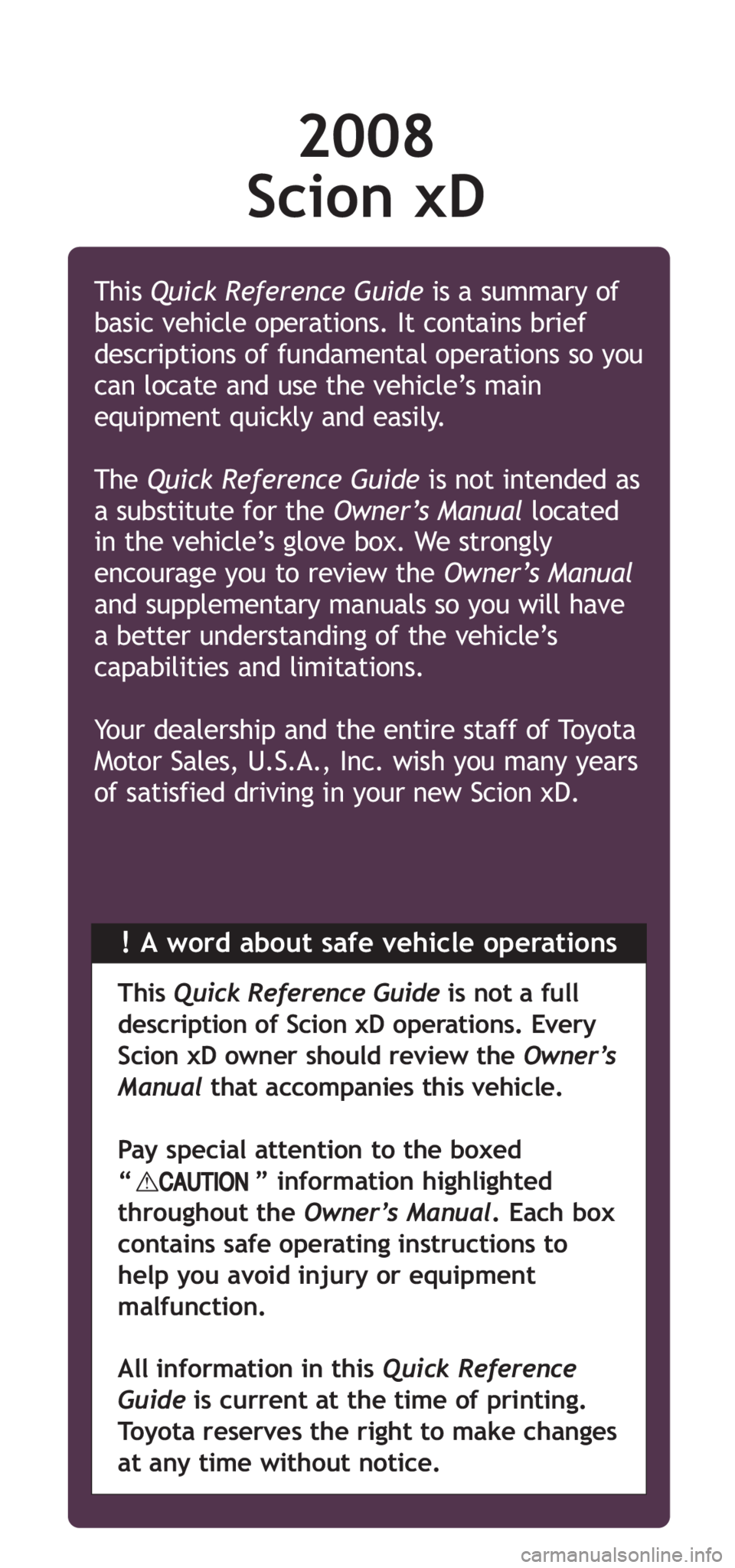

2008
Scion xD
!A word about safe vehicle operations This Quick Reference Guideis a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as
a substitute for theOwner’s Manual located
in the vehicle’s glove box. We strongly
encourage you to review theOwner’s Manual
and supplementary manuals so you will have
a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota
Motor Sales, U.S.A., Inc. wish you many years
of satisfied driving in your new Scion xD.
This Quick Reference Guideis not a full
description of Scion xD operations. Every
Scion xD owner should review the Owner’s
Manualthat accompanies this vehicle.
Pay special attention to the boxed
“ ” information highlighted
throughout the Owner’s Manual. Each box
contains safe operating instructions to
help you avoid injury or equipment
malfunction.
All information in this Quick Reference
Guideis current at the time of printing.
Toyota reserves the right to make changes
at any time without notice.

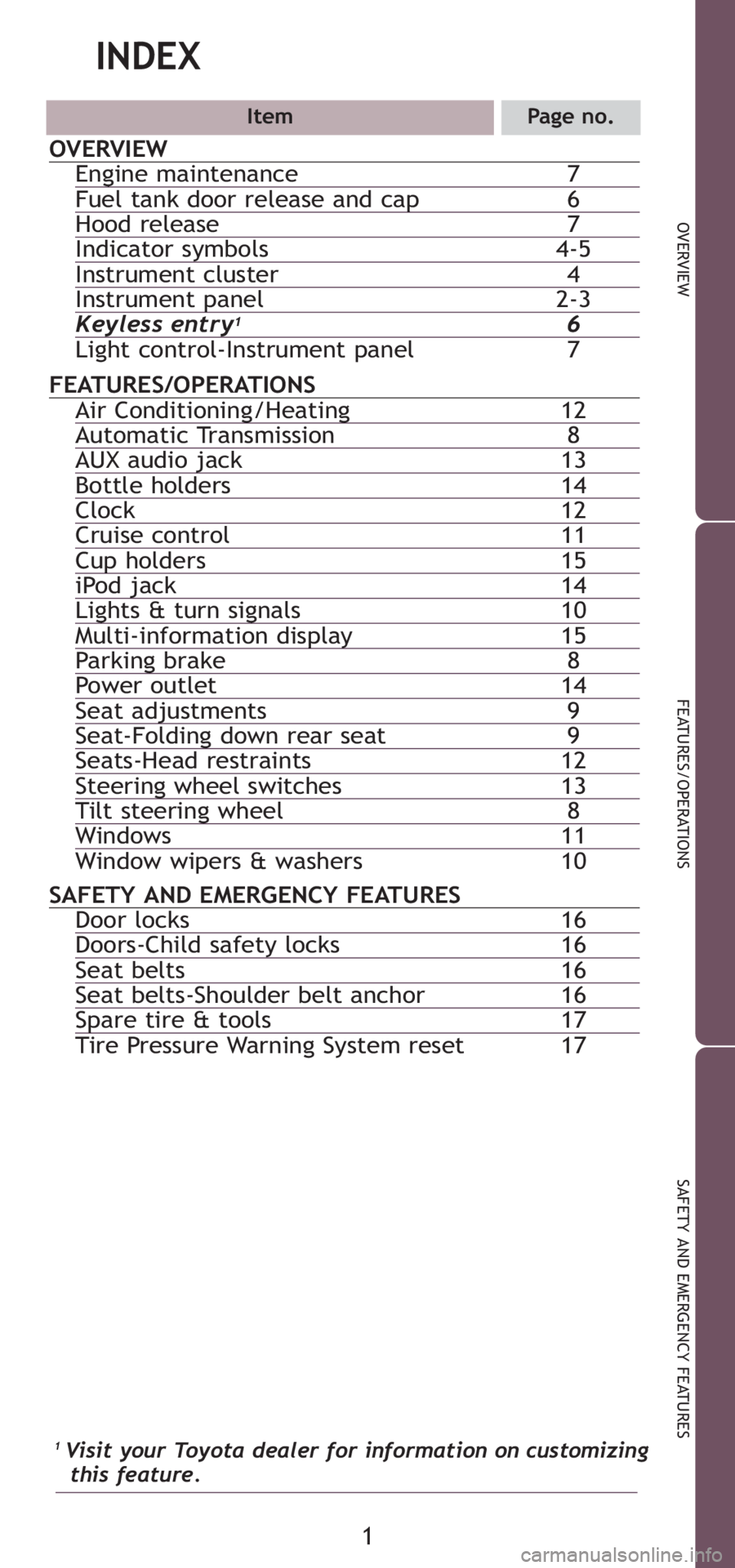

Page 3 of 20
1 Visit your Toyota dealer for information on customizing
this feature.
1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
ItemPage no.
OVERVIEWEngine maintenance 7Fuel tank door release and cap6Hood release 7Indicator symbols 4-5Instrument cluster 4Instrument panel2-3Keyless entry16
Light control-Instrument panel 7
FEATURES/OPERATIONSAir Conditioning/Heating12Automatic Transmission 8AUX audio jack13Bottle holders 14Clock 12Cruise control 11Cup holders 15iPod jack14Lights & turn signals10Multi-information display15Parking brake 8Power outlet 14Seat adjustments9Seat-Folding down rear seat 9Seats-Head restraints 12Steering wheel switches 13Tilt steering wheel 8Windows 11
Window wipers & washers 10
SAFETY AND EMERGENCY FEATURESDoor locks 16Doors-Child safety locks 16Seat belts 16Seat belts-Shoulder belt anchor 16Spare tire & tools 17
Tire Pressure Warning System reset 17

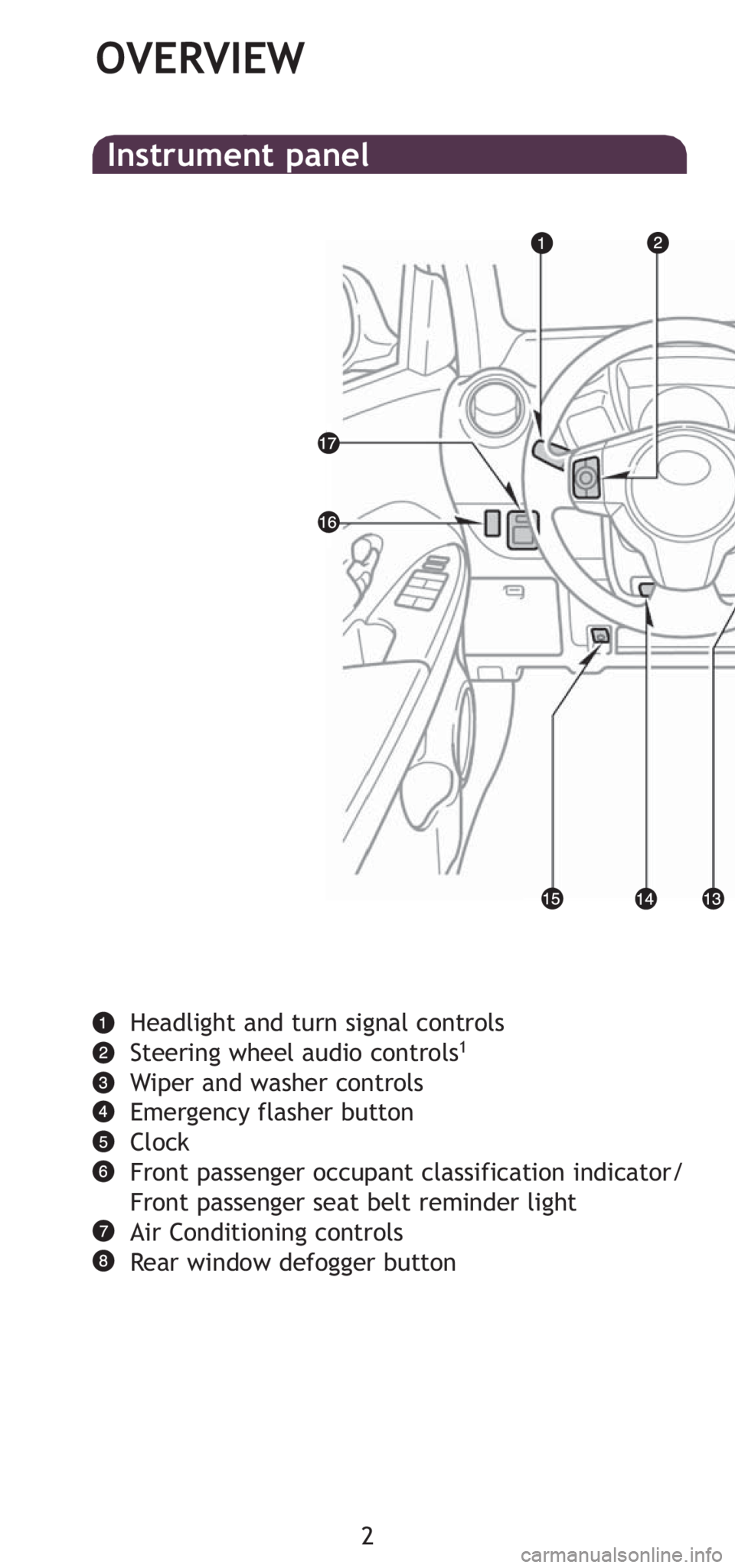

Page 4 of 20
2
OVERVIEW
Headlight and turn signal controls
Steering wheel audio controls1
Wiper and washer controls
Emergency flasher button
Clock
Front passenger occupant classification indicator/
Front passenger seat belt reminder light
Air Conditioning controls
Rear window defogger button
Instrument panel

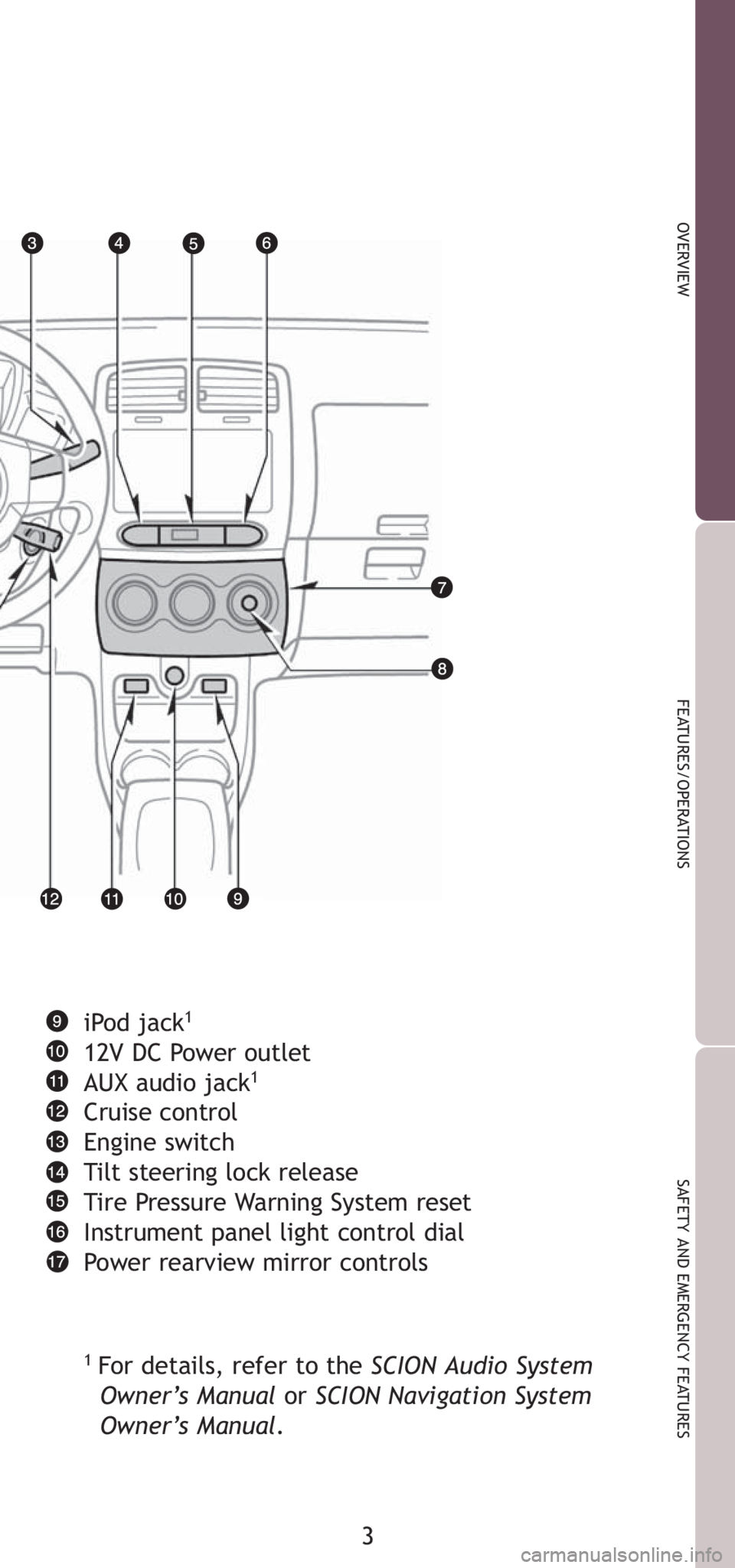

Page 5 of 20
3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
iPod jack1
12V DC Power outlet
AUX audio jack1
Cruise control
Engine switch
Tilt steering lock release
Tire Pressure Warning System reset
Instrument panel light control dial
Power rearview mirror controls
1 For details, refer to the SCION Audio System
Owner’s Manualor SCION Navigation System
Owner’s Manual.
Page 6 of 20

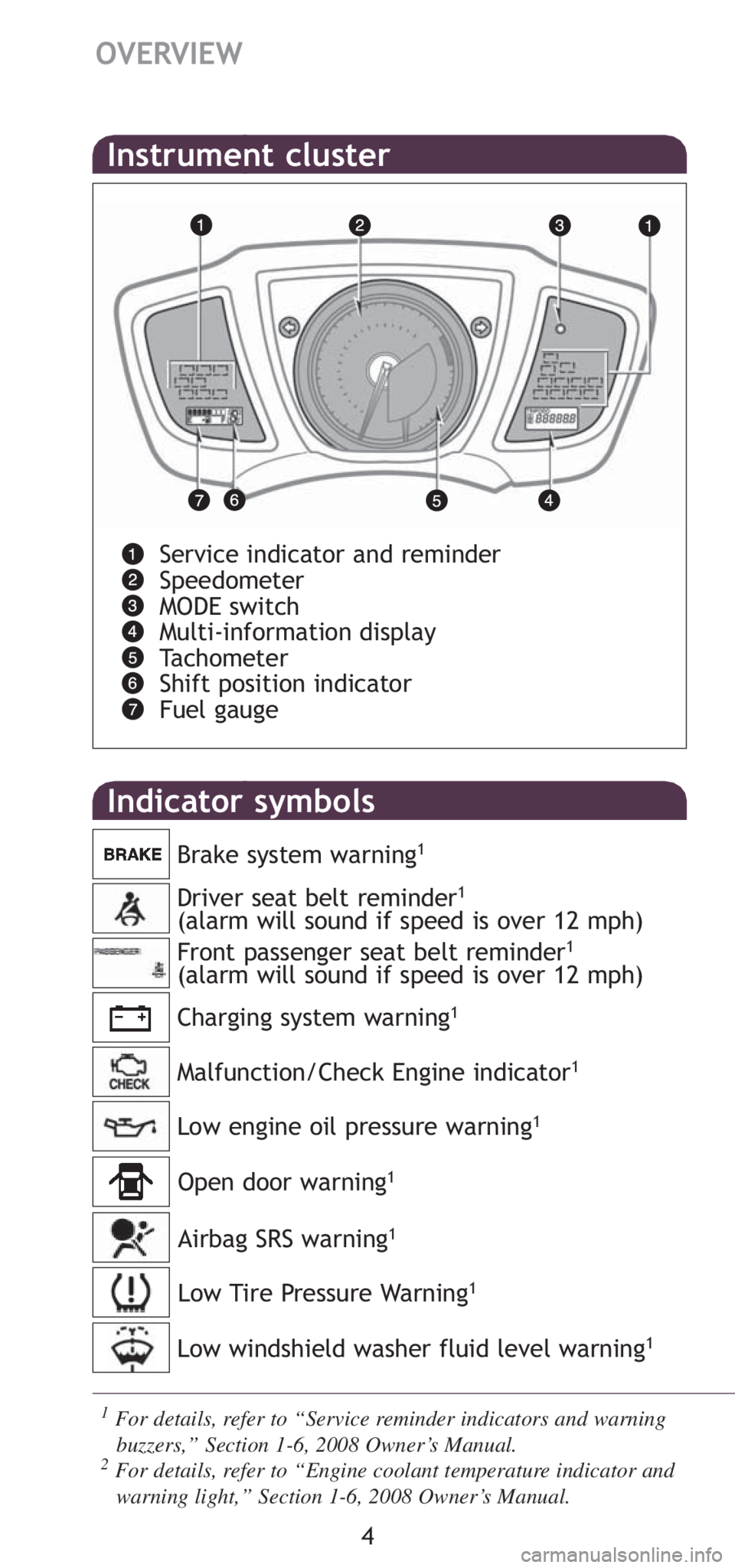

Low engine oil pressure warning1
4
OVERVIEW
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning1
Malfunction/Check Engine indicator1
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2008 Owner’s Manual.
2For details, refer to “Engine coolant temperature indicator and
warning light,” Section 1-6, 2008 Owner’s Manual.
Indicator symbols
Open door warning1
Low Tire Pressure Warning1
Airbag SRS warning1
Instrument cluster
Service indicator and reminder
Speedometer
MODE switch
Multi-information display
Tachometer
Shift position indicator
Fuel gauge
Low windshield washer fluid level warning1

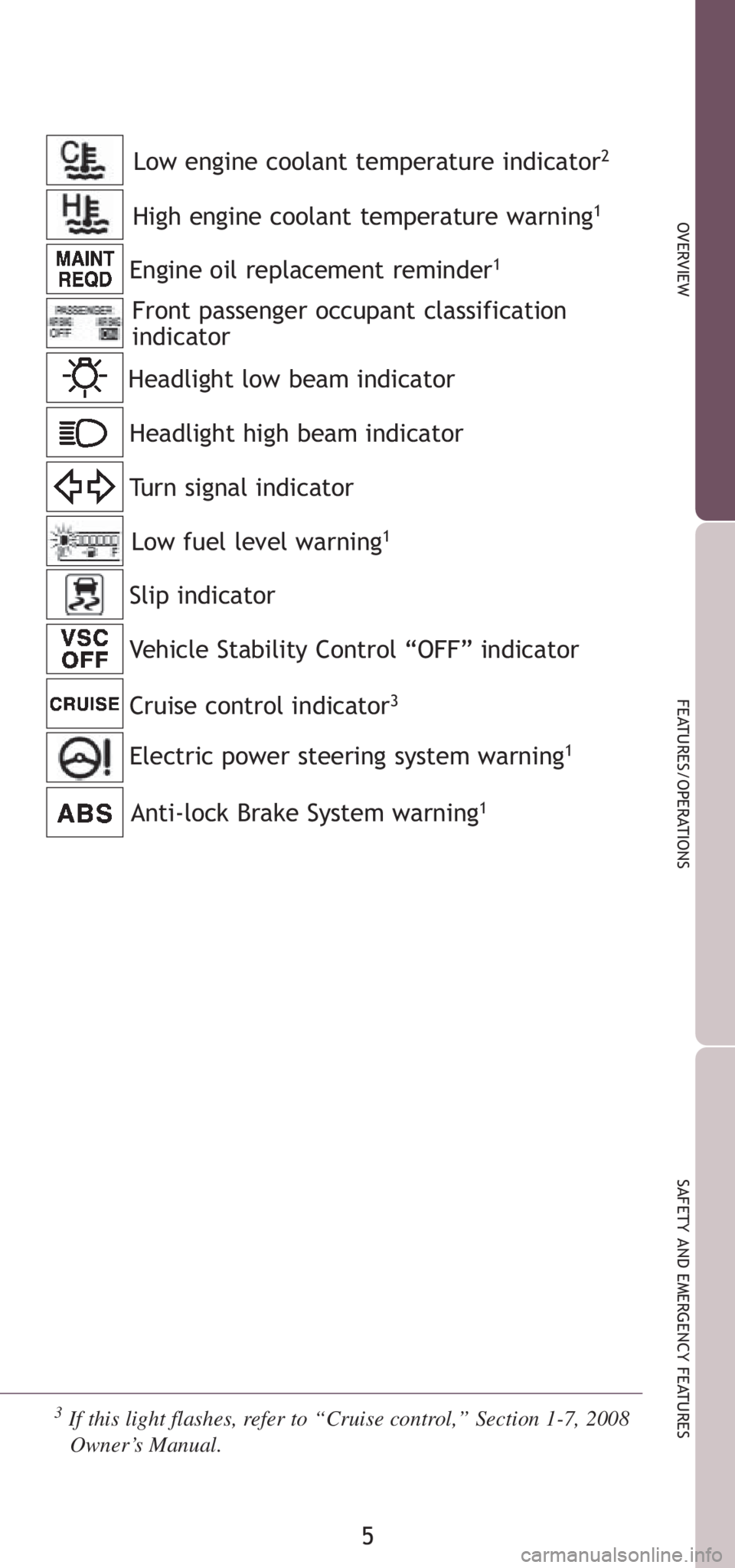

Page 7 of 20
5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Engine oil replacement reminder1
Front passenger occupant classification
indicator
Headlight low beam indicator
Turn signal indicator Headlight high beam indicator
Cruise control indicator
3
Electric power steering system warning1
Slip indicator
Vehicle Stability Control “OFF” indicator
Low fuel level warning1
3
If this light flashes, refer to “Cruise control,” Section 1-7, 2008
Owner’s Manual.
High engine coolant temperature warning1
Low engine coolant temperature indicator2

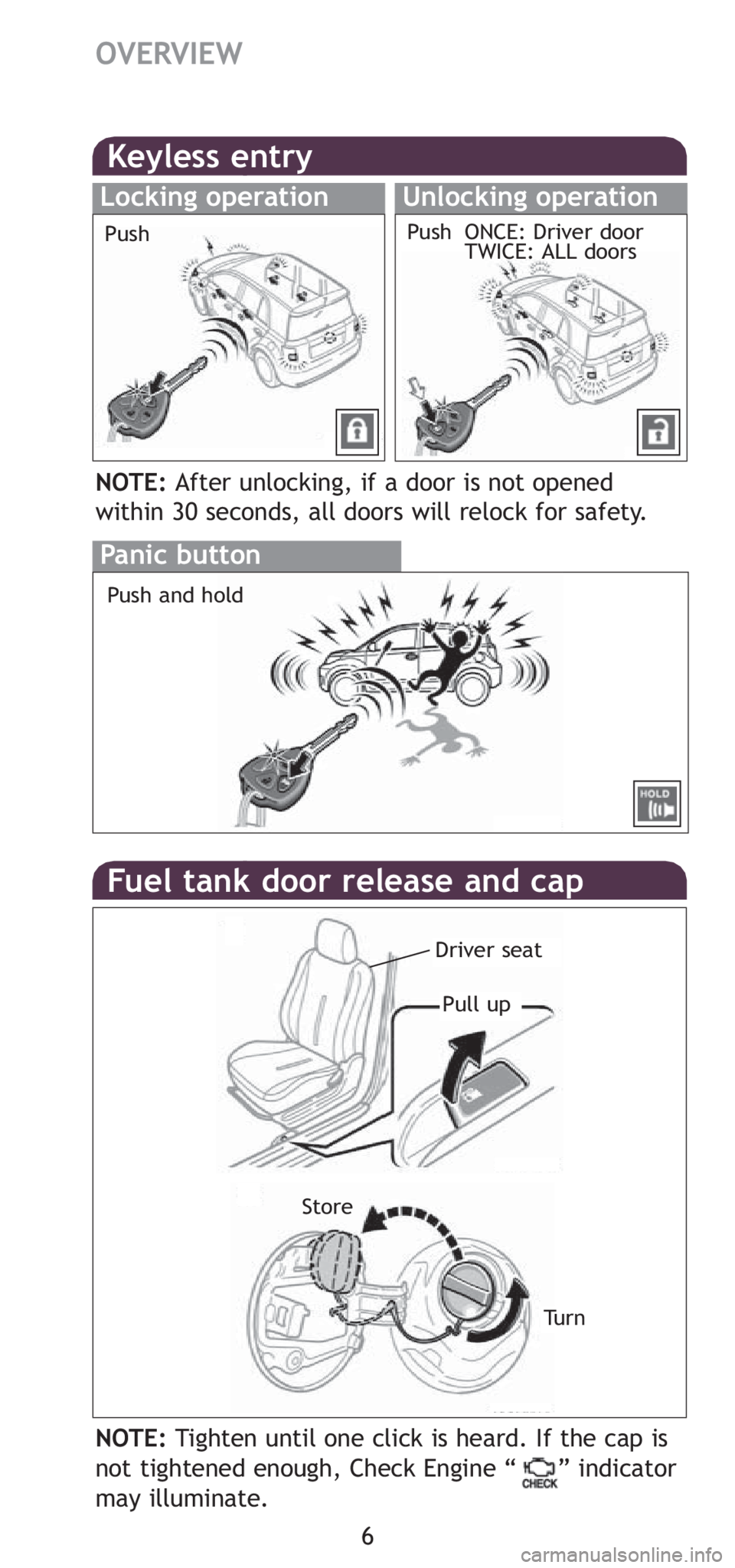

Page 8 of 20
6
OVERVIEW
Fuel tank door release and cap
Pull up
Store
Tu r n
Keyless entry
Locking operationUnlocking operation
NOTE:After unlocking, if a door is not opened
within 30 seconds, all doors will relock for safety.
PushPush ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
Driver seat
NOTE:Tighten until one click is heard. If the cap is
not tightened enough, Check Engine “ ” indicator
may illuminate.

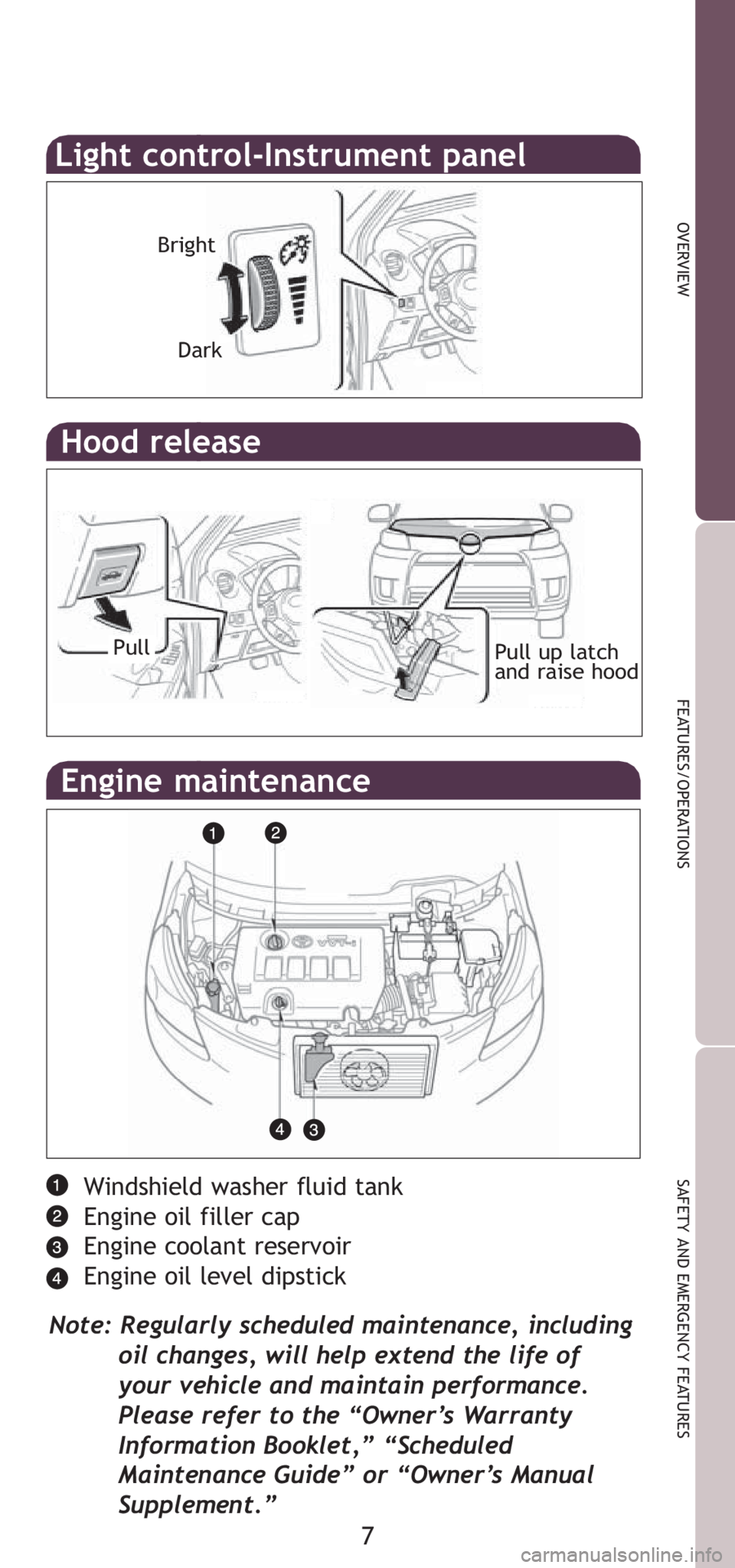

Page 9 of 20
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
Pull
Pull up latch
and raise hood
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the “Owner’s Warranty
Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Light control-Instrument panel
Bright
Dark

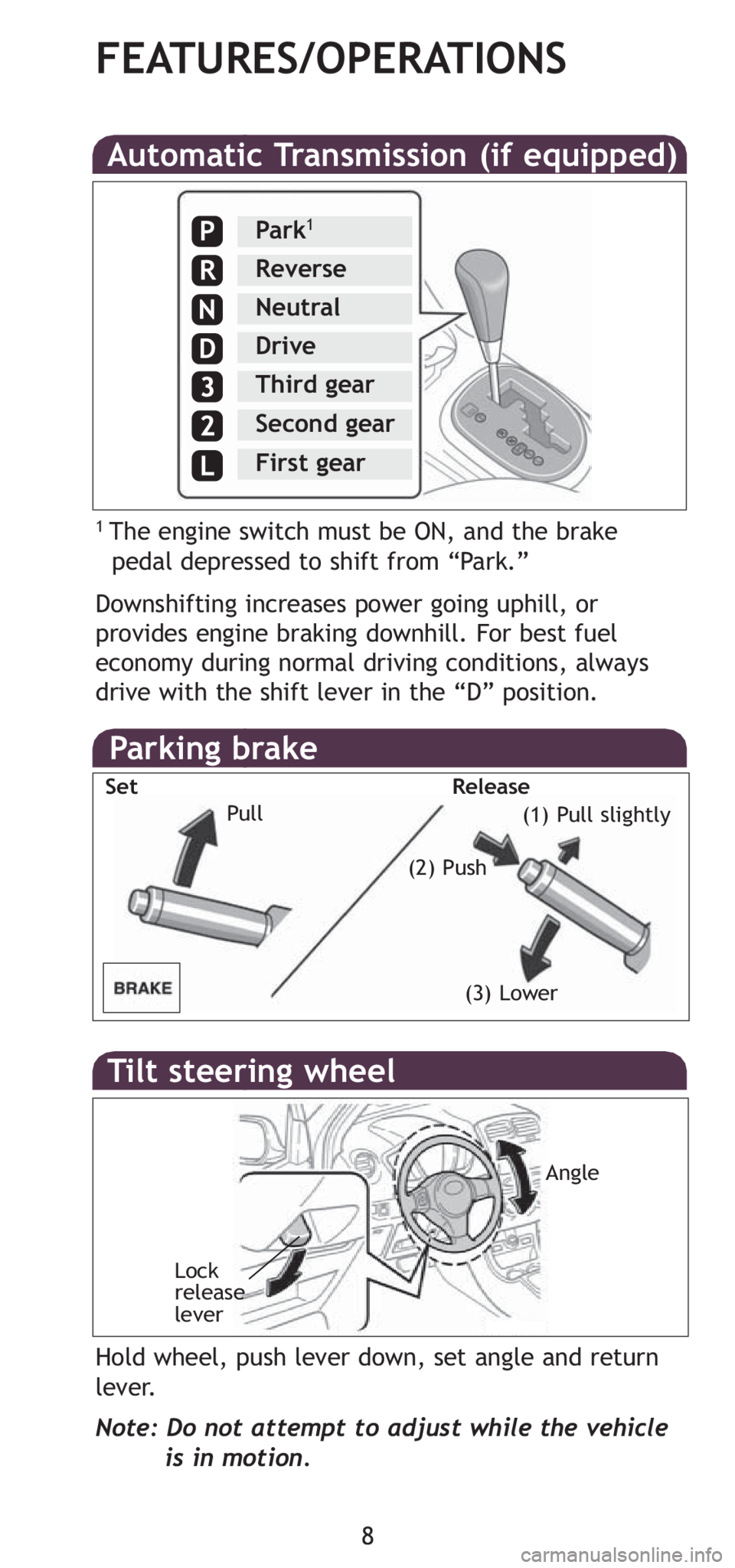

Page 10 of 20
8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
1 The engine switch must be ON, and the brake
pedal depressed to shift from “Park.”
Parking brake
Pull
(2) Push(1) Pull slightly
(3) Lower Set
Release
Park1
Reverse
Neutral
Drive
P
R
N
D
Third gear
Second gear
First gear
Hold wheel, push lever down, set angle and return
lever.
Note: Do not attempt to adjust while the vehicle
is in motion.
Tilt steering wheel
Lock
release
lever
Angle
