TOYOTA xD 2008 (in English) User Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

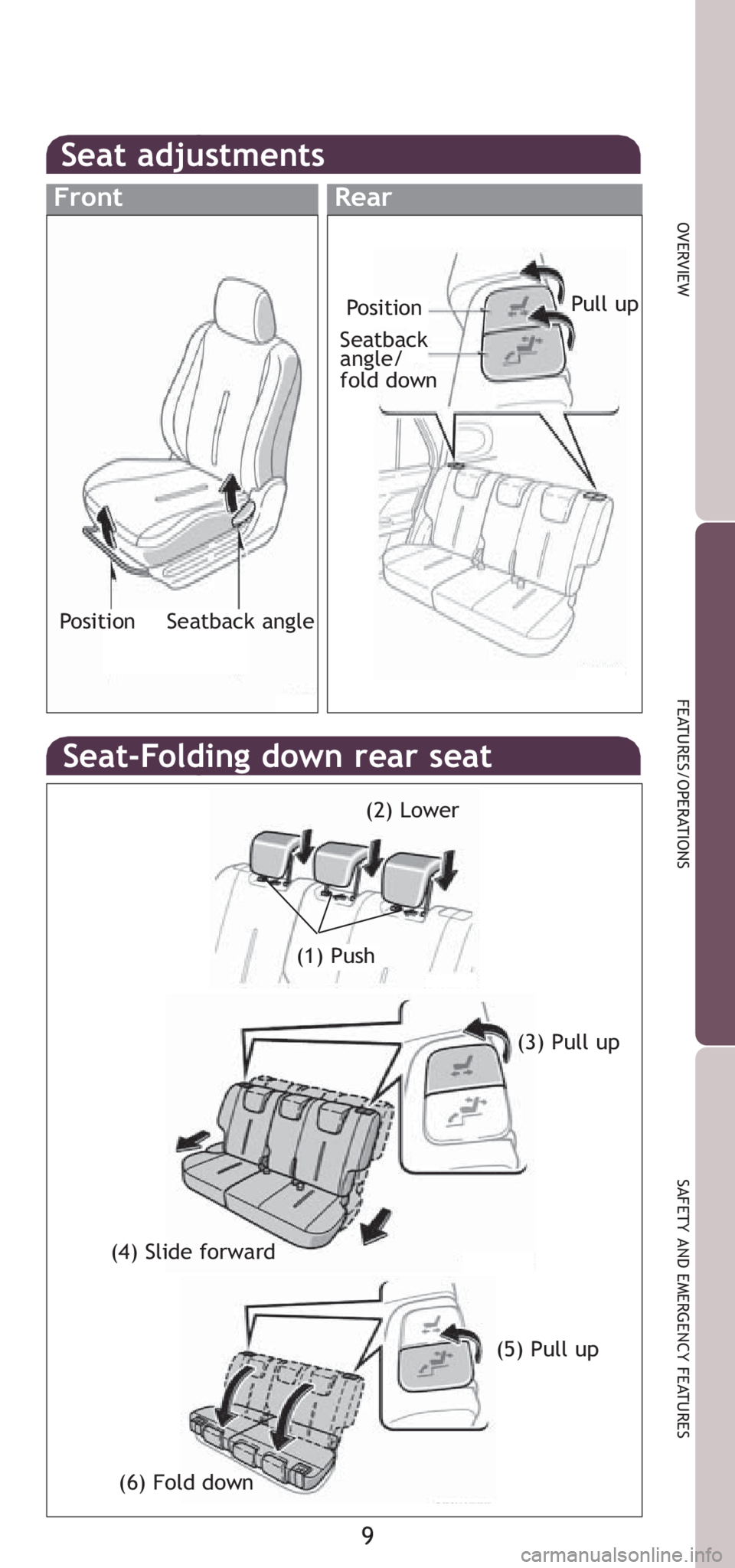

Seat adjustments
Seat-Folding down rear seat
(4) Slide forward(3) Pull up
(6) Fold down(5) Pull up
(2) Lower
(1) Push
FrontRear
Position
Seatback
angle/
fold downPull up
Position Seatback angle

10
FEATURES/OPERATIONS

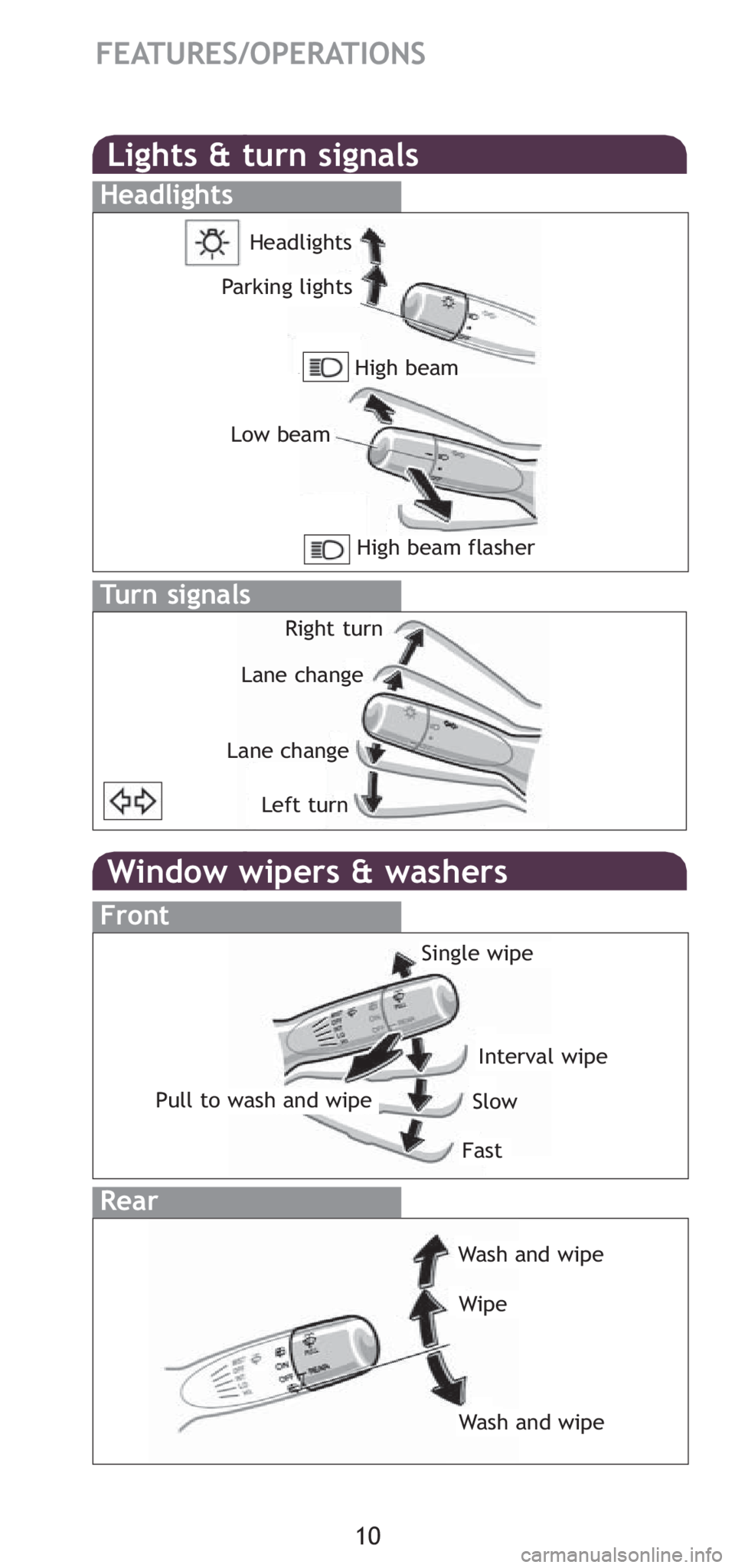

Window wipers & washers
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe
Front
Rear
Wash and wipe
Wipe
Wash and wipe
Lights & turn signals
Turn signals
Headlights
Headlights
Parking lights
Right turn
Lane change
Lane change
Left turn
Low beam
High beam flasher
High beam

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

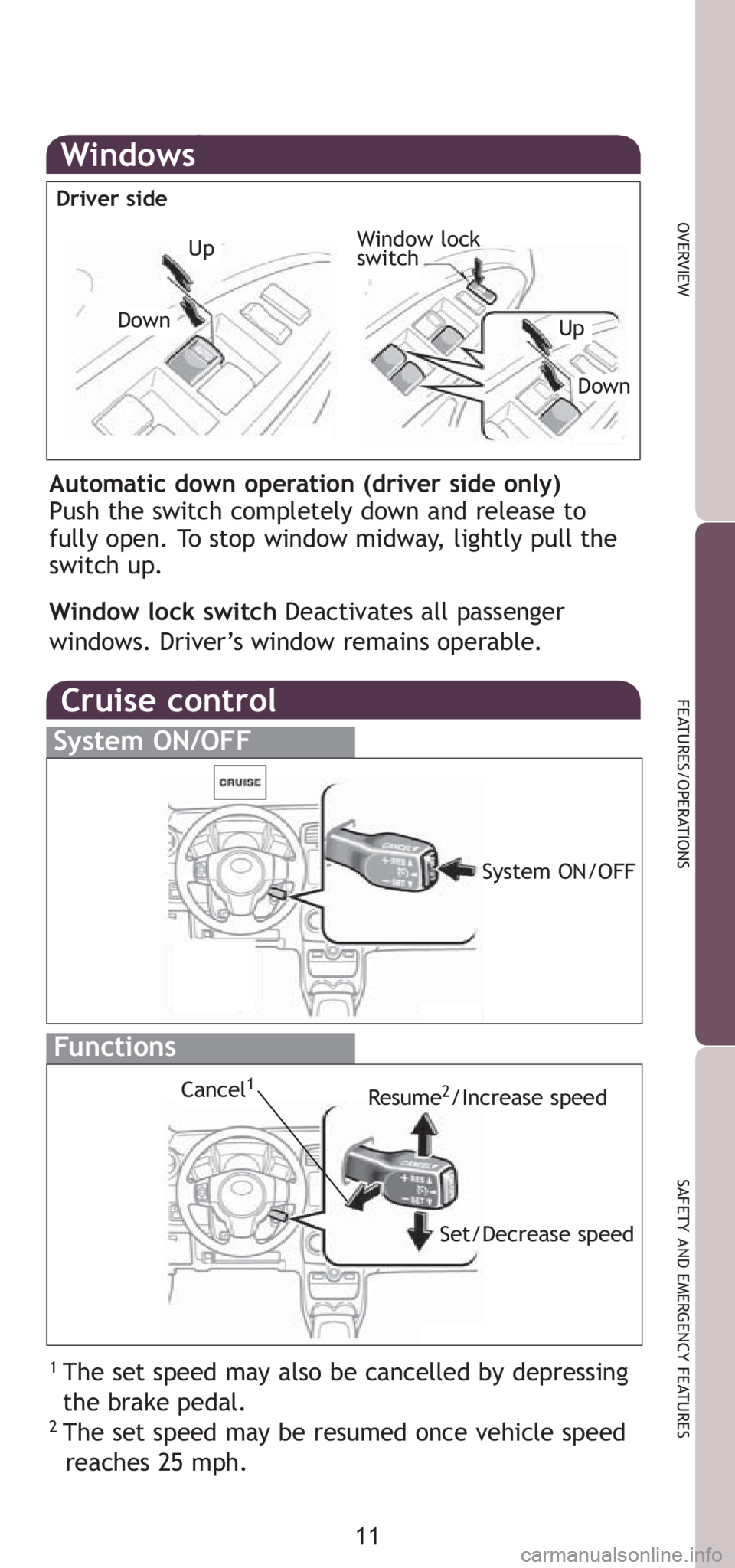

Windows
Automatic down operation (driver side only)
Push the switch completely down and release to
fully open. To stop window midway, lightly pull the
switch up.
Window lock switch Deactivates all passenger
windows. Driver’s window remains operable.
Up
UpDown
Down Driver side
Window lock
switch
Cruise control
1 The set speed may also be cancelled by depressing
the brake pedal.
2 The set speed may be resumed once vehicle speed
reaches 25 mph.
System ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speedCancel1

12
FEATURES/OPERATIONS

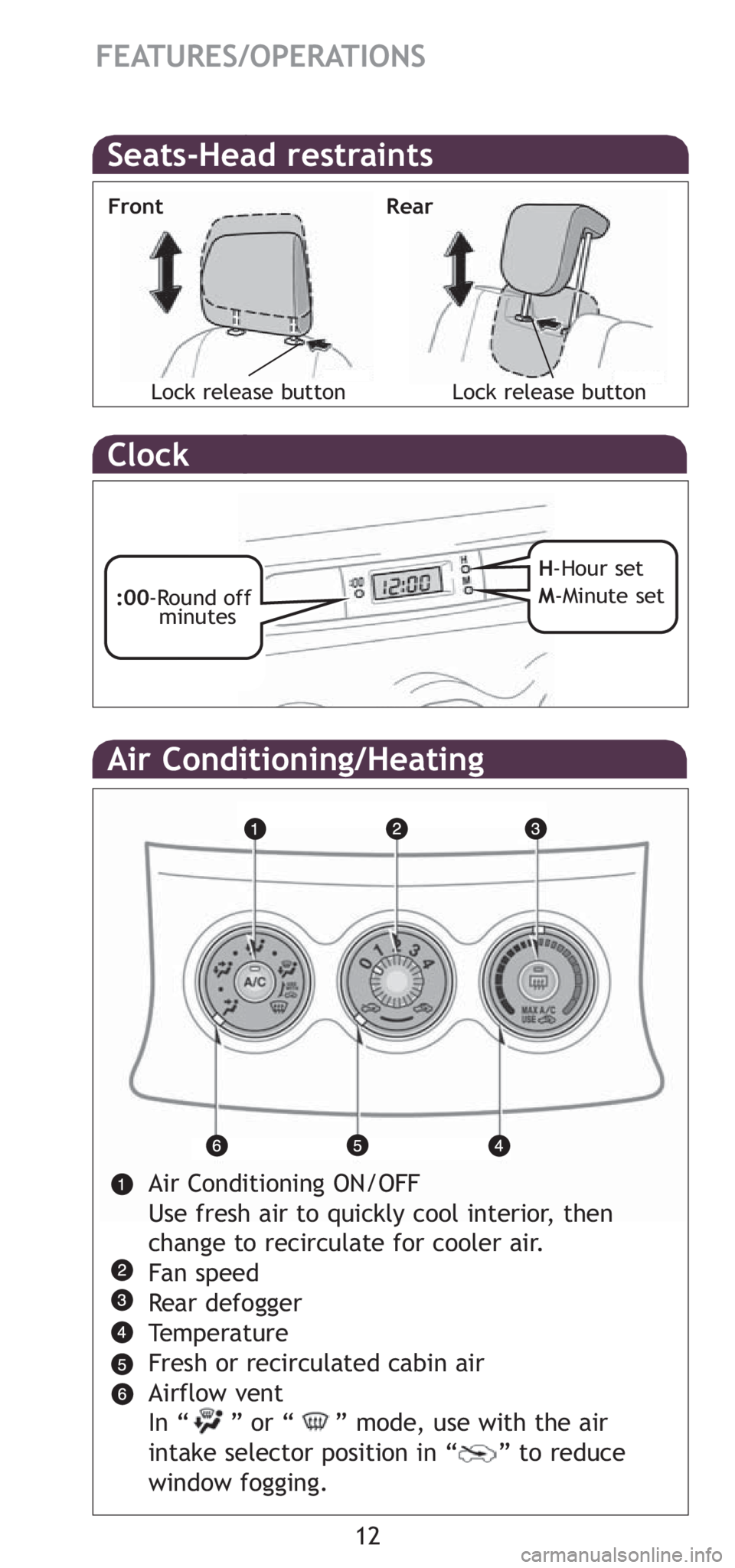

Air Conditioning/Heating
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then
change to recirculate for cooler air.
Fan speed
Rear defogger
Temperature
Fresh or recirculated cabin air
Airflow vent
In “ ” or “ ” mode, use with the air
intake selector position in “ ” to reduce
window fogging.
Clock
:00-Round off
minutesH-Hour set
M-Minute set
Seats-Head restraints
Lock release buttonLock release button Front Rear

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

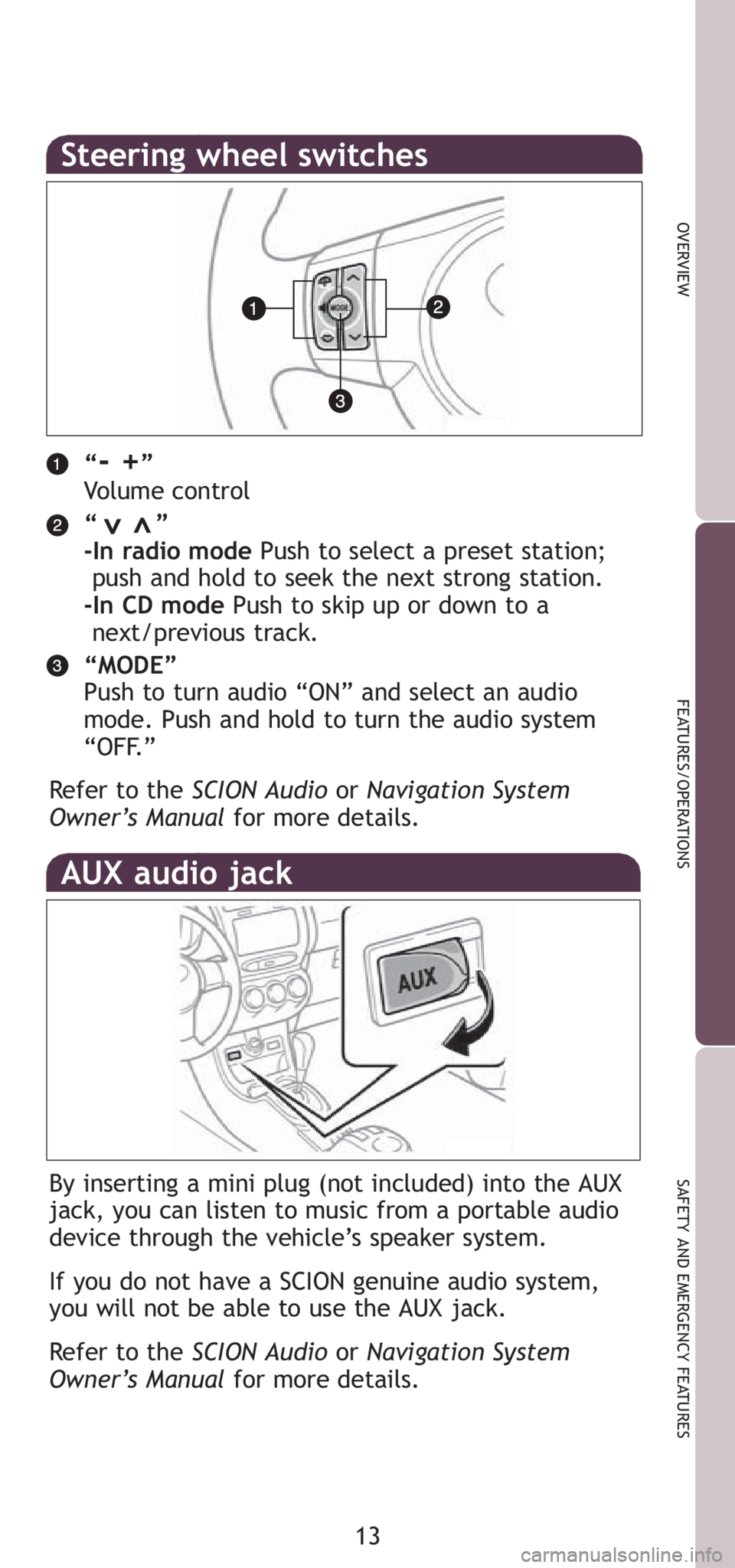

Steering wheel switches
“- +”
Volume control
“ ”
-In radio modePush to select a preset station;
push and hold to seek the next strong station.
-In CD modePush to skip up or down to a
next/previous track.
“MODE”
Push to turn audio “ON” and select an audio
mode. Push and hold to turn the audio system
“OFF.”
Refer to the SCION Audio orNavigation System
Owner’s Manual for more details.
>>
AUX audio jack
By inserting a mini plug (not included) into the AUX
jack, you can listen to music from a portable audio
device through the vehicle’s speaker system.
If you do not have a SCION genuine audio system,
you will not be able to use the AUX jack.
Refer to the SCION Audio orNavigation System
Owner’s Manual for more details.

14
FEATURES/OPERATIONS

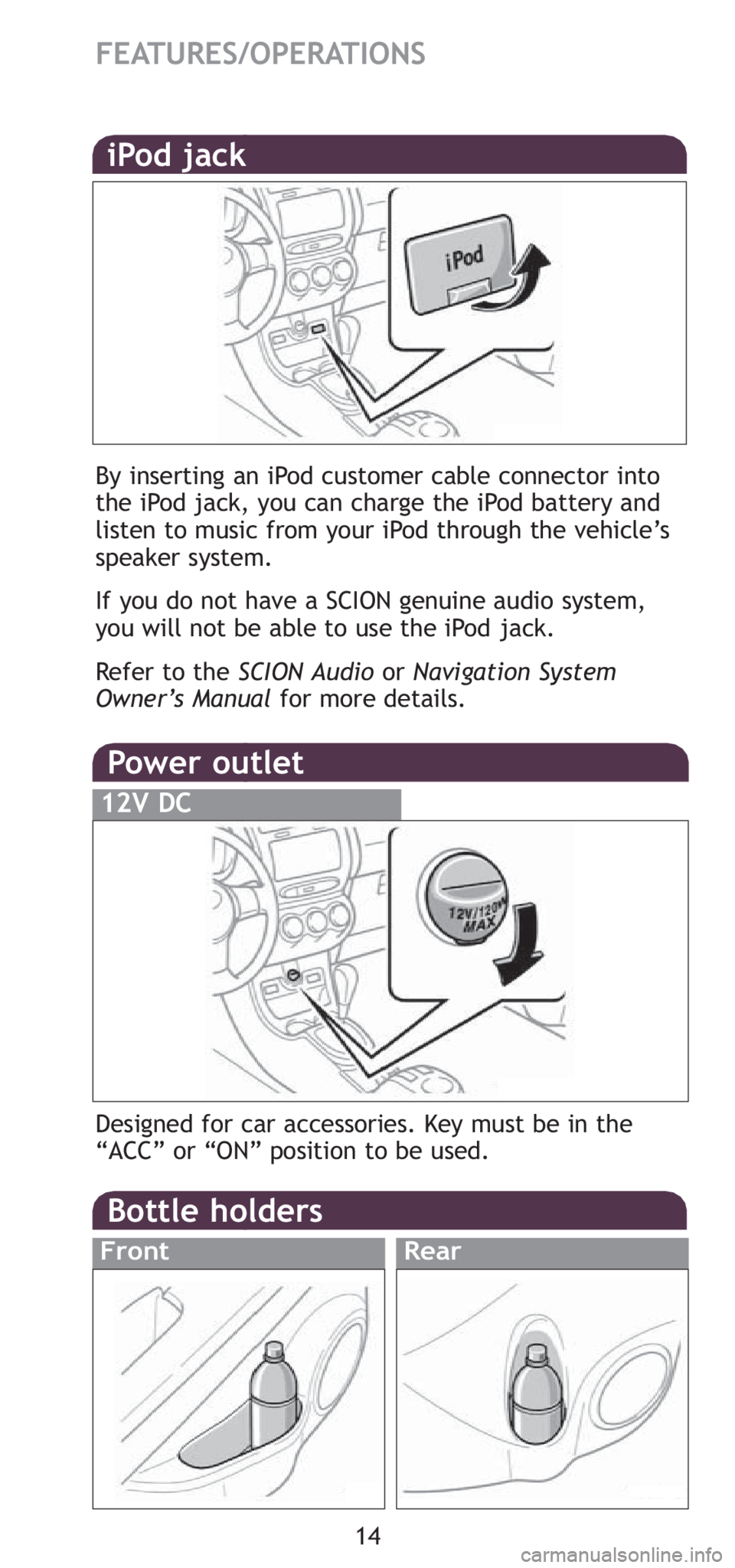

iPod jack
By inserting an iPod customer cable connector into
the iPod jack, you can charge the iPod battery and
listen to music from your iPod through the vehicle’s
speaker system.
If you do not have a SCION genuine audio system,
you will not be able to use the iPod jack.
Refer to the SCION Audio orNavigation System
Owner’s Manual for more details.
Power outlet
12V DC
Designed for car accessories. Key must be in the
“ACC” or “ON” position to be used.
Bottle holders
FrontRear

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

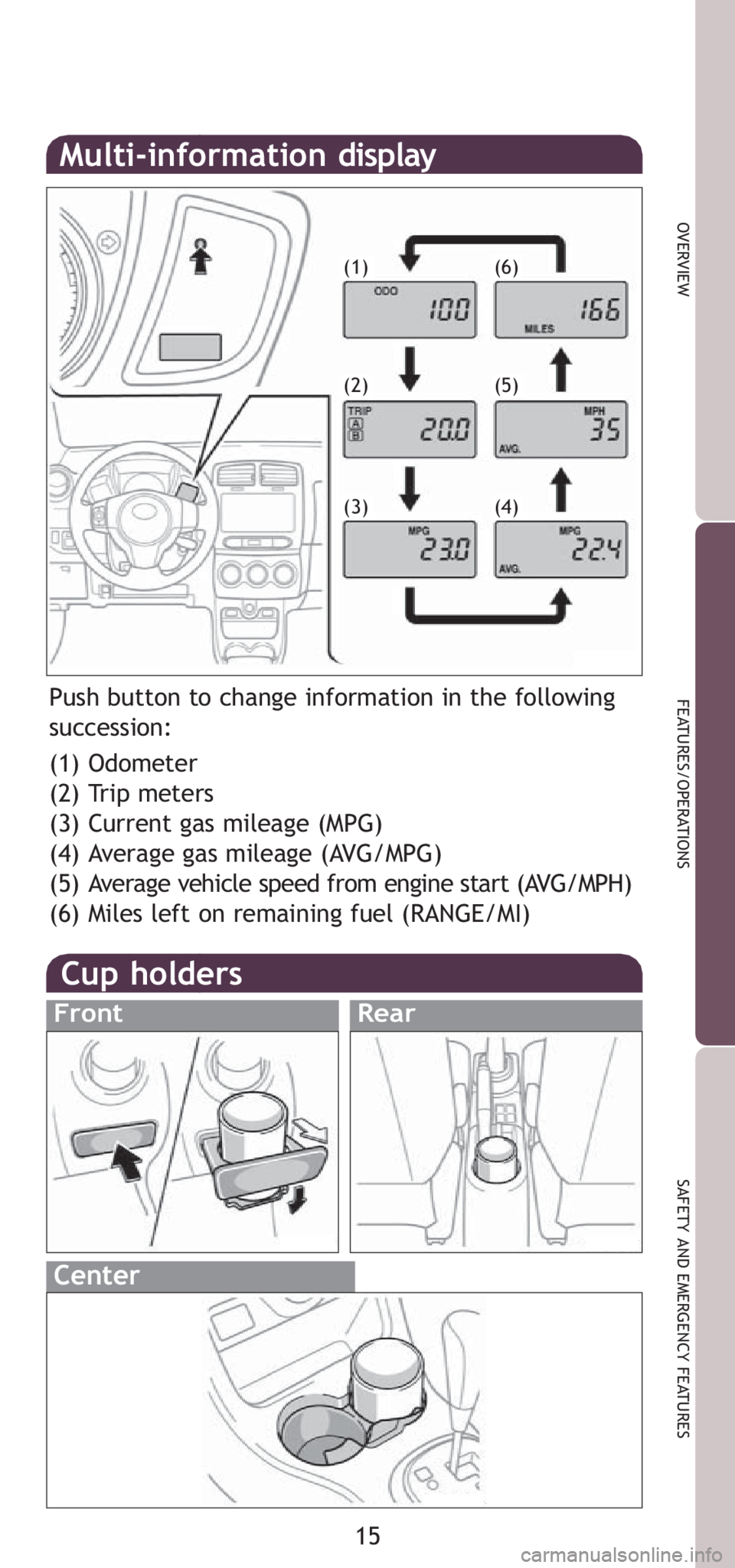

Multi-information display
(1)
(2)
(3) (4) (5) (6)
Push button to change information in the following
succession:
(1) Odometer
(2) Trip meters
(3) Current gas mileage (MPG)
(4) Average gas mileage (AVG/MPG)
(5) Average vehicle speed from engine start (AVG/MPH)
(6) Miles left on remaining fuel (RANGE/MI)
Cup holders
FrontRear
Center

16

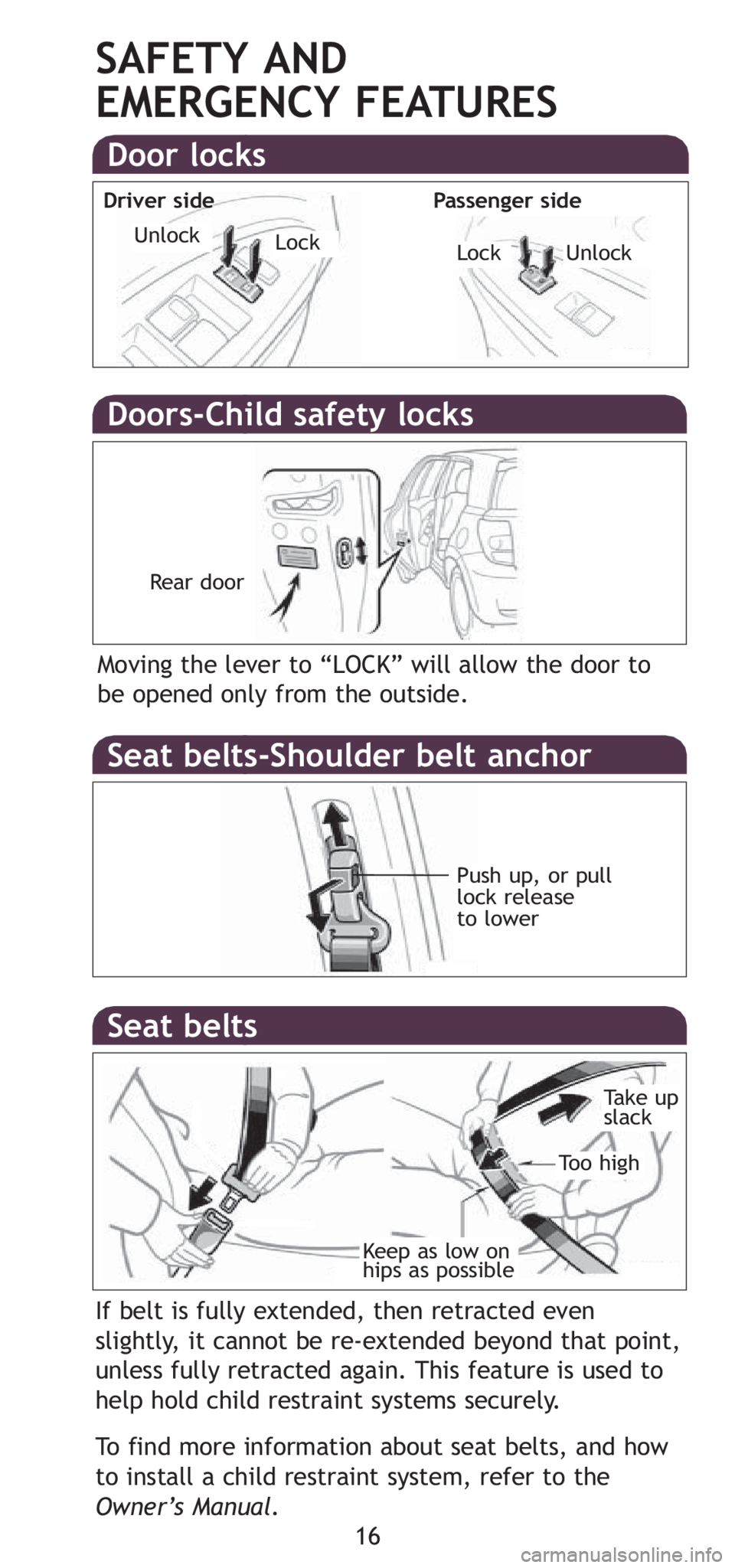

Doors-Child safety locks
Moving the lever to “LOCK” will allow the door to
be opened only from the outside.
Seat belts-Shoulder belt anchor
Push up, or pull
lock release
to lower
SAFETY AND
EMERGENCY FEATURES
Rear door
Door locks
UnlockLock Driver side Passenger sideLockUnlock
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To find more information about seat belts, and how
to install a child restraint system, refer to the
Owner’s Manual.
Keep as low on
hips as possible
Take up
slack
Too high
Seat belts

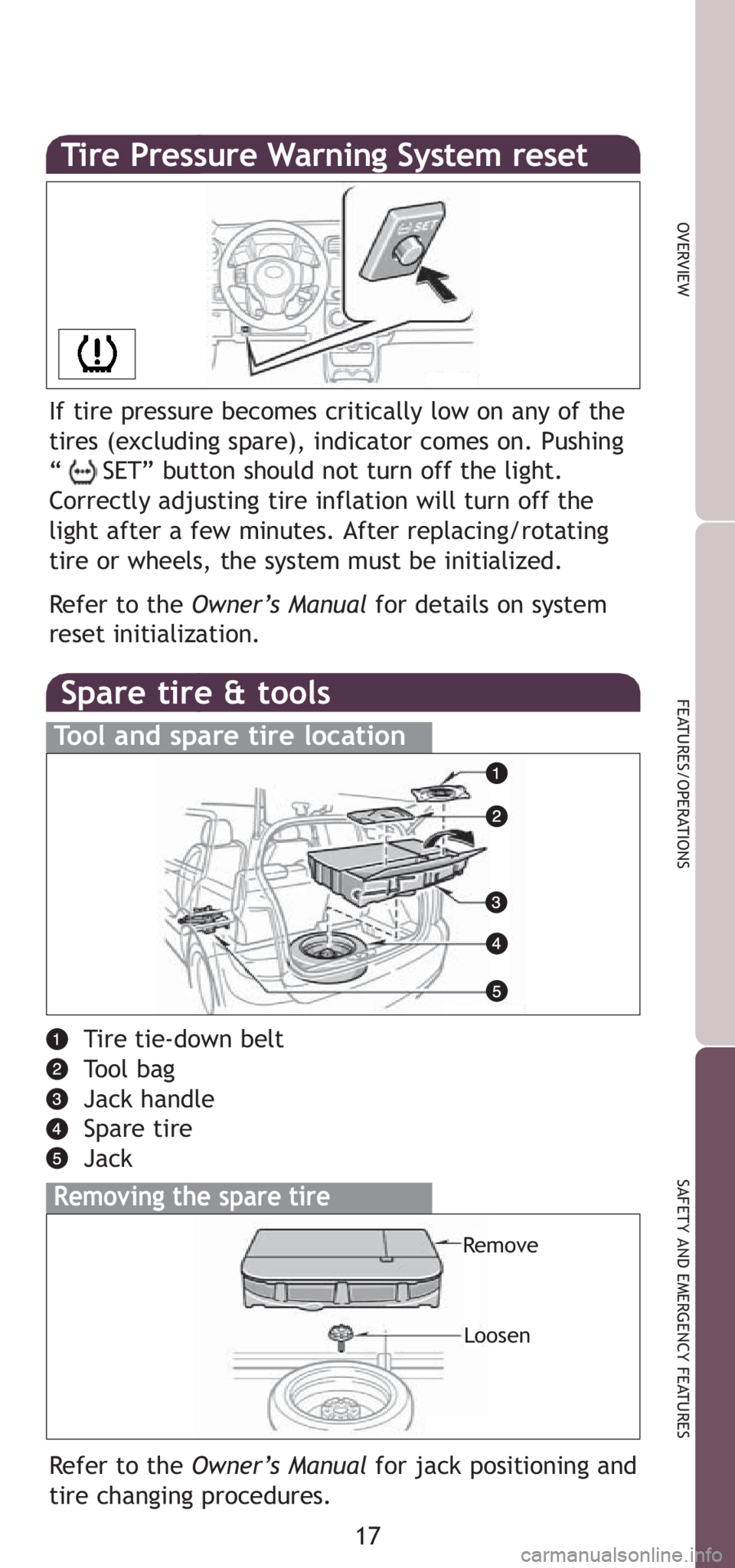

Spare tire & tools
Tool and spare tire location
Removing the spare tire
Tire tie-down belt
Tool bag
Jack handle
Spare tire
Jack
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Refer to the Owner’s Manualfor jack positioning and
tire changing procedures.
Tire Pressure Warning System reset
If tire pressure becomes critically low on any of the
tires (excluding spare), indicator comes on. Pushing
“ SET” button should not turn off the light.
Correctly adjusting tire inflation will turn off the
light after a few minutes. After replacing/rotating
tire or wheels, the system must be initialized.
Refer to the Owner’s Manualfor details on system
reset initialization.
Loosen Remove
