clock reset TOYOTA xD 2010 Owners Manual (in English)

3

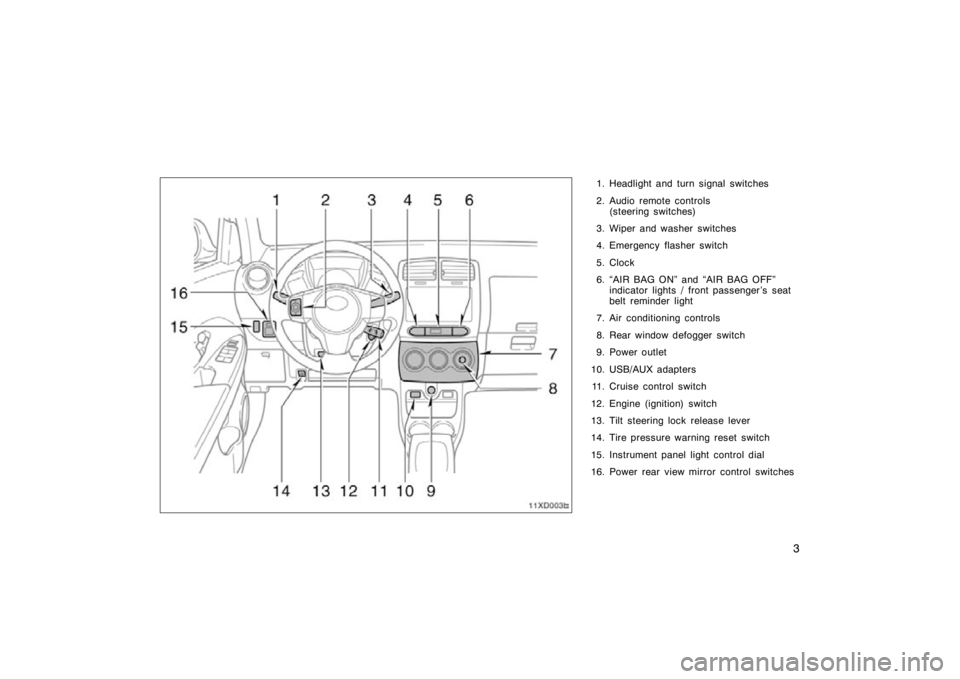

1. Headlight and turn signal switches
2. Audio remote controls(steering switches)
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock
6. “AIR BAG ON” and “AIR BAG OFF” indicator lights / front passenger ’s seat
belt reminder light
7. Air conditioning controls
8. Rear window defogger switch
9. Power outlet
10. USB/AUX adapters 11. Cruise control switch
12. Engine (ignition) switch
13. Tilt steering lock release lever
14. Tire pressure warning reset switch
15. Instrument panel light control dial
16. Power rear view mirror control switches
11xD003b

152
Clock
19xD014
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the time
will change to 2:00.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00.
Power outlet
The power outlet is designed for power
supply for car accessories. To use it,
open as shown.
The engine switch must be in the “ACC”
or “ON” position for the power outlet to be
used.
NOTICE
To prevent the fuse from being
blown, do not use electricity over
the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
