TOYOTA xD 2010 Owners Manual (in English)

xD2 010
00505-QRG10-XD
© 2009 Scion, a marque of Toyota Motor Sales, U.S.A., Inc.
Printed in U.S.A. 7/09
08-TCS-03077
EMAIL
w w w.scion.com
´ Contact
-
CHAT
w w w.scion.com
´ Have a Question?
´ Contact
-
PHONE
1. 8 6 6.7 0. S CION
-
MAIL
SCION
19001 S. Western Ave.
D102, P. O. Box 2742
To r r a n c e , C A 9 0 5 0 9 -2 74 2
USA
-
WEB
w w w.scion.com
-
GET INFORMED.
ROLL.
QUICK
REFERENCE
GUIDE
10%
Cert no. SGS-COC-005612
413622M1.indd 16/29/09 12:57:00 PM

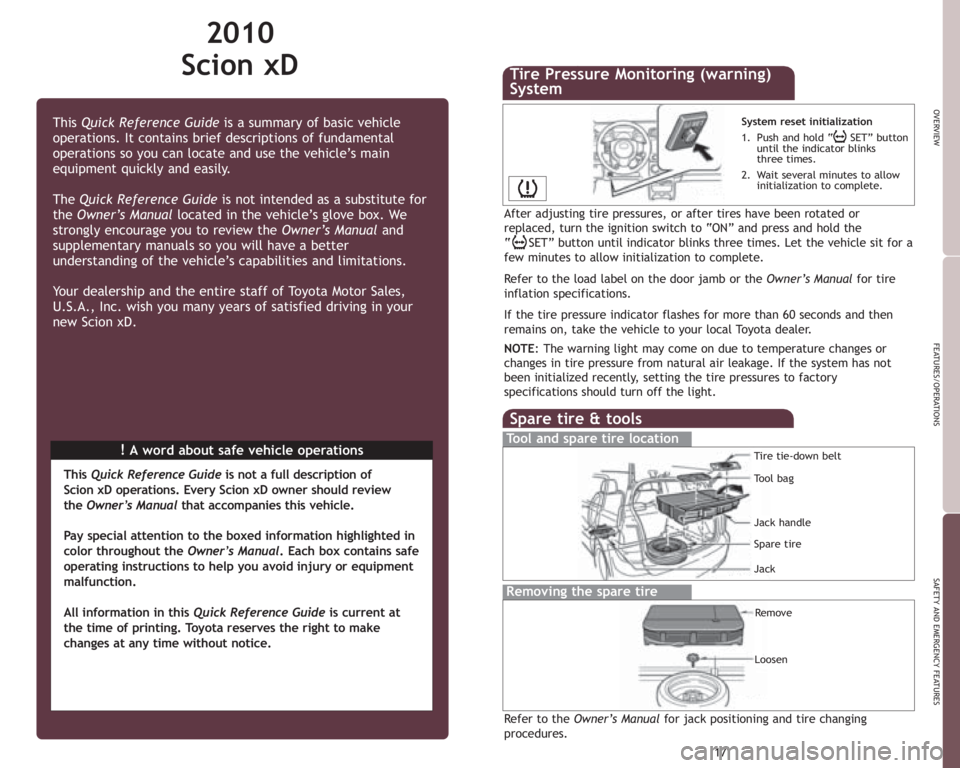

2010
Scion xD
!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for
theOwner’s Manual located in the vehicle’s glove box. We
strongly encourage you to review theOwner’s Manual and
supplementary manuals so you will have a better
understanding of the vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Scion xD.
This Quick Reference Guideis not a full description of
Scion xD operations. Every Scion xD owner should review
the Owner’s Manualthat accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire & tools
Tool and spare tire location
Removing the spare tire
Refer to the Owner’s Manualfor jack positioning and tire changing
procedures.
LoosenRemove
Tire Pressure Monitoring (warning)
System
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait several minutes to allow
initialization to complete.
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
Tool bagTire tie-down belt
Spare tire Jack handle
Jack

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry16
Light control-Instrument panel 7
Air Conditioning/Heating 12Automatic Transmission 8Bottle holders 15Clock 13Cruise control 11Cup holders 15Lights & turn signals 10Multi-information display 14Parking brake 8Power outlet 15Seat adjustments 9Seat-Folding down rear seat 9Seats-Head restraints 8Steering wheel switches 14Tilt steering wheel 12USB adapter/AUX audio jack 13Windows 11
Window wipers & washers 10
Door locks 16Doors-Child safety locks 16Seat belts 16Seat belts-Shoulder belt anchor 16Spare tire & tools 17
Tire Pressure Monitoring (warning) System 17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.

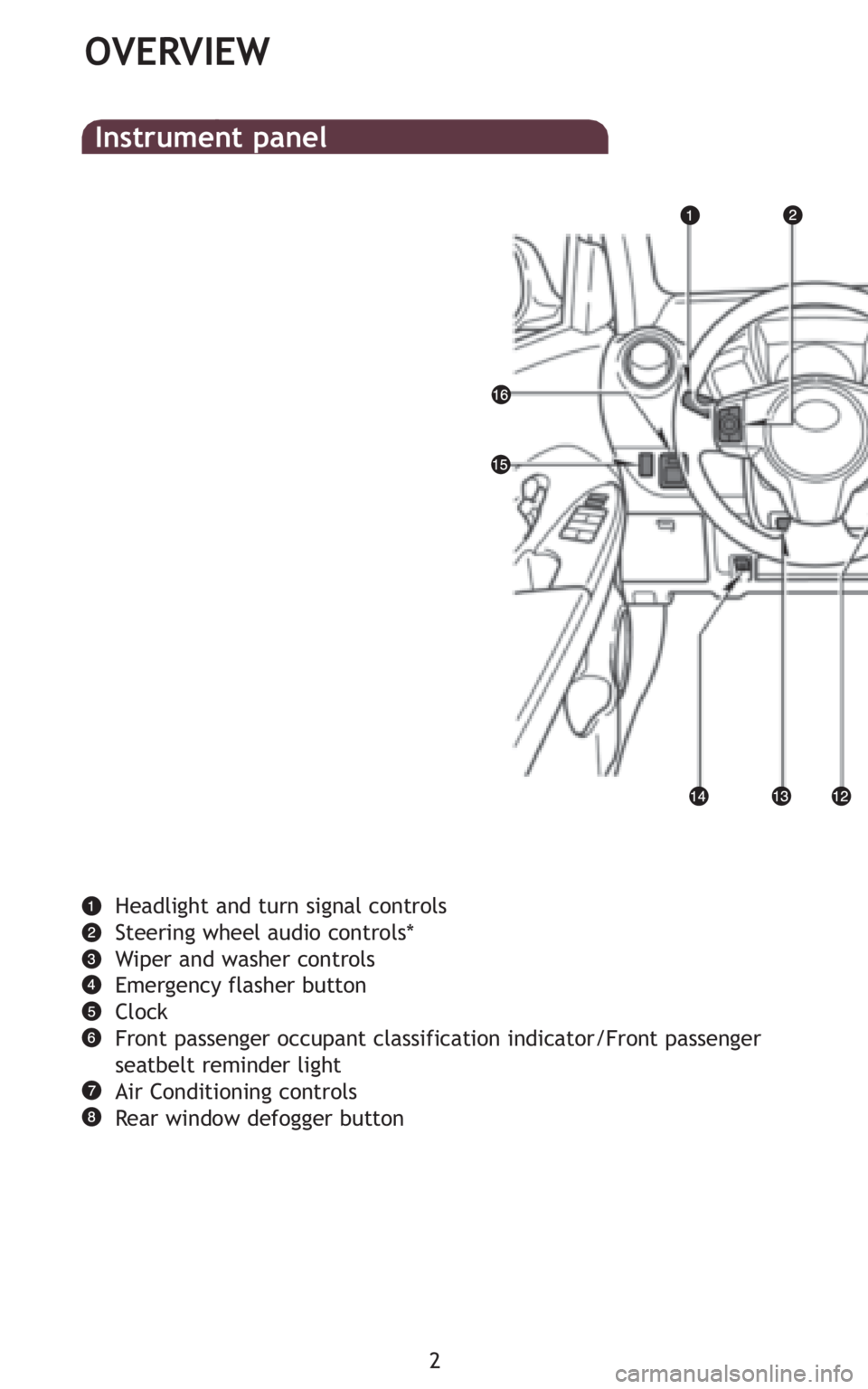

2
OVERVIEW
Headlight and turn signal controls
Steering wheel audio controls*
Wiper and washer controls
Emergency flasher button
Clock
Front passenger occupant classification indicator/Front passenger
seatbelt reminder light
Air Conditioning controls
Rear window defogger button
Instrument panel

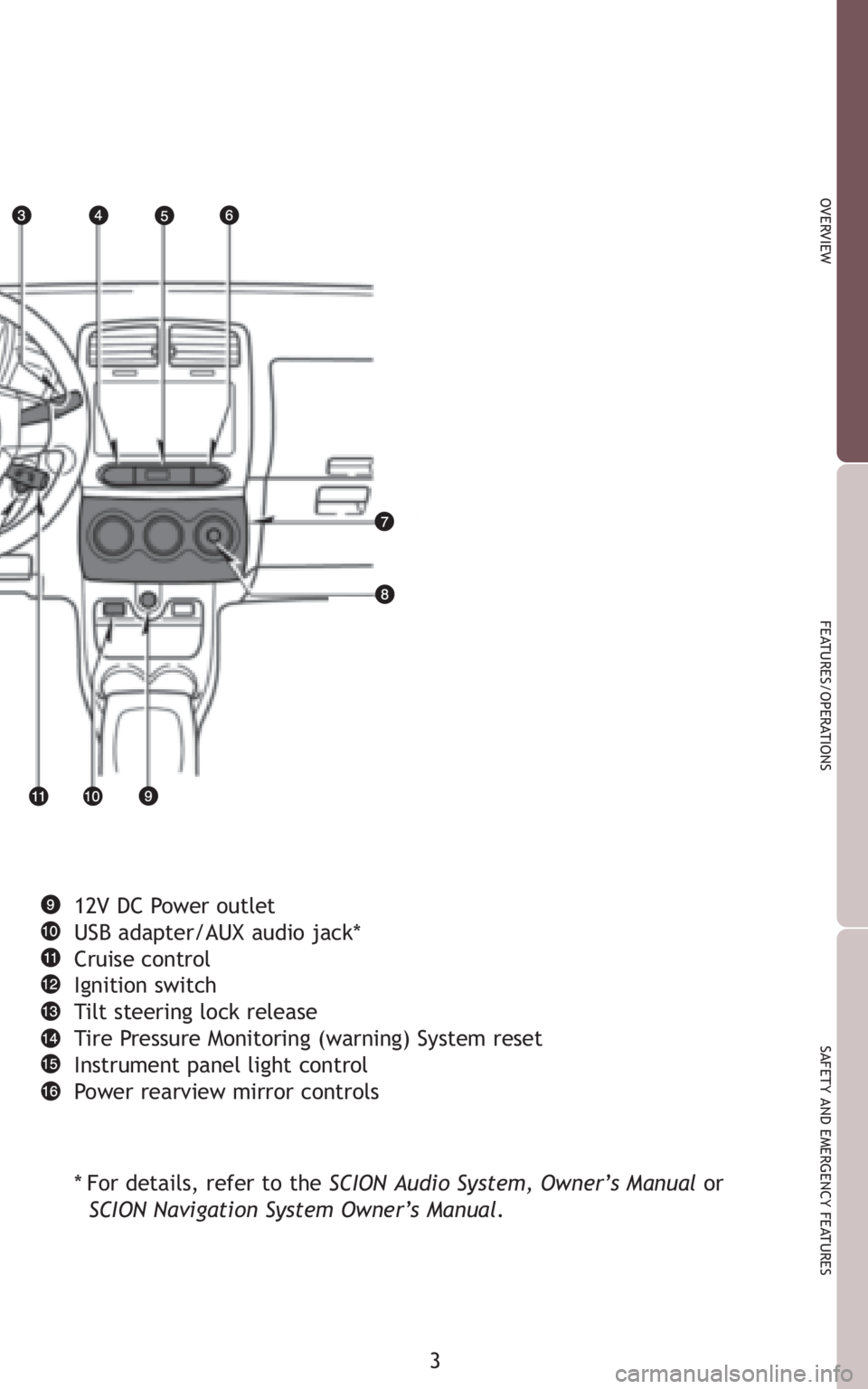

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
12V DC Power outlet
USB adapter/AUX audio jack*
Cruise control
Ignition switch
Tilt steering lock release
Tire Pressure Monitoring (warning) System reset
Instrument panel light control
Power rearview mirror controls
* For details, refer to the SCION Audio System, Owner’s Manualor
SCION Navigation System Owner’s Manual.

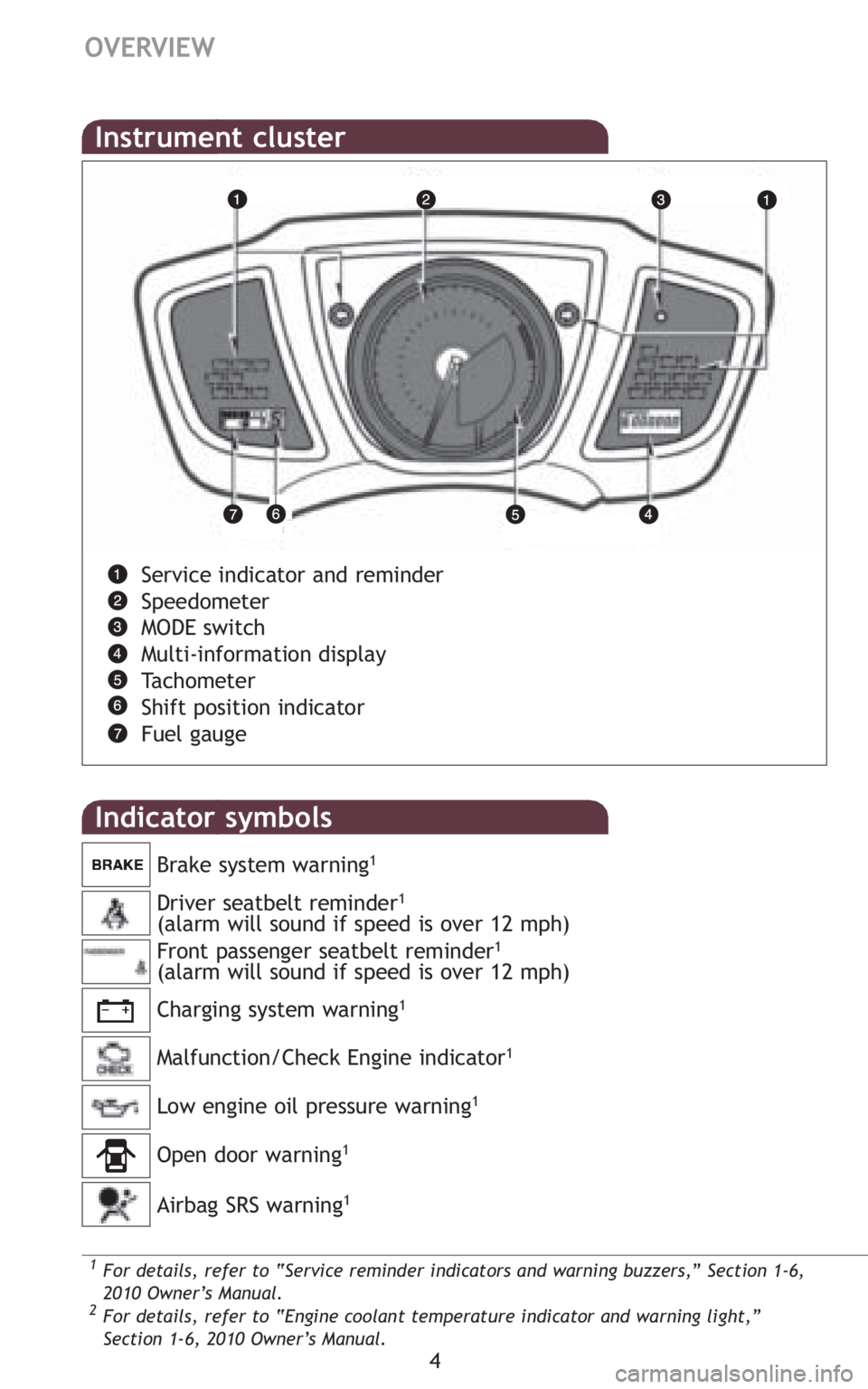

4
OVERVIEW
Low engine oil pressure warning1
Driver seatbelt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder1
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning1
Malfunction/Check Engine indicator1
Indicator symbols
Instrument cluster
Service indicator and reminder
Speedometer
MODE switch
Multi-information display
Tachometer
Shift position indicator
Fuel gauge
1For details, refer to “Service reminder indicators and warning buzzers,” Section 1-6,
2010 Owner’s Manual.
2For details, refer to “Engine coolant temperature indicator and warning light,”
Section 1-6, 2010 Owner’s Manual.
Open door warning1
Airbag SRS warning1

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

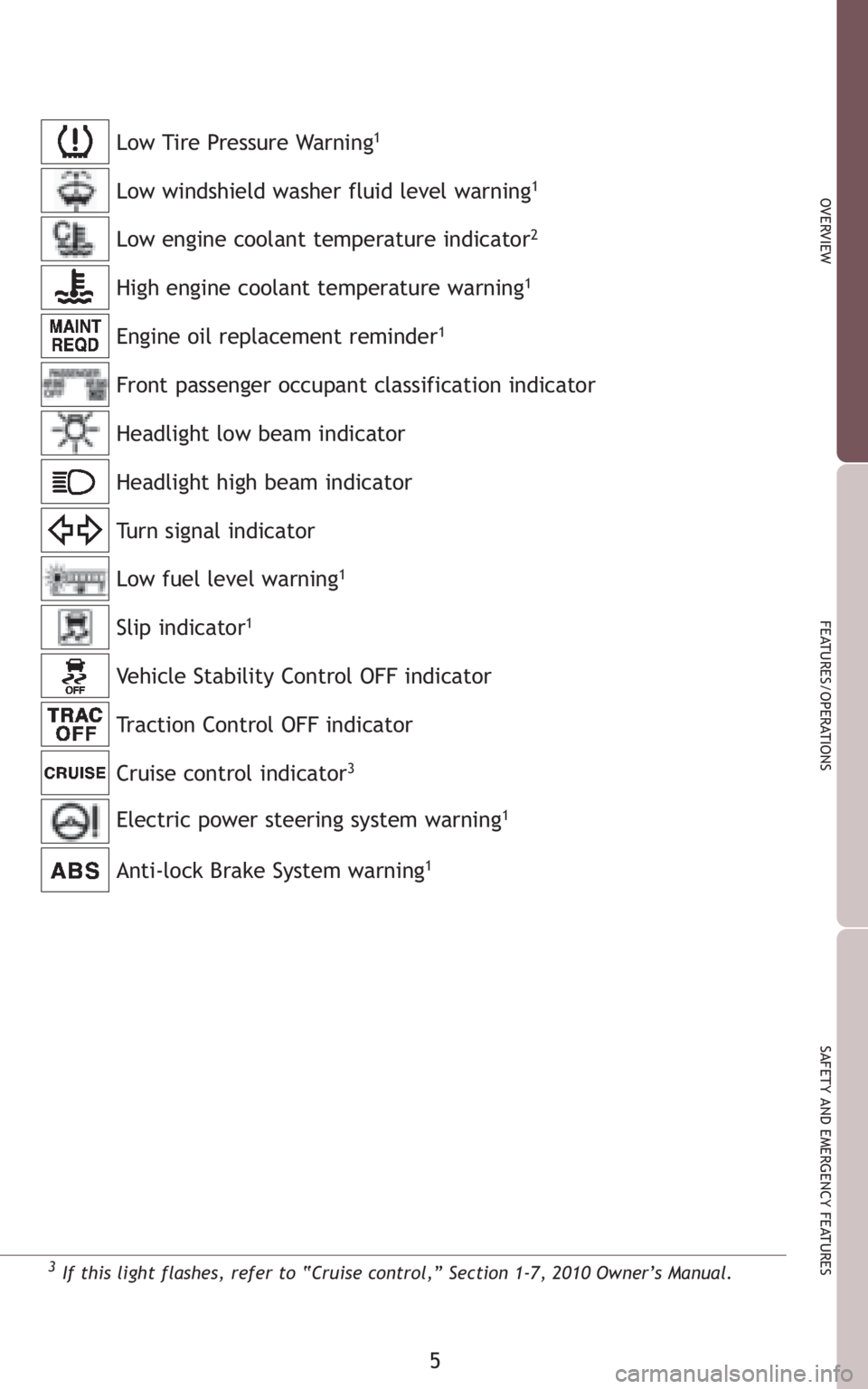

Anti-lock Brake System warning1
Engine oil replacement reminder1
Front passenger occupant classification indicator
Headlight low beam indicator
Turn signal indicator Headlight high beam indicator
Cruise control indicator
3
Electric power steering system warning1
Slip indicator1
Vehicle Stability Control OFF indicator
Low fuel level warning1
High engine coolant temperature warning1
Low engine coolant temperature indicator2
3
If this light flashes, refer to “Cruise control,” Section 1-7, 2010 Owner’s Manual.
Traction Control OFF indicator
Low Tire Pressure Warning1
Low windshield washer fluid level warning1

6
OVERVIEW

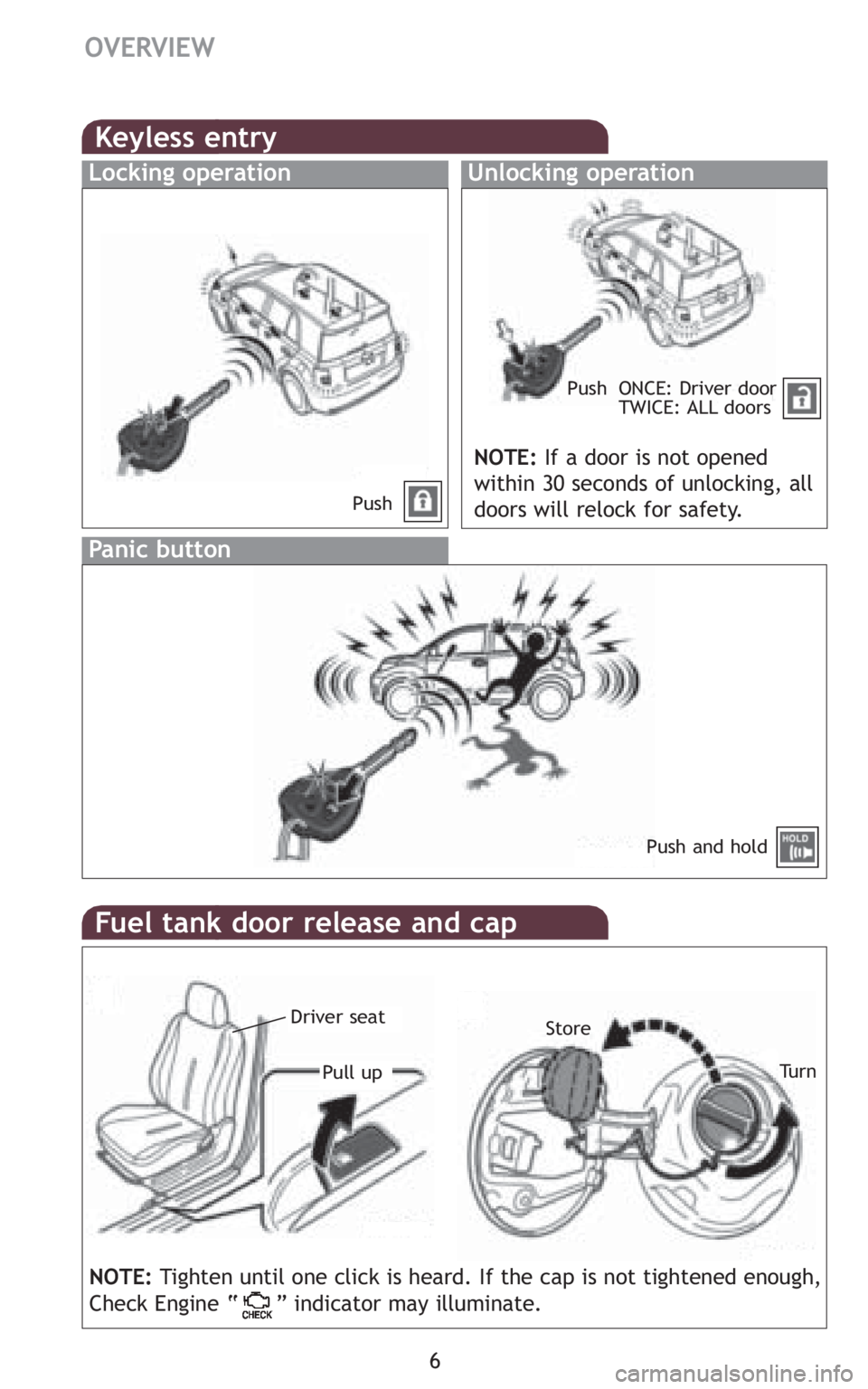

Fuel tank door release and cap
Pull upStore
Tu r n
Keyless entry
Locking operationUnlocking operation
NOTE:If a door is not opened
within 30 seconds of unlocking, all
doors will relock for safety.
PushPush ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
Driver seat
NOTE:Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.

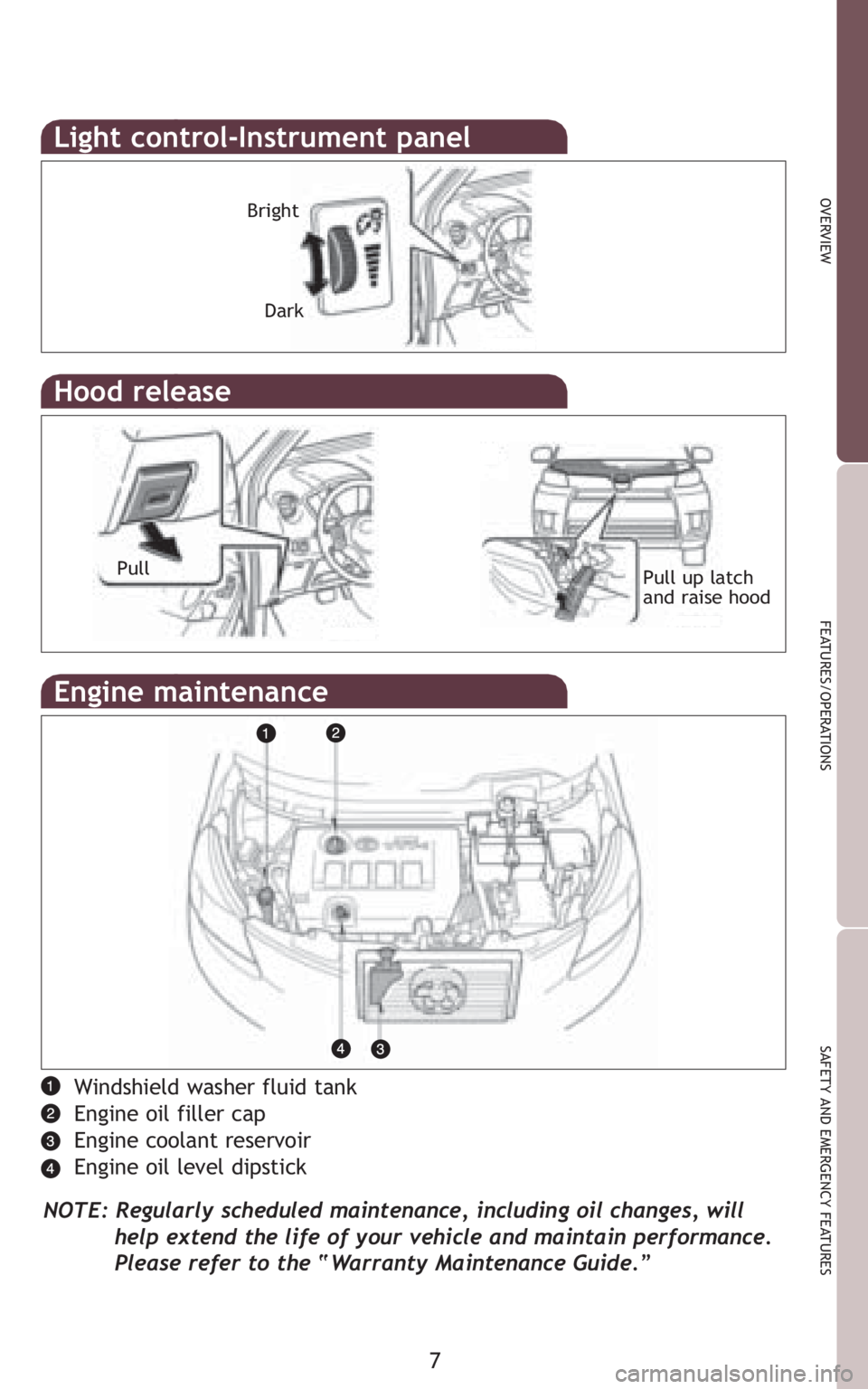

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
Pull
Pull up latch
and raise hood
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Bright
Dark

8
FEATURES/OPERATIONS

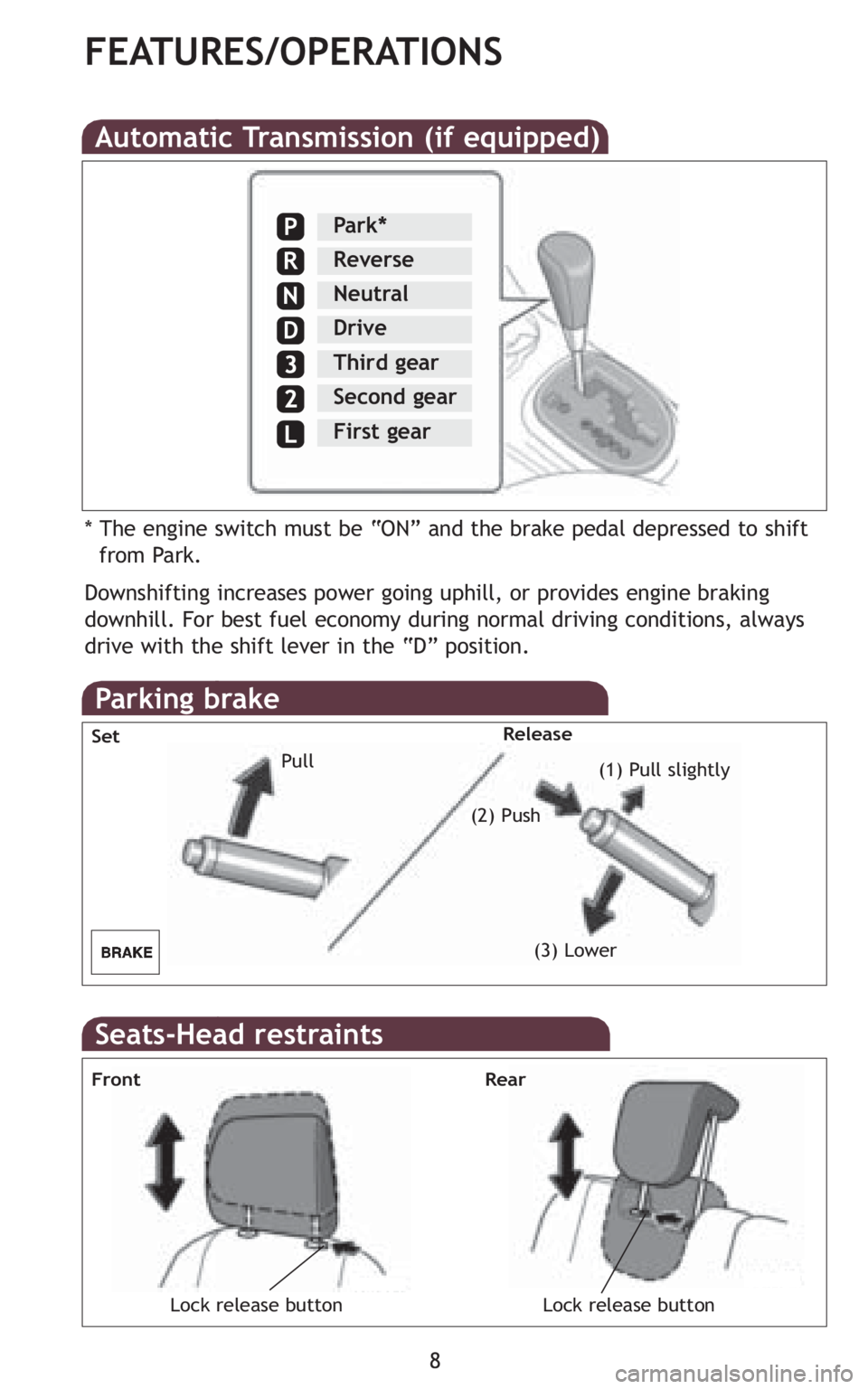

Automatic Transmission (if equipped)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position. * The engine switch must be “ON” and the brake pedal depressed to shift
from Park.
Parking brake
Pull
(2) Push(1) Pull slightly
(3) Lower
SetRelease
Park*
Reverse
Neutral
Drive
P
R
N
D
Third gear
Second gear
First gear
Seats-Head restraints
Lock release buttonLock release button
Front Rear
