9

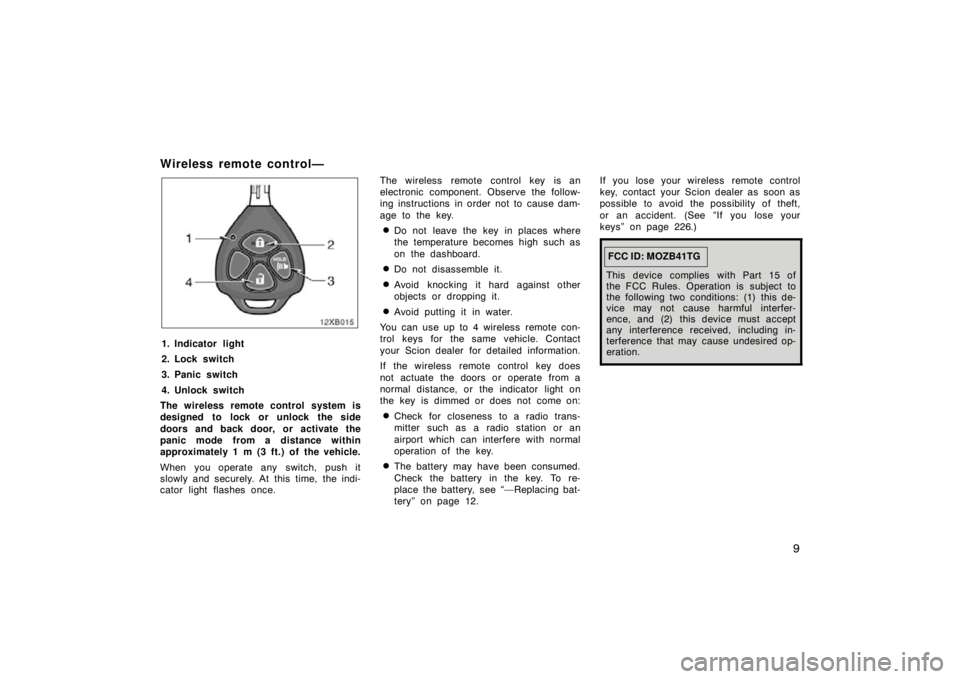

Wireless remote control—
1. Indicator light
2. Lock switch
3. Panic switch
4. Unlock switch
The wireless remote control system is
designed to lock or unlock the side
doors and back door, or activate the
panic mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely. At this time, the indi-
cator light flashes once. The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age to the key.
Do not leave the key in places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys for the same vehicle. Contact
your Scion dealer for detailed information.
If the wireless remote control key does
not actuate the doors or operate from a
normal distance, or the indicator light on
the key is dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on page 12. If you lose your wireless remote control
key, contact your Scion dealer as soon as
possible to avoid the possibility of theft,
or an accident. (See “If you lose your
keys” on page 226.)
FCC ID: MOZB41TG
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions: (1) this de-
vice may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including in-
terference that may cause undesired op-
eration.

52
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more seri-
ous injuries, especially if an occupant’s
hands, arms, chest or head is in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to: avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the ve-
hicle.
Parts of the airbag module (steering wheel
hub, airbag cover and inflator) may be hot
for several minutes after deployment, so
do not touch! The airbags inflate only
once. The windshield may be damaged by
absorbing some of the force of the inflat-
ing airbag.CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Scion strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants must be prop-
erly restrained using the available
seat belts.
If the seat belt extender has been
connected to the driver ’s seat belt
buckle without wearing the seat belt
when using the extender in the
driver ’s seat, the SRS driver ’s air-
bag system will judge that the driv-
er wears the seat belt even if not
wearing it. In this case, the driver ’s
airbag may not activate correctly,
causing death or serious injury in
the event of a collision. Be sure to
wear the seat belt with the seat belt
extender. Otherwise, there will also
not be any effective protection in a
sudden stop or a collision provided
by the seat belt.
For instructions and precautions con-
cerning the seating position, see
“—Front seat precautions” on page
26.

53
Do not sit on the edge of the seat
or lean against the dashboard when
the vehicle is in use, since the
front passenger airbag could inflate
with considerable speed and force.
Anyone who is up against, or very
close to, an airbag when it inflates,
can be killed or seriously injured.
Sit up straight and well back in the
seat, and always use your seat belt
properly.Scion strongly recommends that all
infants and children be placed in
the rear seat of the vehicle and be
properly restrained.
Do not allow a child to stand up or
kneel on the front passenger seat,
since the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see “Child
restraint” on page 69.

54
Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the front airbag sys-
tem. They might restrict inflation or
cause death or serious injury as
they are projected rearward by the
force of the deploying airbags. Like-
wise, the driver and front passenger
should not hold objects in their
arms or on their knees.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
front airbag system from activating
correctly, cause sudden activation
of the system or disable the sys-
tem, which could result in death or
serious injury.
Do not use a seat accessory, such
as a cushion or seat cover, that
covers the front seat, or do not
modify or replace the upholstery of
the front seat. Such accessories or
changes may prevent the front pas-
senger airbag system from activat-
ing correctly, disable the system or
cause the front passenger airbag to
inflate accidentally, resulting in
death or serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Scion dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Scion dealer. It may dan-
gerously interfere with the SRS front
airbags operation.

55
NOTICE
Do not perform any of the following
changes without consulting your
Scion dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
This indicator comes on when the en-
gine switch is turned to the “ON” posi-
tion. It goes off after about 6 seconds.
This means the SRS front airbags are
operating properly.
This warning light system monitors the air-
bag sensor assembly, front airbag sensors,
side and curtain shield airbag sensors, cur-
tain shield airbag sensors, driver ’s seat
position sensor, driver ’s seat belt buckle
switch, front passenger occupant classifica-
tion system, “AIR BAG ON” indicator light,
“AIR BAG OFF” indicator light, front pas-
senger ’s seat belt buckle switch, seat belt
pretensioner assemblies, inflators, intercon-
necting wiring and power sources. (For de-
tails, see “Service reminder indicators and
warning buzzers” on page 109.) If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Scion dealer as soon as possible.
When the engine switch is turned to
the “ON” position, the light does not
come on or remains on for more than
about 6 seconds or flashes.
The light comes on or starts flashing
while driving.
The SRS warning light and “AIR BAG
OFF” indicator light will come on if there
is a malfunction in the front passenger
occupant classification system.
