TOYOTA xD 2010 (in English) User Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

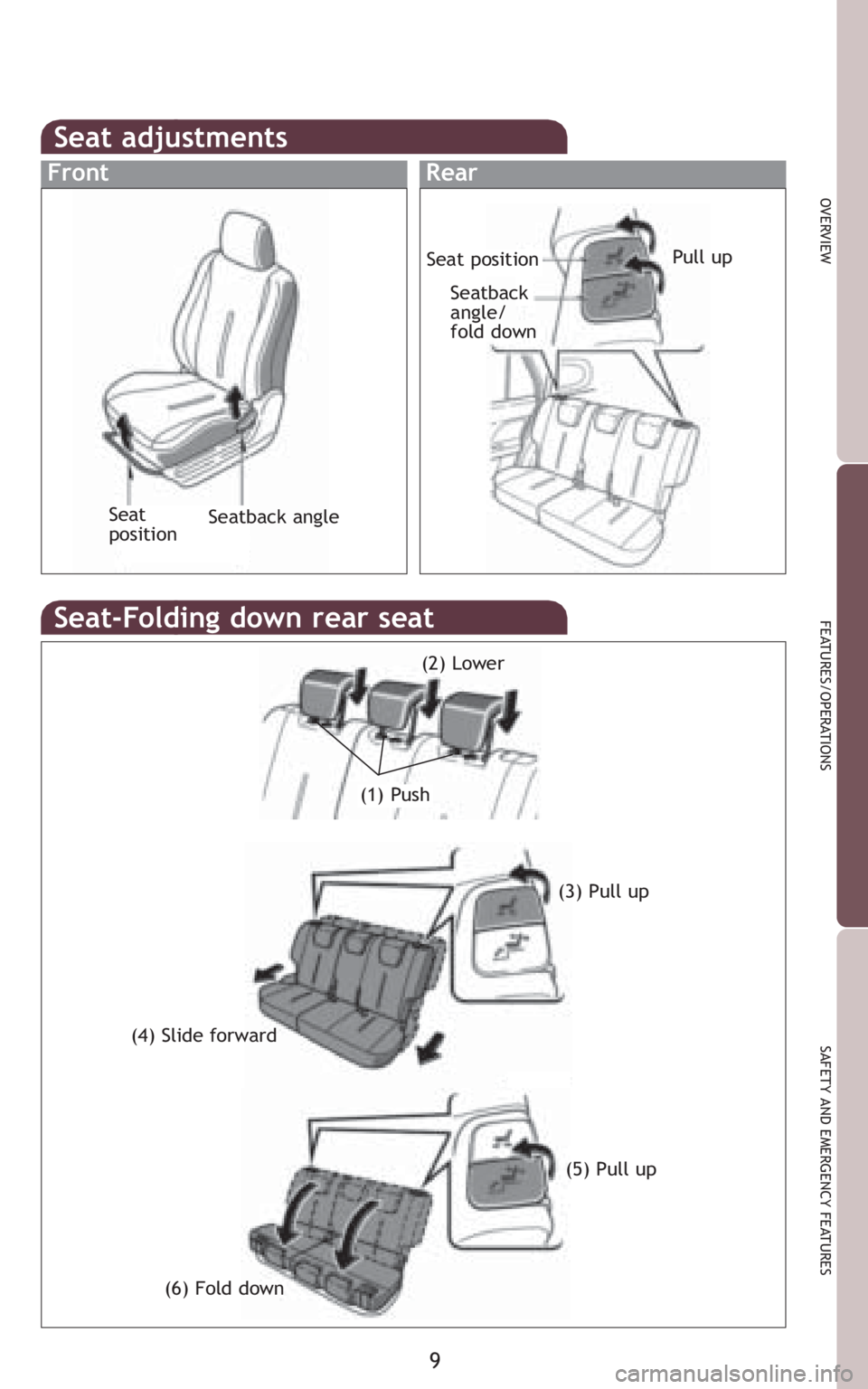

Seat adjustments
Seat-Folding down rear seat
(4) Slide forward(3) Pull up
(6) Fold down(5) Pull up
(2) Lower
(1) Push
FrontRear
Seat position
Seatback
angle/
fold downPull up
Seat
positionSeatback angle

10

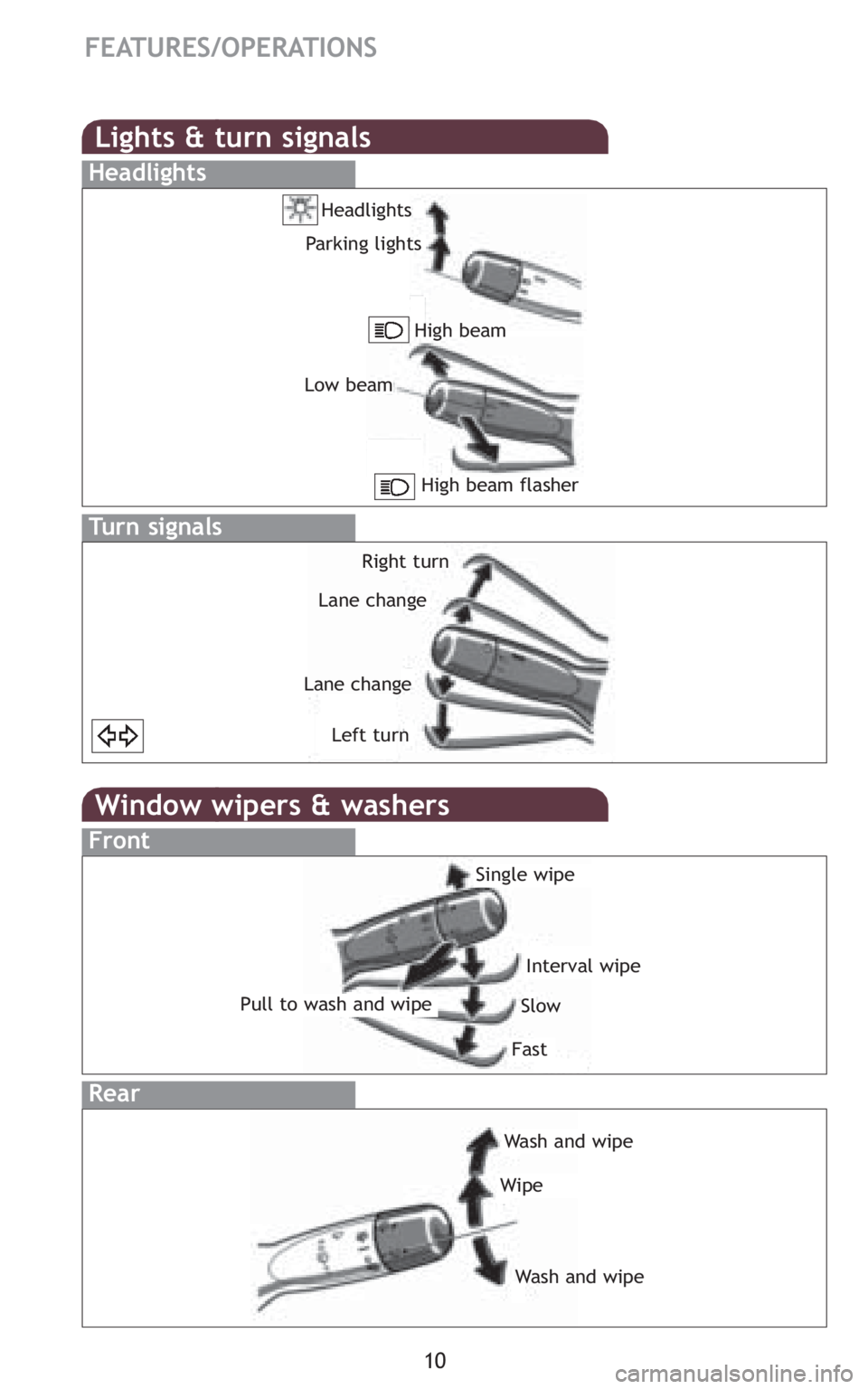

FEATURES/OPERATIONS
Window wipers & washers
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe
Front
Rear
Wash and wipe
Wipe
Wash and wipe
Lights & turn signals
Turn signals
Headlights
Headlights
Parking lights
Right turn
Lane change
Lane change
Left turn
Low beam
High beam flasher
High beam

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

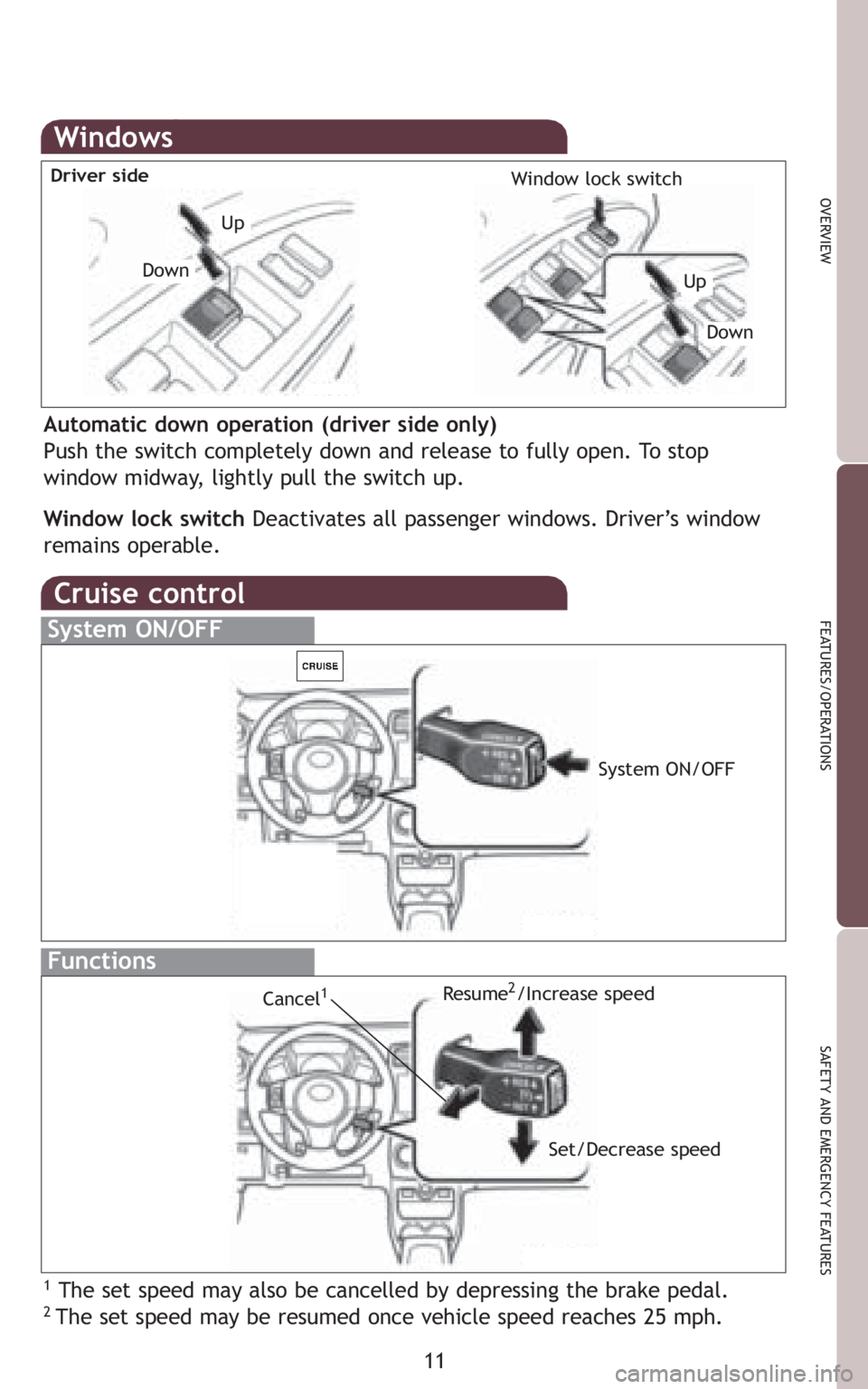

Windows
Automatic down operation (driver side only)
Push the switch completely down and release to fully open. To stop
window midway, lightly pull the switch up.
Window lock switchDeactivates all passenger windows. Driver’s window
remains operable.
Up
UpDown
Down
Driver sideWindow lock switch
Cruise control
1The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed reaches 25 mph.
System ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speedCancel1

12

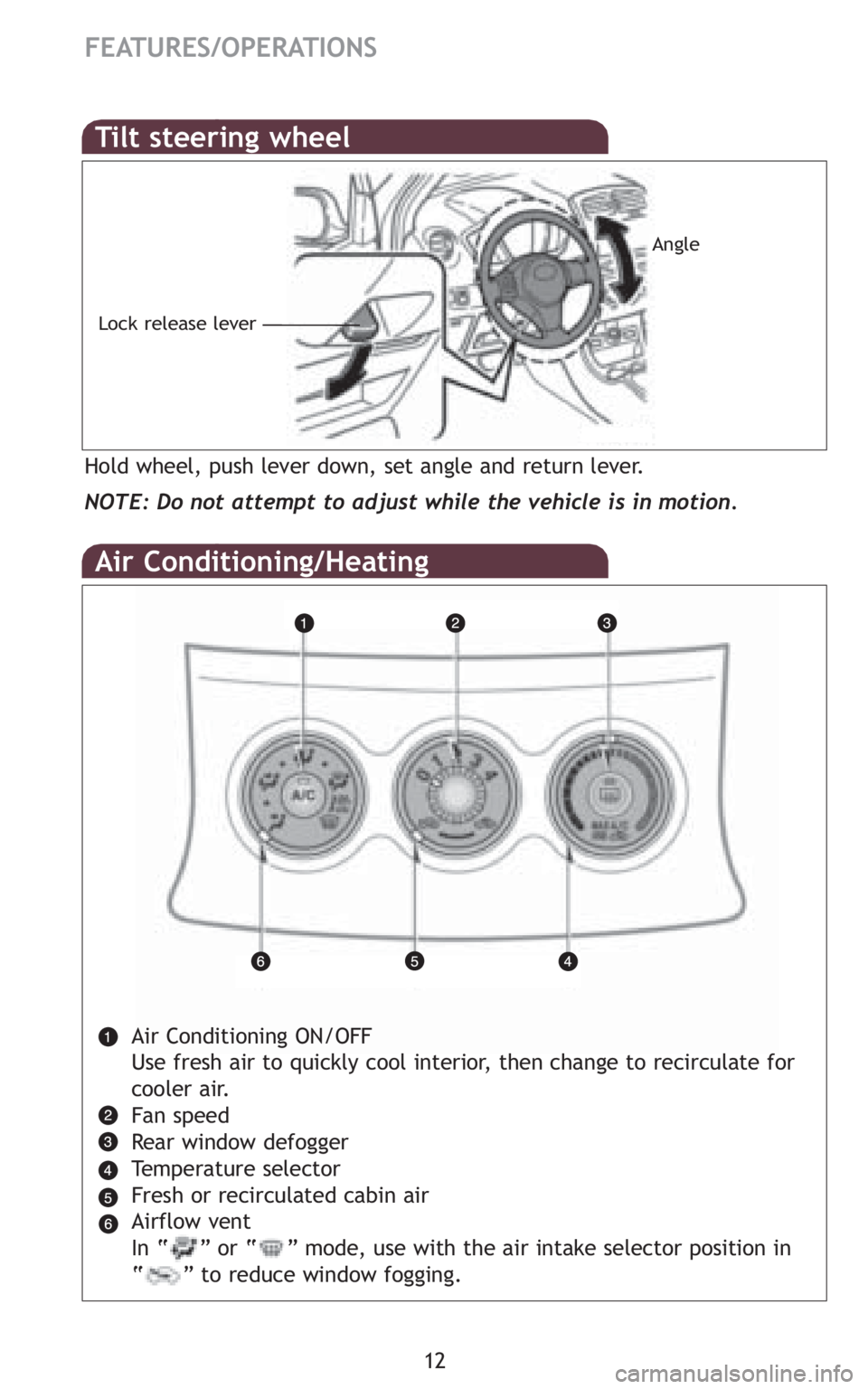

FEATURES/OPERATIONS
Air Conditioning/Heating
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Fan speed
Rear window defogger
Temperature selector
Fresh or recirculated cabin air
Airflow vent
In “ ” or “ ” mode, use with the air intake selector position in
“ ” to reduce window fogging.
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt steering wheel
Lock release lever
Angle

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

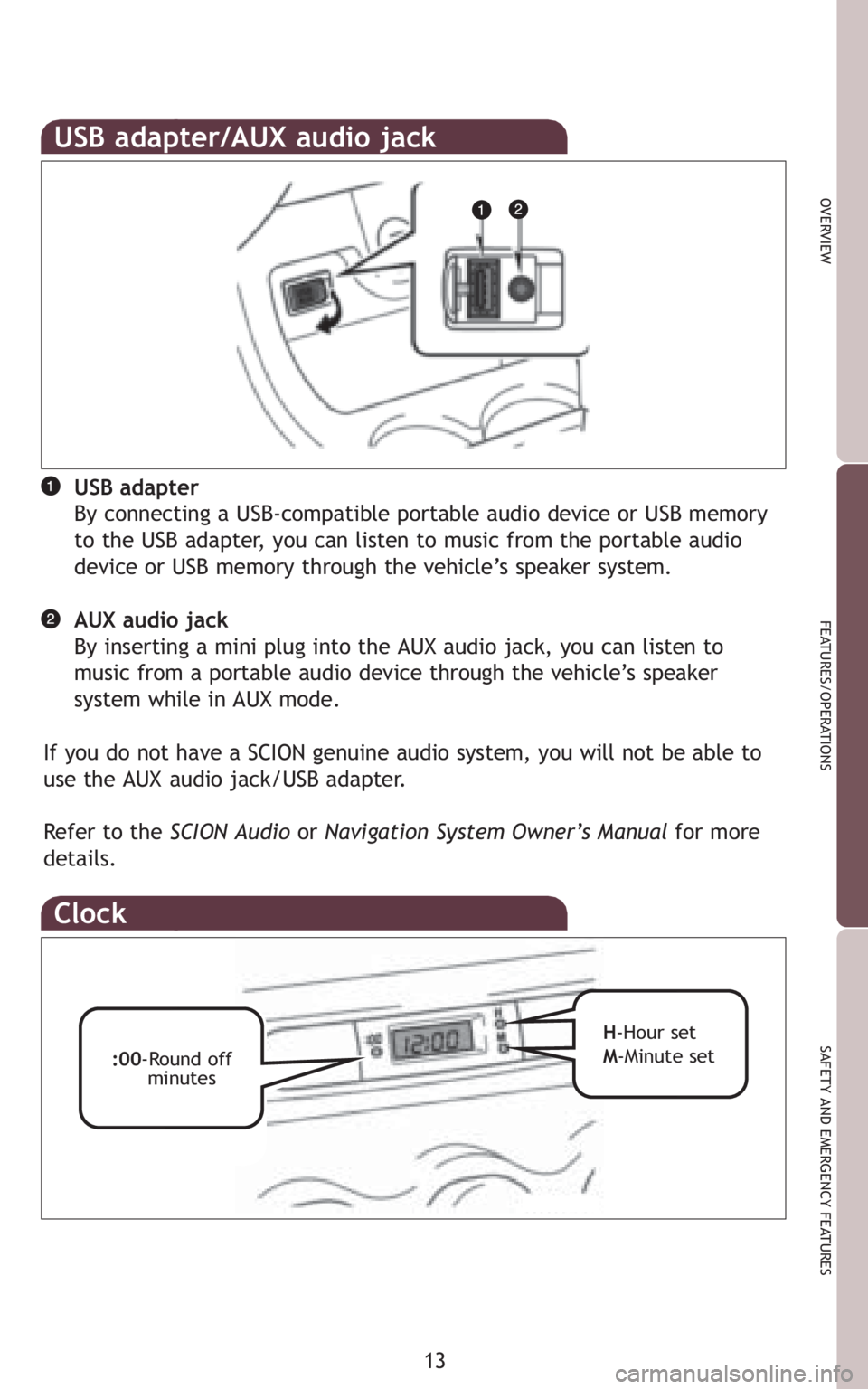

Clock
:00-Round off
minutesH-Hour set
M-Minute set
USB adapter/AUX audio jack
USB adapter
By connecting a USB-compatible portable audio device or USB memory
to the USB adapter, you can listen to music from the portable audio
device or USB memory through the vehicle’s speaker system.
AUX audio jack
By inserting a mini plug into the AUX audio jack, you can listen to
music from a portable audio device through the vehicle’s speaker
system while in AUX mode.
If you do not have a SCION genuine audio system, you will not be able to
use the AUX audio jack/USB adapter.
Refer to the SCION Audioor Navigation System Owner’s Manualfor more
details.

14

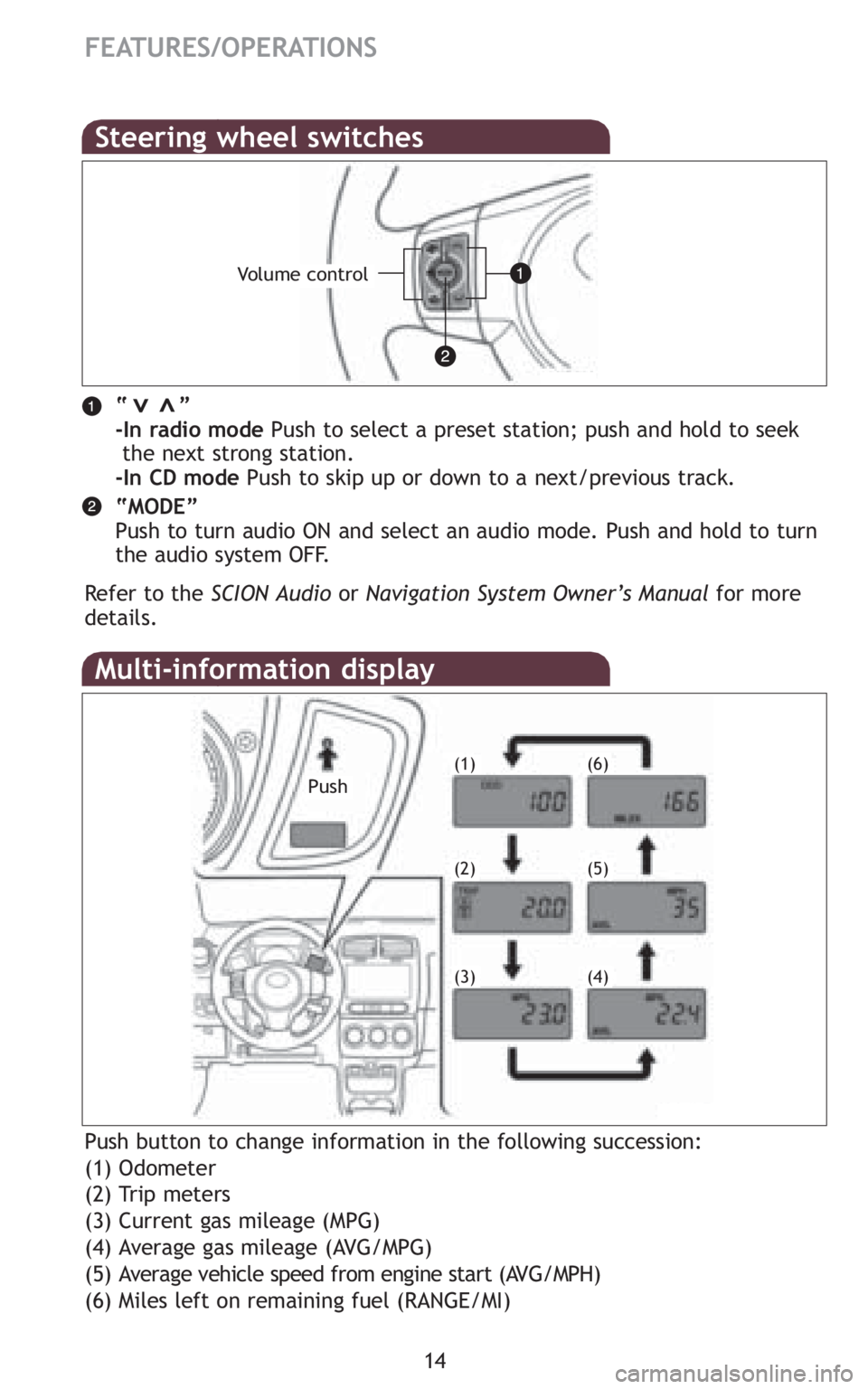

FEATURES/OPERATIONS
Multi-information display
(1)
(2)
(3) (4)(5) (6)
Push button to change information in the following succession:
(1) Odometer
(2) Trip meters
(3) Current gas mileage (MPG)
(4) Average gas mileage (AVG/MPG)
(5) Average vehicle speed from engine start (AVG/MPH)
(6) Miles left on remaining fuel (RANGE/MI)
Steering wheel switches
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to a next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
Refer to the SCION Audio orNavigation System Owner’s Manual for more
details.>>
Volume control
Push

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

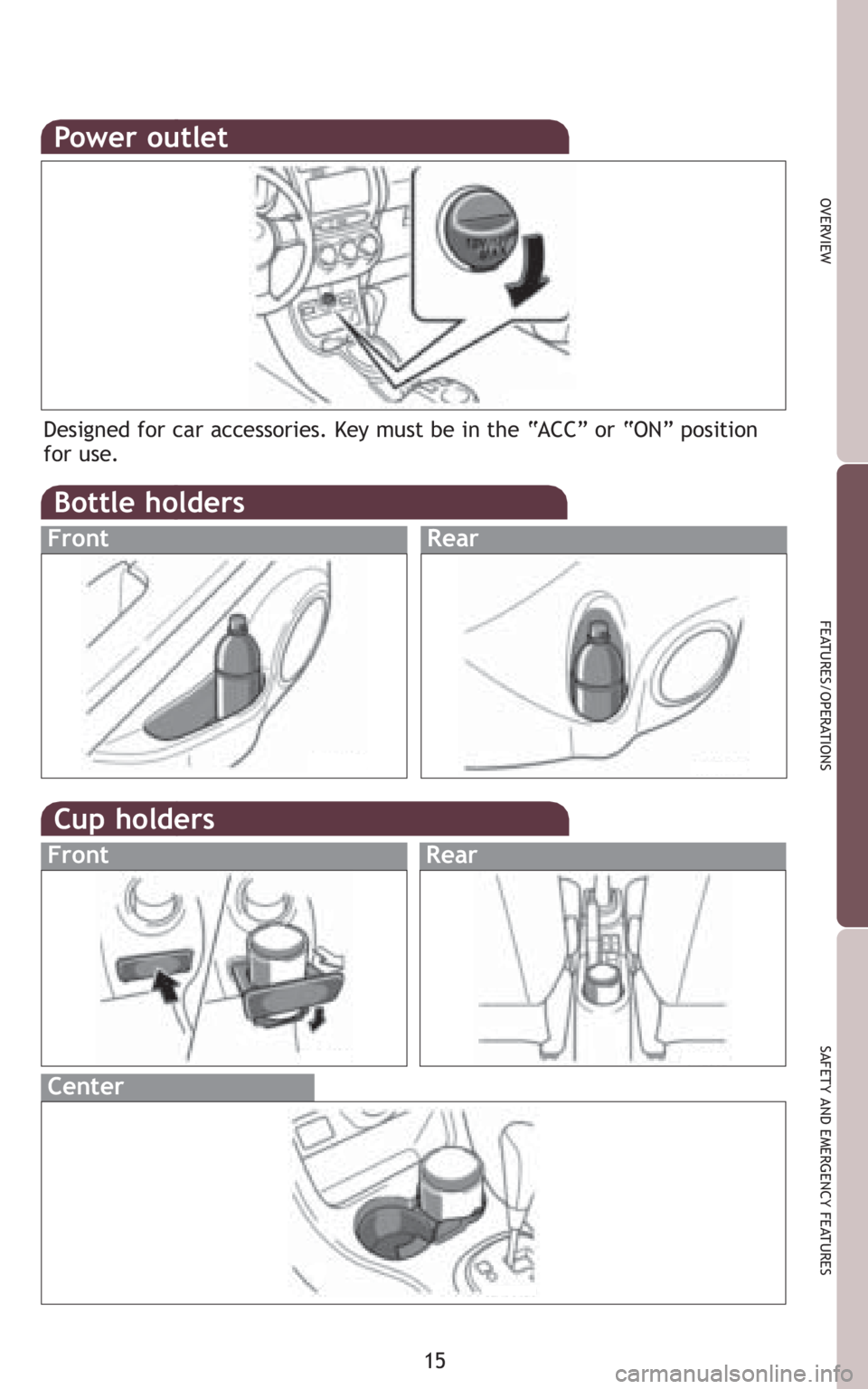

Power outlet
Designed for car accessories. Key must be in the “ACC” or “ON” position
for use.
Bottle holders
FrontRear
Cup holders
FrontRear
Center

16

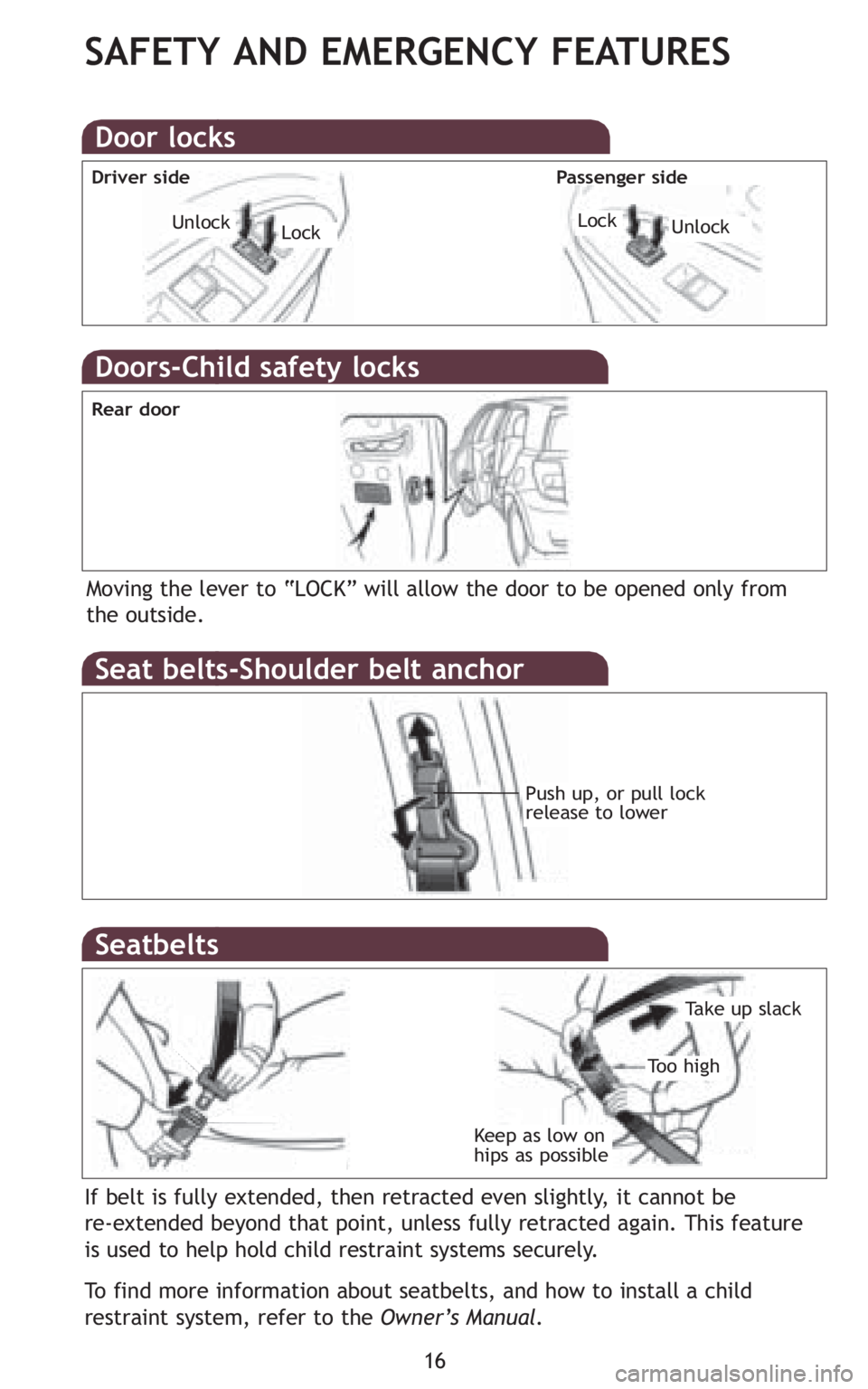

SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Seat belts-Shoulder belt anchor
Push up, or pull lock
release to lower
Rear door
Door locks
LockUnlock
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seatbelts
UnlockLock
Driver side Passenger side
