Service reminder indicators and warning buzzers
If the indicator or buzzer comes on...Do this.
(a)(Indicator and buzzer)
orIf parking brake is off, stop immediately and contact Scion dealer.
(b)
(Indicator and buzzer)
Fasten driver ’s seat belt.
(c)
(Indicator and buzzer)
Fasten front passenger ’s seat belt.
(d)
(For vehicles sold in U.S.A.)
Replace engine oil.
(e)Stop immediately and contact Scion dealer.
(f)orTake vehicle to Scion dealer.
(g)Fill up tank.

11 4
If the indicator or buzzer comes on...Do this.
(h)Stop and check.
(i)orTake vehicle to Scion dealer. If brake system warning light is also on, stop immediate-
ly and contact Scion dealer.
(j)Close all side doors and back door.
(k)Take vehicle to Scion dealer immediately.
(l)Add washer fluid.
(m)Take vehicle to Scion dealer immediately.
(n)Take vehicle to Scion dealer.

11 5
If the indicator or buzzer comes on...Do this.
(o)Adjust tire inflation pressure. If the light comes on after blinking for 1 minute, contact
Scion dealer.
(p)Stop and check.
(q)Key reminder
buzzerRemove key.
(r)Light reminder
buzzerTurn off lights.

11 6
(a) Brake System Warning Light
This light comes on in the following cases
when the engine switch is in the “ON”
position.
When the parking brake is applied...
This light comes on for a few seconds
when the engine switch is turned to the
“ON” position even after the parking brake
is released.
If the vehicle speed rises above 5 km/h
(3 mph) with the parking brake applied for
1 second or more, a buzzer sounds.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Scion dealer in the following cases:
The light does not come on even if the
parking brake is applied when the en-
gine switch is in the “ON” position.
The light does not come on even if the
engine switch is turned to the “ON”
position with the parking brake re-
leased.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Scion dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will increase. Depress the
brake pedal firmly and bring the ve-
hicle to an immediate stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.

11 7
(b) Driver’s Seat Belt Reminder Lightand Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the engine switch is turned to the
“ON” or “START” position, the reminder
light and buzzer come on if the driver’s
seat belt is not fastened. Unless the driv-
er fastens the belt, the light continues
flashing and 5 beeps sound.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the front passen-
ger ’s seat belt is fastened.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Scion dealer.
However, Scion recommends that the seat
belt reminder buzzer be operational to
alert the driver and front passenger that
the seat belts are not fastened. (c) Front Passenger ’s Seat Belt
Reminder Light and Buzzer
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the engine switch is turned to the
“ON” or “START” position, the reminder
light comes on if a passenger sits in the
front passenger seat and does not fasten
the seat belt. Unless the front passenger
fastens the belt, the light continues flash-
ing.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the driver ’s seat
belt is fastened.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light to flash and
buzzer to sound.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Scion dealer. (d) Engine Oil Replacement Reminder
Light (for vehicles sold in U.S.A.)
This light acts as a reminder to replace
the engine oil.
This light will come on when the engine
switch is turned to the “ON” position, and
will go off after a few seconds.
When you drive for about 7200 km (4500
miles) after engine oil replacement, this
light illuminates for about 3 seconds and
then flashes for about 12 seconds after
the engine switch is turned to the “ON”
position. If you continue driving without
engine oil replacement, and if the driving
range exceeds 8000 km (5000 miles), the
light will come on when the engine switch
is turned to the “ON” position. The light
will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible.
The system must be reset after engine oil
replacement. Reset the system by follow-
ing the procedure below: 1. Turn the engine switch to the “OFF” position with the odometer reading
shown. (For details, see “Multi −informa-
tion display” on page 110.)

11 8
2. Turn the engine switch to the “ON”position while holding down the trip
meter reset knob.
Hold down the knob for at least 5 sec-
onds. The light goes off, and the display
shows zero for 1 second and changes to
the odometer reading.
If the system fails to reset, the light will
remain on or keep flashing.
(e) Charging System Warning Light
This warning light comes on when the
engine switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while the engine is r unning, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Scion
dealer.
(f) Malfunction Indicator Lamp
This lamp comes on when the engine
switch is turned to the “ON” position
and goes off after the engine starts.
This means that the warning light sys-
tem is operating properly.
If the lamp remains on, first check the
following.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Scion dealer as
soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, auto-
matic transmission electrical system or
warning light system itself.
Contact your Scion dealer as soon as
possible to service the vehicle. Emissions Inspection and Maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Scion deal-
er to check your vehicle’s emission control
system and OBD (On
−Board Diagnostics)
system before taking your vehicle for the
inspection.
For details, see “Emissions inspection and
maintenance (I/M) programs” on page 246.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes very low. Fill up the
tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(h) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Scion dealer or qualified repair shop for
assistance.

11 9
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(i) “ABS” Warning Light
The light comes on when the engine
switch is turned to the “ON” position. If
the anti−lock brake system and the brake
assist system work properly, the light
turns off after a few seconds. Thereafter,
if the system malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system, the brake assist
system, the traction control system and
the vehicle stability control system do not
operate, but the brake system still oper-
ates conventionally. When the “ABS” warning light is on (and
the brake system warning light is off), the
anti
−lock brake system does not operate
so that the wheels could lock up during
sudden braking or braking on slippery
road surfaces.
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the components moni-
tored by the warning light system.
Contact your Scion dealer as soon as
possible to service the vehicle.
When the engine switch is turned to
the “ON” position, the light does not
come on or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.

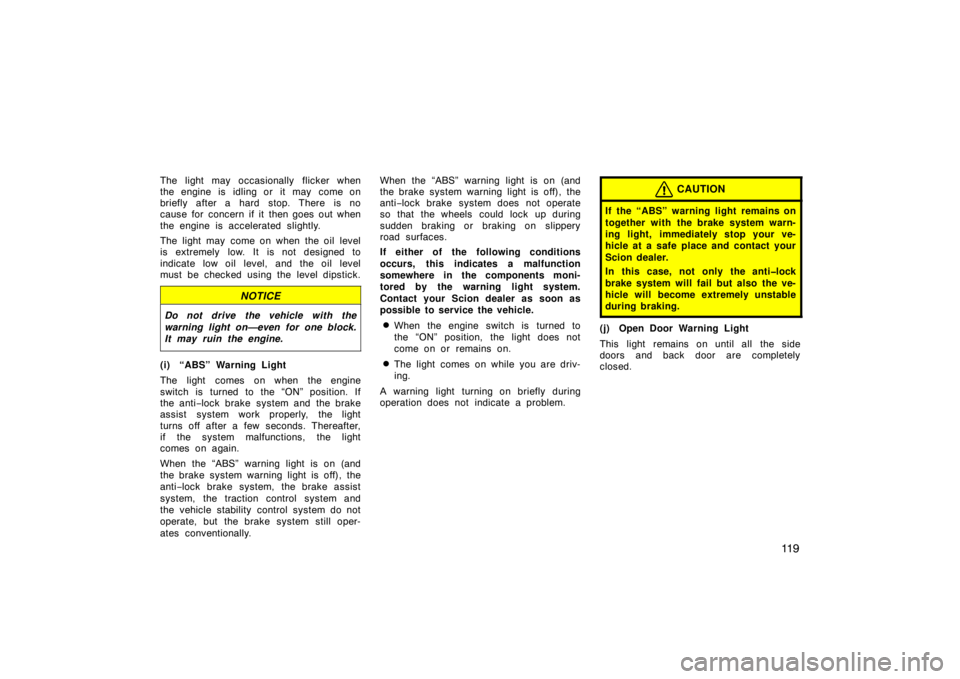

CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Scion dealer.
In this case, not only the antilock
brake system will fail but also the ve-
hicle will become extremely unstable
during braking.
(j) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed.

120
(k) SRS Warning Light
This indicator comes on when the engine
switch is turned to the “ON” position. It
goes off after about 6 seconds. This
means the SRS front airbags, SRS side
airbags, curtain shield airbags and seat
belt pretensioners are operating properly.
This warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger occu-
pant classification system, “AIR BAG ON”
indicator light, “AIR BAG OFF” indicator
light, passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, interconnecting wiring and power
sources.If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Scion dealer as soon as possible.
When the engine switch is turned to
the “ON” position, the light does not
come on or remains on for more than
about 6 seconds or flashes.
The light comes on or starts flashing
while driving.
The SRS warning light and “AIR BAG
OFF” indicator light will come on if there
is a malfunction in the front passenger oc-
cupant classification system.
(l) Low Windshield Washer Fluid Level Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” on page 273.) (m) Electric Power Steering System
Warning Light
The light comes on when the engine
switch is turned to the “ON” position. If
the electric power steering system warning
light works properly, the light turns off
after a few seconds. If the system has
malfunctions, the light comes on again.
If the following conditions occur, this
indicates a malfunction somewhere in
the components monitored by the warn-
ing light system. Contact your Scion
dealer as soon as possible to service
the vehicle.
The light does not come on when the
engine switch is turned to the “ON”
position or remains on.
The light stays on while you are driv-
ing.

121
CAUTION
If the electric power steering system
warning light comes on, take your ve-
hicle to your Scion dealer as soon as
possible. In this case, more effort is
required for the steering wheel to
turn than usual. Drive your vehicle
while firmly gripping the steering
wheel.
(n) Slip indicator Light
The light will come on when the engine
switch is turned to the “ON” position, and
will go off after a few seconds.
The light blinks while the vehicle stability
control system or traction control system
is operating.
The light will come on if the vehicle stabil-
ity control system or traction control sys-
tem malfunction during normal driving.
If the light comes on while you are driv-
ing, the vehicle stability control system
and/or traction control system do not
work. However, as conventional braking
operates when applied, there is no prob-
lem to continue your driving.
In the following cases, contact your Scion
dealer:
When the engine switch is turned to
the “ON” position, the light does not
come on or remains on.
The light comes on while you are driv-
ing.(o) Tire Pressure Warning Light
This light comes on when the engine
switch is turned to the “ON” position. If
the tire pressure warning system works
properly and tire inflation pressure is ap-
propriate, the light goes off after a few
seconds.
This light comes on or flashes in the fol-
lowing cases when the engine switch is
turned to the “ON” position.
When the low tire inflation pressure
is detected while driving...
If any tire has low inflation pressure,
the light comes on.
The light goes off after the tire inflation
pressure is adjusted to a specified lev-
el.
When initializing the system...
When ready to be initialized, the light
blinks three times.
When the system malfunctions...
If the system malfunctions, the light
comes on after blinking for 1 minute.
Although it is no problem to continue
driving, have your vehicle checked by
your Scion dealer as soon as possible.

122
(p) High Engine Coolant TemperatureWarning Light
The light operates to warn that the engine
is almost overheating.
The high engine coolant temperature warn-
ing light will come on when the engine
switch is turned to the “ON” position. After
a few seconds, the light will go off.
If your engine coolant temperature is low
with the engine switch on, the low engine
coolant temperature indicator light comes
on. If it keeps lighting on with the engine
fully warmed, contact your Scion dealer as
soon as possible to service the vehicle.
If the high engine coolant temperature
warning light flashes, your engine is too
hot. If your vehicle overheats, stop your
vehicle and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop −and− go traffic.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” on page 213.
(q) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the engine switch in the “ACC” or
“LOCK” position.
(r) Light Reminder Buzzer
This buzzer will sound if the headlight
switch is left on and the driver’s door is
opened with the key removed from the
engine switch. CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield wash-
er fluid level warning light)
1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the engine switch to the “ON” position, but do not start the engine.
All the service reminder indicators except
the open door warning light should come
on. The “ABS”, tire pressure warning light,
electric power steering system warning
light, “MAINT REQD” reminder light, high
engine coolant temperature warning light,
VSC OFF indicator light, “TRAC OFF” indi-
cator light and slip indicator light go off
after a few seconds. The SRS warning
light goes off after about 6 seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Scion
dealer as soon as possible.
