231
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)
ItemsParts and tools
Engine oil level
P. 238)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 275)• Fuse with same amperage rating
as original
Light bulbs (P. 286)
• Bulb with same number and watt-
age rating as original
• Flathead screwdriver
Radiator and condenser (P. 245)
Tire inflation pressure ( P. 261)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 250)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

232 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions:
■When working on the engine compartment
● Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
■ When working near the electric c ooling fans or radiator grille
Be sure the engine switch is off.
With the ignition on, the electric cooling fans may automatically start to run if
the air conditioning is on and/or the coolant temperature is high. ( P. 245)
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

233
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)

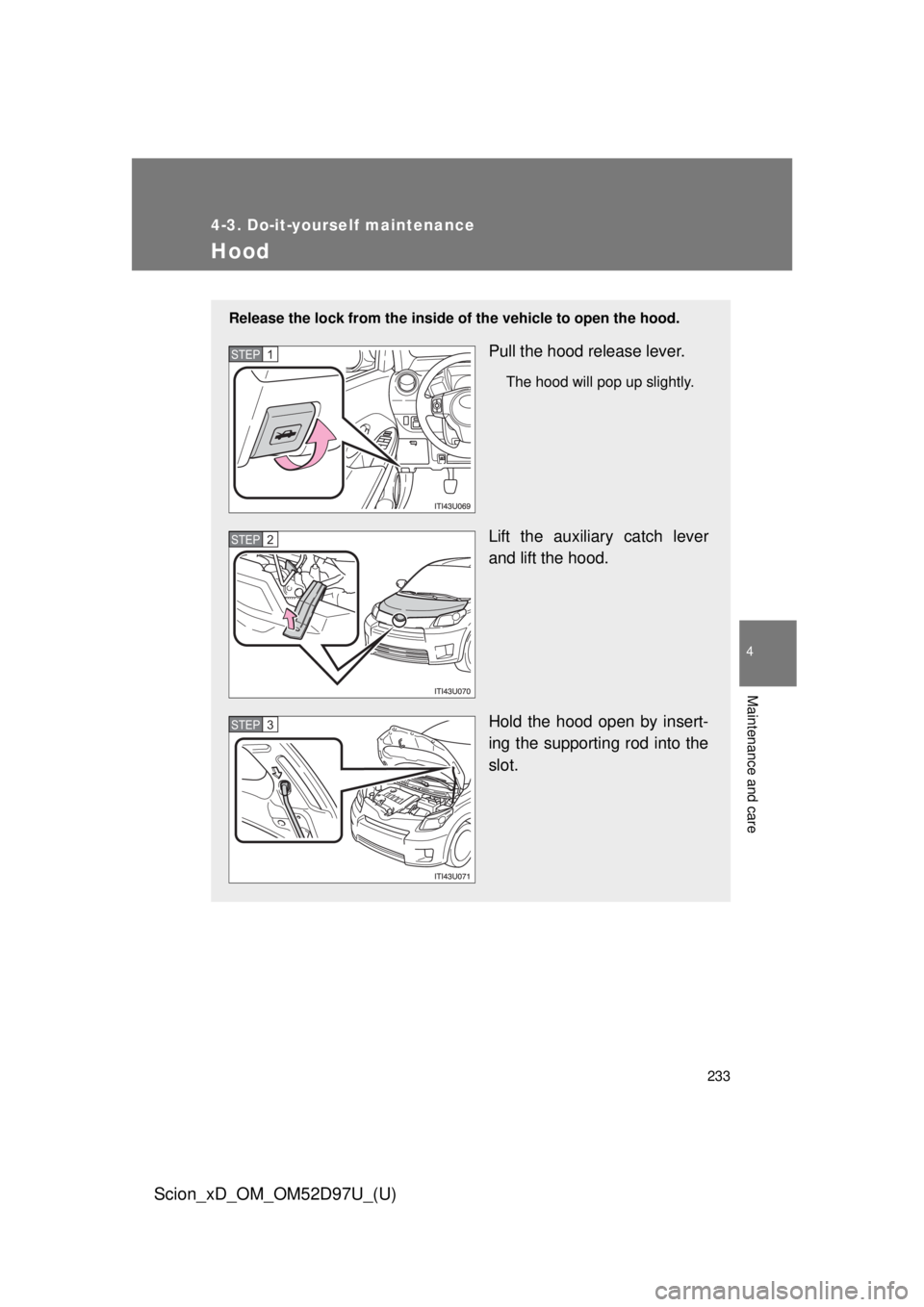

Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Lift the auxiliary catch lever
and lift the hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.
STEP 1
STEP 2
STEP 3

234 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

235
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)

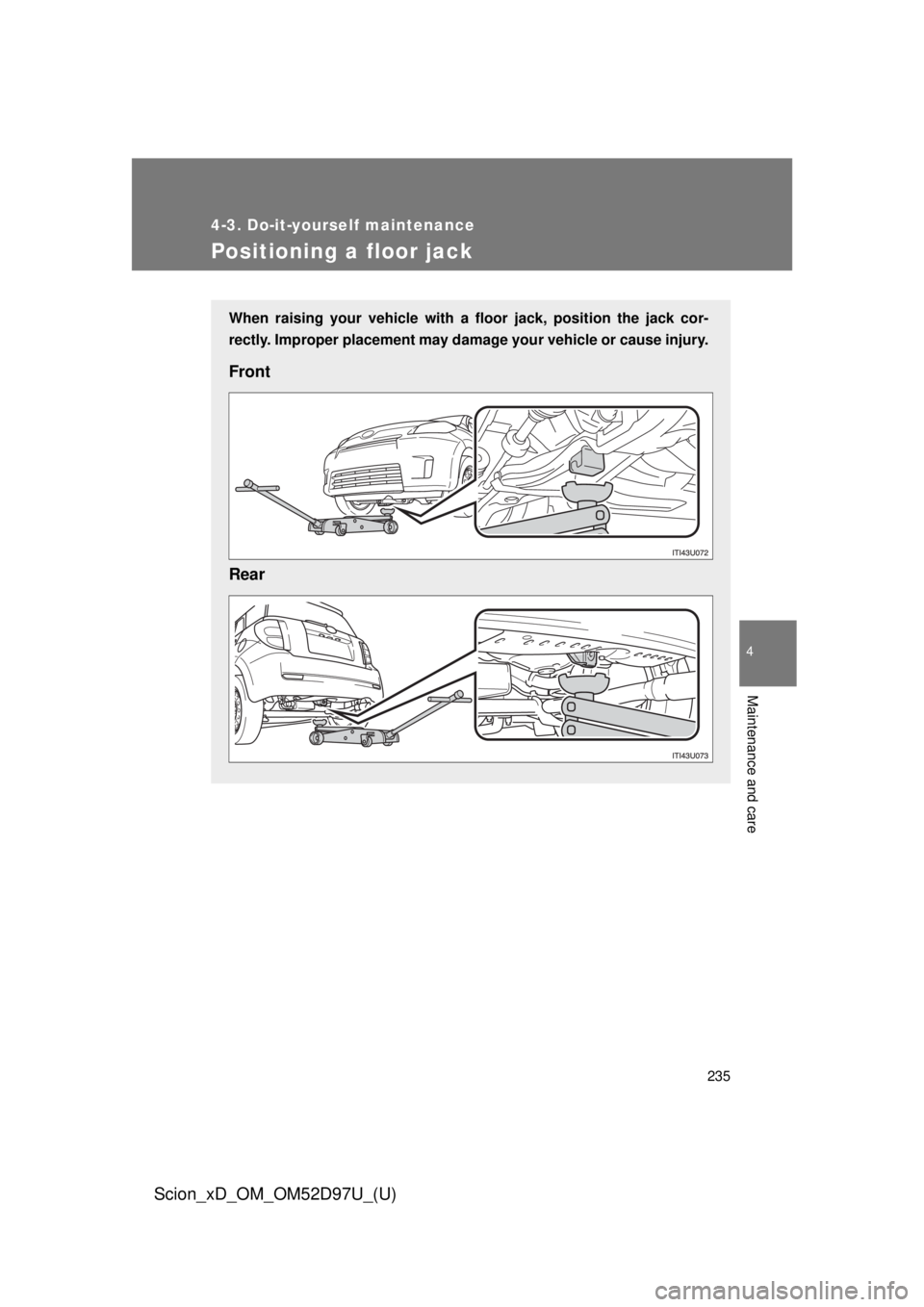

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
Rear

236 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)

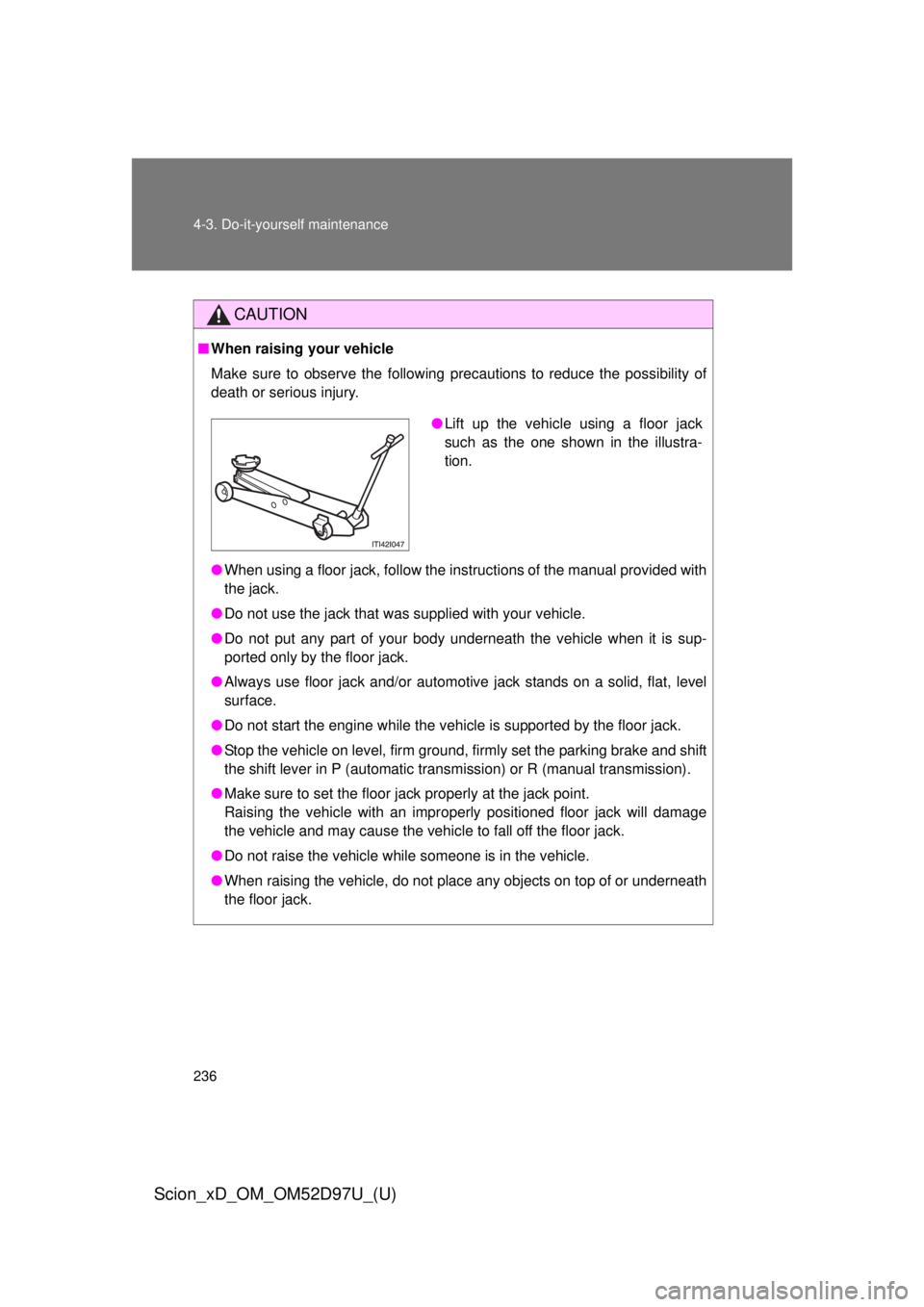

CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury.
● When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
● Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level, firm ground, firmly set the parking brake and shift
the shift lever in P (automatic transmission) or R (manual transmission).
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

237
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)

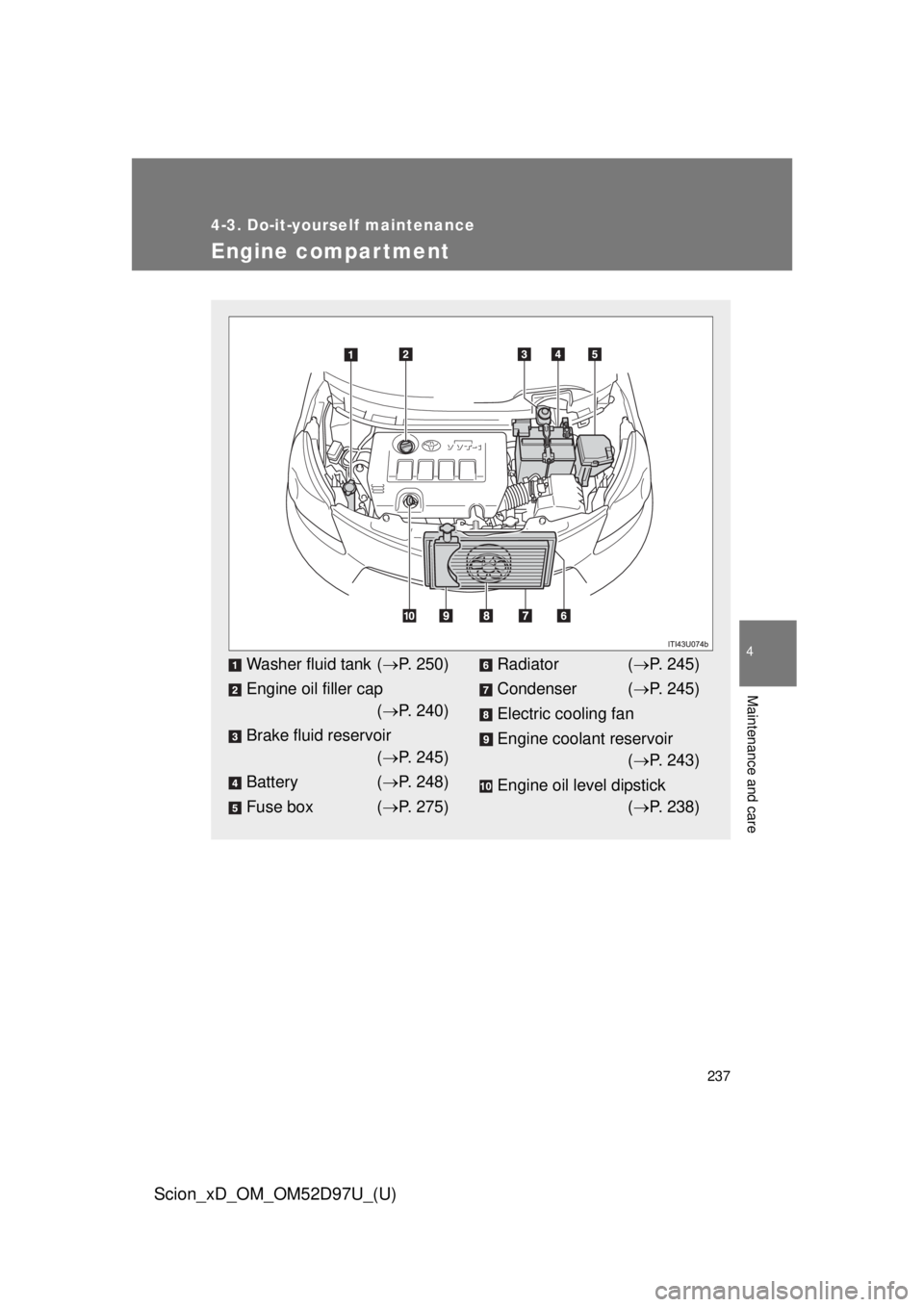

Engine compar tment
Washer fluid tank (P. 250)
Engine oil filler cap ( P. 240)
Brake fluid reservoir ( P. 245)
Battery ( P. 248)
Fuse box ( P. 275)Radiator ( P. 245)
Condenser ( P. 245)
Electric cooling fan
Engine coolant reservoir ( P. 243)
Engine oil level dipstick ( P. 238)

238 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)

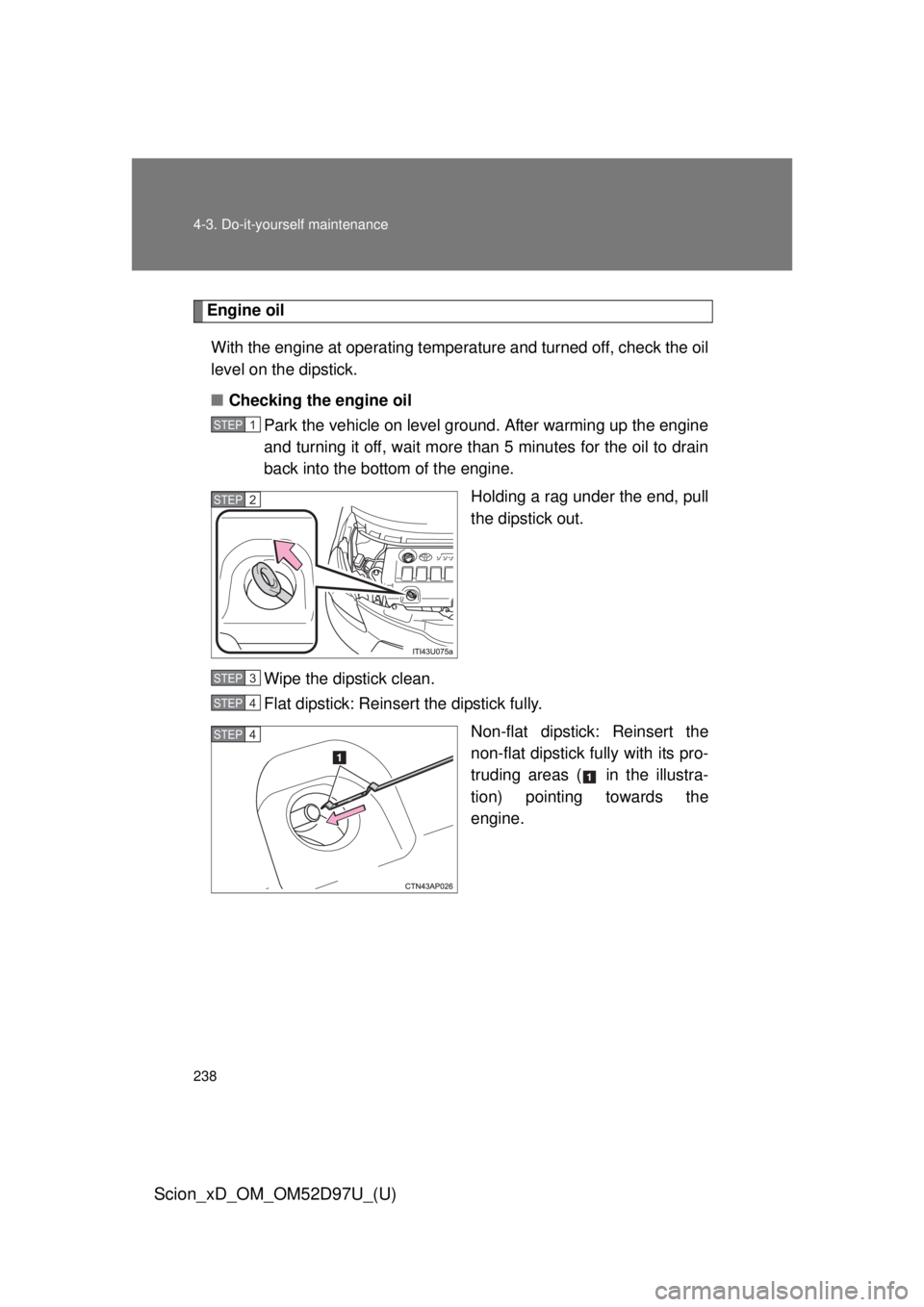

Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Flat dipstick: Reinsert the dipstick fully. Non-flat dipstick: Reinsert the
non-flat dipstick fully with its pro-
truding areas ( in the illustra-
tion) pointing towards the
engine.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 4

239
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)

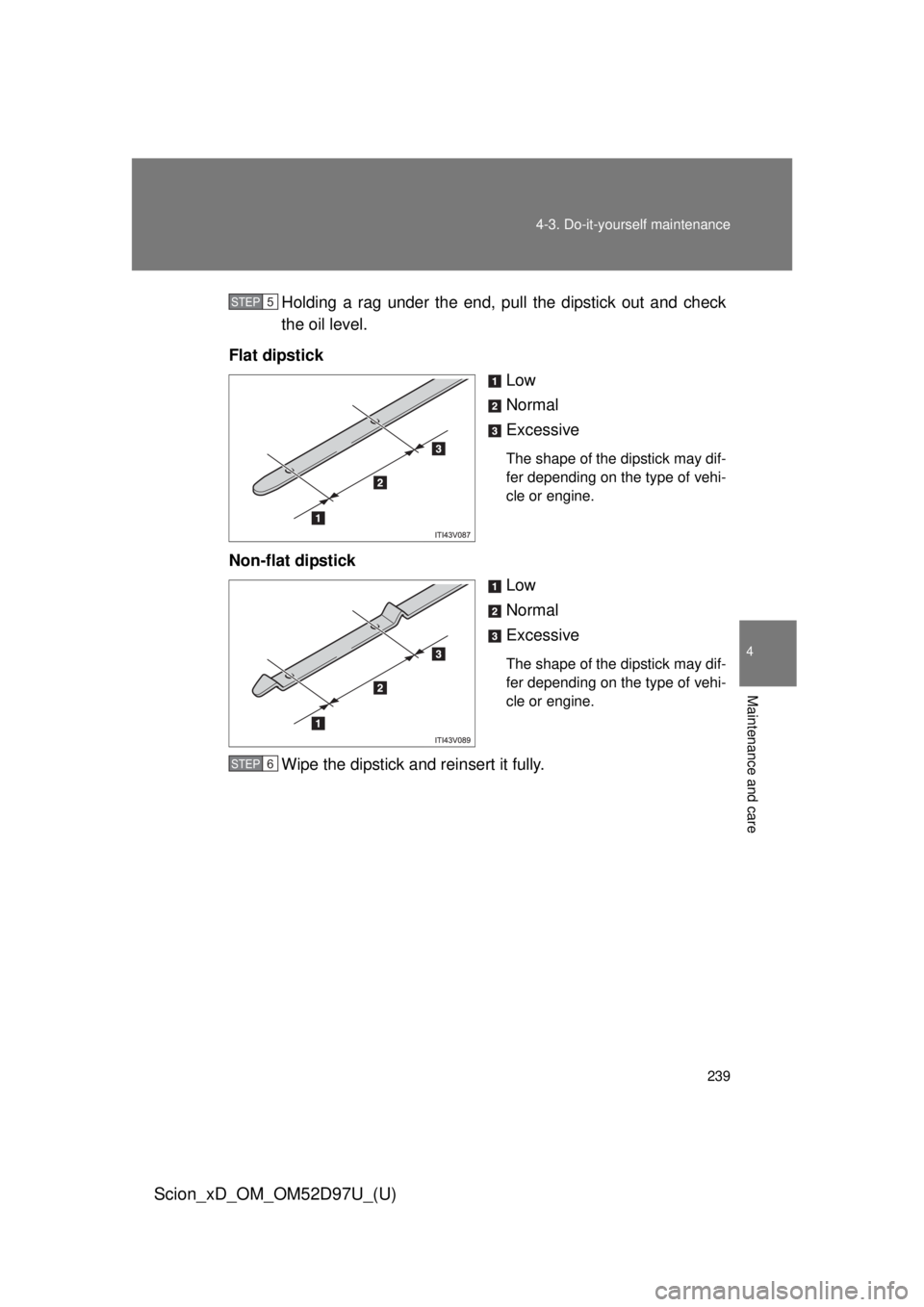

Holding a rag under the end, pull the dipstick out and check
the oil level.
Flat dipstick Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Non-flat dipstickLow
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
STEP 5
STEP 6

240 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)
■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection P. 3 5 5
Oil quantity
(Low  Full) 1.6 qt. (1.5 L, 1.3 Imp. qt.)
Items Clean funnel
STEP 1
STEP 2
STEP 3
