Wireless remote control batter y
Replace the battery with a new one if it is depleted.
■You will need the following items:
●Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2016 (type A) or CR1620 (type B)
■ Replacing the battery
Ty p e A Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
Remove the module.
STEP 1
STEP 2

272 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)
Remove the battery cover and
the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP 3

273
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)

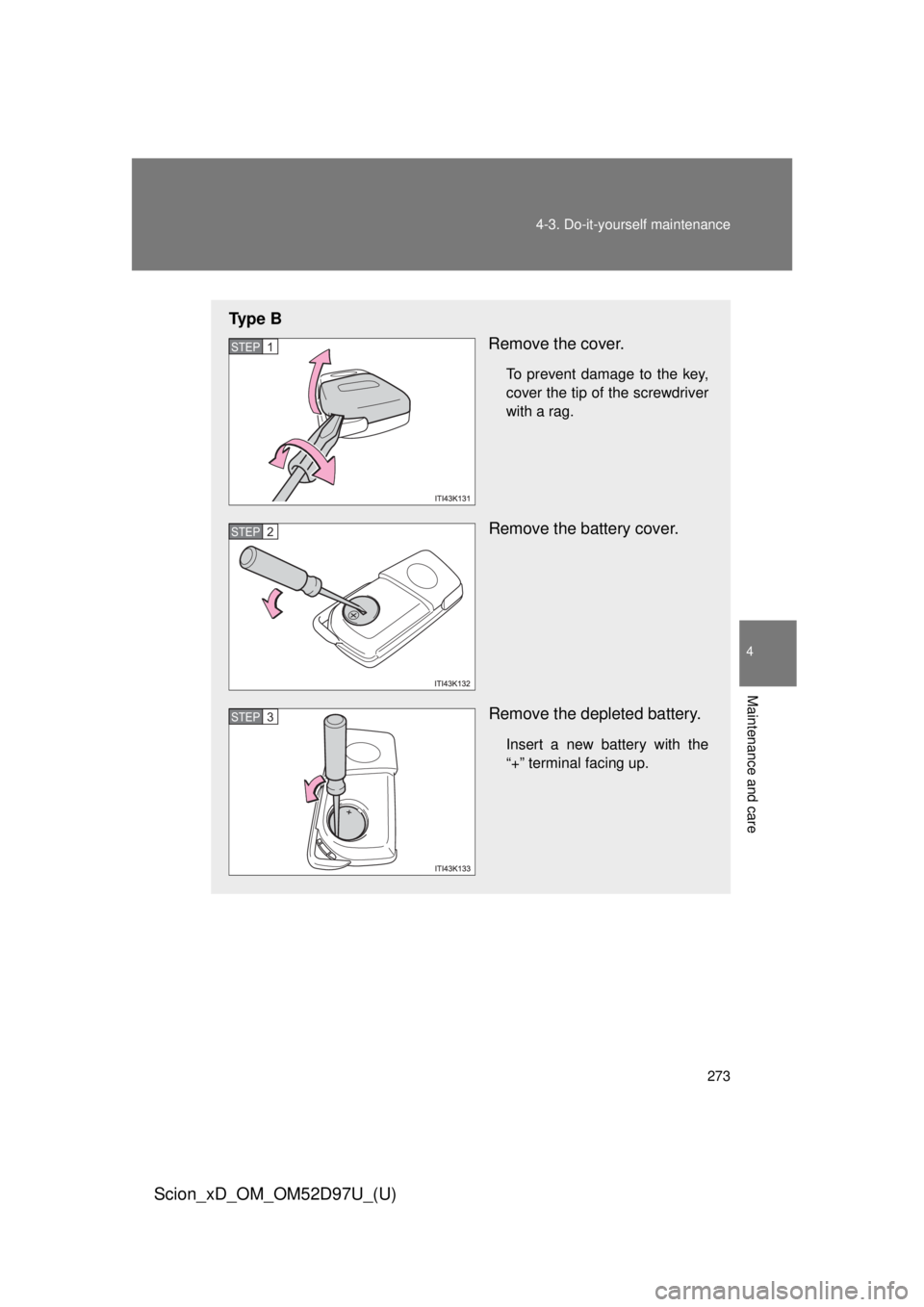

Ty p e B
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver
with a rag.
Remove the battery cover.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP 1
STEP 2
STEP 3

274 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)
■Use a CR2016 (type A) or CR1620 (type B) lithium battery
● Batteries can be purchased at your Scion dealer, local electrical appli-
ance shops or camera stores.
● Replace only with the same or equivalent type recommended by the
manufacturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The wireless remote control will not function properly.
● The operational range will be reduced.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

275
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)

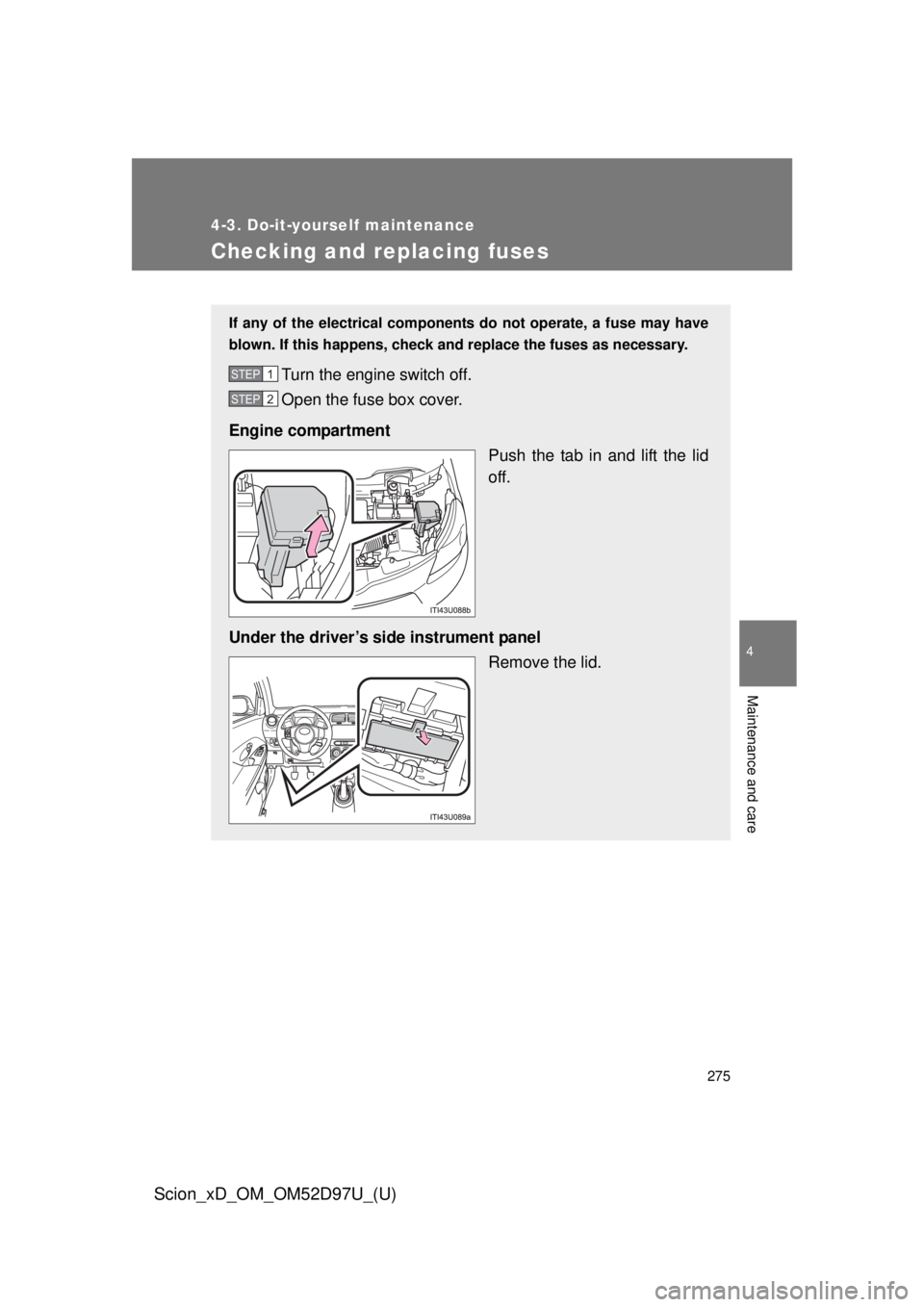

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch off.
Open the fuse box cover.
Engine compartment Push the tab in and lift the lid
off.
Under the driver’s side instrument panel Remove the lid.STEP 1
STEP 2

276 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)

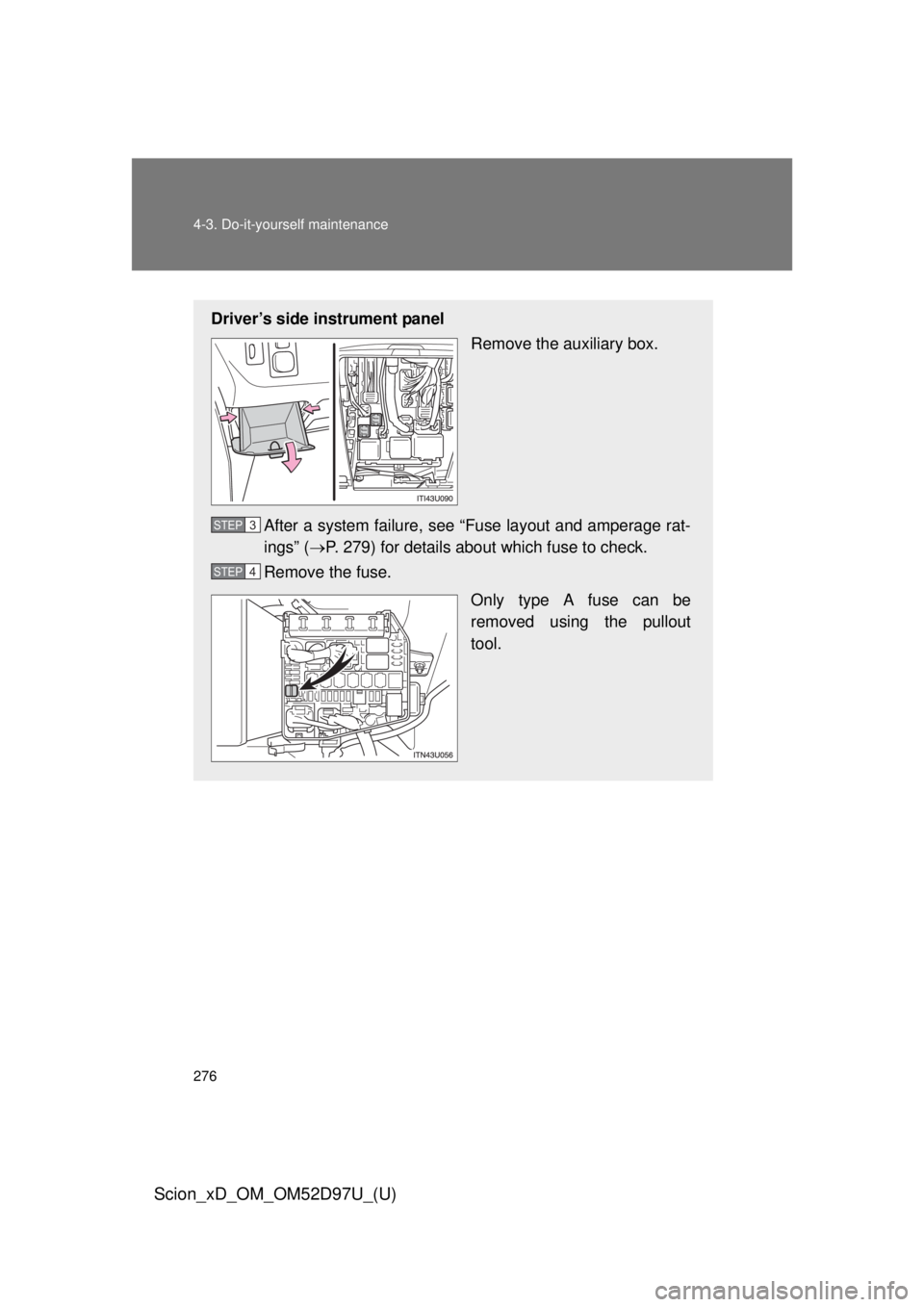

Driver’s side instrument panelRemove the auxiliary box.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 279) for details about which fuse to check.
Remove the fuse.
Only type A fuse can be
removed using the pullout
tool.
STEP 3
STEP 4

277
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)

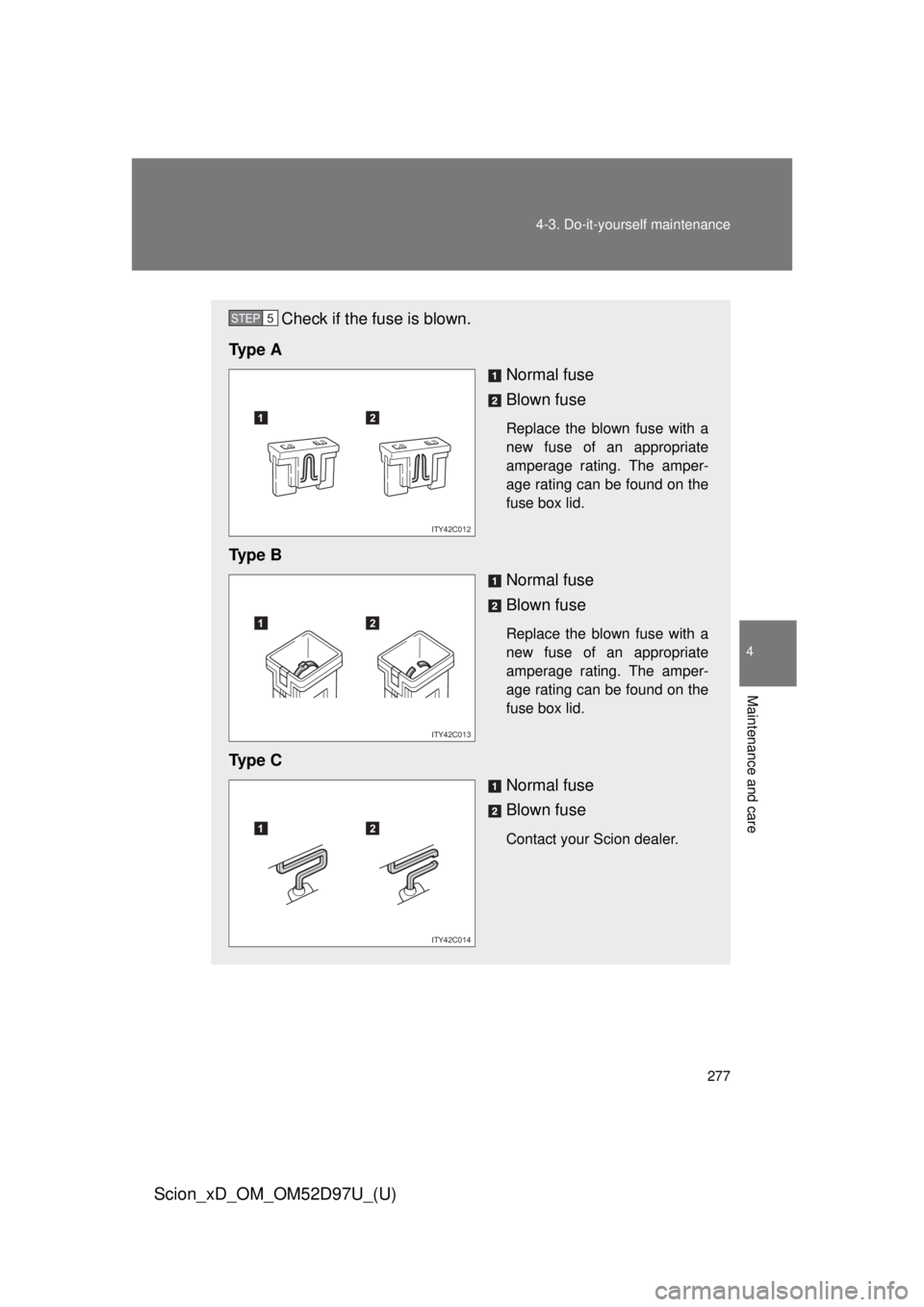

Check if the fuse is blown.
Ty p e A Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Scion dealer.
STEP 5
12
ITY42C012
12
ITY42C013
12
ITY42C014

278 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)

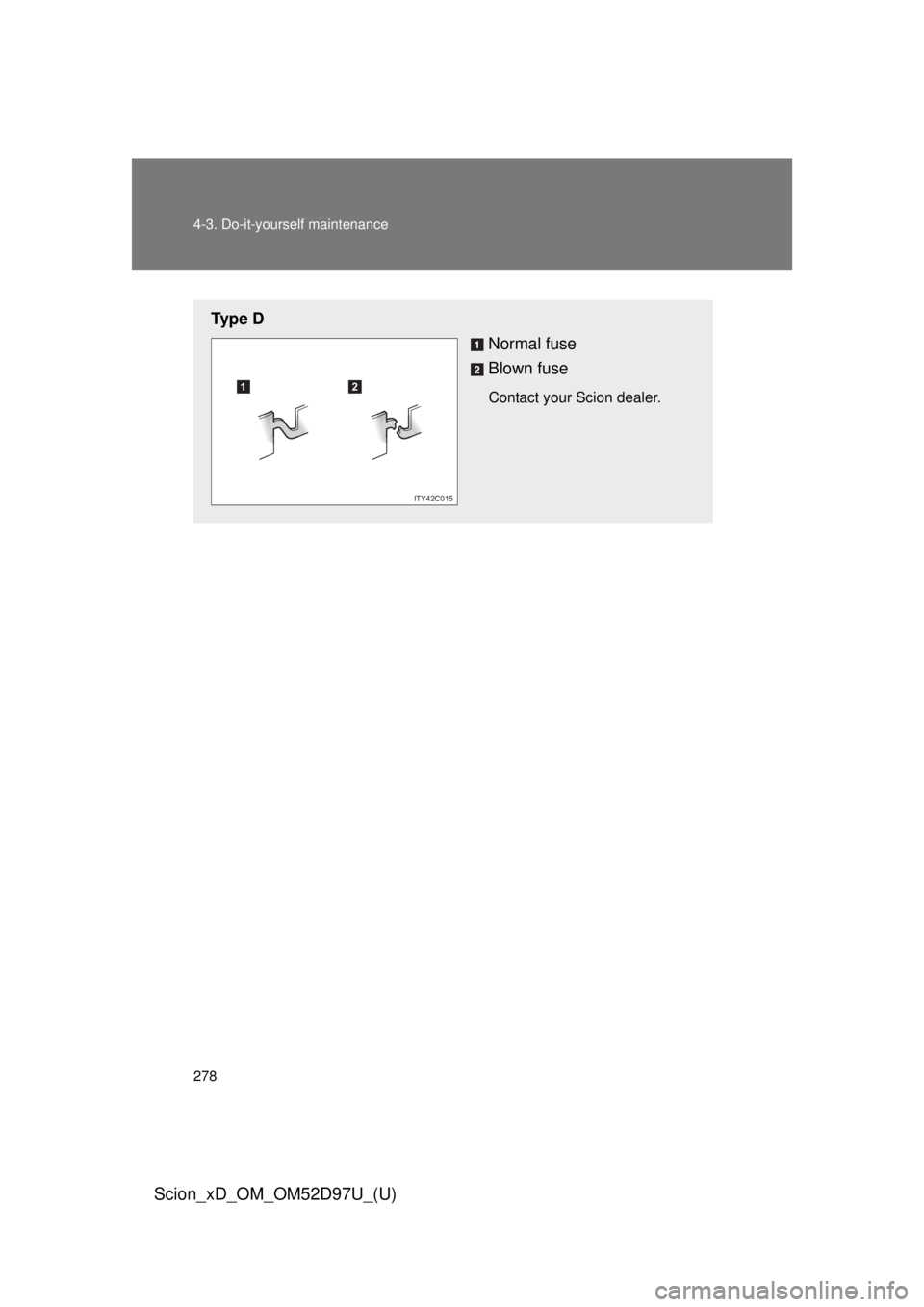

Ty p e DNormal fuse
Blown fuse
Contact your Scion dealer.12
ITY42C015

279
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xD_OM_OM52D97U_(U)

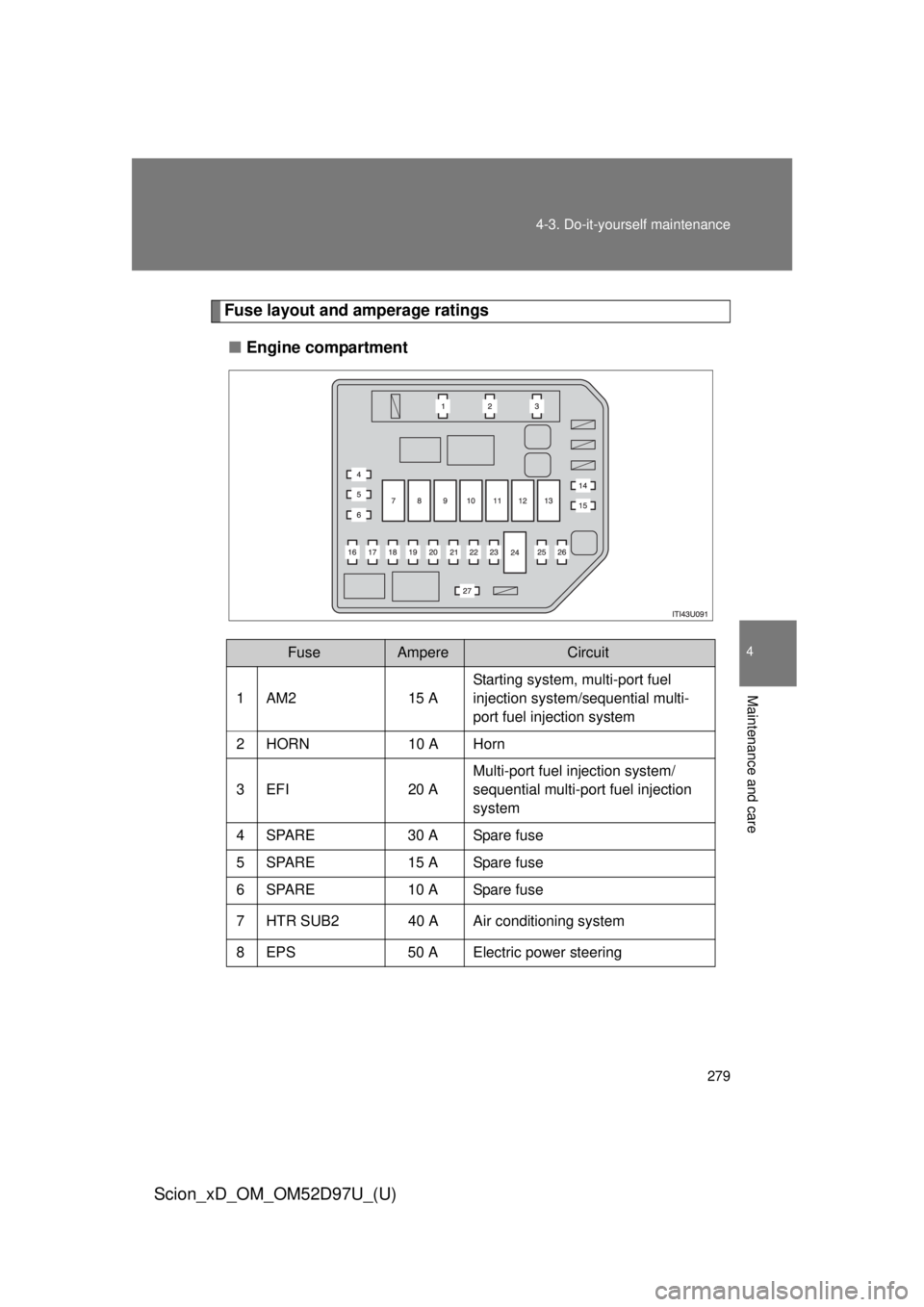

Fuse layout and amperage ratings
■ Engine compartment
FuseAmpereCircuit
1AM215 A Starting system, multi-port fuel
injection system/sequential multi-
port fuel injection system
2HORN10 A Horn
3EFI20 AMulti-port fuel injection system/
sequential multi-port fuel injection
system
4 SPARE 30 A Spare fuse
5 SPARE 15 A Spare fuse
6 SPARE 10 A Spare fuse
7 HTR SUB2 40 A Air conditioning system
8 EPS 50 A Electric power steering

280 4-3. Do-it-yourself maintenance
Scion_xD_OM_OM52D97U_(U)
FuseAmpereCircuit
9 ABS1/VSC1 50 A ABS, VSC
10 HTR 40 A Air conditioning system 11 RDI 30 A Electric cooling fan
12HTR SUB130 A Air conditioning system
13 H-LP CLN/PWR
HTR 30 A Air conditioning system
14 FR DEF 20 A No circuit
15 ABS2/VSC2 30 A ABS, VSC
16 H-LP MAIN 30 A No circuit
17 ST 30 A Starting system
18 S-LOCK 20 A No circuit
19 DOME 15 A Interior light, personal lights, lug-
gage compartment light
20 ECU-B 7.5 A SRS airbag system, power win-
dows, gauges and meters, air con-
ditioning system
21ALT-S7.5 A Charging system
22 ETCS 10 A Multi-port fuel injection system/
sequential multi-port fuel injection
system
