TOYOTA xD 2013 (in English) Owner's Guide

31
1
1-2. Opening, closing and locking the doors
Before driving
Scion_xD_OM_OM52D97U_(U)

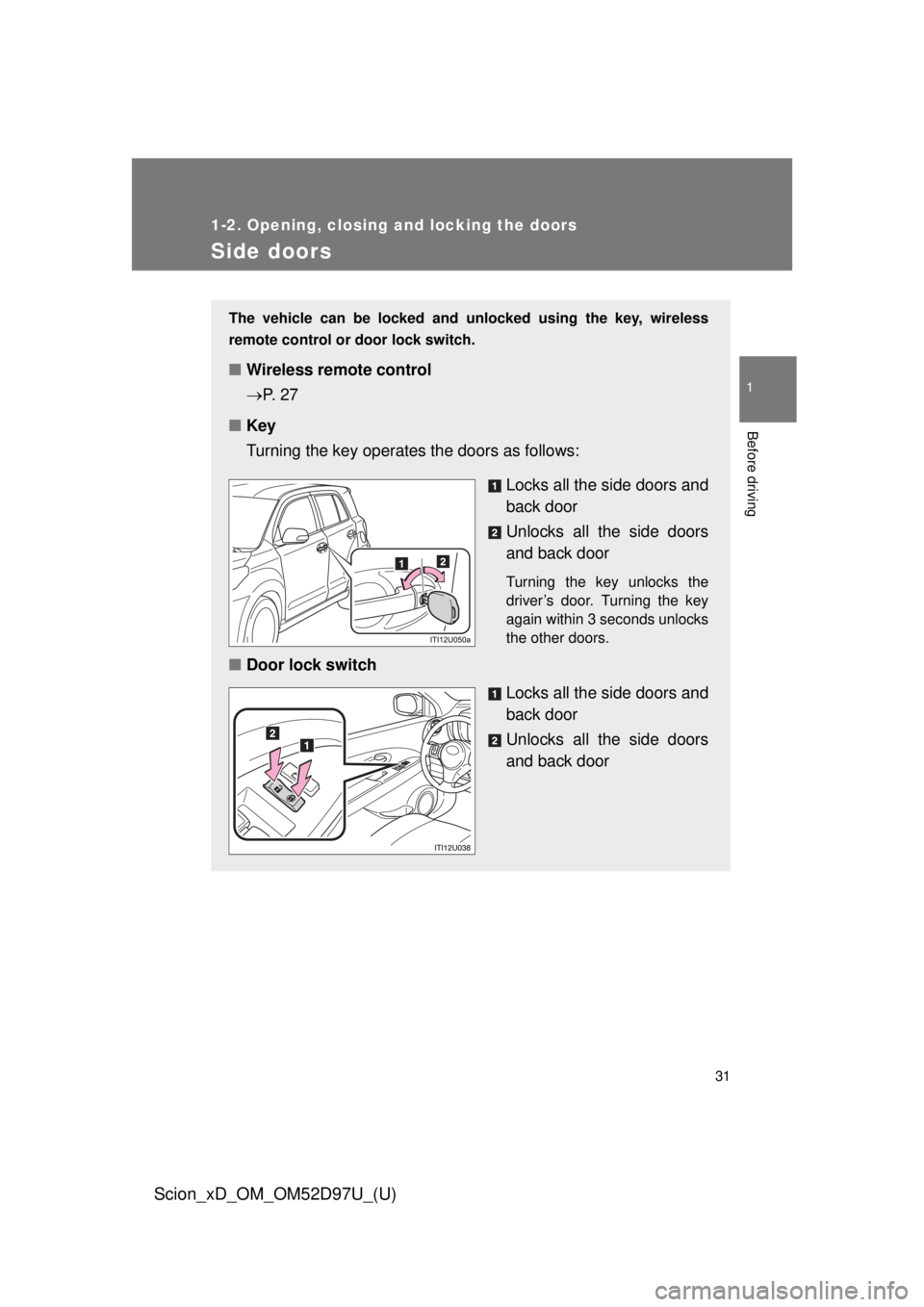

Side doors
The vehicle can be locked and unlocked using the key, wireless
remote control or door lock switch.
■Wireless remote control
P. 2 7
■ Key
Turning the key operates the doors as follows:
Locks all the side doors and
back door
Unlocks all the side doors
and back door
Turning the key unlocks the
driver’s door. Turning the key
again within 3 seconds unlocks
the other doors.
■Door lock switch
Locks all the side doors and
back door
Unlocks all the side doors
and back door

32 1-2. Opening, closing and locking the doors
Scion_xD_OM_OM52D97U_(U)
Locking the front doors from the outside without a keyMove the inside lock button to the lock position.
Close the door.
The door cannot be locked if the key is in the engine switch.
■ Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
STEP 1
STEP 2

33
1-2. Opening, closing and locking the doors
1
Before driving
Scion_xD_OM_OM52D97U_(U)
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock
is set. Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.

34 1-2. Opening, closing and locking the doors
Scion_xD_OM_OM52D97U_(U)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock all the doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seat.

35
1
1-2. Opening, closing and locking the doors
Before driving
Scion_xD_OM_OM52D97U_(U)

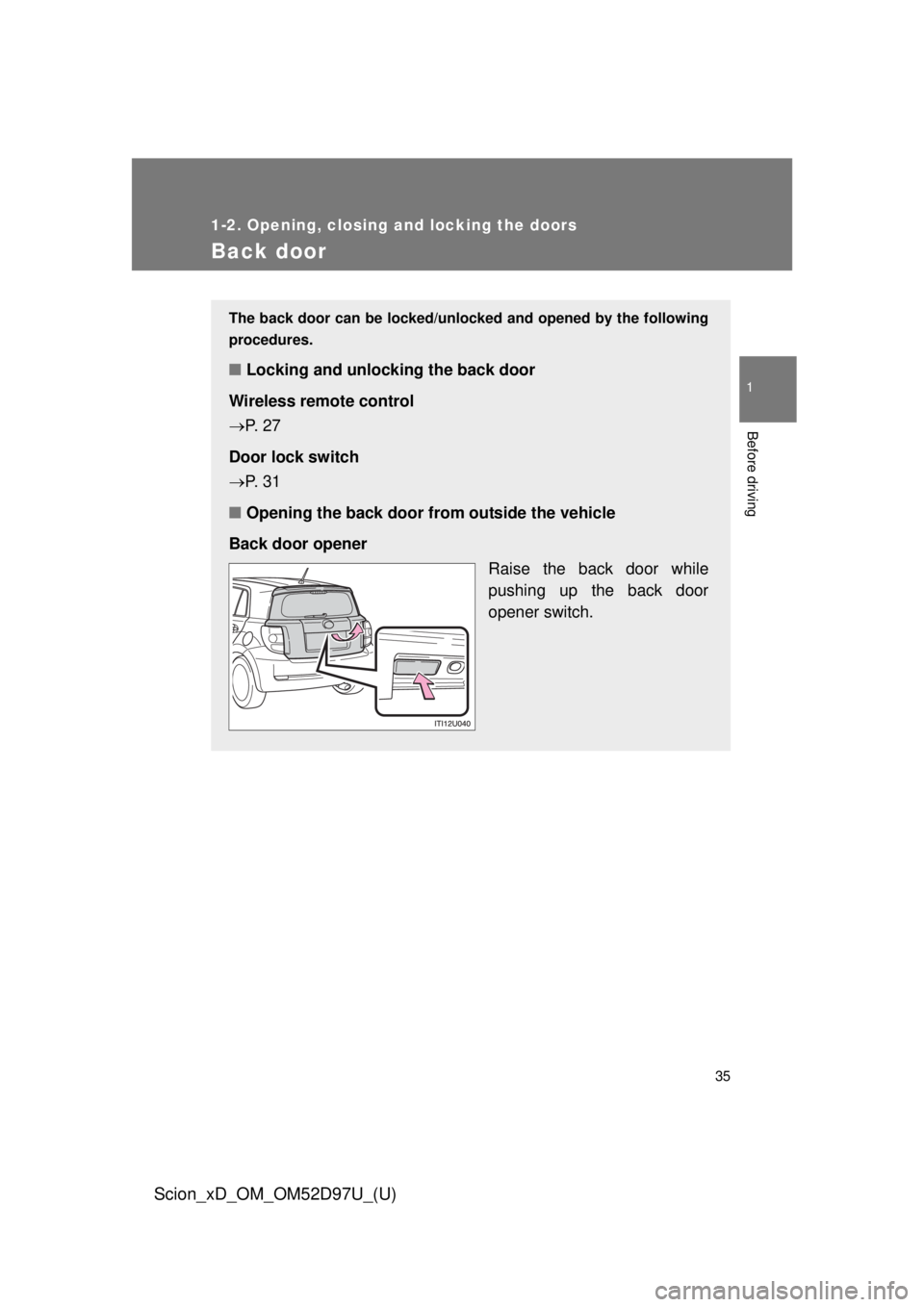

Back door
The back door can be locked/unlocked and opened by the following
procedures.
■ Locking and unlocking the back door
Wireless remote control
 P. 2 7
Door lock switch
 P. 3 1
■ Opening the back door from outside the vehicle
Back door opener Raise the back door while
pushing up the back door
opener switch.

36 1-2. Opening, closing and locking the doors
Scion_xD_OM_OM52D97U_(U)
■Luggage compartment light
The luggage compartment light turns on when the back door is opened.
■ When closing the back door
■ If the back door opener is inoperat ive or the battery is discharged
 P. 337
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.

37
1-2. Opening, closing and locking the doors
1
Before driving
Scion_xD_OM_OM52D97U_(U)
CAUTION
■
Caution while driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or an accident, they are susceptible to death or
serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not leave children alone in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

38 1-2. Opening, closing and locking the doors
Scion_xD_OM_OM52D97U_(U)
CAUTION
■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
●The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.

39
1-2. Opening, closing and locking the doors
1
Before driving
Scion_xD_OM_OM52D97U_(U)
CAUTION
●
Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Scion part is recommended.
NOTICE
■Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Scion parts to the back
door.
● Do not place your hand on the damper
stay or apply lateral forces to it.
Damper stays

40
Scion_xD_OM_OM52D97U_(U)
1-3. Adjustable components (seats, mirrors, steering wheel)

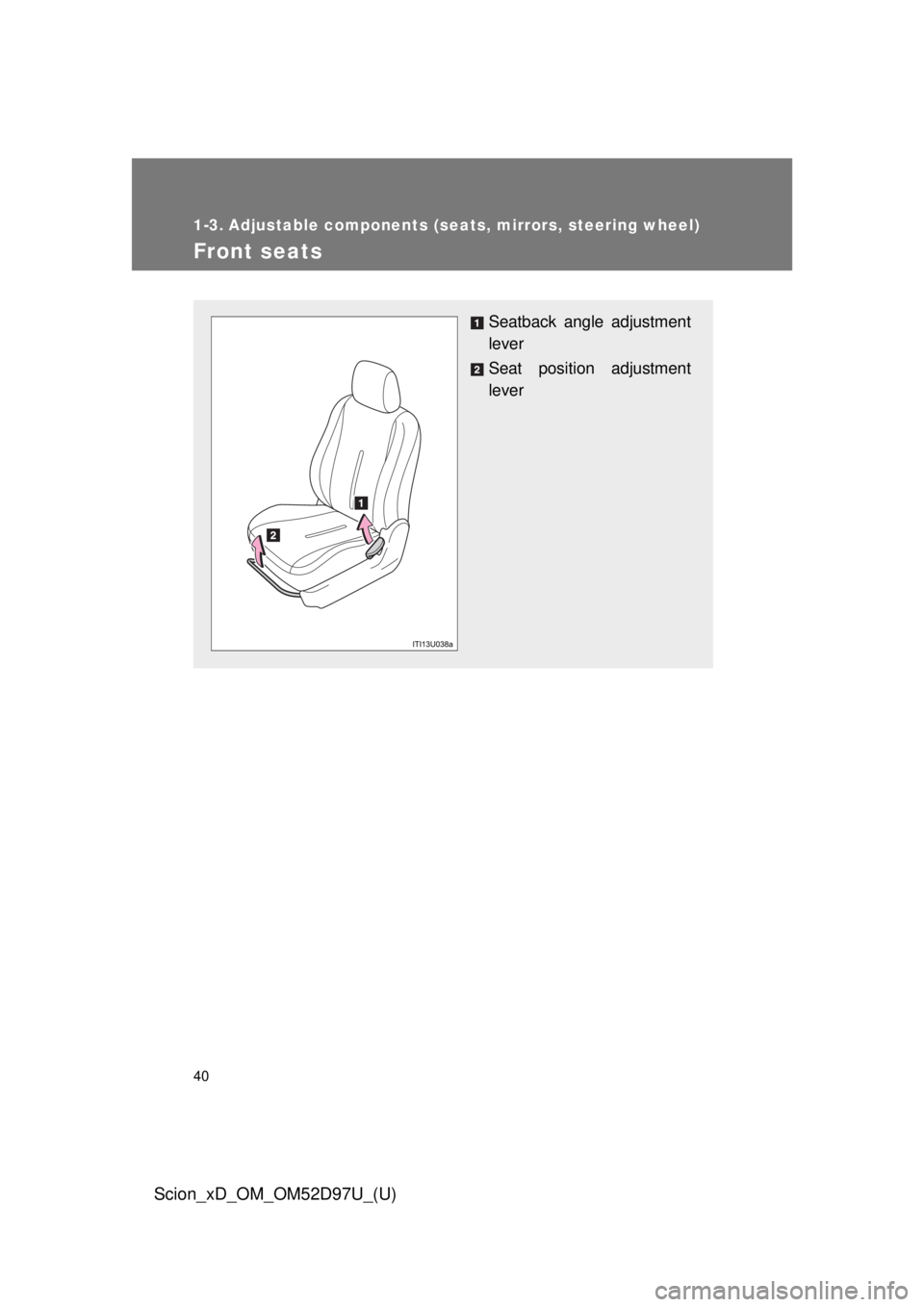

Front seats
Seatback angle adjustment
lever
Seat position adjustment
lever
