1-6. Theft deterrent system
1
Before driving
Scion_xD_OM_OM52D97U_(U)
CAUTION
■
Certifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

72
1-6. Theft deterrent system
Scion_xD_OM_OM52D97U_(U)

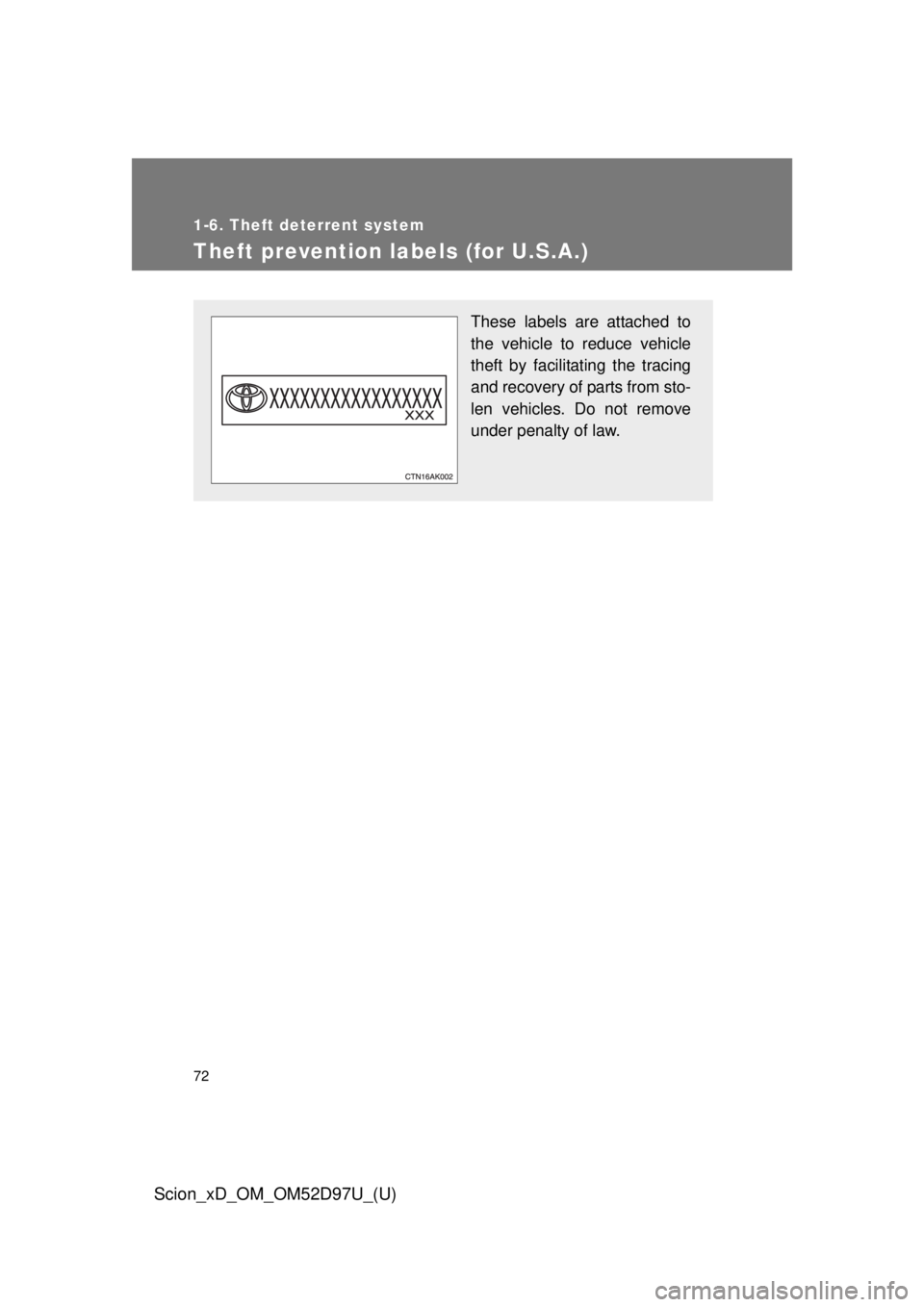

Theft prevention labels (for U.S.A.)
These labels are attached to
the vehicle to reduce vehicle
theft by facilitating the tracing
and recovery of parts from sto-
len vehicles. Do not remove
under penalty of law.

73
1
Before driving
Scion_xD_OM_OM52D97U_(U)
1-7. Safety information
Correct driving posture

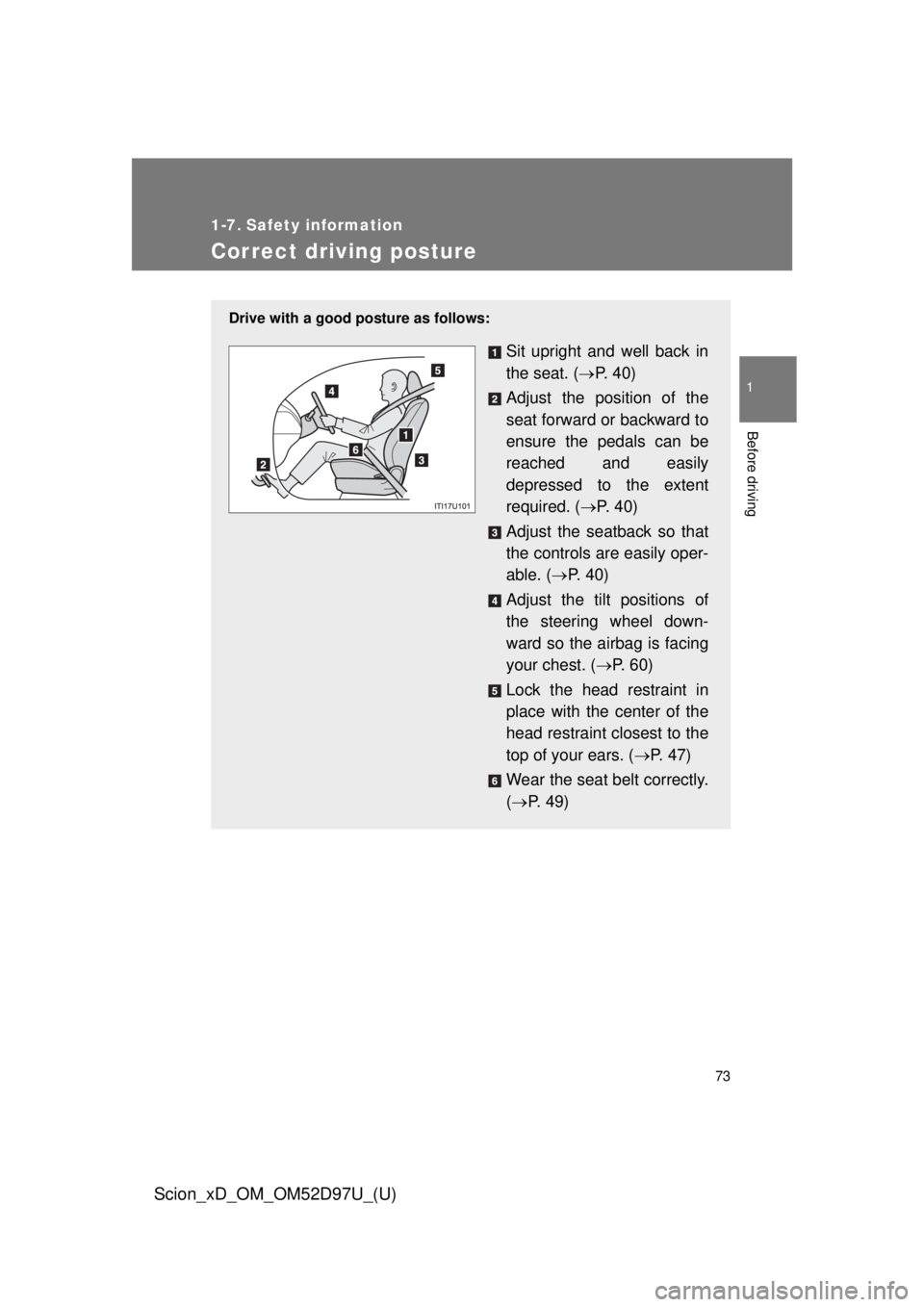

Drive with a good posture as follows:
Sit upright and well back in
the seat. (P. 4 0 )
Adjust the position of the
seat forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. ( P. 40)
Adjust the seatback so that
the controls are easily oper-
able. ( P. 40)
Adjust the tilt positions of
the steering wheel down-
ward so the airbag is facing
your chest. ( P. 6 0 )
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( P. 47)
Wear the seat belt correctly.
(  P. 49)

74 1-7. Safety information
Scion_xD_OM_OM52D97U_(U)
CAUTION
■While driving
● Do not adjust the position of the driver’s seat.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent, resulting in death or serious injury. The adjustment mechanism may
also be damaged.
■ Adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

75
1
1-7. Safety information
Before driving
Scion_xD_OM_OM52D97U_(U)

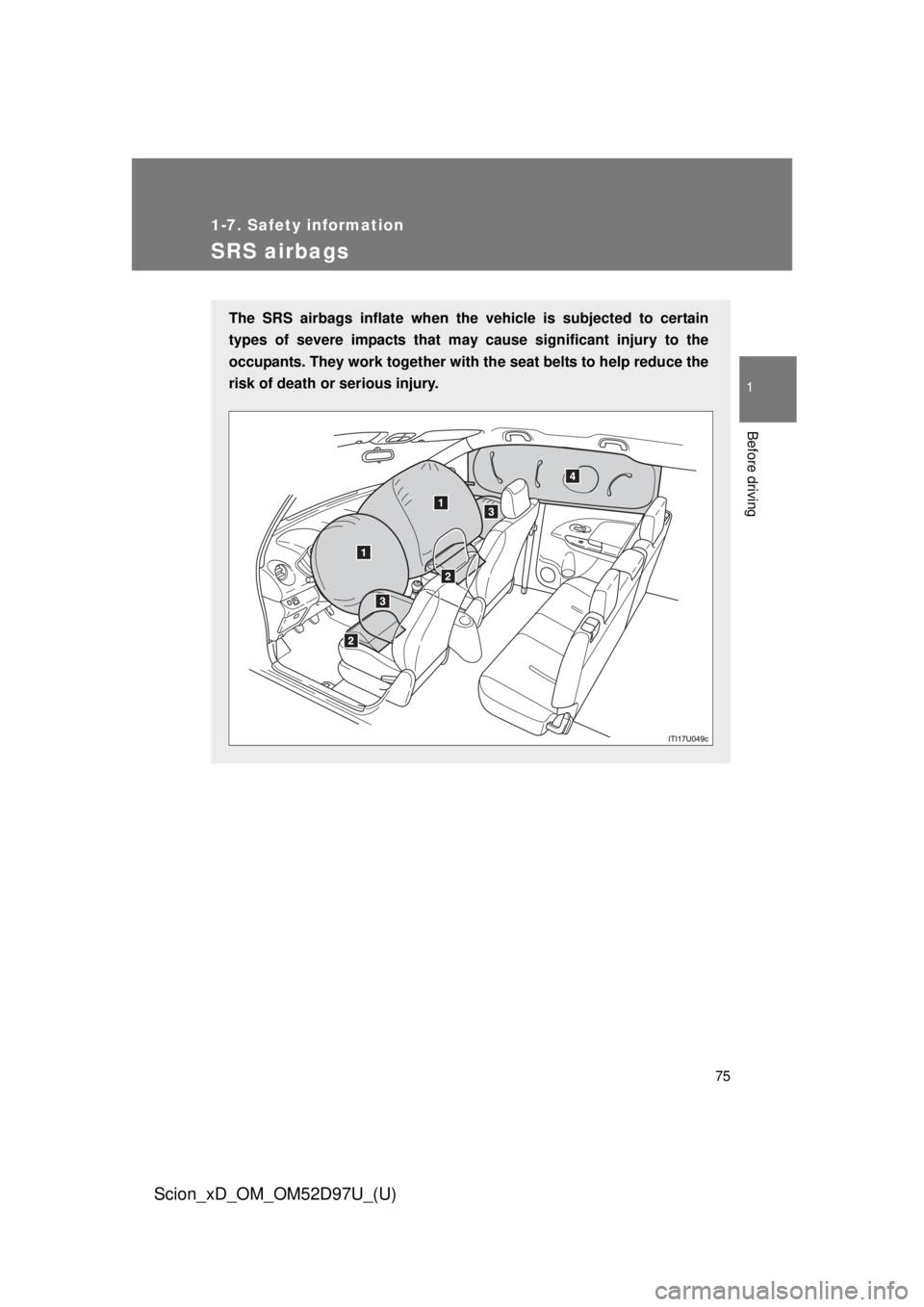

SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce the
risk of death or serious injury.

76 1-7. Safety information
Scion_xD_OM_OM52D97U_(U)

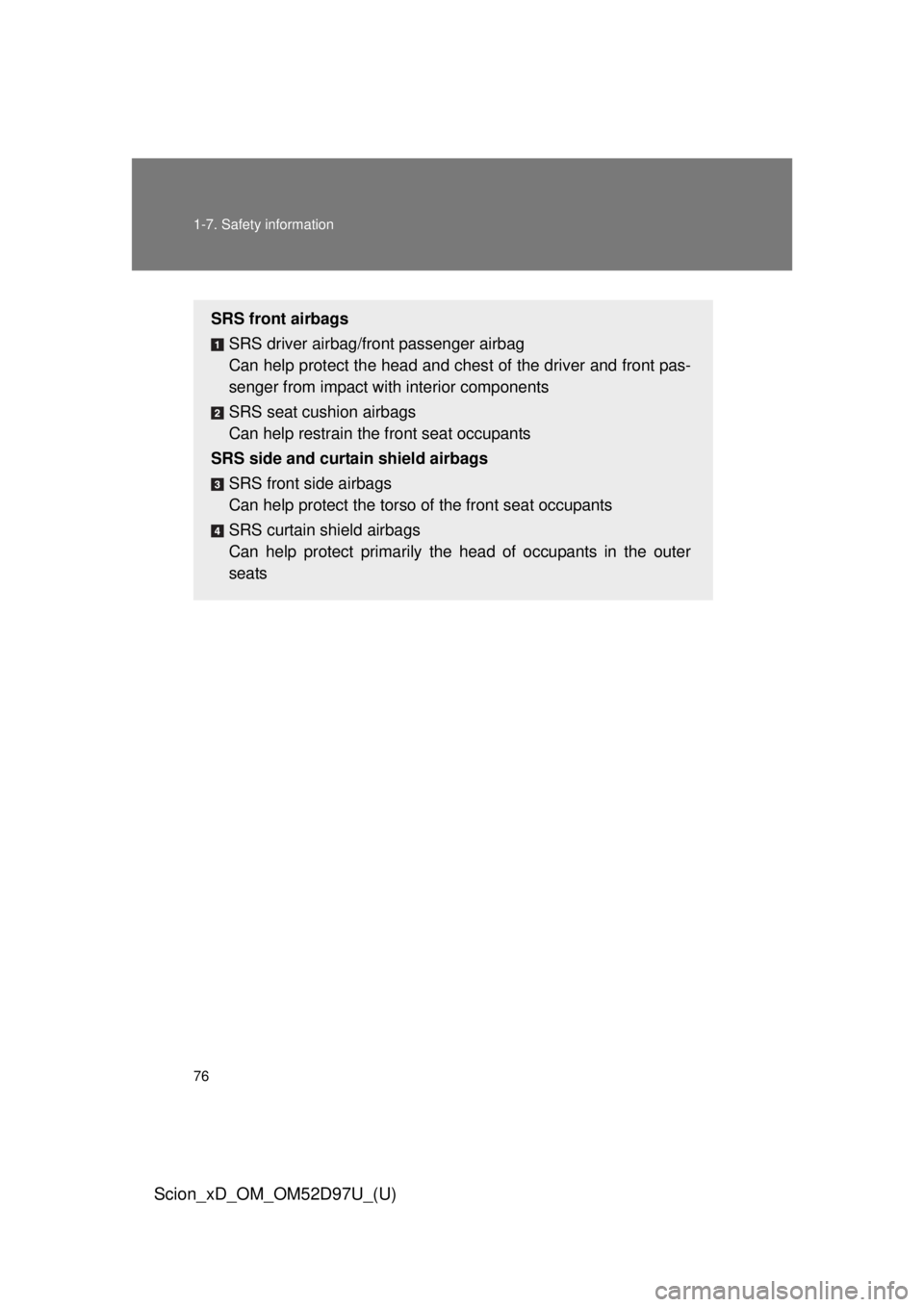

SRS front airbagsSRS driver airbag/front passenger airbag
Can help protect the head and ches t of the driver and front pas-
senger from impact with interior components
SRS seat cushion airbags
Can help restrain the front seat occupants
SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
Can help protect primarily the head of occupants in the outer
seats

77
1-7. Safety information
1
Before driving
Scion_xD_OM_OM52D97U_(U)

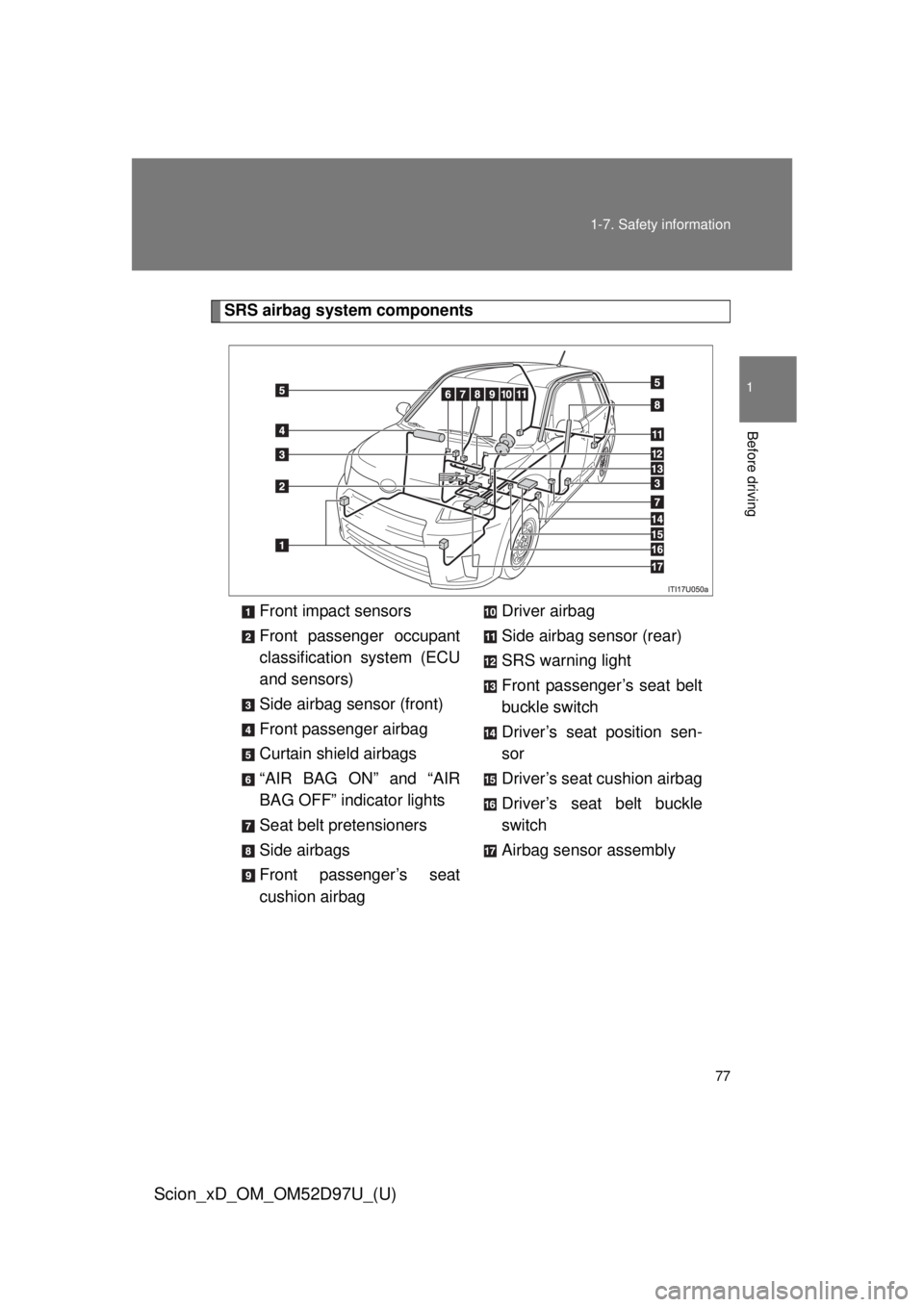

SRS airbag system components
Front impact sensors
Front passenger occupant
classification system (ECU
and sensors)
Side airbag sensor (front)
Front passenger airbag
Curtain shield airbags
“AIR BAG ON” and “AIR
BAG OFF” indicator lights
Seat belt pretensioners
Side airbags
Front passenger’s seat
cushion airbag Driver airbag
Side airbag sensor (rear)
SRS warning light
Front passenger’s seat belt
buckle switch
Driver’s seat position sen-
sor
Driver’s seat cushion airbag
Driver’s seat belt buckle
switch
Airbag sensor assembly

78 1-7. Safety information
Scion_xD_OM_OM52D97U_(U)
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag
sensor assembly (ECU) controls ai rbag deployment based on infor-
mation obtained from the sensors etc. shown in the system compo-
nents diagram above. This inform ation includes crash severity and
occupant information. As the air bags deploy, a chemical reaction in
the inflators quickly fills the airbag s with non-toxic gas to help restrain
the motion of the occupants.
■ If the SRS airbags deploy (inflate)
● Bruising and slight abrasions may result from contact with a deploying
(inflating) SRS airbag.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator)
as well as the front seats, parts of the front and rear pillars, and roof side
rails, may be hot for several minutes. The airbag itself may also be hot.
● The windshield may crack.

79
1-7. Safety information
1
Before driving
Scion_xD_OM_OM52D97U_(U)
■
SRS airbag deployment conditions (SRS front airbags)
● The SRS front airbags will deploy in the event of an impact that exceeds
the set threshold level (the level of force corresponding to an approxi-
mately 12 - 18 mph [20 - 30 km/h] frontal collision with a fixed wall that
does not move or deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the front of the vehicle “underrides”, or goes under the bed of a
truck
● Depending on the type of collision, it is possible that only the seat belt
pretensioners will activate.
● The SRS front airbags for the front passenger will not activate if there is
no passenger sitting in the front passenger seat. However, the SRS front
airbags for the front passenger may deploy if luggage is put on the seat,
even if the seat is unoccupied. ( P. 89)
● The SRS seat cushion airbags on the front seats will not operate if the
occupant is not wearing a seat belt.
■ SRS airbag deployment conditions (S RS side and curtain shield air-
bags)
The SRS side and curtain shield airbags will deploy in the event of an impact
that exceeds the set threshold level (the level of force corresponding to the
impact force produced by an approximately 3300 lb. [1500 kg] vehicle collid-
ing with the vehicle cabin from a direction perpendicular to the vehicle orien-
tation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).

80 1-7. Safety information
Scion_xD_OM_OM52D97U_(U)
■Conditions under which the SRS airbags may deploy (inflate), other
than a collision
The SRS front airbags may also deploy if a serious impact occurs to the
underside of your vehicle. Some examples are shown in the illustration.
■ Types of collisions that may not de ploy the SRS airbags (SRS front air-
bags)
The SRS front airbags do not generally inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or if it is involved in a low-speed frontal
collision. But, whenever a collision of any type causes sufficient forward
deceleration of the vehicle, deployment of the SRS front airbags may occur.

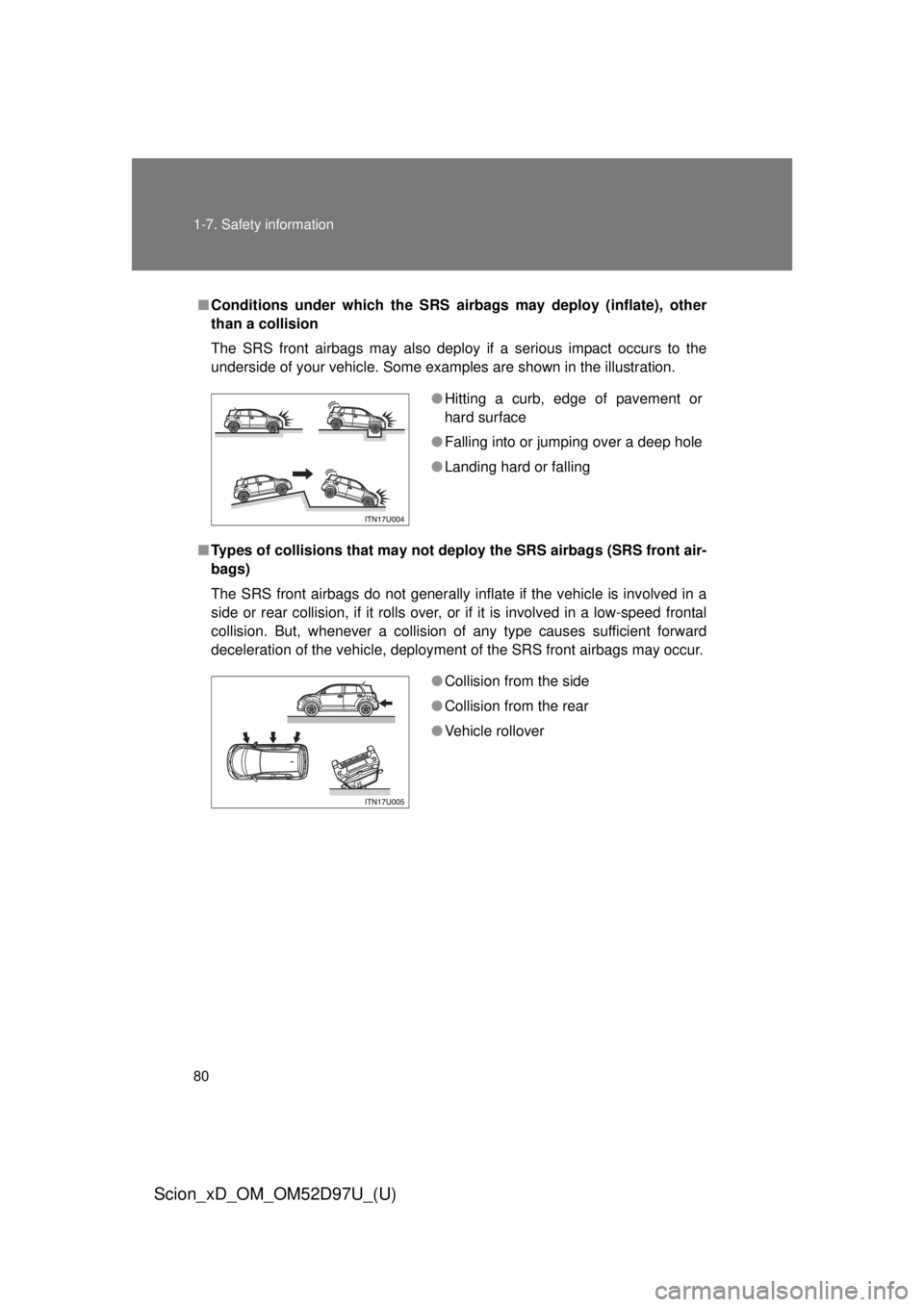

● Hitting a curb, edge of pavement or
hard surface
● Falling into or jumping over a deep hole
● Landing hard or falling
●Collision from the side
● Collision from the rear
● Vehicle rollover
