TOYOTA xD 2014 Owners Manual (in English)

131
2-1. Driving procedures
2
When driving
Scion_xD_OM_OM52E36U_(U)
■

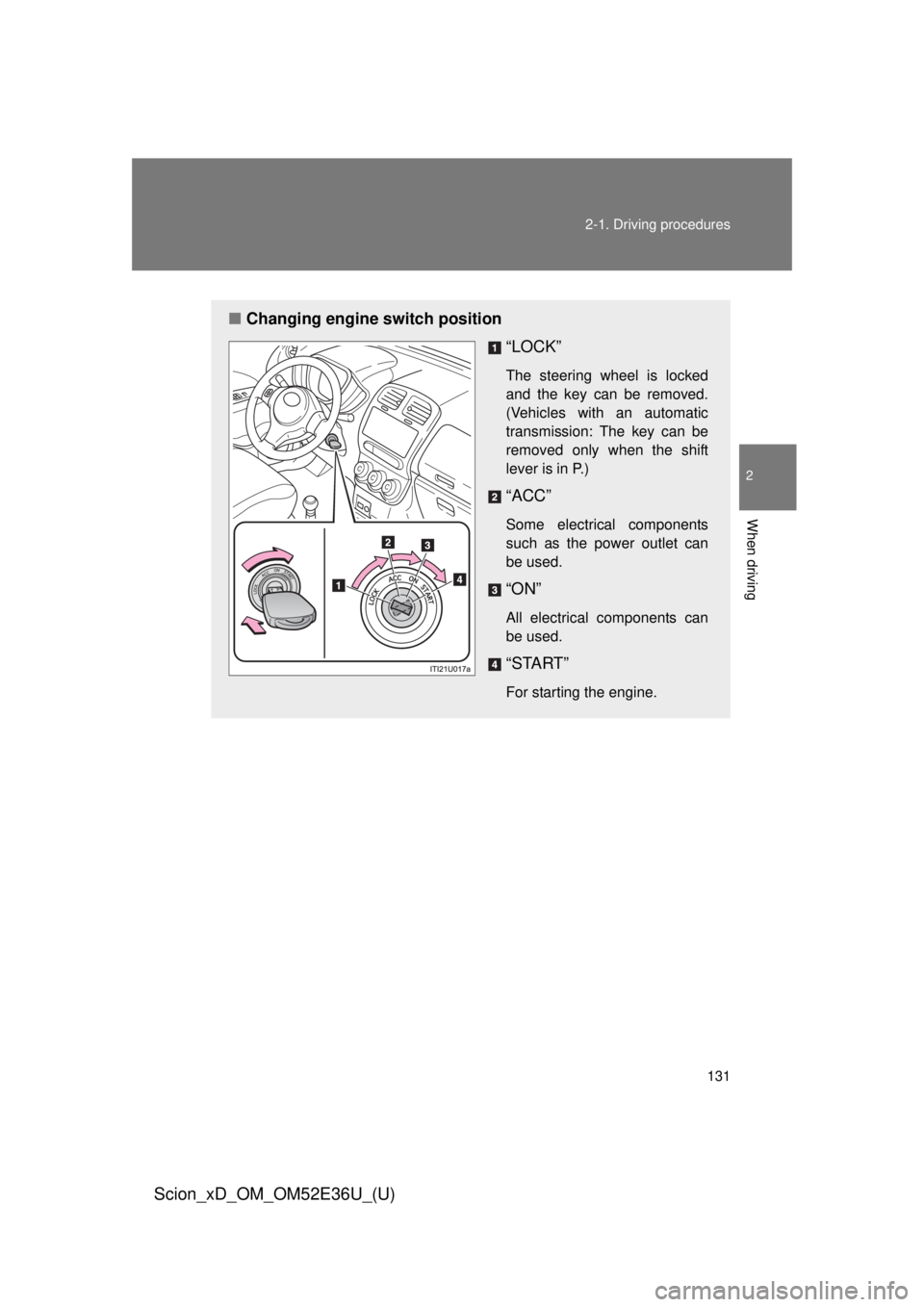

Changing engine switch position
“LOCK”
The steering wheel is locked
and the key can be removed.
(Vehicles with an automatic
transmission: The key can be
removed only when the shift
lever is in P.)
“ACC”
Some electrical components
such as the power outlet can
be used.
“ON”
All electrical components can
be used.
“START”
For starting the engine.

132 2-1. Driving procedures
Scion_xD_OM_OM52E36U_(U)
■Turning the key from “ACC” to “LOCK”
Shift the shift lever to P (automatic transmission) or N (manual
transmission). ( P. 134, 137)
■ If the engine does not start
The engine immobilizer system may not have been deactivated. ( P. 69)
■ When the steering lock cannot be released
■ Key reminder buzzer
A buzzer sounds if the driver’s door is opened while the engine switch is in
the “LOCK” or “ACC” position to remind you to remove the key.
STEP 1
Push in the key and turn it to the “LOCK”
position.STEP 2
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly left and
right.

133
2-1. Driving procedures
2
When driving
Scion_xD_OM_OM52E36U_(U)
CAUTION
■
When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution when driving
Do not turn the engine switch to the “LOCK” position while driving. If, in an
emergency, you must turn the engine off while the vehicle is moving, turn the
engine switch only to the “ACC” position to stop the engine. An accident may
result if the engine is stopped while driving.
NOTICE
■To prevent battery discharge
Do not leave the engine switch in the “ACC” or “ON” position for long periods
of time without the engine running.
■ When starting the engine
●Do not crank the engine for more than 30 seconds at a time. This may
overheat the starter and wiring system.
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

134
2-1. Driving procedures
Scion_xD_OM_OM52E36U_(U)

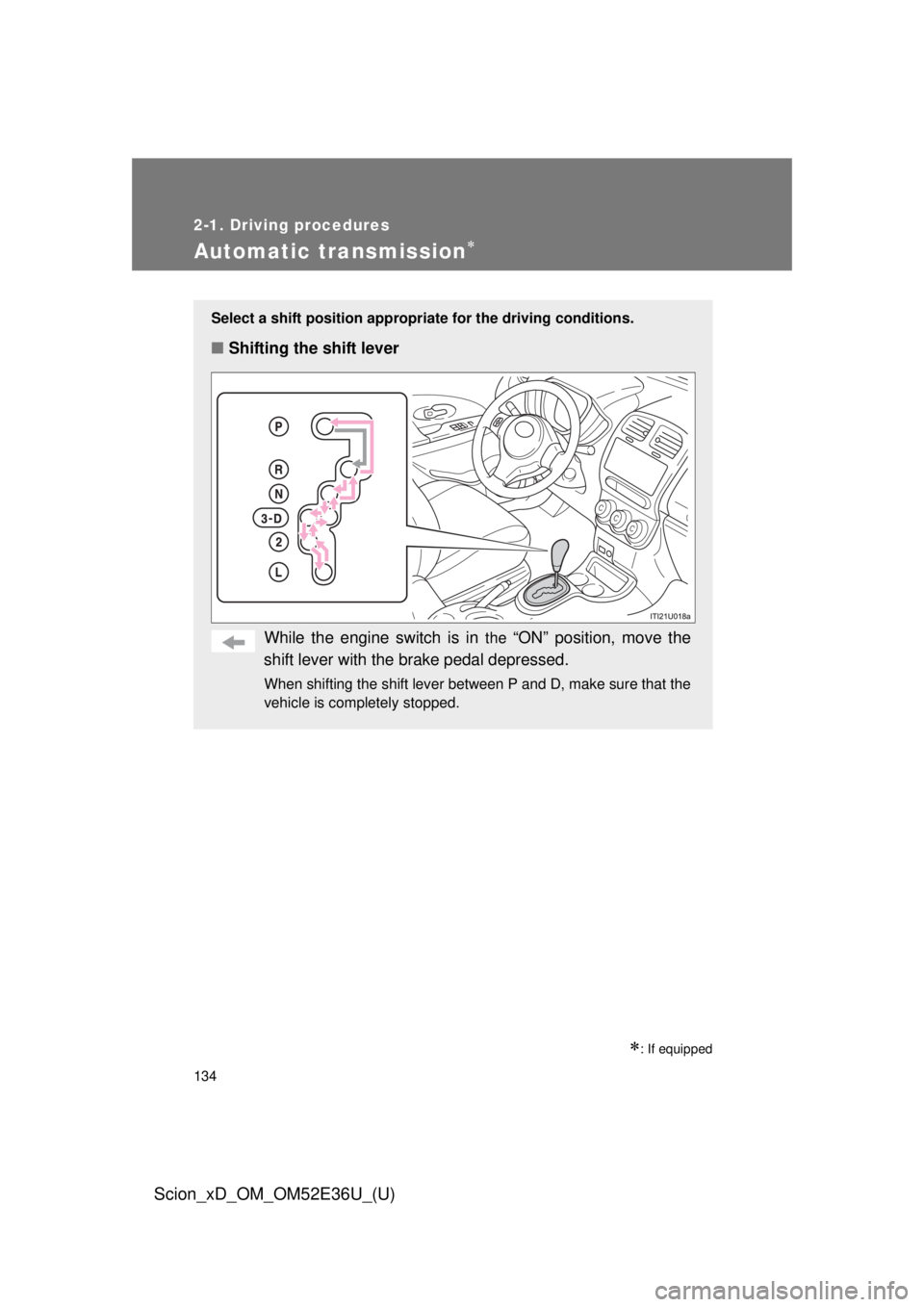

Automatic transmission
: If equipped
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
While the engine switch is in
the “ON” position, move the
shift lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.

135
2-1. Driving procedures
2
When driving
Scion_xD_OM_OM52E36U_(U)
■

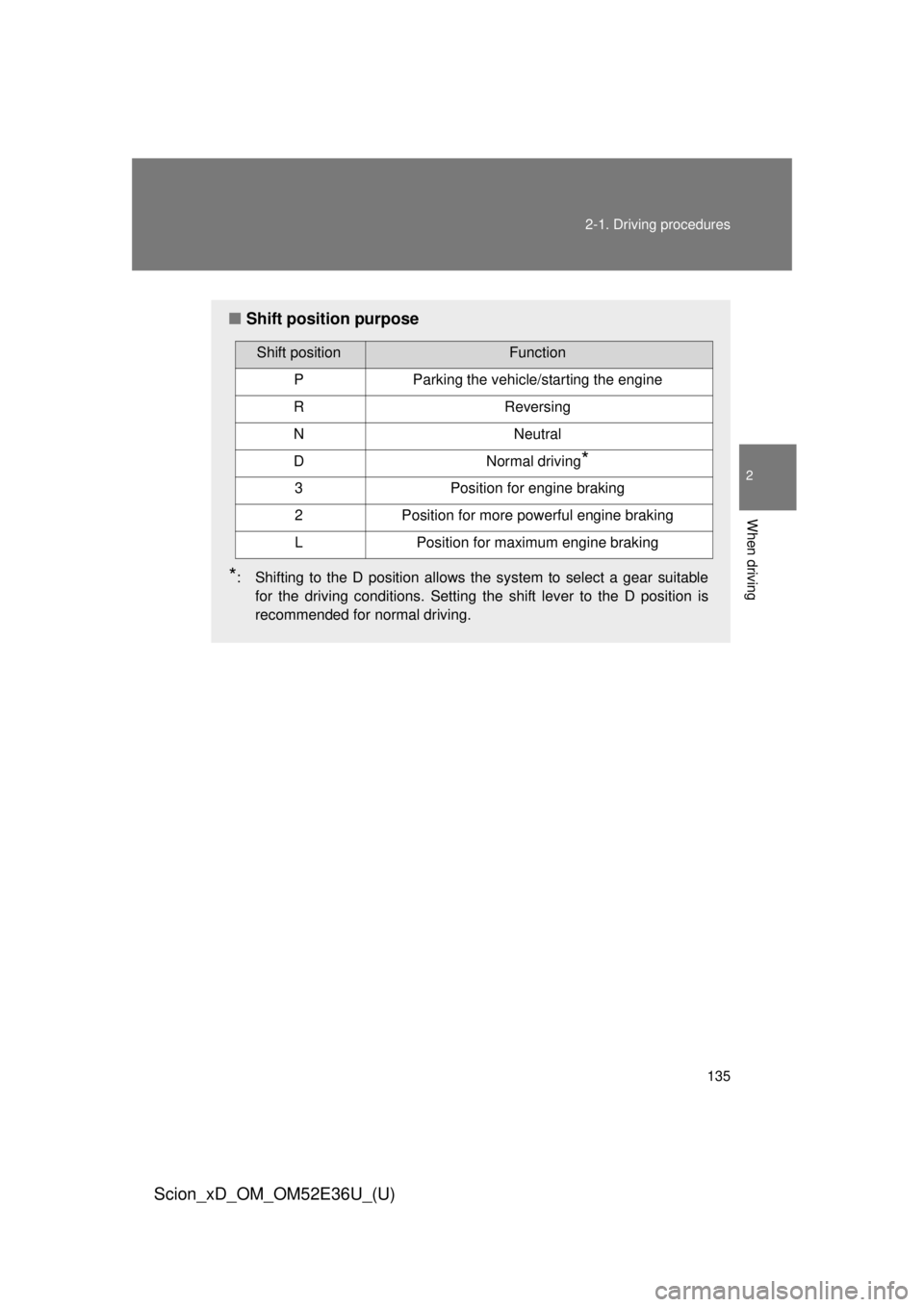

Shift position purpose
*: Shifting to the D position allows the system to select a gear suitable
for the driving conditions. Setting the shift lever to the D position is
recommended for normal driving.
Shift positionFunction
PParking the vehicle/starting the engine
RReversing
NNeutral
DNormal driving*
3Position for engine braking
2Position for more powerful engine braking
LPosition for maximum engine braking

136 2-1. Driving procedures
Scion_xD_OM_OM52E36U_(U)
■Driving on a downhill
On declines, there may be case where the vehicle shifts down automatically
to obtain engine braking. As a result of the downshifting, the engine speed
may increase.
■ Downshifting restrictions
The maximum allowable speeds are as follows.
mph (km/h)
■ When driving with the cruise control system
Engine braking will not operate, even when downshifting to 3. ( P. 159)
■ If the shift lever cannot be shifted from P
P. 333
CAUTION
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
DownshiftingMaximum speed
3  2 60 (97)
2  L 29 (47)

137
2-1. Driving procedures
2
When driving
Scion_xD_OM_OM52E36U_(U)
Manual transmission
: If equipped
■Maximum allowable speeds
Observe the downshifting speeds in the following table to prevent over-rev-
ving the engine.
mph (km/h)
■Shifting the shift lever
Fully depress the clutch pedal
before operating the shift
lever, and then release it
slowly.
Shift positionMaximum speed
1 34 (54)
2 63 (101)
3 92 (147)

138
2-1. Driving procedures
Scion_xD_OM_OM52E36U_(U)

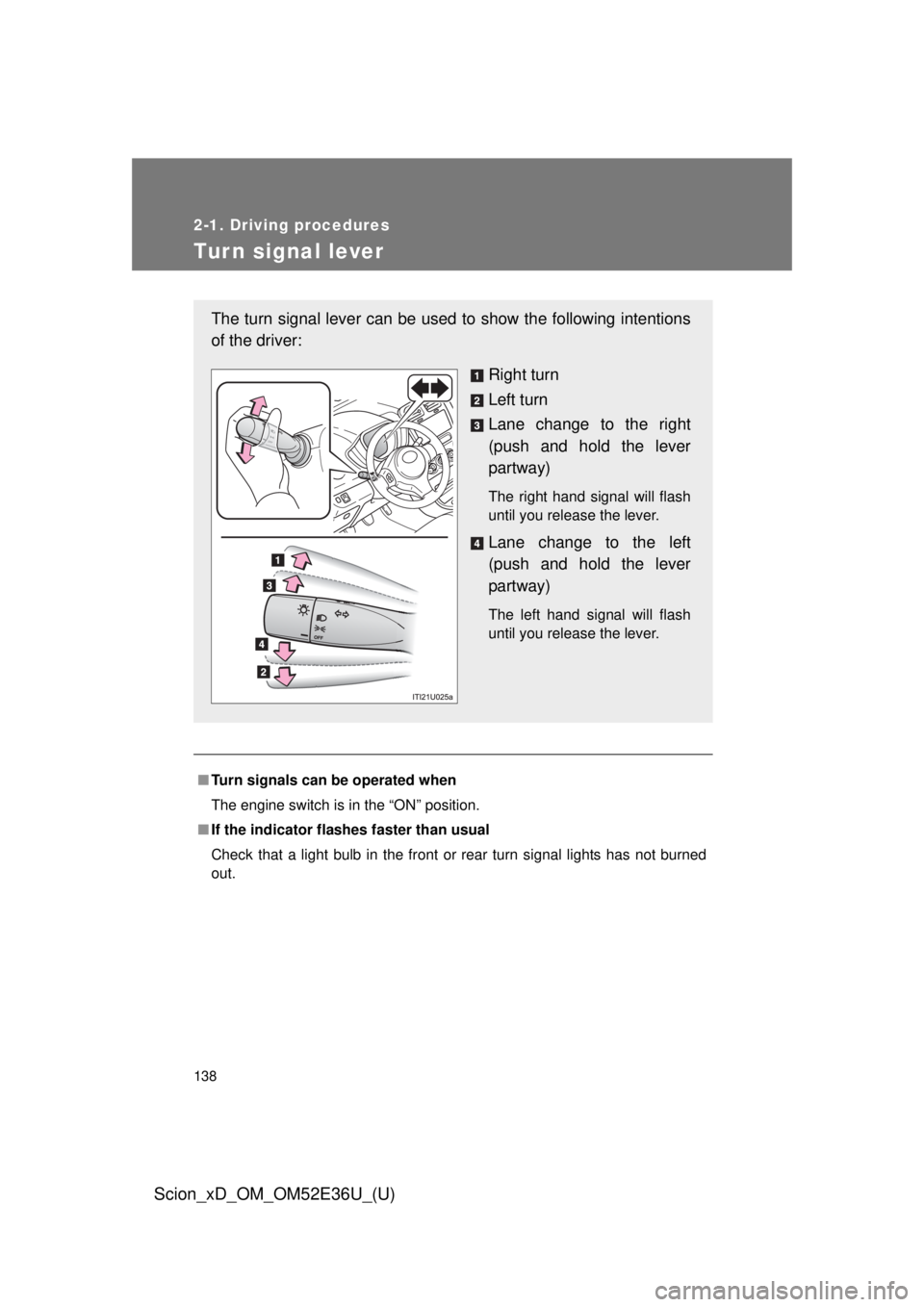

Tur n signal lever
■Turn signals can be operated when
The engine switch is in the
“ON” position.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intentions
of the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signal will flash
until you release the lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signal will flash
until you release the lever.

139
2-1. Driving procedures
2
When driving
Scion_xD_OM_OM52E36U_(U)
Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. ( P. 175)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Sets the parking brake
Fully set the parking brake
while depressing the brake
pedal.
Releases the parking brake
Slightly raise the lever and
lower it completely while
pressing the button.
U.S.A. Canada

140
2-1. Driving procedures
Scion_xD_OM_OM52E36U_(U)
Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 59)
To sound the horn, press on or
close to the mark.
