TOYOTA xD 2014 Owners Manual (in English)

151
2-3. Operating the lights and Windshield wipers
2
When driving
Scion_xD_OM_OM52E36U_(U)

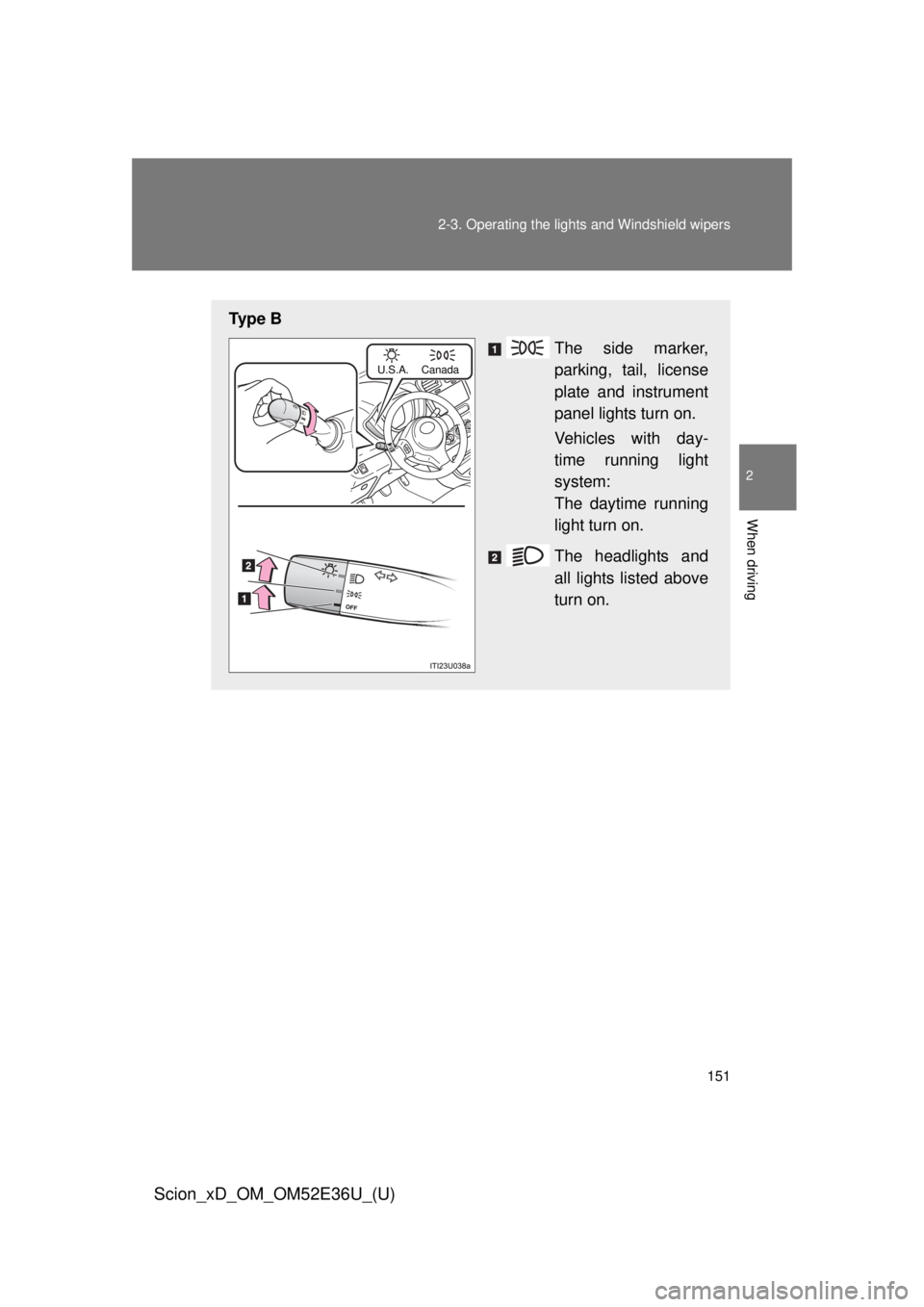

Ty p e B
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
Vehicles with day-
time running light
system:
The daytime running
light turn on.
The headlights and
all lights listed above
turn on.
U.S.A. Canada

152 2-3. Operating the lights and Windshield wipers
Scion_xD_OM_OM52E36U_(U)
Turning on the high beam headlightsWith the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
■Daytime running light system (if equipped)
●To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and
the parking brake is released. Daytime running lights are not designed for
use at night.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Light reminder buzzer
A buzzer sounds when the driver’s door is opened with the key removed
from the engine switch while the lights are turned on.
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

153
2-3. Operating the lights and Windshield wipers
2
When driving
Scion_xD_OM_OM52E36U_(U)

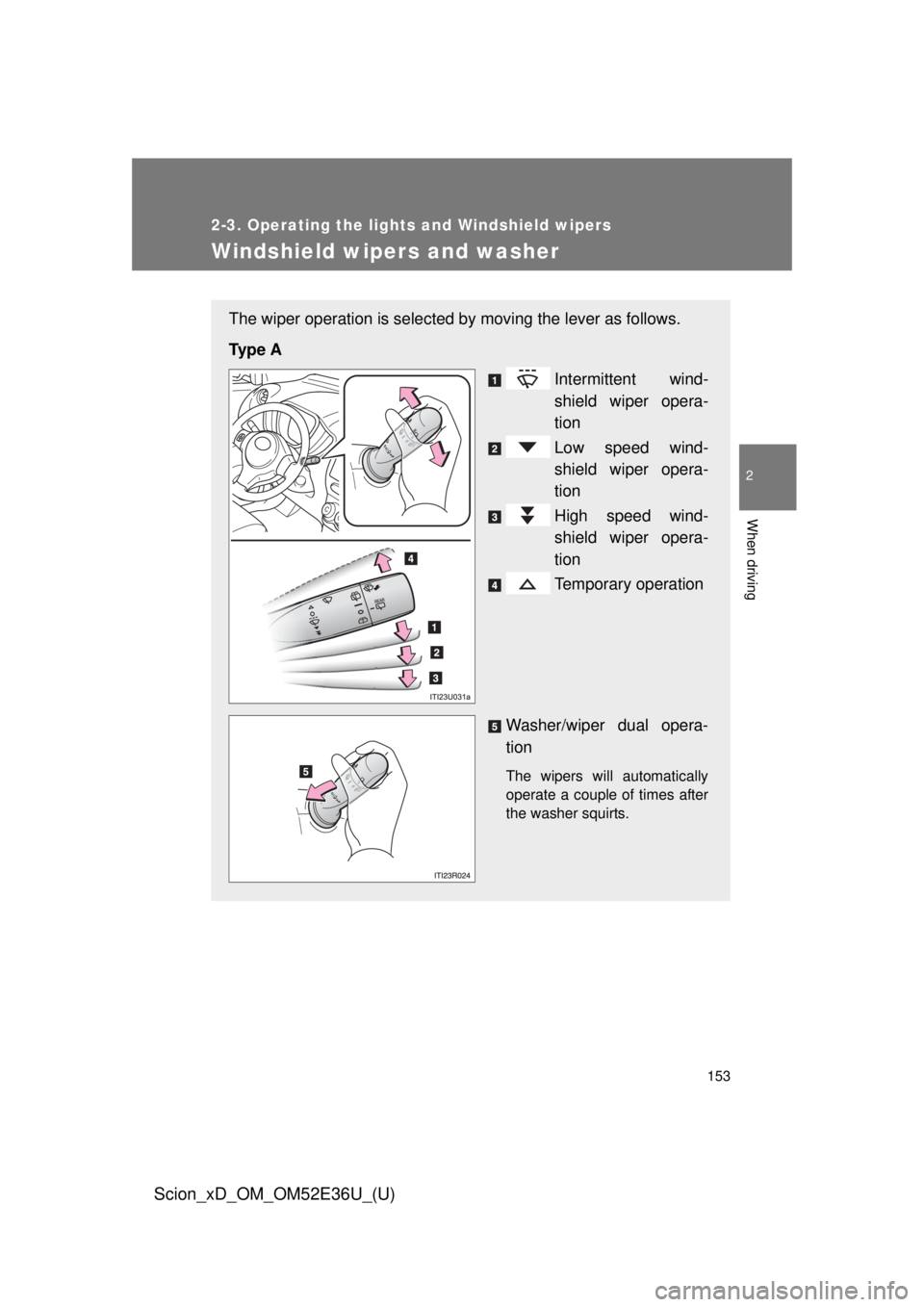

Windshield wipers and washer
The wiper operation is selected by moving the lever as follows.
Ty p e A Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

154 2-3. Operating the lights and Windshield wipers
Scion_xD_OM_OM52E36U_(U)

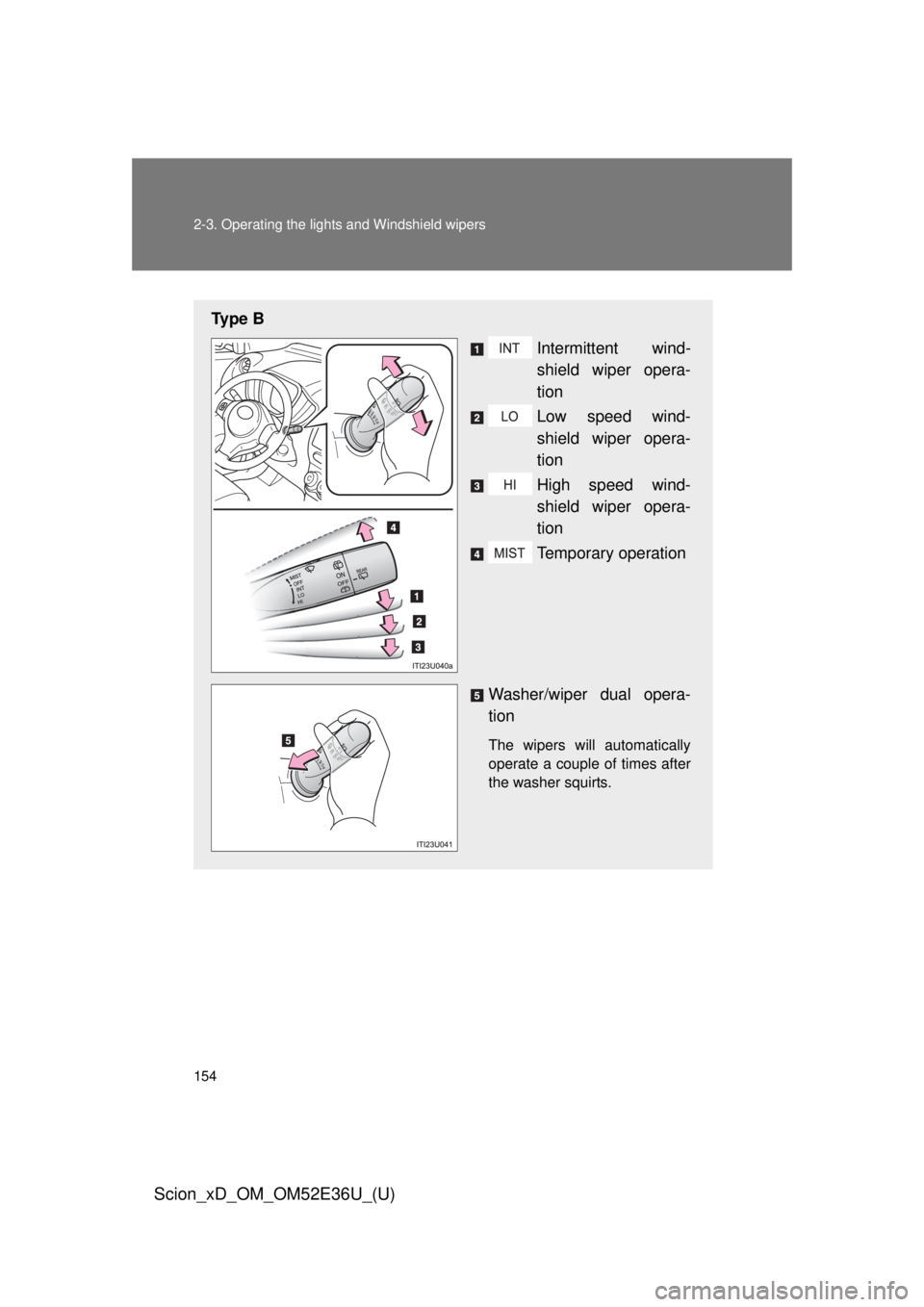

Ty p e BIntermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

155
2-3. Operating the lights and Windshield wipers
2
When driving
Scion_xD_OM_OM52E36U_(U)
■
The windshield wipers and washer can be operated when
The engine switch is in the “ON” position.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Scion dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

156
2-3. Operating the lights and Windshield wipers
Scion_xD_OM_OM52E36U_(U)

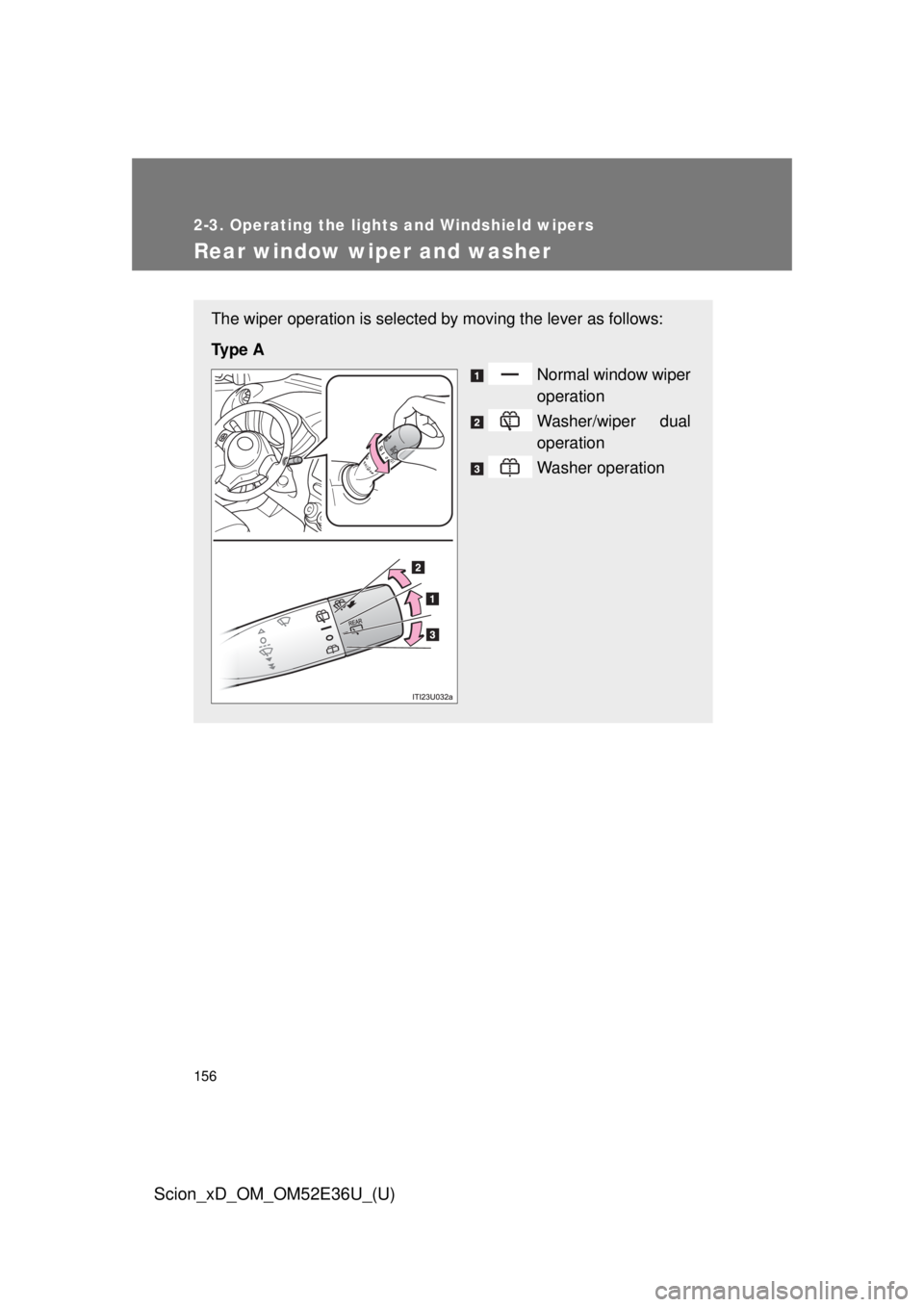

Rear window wiper and washer
The wiper operation is selected by moving the lever as follows:
Ty p e A Normal window wiper
operation
Washer/wiper dual
operation
Washer operation

157
2-3. Operating the lights and Windshield wipers
2
When driving
Scion_xD_OM_OM52E36U_(U)

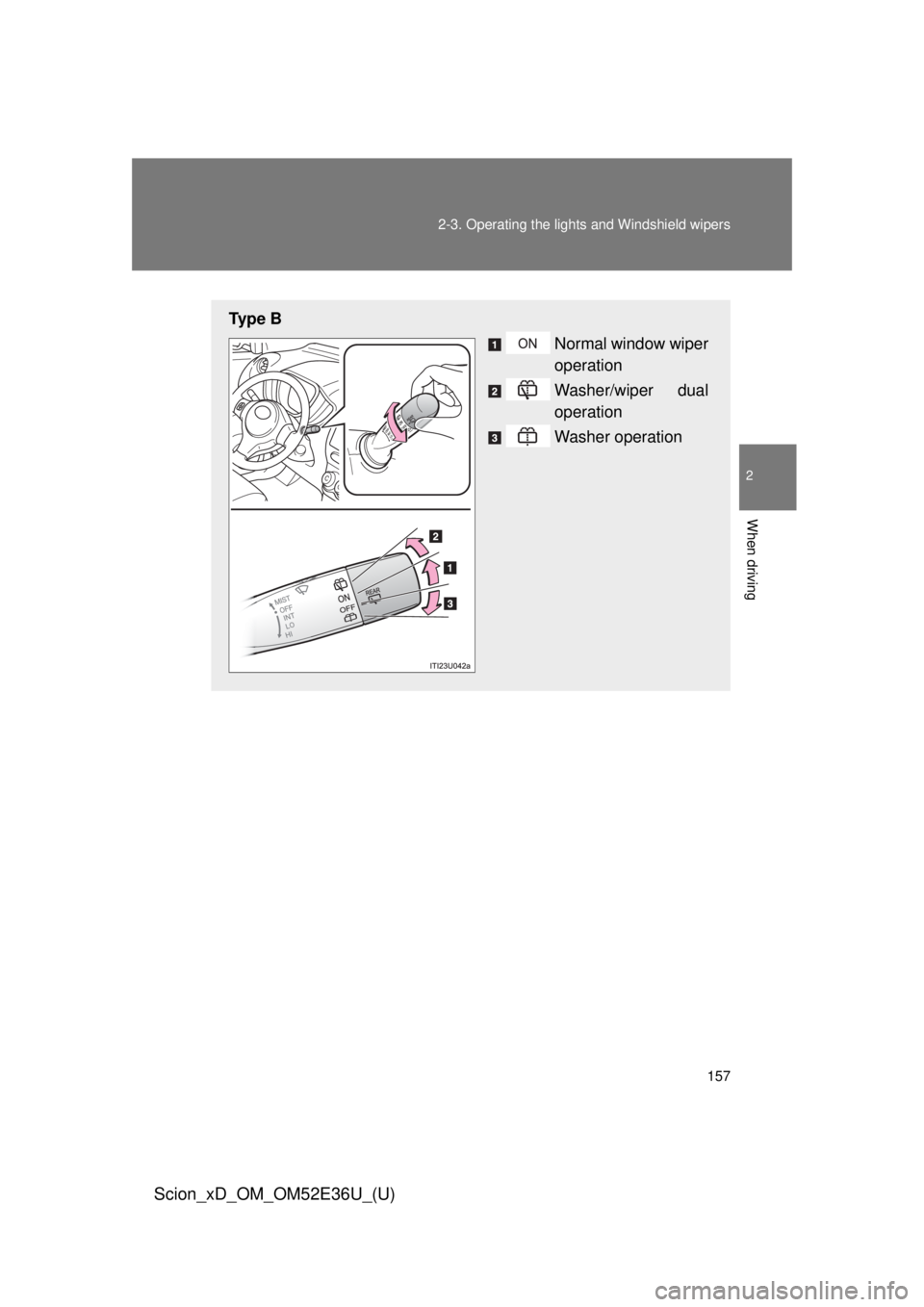

Ty p e B
Normal window wiper
operation
Washer/wiper dual
operation
Washer operation

158 2-3. Operating the lights and Windshield wipers
Scion_xD_OM_OM52E36U_(U)
■The rear window wiper and w asher can be operated when
The engine switch is in the “ON” position
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.

159
2
When driving
Scion_xD_OM_OM52E36U_(U)
2-4. Using other driving systems

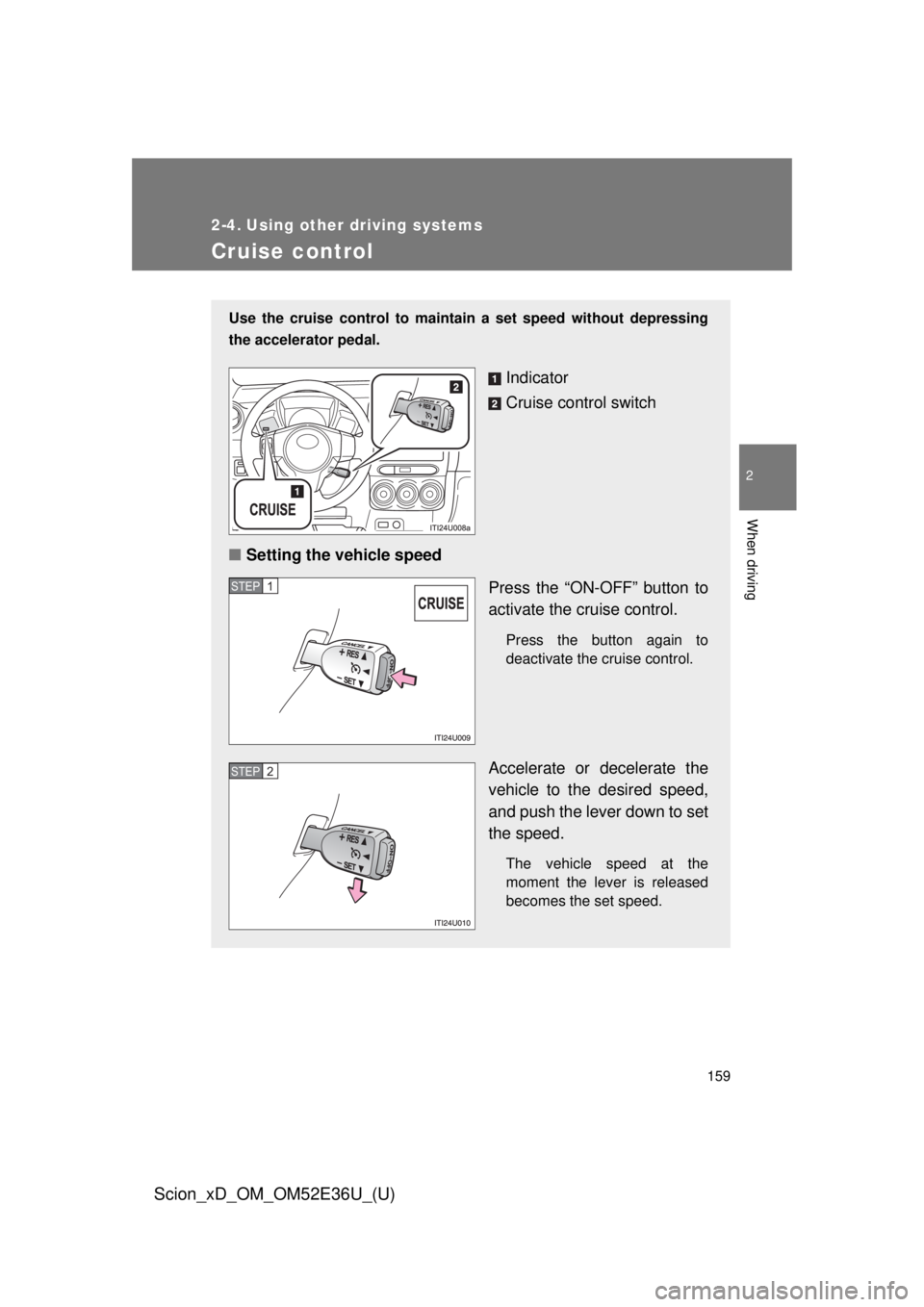

Cruise control
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicator
Cruise control switch
■ Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP 1
STEP 2

160 2-4. Using other driving systems
Scion_xD_OM_OM52E36U_(U)

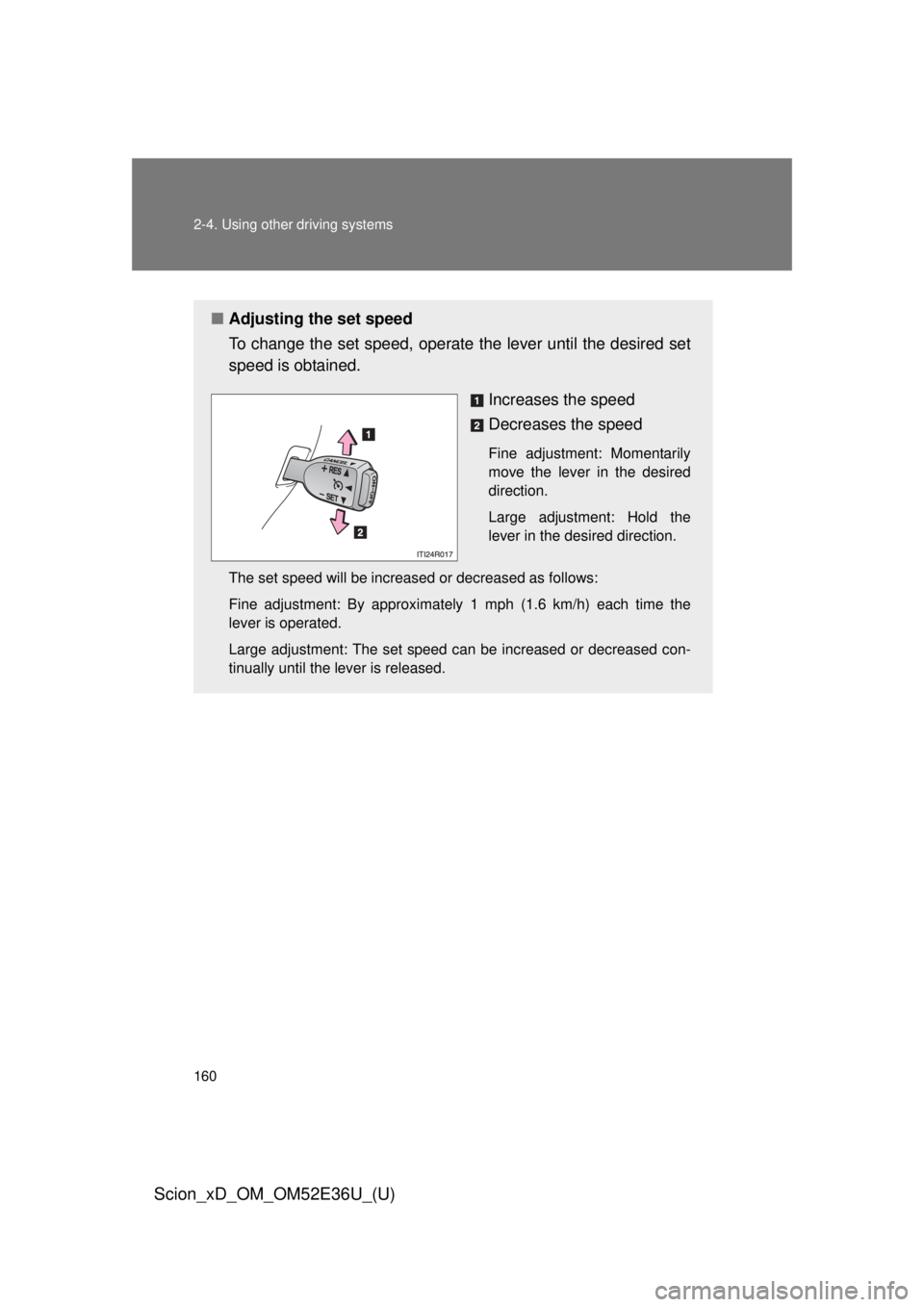

■Adjusting the set speed
To change the set speed, operate the lever until the desired set
speed is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the
lever in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the
lever is operated.
Large adjustment: The set speed can be increased or decreased con-
tinually until the lever is released.
