532005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
SY13077a

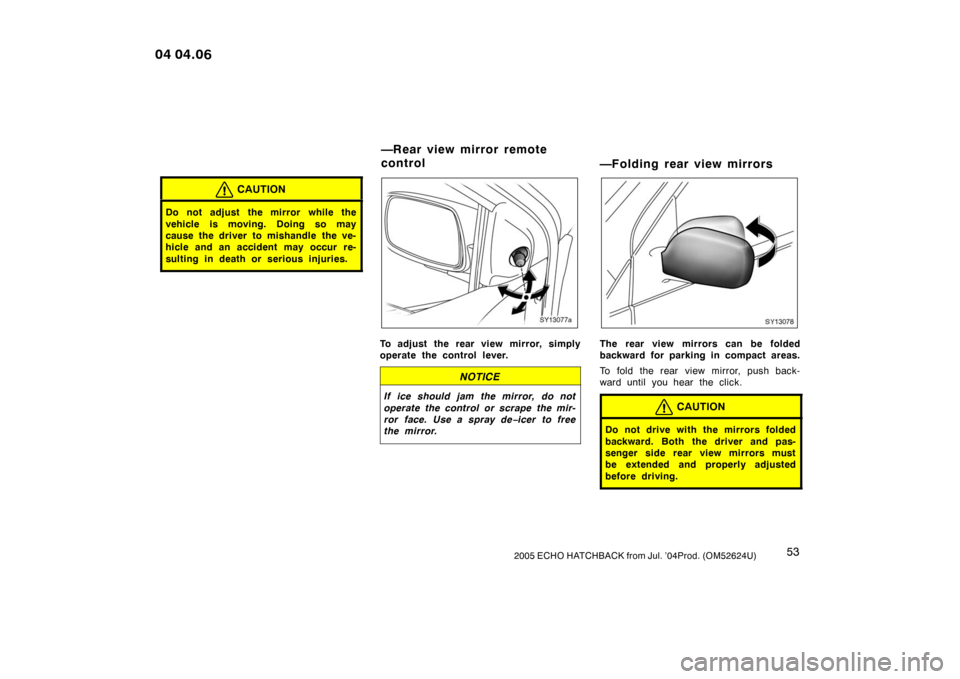

To adjust the rear view mirror, simply
operate the control lever.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de−icer to free
the mirror.
—Folding rear view mirrors
SY13078
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward until you hear the click.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
04 04.06
—Rear view mirror remote
control

542005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
NOTICE
Do not push backward more than the
click. It may damage the mirror or
vehicle.
SU13241

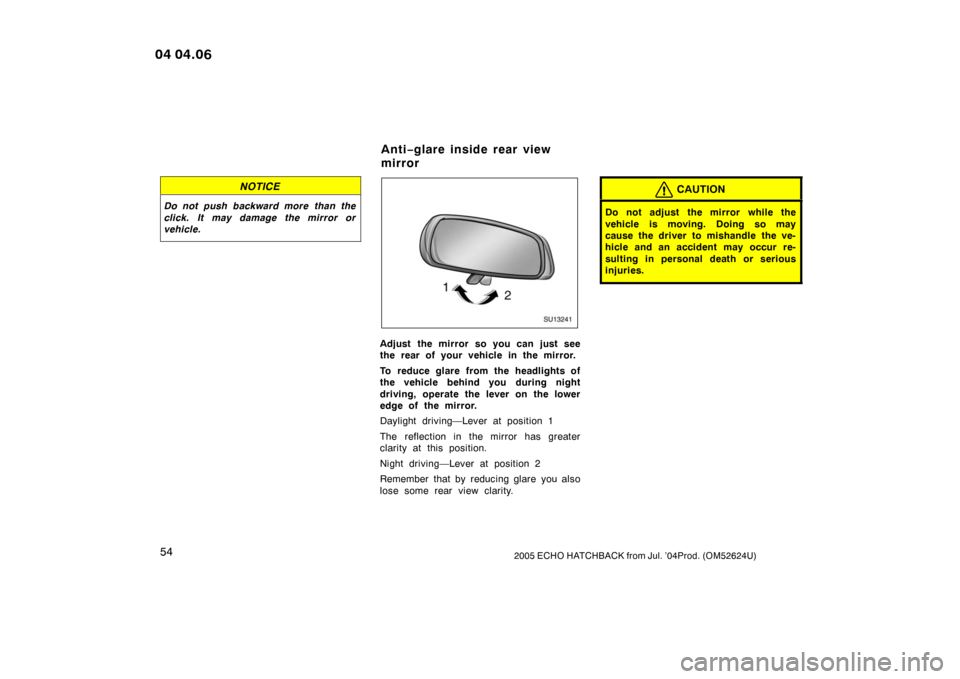

Adjust the mirror so you can just see
the rear of your vehicle in the mirror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in personal death or serious
injuries.
04 04.06
Anti−glare inside rear view
mirror

552005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
Vanity mirrors
SU13061
To use the vanity mirrors, swing down
the sun visor and open the cover.
04 04.06

562005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
04 04.06

572005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 59
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 60
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 60
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Personal lights 60
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Luggage compartment light 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
04 05.18
SECTION 1− 5

582005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

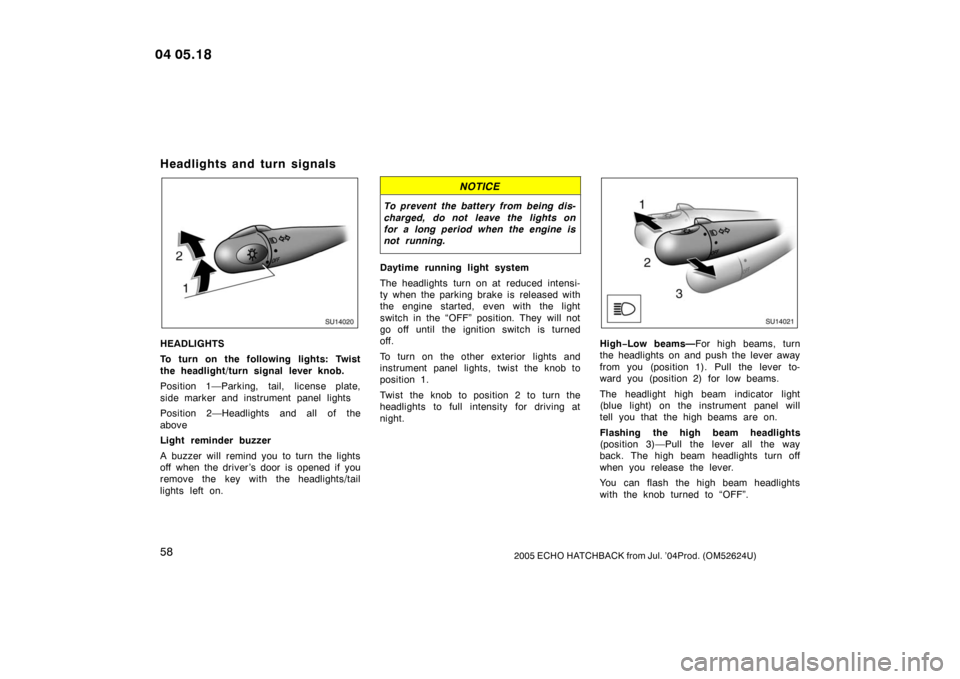

Headlights and turn signals
SU14020
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver’s door is opened if you
remove the key with the headlights/tail
lights left on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Twist the knob to position 2 to turn the
headlights to full intensity for driving at
night.
SU14021
High−Low beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.
04 05.18

592005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
SU14022

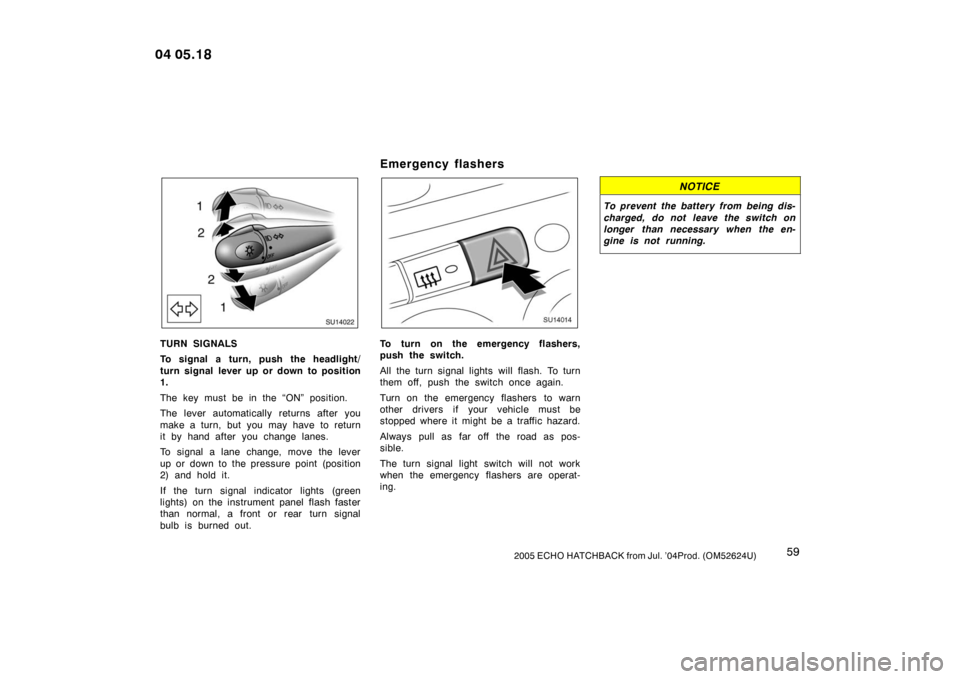

TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
Emergency flashers
SU14014
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
04 05.18

602005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

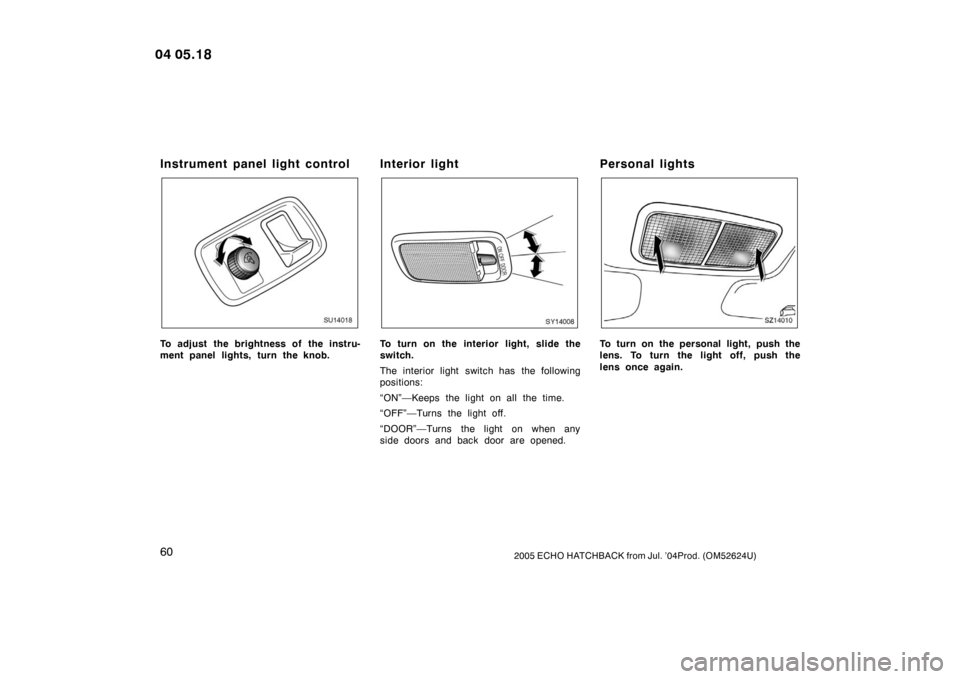

Instrument panel light control
SU14018
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Interior light
SU14007
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any
side doors and back door are opened.
Personal lights
SZ14010
To turn on the personal light, push the
lens. To turn the light off, push the
lens once again.
04 05.18

612005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
Luggage compartment light
SU14019a
To turn the luggage compartment light
on, open the back door and push the
switch to right. Closing the back door
will turn the light off.
SH14008
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. To squirt washer fluid, pull the lever
toward you.
The low washer fluid warning light in the
instrument cluster comes on when the
fluid level in the tank becomes nearly
empty. For instructions on adding washer
fluid, see “Adding washer fluid” in Section
7
−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
04 05.18
Windshield wipers and washer

622005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)
SZ14013
To turn on the rear window wiper, twist
the lever knob upward. (Position 1)
The key must be in the “ON” position.
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 2 or 3). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 203 in
Section 7−3.
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
Rear window defogger
SU14013
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.
04 05.18
Rear window wiper and washer
