Page 11 of 312
42006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS11503
1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Clock
5. Clock reset knob
6. Odometer and two trip meters
7. Fuel gauge
8. Trip meter reset knob
Instrument cluster overview
With tachometer
Page 12 of 312
52006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS11504
1. Service reminder indicators andindicator lights
2. Speedometer
3. Trip meter reset knob 4. Odometer and two trip meters
5. Fuel gauge
6. Clock
7. Clock reset knob
Without tachometer
Page 13 of 312
62006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

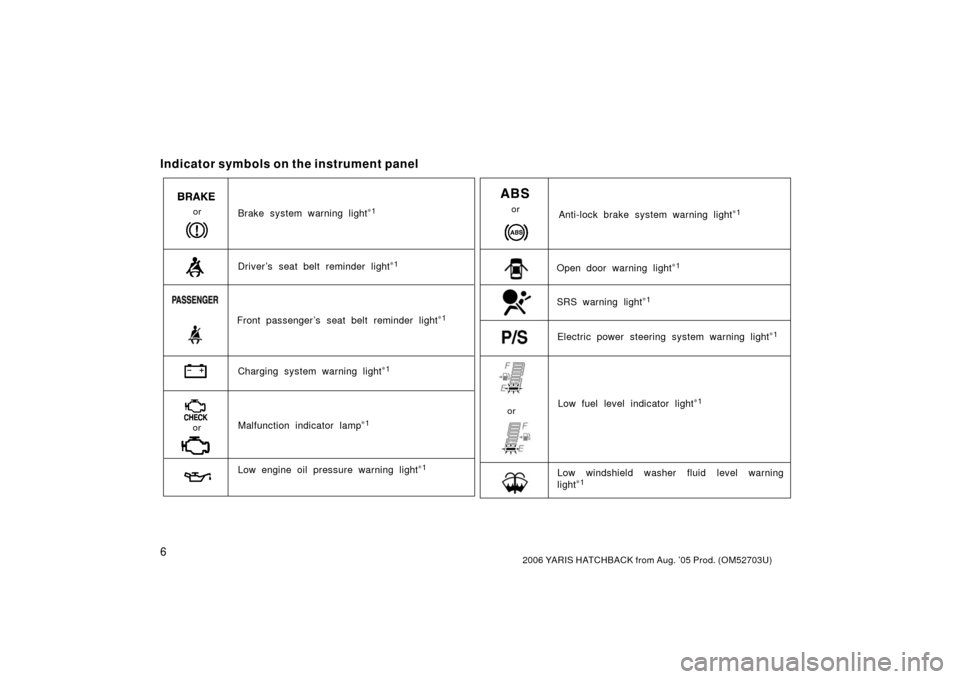

Indicator symbols on the instrument panel
Brake system warning light∗1
Driver ’s seat belt reminder light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti-lock brake system warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Low fuel level indicator light∗1
Front passenger ’s seat belt reminder light∗1
Open door warning light∗1
or
or or
Electric power steering system warning light∗
1
or
Page 14 of 312
72006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

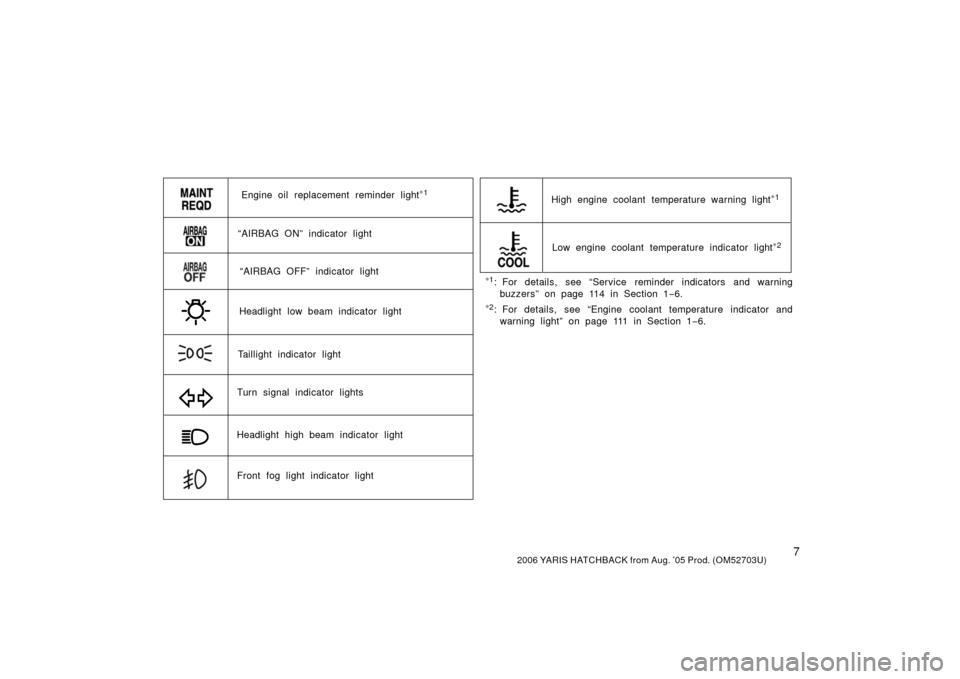

“AIRBAG ON” indicator light
Taillight indicator light
Turn signal indicator lights
Headlight high beam indicator light High engine coolant temperature warning light
∗
1
Headlight low beam indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 114 in Section 1− 6.
∗
2: For details, see “Engine coolant temperature indicator and
warning light” on page 111 in Section 1− 6.
Low engine coolant temperature indicator light∗
2
Engine oil replacement reminder light∗1
“AIRBAG OFF” indicator light
Front fog light indicator light
Page 15 of 312
82006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Page 16 of 312
92006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 2
Page 17 of 312
102006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

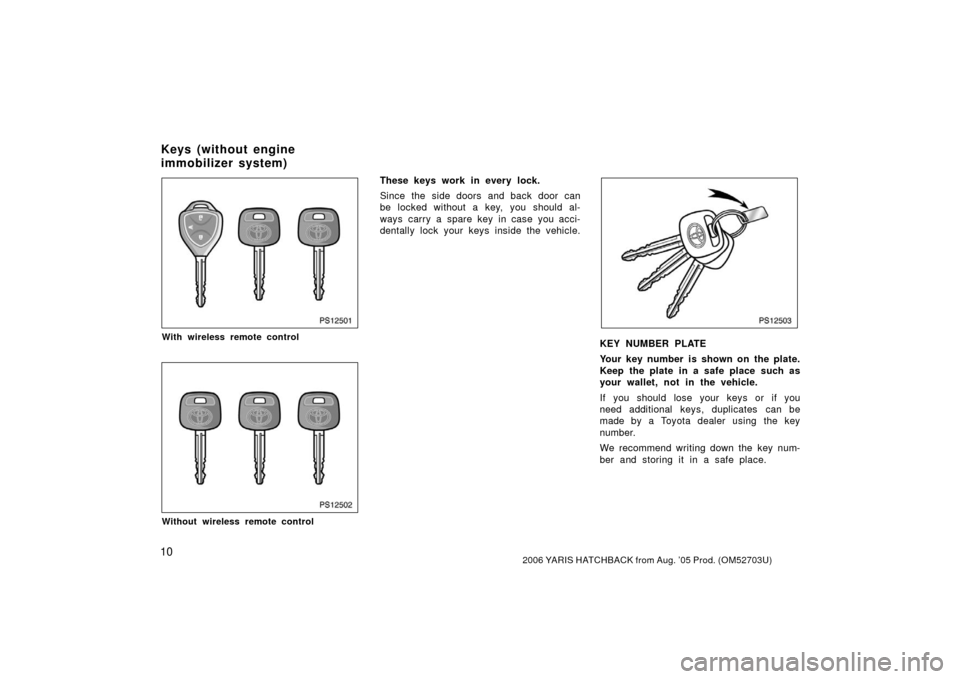

PS12501
With wireless remote control
PS12502
Without wireless remote control
These keys work in every lock.
Since the side doors and back door can
be locked without a key, you should al-
ways carry a spare key in case you acci-
dentally lock your keys inside the vehicle.
PS12503
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Keys (without engine
immobilizer system)
Page 18 of 312
112006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

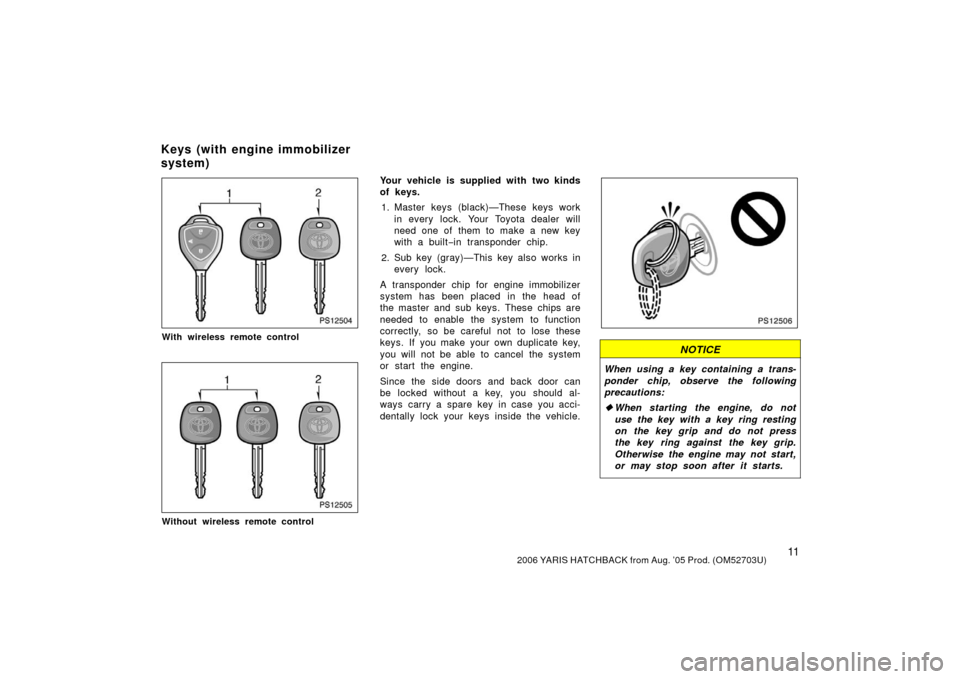

PS12504
With wireless remote control
PS12505
Without wireless remote control
Your vehicle is supplied with two kinds
of keys.1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key also works in every lock.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Since the side doors and back door can
be locked without a key, you should al-
ways carry a spare key in case you acci-
dentally lock your keys inside the vehicle.
PS12506
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys (with engine immobilizer
system)
Page 19 of 312
122006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

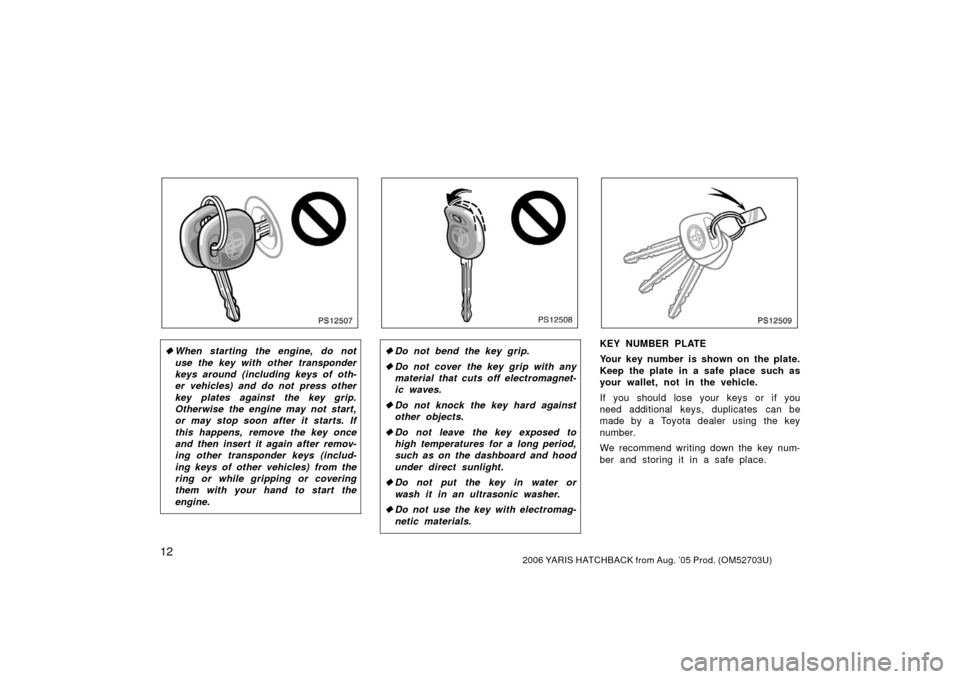

PS12507
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
PS12508
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
PS12509
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Page 20 of 312
132006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Engine immobilizer system
PS12510
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
PS12511
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes inconsistent-
ly.Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with a built
−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
