TOYOTA YARIS 2006 2.G Owner's Manual

142006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
For vehicles sold in U.S.A.
FCC ID: MOZRI20BTY
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

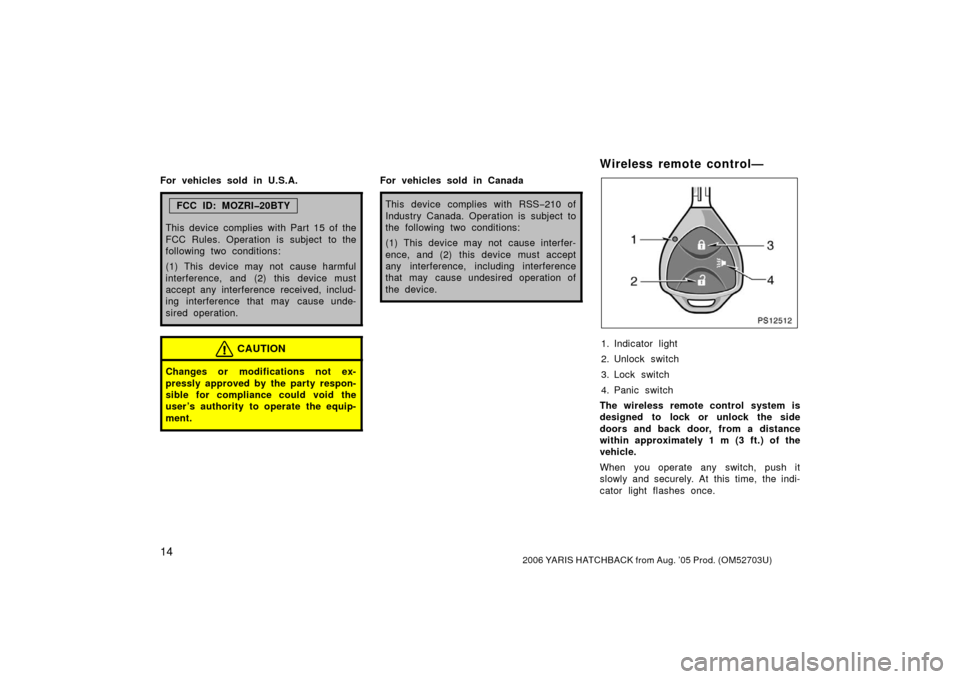

Wireless remote control—
PS12512
1. Indicator light
2. Unlock switch
3. Lock switch
4. Panic switch
The wireless remote control system is
designed to lock or unlock the side
doors and back door, from a distance
within approximately 1 m (3 ft.) of the
vehicle.
When you operate any switch, push it
slowly and securely. At this time, the indi-
cator light flashes once.

152006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age to the key.
Do not leave the key in places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys for the same vehicle. Contact
your Toyota dealer for detailed information.
If the wireless remote control key does
not actuate the doors or operate from a
normal distance, or the indicator light on
the key is dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To
replace the battery, see “—Replacing
battery” on page 17. If you lose your wireless remote control
key, contact your Toyota dealer as soon
as possible to avoid the possibility of
theft, or an accident. (See “If you lose
your keys” on page 245.)

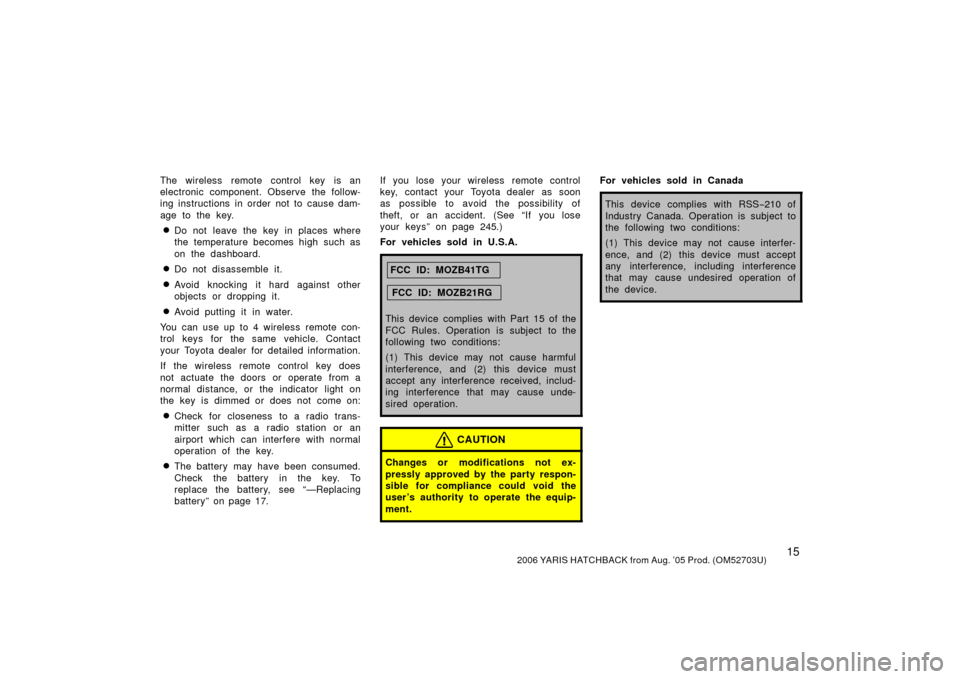

For vehicles sold in U.S.A.
FCC ID: MOZB41TG
FCC ID: MOZB21RG
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

162006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

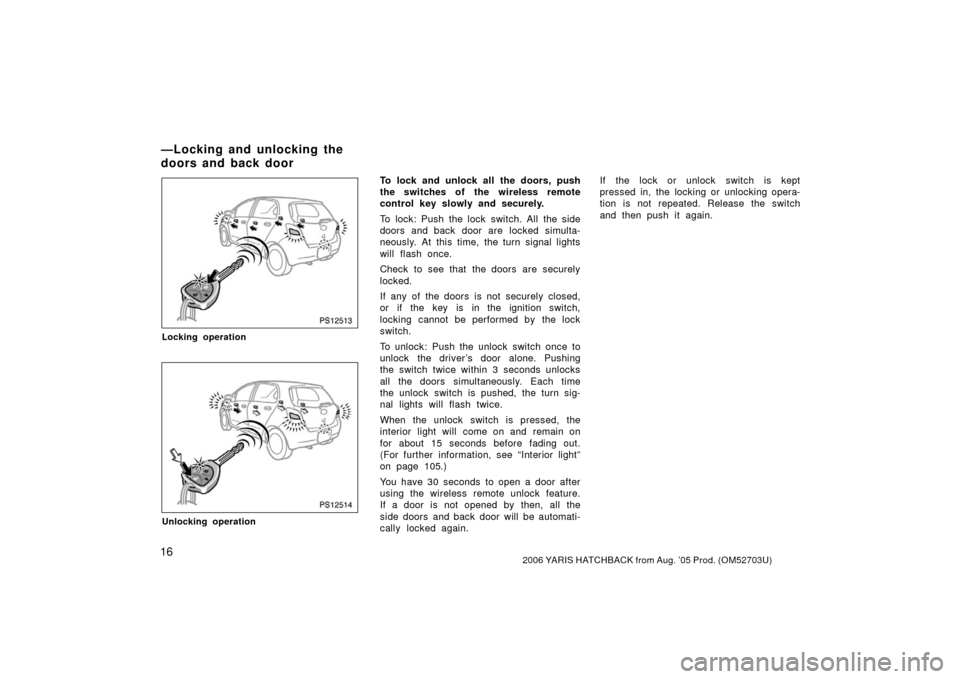

PS12513
Locking operation
PS12514
Unlocking operation
To lock and unlock all the doors, push
the switches of the wireless remote
control key slowly and securely.
To lock: Push the lock switch. All the side
doors and back door are locked simulta-
neously. At this time, the turn signal lights
will flash once.
Check to see that the doors are securely
locked.
If any of the doors is not securely closed,
or if the key is in the ignition switch,
locking cannot be performed by the lock
switch.
To unlock: Push the unlock switch once to
unlock the driver ’s door alone. Pushing
the switch twice within 3 seconds unlocks
all the doors simultaneously. Each time
the unlock switch is pushed, the turn sig-
nal lights will flash twice.
When the unlock switch is pressed, the
interior light will come on and remain on
for about 15 seconds before fading out.
(For further information, see “Interior light”
on page 105.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again.If the lock or unlock switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push it again.
—Locking and unlocking the
doors and back door

172006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

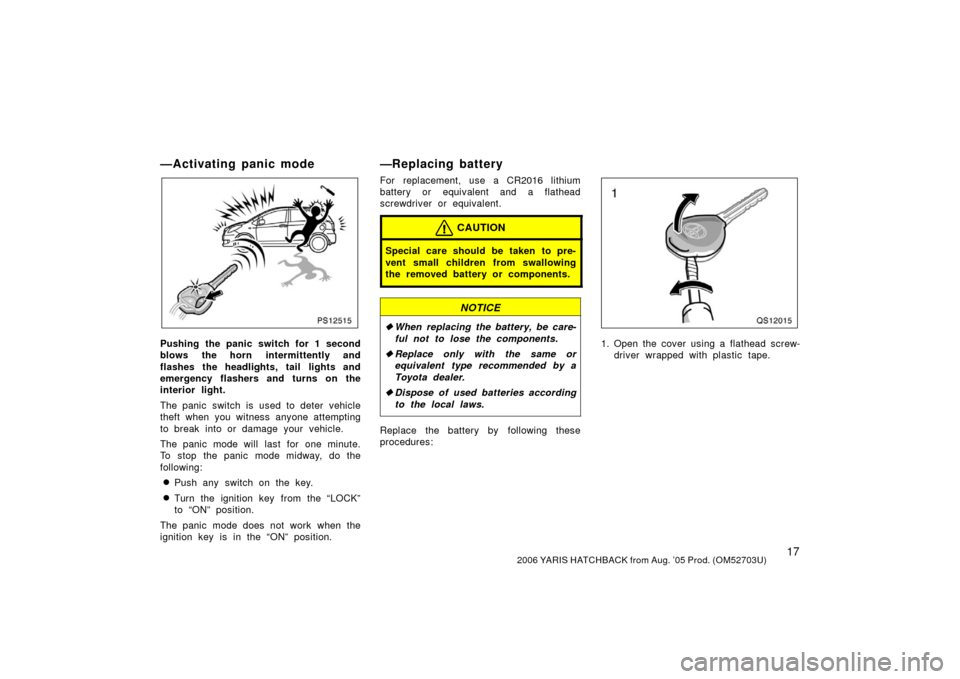

—Activating panic mode
PS12515
Pushing the panic switch for 1 second
blows the horn intermittently and
flashes the headlights, tail lights and
emergency flashers and turns on the
interior light.
The panic switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The panic mode will last for one minute.
To stop the panic mode midway, do the
following:
Push any switch on the key.
Turn the ignition key from the “LOCK”
to “ON” position.
The panic mode does not work when the
ignition key is in the “ON” position.
—Replacing battery
For replacement, use a CR2016 lithium
battery or equivalent and a flathead
screwdriver or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE
 When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the battery by following these
procedures:
QS12015
1. Open the cover using a flathead screw-
driver wrapped with plastic tape.

182006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

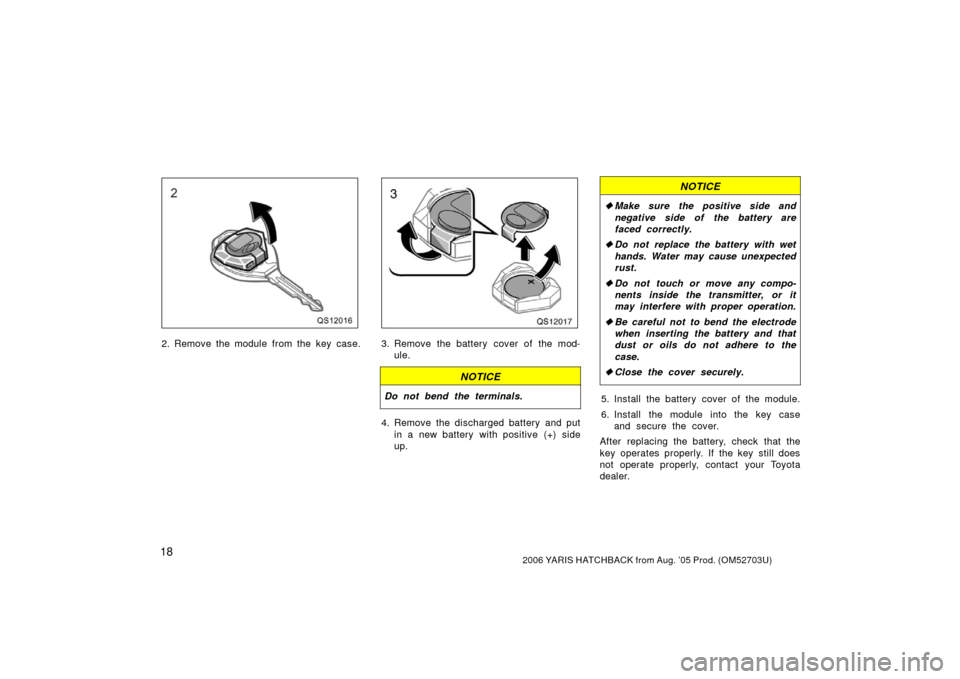

QS12016
2. Remove the module from the key case.
QS12017
3. Remove the battery cover of the mod-ule.
NOTICE
Do not bend the terminals.
4. Remove the discharged battery and put
in a new battery with positive (+) side
up.
NOTICE
Make sure the positive side and
negative side of the battery are
faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the battery and that
dust or oils do not adhere to the
case.
 Close the cover securely.
5. Install the battery cover of the module.
6. Install the module into the key case
and secure the cover.
After replacing the battery, check that the
key operates properly. If the key still does
not operate properly, contact your Toyota
dealer.

192006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

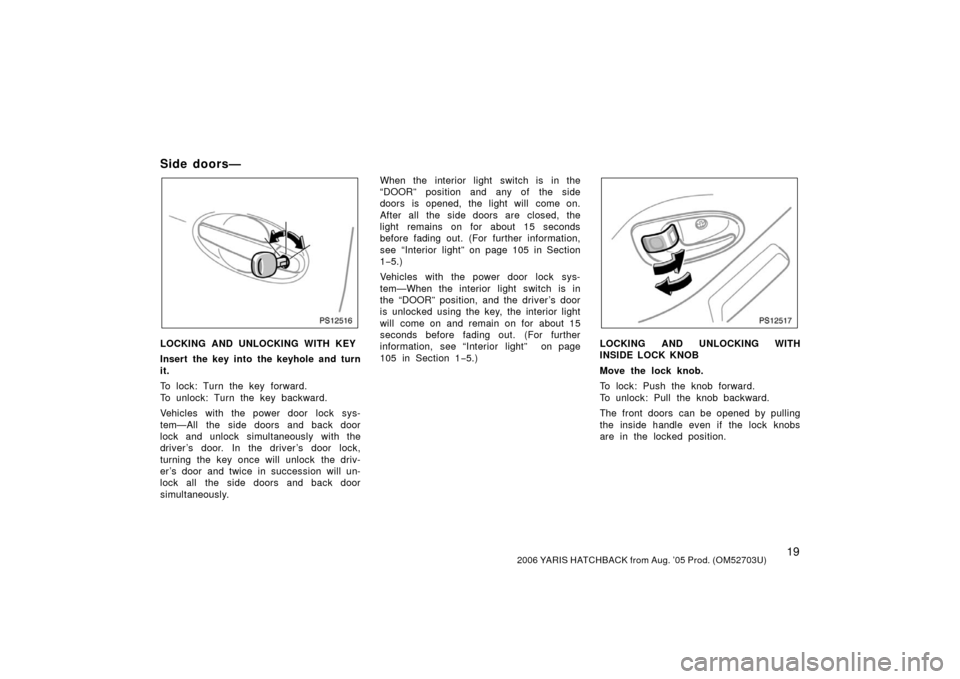

Side doors—
PS12516
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with the power door lock sys-
tem—All the side doors and back door
lock and unlock simultaneously with the
driver ’s door. In the driver ’s door lock,
turning the key once will unlock the driv-
er’s door and twice in succession will un-
lock all the side doors and back door
simultaneously.When the interior light switch is in the
“DOOR” position and any of the side
doors is opened, the light will come on.
After all the side doors are closed, the
light remains on for about 15 seconds
before fading out. (For further information,
see “Interior light” on page 105 in Section
1
−5.)
Vehicles with the power door lock sys-
tem—When the interior light switch is in
the “DOOR” position, and the driver ’s door
is unlocked using the key, the interior light
will come on and remain on for about 15
seconds before fading out. (For further
information, see “Interior light” on page
105 in Section 1 −5.)
PS12517
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.

202006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with the power door lock sys-
tem—Doors cannot be locked when the
driver’s door is open and the key is in the
ignition.

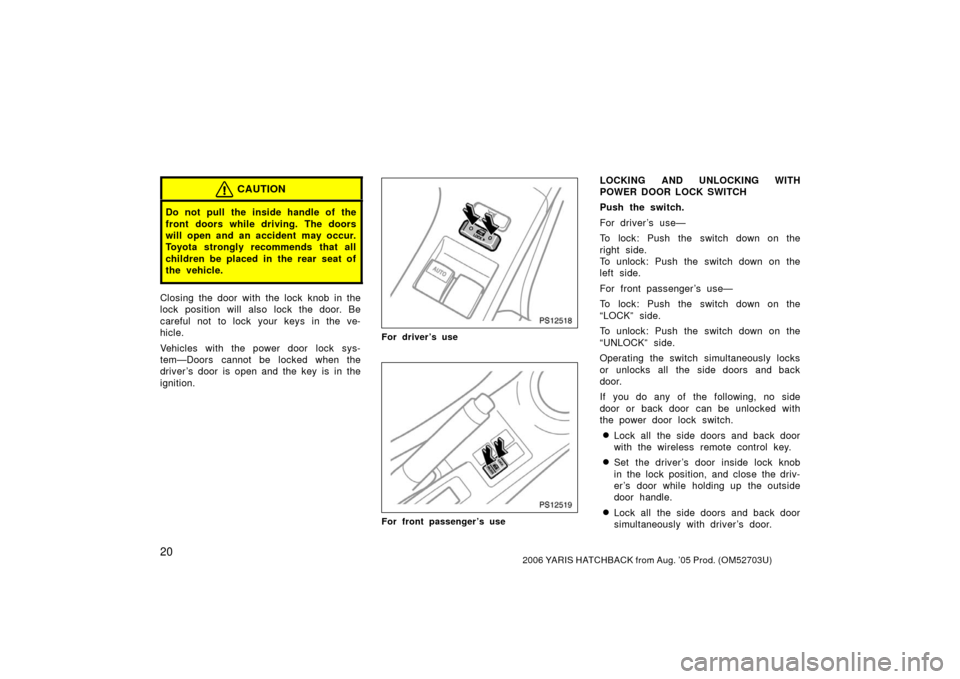

PS12518
For driver’s use
PS12519
For front passenger’s use
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
For driver ’s use—
To lock: Push the switch down on the
right side.
To unlock: Push the switch down on the
left side.
For front passenger ’s use—
To lock: Push the switch down on the
“LOCK” side.
To unlock: Push the switch down on the
“UNLOCK” side.
Operating the switch simultaneously locks
or unlocks all the side doors and back
door.
If you do any of the following, no side
door or back door can be unlocked with
the power door lock switch.
Lock all the side doors and back door
with the wireless remote control key.
Set the driver’s door inside lock knob
in the lock position, and close the driv-
er’s door while holding up the outside
door handle.
Lock all the side doors and back door
simultaneously with driver ’s door.

212006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the side doors and back
door simultaneously with the driver ’s
door.
Unlock all the side doors and back
door with the wireless remote control
key.
Unlock the driver’s door with the inside
lock knob, and then unlock all the side
doors with the power door lock switch.

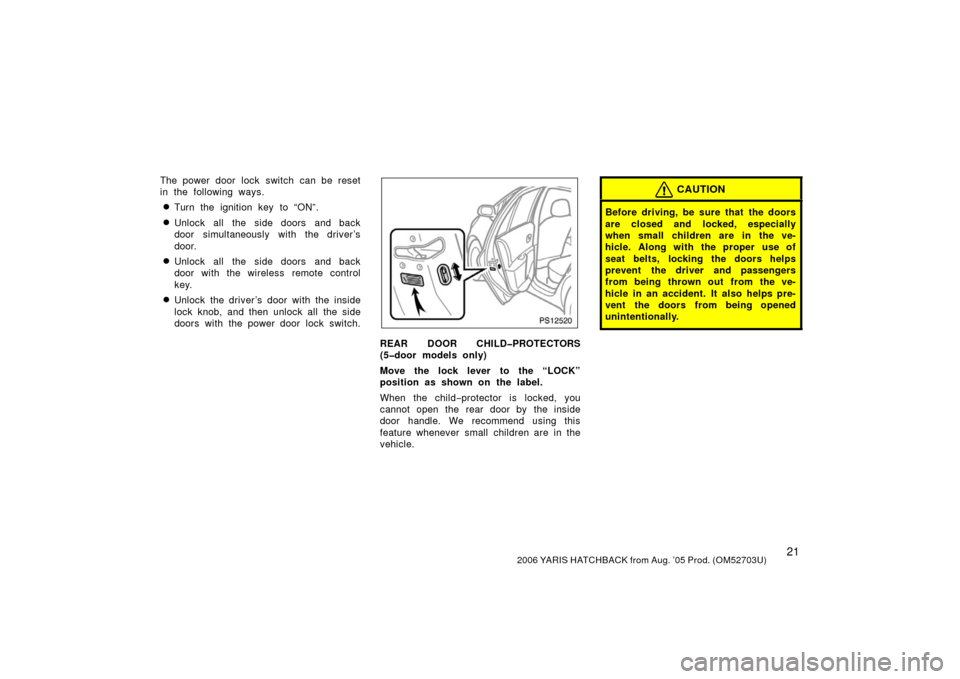

PS12520
REAR DOOR CHILDPROTECTORS
(5door models only)
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.

222006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

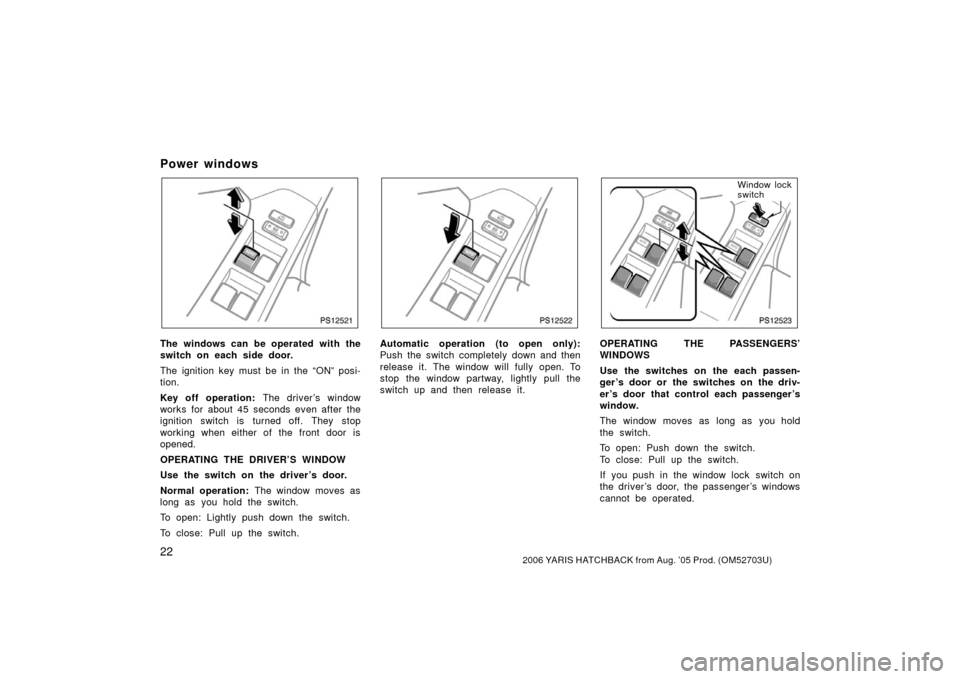

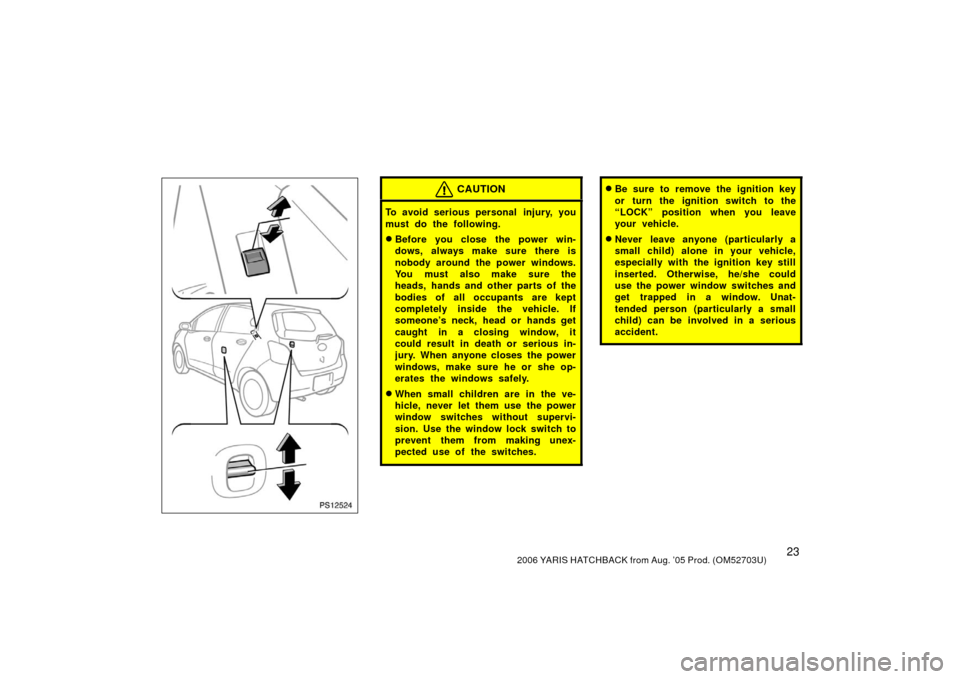

Power windows
PS12521
The windows can be operated with the
switch on each side door.
The ignition key must be in the “ON” posi-
tion.
Key off operation: The driver ’s window
works for about 45 seconds even after the
ignition switch is turned off. They stop
working when either of the front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
PS12522
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
PS12523
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the each passen-
ger’s door or the switches on the driv-
er ’s door that control each passenger ’s
window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s windows
cannot be operated.

232006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS12524
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
or turn the ignition switch to the
“LOCK” position when you leave
your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
