TOYOTA YARIS 2012 3.G Owners Manual

281
4-3. Do-it-yourself maintenance
4
Maintenance and care

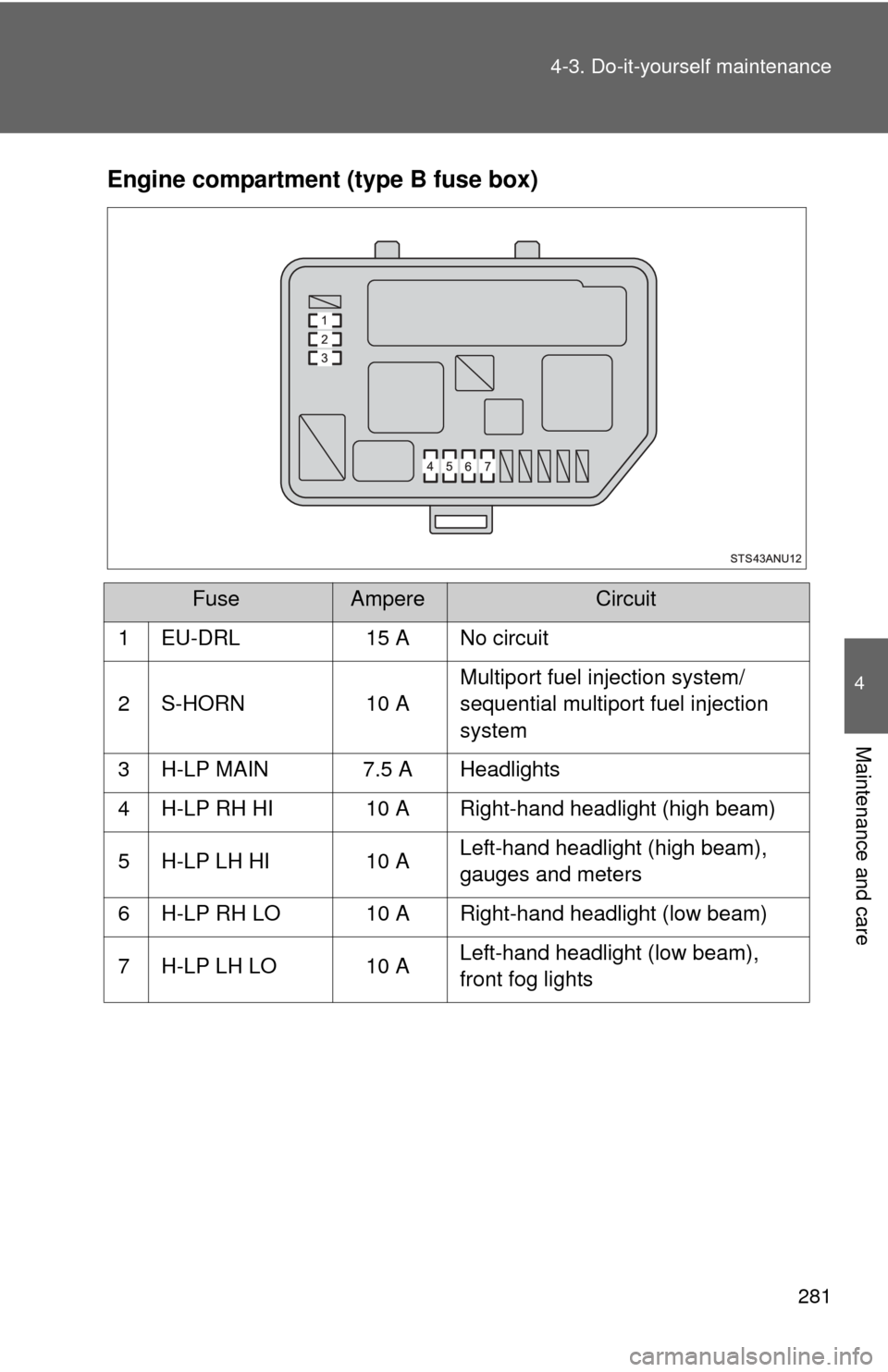

Engine compartment (type B fuse box)
FuseAmpereCircuit
1 EU-DRL 15 A No circuit
2 S-HORN 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
3 H-LP MAIN 7.5 A Headlights
4 H-LP RH HI 10 A Right-hand headlight (high beam)
5 H-LP LH HI 10 A Left-hand headlight (high beam),
gauges and meters
6 H-LP RH LO 10 A Right-hand headlight (low beam)
7 H-LP LH LO 10 A Left-hand headlight (low beam),
front fog lights

282 4-3. Do-it-yourself maintenance

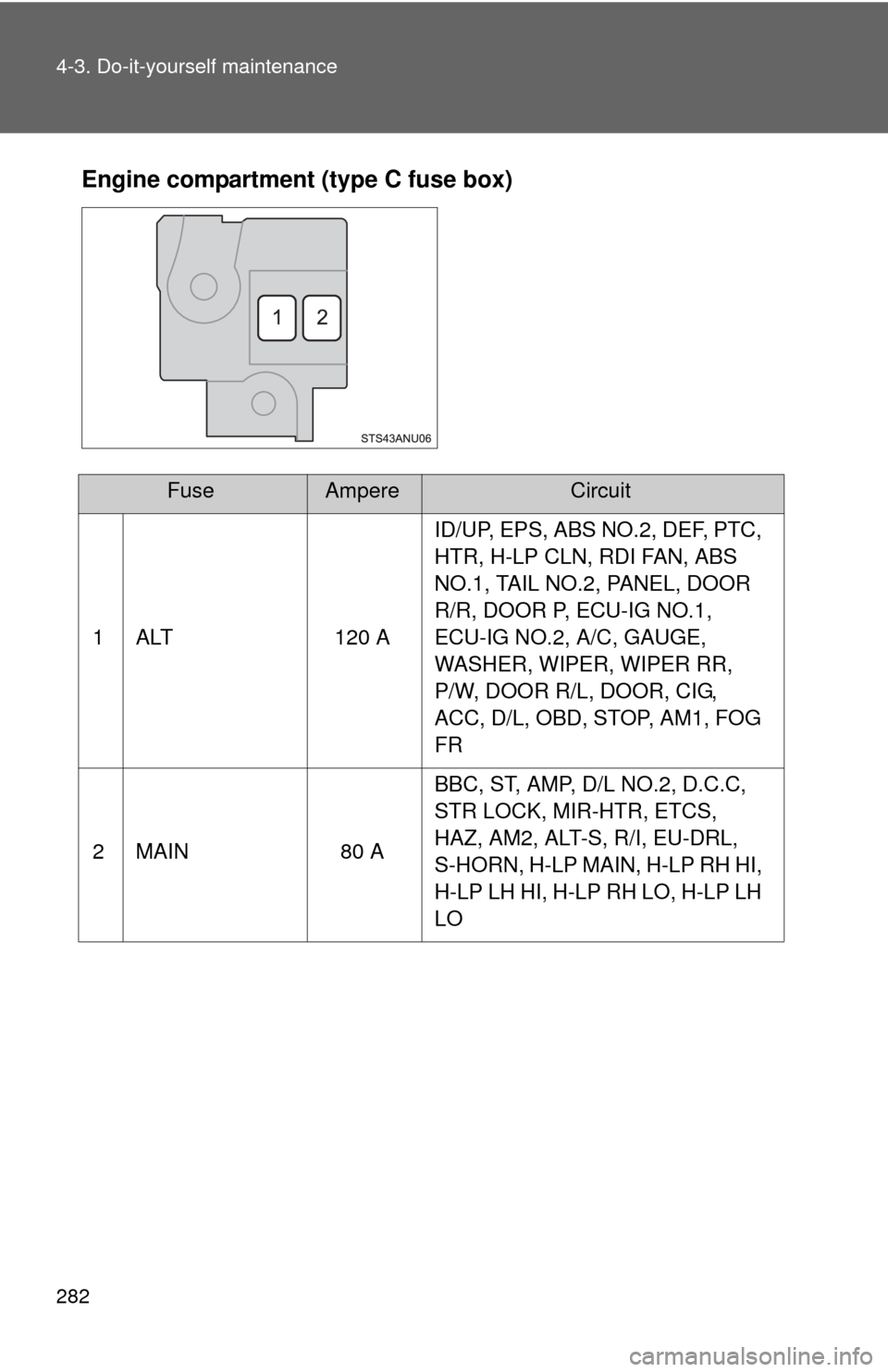

Engine compartment (type C fuse box)
FuseAmpereCircuit
1 ALT 120 A ID/UP, EPS, ABS NO.2, DEF, PTC,
HTR, H-LP CLN, RDI FAN, ABS
NO.1, TAIL NO.2, PANEL, DOOR
R/R, DOOR P, ECU-IG NO.1,
ECU-IG NO.2, A/C, GAUGE,
WASHER, WIPER, WIPER RR,
P/W, DOOR R/L, DOOR, CIG,
ACC, D/L, OBD, STOP, AM1, FOG
FR
2 MAIN 80 A BBC, ST, AMP, D/L NO.2, D.C.C,
STR LOCK, MIR-HTR, ETCS,
HAZ, AM2, ALT-S, R/I, EU-DRL,
S-HORN, H-LP MAIN, H-LP RH HI,
H-LP LH HI, H-LP RH LO, H-LP LH
LO

283
4-3. Do-it-yourself maintenance
4
Maintenance and care

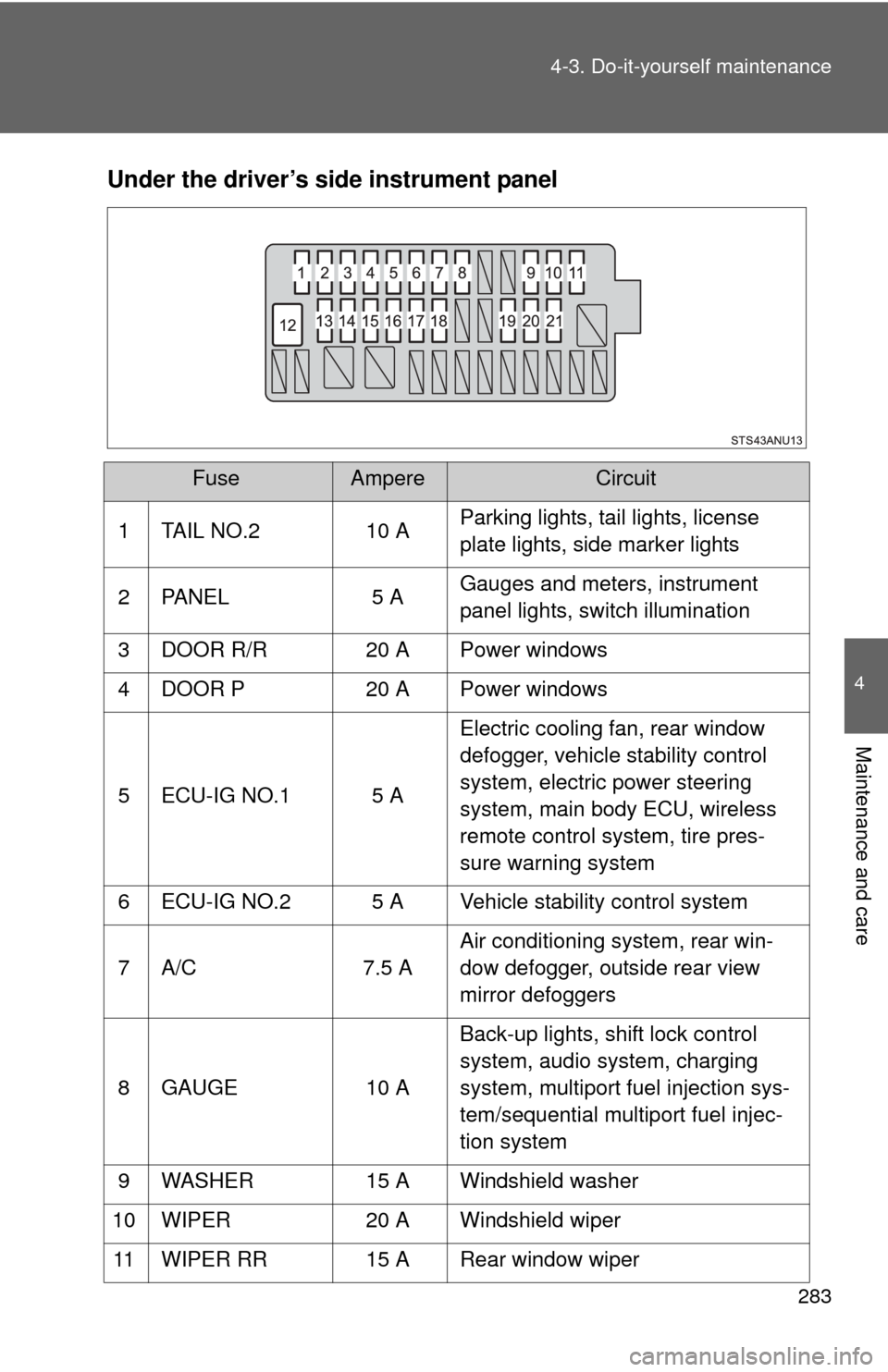

Under the driver’s side instrument panel
FuseAmpereCircuit
1 TAIL NO.2 10 A Parking lights, tail lights, license
plate lights, side marker lights
2 PANEL 5 A Gauges and meters, instrument
panel lights, switch illumination
3 DOOR R/R 20 A Power windows
4 DOOR P 20 A Power windows
5 ECU-IG NO.1 5 A Electric cooling fan, rear window
defogger, vehicle stability control
system, electric power steering
system, main body ECU, wireless
remote control system, tire pres-
sure warning system
6 ECU-IG NO.2 5 A Vehicle stability control system
7 A/C 7.5 AAir conditioning system, rear win-
dow defogger, outside rear view
mirror defoggers
8 GAUGE 10 ABack-up lights, shift lock control
system, audio system, charging
system, multiport fuel injection sys-
tem/sequential multiport fuel injec-
tion system
9 WASHER 15 A Windshield washer
10 WIPER 20 A Windshield wiper
11 WIPER RR 15 A Rear window wiper

284 4-3. Do-it-yourself maintenance
12 P/W30 A Power windows
13 DOOR R/L 20 A Power windows
14 DOOR 20 A Power windows
15 CIG 15 A Power outlets
16 ACC 5 AMain body ECU, outside rear view
mirrors, audio system, shift lock
control system
17 D/L 25 APower door lock system, main
body ECU
18 OBD 7.5 A On-board diagnosis system
19 STOP 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system, vehicle stability control
system, stop lights, high mounted
stoplight
20 AM1 7.5 A Starting system, engine switch
21 FOG FR 15 A Front fog lights
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 286)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts non designed for this vehicle may be unus-
able.
FuseAmpereCircuit

285
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

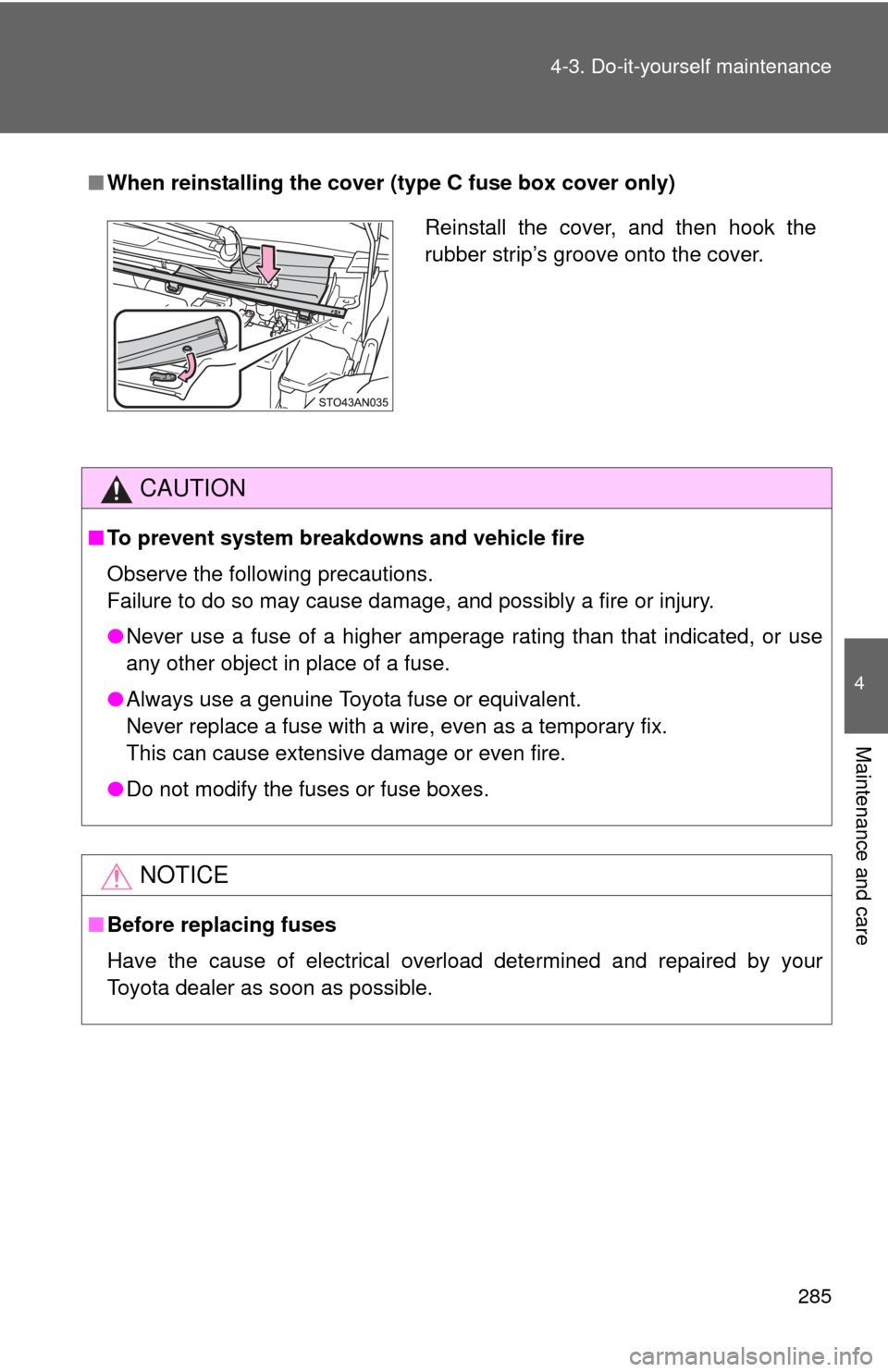

When reinstalling the cover (type C fuse box cover only)
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
Reinstall the cover, and then hook the
rubber strip’s groove onto the cover.

286
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 352)

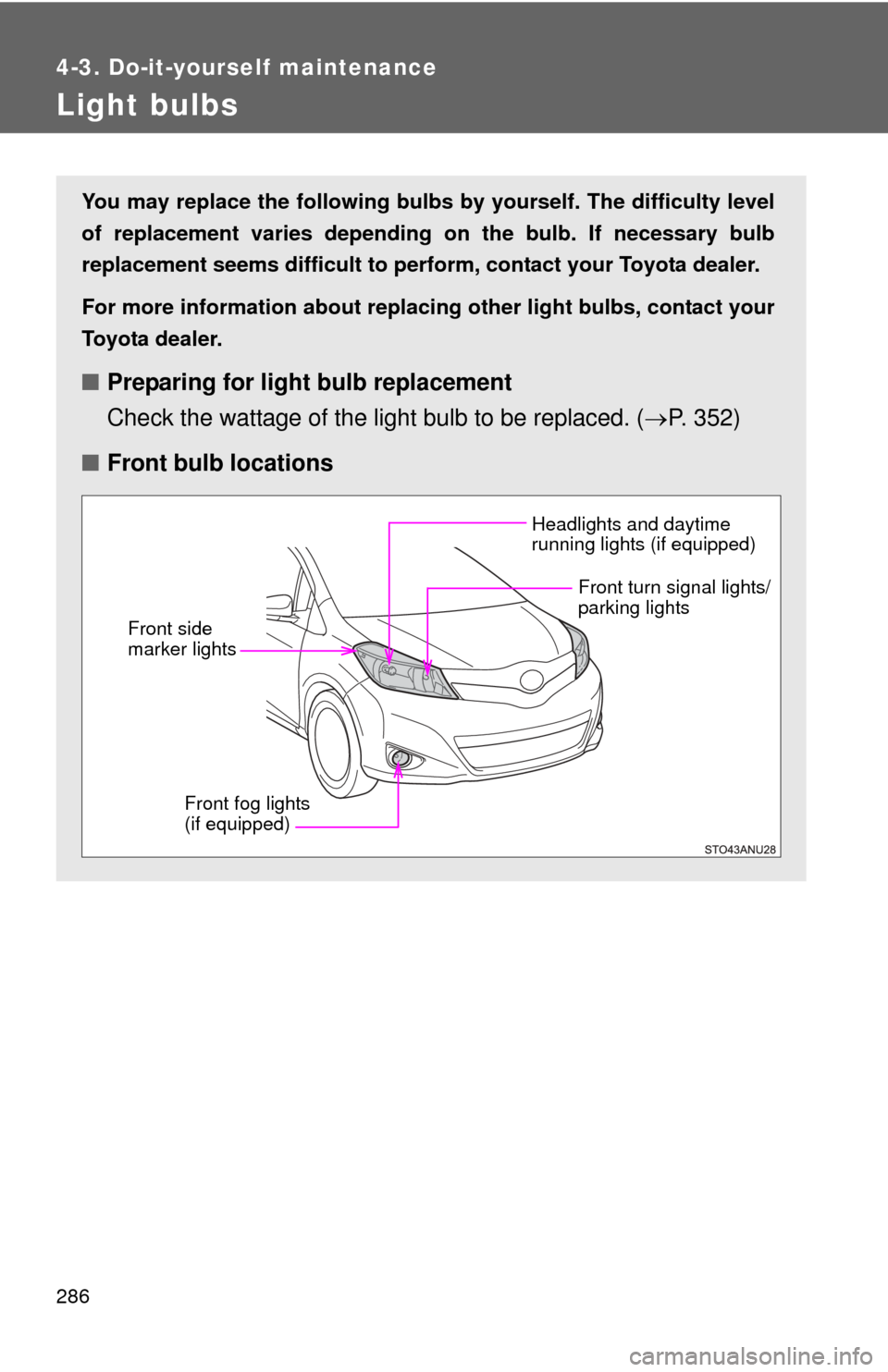

■ Front bulb locations
Headlights and daytime
running lights (if equipped)
Front fog lights
(if equipped)
Front side
marker lights
Front turn signal lights/
parking lights

287
4-3. Do-it-yourself maintenance
4
Maintenance and care

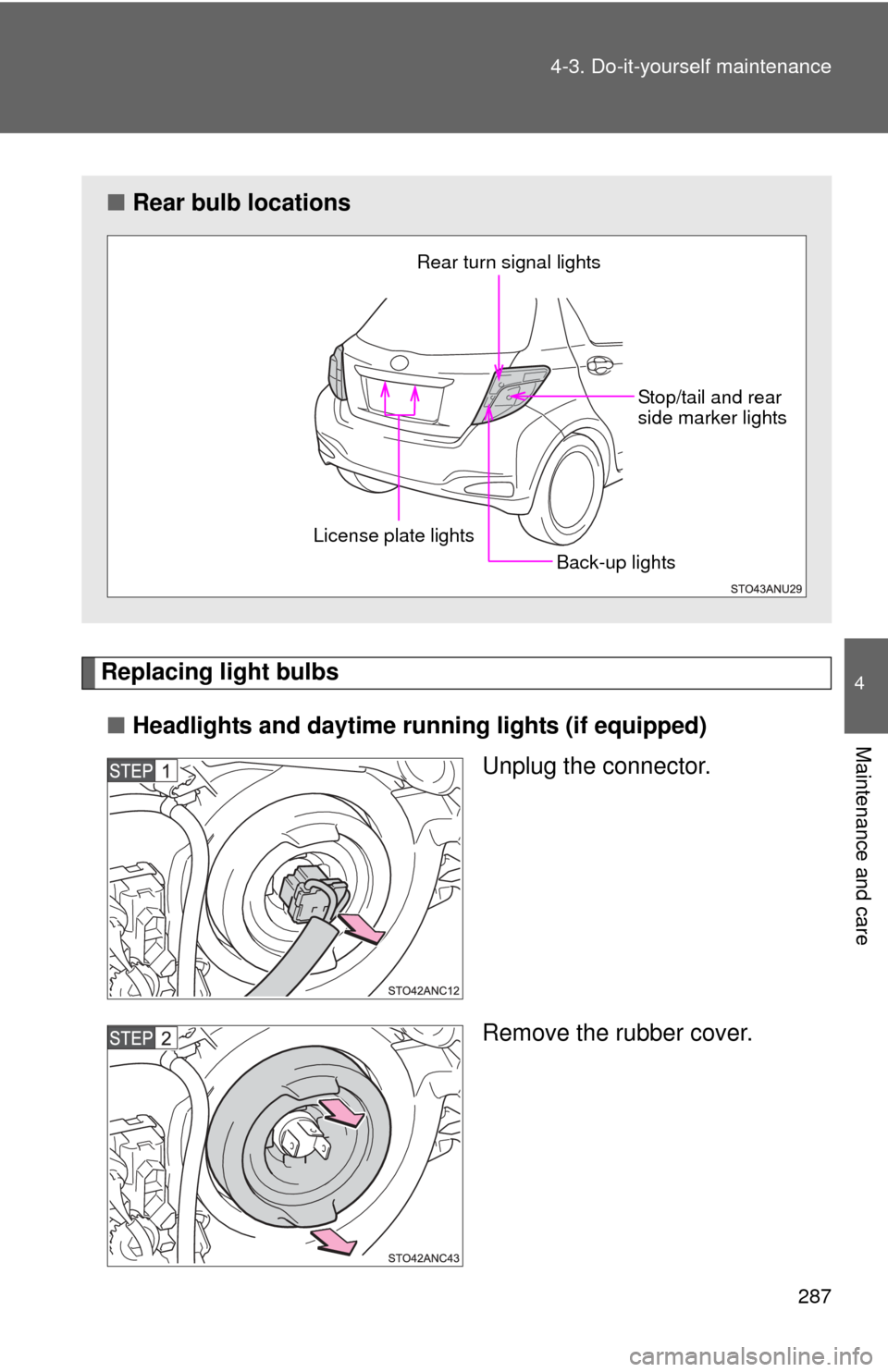

Replacing light bulbs
■ Headlights and daytime r unning lights (if equipped)
Unplug the connector.
Remove the rubber cover.
■Rear bulb locations
Back-up lights
Rear turn signal lights
Stop/tail and rear
side marker lights
License plate lights

288 4-3. Do-it-yourself maintenance

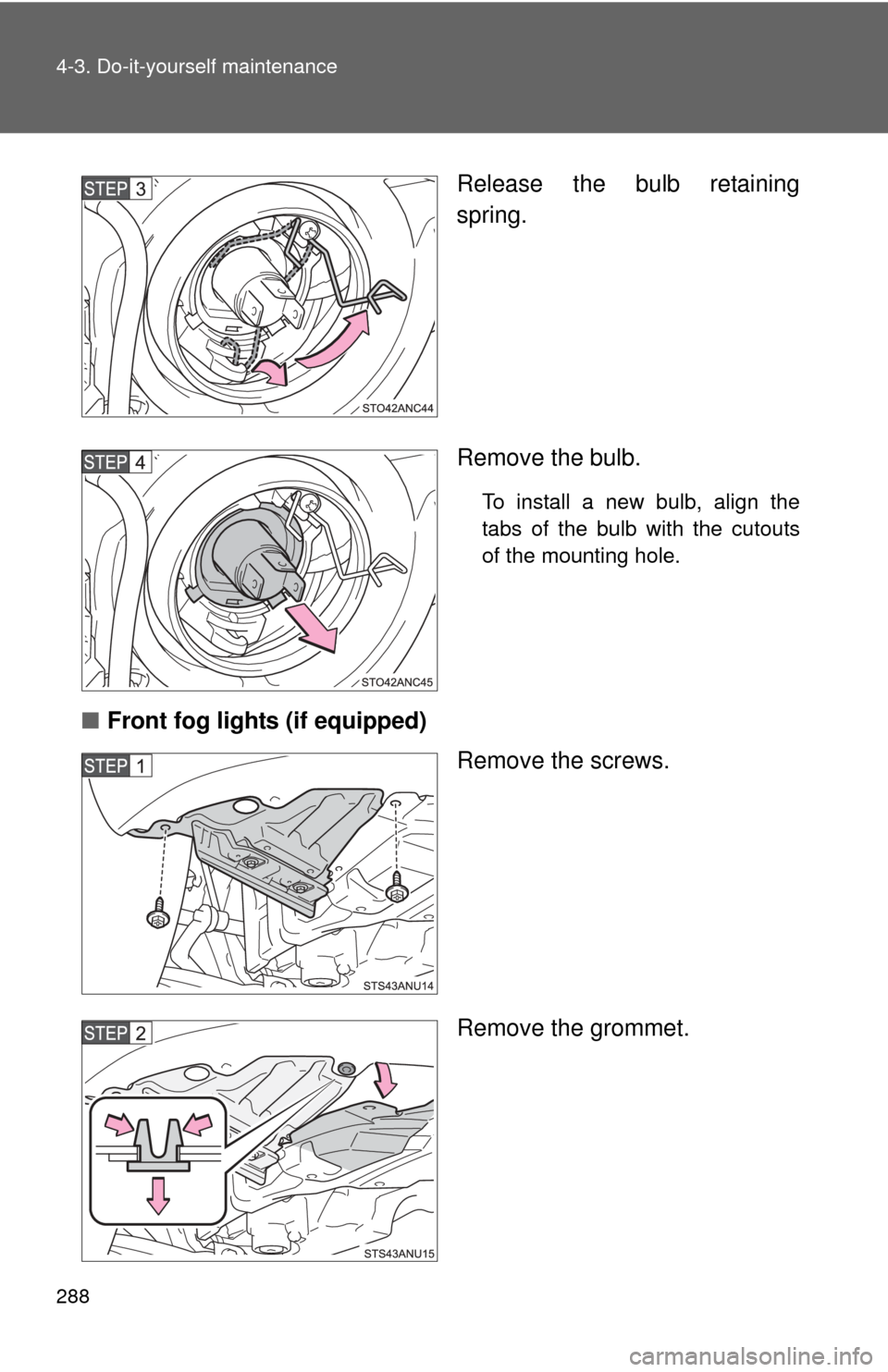

Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
■Front fog lights (if equipped)
Remove the screws.
Remove the grommet.

289
4-3. Do-it-yourself maintenance
4
Maintenance and care

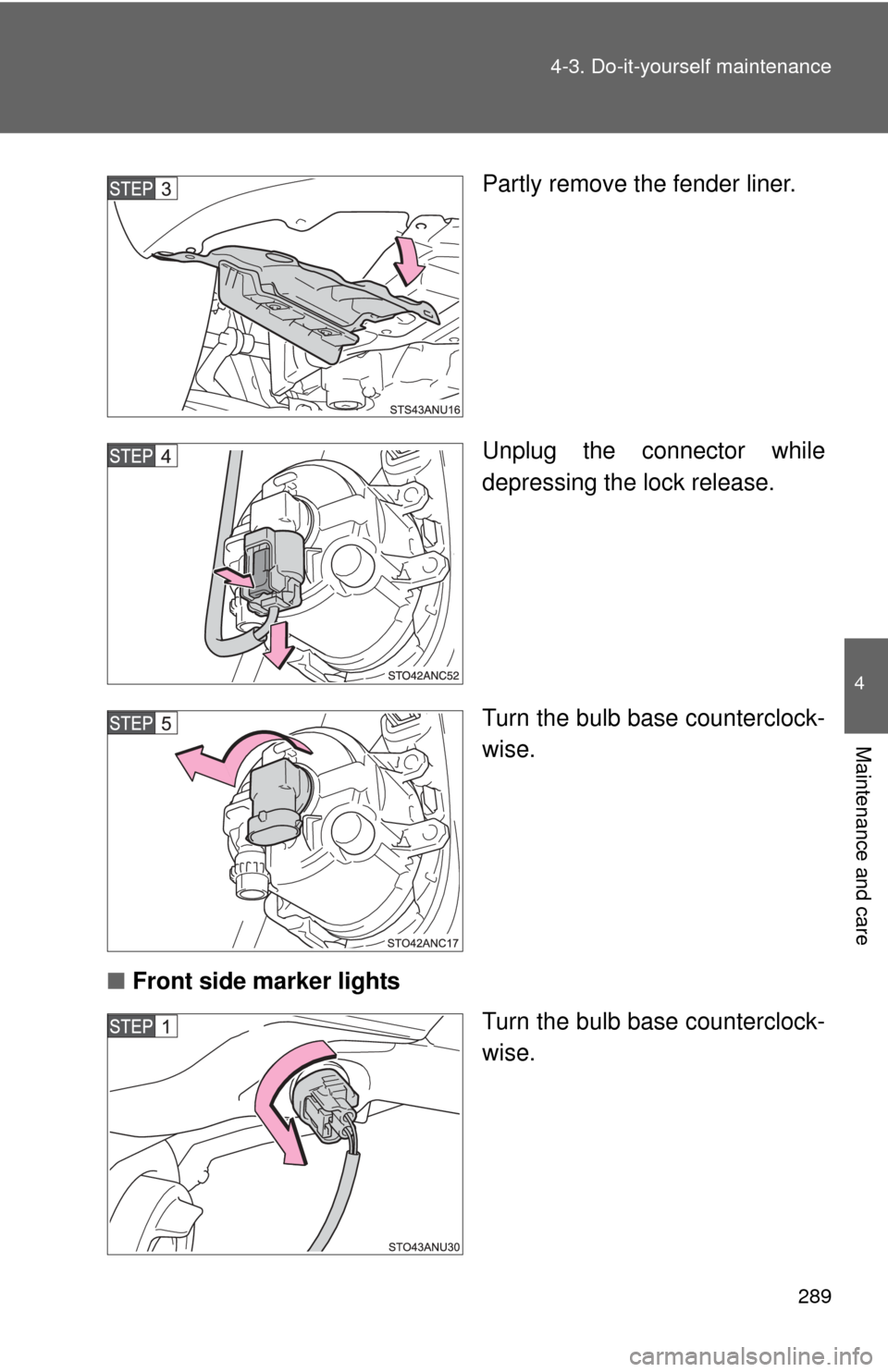

Partly remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.

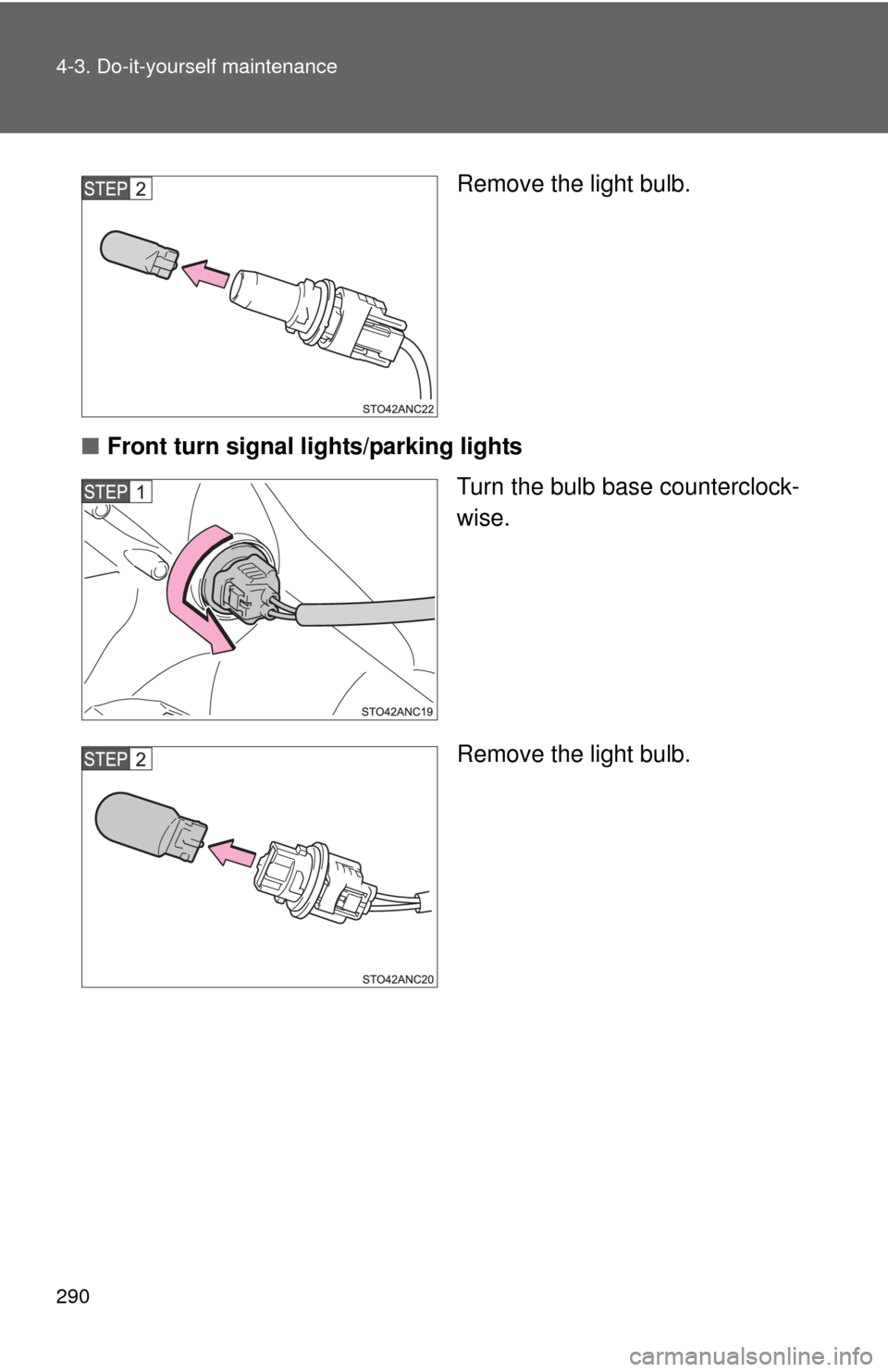

■ Front side marker lights
Turn the bulb base counterclock-
wise.

290 4-3. Do-it-yourself maintenance
Remove the light bulb.
■ Front turn signal li ghts/parking lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
