511 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

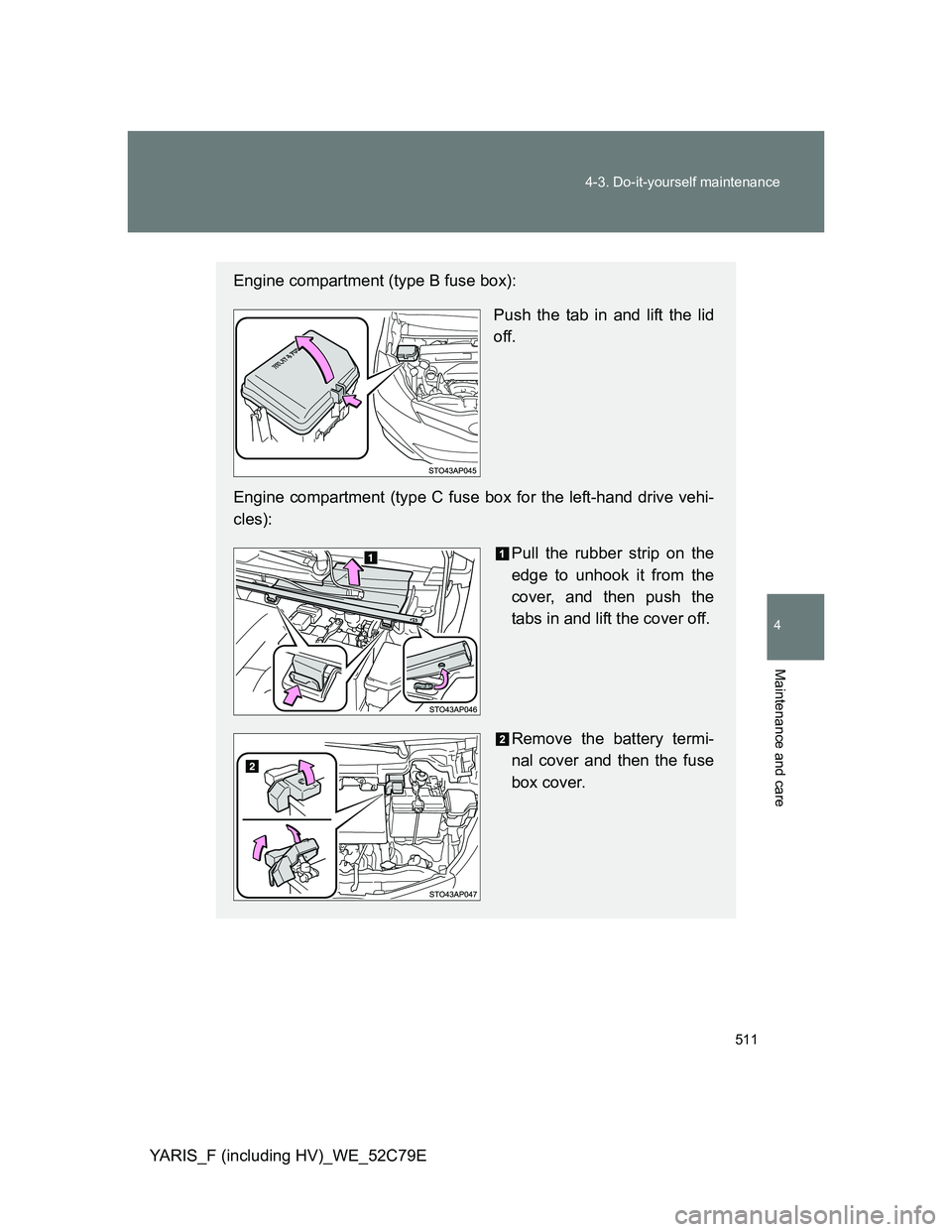

Engine compartment (type B fuse box):
Push the tab in and lift the lid
off.
Engine compartment (type C fuse box for the left-hand drive vehi-
cles):
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the
tabs in and lift the cover off.
Remove the battery termi-
nal cover and then the fuse
box cover.

512 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E

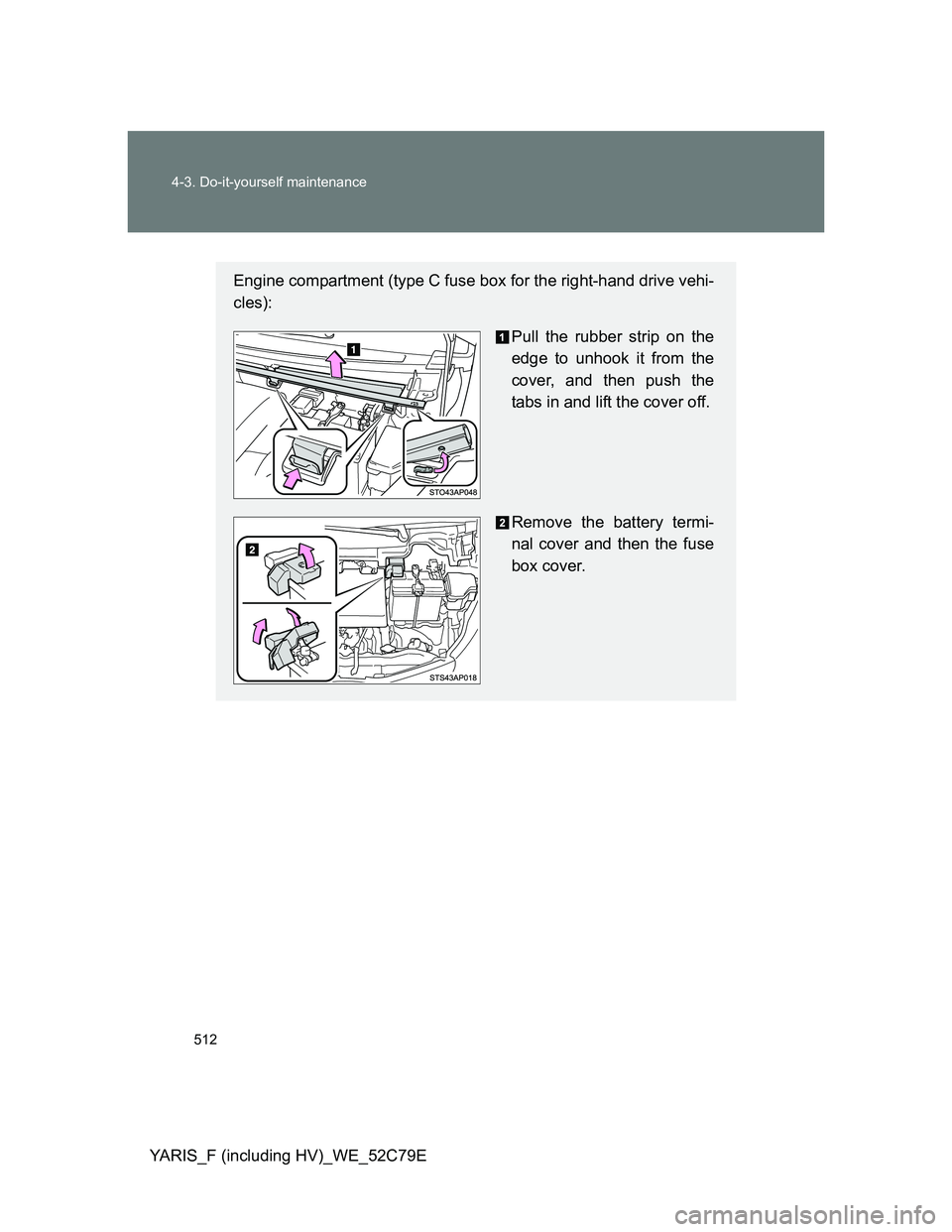

Engine compartment (type C fuse box for the right-hand drive vehi-
cles):
Pull the rubber strip on the
edge to unhook it from the
cover, and then push the
tabs in and lift the cover off.
Remove the battery termi-
nal cover and then the fuse
box cover.

513 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

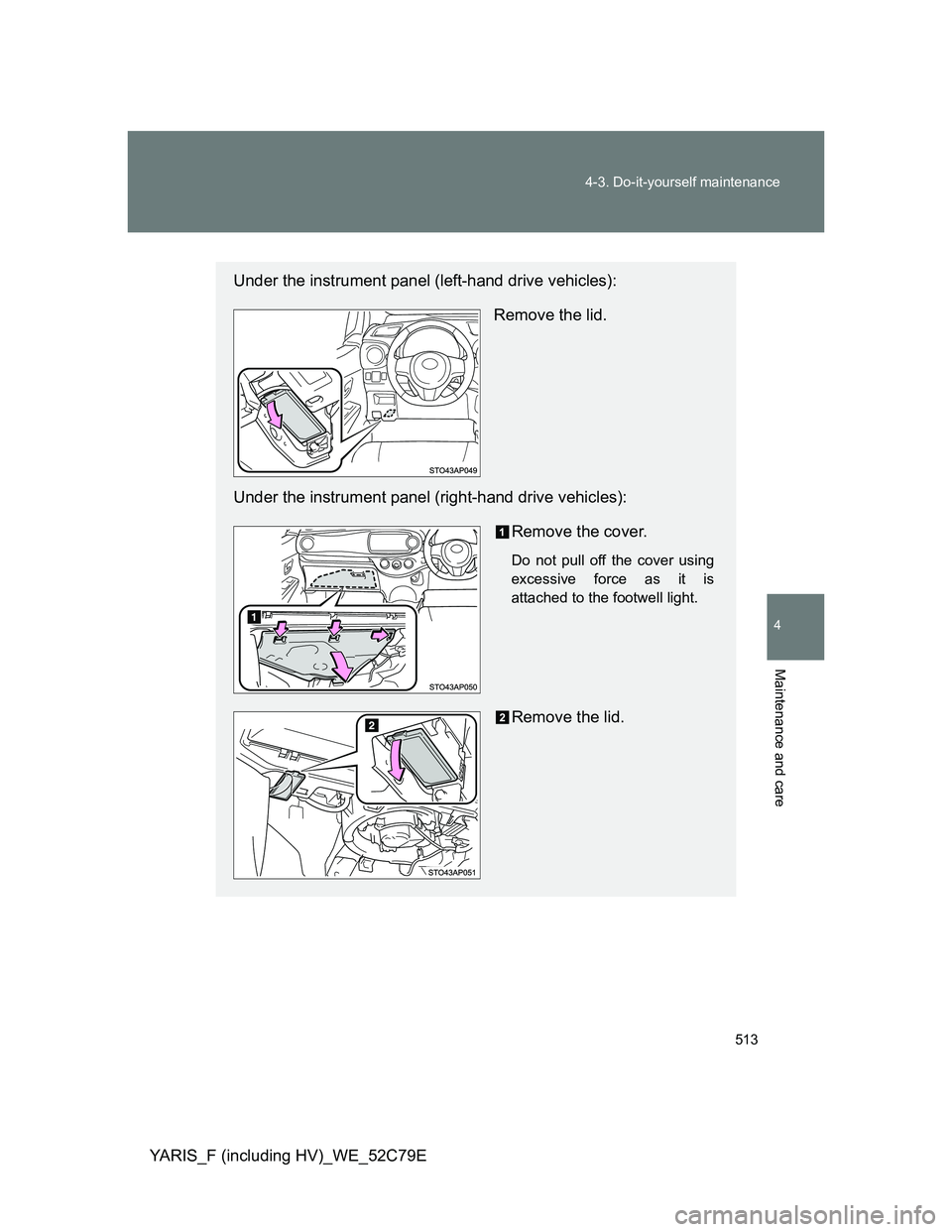

Under the instrument panel (left-hand drive vehicles):
Remove the lid.
Under the instrument panel (right-hand drive vehicles):
Remove the cover.
Do not pull off the cover using
excessive force as it is
attached to the footwell light.
Remove the lid.

514 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E

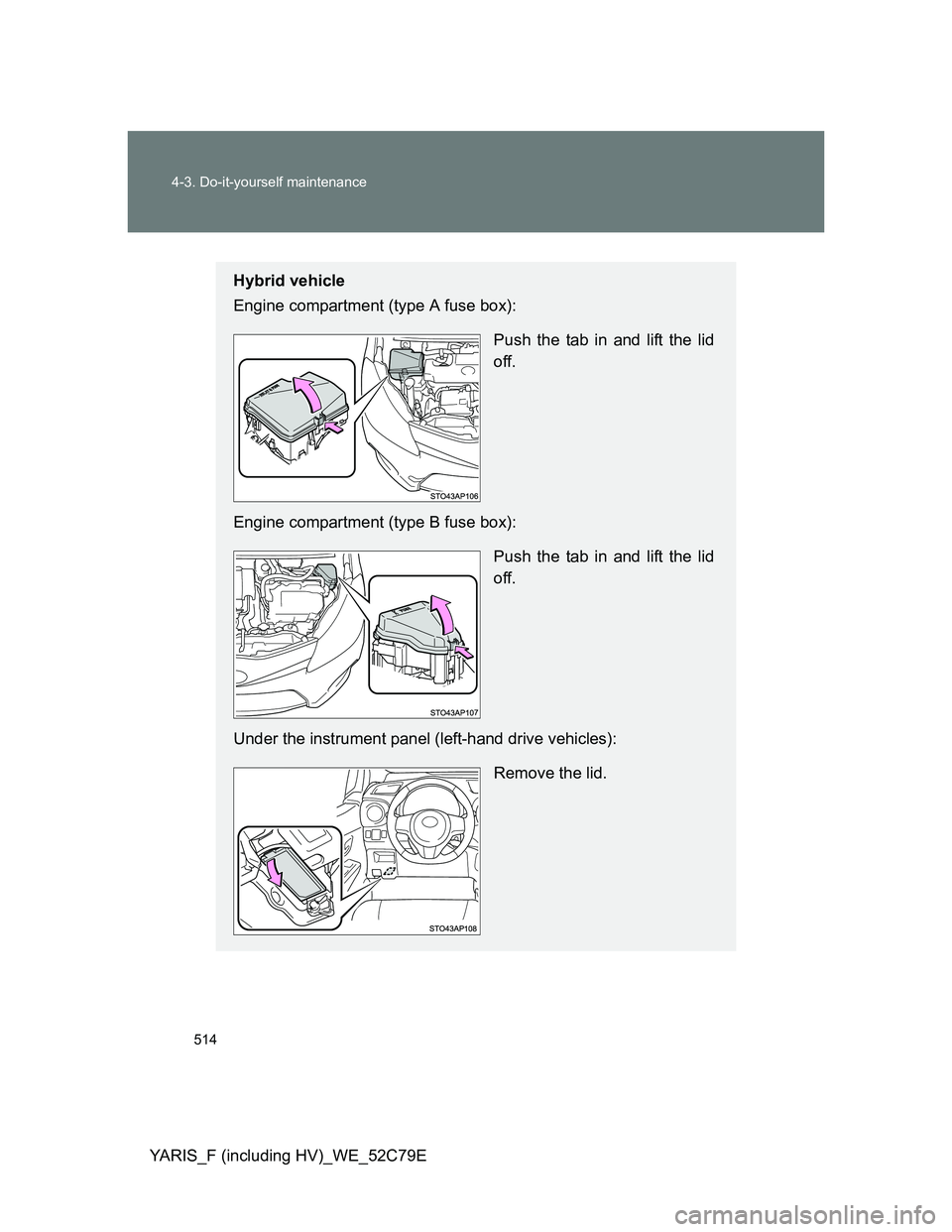

Hybrid vehicle
Engine compartment (type A fuse box):
Push the tab in and lift the lid
off.
Engine compartment (type B fuse box):
Push the tab in and lift the lid
off.
Under the instrument panel (left-hand drive vehicles):
Remove the lid.

515 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

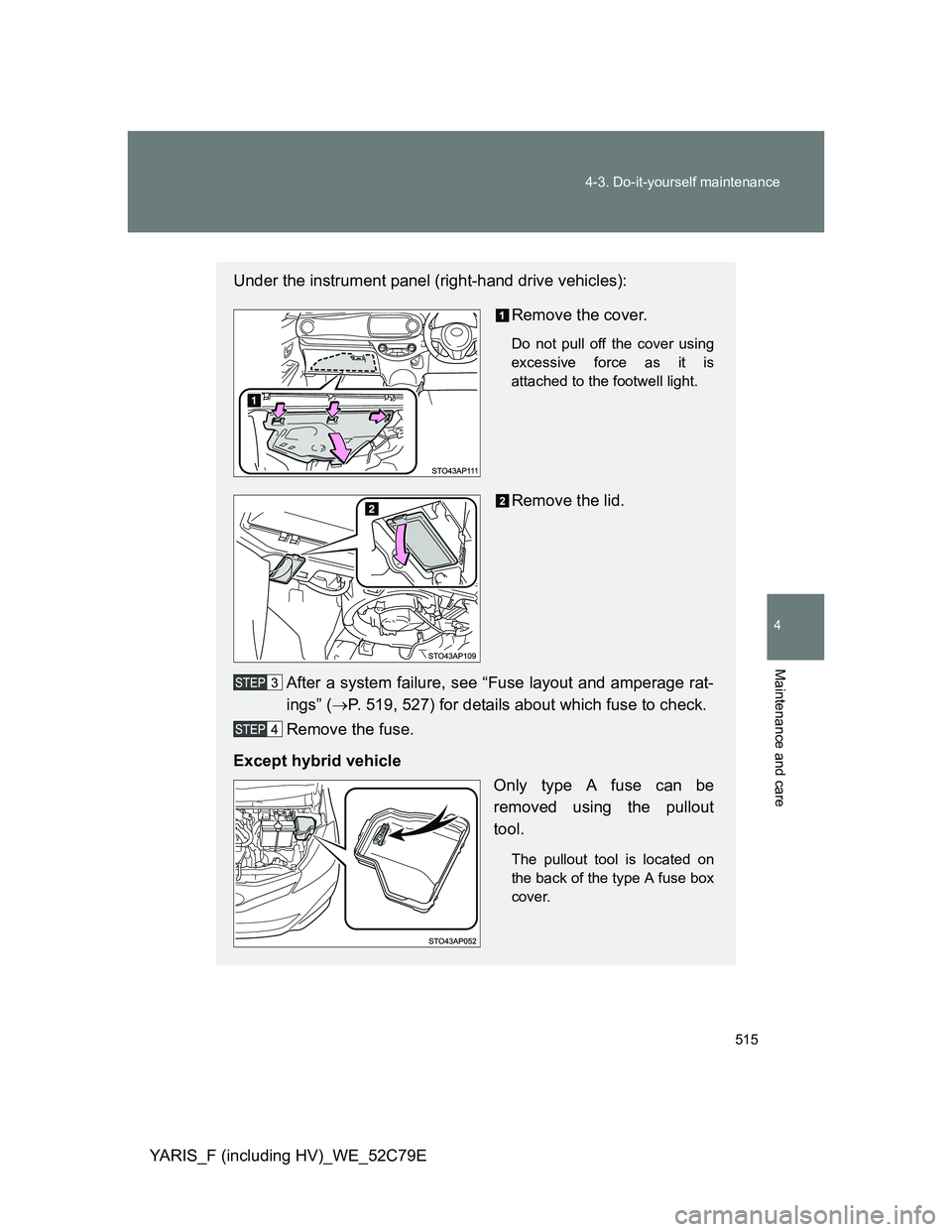

Under the instrument panel (right-hand drive vehicles):
Remove the cover.
Do not pull off the cover using
excessive force as it is
attached to the footwell light.
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 519, 527) for details about which fuse to check.
Remove the fuse.
Except hybrid vehicle
Only type A fuse can be
removed using the pullout
tool.
The pullout tool is located on
the back of the type A fuse box
cover.

516 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E

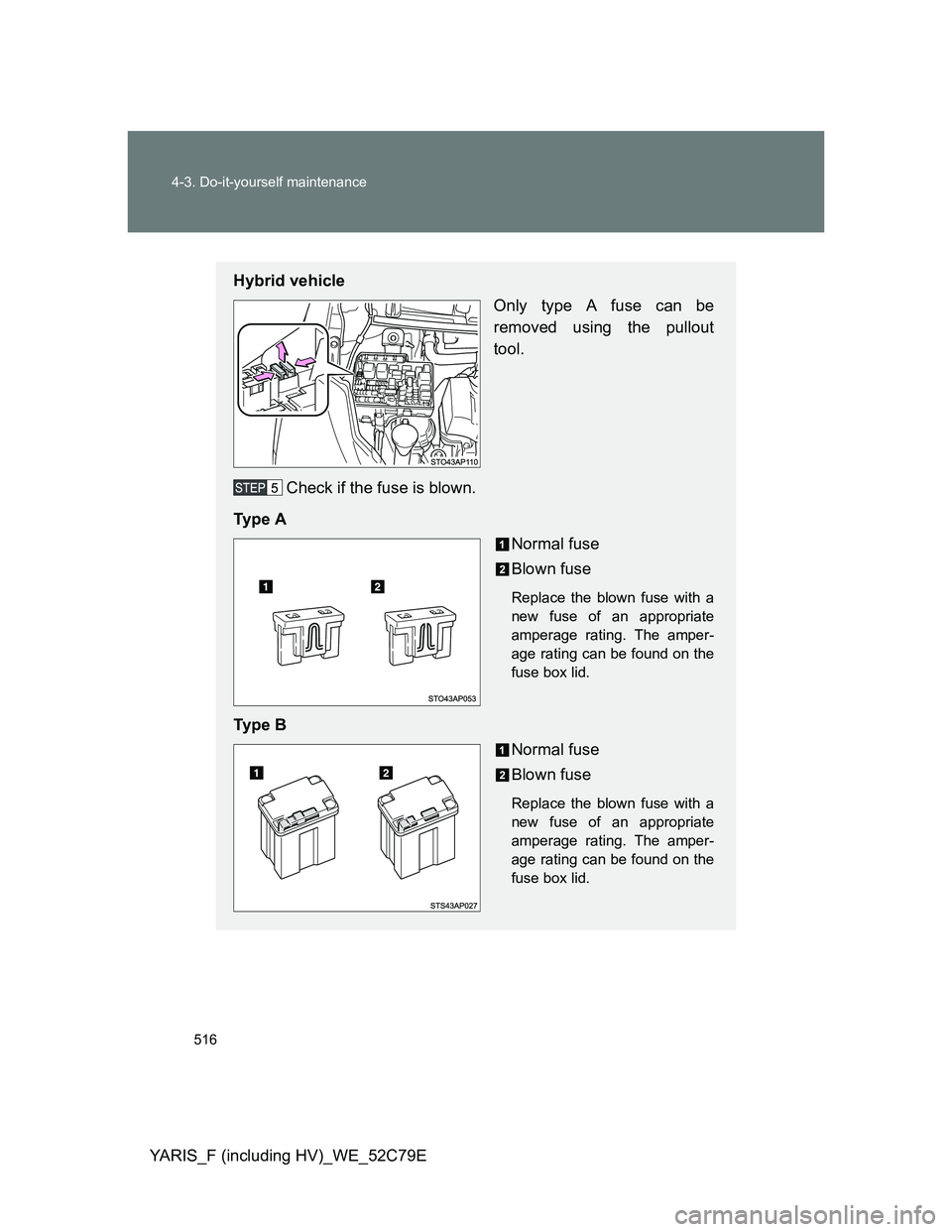

Hybrid vehicle
Only type A fuse can be
removed using the pullout
tool.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.

517 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

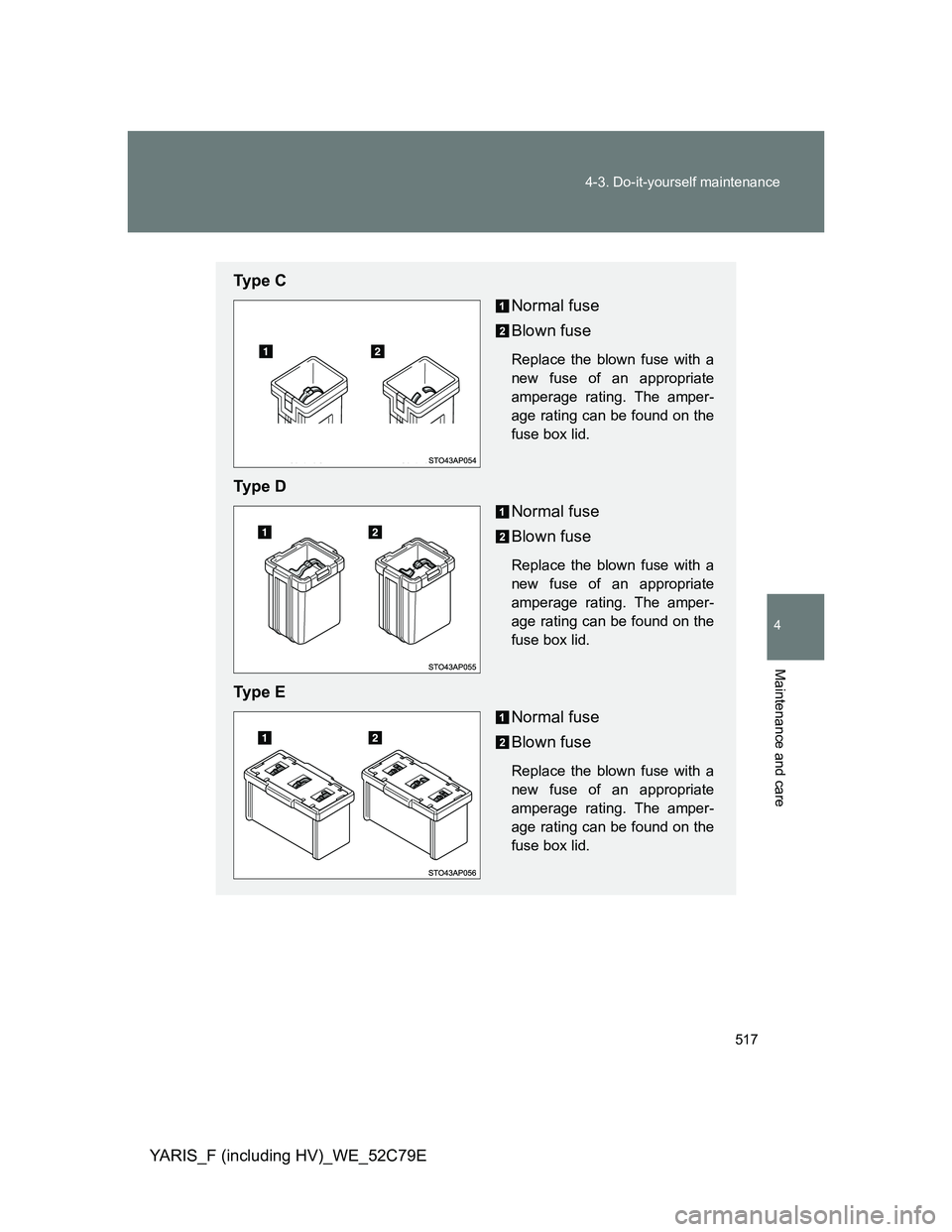

Ty p e C
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e D
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e E
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.

518 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E

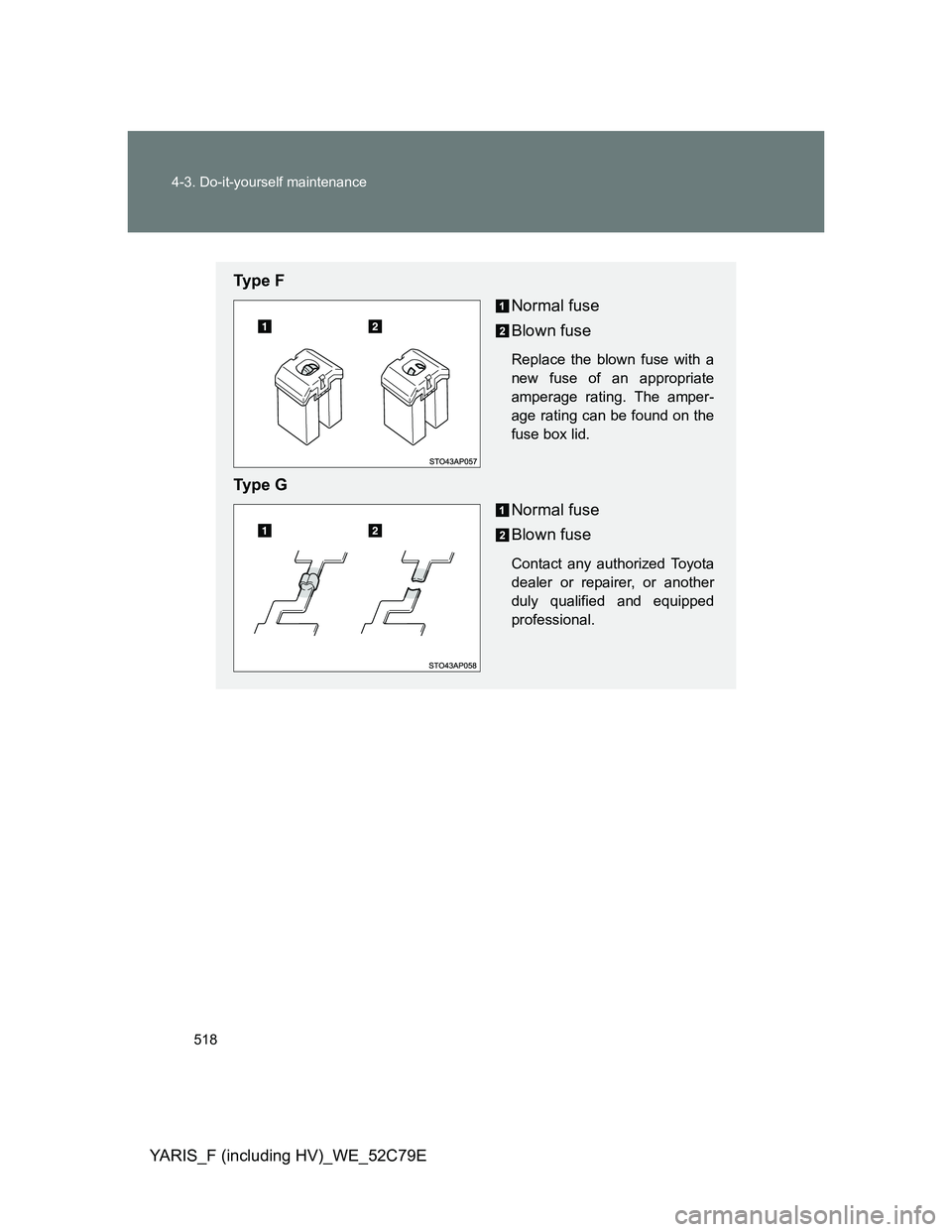

Ty p e F
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e G
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.

519 4-3. Do-it-yourself maintenance
4
Maintenance and care
YARIS_F (including HV)_WE_52C79E

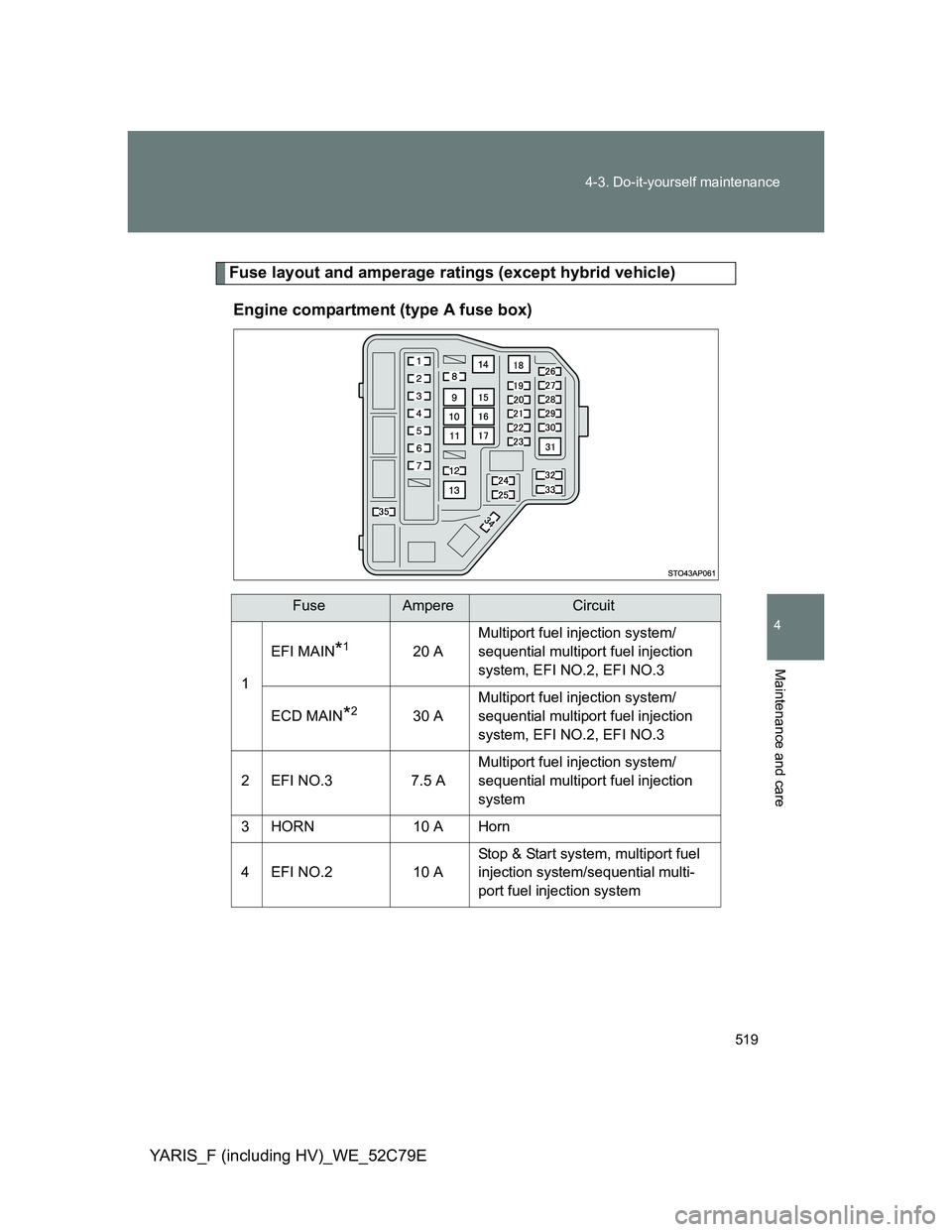

Fuse layout and amperage ratings (except hybrid vehicle)
Engine compartment (type A fuse box)
FuseAmpereCircuit
1EFI MAIN
*120 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2, EFI NO.3
ECD MAIN
*230 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2, EFI NO.3
2 EFI NO.3 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
3 HORN 10 A Horn
4 EFI NO.2 10 AStop & Start system, multiport fuel
injection system/sequential multi-
port fuel injection system

520 4-3. Do-it-yourself maintenance
YARIS_F (including HV)_WE_52C79E

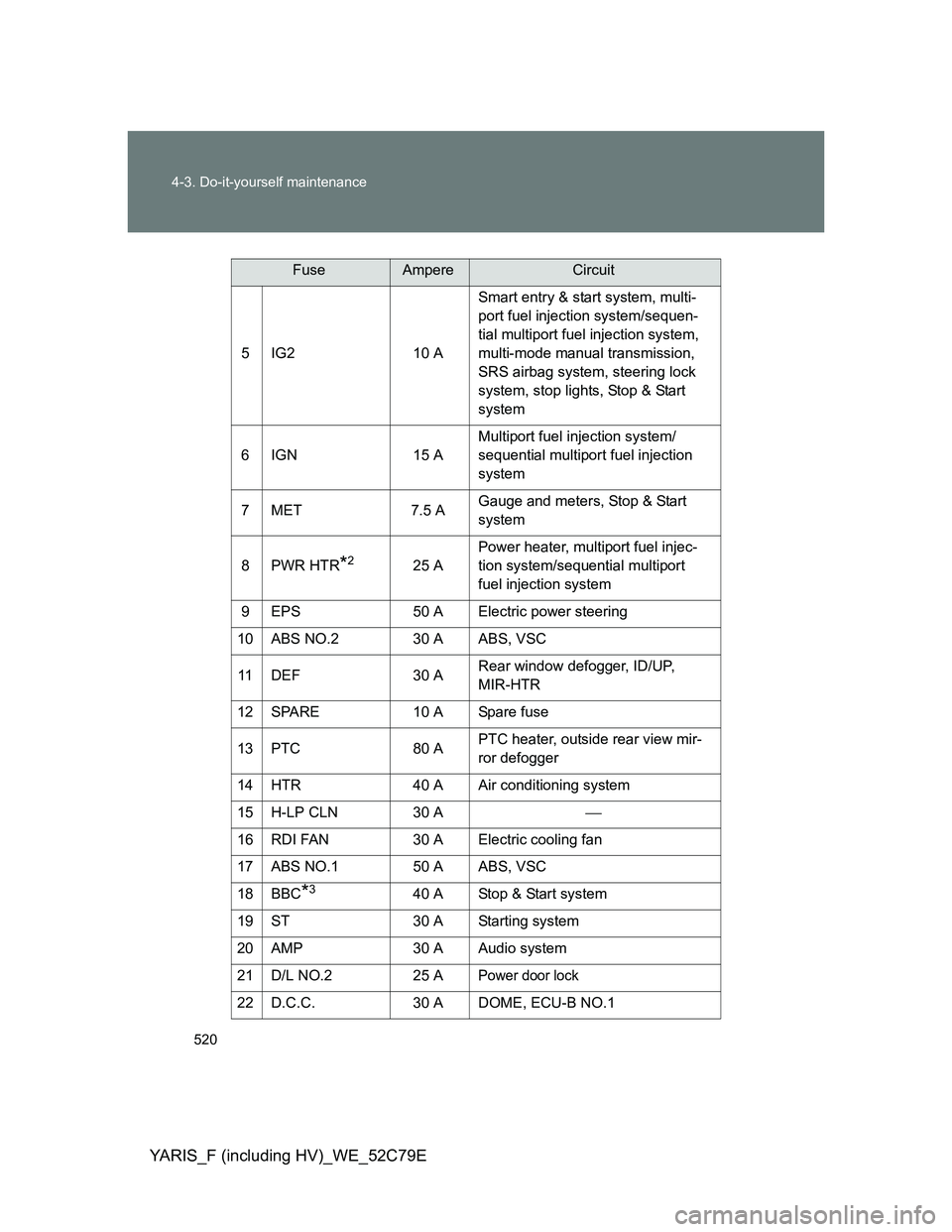

5IG2 10 ASmart entry & start system, multi-
port fuel injection system/sequen-
tial multiport fuel injection system,
multi-mode manual transmission,
SRS airbag system, steering lock
system, stop lights, Stop & Start
system
6IGN 15 AMultiport fuel injection system/
sequential multiport fuel injection
system
7MET 7.5 AGauge and meters, Stop & Start
system
8PWR HTR
*225 APower heater, multiport fuel injec-
tion system/sequential multiport
fuel injection system
9 EPS 50 A Electric power steering
10 ABS NO.2 30 A ABS, VSC
11 D E F 3 0 ARear window defogger, ID/UP,
MIR-HTR
12 SPARE 10 A Spare fuse
13 PTC 80 APTC heater, outside rear view mir-
ror defogger
14 HTR 40 A Air conditioning system
15 H-LP CLN 30 A
16 RDI FAN 30 A Electric cooling fan
17 ABS NO.1 50 A ABS, VSC
18 BBC
*340 A Stop & Start system
19 ST 30 A Starting system
20 AMP 30 A Audio system
21 D/L NO.2 25 A
Power door lock
22 D.C.C. 30 A DOME, ECU-B NO.1
