headlights TOYOTA YARIS 2013 Owners Manual

YARIS_F(including HV)_WE_52E26E
8
Headlights (low and high beam) P. 291
Pictorial indexExterior
Front fog lights P. 300
Hood P. 460
Windshield wiper P. 302
Outside rear view mirrors P. 144
Front position lights P. 291
Front turn signal lights P. 267
3-door models (except hybrid vehicle)
Panoramic roof shade
 P. 435
Side turn signal lights P. 267

YARIS_F(including HV)_WE_52E26E
10
Front position lights P. 291
Pictorial indexExterior
Front fog lights P. 300
Side turn signal lights P. 267
Outside rear view mirrors P. 144
Windshield wiper P. 302
Hood P. 460
5-door models (except hybrid vehicle)
Panoramic roof shade P. 435
Headlights (low and high beam) P. 291
Front turn signal lights P. 267

YARIS_F(including HV)_WE_52E26E
12
Front position lights P. 291
Pictorial indexExterior
Front fog lights P. 300
Side turn signal lights P. 267
Outside rear view mirrors P. 144
Windshield wiper P. 302
Hood P. 460
5-door models (hybrid vehicle)
Panoramic roof shade P. 435
Headlights (low and high beam) P. 291
Front turn signal lights P. 267

141
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
YARIS_F(including HV)_WE_52E26E

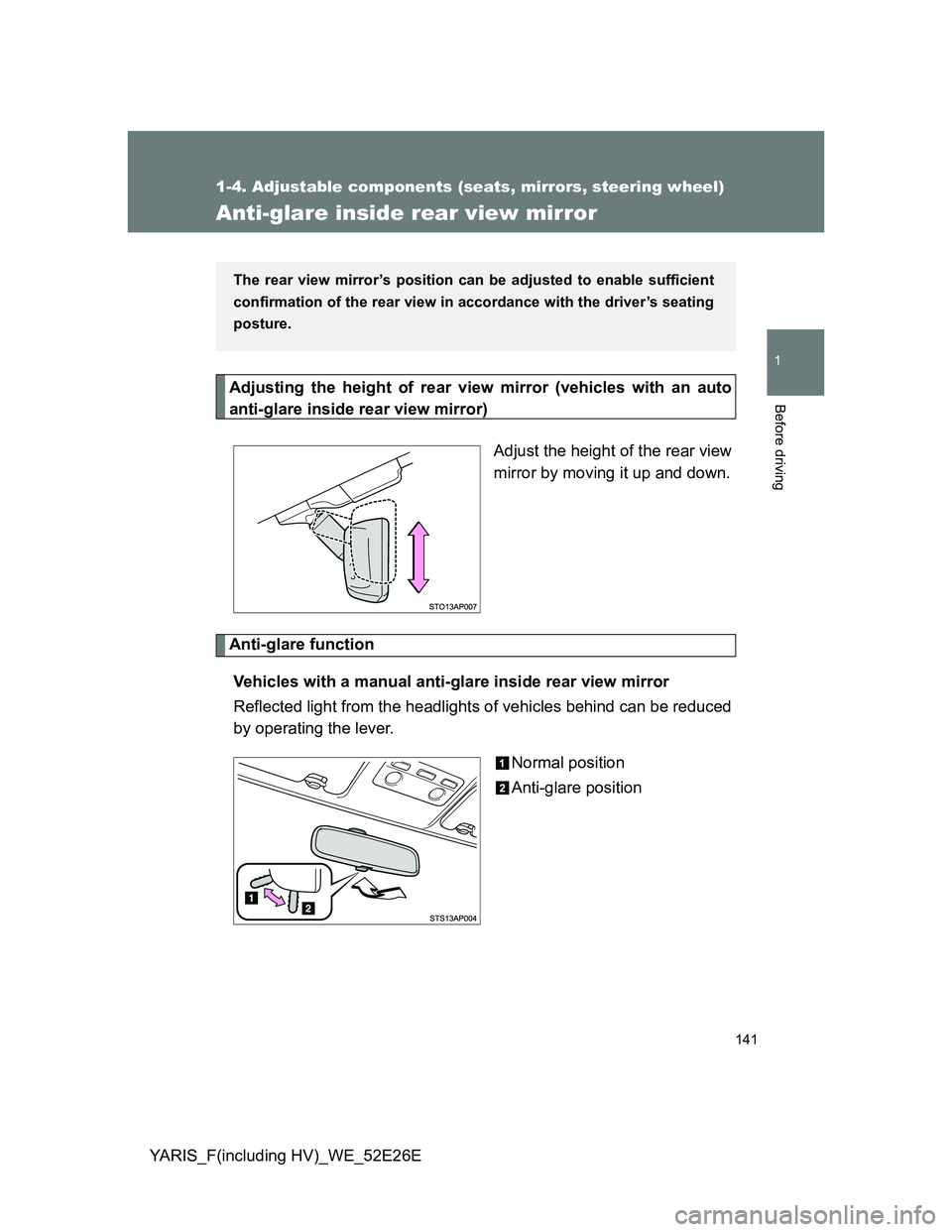

Anti-glare inside rear view mirror
Adjusting the height of rear view mirror (vehicles with an auto
anti-glare inside rear view mirror)
Adjust the height of the rear view
mirror by moving it up and down.
Anti-glare function
Vehicles with a manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view in accordance with the driver’s seating
posture.

142 1-4. Adjustable components (seats, mirrors, steering wheel)
YARIS_F(including HV)_WE_52E26EVehicles with an auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
Except hybrid vehicle
Vehicles without a smart entry &
start system:
The function will set to ON mode
each time the engine switch is
turned to the “ON” position.
Pressing the button turns the
function to OFF mode. (The indi-
cator also turns off.)
Vehicles with a smart entry & start
system:
The function will set to ON mode
each time the “ENGINE START
STOP” switch is turned to IGNI-
TION ON mode. Pressing the but-
ton turns the function to OFF
mode. (The indicator also turns
off.)
Hybrid vehicle
Vehicles without an electronic
key:
The function will set to ON mode
each time the engine switch is
turned to the “ON” position.
Pressing the button turns the
function to OFF mode. (The indi-
cator also turns off.)

291
2
When driving
YARIS_F(including HV)_WE_52E26E
2-3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Except hybrid vehicle
The front position,
tail, license plate and
instrument panel
lights turn on.
The headlights and
all the lights listed
above turn on.
Vehicles without a
smart entry & start
system: The head-
lights, front position
lights and so on turn
on and off automati-
cally (when the
engine switch is in
the “ON” position.)
Vehicles with a smart
entry & start system:
The headlights, front
position lights and so
on turn on and off
automatically (when
the “ENGINE START
STOP” switch is in
IGNITION ON
mode.)
(If equipped)
(If equipped)

292 2-3. Operating the lights and wipers
YARIS_F(including HV)_WE_52E26E
Hybrid vehicle
The front position,
tail, license plate and
instrument panel
lights turn on.
The headlights and
all the lights listed
above turn on.
Vehicles without an
electronic key: The
headlights, front
position lights, day-
time running lights
and so on turn on
and off automatically
(when the engine
switch is in the “ON”
position).
Vehicles with an
electronic key: The
headlights, front
position lights, day-
time running lights
and so on turn on
and off automatically
(when the “POWER”
switch is in ON
mode).
(If equipped)
(If equipped)

293 2-3. Operating the lights and wipers
2
When driving
YARIS_F(including HV)_WE_52E26E
Turning on the high beam headlights
With the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
Manual headlight leveling dial
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Left-hand drive vehicles
Raises the level of the head-
lights
Lowers the level of the head-
lights

295 2-3. Operating the lights and wipers
2
When driving
YARIS_F(including HV)_WE_52E26E
Daytime running light system
Except hybrid vehicle (if equipped)
To make your vehicle more visible to other drivers, the headlights and tail
lights turn on automatically whenever the engine is started. Daytime running
lights are not designed for use at night.
Hybrid vehicle
To make your vehicle more visible to other drivers, the daytime running lights
turn on automatically when the parking brake lever is released, if hybrid sys-
tem is operating. (However, these lights will dim when the headlight switch is
operated manually or the automatic headlight system turns on the tail lights.)
Daytime running lights are not designed for use at night.
Headlight control sensor (if equipped)
Automatic light off system (if equipped)
Except hybrid vehicle
Vehicles without a smart entry & start system:
When the light switch is in
or : The headlights and front fog
lights turn off automatically when the engine switch is turned to the
“LOCK” position.
When the light switch is in : The headlights and all the lights turn
off automatically when the engine switch is turned to the “LOCK” posi-
tion.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch off once and then back to
or .
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

296 2-3. Operating the lights and wipers
YARIS_F(including HV)_WE_52E26E
Vehicles with a smart entry & start system:
When the light switch is in
or : The headlights and front fog
lights turn off automatically when the “ENGINE START STOP” switch is
turned off.
When the light switch is in : The headlights and all the lights turn
off automatically when the “ENGINE START STOP” switch is turned off.
To turn the lights on again, turn the “ENGINE START STOP” switch to
IGNITION ON mode, or turn the light switch off once and then back to
or .
Hybrid vehicle
Vehicles without an electronic key:
When the light switch is in
or : The headlights and front fog
lights turn off automatically when the engine switch is turned to the
“LOCK” position.
When the light switch is in : The headlights and all the lights turn
off automatically when the engine switch is turned to the “LOCK” posi-
tion.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch off once and then back to
or .
Vehicles with an electronic key:
When the light switch is in or : The headlights turn off auto-
matically if the “POWER” switch is turned to ACCESSORY mode or
turned off and the driver’s door is opened.
When the light switch is in : The headlights and tail lights turn off
automatically if the “POWER” switch is turned to ACCESSORY mode or
turned off and the driver’s door is opened.
To turn the lights on again, turn the “POWER” switch to ON mode, or turn the
light switch off once and then back to or .
