TOYOTA YARIS 2015 Instruksjoner for bruk (in Norwegian)
Manufacturer: TOYOTA, Model Year: 2015, Model line: YARIS, Model: TOYOTA YARIS 2015Pages: 484, PDF Size: 24.73 MB
Page 11 of 484

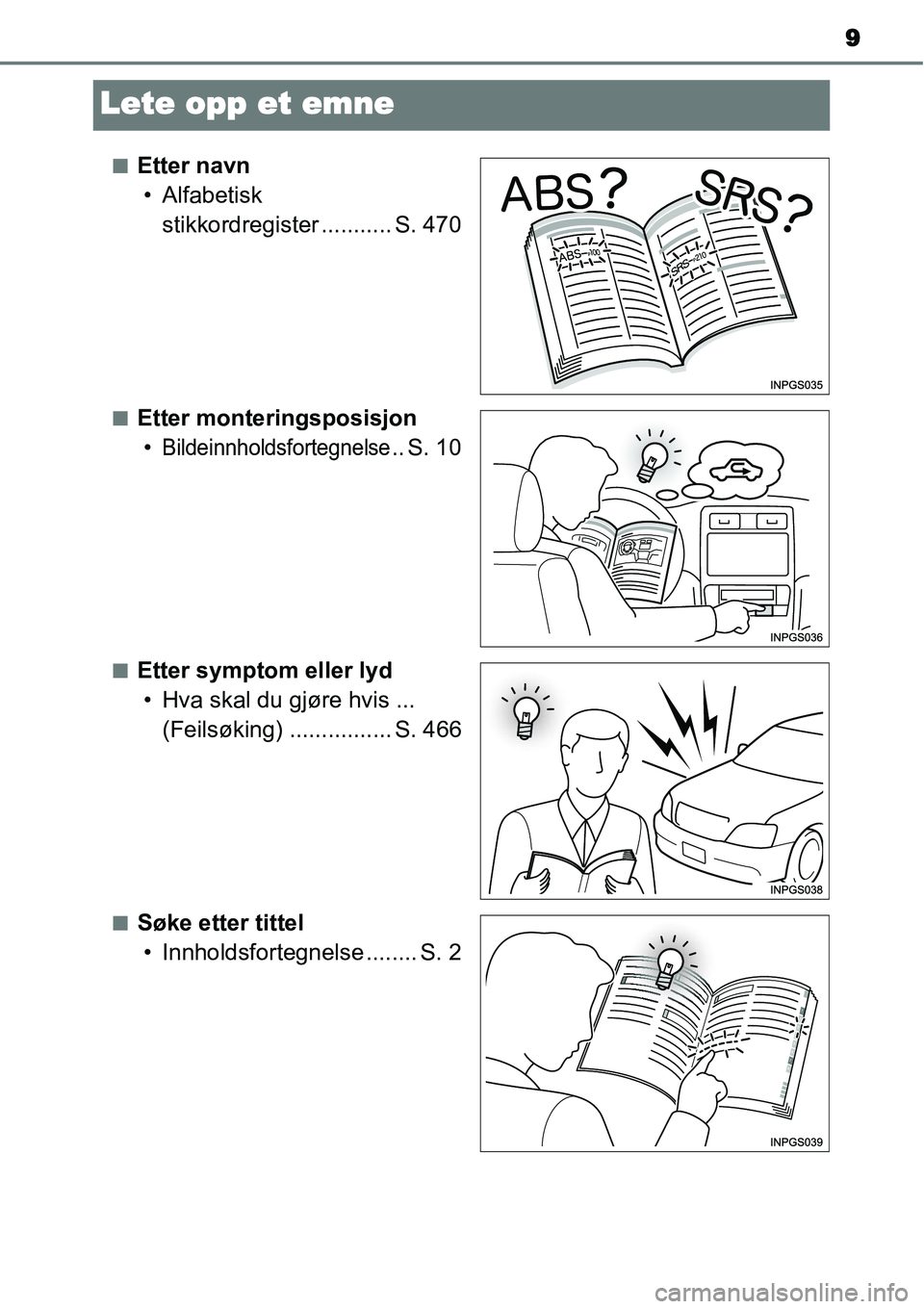

9
Lete opp et emne
■Etter navn
• Alfabetisk
stikkordregister ........... S. 470
■Etter monteringsposisjon
•
Bildeinnholdsfortegnelse.. S. 10
■Etter symptom eller lyd
• Hva skal du gjøre hvis ...
(Feilsøking) ................ S. 466
■Søke etter tittel
• Innholdsfortegnelse ........ S. 2
Page 12 of 484

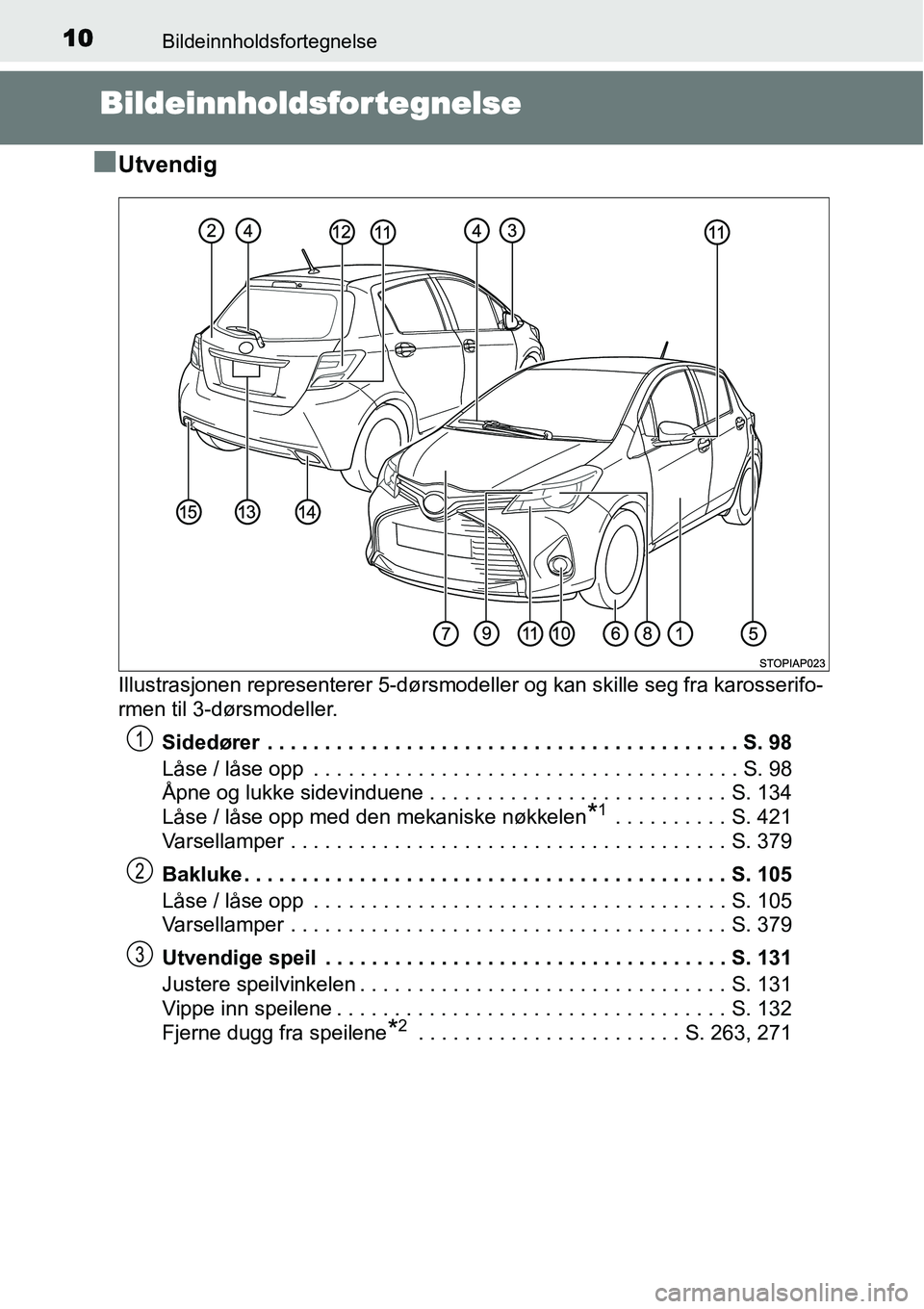

10Bildeinnholdsfortegnelse
Bildeinnholdsfortegnelse
■
Utvendig
Illustrasjonen representerer 5-dørsmodeller og kan skille seg fra karosserifo-
rmen til 3-dørsmodeller.
Sidedører . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 98
Låse / låse opp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 98
Åpne og lukke sidevinduene . . . . . . . . . . . . . . . . . . . . . . . . . . S. 134
Låse / låse opp med den mekaniske nøkkelen
*1 . . . . . . . . . . S. 421
Varsellamper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 379
Bakluke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 105
Låse / låse opp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 105
Varsellamper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 379
Utvendige speil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 131
Justere speilvinkelen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 131
Vippe inn speilene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 132
Fjerne dugg fra speilene
*2 . . . . . . . . . . . . . . . . . . . . . . . S. 263, 271
1
2
3
Page 13 of 484

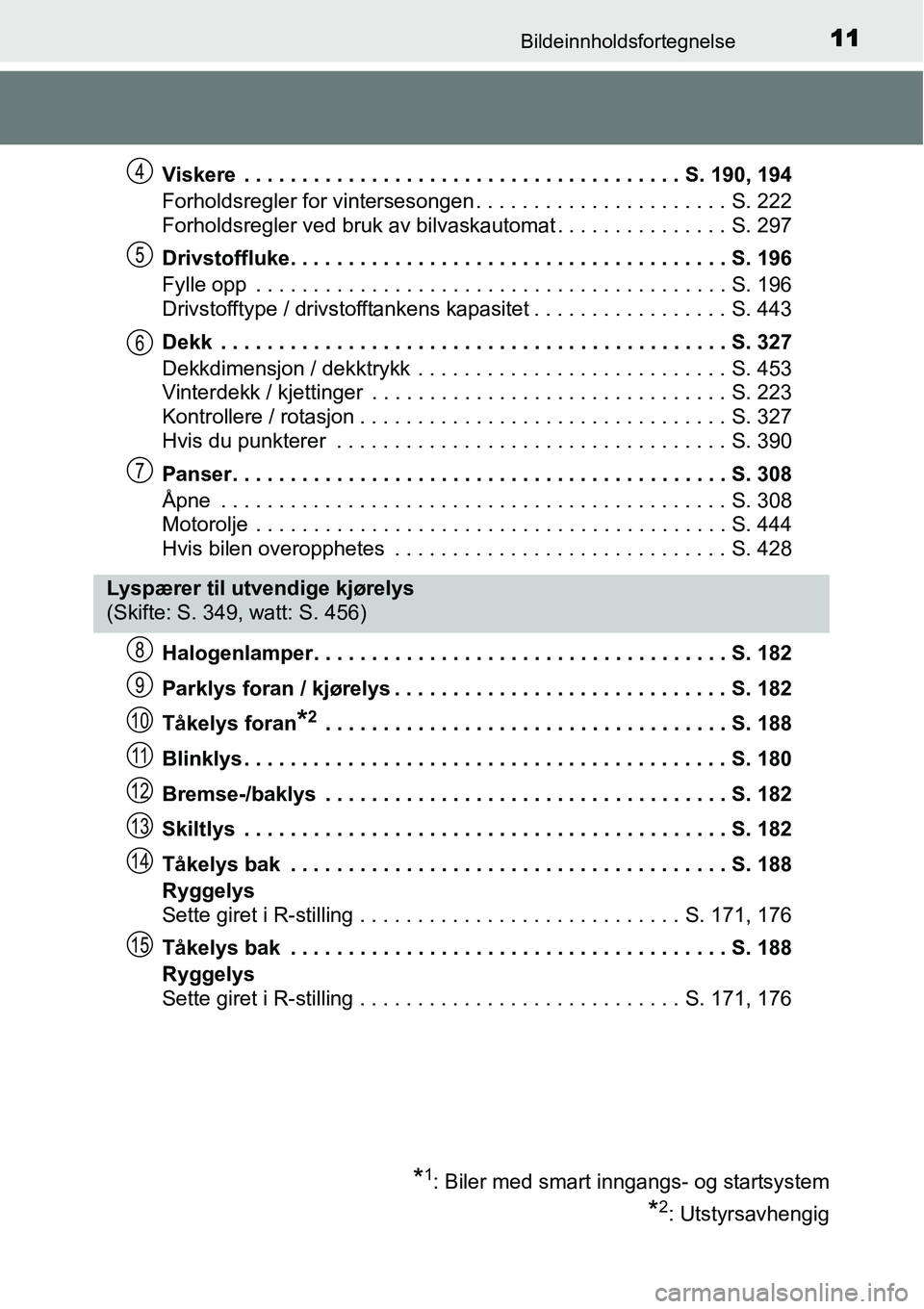

11Bildeinnholdsfortegnelse
Viskere . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 190, 194
Forholdsregler for vintersesongen . . . . . . . . . . . . . . . . . . . . . . S. 222
Forholdsregler ved bruk av bilvaskautomat . . . . . . . . . . . . . . . S. 297
Drivstoffluke. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 196
Fylle opp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 196
Drivstofftype / drivstofftankens kapasitet . . . . . . . . . . . . . . . . . S. 443
Dekk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 327
Dekkdimensjon / dekktrykk . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 453
Vinterdekk / kjettinger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 223
Kontrollere / rotasjon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 327
Hvis du punkterer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 390
Panser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 308
Åpne . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 308
Motorolje . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 444
Hvis bilen overopphetes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 428
Halogenlamper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 182
Parklys foran / kjørelys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 182
Tåkelys foran
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 188
Blinklys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 180
Bremse-/baklys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 182
Skiltlys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 182
Tåkelys bak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 188
Ryggelys
Sette giret i R-stilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 171, 176
Tåkelys bak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 188
Ryggelys
Sette giret i R-stilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 171, 176
4
5
6
7
Lyspærer til utvendige kjørelys
(Skifte: S. 349, watt: S. 456)
*1: Biler med smart inngangs- og startsystem
*2: Utstyrsavhengig
8
9
10
11
12
13
14
15
Page 14 of 484

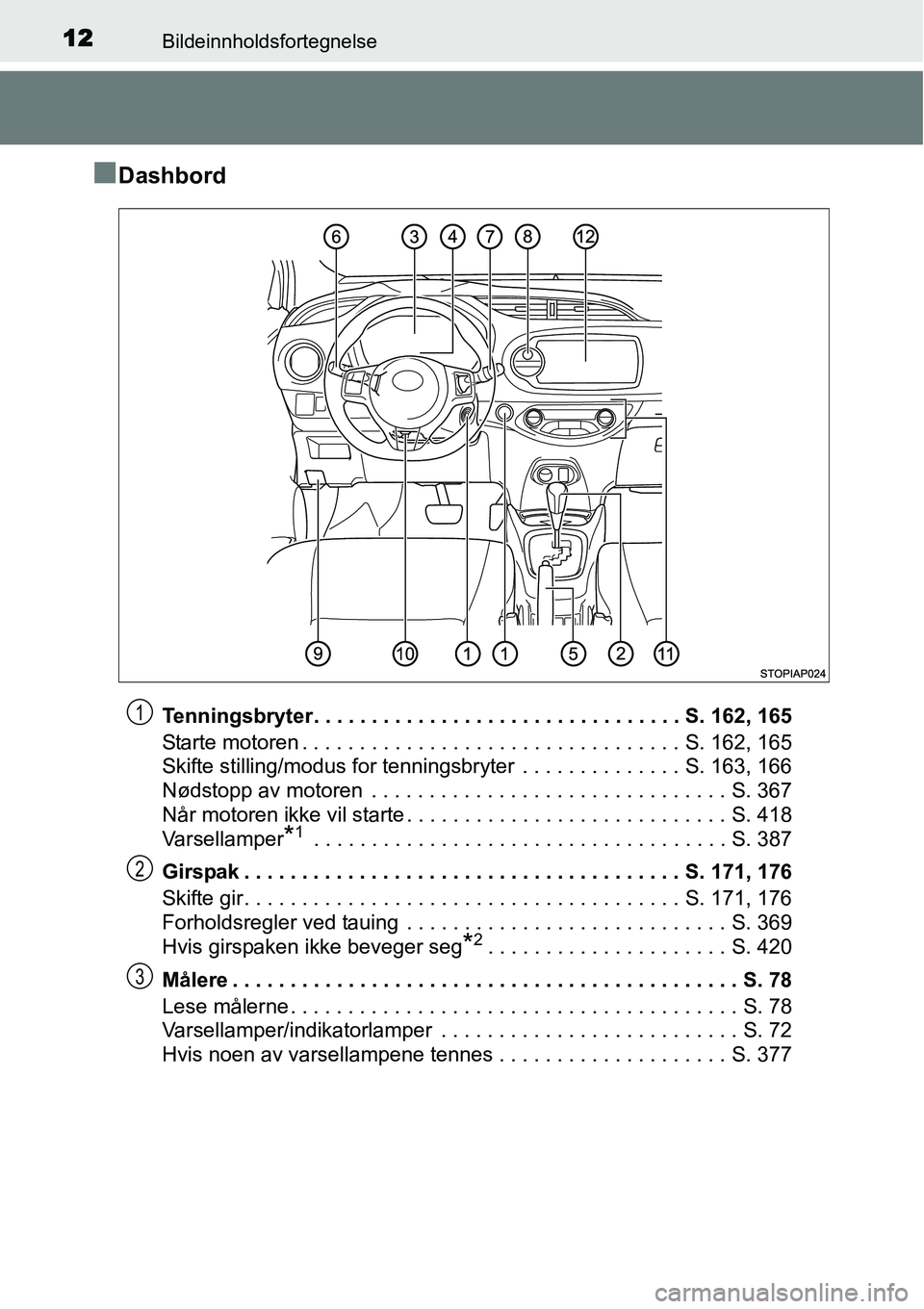

12Bildeinnholdsfortegnelse
■Dashbord
Tenningsbryter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 162, 165
Starte motoren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 162, 165
Skifte stilling/modus for tenningsbryter . . . . . . . . . . . . . . S. 163, 166
Nødstopp av motoren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 367
Når motoren ikke vil starte . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 418
Varsellamper
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 387
Girspak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 171, 176
Skifte gir. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 171, 176
Forholdsregler ved tauing . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 369
Hvis girspaken ikke beveger seg
*2. . . . . . . . . . . . . . . . . . . . . S. 420
Målere . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 78
Lese målerne . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 78
Varsellamper/indikatorlamper . . . . . . . . . . . . . . . . . . . . . . . . . . S. 72
Hvis noen av varsellampene tennes . . . . . . . . . . . . . . . . . . . . S. 377
1
2
3
Page 15 of 484

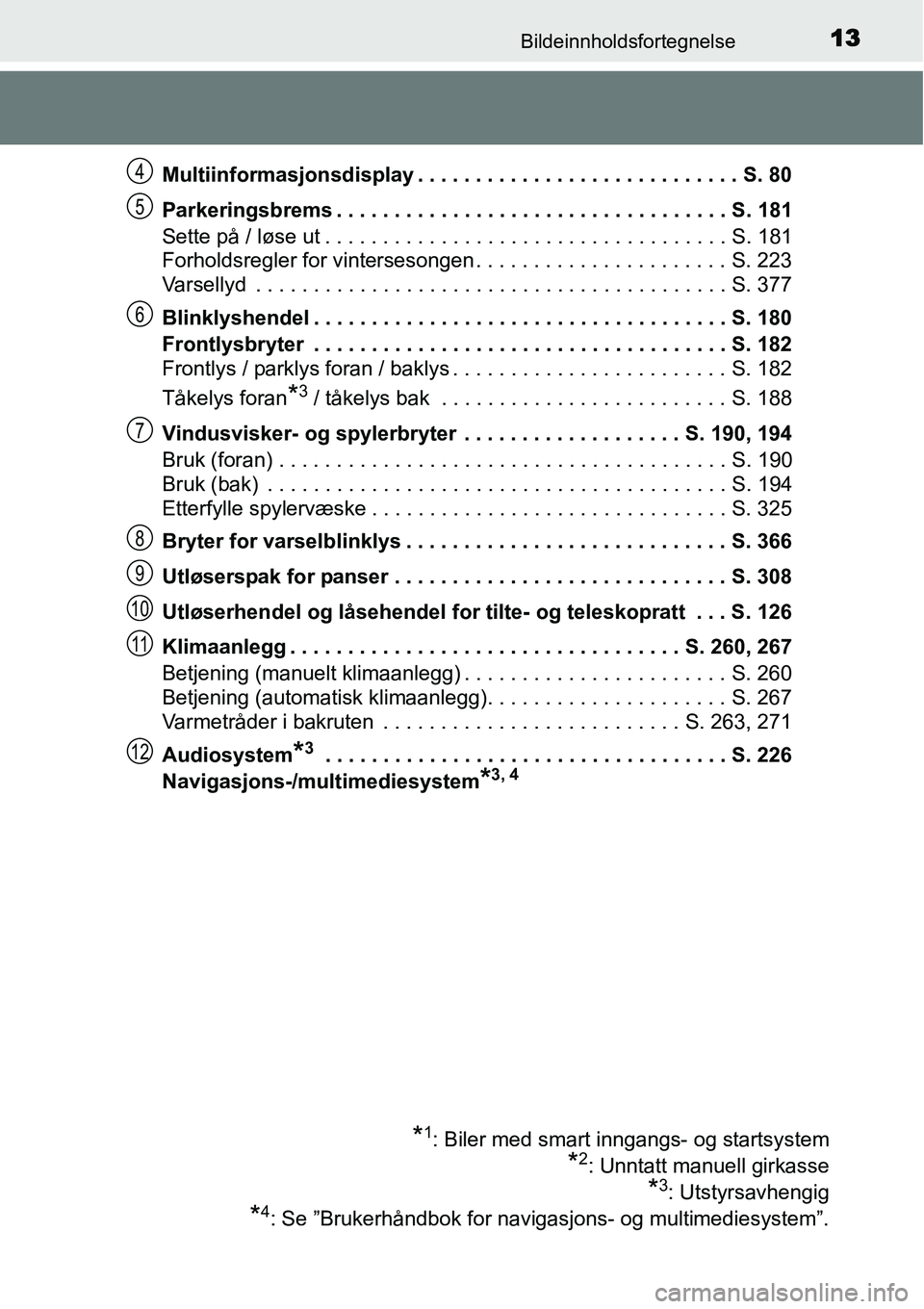

13Bildeinnholdsfortegnelse
Multiinformasjonsdisplay . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 80
Parkeringsbrems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 181
Sette på / løse ut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 181
Forholdsregler for vintersesongen . . . . . . . . . . . . . . . . . . . . . . S. 223
Varsellyd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 377
Blinklyshendel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 180
Frontlysbryter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 182
Frontlys / parklys foran / baklys . . . . . . . . . . . . . . . . . . . . . . . . S. 182
Tåkelys foran
*3 / tåkelys bak . . . . . . . . . . . . . . . . . . . . . . . . . S. 188
Vindusvisker- og spylerbryter . . . . . . . . . . . . . . . . . . . S. 190, 194
Bruk (foran) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 190
Bruk (bak) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 194
Etterfylle spylervæske . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 325
Bryter for varselblinklys . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 366
Utløserspak for panser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 308
Utløserhendel og låsehendel for tilte- og teleskopratt . . . S. 126
Klimaanlegg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 260, 267
Betjening (manuelt klimaanlegg) . . . . . . . . . . . . . . . . . . . . . . . S. 260
Betjening (automatisk klimaanlegg). . . . . . . . . . . . . . . . . . . . . S. 267
Varmetråder i bakruten . . . . . . . . . . . . . . . . . . . . . . . . . . S. 263, 271
Audiosystem
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 226
Navigasjons-/multimediesystem
*3, 4
*1: Biler med smart inngangs- og startsystem
*2: Unntatt manuell girkasse
*3: Utstyrsavhengig
*4: Se ”Brukerhåndbok for navigasjons- og multimediesystem”.
4
5
6
7
8
9
10
11
12
Page 16 of 484

14Bildeinnholdsfortegnelse

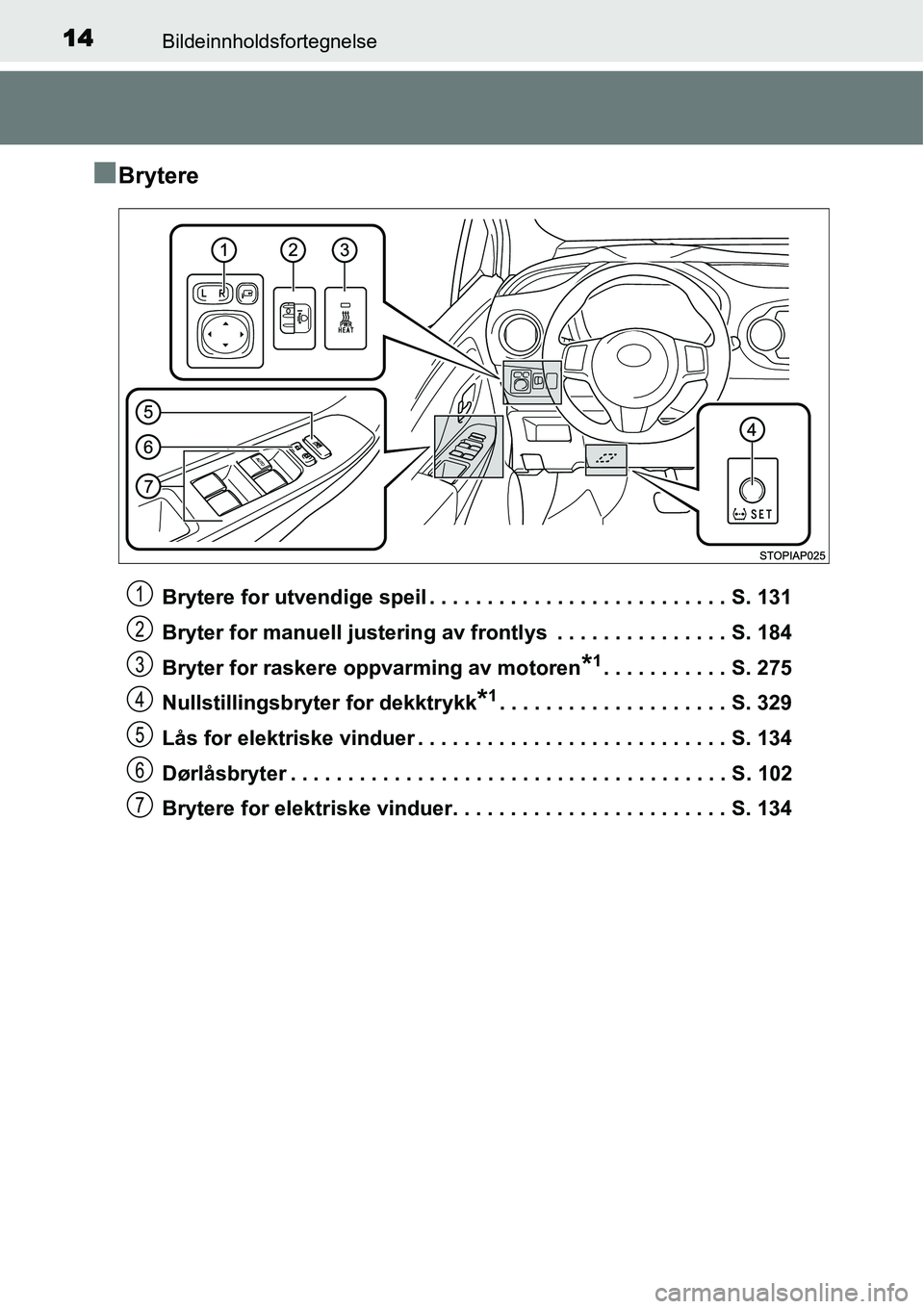

■Brytere
Brytere for utvendige speil . . . . . . . . . . . . . . . . . . . . . . . . . . S. 131
Bryter for manuell justering av frontlys . . . . . . . . . . . . . . . S. 184
Bryter for raskere oppvarming av motoren
*1. . . . . . . . . . . S. 275
Nullstillingsbryter for dekktrykk
*1. . . . . . . . . . . . . . . . . . . . S. 329
Lås for elektriske vinduer . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 134
Dørlåsbryter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 102
Brytere for elektriske vinduer. . . . . . . . . . . . . . . . . . . . . . . . S. 134
1
2
3
4
5
6
7
Page 17 of 484

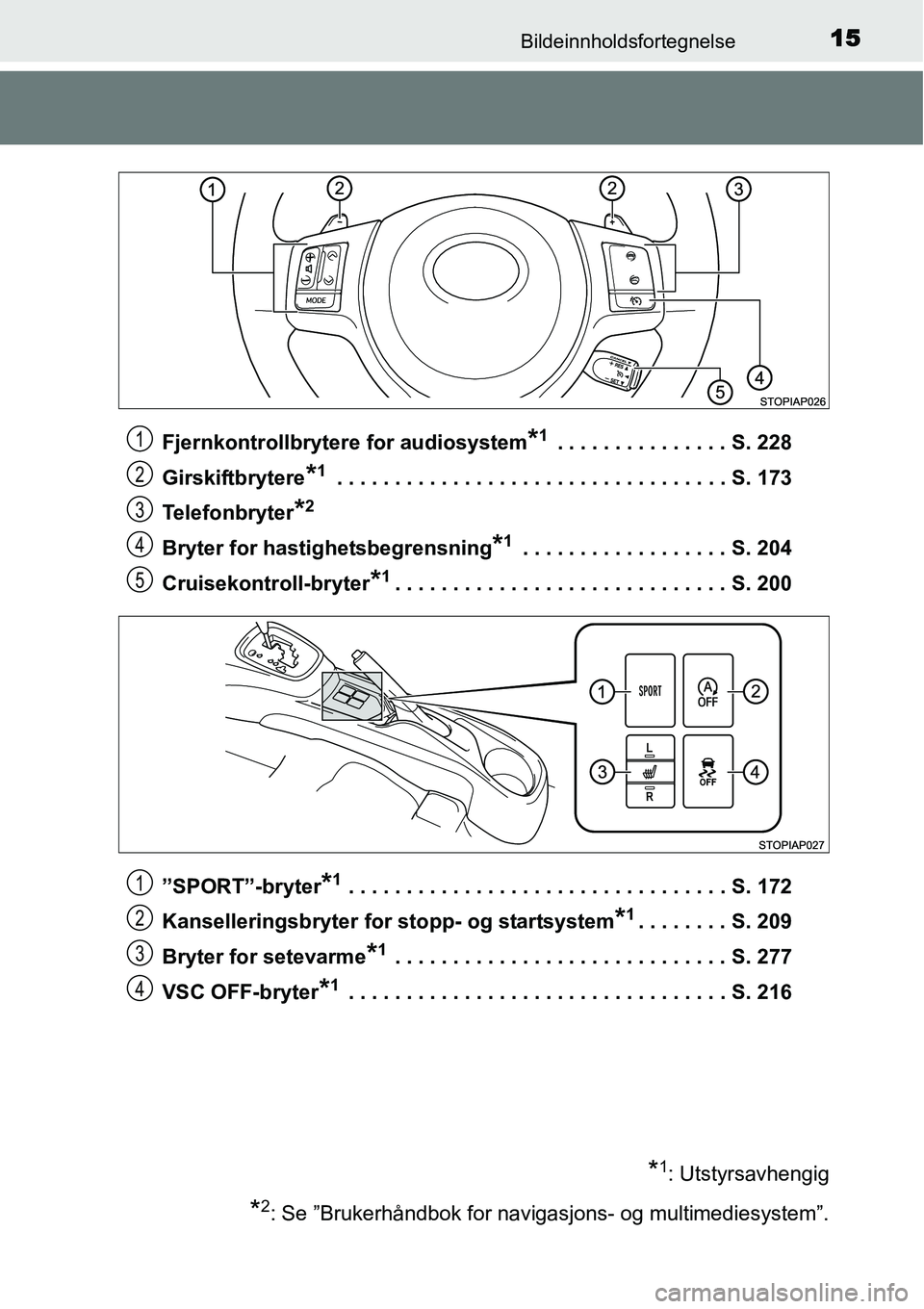

15Bildeinnholdsfortegnelse
Fjernkontrollbrytere for audiosystem*1 . . . . . . . . . . . . . . . S. 228
Girskiftbrytere
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 173
Telefonbryter
*2
Bryter for hastighetsbegrensning*1 . . . . . . . . . . . . . . . . . . S. 204
Cruisekontroll-bryter
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 200
”SPORT”-bryter
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 172
Kanselleringsbryter for stopp- og startsystem
*1. . . . . . . . S. 209
Bryter for setevarme
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 277
VSC OFF-bryter
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 216
*1: Utstyrsavhengig
*2: Se ”Brukerhåndbok for navigasjons- og multimediesystem”.
1
2
3
4
5
1
2
3
4
Page 18 of 484

16Bildeinnholdsfortegnelse

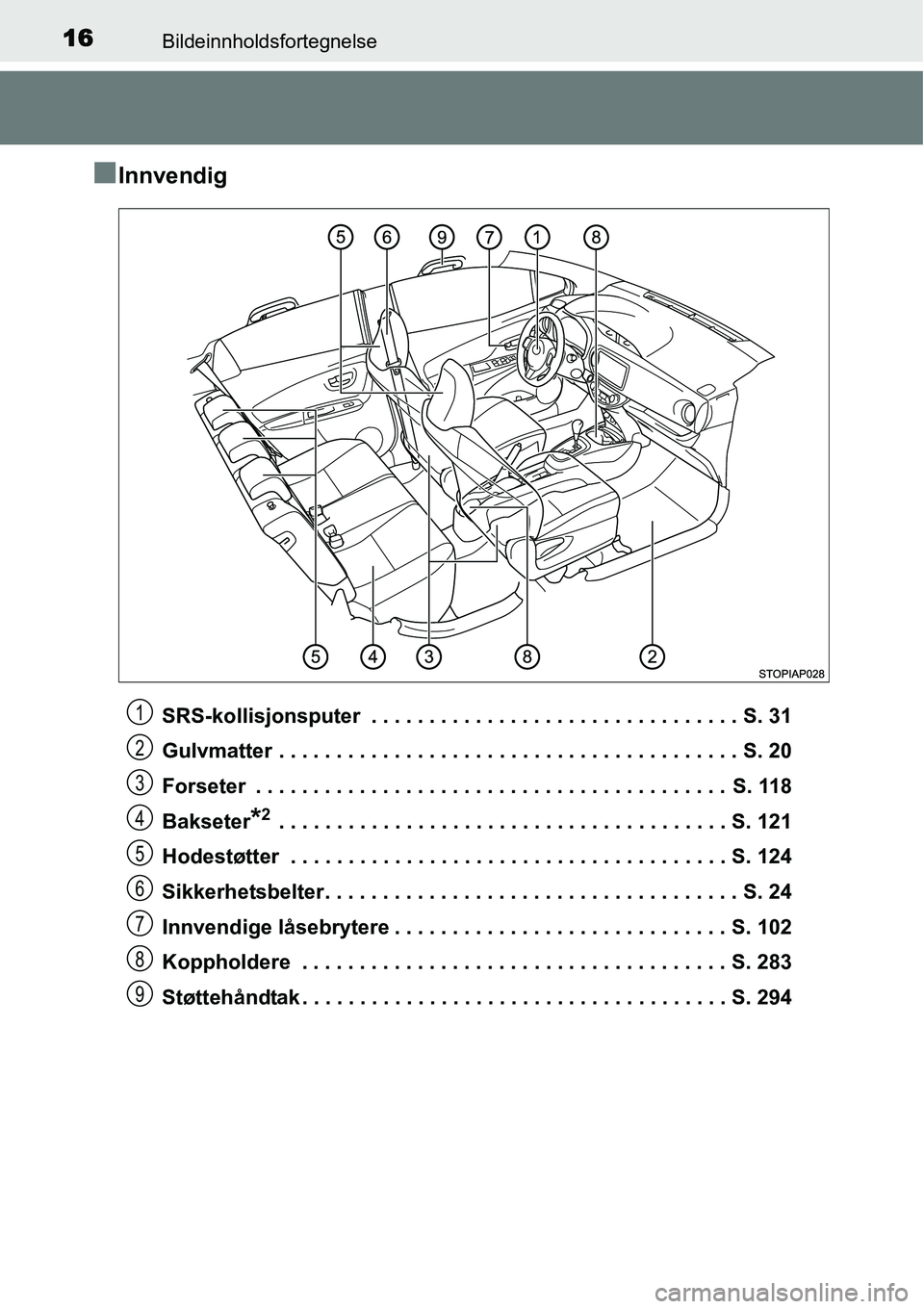

■Innvendig
SRS-kollisjonsputer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 31
Gulvmatter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 20
Forseter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 118
Bakseter
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 121
Hodestøtter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 124
Sikkerhetsbelter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 24
Innvendige låsebrytere . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 102
Koppholdere . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 283
Støttehåndtak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 294
1
2
3
4
5
6
7
8
9
Page 19 of 484

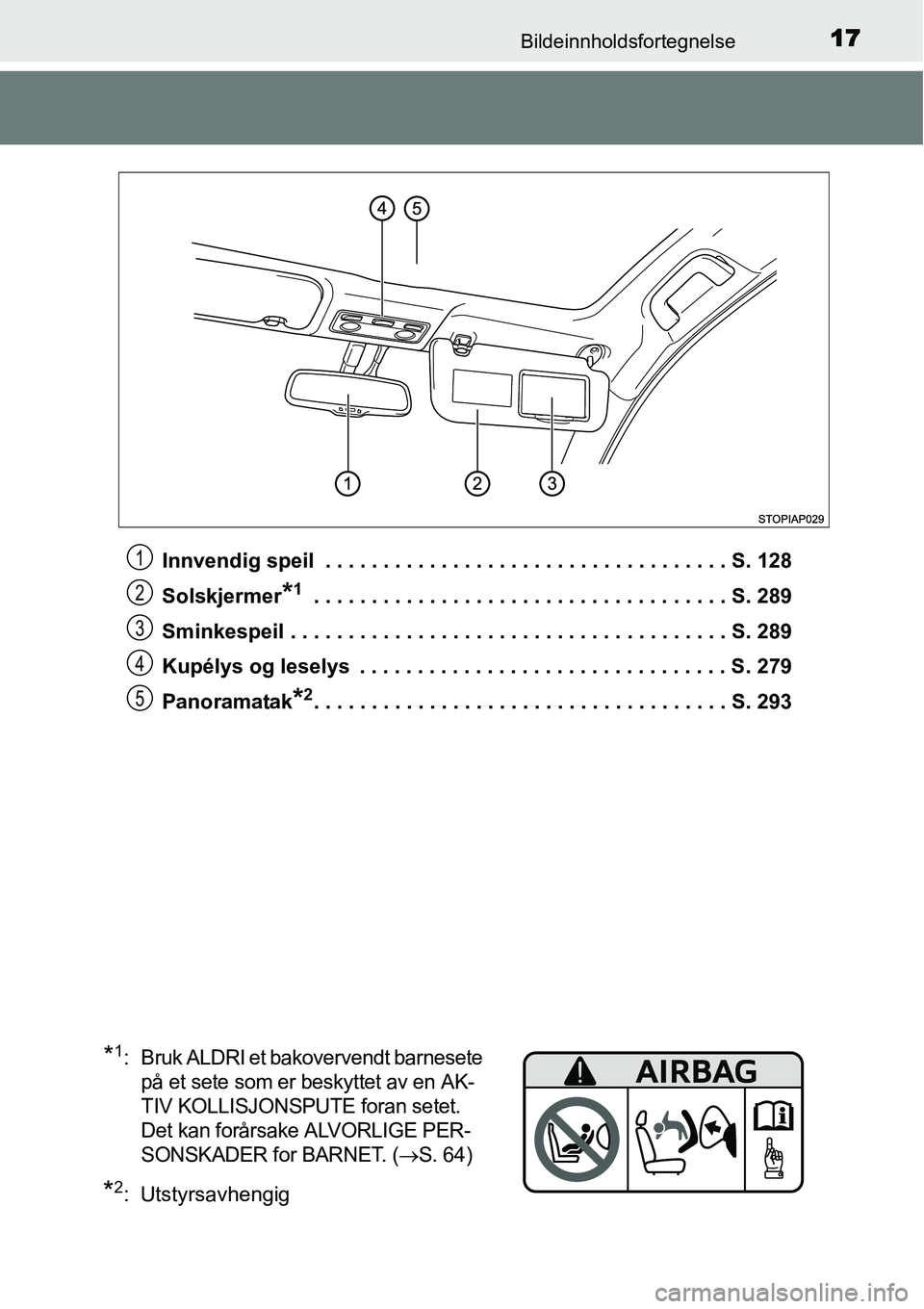

17Bildeinnholdsfortegnelse
Innvendig speil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 128
Solskjermer
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 289
Sminkespeil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 289
Kupélys og leselys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 279
Panoramatak
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 293
1
2
3
4
5
*1:Bruk ALDRI et bakovervendt barnesete
på et sete som er beskyttet av en AK-
TIV KOLLISJONSPUTE foran setet.
Det kan forårsake ALVORLIGE PER-
SONSKADER for BARNET. (
→S. 64)
*2: Utstyrsavhengig
Page 20 of 484

18Bildeinnholdsfortegnelse
