TOYOTA YARIS 2016 Owners Manual

559
YARIS_SEDAN_OM_OM99M18z_(U)
7-8. Declaration of Conformity
7
Customer Information and Reporting Safety Defects

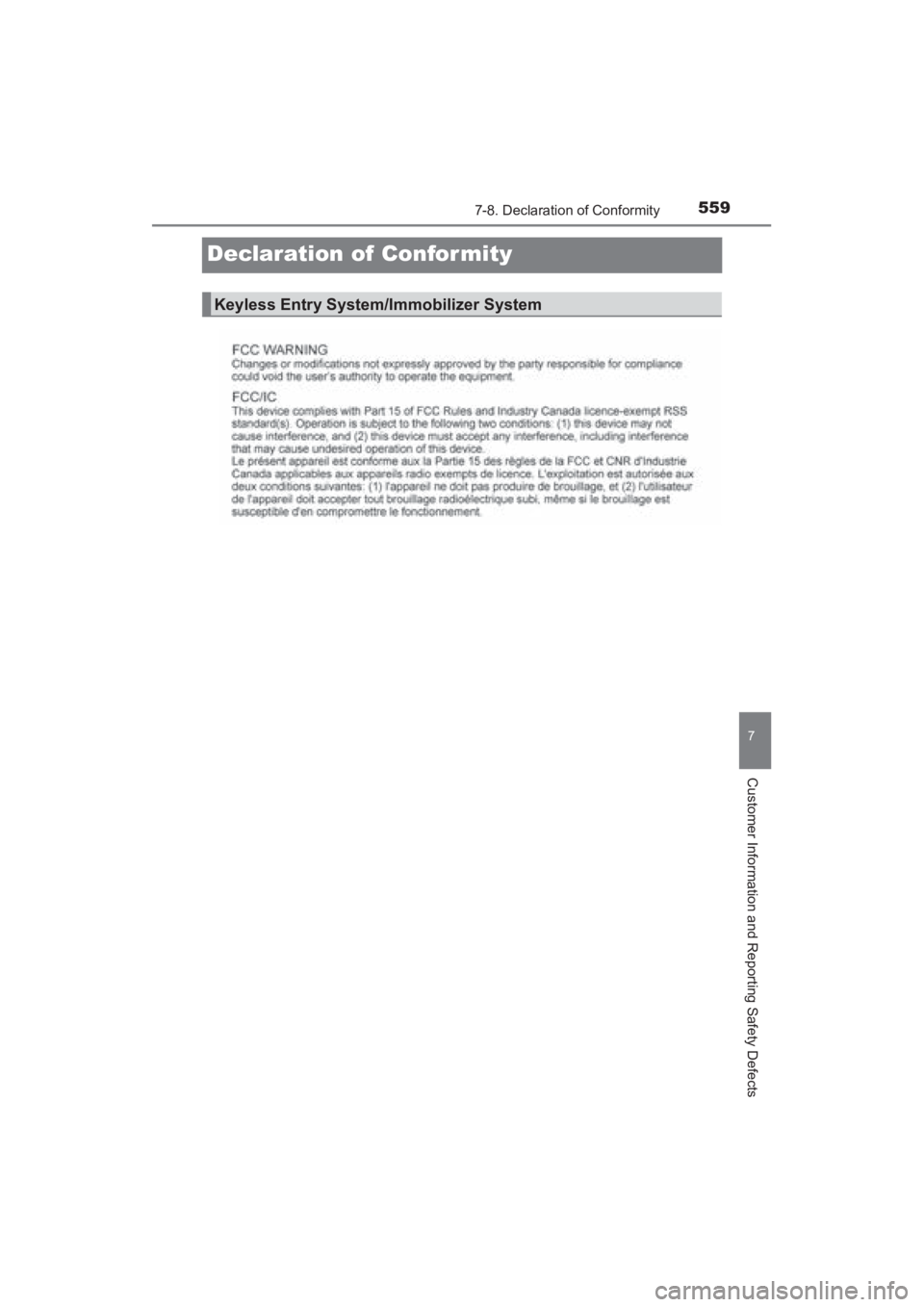

Declaration of Confor mity
Keyless Entry System/Immobilizer System
YARIS_SEDAN_OM_OM99M18z_(U).book Page 559 Monday, June 1, 2015 9:22 PM

560
YARIS_SEDAN_OM_OM99M18z_(U)
7-8. Declaration of Conformity

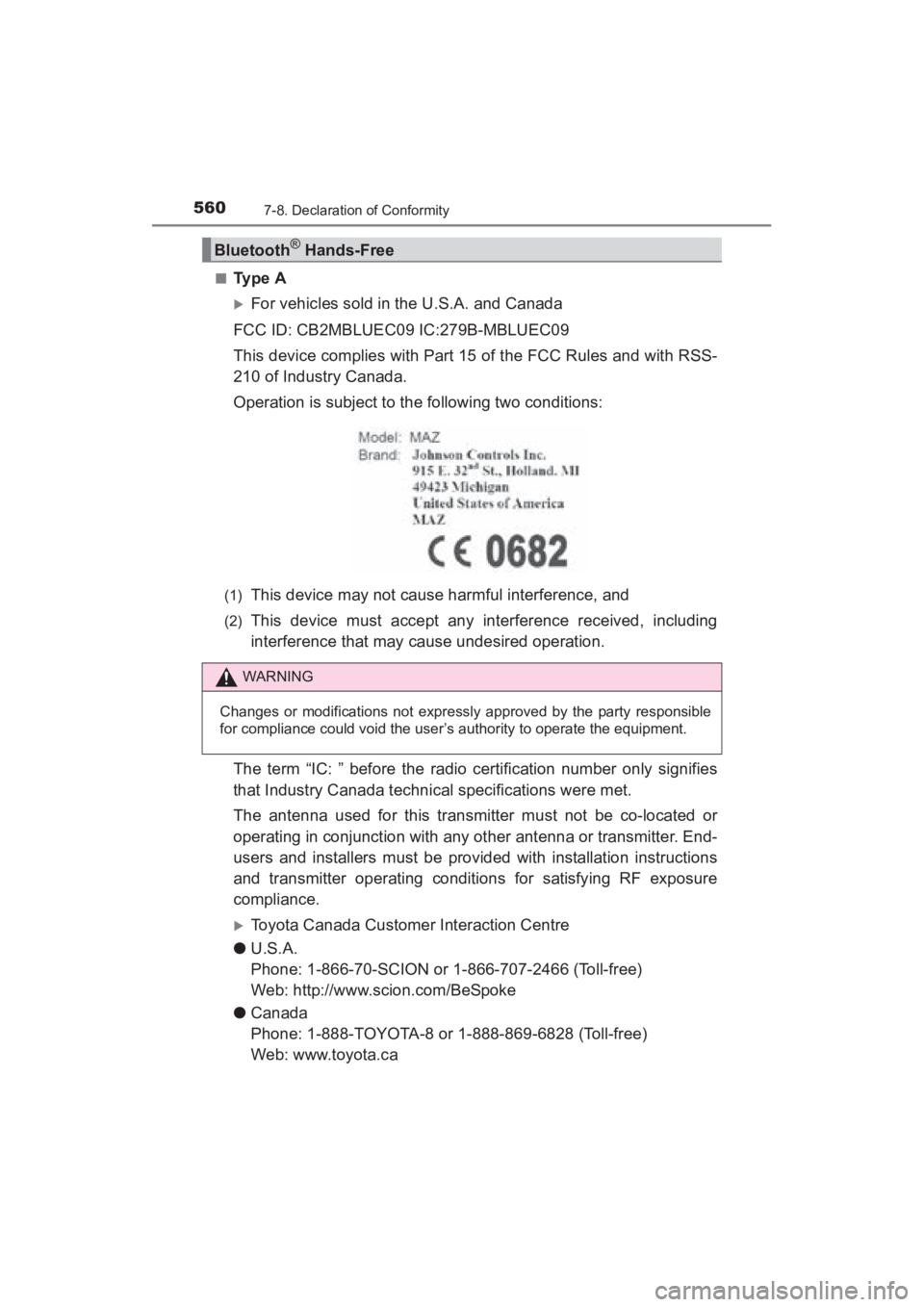

■Ty p e A
XFor vehicles sold in the U.S.A. and Canada
FCC ID: CB2MBLUEC09 IC:279B-MBLUEC09
This device complies with Part 15 of the FCC Rules and with RSS-
210 of Industry Canada.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including
interference that may cause undesired operation.
The term “IC: ” before the radio certification number only signifies
that Industry Canada technical specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter. End-
users and installers must be provided with installation instructions
and transmitter operating conditions for satisfying RF exposure
compliance.
XToyota Canada Customer Interaction Centre
● U.S.A.
Phone: 1-866-70-SCION or 1-866-707-2466 (Toll-free)
Web: http://www.scion.com/BeSpoke
● Canada
Phone: 1-888-TOYOTA-8 or 1-888-869-6828 (Toll-free)
Web: www.toyota.ca
Bluetooth® Hands-Free
WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 560 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
5617-8. Declaration of Conformity
7
Customer Information and Reporting Safety Defects

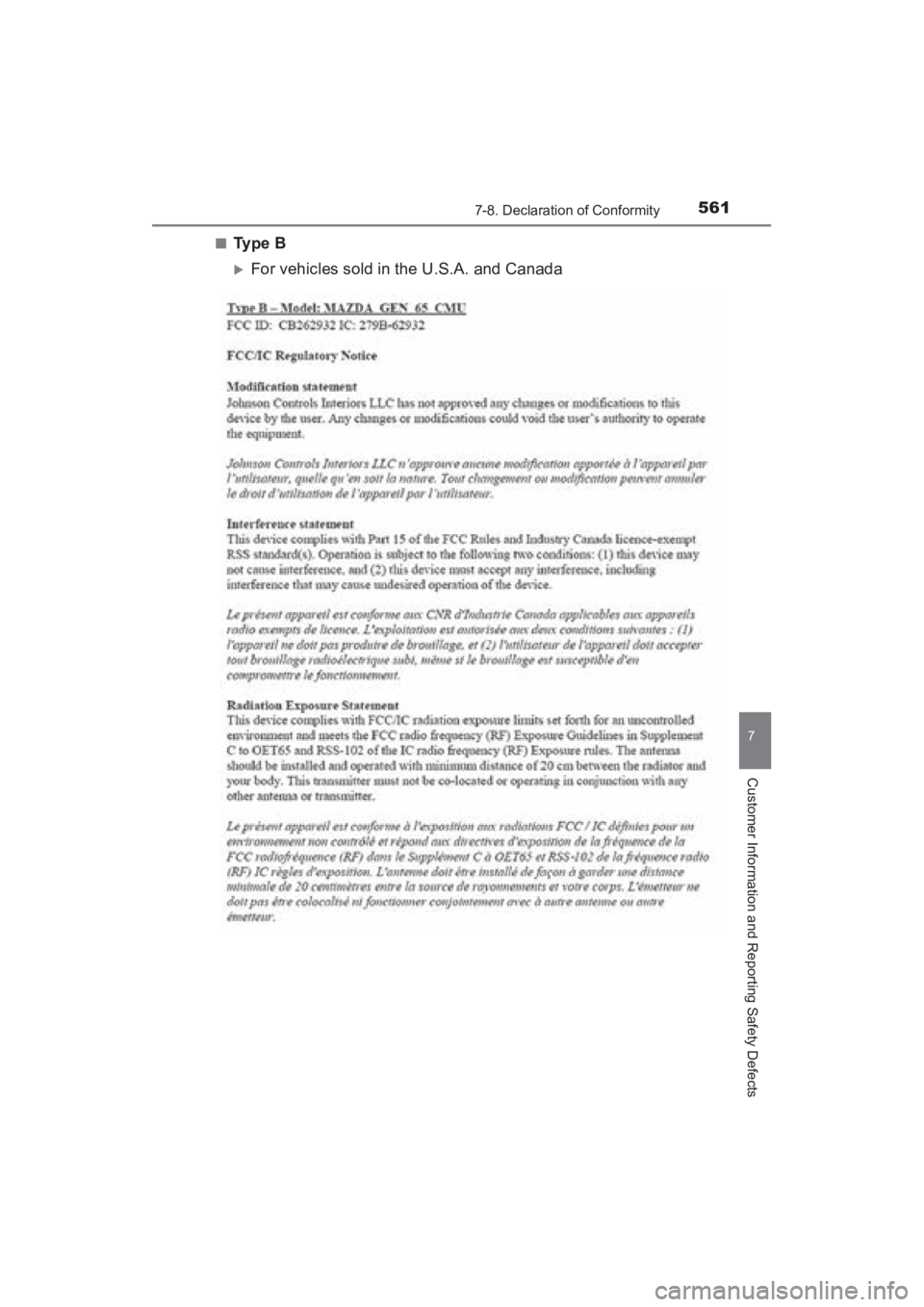

■Ty p e B
XFor vehicles sold in the U.S.A. and Canada
YARIS_SEDAN_OM_OM99M18z_(U).book Page 561 Monday, June 1, 2015 9:22 PM

562
YARIS_SEDAN_OM_OM99M18z_(U)
7-8. Declaration of Conformity
YARIS_SEDAN_OM_OM99M18z_(U).book Page 562 Monday, June 1, 2015 9:22 PM

563
YARIS_SEDAN_OM_OM99M18z_(U)

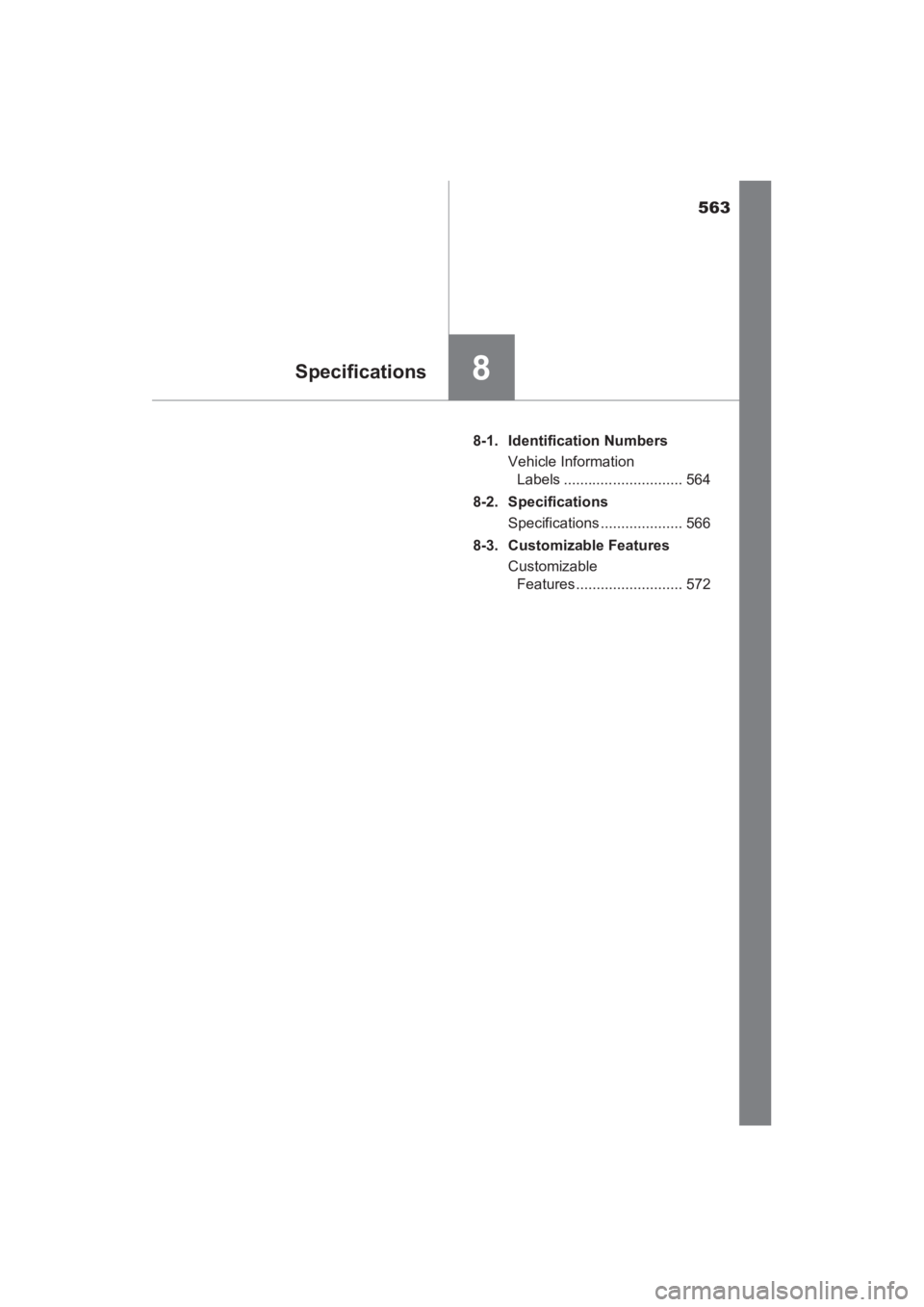

8Specifications
8-1. Identification NumbersVehicle Information Labels ............................. 564
8-2. Specifications Specifications .................... 566
8-3. Customizable Features Customizable Features .......................... 572
YARIS_SEDAN_OM_OM99M18z_(U).book Page 563 Monday, June 1, 2015 9:22 PM

564
YARIS_SEDAN_OM_OM99M18z_(U)
8-1. Identification Numbers

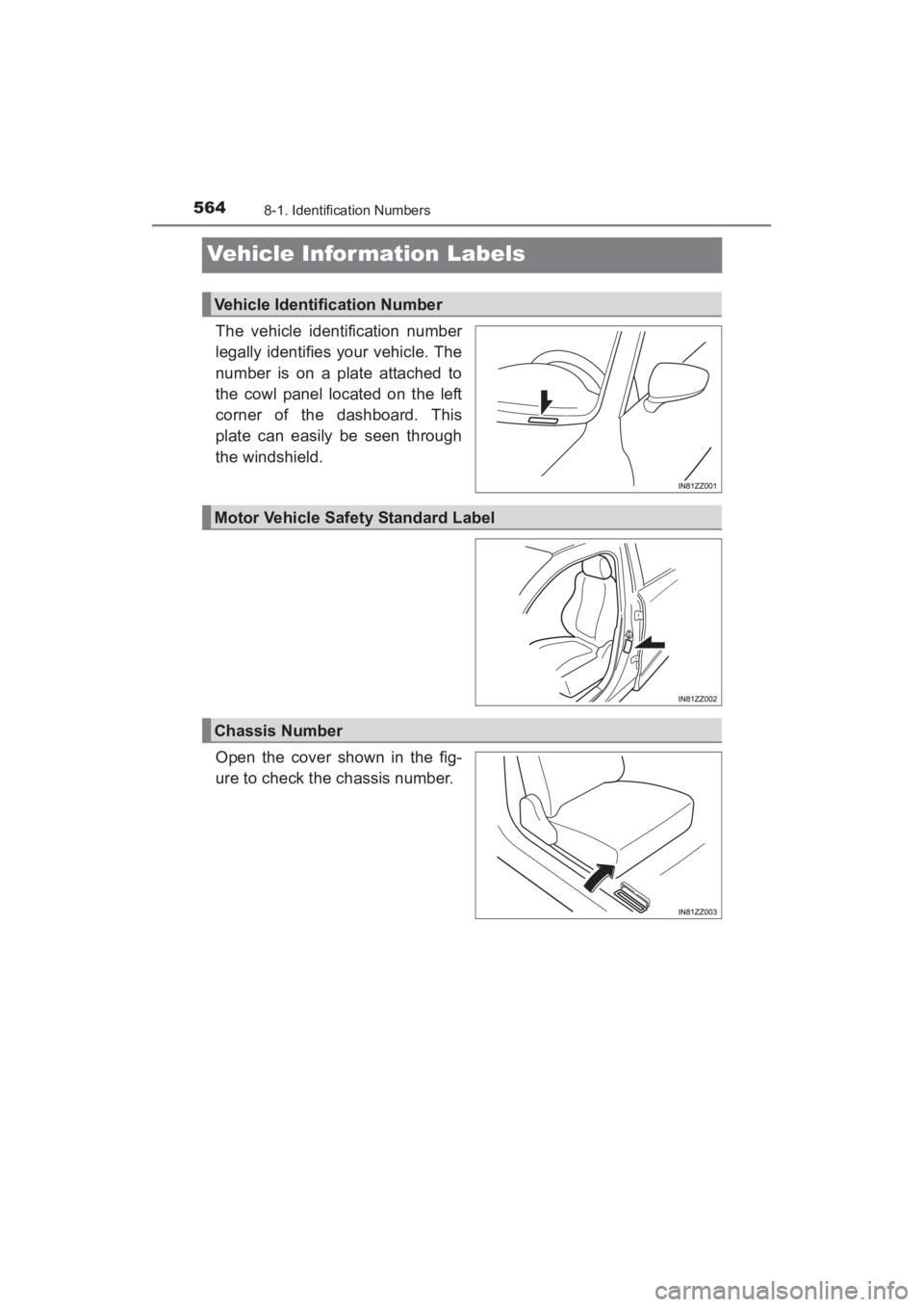

Vehicle Information Labels
The vehicle identification number
legally identifies your vehicle. The
number is on a plate attached to
the cowl panel located on the left
corner of the dashboard. This
plate can easily be seen through
the windshield.
Open the cover shown in the fig-
ure to check the chassis number.
Vehicle Identification Number
Motor Vehicle Safety Standard Label
Chassis Number
YARIS_SEDAN_OM_OM99M18z_(U).book Page 564 Monday, June 1, 2015 9:22 PM

5658-1. Identification Numbers
YARIS_SEDAN_OM_OM99M18z_(U)
8
Specifications

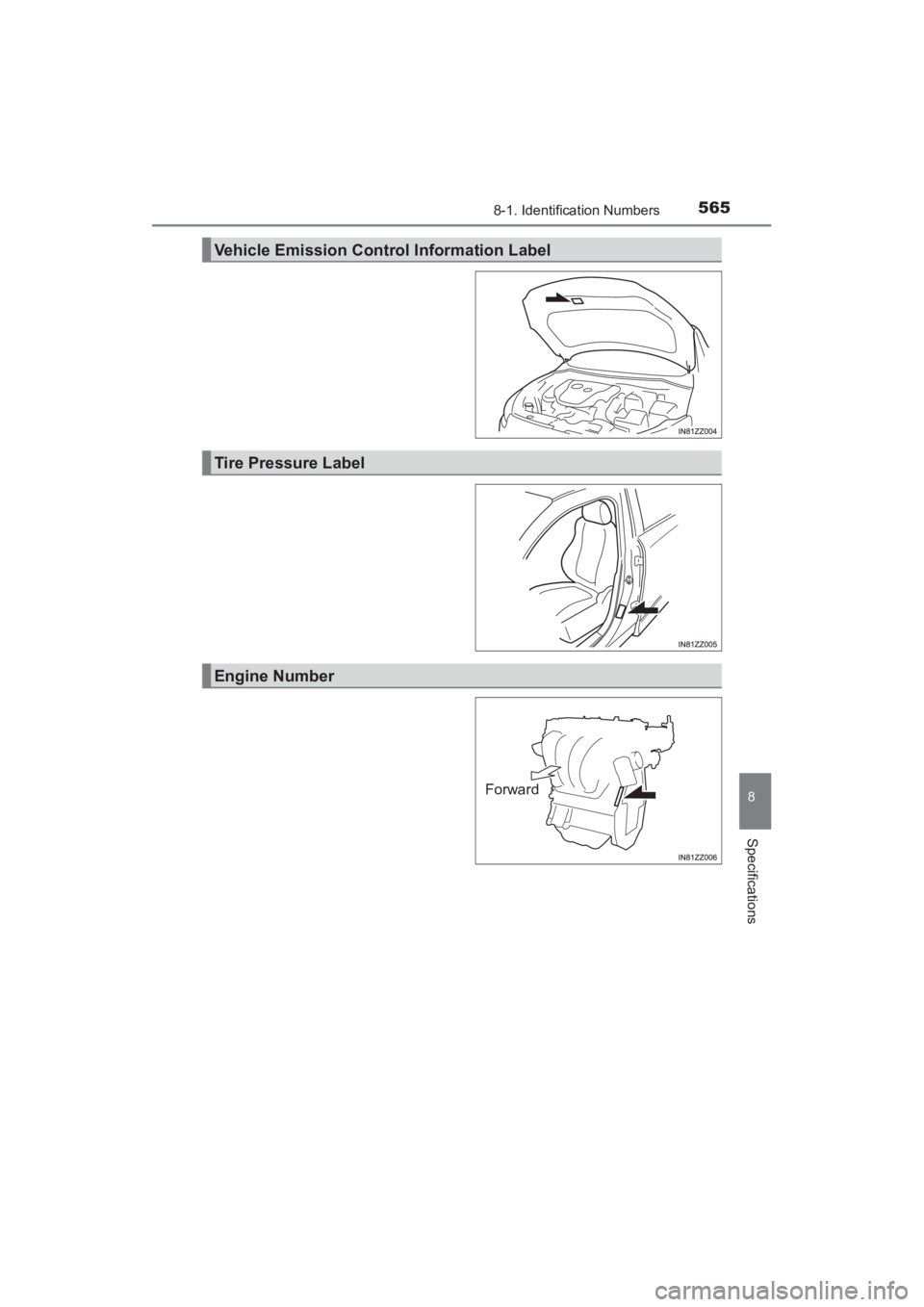

Vehicle Emission Control Information Label
Tire Pressure Label
Engine Number
Forward
YARIS_SEDAN_OM_OM99M18z_(U).book Page 565 Monday, June 1, 2015 9:22 PM

566
YARIS_SEDAN_OM_OM99M18z_(U)
8-2. Specifications

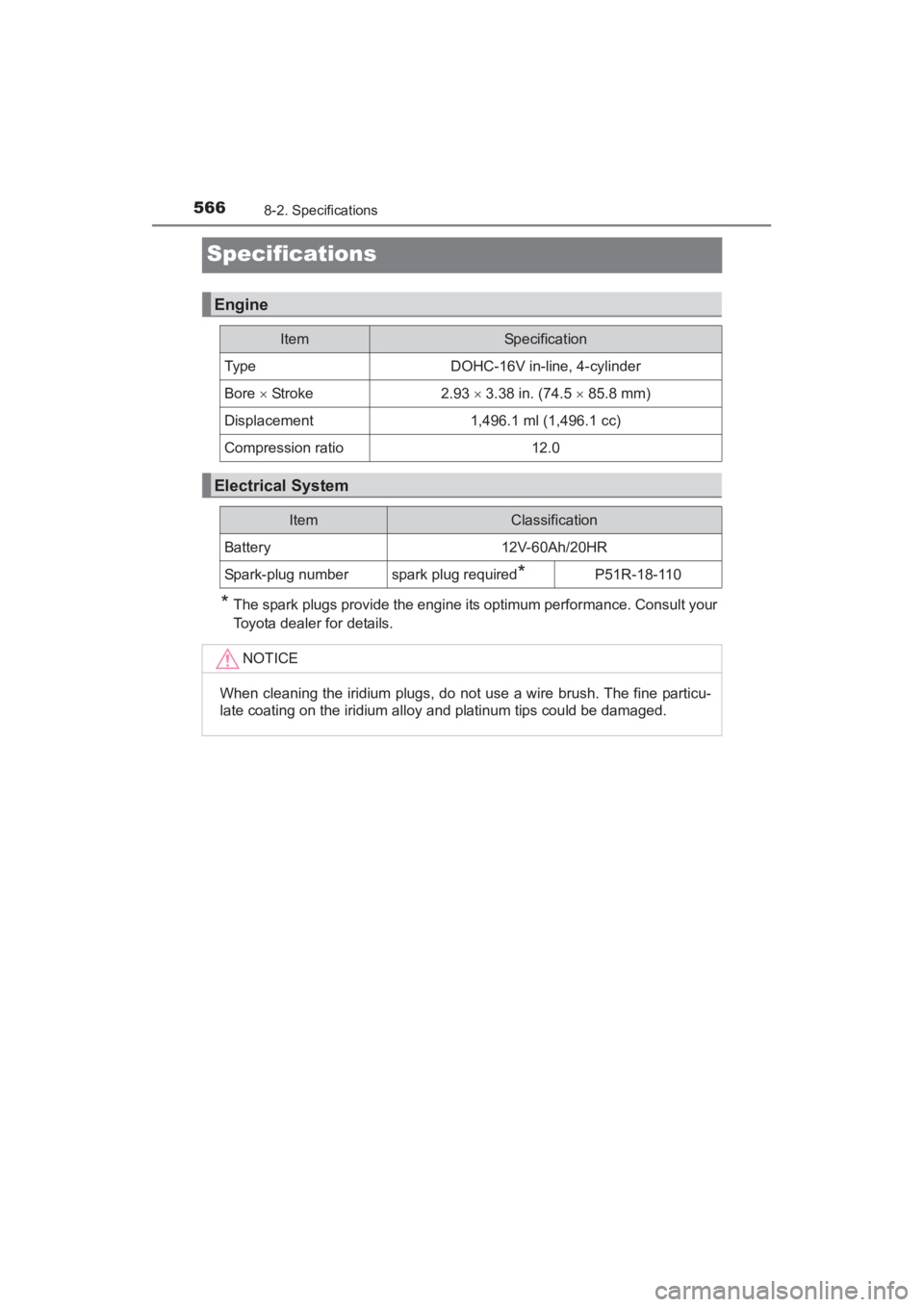

Specifications
*The spark plugs provide the engine its optimum performance. Consult your
Toyota dealer for details.
Engine
ItemSpecification
Typ eDOHC-16V in-line, 4-cylinder
Bore × Strok e2.93 × 3.38 in. (74.5 × 85.8 mm)
Displacement1,496.1 ml (1,496.1 cc)
Compression ratio12.0
Electrical System
ItemClassification
Battery12V-60Ah/20HR
Spark-plug numberspark plug required*P51R-18-110
NOTICE
When cleaning the iridium plugs, do not use a wire brush. The fine particu-
late coating on the iridium alloy and platinum tips could be damaged.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 566 Monday, June 1, 2015 9:22 PM

5678-2. Specifications
YARIS_SEDAN_OM_OM99M18z_(U)
8
Specifications
Refer to Introduction on (→P. 418) for owner’s responsibility in protecting your
investment.

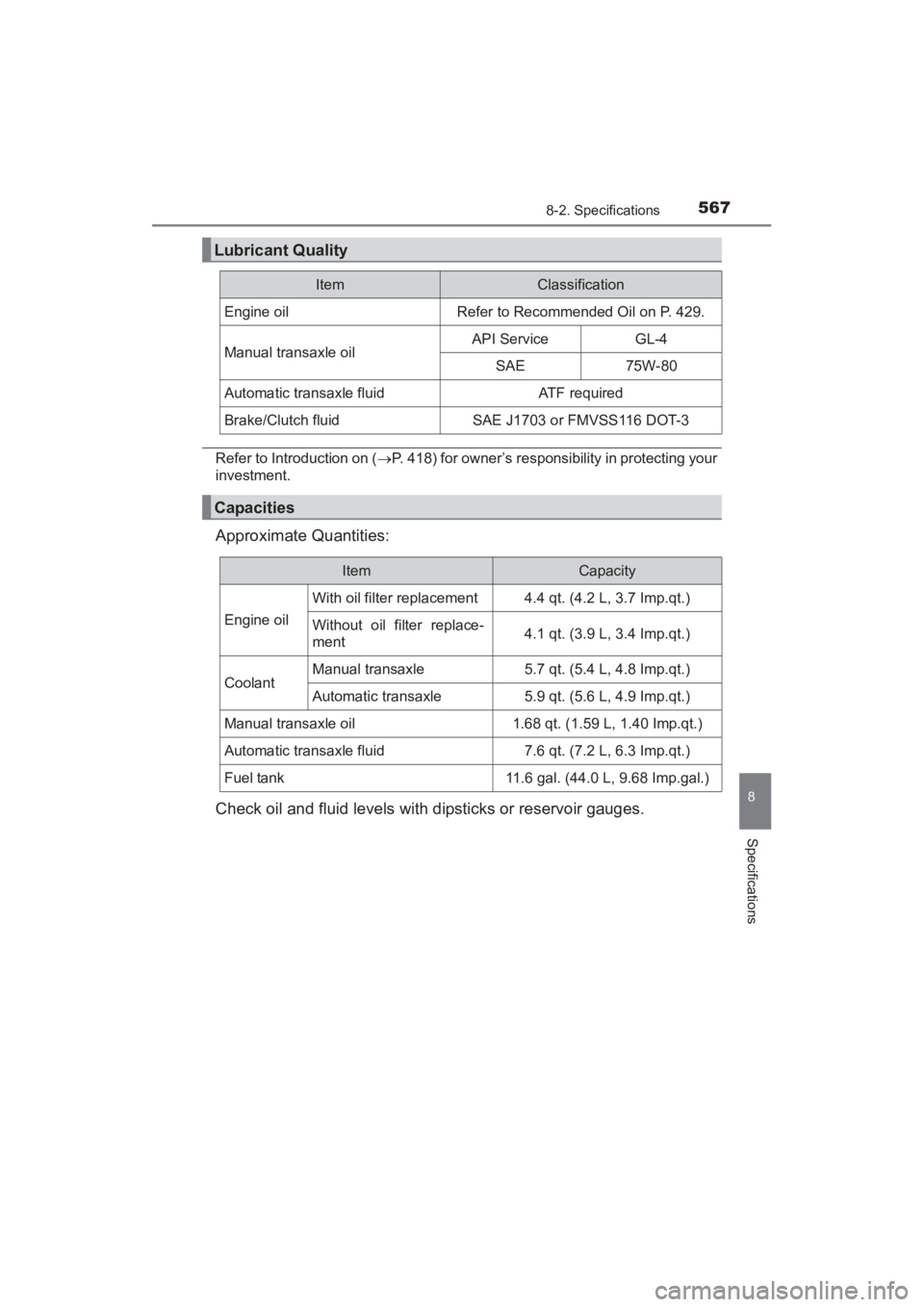

Approximate Quantities:
Check oil and fluid levels with dipsticks or reservoir gauges.
Lubricant Quality
ItemClassification
Engine oilRefer to Recommended Oil on P. 429.
Manual transaxle oilAPI ServiceGL-4
SAE75W-80
Automatic transaxle fluidATF required
Brake/Clutch fluidSAE J1703 or FMVSS116 DOT-3
Capacities
ItemCapacity
Engine oil
With oil filter replacement4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without oil filter replace-
ment4.1 qt. (3.9 L, 3.4 Imp.qt.)
CoolantManual transaxle5.7 qt. (5.4 L, 4.8 Imp.qt.)
Automatic transaxle5.9 qt. (5.6 L, 4.9 Imp.qt.)
Manual transaxle oil1.68 qt. (1.59 L, 1.40 Imp.qt.)
Automatic transaxle fluid7.6 qt. (7.2 L, 6.3 Imp.qt.)
Fuel tank11.6 gal. (44.0 L, 9.68 Imp.gal.)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 567 Monday, June 1, 2015 9:22 PM

5688-2. Specifications
YARIS_SEDAN_OM_OM99M18z_(U)

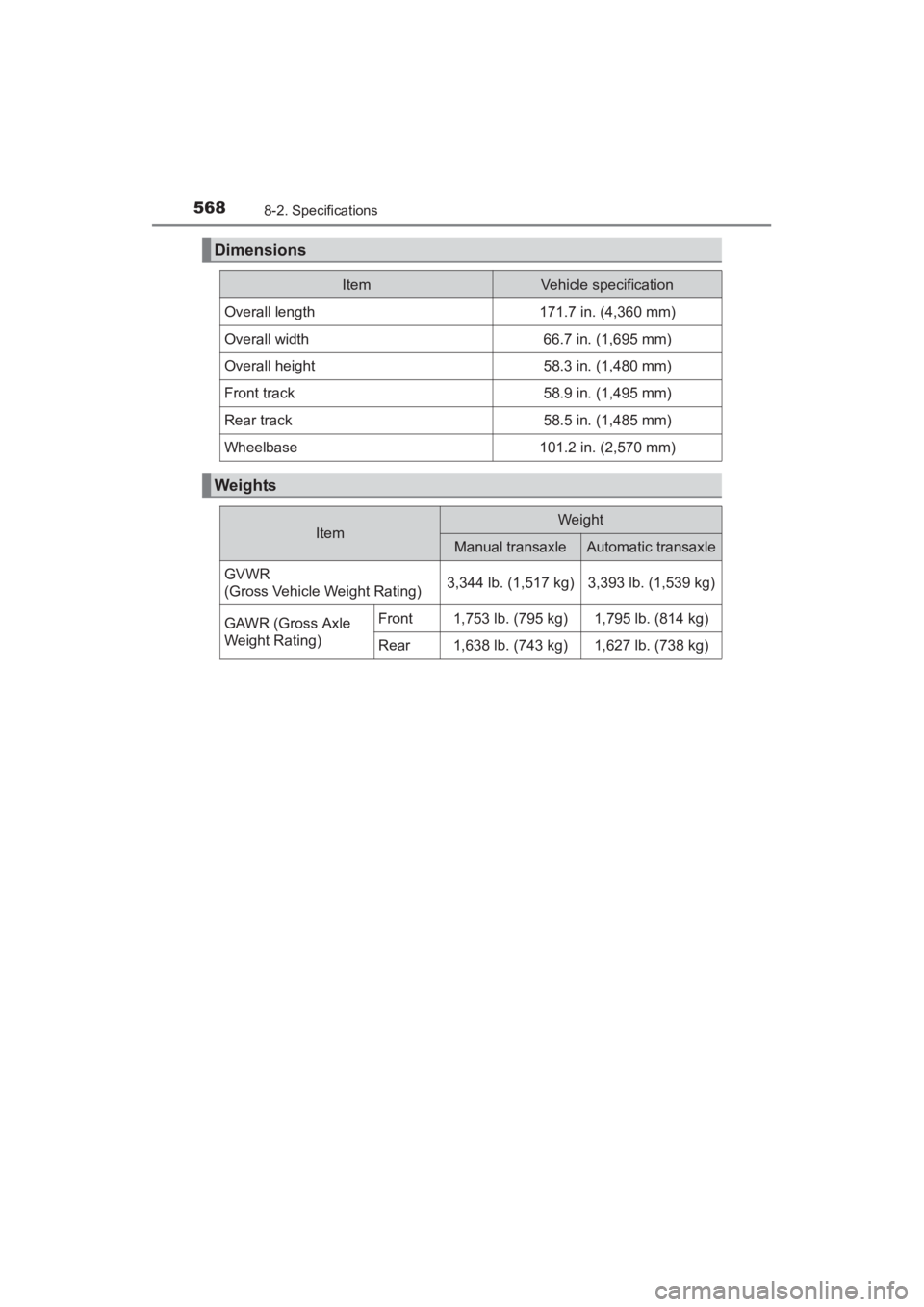

Dimensions
ItemVehicle specification
Overall length171.7 in. (4,360 mm)
Overall width66.7 in. (1,695 mm)
Overall height58.3 in. (1,480 mm)
Front track58.9 in. (1,495 mm)
Rear track58.5 in. (1,485 mm)
Wheelbase101.2 in. (2,570 mm)
Weights
ItemWeight
Manual transaxleAutomatic transaxle
GVWR
(Gross Vehicle Weight Rating)3,344 lb. (1,517 kg)3,393 lb. (1,539 kg)
GAWR (Gross Axle
Weight Rating)Front1,753 lb. (795 kg)1,795 lb. (814 kg)
Rear1,638 lb. (743 kg)1,627 lb. (738 kg)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 568 Monday, June 1, 2015 9:22 PM
