TOYOTA YARIS 2016 Owners Manual

YARIS_SEDAN_OM_OM99M18z_(U)
5196-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises

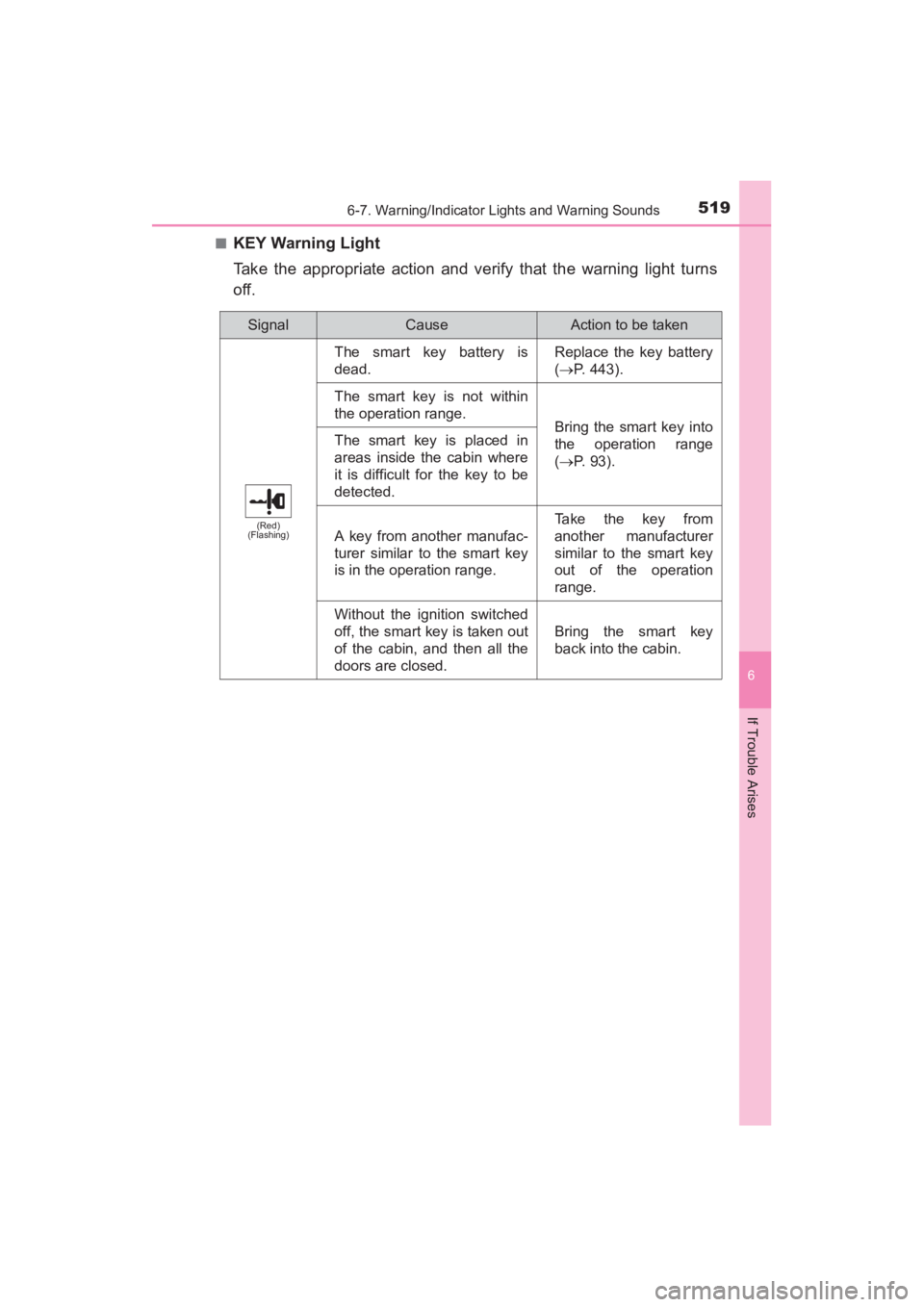

■KEY Warning Light
Take the appropriate action and verify that the warning light turns
off.
SignalCauseAction to be taken
(Red)
(Flashing)
The smart key battery is
dead.Replace the key battery
( → P. 443).
The smart key is not within
the operation range.
Bring the smart key into
the operation range
(→ P. 93).The smart key is placed in
areas inside the cabin where
it is difficult for the key to be
detected.
A key from another manufac-
turer similar to the smart key
is in the operation range.
Take the key from
another manufacturer
similar to the smart key
out of the operation
range.
Without the ignition switched
off, the smart key is taken out
of the cabin, and then all the
doors are closed.
Bring the smart key
back into the cabin.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 519 Monday, June 1, 2015 9:22 PM

520
YARIS_SEDAN_OM_OM99M18z_(U)
6-7. Warning/Indicator Lights and Warning Sounds

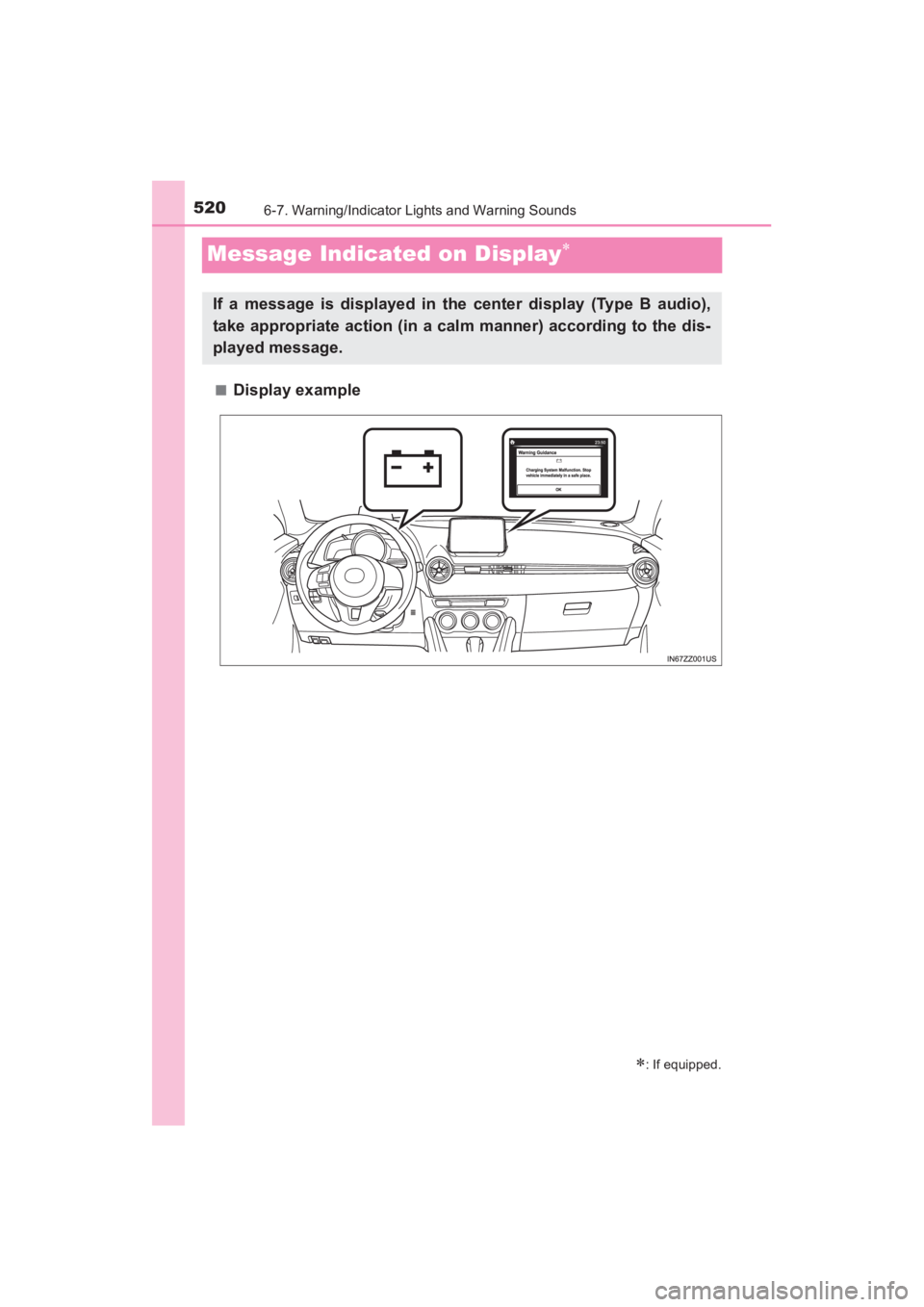

Message Indicated on Display∗
■Display example
∗: If equipped.
If a message is displayed in the center display (Type B audio),
take appropriate action (in a calm manner) according to the dis-
played message.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 520 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
5216-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises

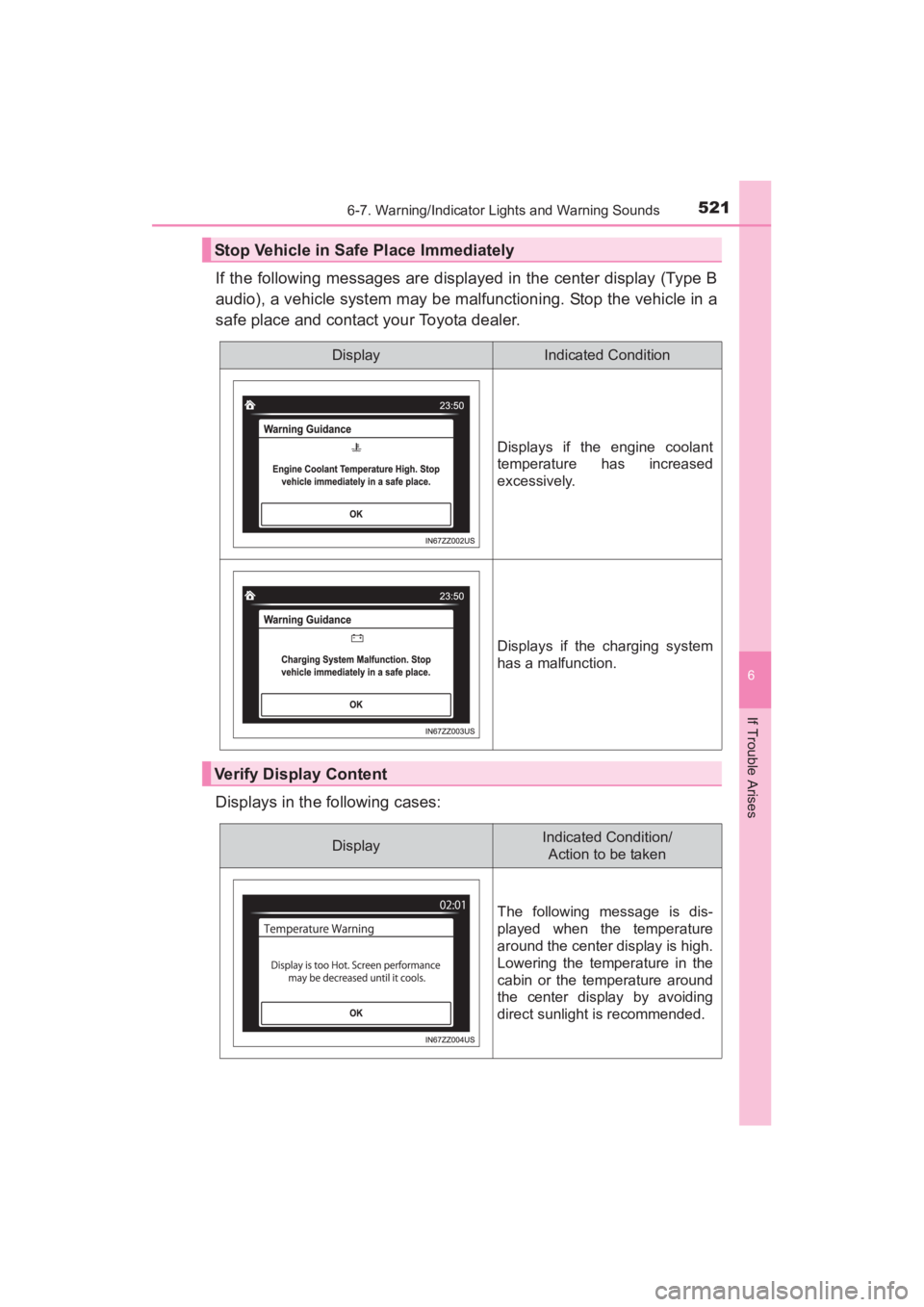

If the following messages are displayed in the center display (Type B
audio), a vehicle system may be malfunctioning. Stop the vehicle in a
safe place and contact your Toyota dealer.
Displays in the following cases:
Stop Vehicle in Safe Place Immediately
DisplayIndicated Condition
Displays if the engine coolant
temperature has increased
excessively.
Displays if the charging system
has a malfunction.
Verify Display Content
DisplayIndicated Condition/Action to be taken
The following message is dis-
played when the temperature
around the center display is high.
Lowering the temperature in the
cabin or the temperature around
the center display by avoiding
direct sunlight is recommended.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 521 Monday, June 1, 2015 9:22 PM

522
YARIS_SEDAN_OM_OM99M18z_(U)
6-7. Warning/Indicator Lights and Warning Sounds

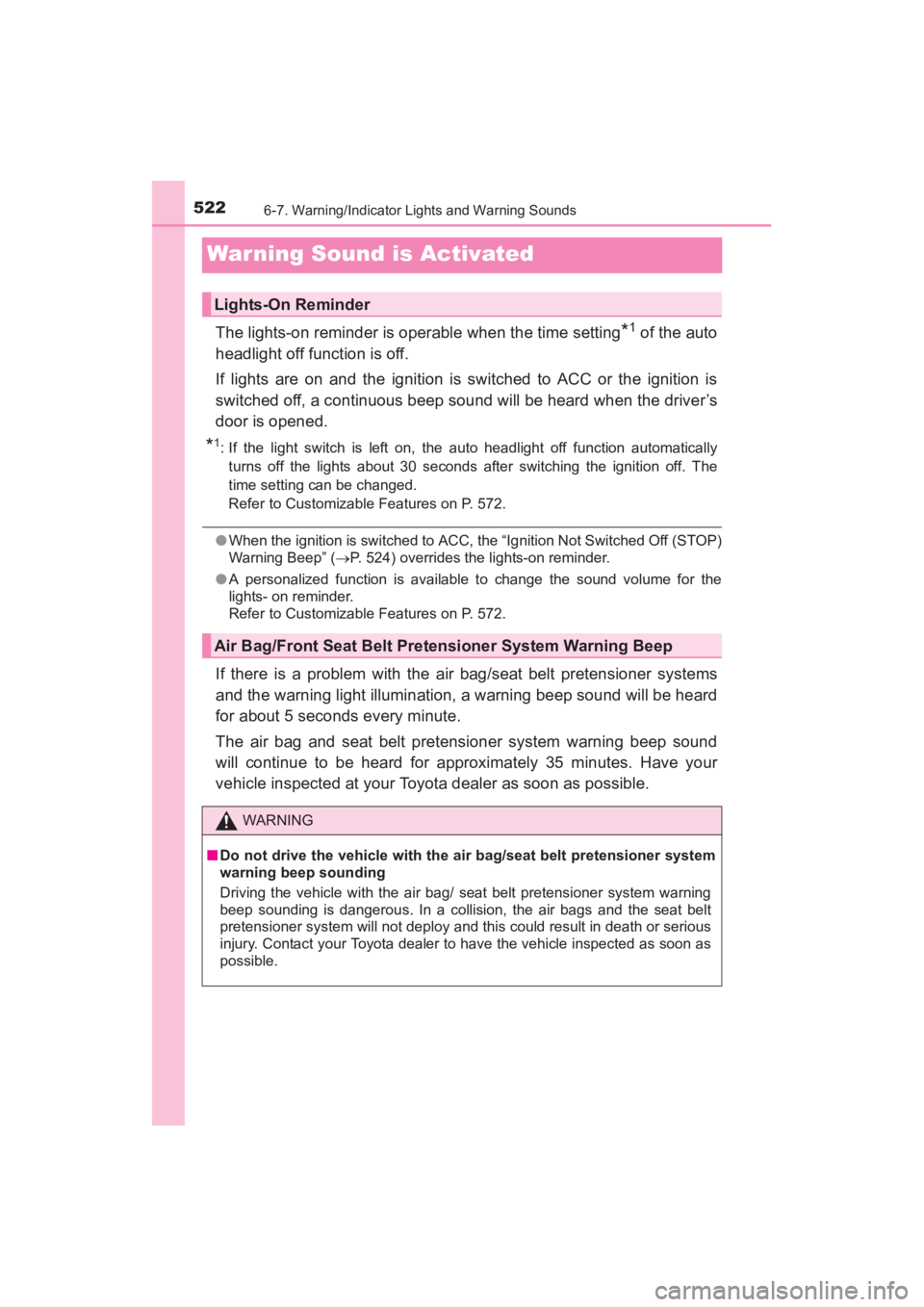

Warning Sound is Activated
The lights-on reminder is operable when the time setting*1 of the auto
headlight off function is off.
If lights are on and the ignition is switched to ACC or the ignition is
switched off, a continuous beep sound will be heard when the driver’s
door is opened.
*1: If the light switch is left on, the auto headlight off function automatically turns off the lights about 30 seconds after switching the ignition off. The
time setting can be changed.
Refer to Customizable Features on P. 572.
● When the ignition is switched to ACC, the “Ignition Not Switched Off (STOP)
Warning Beep” ( →P. 524) overrides the lights-on reminder.
● A personalized function is available to change the sound volume for the
lights- on reminder.
Refer to Customizable Features on P. 572.
If there is a problem with the air bag/seat belt pretensioner systems
and the warning light illumination, a warning beep sound will be heard
for about 5 seconds every minute.
The air bag and seat belt pretensioner system warning beep sound
will continue to be heard for approximately 35 minutes. Have your
vehicle inspected at your Toyota dealer as soon as possible.
Lights-On Reminder
Air Bag/Front Seat Belt Pretensioner System Warning Beep
WARNING
■Do not drive the vehicle with the air bag/seat belt pretensioner system
warning beep sounding
Driving the vehicle with the air bag/ seat belt pretensioner system warning
beep sounding is dangerous. In a collision, the air bags and the seat belt
pretensioner system will not deploy and this could result in death or serious
injury. Contact your Toyota dealer to have the vehicle inspected as soon as
possible.
YARIS_SEDAN_OM_OM99M18z_(U).book Page 522 Monday, June 1, 2015 9:22 PM

YARIS_SEDAN_OM_OM99M18z_(U)
5236-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises

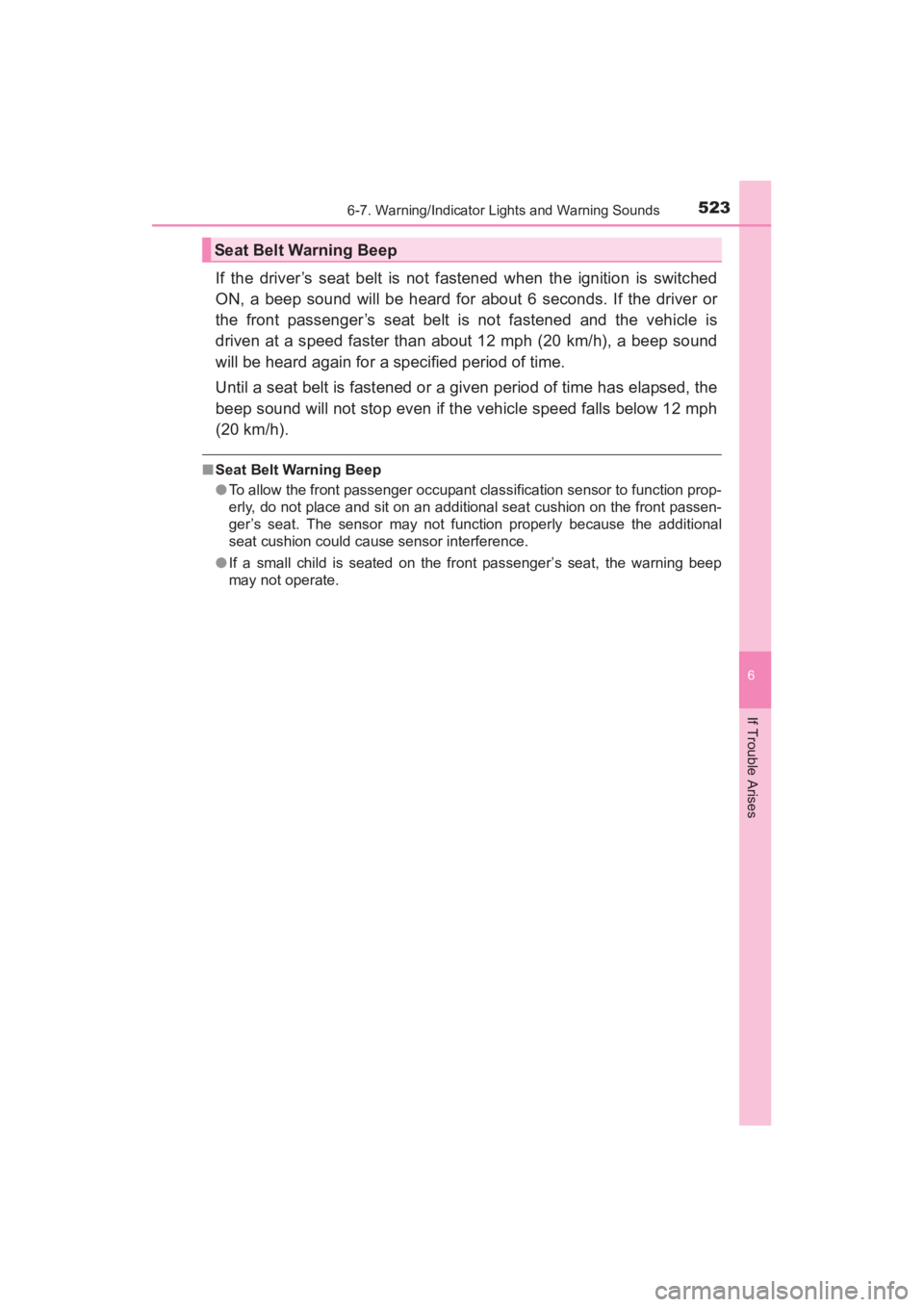

If the driver’s seat belt is not fastened when the ignition is switched
ON, a beep sound will be heard for about 6 seconds. If the driver or
the front passenger’s seat belt is not fastened and the vehicle is
driven at a speed faster than about 12 mph (20 km/h), a beep sound
will be heard again for a specified period of time.
Until a seat belt is fastened or a given period of time has elapsed, the
beep sound will not stop even if the vehicle speed falls below 12 mph
(20 km/h).
■Seat Belt Warning Beep
●To allow the front passenger occupant classification sensor to function prop-
erly, do not place and sit on an additional seat cushion on the front passen-
ger’s seat. The sensor may not function properly because the additional
seat cushion could cause sensor interference.
● If a small child is seated on the front passenger’s seat, the warning beep
may not operate.
Seat Belt Warning Beep
YARIS_SEDAN_OM_OM99M18z_(U).book Page 523 Monday, June 1, 2015 9:22 PM

5246-7. Warning/Indicator Lights and Warning Sounds
YARIS_SEDAN_OM_OM99M18z_(U)
If the driver’s door is opened while the ignition is switched to ACC, a
continuous beep sound will be heard to notify the driver that the igni-
tion has not been switched off (STOP). Left in this condition, the key-
less entry system will not operate, the car cannot be locked, and the
battery power will be depleted.
A beep sound will be heard 6 times and the KEY warning light (red)
will flash continuously if the ignition has not been switched off, all the
doors are closed, and the key is removed from the vehicle. This is to
notify the driver that the key has been removed from the vehicle and
the ignition has not been switched off.
Because the key utilizes low-intensity radio waves, the Key Removed From
Vehicle Warning may activate if the key is carried together with a metal object
or it is placed in a poor signal reception area.
The warning beep sound will be heard for about 3 seconds when
there is any abnormality in tire inflation pressures (→P. 218).
If there is the possibility of a collision with a vehicle ahead, the beep
sounds continuously and a warning is indicated in the display.
If the power steering system has a malfunction, the power steering
malfunction light turns on or flashes and the buzzer operates at the
same time.
Refer to Warning/Indicator Lights on P. 156.
Ignition Not Switched Off (STOP) Warning Beep
Key Removed from Vehicle Warning Beep
Tire Inflation Pressure Warning Beep (if equipped)
Collision warning (if equipped)
Power Steering Warning Buzzer
YARIS_SEDAN_OM_OM99M18z_(U).book Page 524 Monday, June 1, 2015 9:22 PM

525
YARIS_SEDAN_OM_OM99M18z_(U)
6-8. When Trunk Lid Cannot be Opened
6
If Trouble Arises

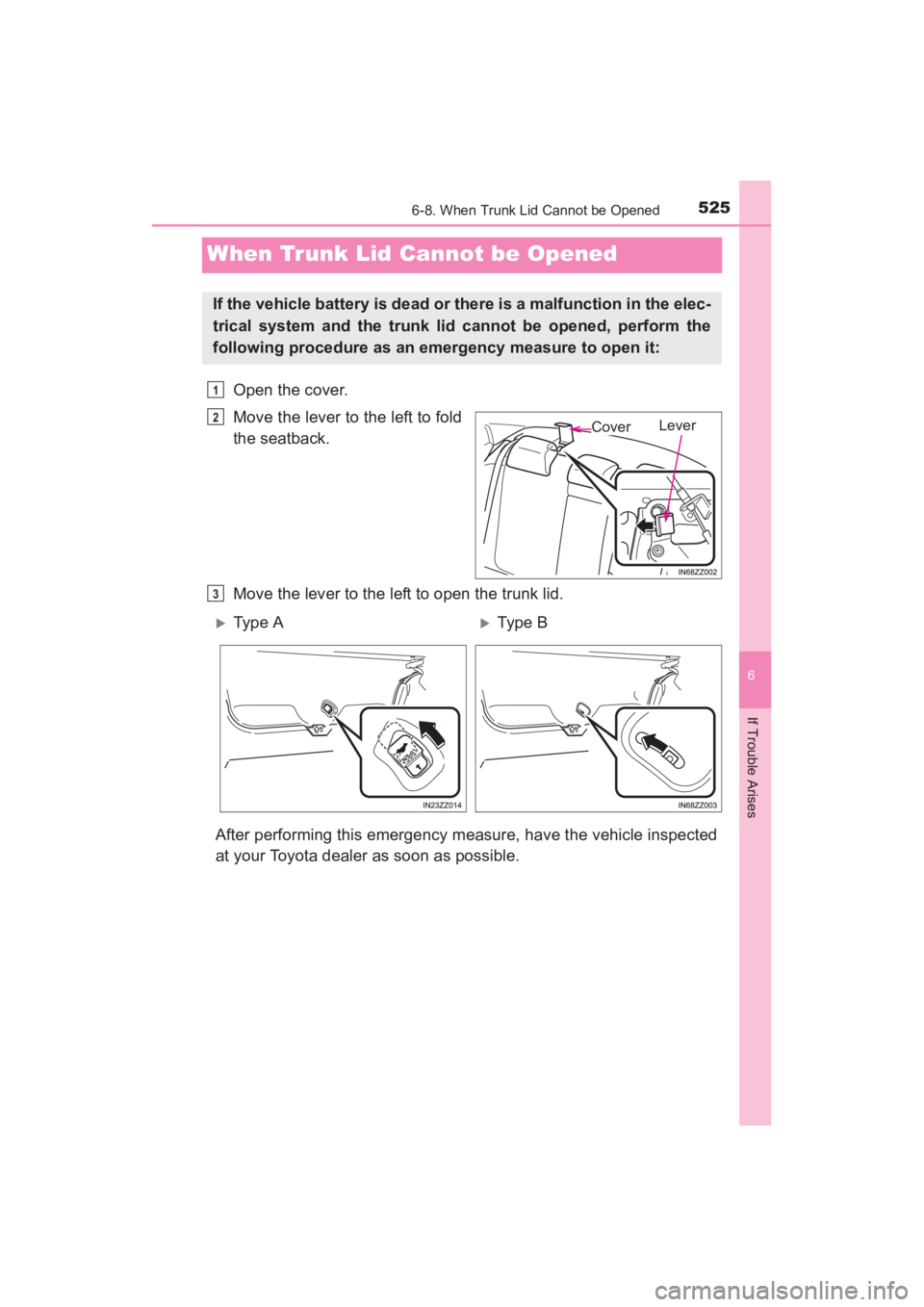

When Trunk Lid Cannot be Opened
Open the cover.
Move the lever to the left to fold
the seatback.
Move the lever to the left to open the trunk lid.
After performing this emergency measure, have the vehicle inspected
at your Toyota dealer as soon as possible.
If the vehicle battery is dead or there is a malfunction in the elec-
trical system and the trunk lid cannot be opened, perform the
following procedure as an emergency measure to open it:
1
LeverCover2
3
XType AXTy pe B
YARIS_SEDAN_OM_OM99M18z_(U).book Page 525 Monday, June 1, 2015 9:22 PM

5266-8. When Trunk Lid Cannot be Opened
YARIS_SEDAN_OM_OM99M18z_(U)
YARIS_SEDAN_OM_OM99M18z_(U).book Page 526 Monday, June 1, 2015 9:22 PM

527
YARIS_SEDAN_OM_OM99M18z_(U)

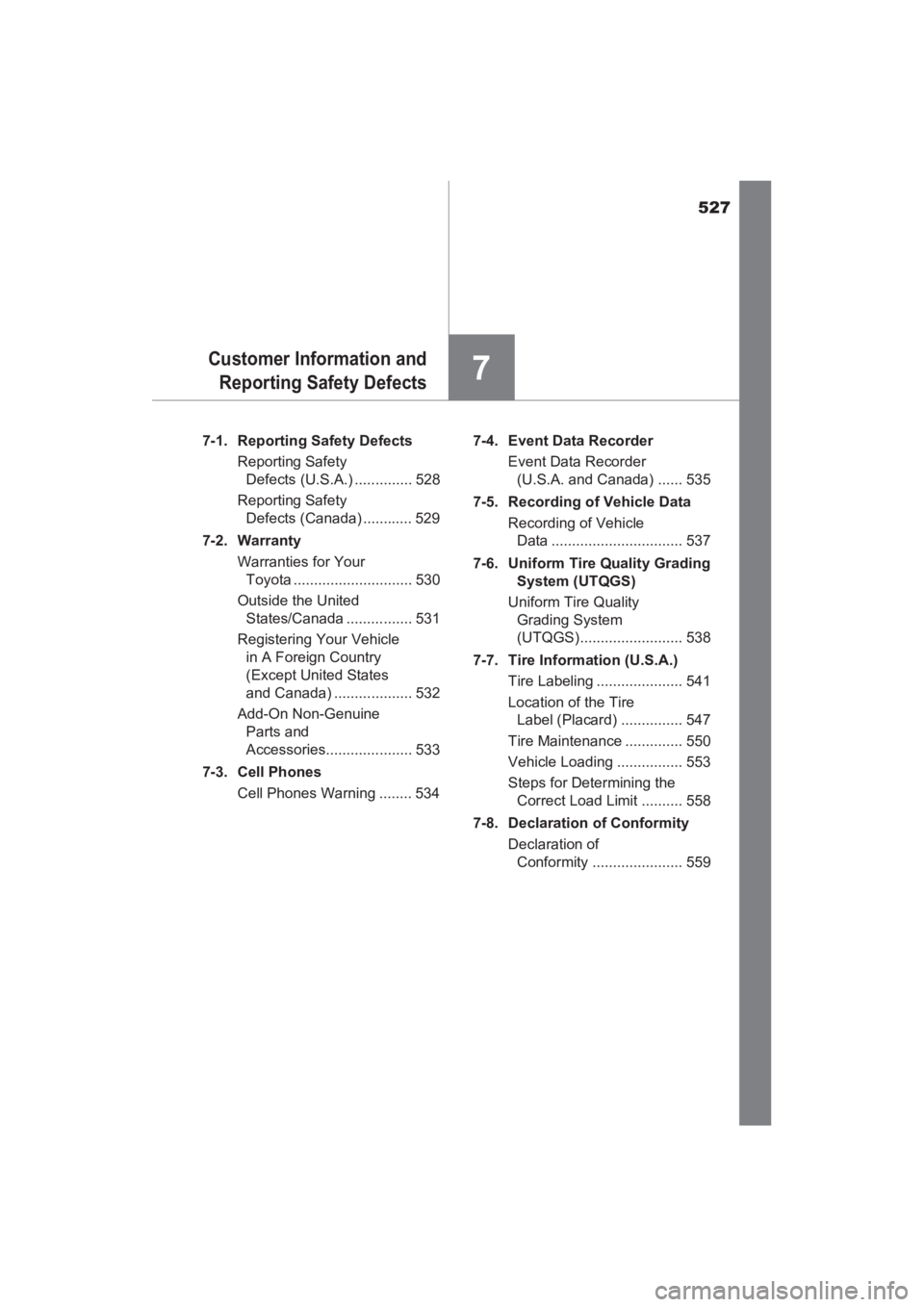

7Customer Information andReporting Safety Defects
7-1. Reporting Safety Defects
Reporting Safety Defects (U.S.A.) .............. 528
Reporting Safety Defects (Canada) ............ 529
7-2. Warranty Warranties for Your Toyota ............................. 530
Outside the United States/Canada ................ 531
Registering Your Vehicle in A Foreign Country
(Except United States
and Canada) ................... 532
Add-On Non-Genuine Parts and
Accessories..................... 533
7-3. Cell Phones Cell Phones Warning ........ 534 7-4. Event Data Recorder
Event Data Recorder (U.S.A. and Canada) ...... 535
7-5. Recording of Vehicle Data Recording of Vehicle Data ................................ 537
7-6. Uniform Tire Quality Grading System (UTQGS)
Uniform Tire Quality Grading System
(UTQGS) ......................... 538
7-7. Tire Information (U.S.A.) Tire Labeling ..................... 541
Location of the Tire Label (Placard) ............... 547
Tire Maintenance .............. 550
Vehicle Loading ................ 553
Steps for Determining the Correct Load Limit .......... 558
7-8. Declaration of Conformity Declaration of Conformity ...................... 559
YARIS_SEDAN_OM_OM99M18z_(U).book Page 527 Monday, June 1, 2015 9:22 PM

528
YARIS_SEDAN_OM_OM99M18z_(U)
7-1. Reporting Safety Defects

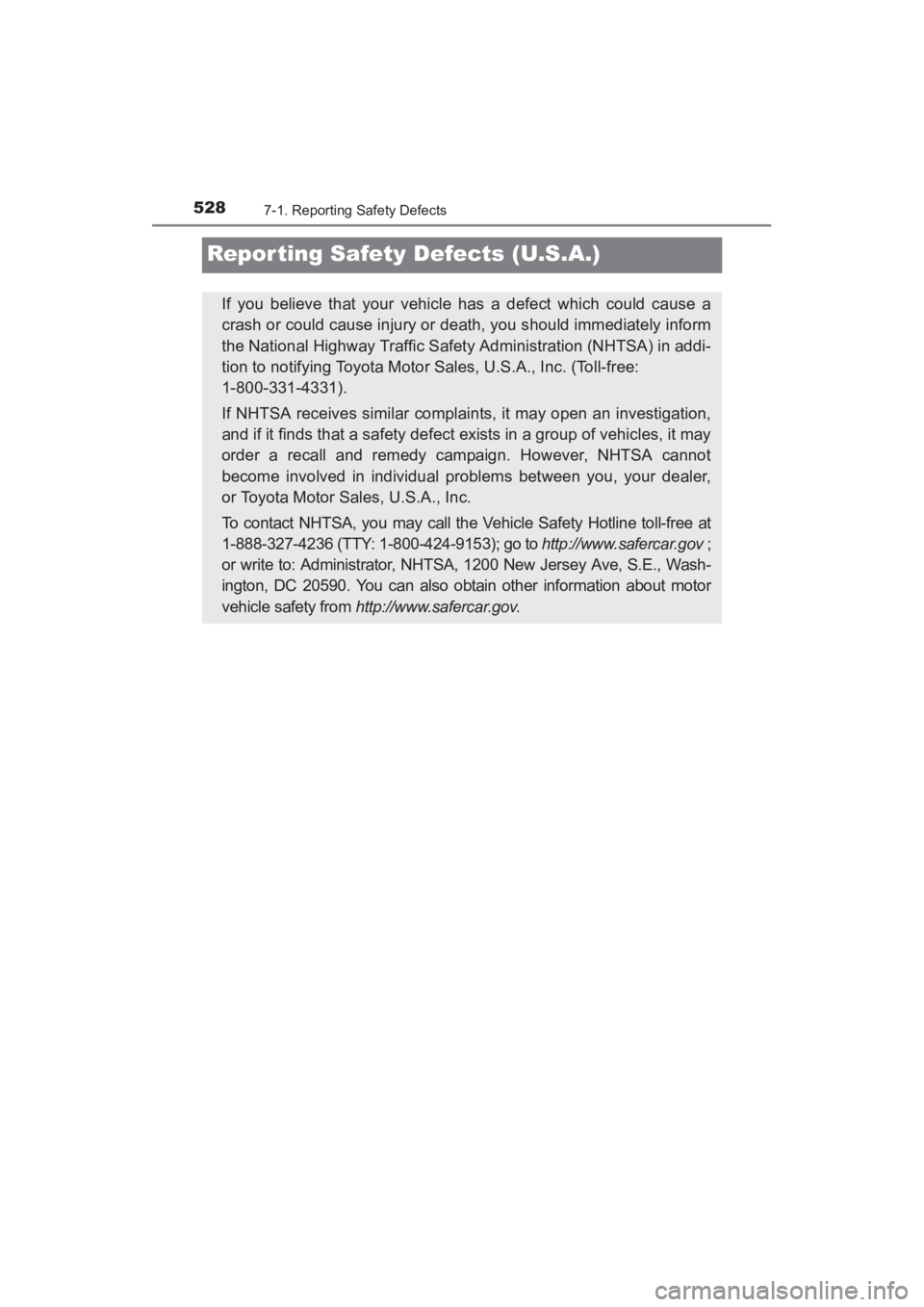

Repor ting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., Wash-
ington, DC 20590. You can also obtain other information about motor
vehicle safety from http://www.safercar.gov .
