TOYOTA YARIS 2016 Owners Manual

1914-2. Driving procedures
4
Driving
YARIS_F_WE_52G04E

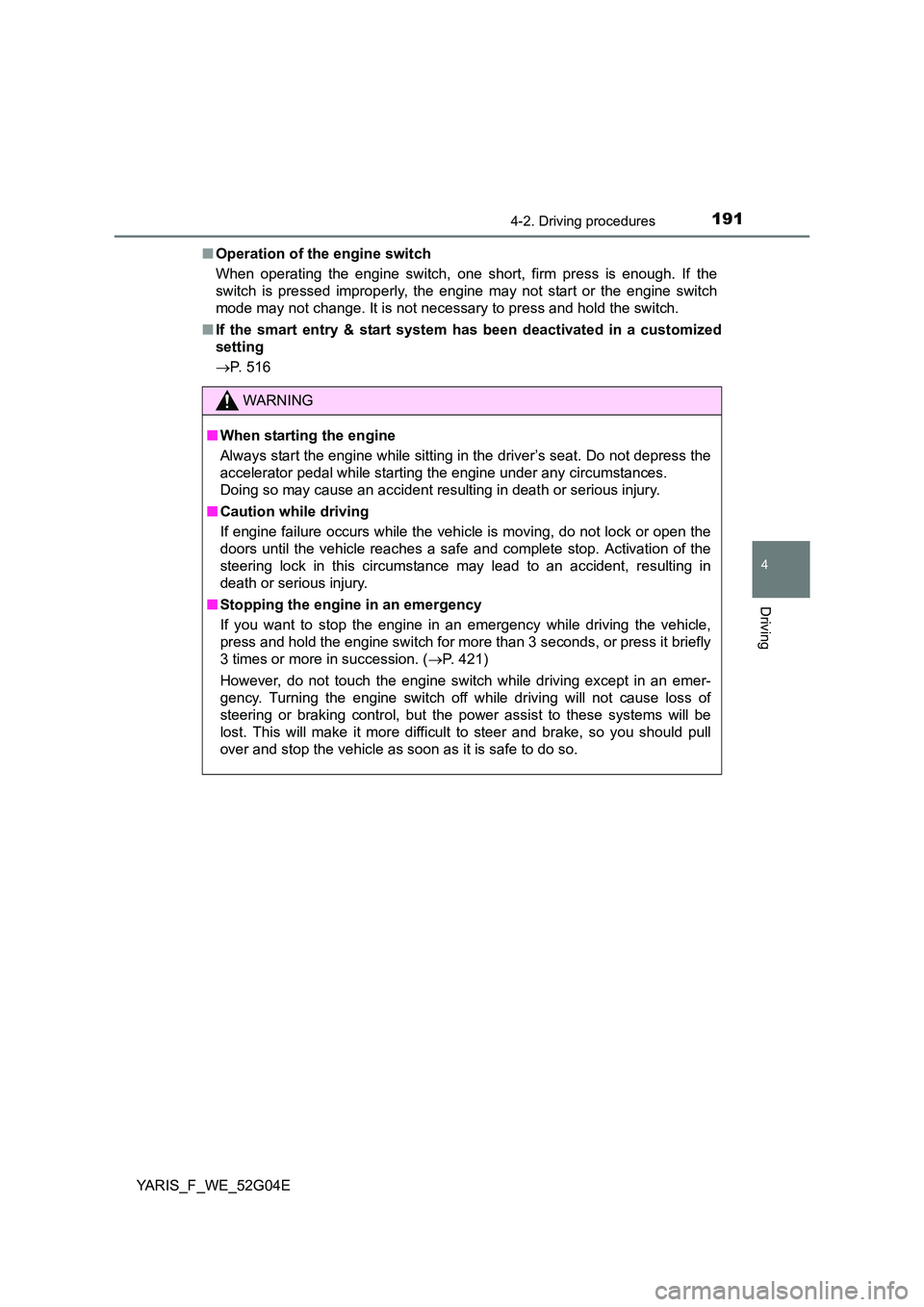

■ Operation of the engine switch
When operating the engine switch, one short, firm press is enough. If the
switch is pressed improperly, the engi ne may not start or the engine switch
mode may not change. It is not necessary to press and hold the switch.
■ If the smart entry & start system has been deactivated in a customized
setting
 P. 516
WARNING
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution while driving
If engine failure occurs while the vehicle is moving, do not lock or open the
doors until the vehicle reaches a safe and complete stop. Activation of the
steering lock in this circumstance may lead to an accident, resulting in
death or serious injury.
■ Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
press and hold the engine switch for more than 3 seconds, or press it briefly
3 times or more in succession. ( P. 421)
However, do not touch the engine switch while driving except in an emer-
gency. Turning the engine switch off while driving will not cause loss of
steering or braking control, but the power assist to these systems will be
lost. This will make it more difficult to steer and brake, so you should pull
over and stop the vehicle as soon as it is safe to do so.

1924-2. Driving procedures
YARIS_F_WE_52G04E

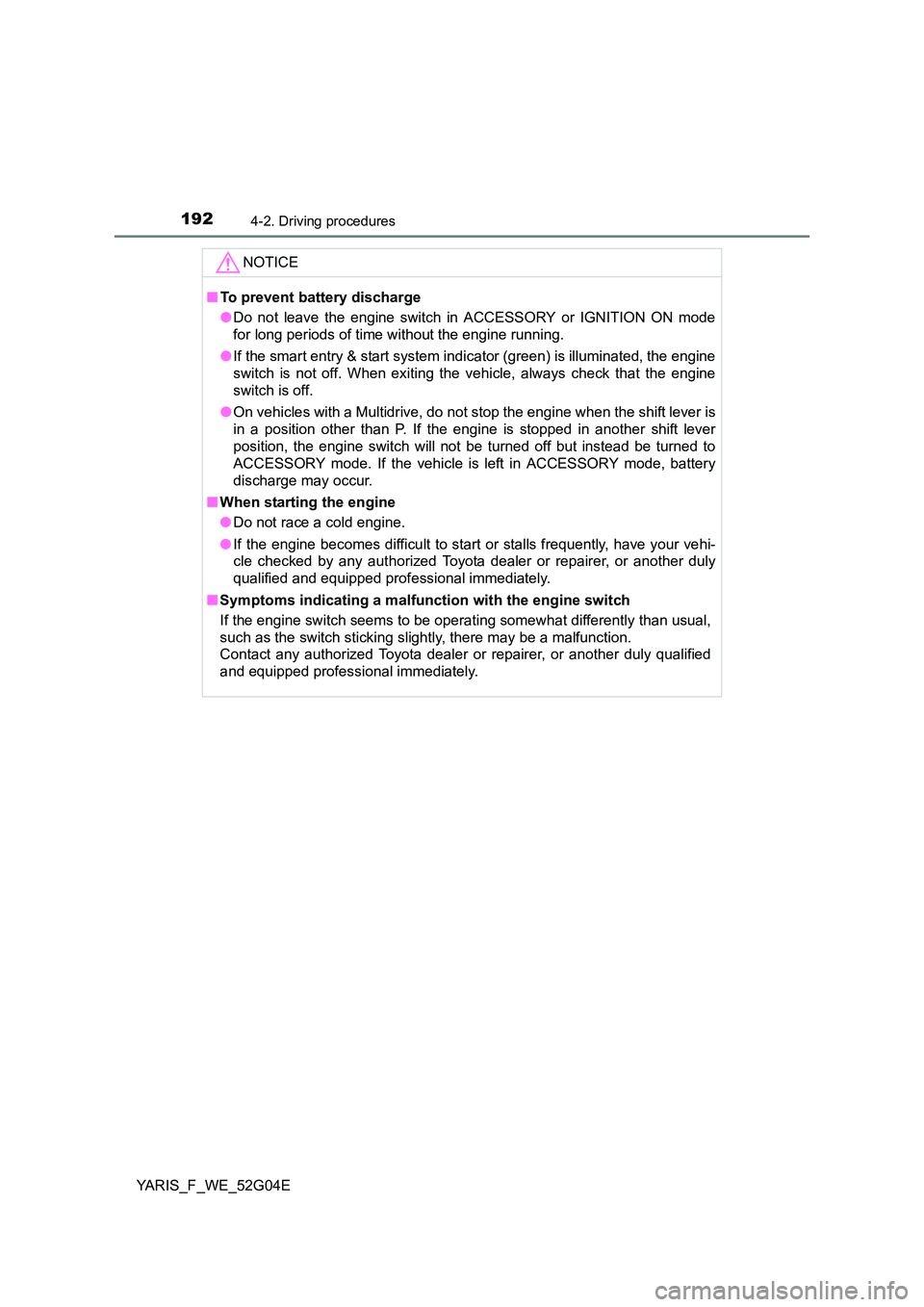

NOTICE
■To prevent battery discharge
● Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● If the smart entry & start system indicator (green) is illuminated, the engine
switch is not off. When exiting the vehicle, always check that the engine
switch is off.
● On vehicles with a Multidrive, do not stop the engine when the shift lever is
in a position other than P. If the engine is stopped in another shift lever
position, the engine switch will not be turned off but instead be turned to
ACCESSORY mode. If the vehicle is left in ACCESSORY mode, battery
discharge may occur.
■ When starting the engine
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional immediately.

193
4
4-2. Driving procedures
Driving
YARIS_F_WE_52G04E

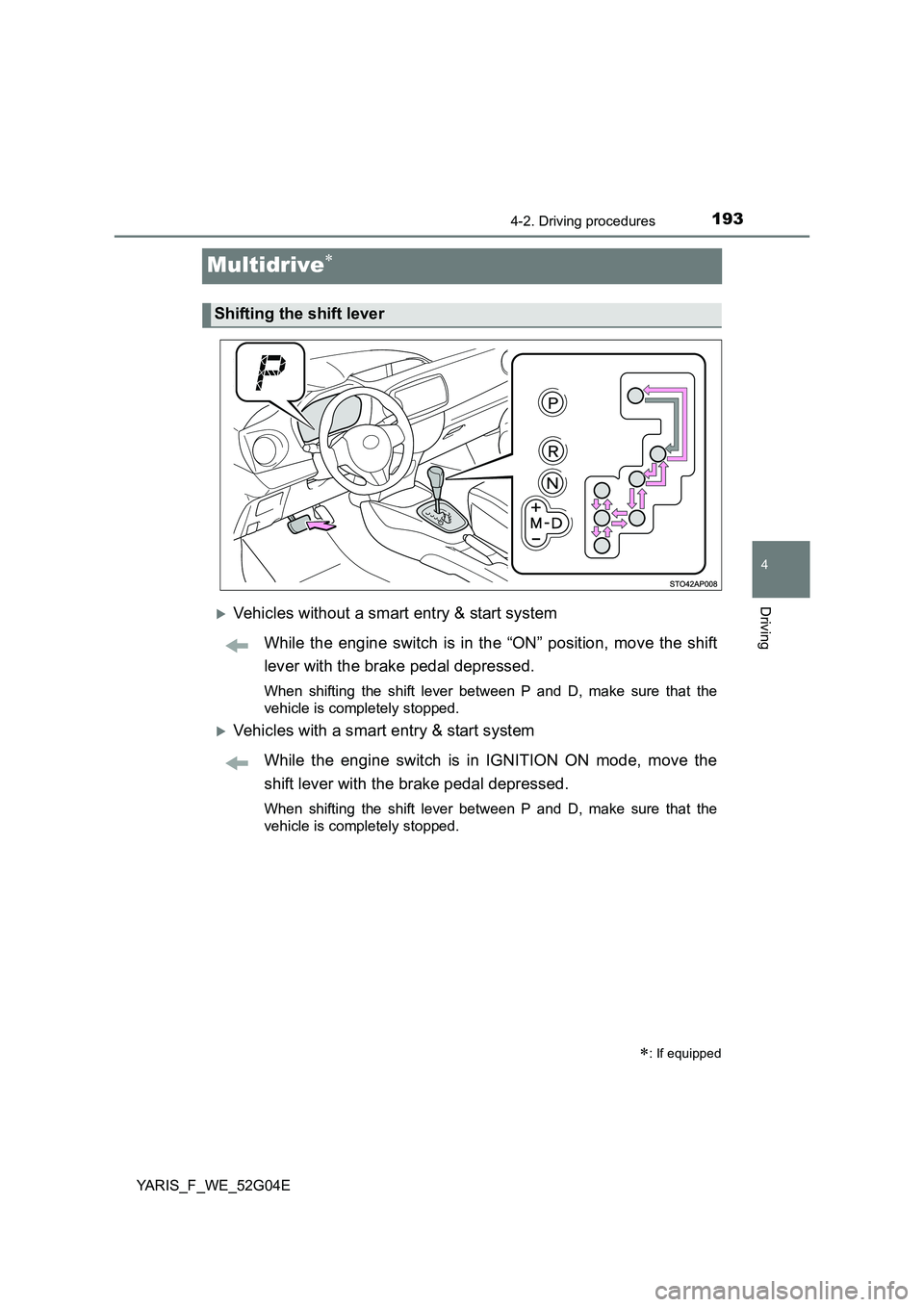

Multidrive
Vehicles without a smart entry & start system
While the engine switch is in the “ON” position, move the shift
lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
Vehicles with a smart entry & start system
While the engine switch is in IGNITION ON mode, move the
shift lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
: If equipped
Shifting the shift lever

1944-2. Driving procedures
YARIS_F_WE_52G04E

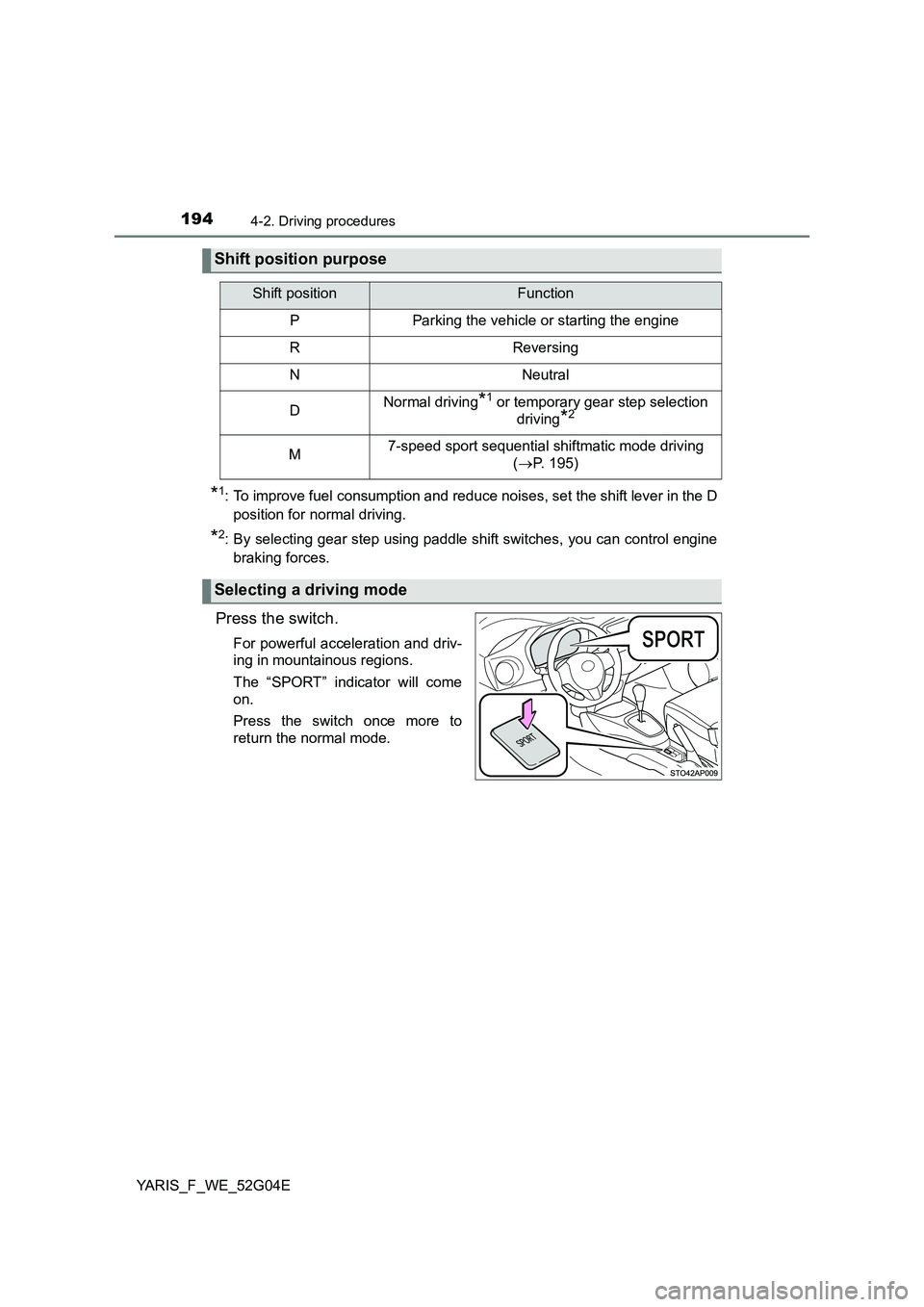

*1: To improve fuel consumption and reduce noises, set the shift lever in the D
position for normal driving.
*2: By selecting gear step using paddle shift switches, you can control engine
braking forces.
Press the switch.
For powerful acceleration and driv-
ing in mountainous regions.
The “SPORT” indicator will come
on.
Press the switch once more to
return the normal mode.
Shift position purpose
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*1 or temporary gear step selection
driving*2
M7-speed sport sequential shiftmatic mode driving
( P. 195)
Selecting a driving mode

1954-2. Driving procedures
4
Driving
YARIS_F_WE_52G04E

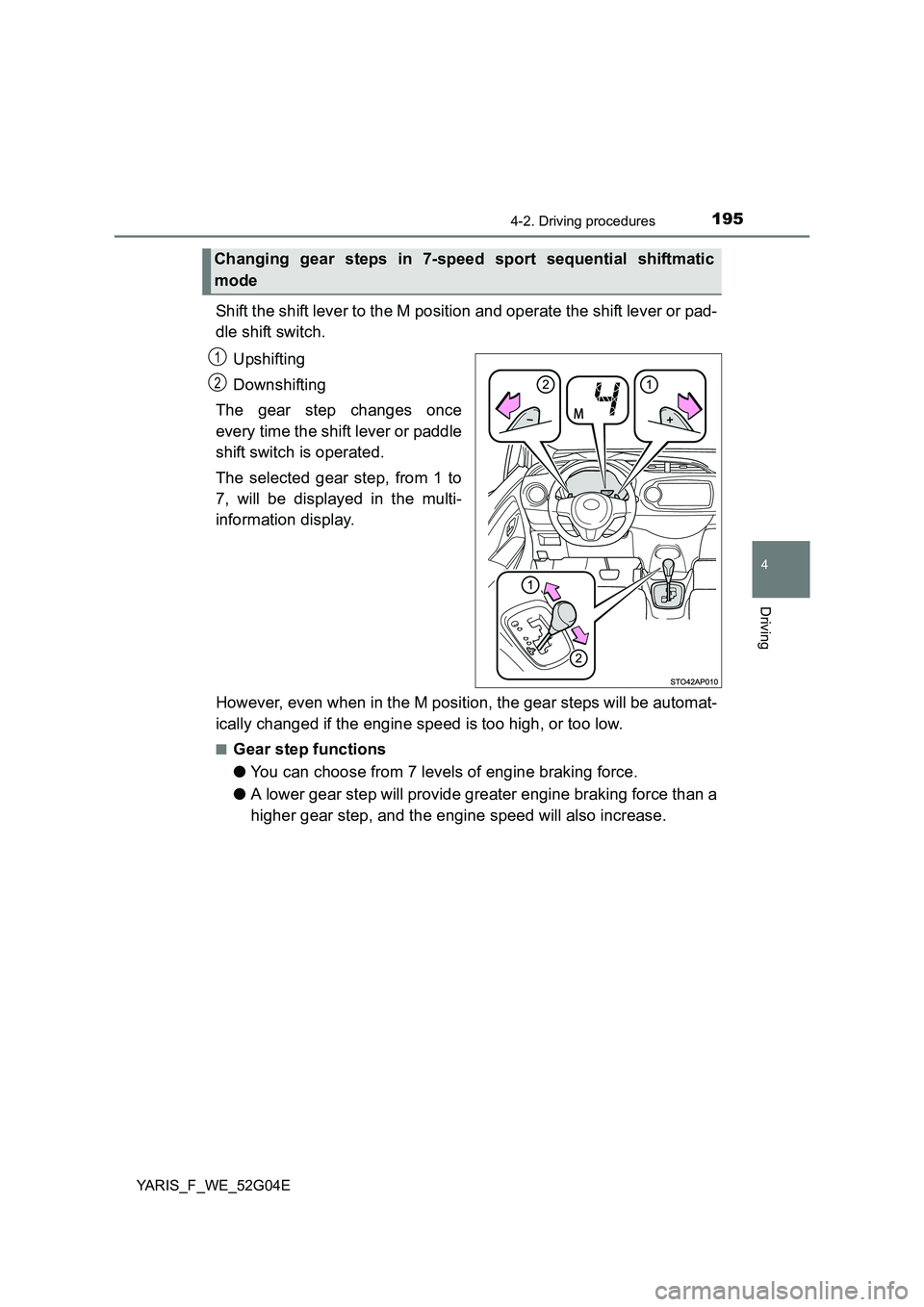

Shift the shift lever to the M position and operate the shift lever or pad-
dle shift switch.
Upshifting
Downshifting
The gear step changes once
every time the shift lever or paddle
shift switch is operated.
The selected gear step, from 1 to
7, will be displayed in the multi-
information display.
However, even when in the M position, the gear steps will be automat-
ically changed if the engine speed is too high, or too low.
■Gear step functions
● You can choose from 7 levels of engine braking force.
● A lower gear step will provide greater engine braking force than a
higher gear step, and the engine speed will also increase.
Changing gear steps in 7-speed sport sequential shiftmatic
mode
1
2

1964-2. Driving procedures
YARIS_F_WE_52G04E

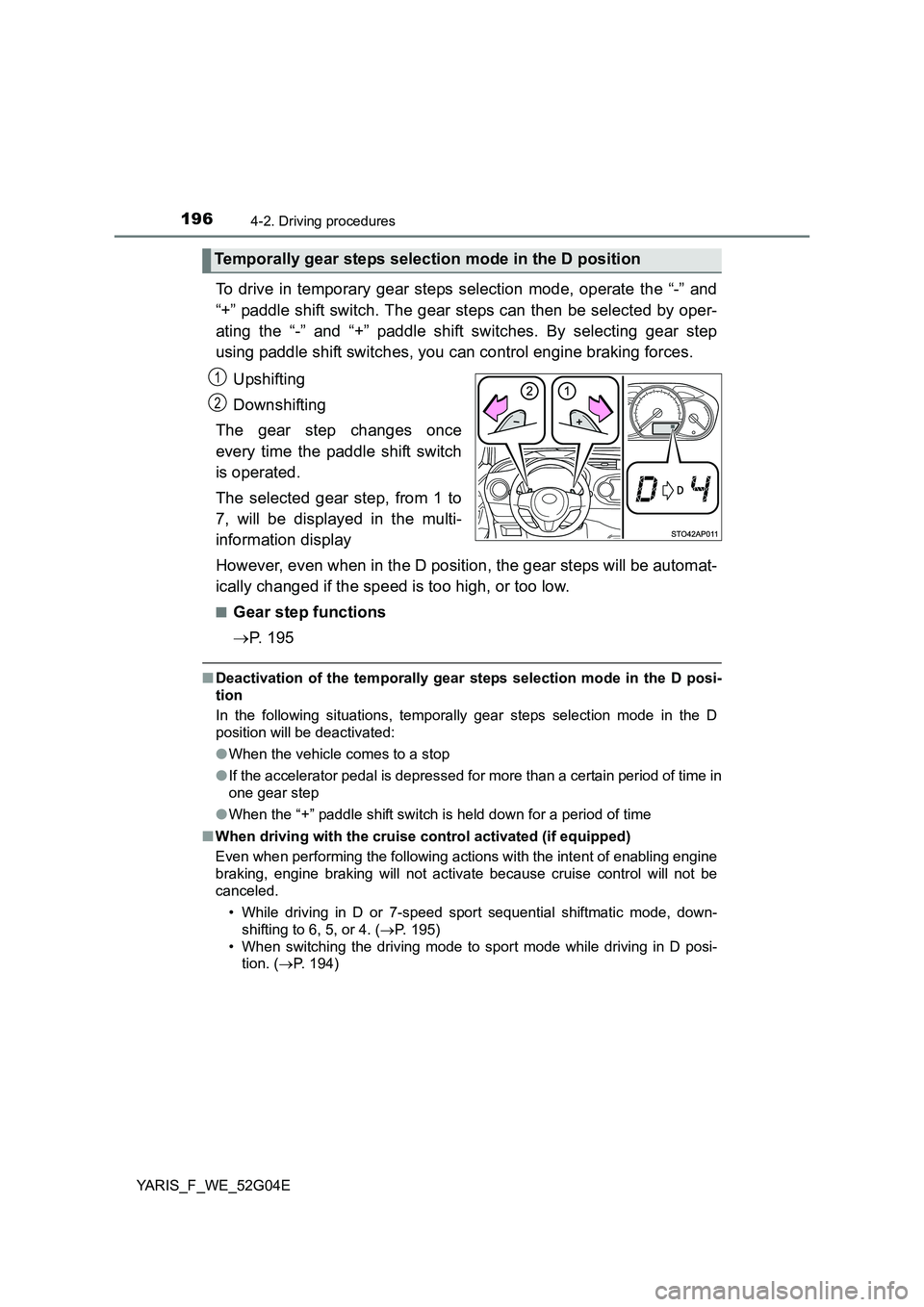

To drive in temporary gear steps selection mode, operate the “-” and
“+” paddle shift switch. The gear steps can then be selected by oper-
ating the “-” and “+” paddle shift switches. By selecting gear step
using paddle shift switches, you can control engine braking forces.
Upshifting
Downshifting
The gear step changes once
every time the paddle shift switch
is operated.
The selected gear step, from 1 to
7, will be displayed in the multi-
information display
However, even when in the D position, the gear steps will be automat-
ically changed if the speed is too high, or too low.
■Gear step functions
 P. 1 9 5
■Deactivation of the temporally gear steps selection mode in the D posi-
tion
In the following situations, temporally gear steps selection mode in the D
position will be deactivated:
● When the vehicle comes to a stop
● If the accelerator pedal is depressed for more than a certain period of time in
one gear step
● When the “+” paddle shift switch is held down for a period of time
■ When driving with the cruise control activated (if equipped)
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because cruise control will not be
canceled.
• While driving in D or 7-speed sport sequential shiftmatic mode, down-
shifting to 6, 5, or 4. ( P. 195)
• When switching the driving mode to sport mode while driving in D posi-
tion. ( P. 194)
Temporally gear steps selection mode in the D position
1
2

1974-2. Driving procedures
4
Driving
YARIS_F_WE_52G04E

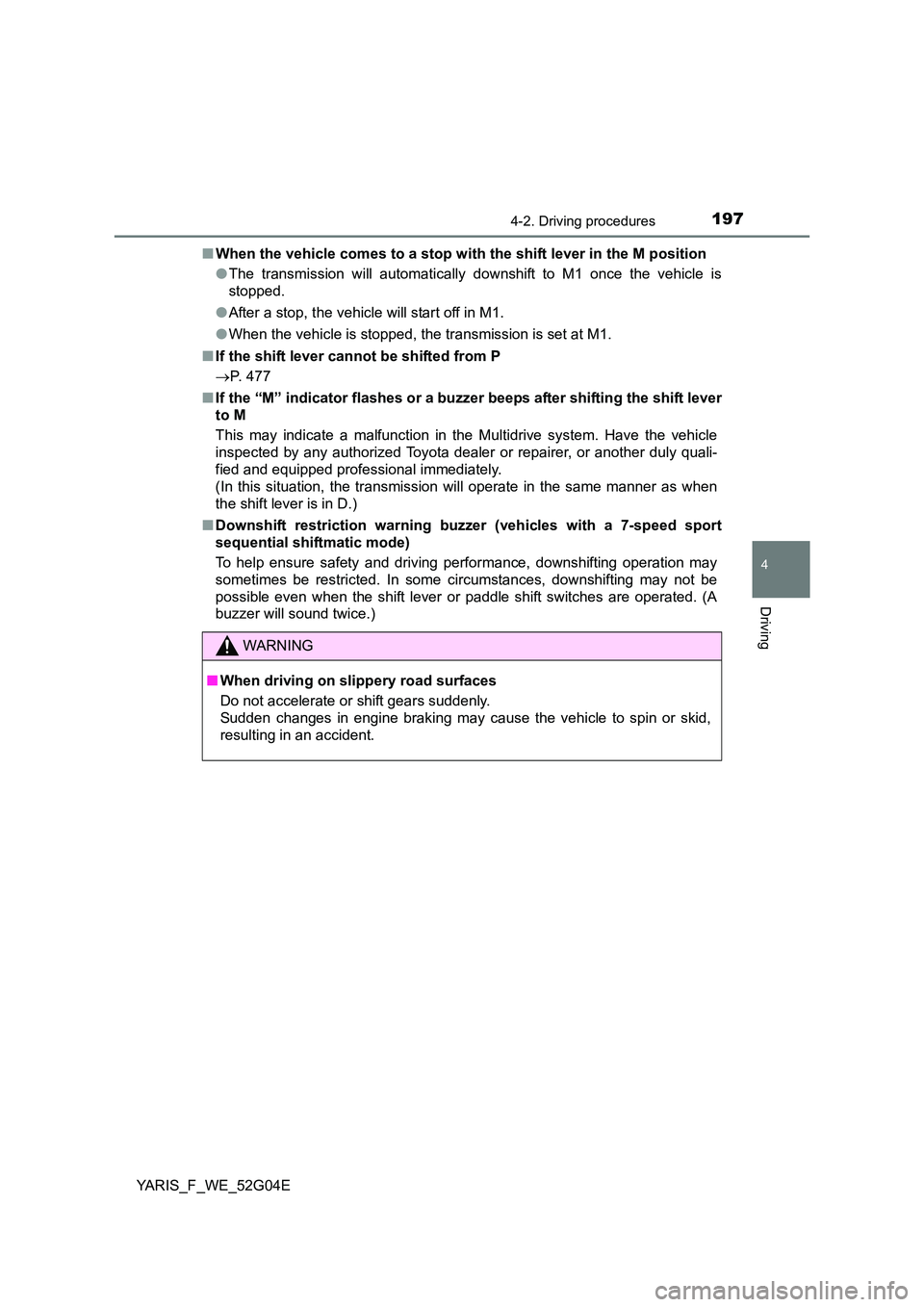

■ When the vehicle comes to a stop with the shift lever in the M position
● The transmission will automatically downshift to M1 once the vehicle is
stopped.
● After a stop, the vehicle will start off in M1.
● When the vehicle is stopped, the transmission is set at M1.
■ If the shift lever cannot be shifted from P
 P. 477
■ If the “M” indicator flashes or a buzzer beeps after shifting the shift lever
to M
This may indicate a malfunction in the Multidrive system. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
■ Downshift restriction warning buzzer (vehicles with a 7-speed sport
sequential shiftmatic mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switches are operated. (A
buzzer will sound twice.)
WARNING
■ When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.

1984-2. Driving procedures
YARIS_F_WE_52G04E

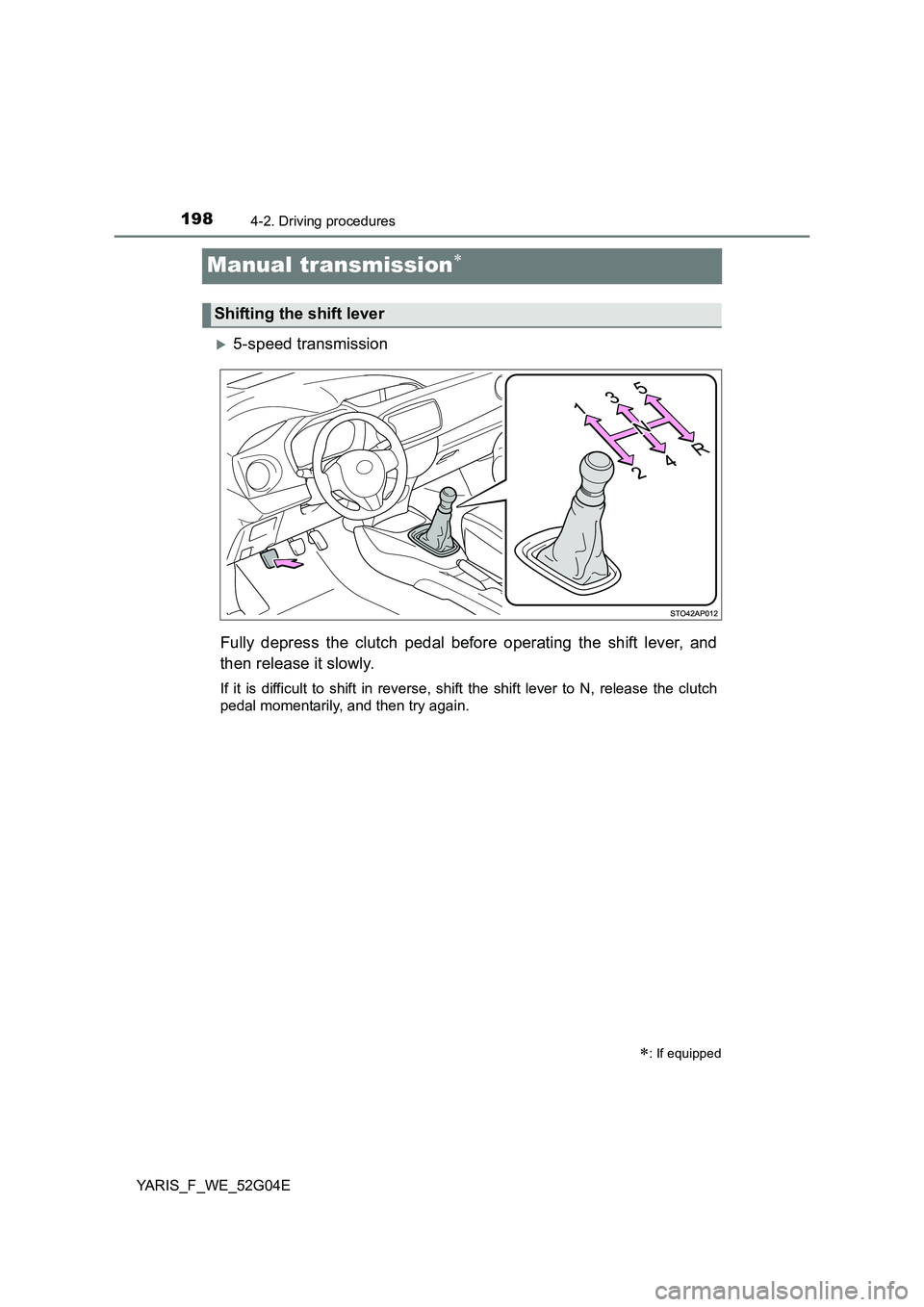

Manual transmission
5-speed transmission
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
If it is difficult to shift in reverse, shift the shift lever to N, release the clutch
pedal momentarily, and then try again.
: If equipped
Shifting the shift lever

1994-2. Driving procedures
4
Driving
YARIS_F_WE_52G04E

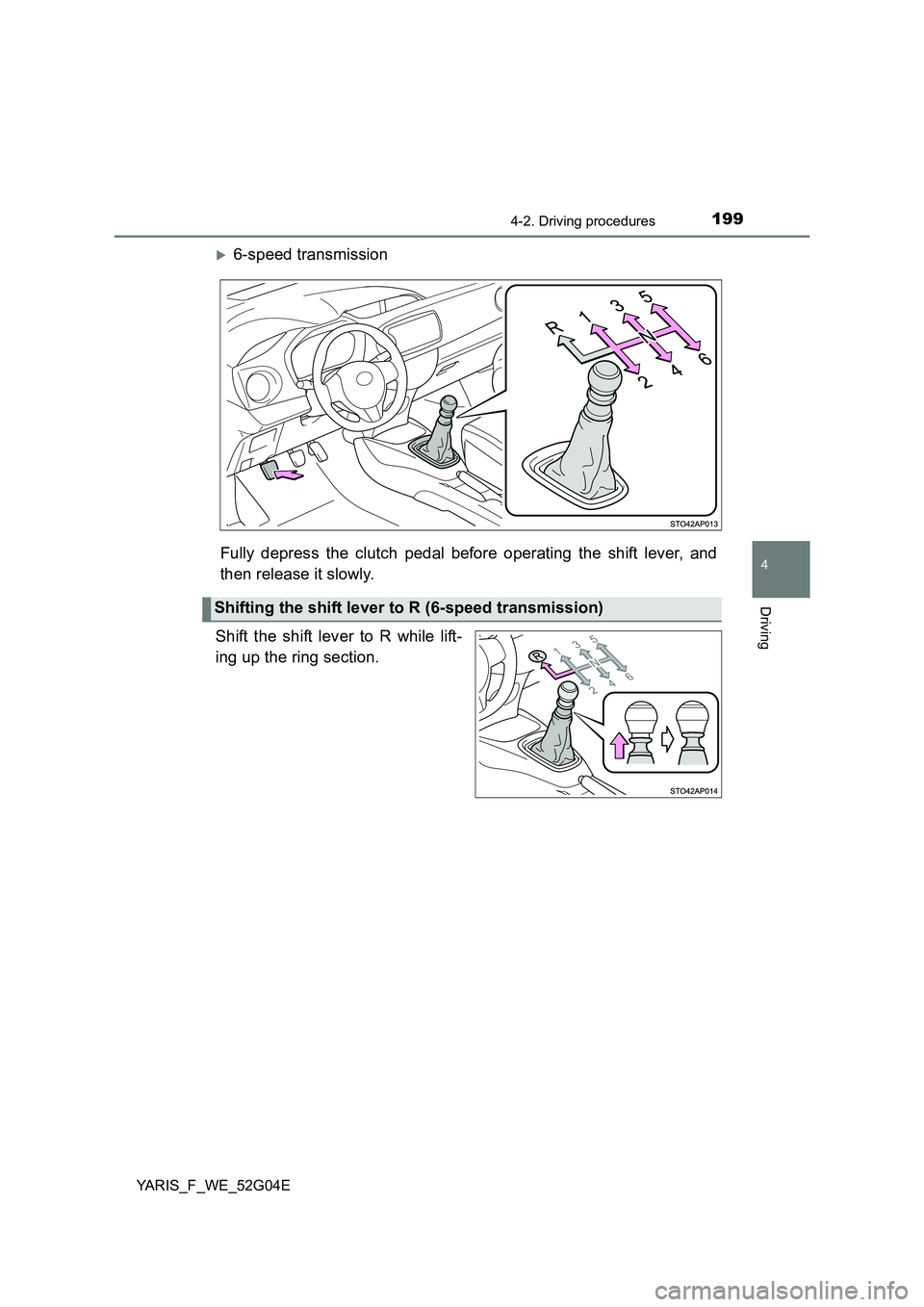

6-speed transmission
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
Shift the shift lever to R while lift-
ing up the ring section.
Shifting the shift lever to R (6-speed transmission)

2004-2. Driving procedures
YARIS_F_WE_52G04E

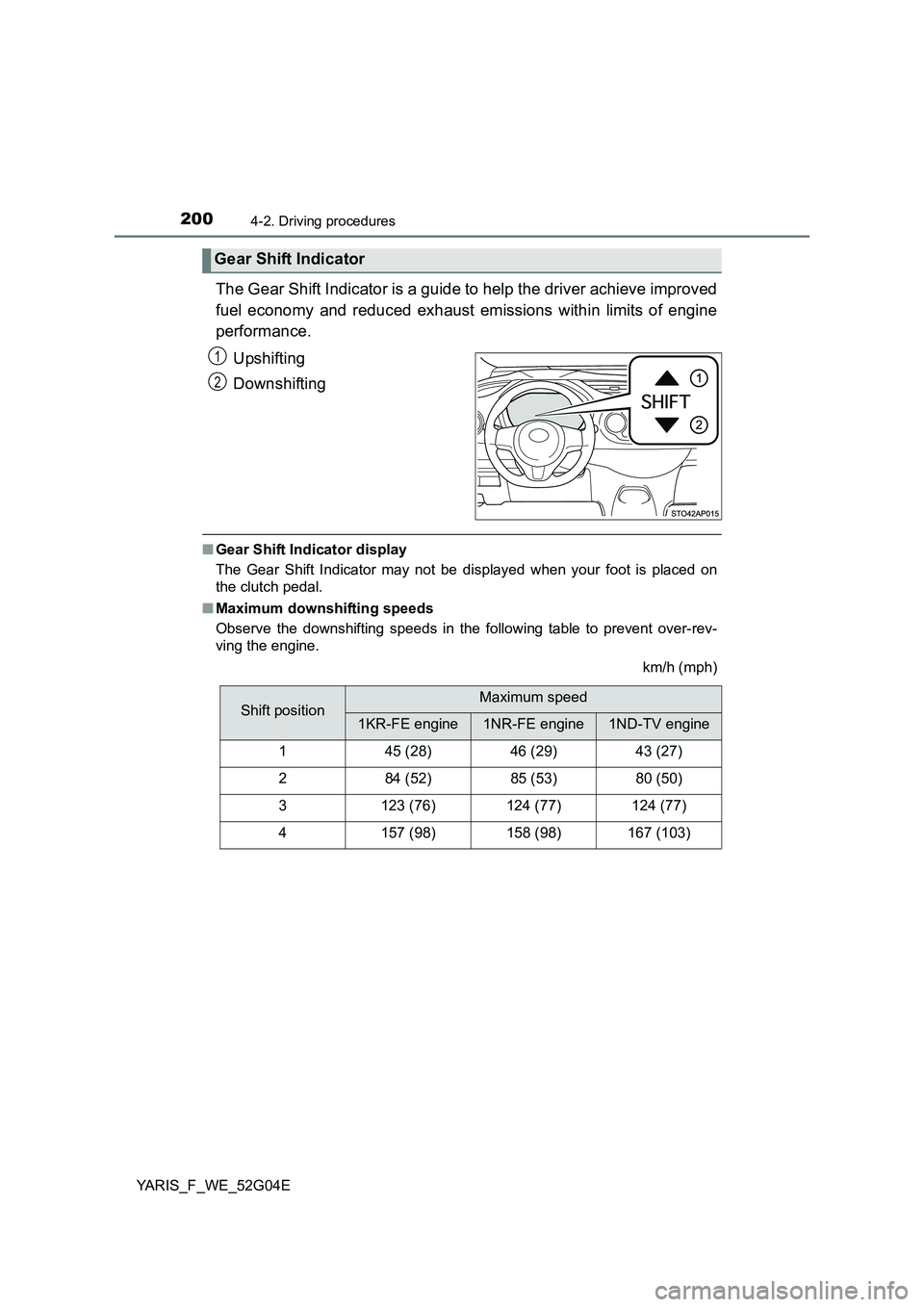

The Gear Shift Indicator is a guide to help the driver achieve improved
fuel economy and reduced exhaust emissions within limits of engine
performance.
Upshifting
Downshifting
■ Gear Shift Indicator display
The Gear Shift Indicator may not be displayed when your foot is placed on
the clutch pedal.
■ Maximum downshifting speeds
Observe the downshifting speeds in the following table to prevent over-rev-
ving the engine.
km/h (mph)
Gear Shift Indicator
1
2
Shift positionMaximum speed
1KR-FE engine1NR-FE engine1ND-TV engine
145 (28)46 (29)43 (27)
284 (52)85 (53)80 (50)
3123 (76)124 (77)124 (77)
4157 (98)158 (98)167 (103)
