2314-5. Toyota Safety Sense
4
Driving
YARIS_F_WE_52G04E

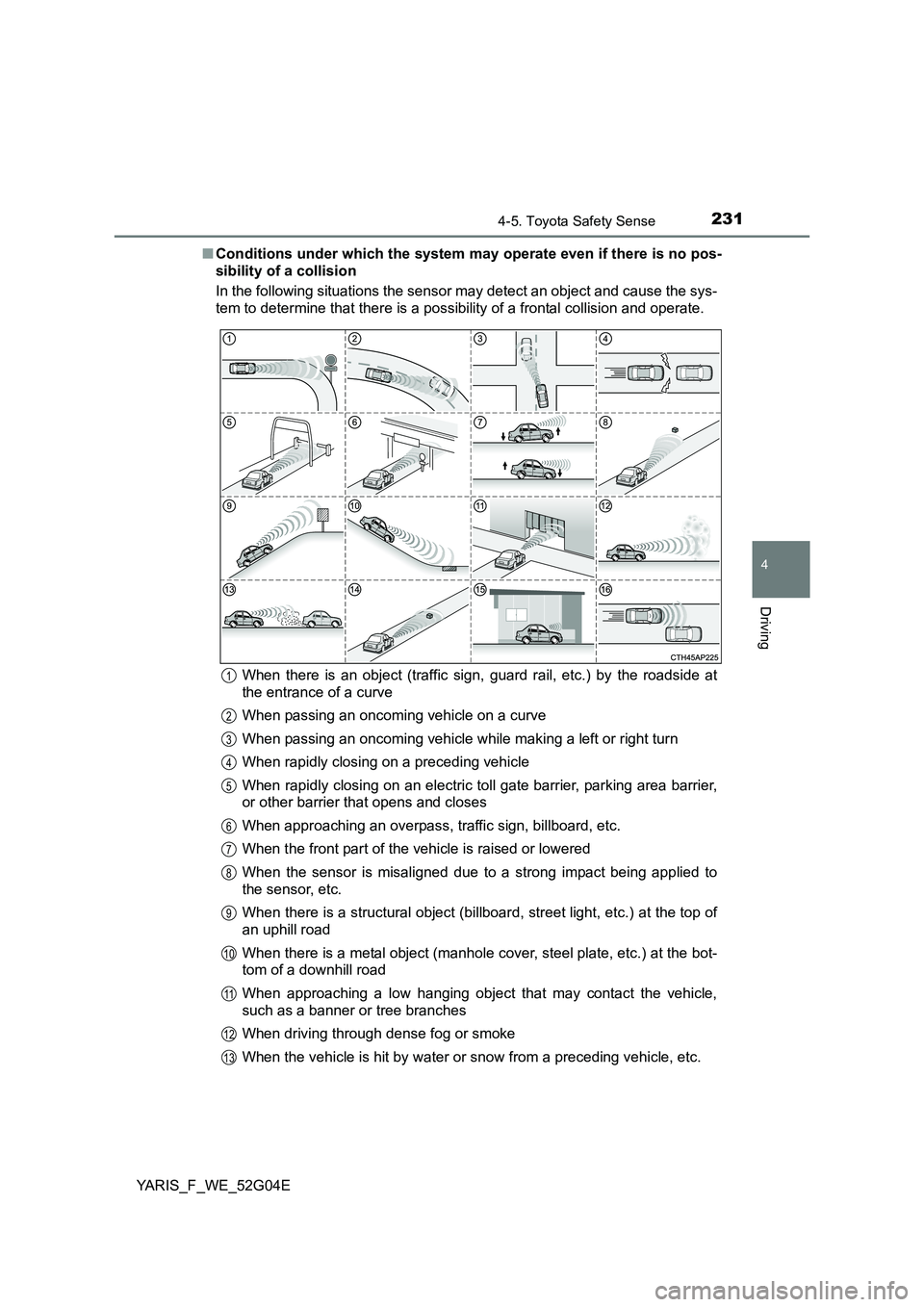

■ Conditions under which the system may operate even if there is no pos-
sibility of a collision
In the following situations the sensor may detect an object and cause the sys-
tem to determine that there is a possibility of a frontal collision and operate.
When there is an object (traffic sign, guard rail, etc.) by the roadside at
the entrance of a curve
When passing an oncoming vehicle on a curve
When passing an oncoming vehicle while making a left or right turn
When rapidly closing on a preceding vehicle
When rapidly closing on an electric toll gate barrier, parking area barrier,
or other barrier that opens and closes
When approaching an overpass, traffic sign, billboard, etc.
When the front part of the vehicle is raised or lowered
When the sensor is misaligned due to a strong impact being applied to
the sensor, etc.
When there is a structural object (billboard, street light, etc.) at the top of
an uphill road
When there is a metal object (manhole cover, steel plate, etc.) at the bot-
tom of a downhill road
When approaching a low hanging object that may contact the vehicle,
such as a banner or tree branches
When driving through dense fog or smoke
When the vehicle is hit by water or snow from a preceding vehicle, etc.
1
2
3
4
5
6
7
8
9
10
11
12
13

2324-5. Toyota Safety Sense
YARIS_F_WE_52G04E

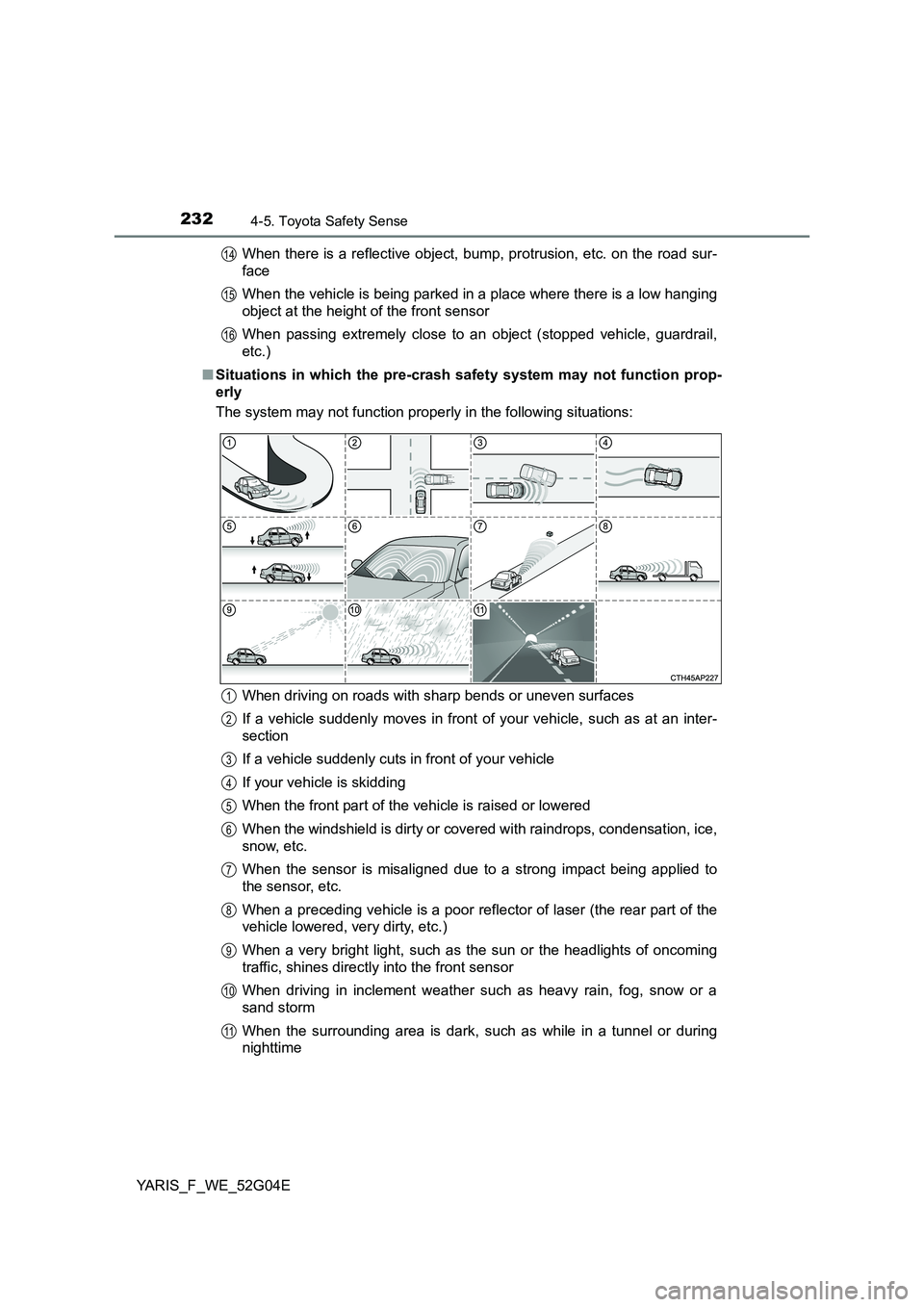

When there is a reflective object, bump, protrusion, etc. on the road sur-
face
When the vehicle is being parked in a place where there is a low hanging
object at the height of the front sensor
When passing extremely close to an object (stopped vehicle, guardrail,
etc.)
■ Situations in which the pre-crash safety system may not function prop-
erly
The system may not function properly in the following situations:
When driving on roads with sharp bends or uneven surfaces
If a vehicle suddenly moves in front of your vehicle, such as at an inter-
section
If a vehicle suddenly cuts in front of your vehicle
If your vehicle is skidding
When the front part of the vehicle is raised or lowered
When the windshield is dirty or cover ed with raindrops, condensation, ice,
snow, etc.
When the sensor is misaligned due to a strong impact being applied to
the sensor, etc.
When a preceding vehicle is a poor reflector of laser (the rear part of the
vehicle lowered, very dirty, etc.)
When a very bright light, such as the sun or the headlights of oncoming
traffic, shines directly into the front sensor
When driving in inclement weather such as heavy rain, fog, snow or a
sand storm
When the surrounding area is dark, such as while in a tunnel or during
nighttime
14
15
16
1
2
3
4
5
6
7
8
9
10
11

2334-5. Toyota Safety Sense
4
Driving
YARIS_F_WE_52G04E

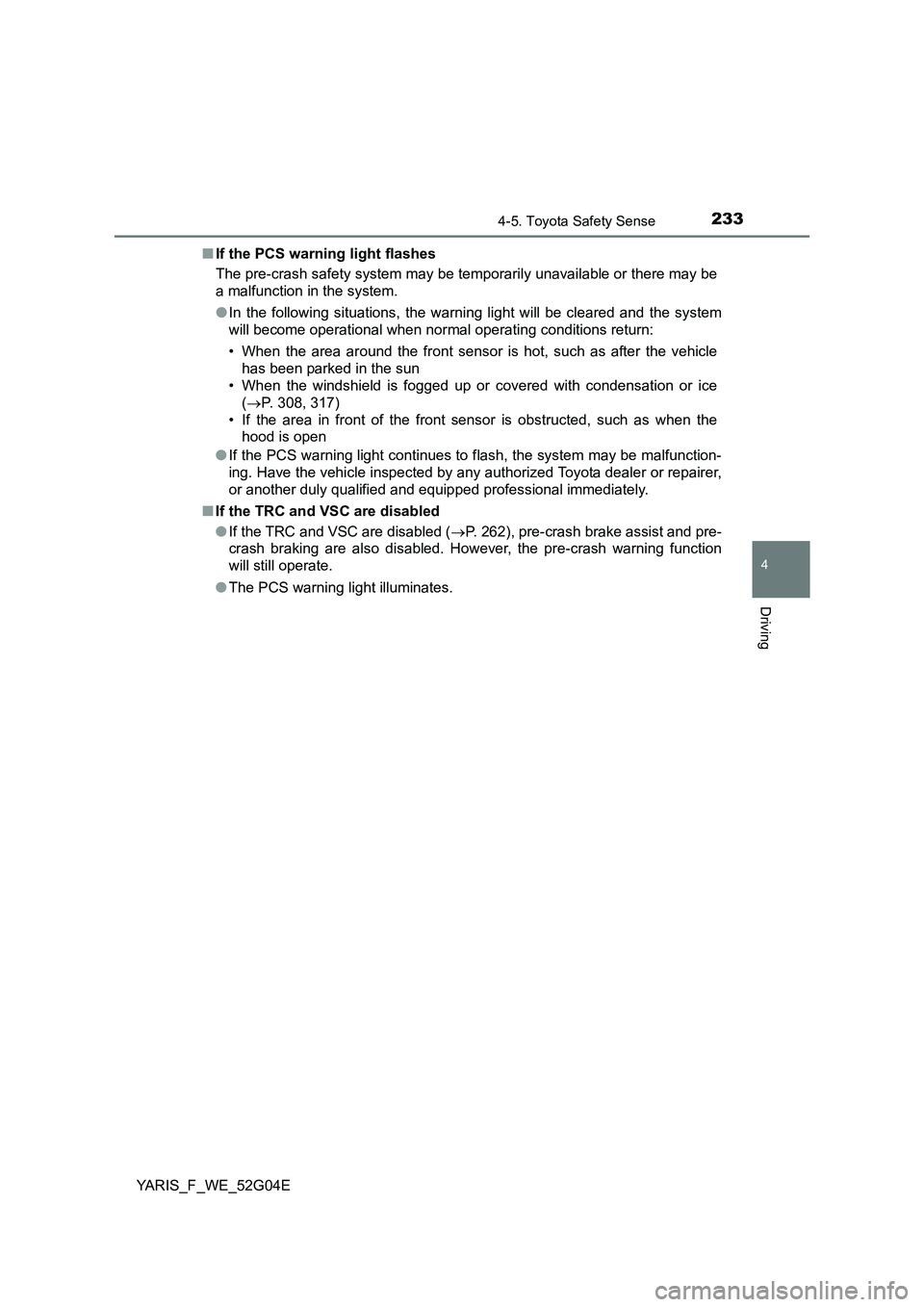

■ If the PCS warning light flashes
The pre-crash safety system may be temporarily unavailable or there may be
a malfunction in the system.
● In the following situations, the warning light will be cleared and the system
will become operational when normal operating conditions return:
• When the area around the front sensor is hot, such as after the vehicle
has been parked in the sun
• When the windshield is fogged up or covered with condensation or ice
( P. 308, 317)
• If the area in front of the front sens or is obstructed, such as when the
hood is open
● If the PCS warning light continues to flash, the system may be malfunction-
ing. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equi pped professional immediately.
■ If the TRC and VSC are disabled
● If the TRC and VSC are disabled (P. 262), pre-crash brake assist and pre-
crash braking are also disabled. However, the pre-crash warning function
will still operate.
● The PCS warning light illuminates.

2344-5. Toyota Safety Sense
YARIS_F_WE_52G04E

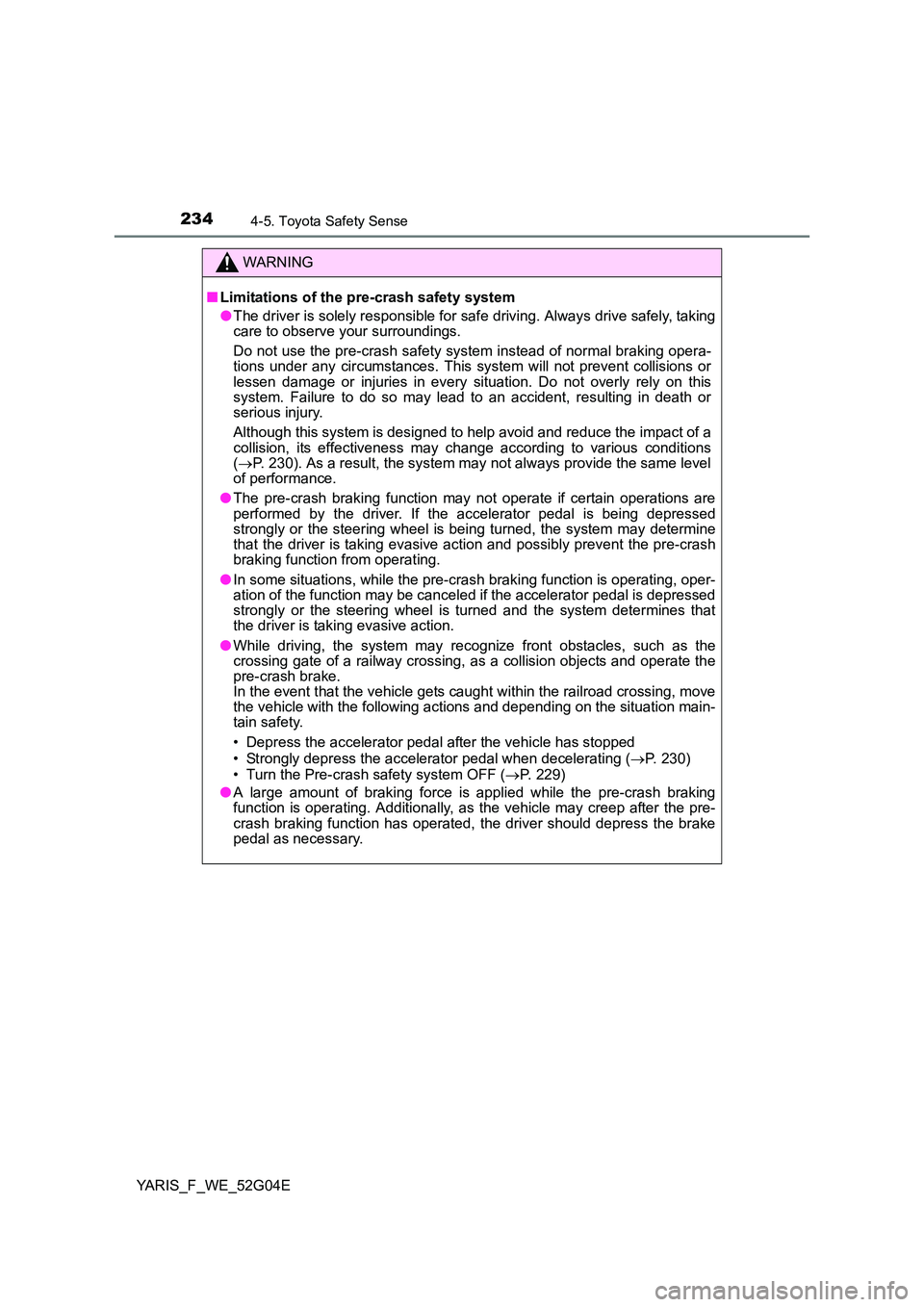

WARNING
■Limitations of the pre-crash safety system
● The driver is solely responsible for safe driving. Always drive safely, taking care to observe your surroundings.
Do not use the pre-crash safety sy stem instead of normal braking opera- tions under any circumstances. This system will not prevent collisions or lessen damage or injuries in every situation. Do not overly rely on this system. Failure to do so may lead to an accident, resulting in death orserious injury.
Although this system is designed to help avoid and reduce the impact of a collision, its effectiveness may change according to various conditions ( P. 230). As a result, the system may not always provide the same level of performance.
● The pre-crash braking function may not operate if certain operations are performed by the driver. If the accelerator pedal is being depressed strongly or the steering wheel is bei ng turned, the system may determine that the driver is taking evasive action and possibly prevent the pre-crashbraking function from operating.
● In some situations, while the pre-crash braking function is operating, oper- ation of the function may be canceled if the accelerator pedal is depressedstrongly or the steering wheel is turned and the system determines that the driver is taking evasive action.
● While driving, the system may recognize front obstacles, such as the crossing gate of a railway crossing, as a collision objects and operate thepre-crash brake.In the event that the vehicle gets caught within the railroad crossing, move the vehicle with the following actions and depending on the situation main- tain safety.
• Depress the accelerator pedal after the vehicle has stopped
• Strongly depress the accelerator pedal when decelerating ( P. 230)
• Turn the Pre-crash safety system OFF ( P. 229)
● A large amount of braking force is applied while the pre-crash braking function is operating. Additionally, as the vehicle may creep after the pre- crash braking function has operated, the driver should depress the brake pedal as necessary.

2354-5. Toyota Safety Sense
4
Driving
YARIS_F_WE_52G04E
WARNING

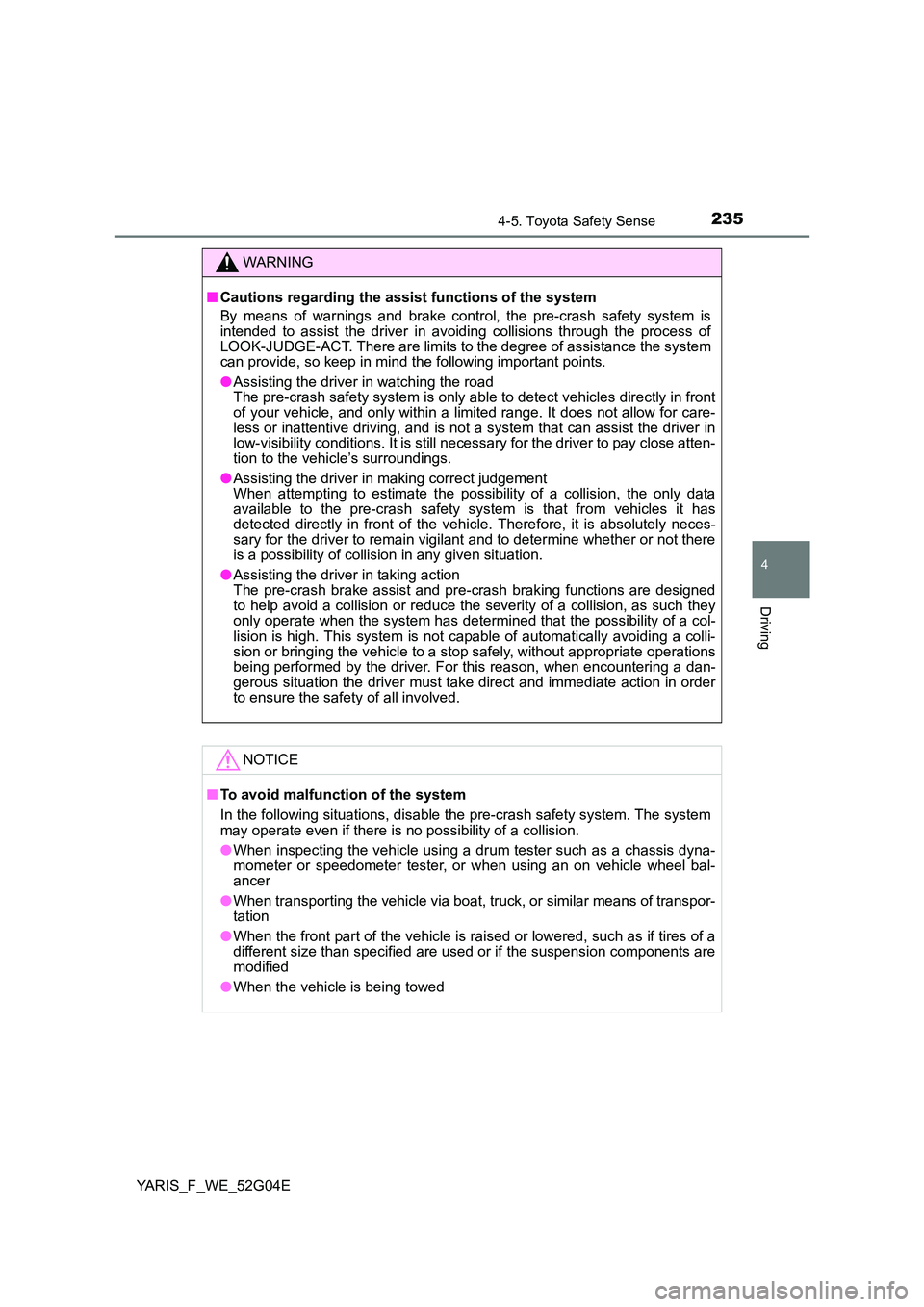

■Cautions regarding the assist functions of the system
By means of warnings and brake control, the pre-crash safety system is intended to assist the driver in avoiding collisions through the process ofLOOK-JUDGE-ACT. There are limits to the degree of assistance the system can provide, so keep in mind the following important points.
● Assisting the driver in watching the road The pre-crash safety system is only able to detect vehicles directly in frontof your vehicle, and only within a limi ted range. It does not allow for care- less or inattentive driving, and is not a system that can assist the driver in low-visibility conditions. It is still necessary for the driver to pay close atten- tion to the vehicle’s surroundings.
● Assisting the driver in making correct judgement When attempting to estimate the possibility of a collision, the only data available to the pre-crash safety system is that from vehicles it has detected directly in front of the vehicle. Therefore, it is absolutely neces-sary for the driver to remain vigila nt and to determine whether or not there is a possibility of collision in any given situation.
● Assisting the driver in taking action The pre-crash brake assist and pre- crash braking functions are designed to help avoid a collision or reduce the severity of a collision, as such theyonly operate when the system has determined that the possibility of a col- lision is high. This system is not capable of automatically avoiding a colli- sion or bringing the vehicle to a stop safely, without appropriate operationsbeing performed by the driver. For this reason, when encountering a dan-gerous situation the driver must take direct and immediate action in order to ensure the safety of all involved.
NOTICE
■ To avoid malfunction of the system
In the following situations, disable the pre-crash safety system. The system may operate even if there is no possibility of a collision.
● When inspecting the vehicle using a drum tester such as a chassis dyna- mometer or speedometer tester, or when using an on vehicle wheel bal-ancer
● When transporting the vehicle via boat, truck, or similar means of transpor- tation
● When the front part of the vehicle is raised or lowered, such as if tires of a different size than specified are used or if the suspension components are modified
● When the vehicle is being towed

2364-5. Toyota Safety Sense
YARIS_F_WE_52G04E

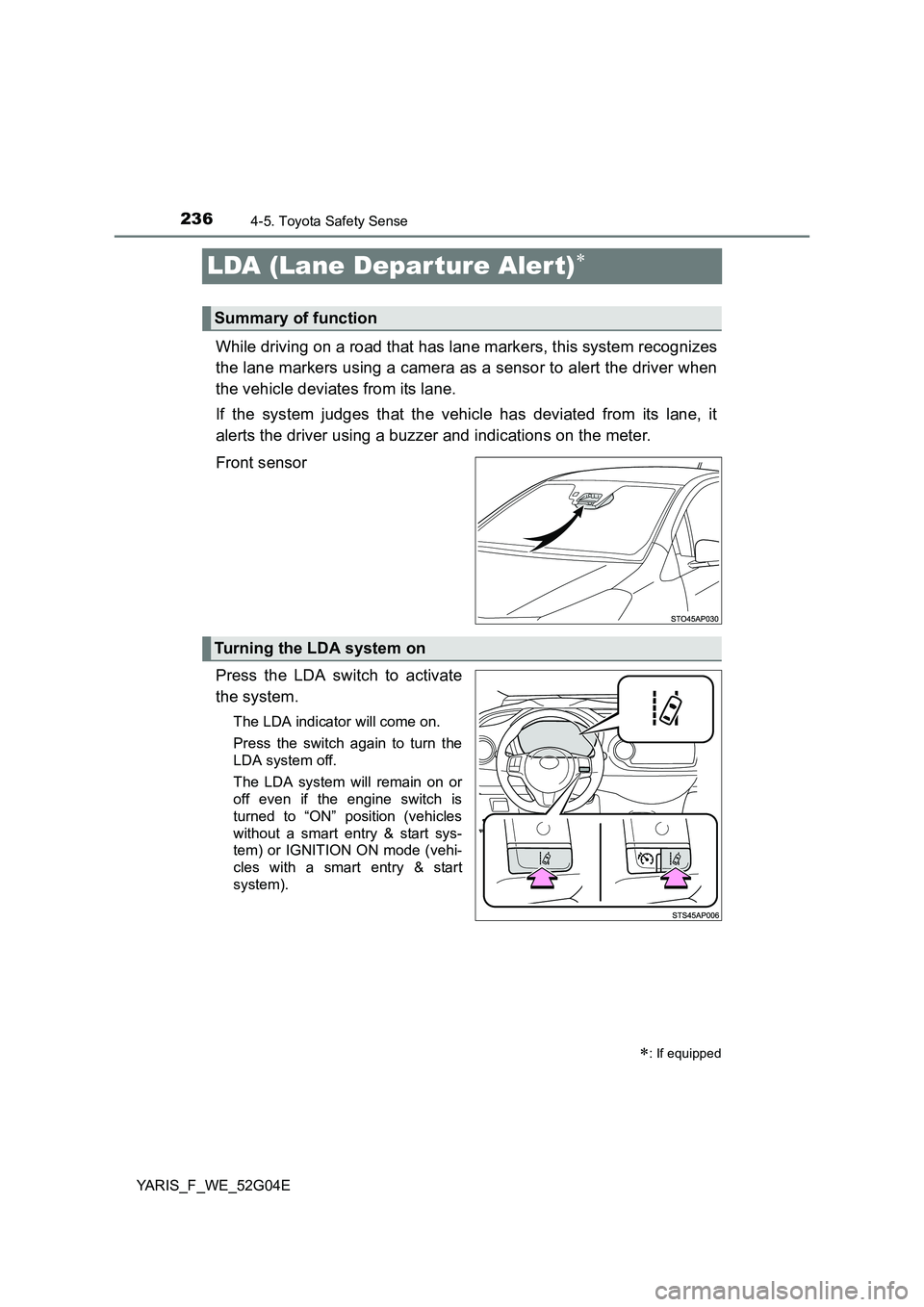

LDA (Lane Depar ture Aler t)
While driving on a road that has lane markers, this system recognizes
the lane markers using a camera as a sensor to alert the driver when
the vehicle deviates from its lane.
If the system judges that the vehicle has deviated from its lane, it
alerts the driver using a buzzer and indications on the meter.
Front sensor
Press the LDA switch to activate
the system.
The LDA indicator will come on.
Press the switch again to turn the
LDA system off.
The LDA system will remain on or
off even if the engine switch is
turned to “ON” position (vehicles
without a smart entry & start sys-
tem) or IGNITION ON mode (vehi-
cles with a smart entry & start
system).
: If equipped
Summary of function
Turning the LDA system on

2374-5. Toyota Safety Sense
4
Driving
YARIS_F_WE_52G04E
●When the vehicle speed is approximately 50 km/h (32 mph) or
more
● When the lane width is more than approximately 3 m (9.8 ft.)
● When driving on a straight road or through a curve with a radius of
more than approximately 150 m (492 ft.)

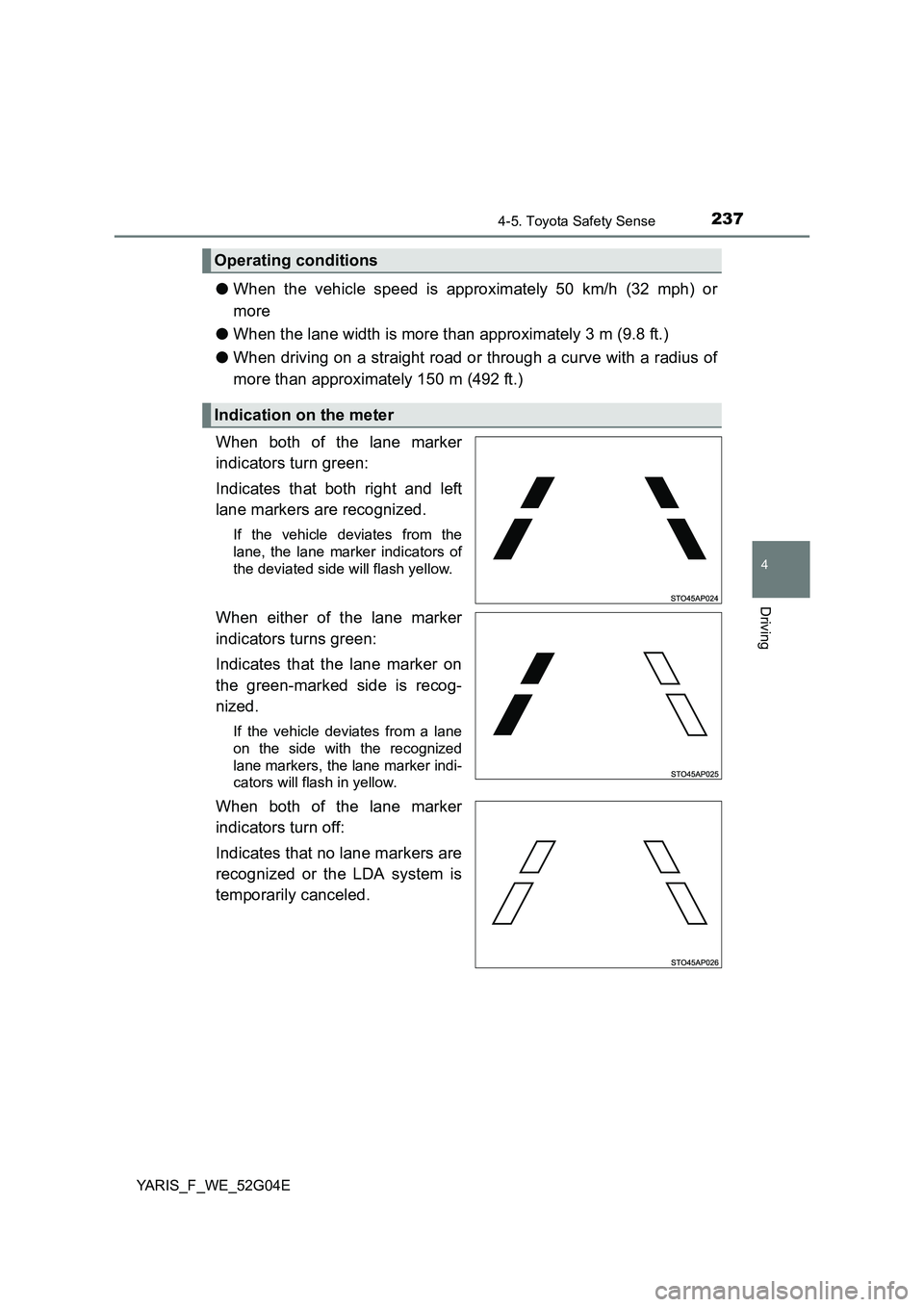

When both of the lane marker
indicators turn green:
Indicates that both right and left
lane markers are recognized.
If the vehicle deviates from the
lane, the lane marker indicators of
the deviated side will flash yellow.
When either of the lane marker
indicators turns green:
Indicates that the lane marker on
the green-marked side is recog-
nized.
If the vehicle deviates from a lane
on the side with the recognized
lane markers, the lane marker indi-
cators will flash in yellow.
When both of the lane marker
indicators turn off:
Indicates that no lane markers are
recognized or the LDA system is
temporarily canceled.
Operating conditions
Indication on the meter

2384-5. Toyota Safety Sense
YARIS_F_WE_52G04E

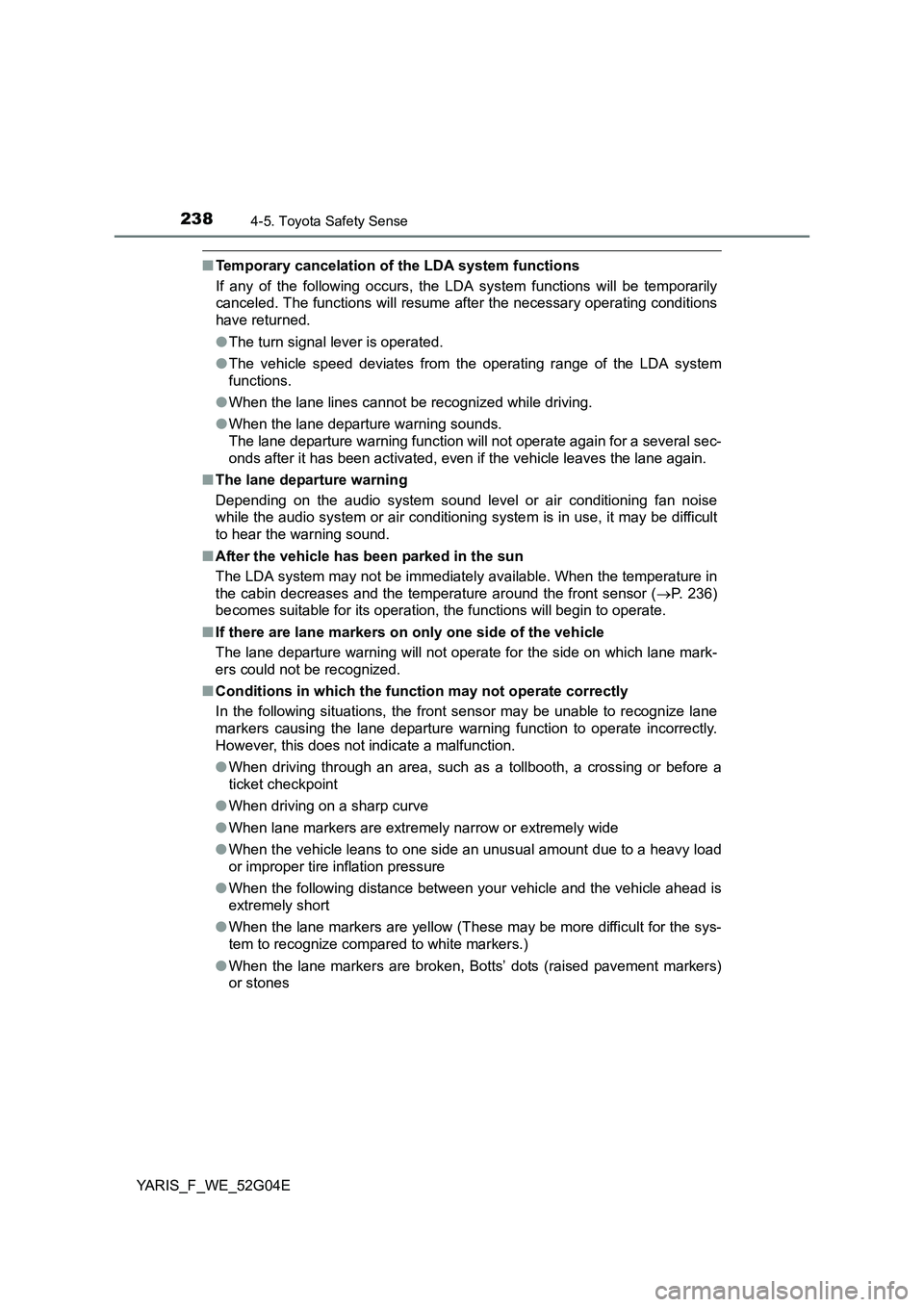

■Temporary cancelation of the LDA system functions
If any of the following occurs, the LDA system functions will be temporarily
canceled. The functions will resume after the necessary operating conditions
have returned.
● The turn signal lever is operated.
● The vehicle speed deviates from the operating range of the LDA system
functions.
● When the lane lines cannot be recognized while driving.
● When the lane departure warning sounds.
The lane departure warning function will not operate again for a several sec-
onds after it has been activated, even if the vehicle leaves the lane again.
■ The lane departure warning
Depending on the audio system sound level or air conditioning fan noise
while the audio system or air conditioning sy stem is in use, it may be difficult
to hear the warning sound.
■ After the vehicle has been parked in the sun
The LDA system may not be immediatel y available. When the temperature in
the cabin decreases and the temperature around the front sensor ( P. 236)
becomes suitable for its operation, the functions will begin to operate.
■ If there are lane markers on only one side of the vehicle
The lane departure warning will not operate for the side on which lane mark-
ers could not be recognized.
■ Conditions in which the function may not operate correctly
In the following situations, the front sensor may be unable to recognize lane
markers causing the lane departure warning function to operate incorrectly.
However, this does not indicate a malfunction.
● When driving through an area, such as a tollbooth, a crossing or before a
ticket checkpoint
● When driving on a sharp curve
● When lane markers are extremely narrow or extremely wide
● When the vehicle leans to one side an unusual amount due to a heavy load
or improper tire inflation pressure
● When the following distance between your vehicle and the vehicle ahead is
extremely short
● When the lane markers are yellow (These may be more difficult for the sys-
tem to recognize compared to white markers.)
● When the lane markers are broken, Botts’ dots (raised pavement markers)
or stones

2394-5. Toyota Safety Sense
4
Driving
YARIS_F_WE_52G04E

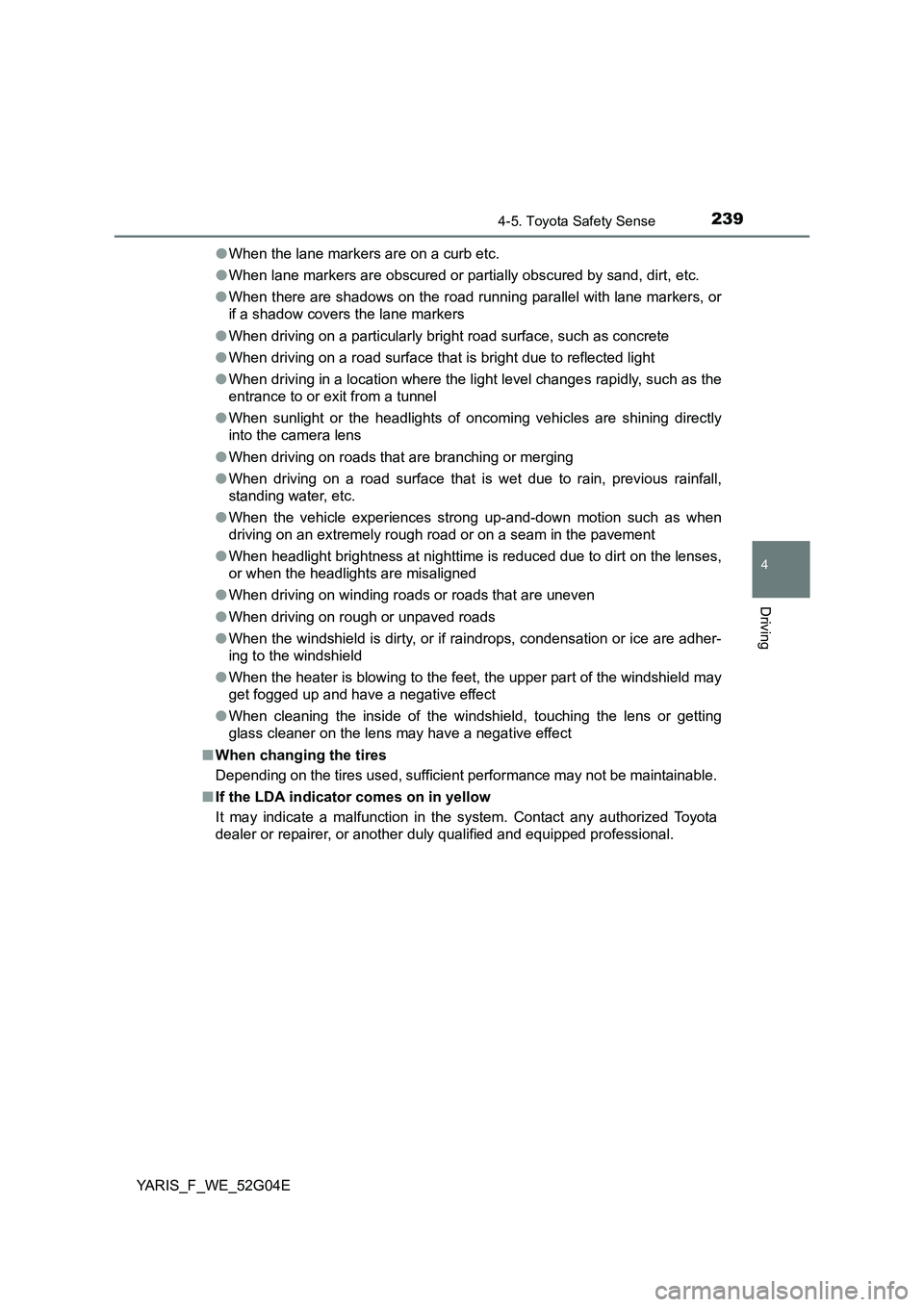

● When the lane markers are on a curb etc.
● When lane markers are obscured or partially obscured by sand, dirt, etc.
● When there are shadows on the road running parallel with lane markers, or
if a shadow covers the lane markers
● When driving on a particularly bright road surface, such as concrete
● When driving on a road surface that is bright due to reflected light
● When driving in a location where the light level changes rapidly, such as the
entrance to or exit from a tunnel
● When sunlight or the headlights of oncoming vehicles are shining directly
into the camera lens
● When driving on roads that are branching or merging
● When driving on a road surface that is wet due to rain, previous rainfall,
standing water, etc.
● When the vehicle experiences strong up-and-down motion such as when
driving on an extremely rough road or on a seam in the pavement
● When headlight brightness at nighttime is reduced due to dirt on the lenses,
or when the headlights are misaligned
● When driving on winding roads or roads that are uneven
● When driving on rough or unpaved roads
● When the windshield is dirty, or if raindrops, condensation or ice are adher-
ing to the windshield
● When the heater is blowing to the feet, the upper part of the windshield may
get fogged up and have a negative effect
● When cleaning the inside of the windshield, touching the lens or getting
glass cleaner on the lens may have a negative effect
■ When changing the tires
Depending on the tires used, sufficient performance may not be maintainable.
■ If the LDA indicator comes on in yellow
It may indicate a malfunction in the system. Contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

2404-5. Toyota Safety Sense
YARIS_F_WE_52G04E

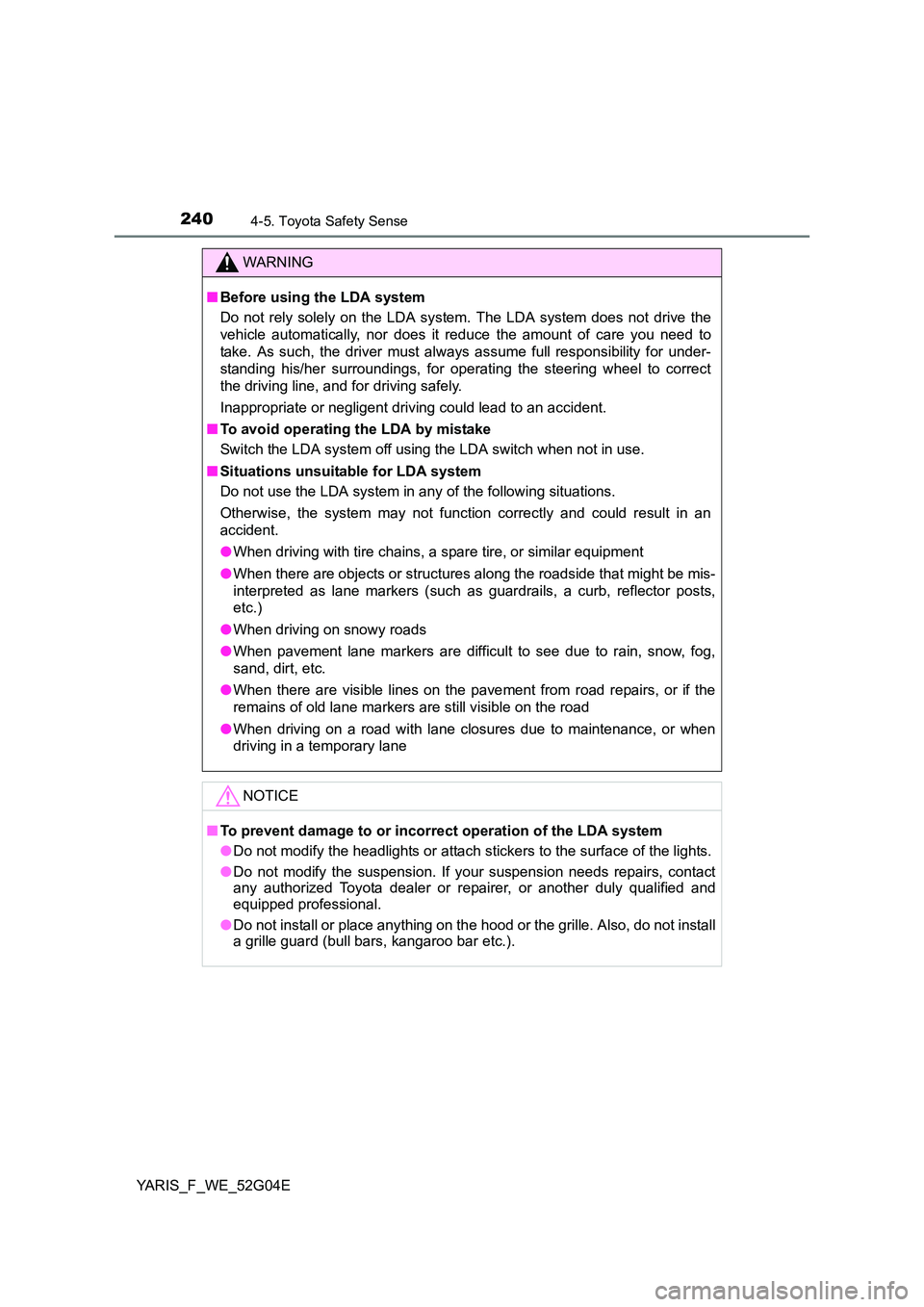

WARNING
■Before using the LDA system
Do not rely solely on the LDA system. The LDA system does not drive the
vehicle automatically, nor does it reduce the amount of care you need to
take. As such, the driver must always assume full responsibility for under-
standing his/her surroundings, for operat ing the steering wheel to correct
the driving line, and for driving safely.
Inappropriate or negligent driving could lead to an accident.
■ To avoid operating the LDA by mistake
Switch the LDA system off using the LDA switch when not in use.
■ Situations unsuitable for LDA system
Do not use the LDA system in any of the following situations.
Otherwise, the system may not function correctly and could result in an
accident.
● When driving with tire chains, a spare tire, or similar equipment
● When there are objects or structures along the roadside that might be mis-
interpreted as lane markers (such as guardrails, a curb, reflector posts,
etc.)
● When driving on snowy roads
● When pavement lane markers are difficult to see due to rain, snow, fog,
sand, dirt, etc.
● When there are visible lines on the pavement from road repairs, or if the
remains of old lane markers are still visible on the road
● When driving on a road with lane closures due to maintenance, or when
driving in a temporary lane
NOTICE
■ To prevent damage to or incorrect operation of the LDA system
● Do not modify the headlights or attach stickers to the surface of the lights.
● Do not modify the suspension. If your suspension needs repairs, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
● Do not install or place anything on the hood or the grille. Also, do not install
a grille guard (bull bars, kangaroo bar etc.).
