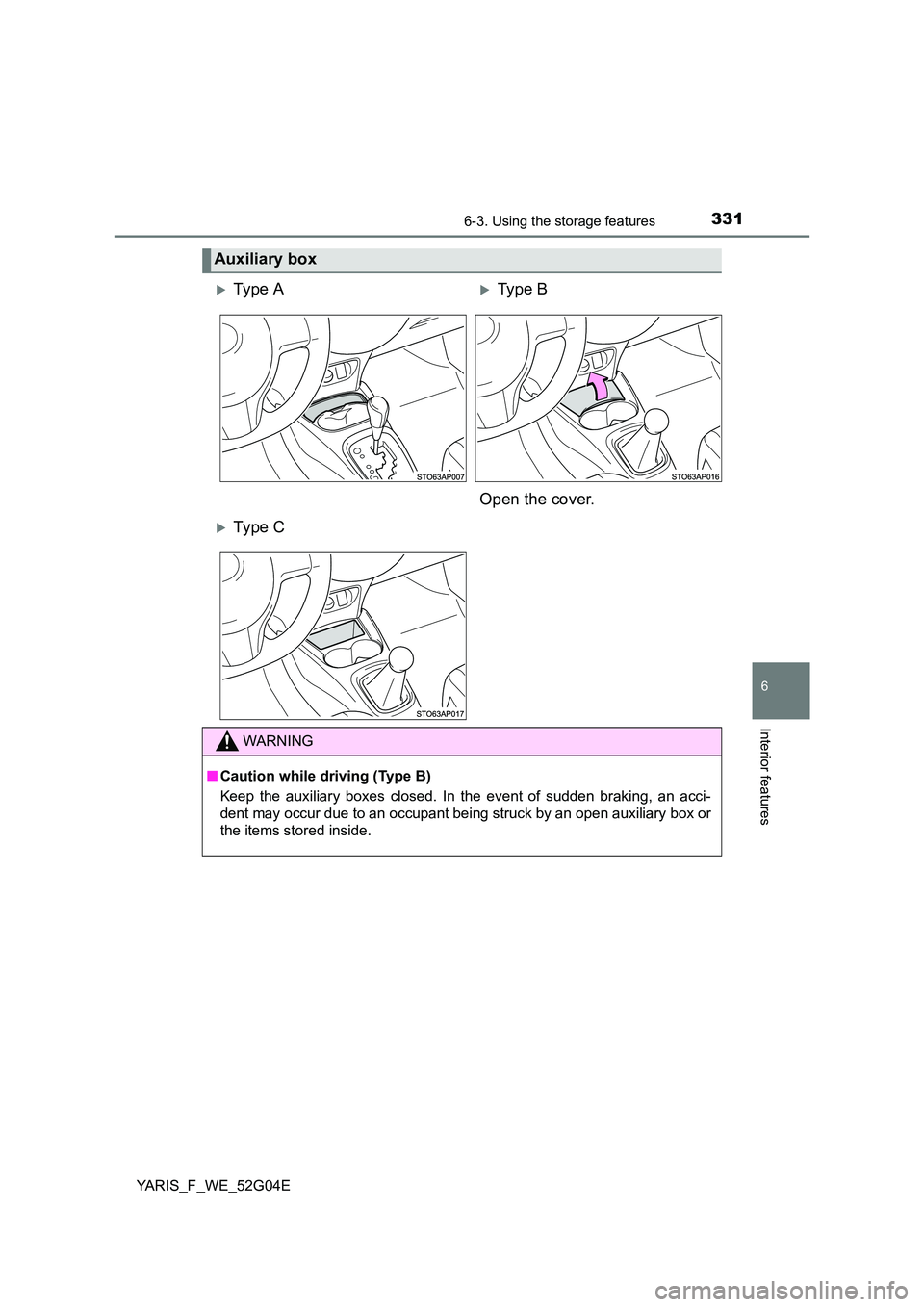

3316-3. Using the storage features
6
Interior features
YARIS_F_WE_52G04E
Auxiliary box
Ty pe AType B
Open the cover.
Ty pe C
WARNING
■ Caution while driving (Type B)
Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box or
the items stored inside.

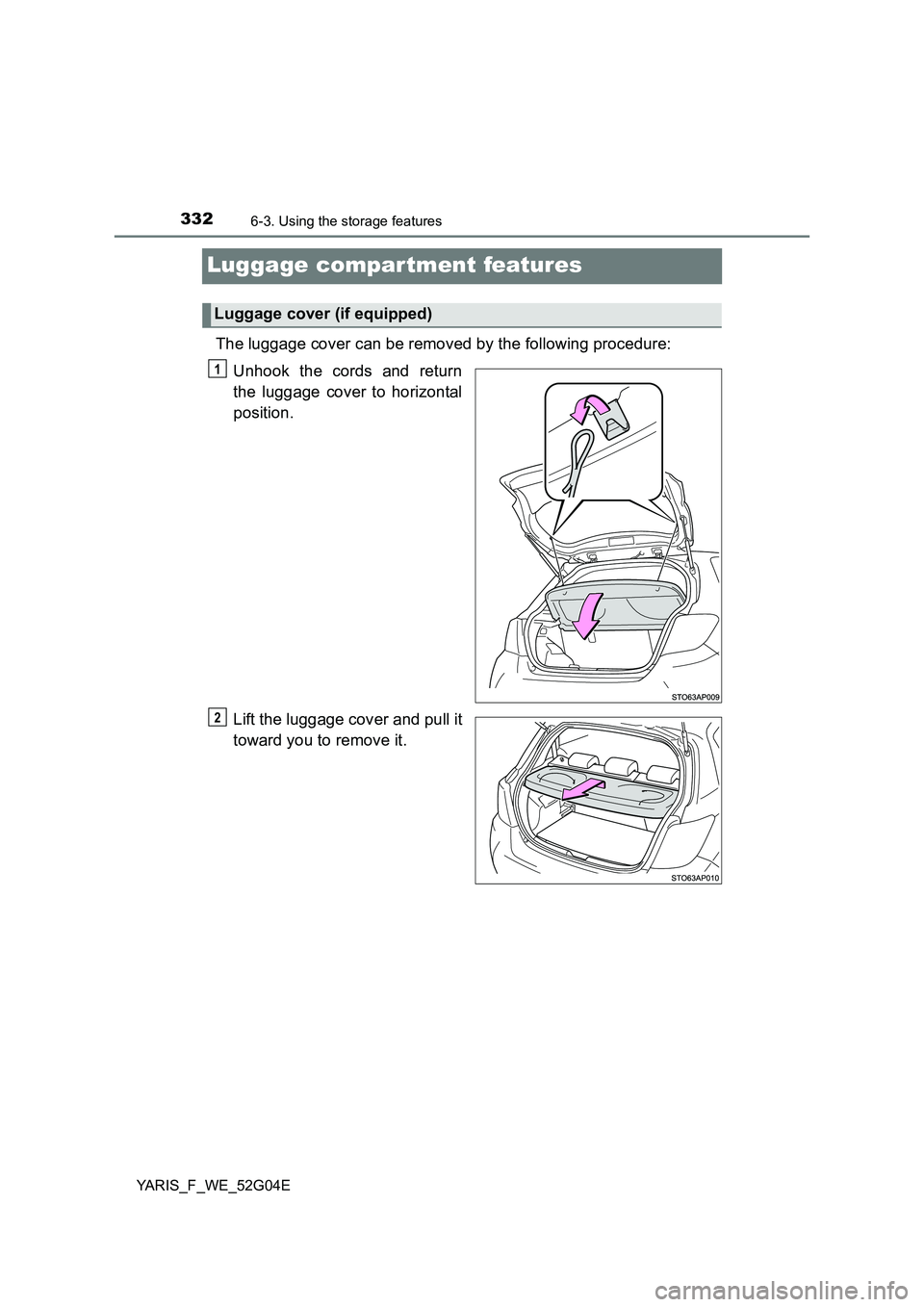

3326-3. Using the storage features
YARIS_F_WE_52G04E
Luggage compartment features
The luggage cover can be removed by the following procedure:
Unhook the cords and return
the luggage cover to horizontal
position.
Lift the luggage cover and pull it
toward you to remove it.
Luggage cover (if equipped)
1
2

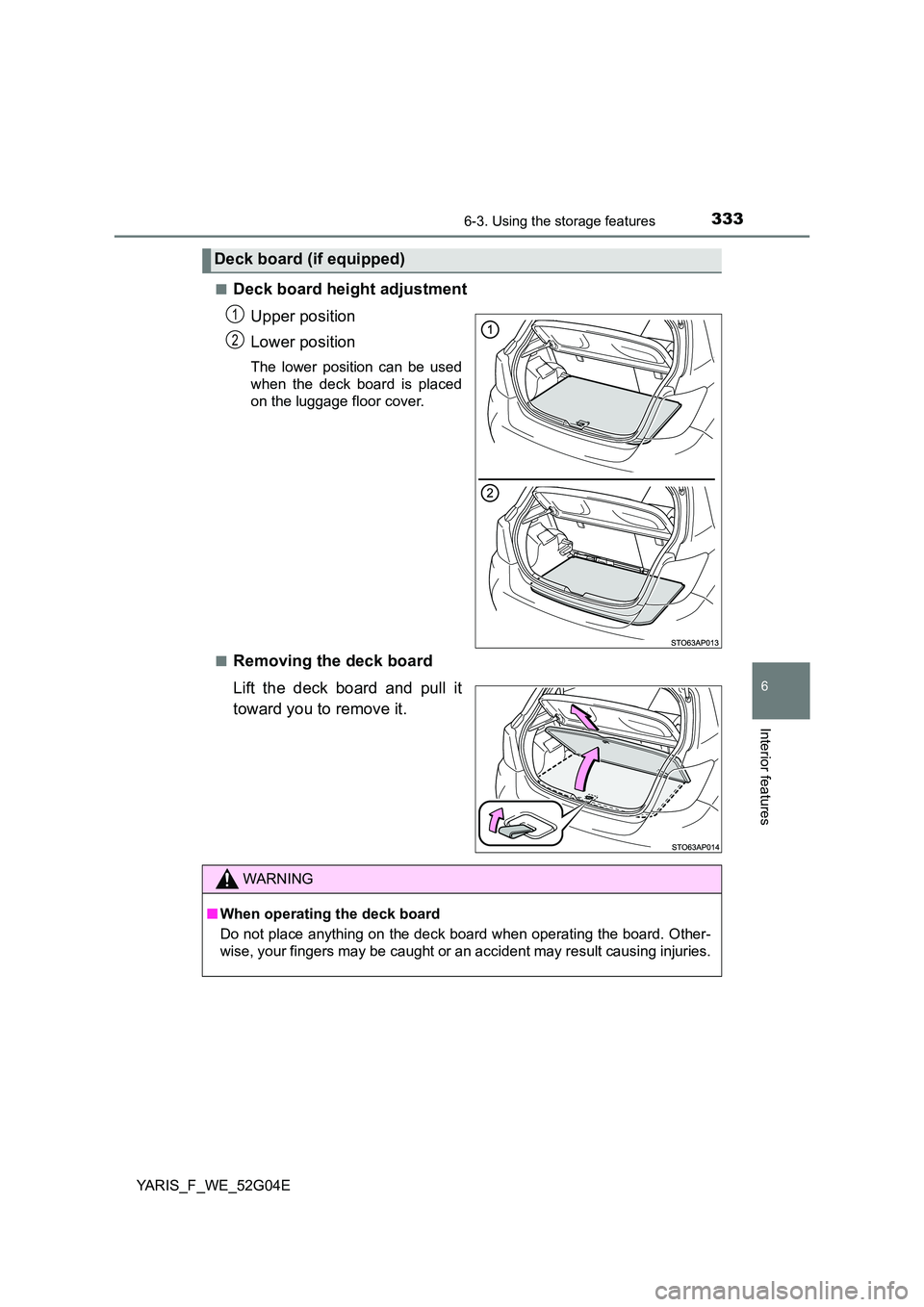

3336-3. Using the storage features
6
Interior features
YARIS_F_WE_52G04E
■Deck board height adjustment
Upper position
Lower position
The lower position can be used
when the deck board is placed
on the luggage floor cover.
■Removing the deck board
Lift the deck board and pull it
toward you to remove it.
Deck board (if equipped)
1
2
WARNING
■ When operating the deck board
Do not place anything on the deck board when operating the board. Other-
wise, your fingers may be caught or an accident may result causing injuries.

3346-3. Using the storage features
YARIS_F_WE_52G04E
Lift the deck board and the lug-
gage floor cover.
Auxiliary box (if equipped)

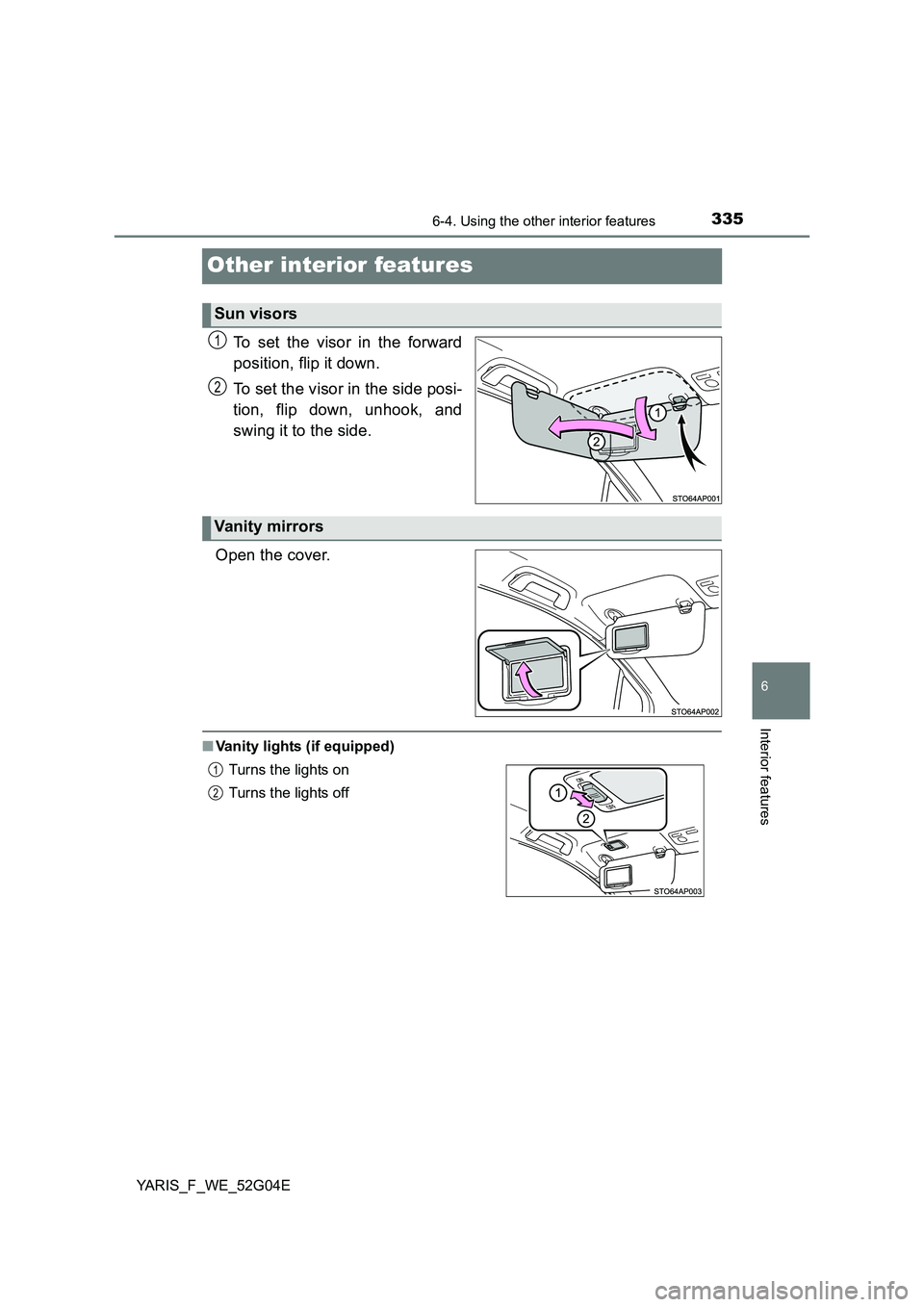

3356-4. Using the other interior features
6
Interior features
YARIS_F_WE_52G04E
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Open the cover.
■ Vanity lights (if equipped)
Sun visors
1
2
Vanity mirrors
Turns the lights on
Turns the lights off
1
2

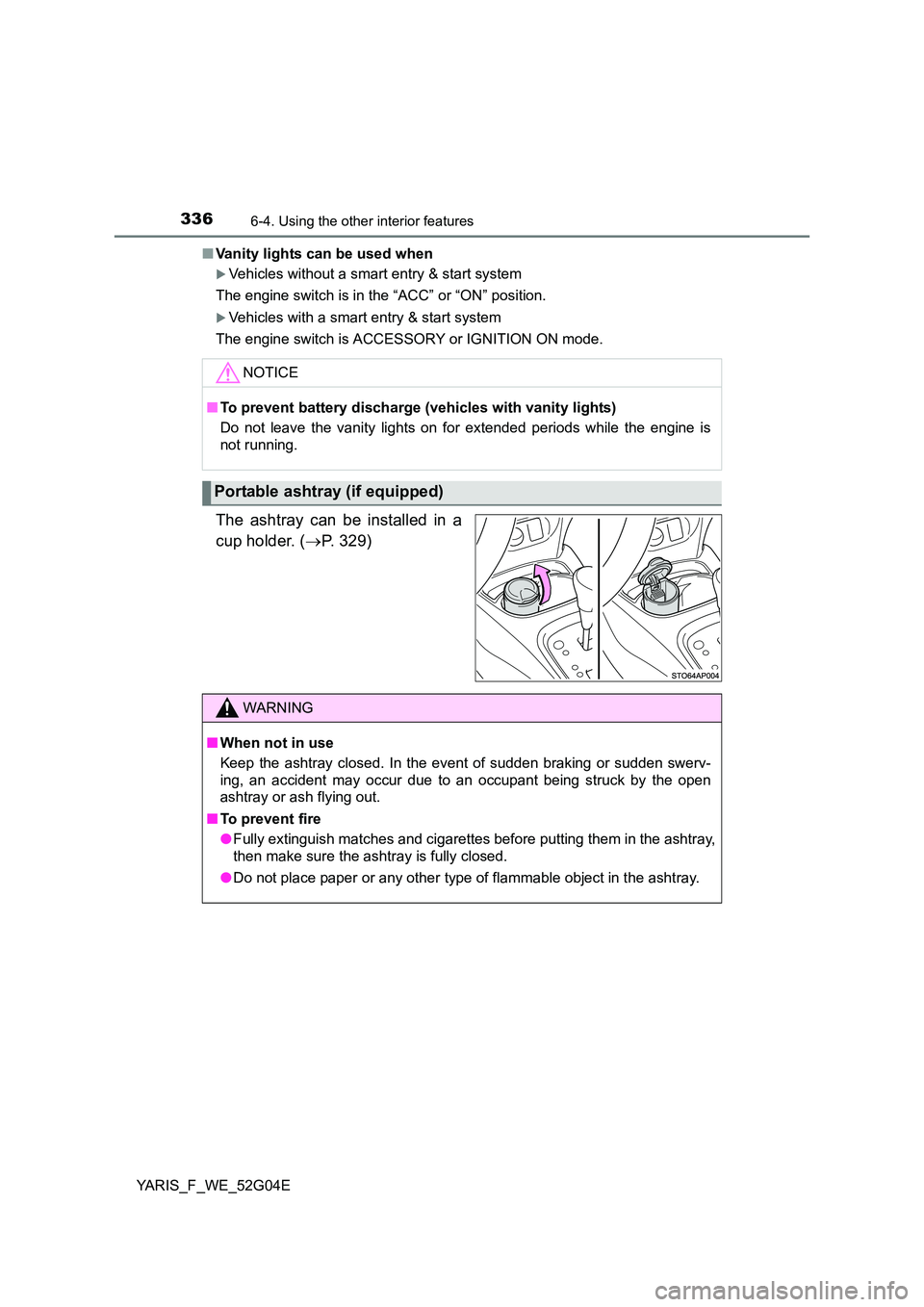

3366-4. Using the other interior features
YARIS_F_WE_52G04E
■ Vanity lights can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The engine switch is ACCESSORY or IGNITION ON mode.
The ashtray can be installed in a
cup holder. ( P. 329)
NOTICE
■To prevent battery discharge (vehicles with vanity lights)
Do not leave the vanity lights on for extended periods while the engine is
not running.
Portable ashtray (if equipped)
WARNING
■ When not in use
Keep the ashtray closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
ashtray or ash flying out.
■ To prevent fire
● Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.

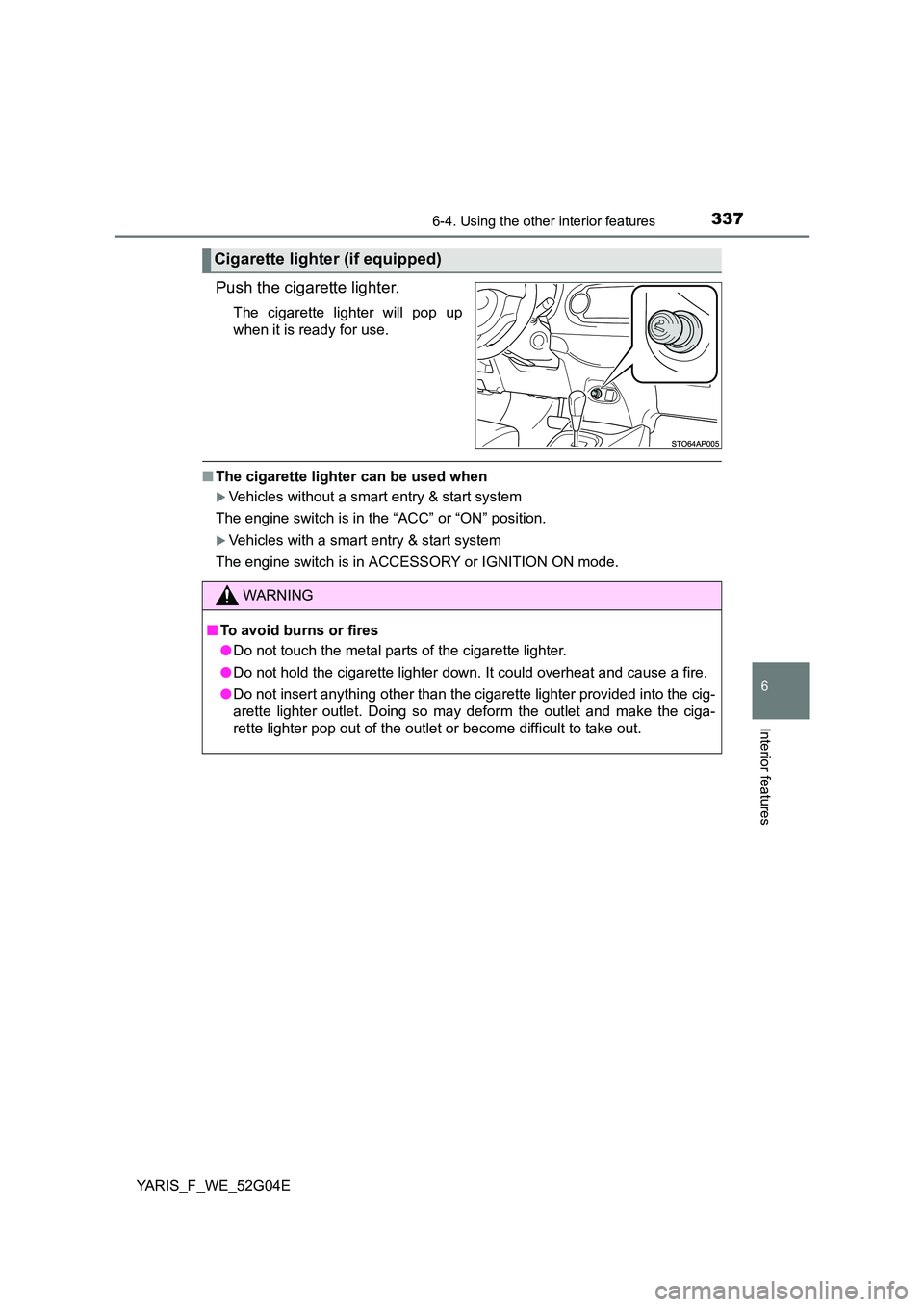

3376-4. Using the other interior features
6
Interior features
YARIS_F_WE_52G04E
Push the cigarette lighter.
The cigarette lighter will pop up
when it is ready for use.
■ The cigarette lighter can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
Cigarette lighter (if equipped)
WARNING
■ To avoid burns or fires
● Do not touch the metal parts of the cigarette lighter.
● Do not hold the cigarette lighter down. It could overheat and cause a fire.
● Do not insert anything other than the cigarette lighter provided into the cig-
arette lighter outlet. Doing so may deform the outlet and make the ciga-
rette lighter pop out of the outlet or become difficult to take out.

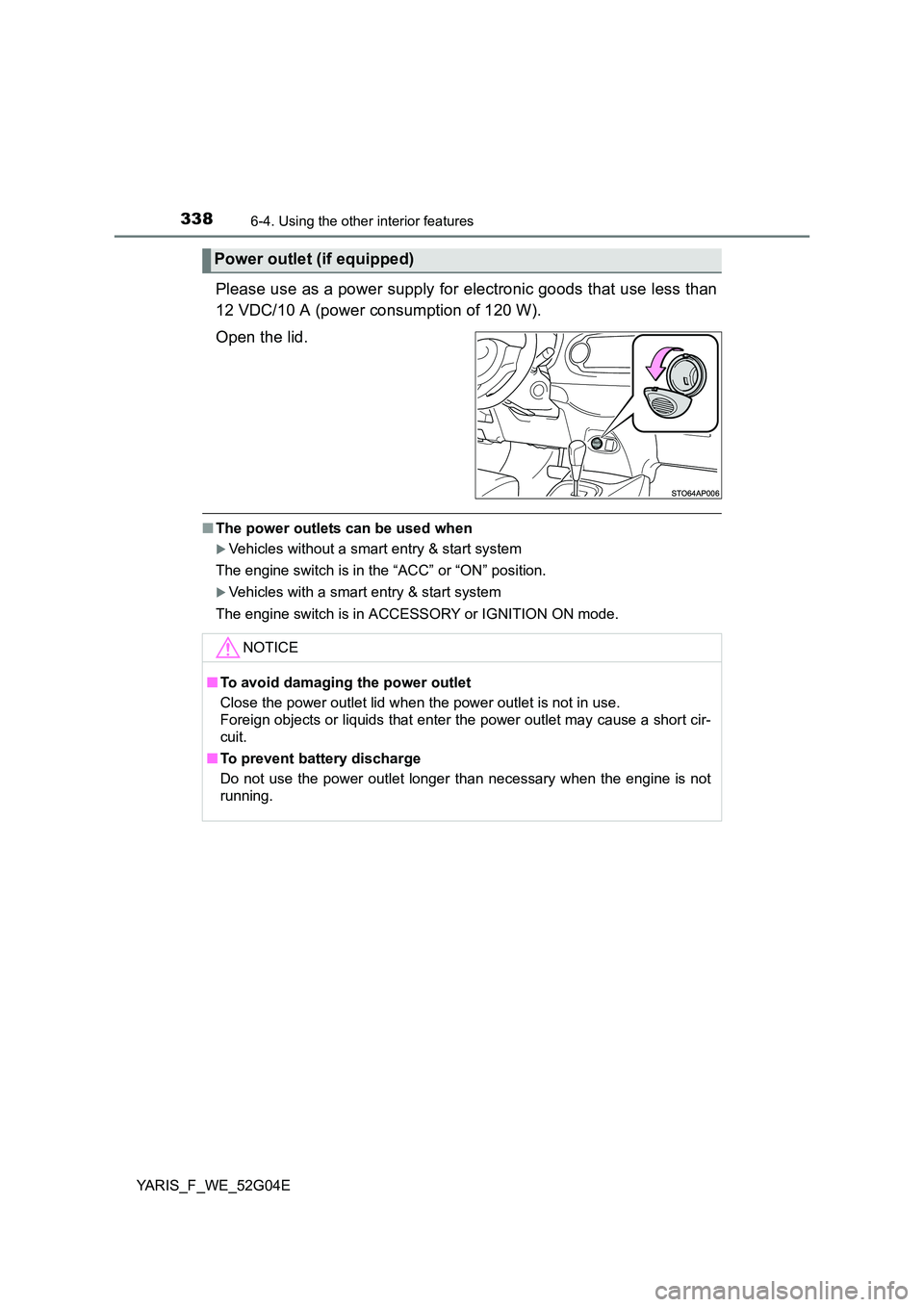

3386-4. Using the other interior features
YARIS_F_WE_52G04E
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.
■ The power outlets can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
Power outlet (if equipped)
NOTICE
■ To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.

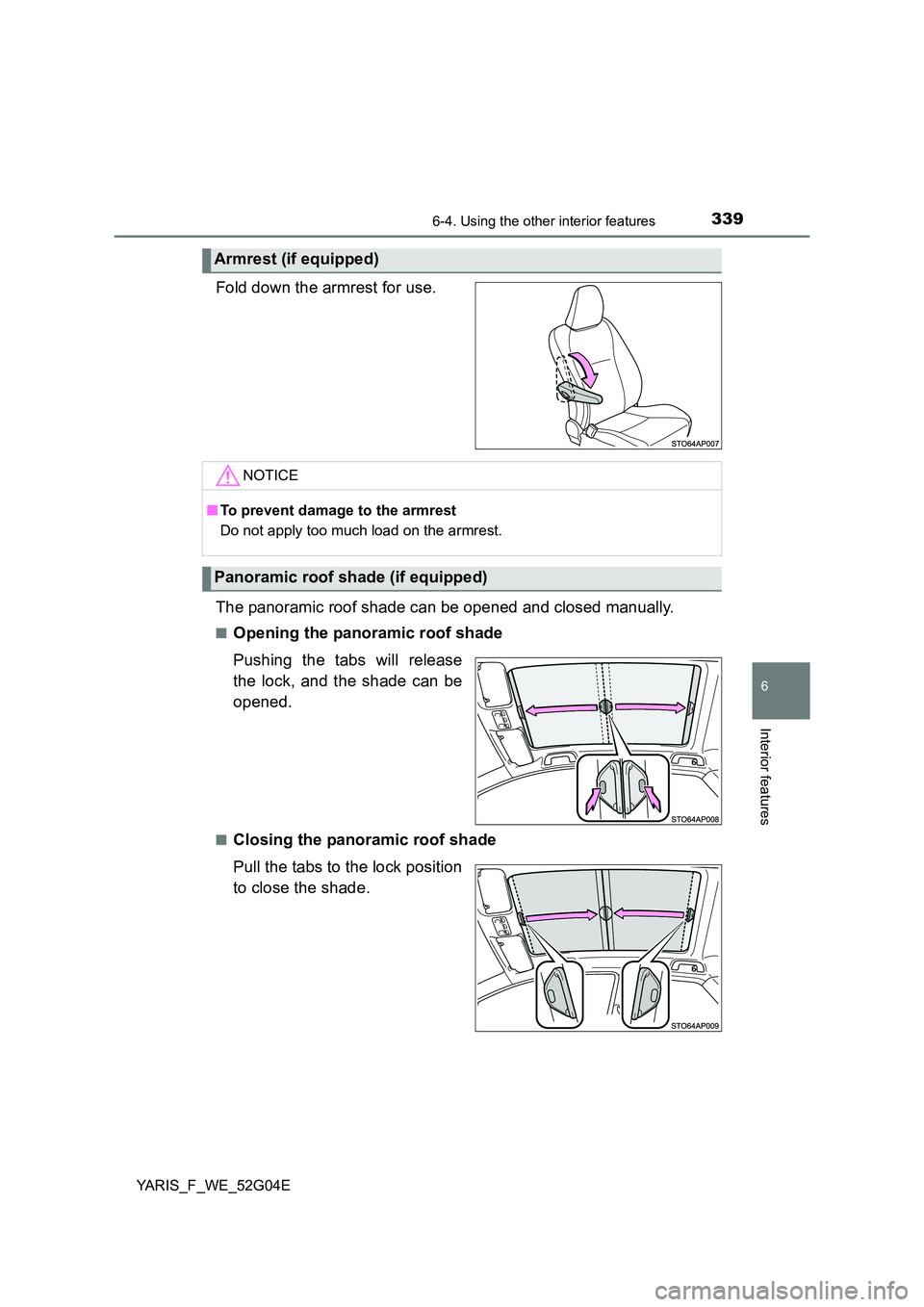

3396-4. Using the other interior features
6
Interior features
YARIS_F_WE_52G04E
Fold down the armrest for use.
The panoramic roof shade can be opened and closed manually.
■Opening the panoramic roof shade
Pushing the tabs will release
the lock, and the shade can be
opened.
■Closing the panoramic roof shade
Pull the tabs to the lock position
to close the shade.
Armrest (if equipped)
NOTICE
■ To prevent damage to the armrest
Do not apply too much load on the armrest.
Panoramic roof shade (if equipped)

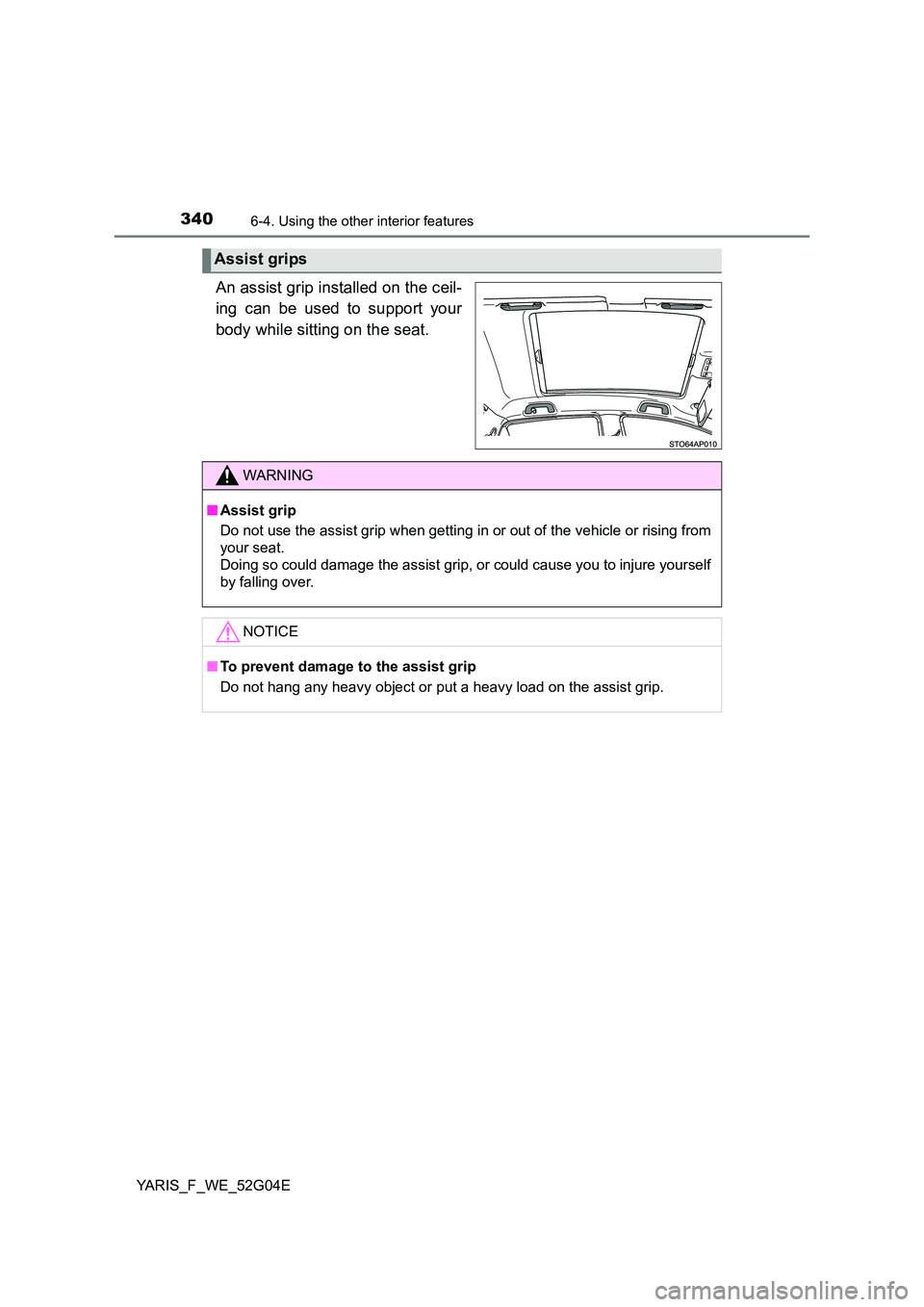

3406-4. Using the other interior features
YARIS_F_WE_52G04E
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
■ Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
Doing so could damage the assist grip, or could cause you to injure yourself
by falling over.
NOTICE
■ To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
