TOYOTA YARIS 2017 3.G Owners Manual

2816-3. Do-it-yourself maintenance
6
Maintenance and care
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
■

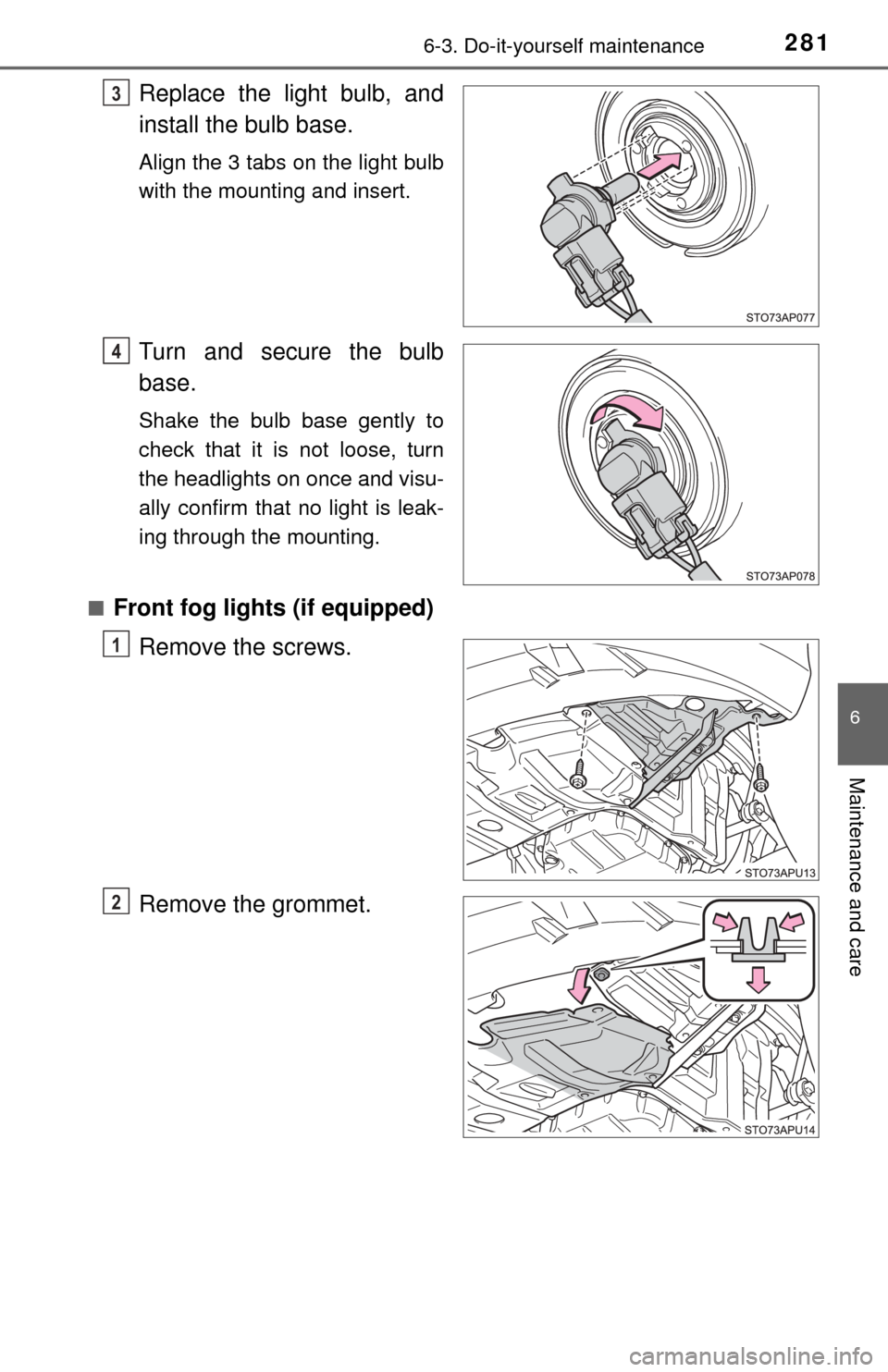

Front fog lights (if equipped) Remove the screws.
Remove the grommet.
3
14
1
2

2826-3. Do-it-yourself maintenance

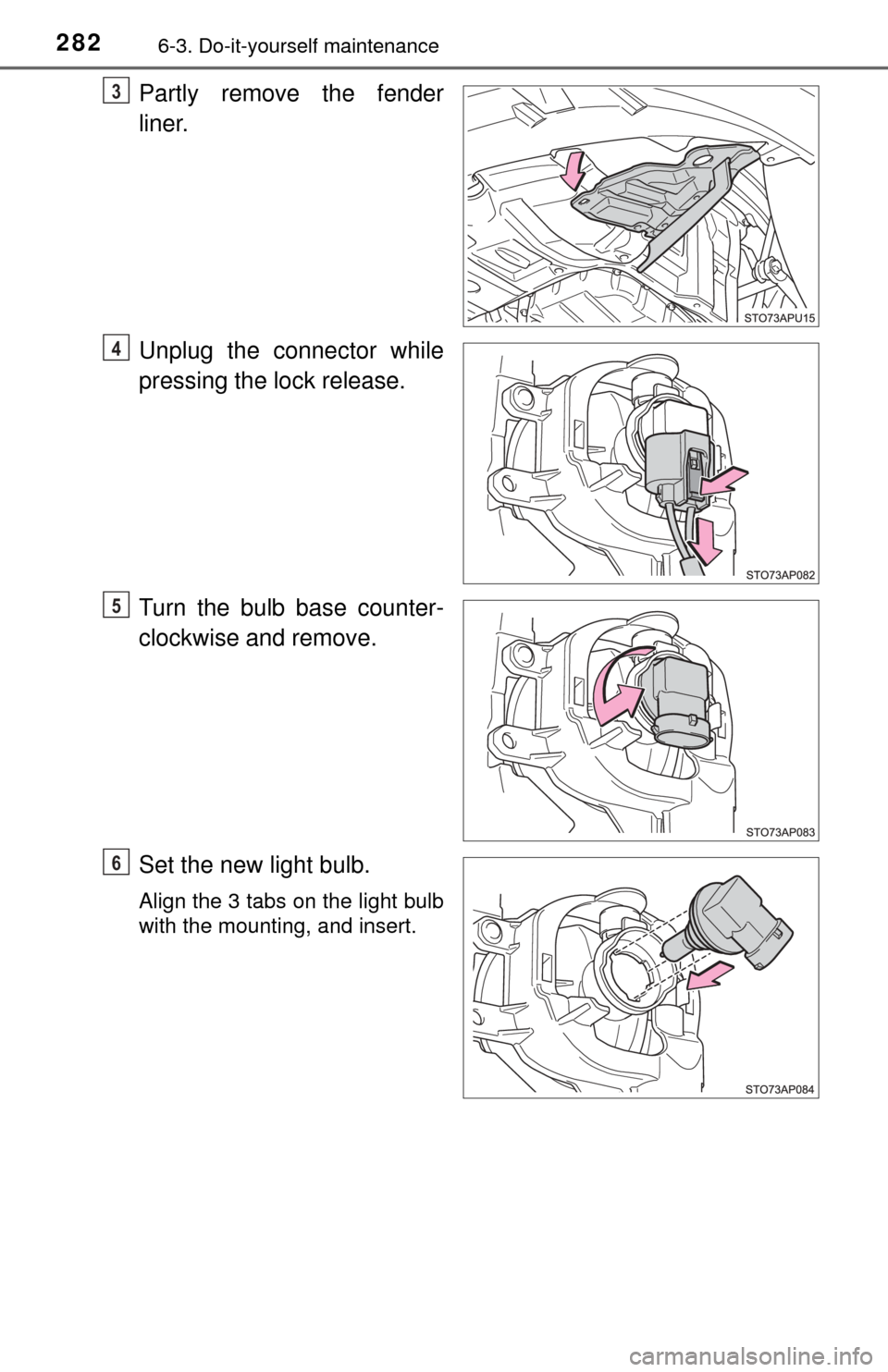

Partly remove the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise and remove.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
3
4
5
6

2836-3. Do-it-yourself maintenance
6
Maintenance and care
Turn and secure the bulb.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by starting and the
directions reversed.

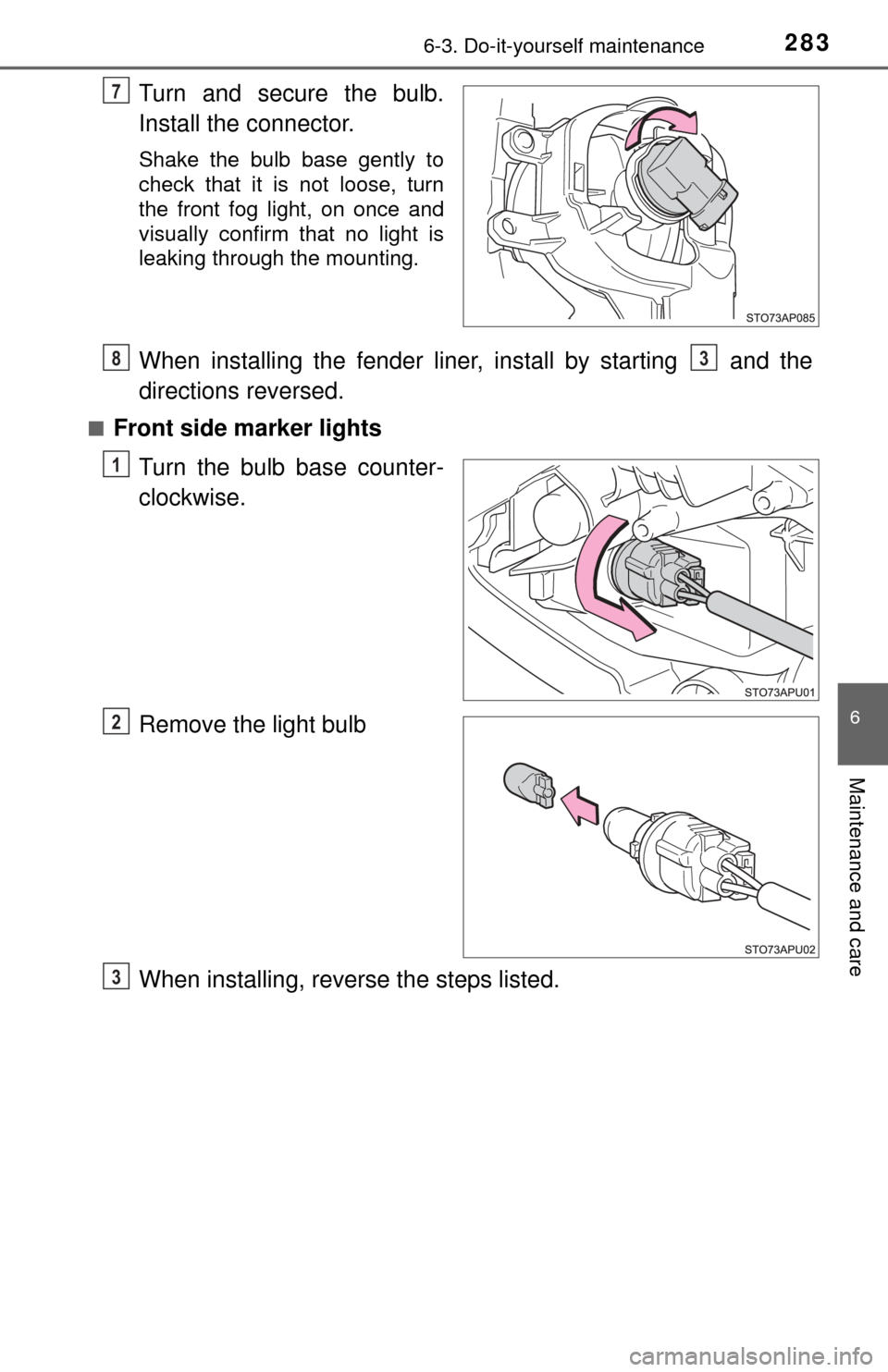

■Front side marker lightsTurn the bulb base counter-
clockwise.
Remove the light bulb
When installing, reve rse the steps listed.
7
83
1
2
3

2846-3. Do-it-yourself maintenance

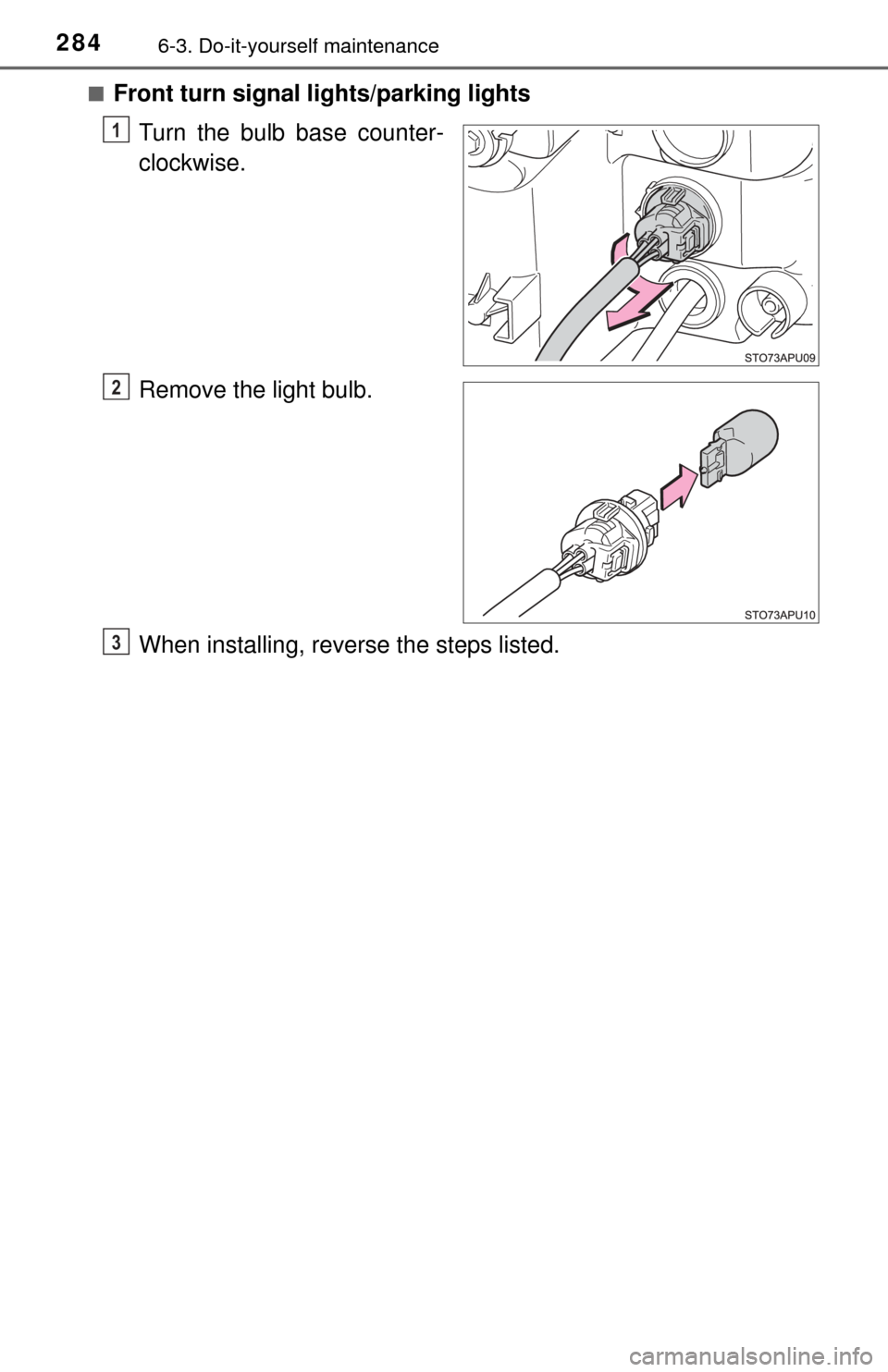

■Front turn signal lights/parking lights
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
3

2856-3. Do-it-yourself maintenance
6
Maintenance and care

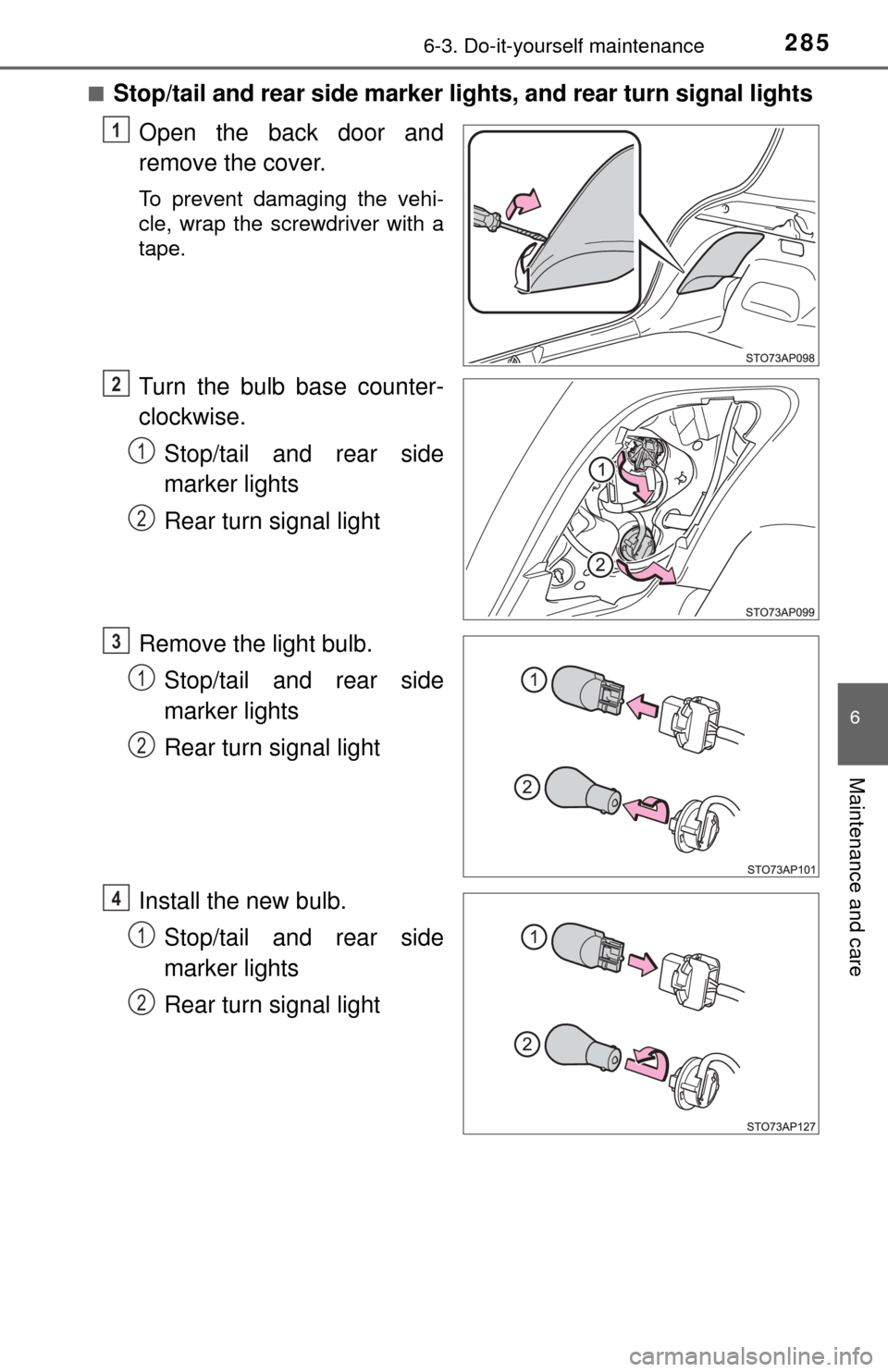

■Stop/tail and rear side marker lights, and rear turn signal lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Turn the bulb base counter-
clockwise. Stop/tail and rear side
marker lights
Rear turn signal light
Remove the light bulb. Stop/tail and rear side
marker lights
Rear turn signal light
Install the new bulb. Stop/tail and rear side
marker lights
Rear turn signal light
1
2
1
2
3
1
2
4
1
2

2866-3. Do-it-yourself maintenance

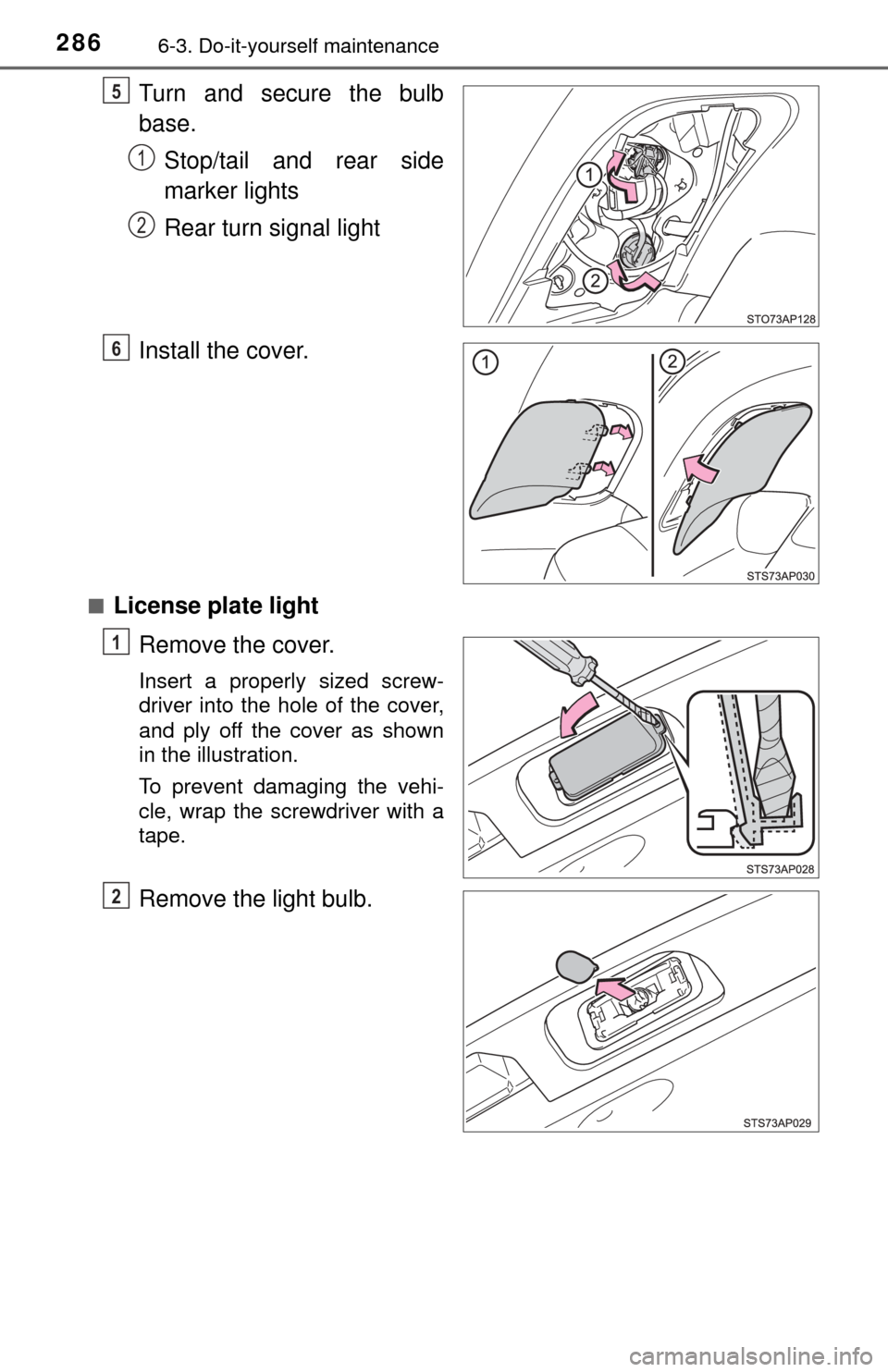

Turn and secure the bulb
base.Stop/tail and rear side
marker lights
Rear turn signal light
Install the cover.
■License plate light Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown
in the illustration.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Remove the light bulb.
5
1
2
6
1
2

2876-3. Do-it-yourself maintenance
6
Maintenance and care

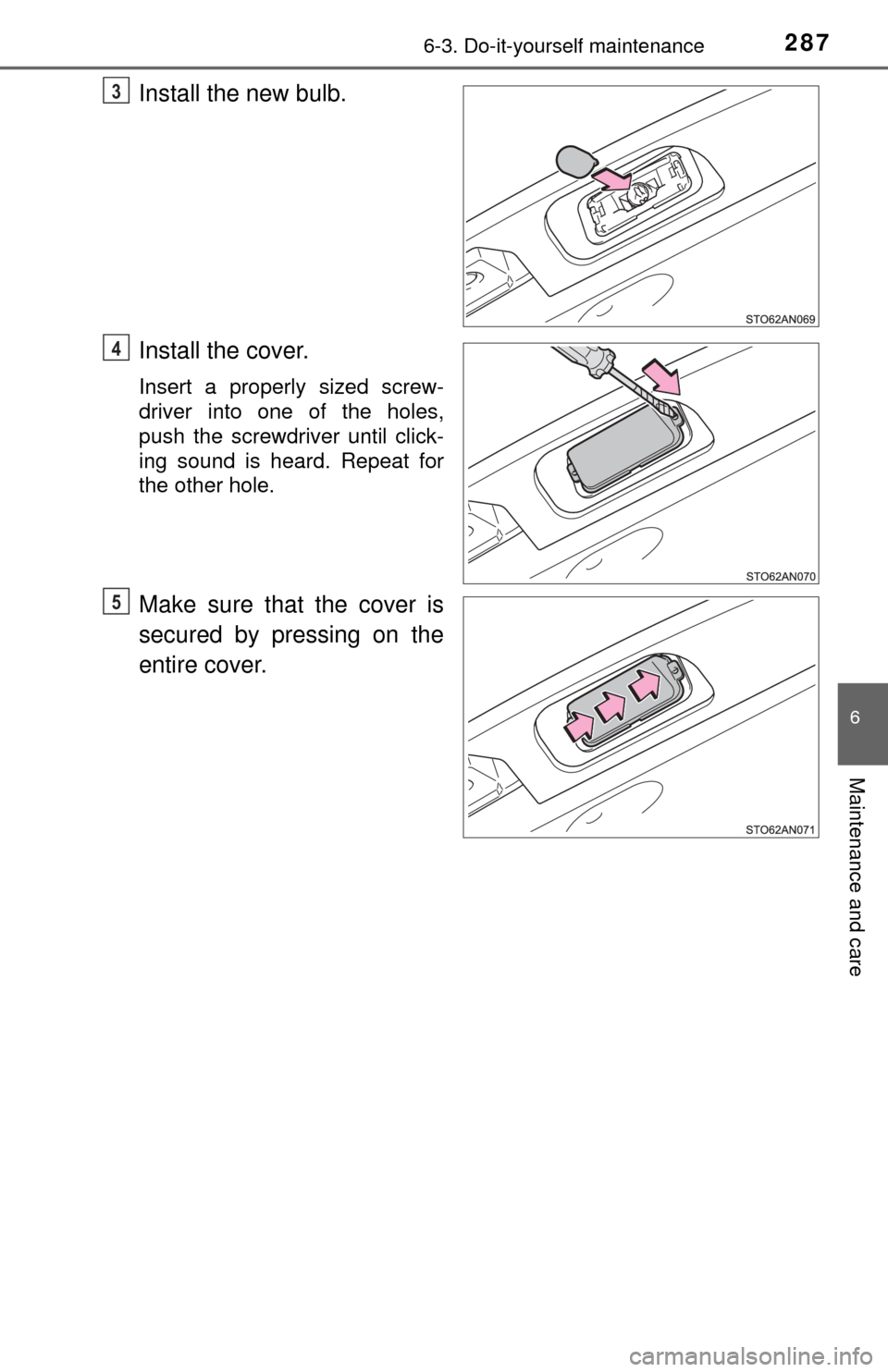

Install the new bulb.
Install the cover.
Insert a properly sized screw-
driver into one of the holes,
push the screwdriver until click-
ing sound is heard. Repeat for
the other hole.
Make sure that the cover is
secured by pressing on the
entire cover.
3
4
5

2886-3. Do-it-yourself maintenance

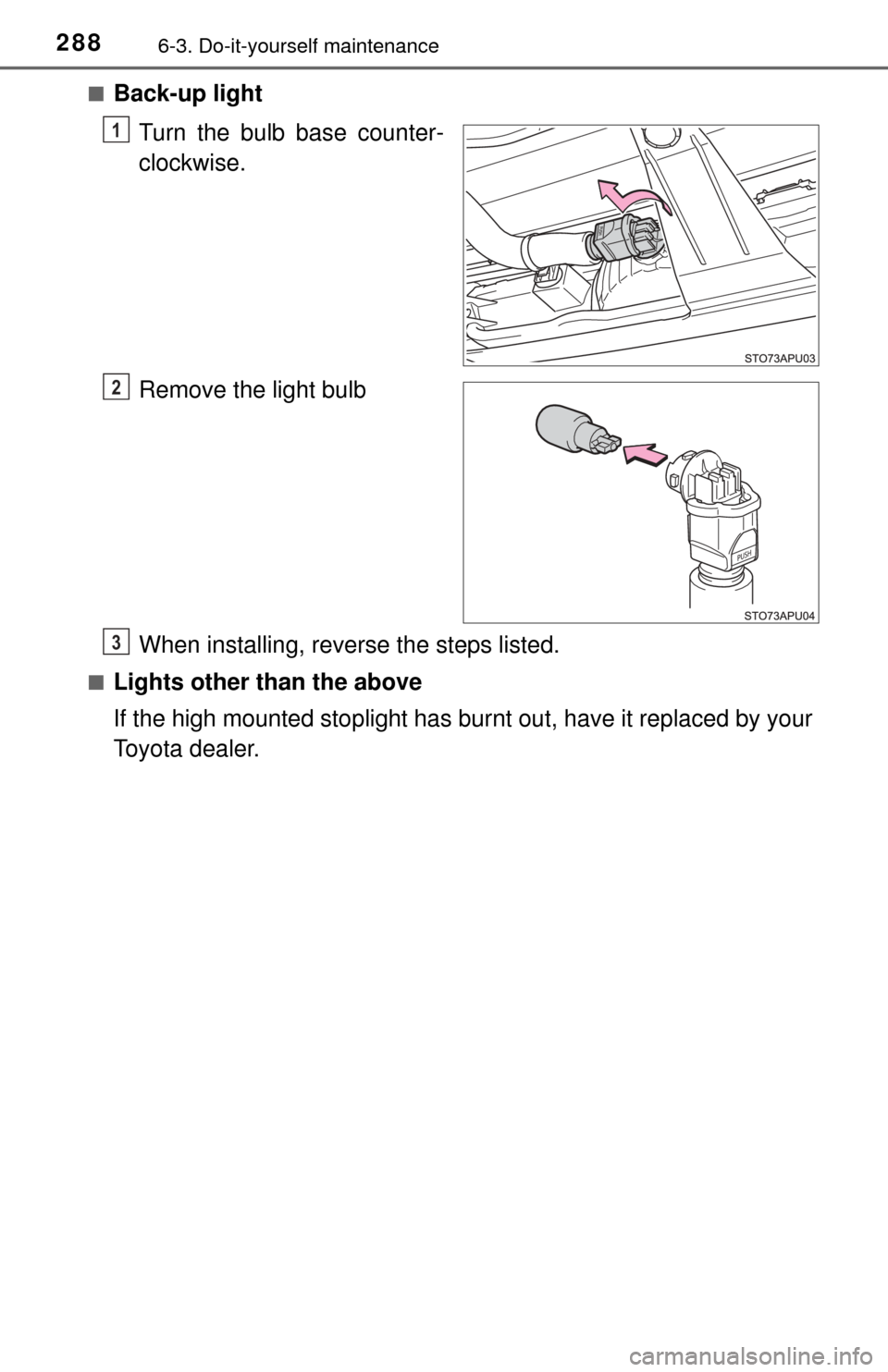

■Back-up lightTurn the bulb base counter-
clockwise.
Remove the light bulb
When installing, reve rse the steps listed.
■Lights other than the above
If the high mounted stoplight has bur nt out, have it replaced by your
Toyota dealer.
1
2
3

2896-3. Do-it-yourself maintenance
6
Maintenance and care
■When installing the rubber cover of the headlight
Ensure the rubber cover is securely attached.
■ LED Lights
The high mounted stoplight and daytime running lights (LED type) consists of
a number of LEDs. If any of the LEDs burn out, take your vehicle to your Toy-
ota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact your Toyota dealer for more information in the
following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
→P. 276 Fit the rubber cover outer circumfer-
ence in firmly.
Fit the rubber cover around the light
bulb in until the light bulb plug can be
seen.
WARNING
■
Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
1
2
