TOYOTA YARIS 2017 3.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2017, Model line: YARIS, Model: TOYOTA YARIS 2017 3.GPages: 396, PDF Size: 7.08 MB
Page 311 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3117-2. Steps to take in an emergency
7
When trouble arises
WARNING
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system i TOYOTA YARIS 2017 3.G Owners Manual 3117-2. Steps to take in an emergency
7
When trouble arises
WARNING
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system i](/img/14/6857/w960_6857-310.png)
3117-2. Steps to take in an emergency
7
When trouble arises
WARNING
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) malfunc-
tion indicator is combined with the lo w tire pressure telltale (tire pressure
warning light). When the system detects a malfunction, the telltale will
flash for approximately one minute and then remain continuously illumi-
nated. This sequence w ill continue upon subsequ ent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installation of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■To ensure the tire pressure warning system operates properly
(vehicles with a tire pr essure warning system)
Do not install tires with different sp ecifications or makers, as the tire
pressure warning system may not operate properly.
Page 312 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3127-2. Steps to take in an emergency
If you have a flat tire
●Stop the vehicle in a safe pl ace on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmi TOYOTA YARIS 2017 3.G Owners Manual 3127-2. Steps to take in an emergency
If you have a flat tire
●Stop the vehicle in a safe pl ace on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmi](/img/14/6857/w960_6857-311.png)
3127-2. Steps to take in an emergency
If you have a flat tire
●Stop the vehicle in a safe pl ace on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manual
transmission).
● Stop the engine.
● Turn on the emergency flashers. ( →P. 292)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: →P. 2 5 3
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short dist ance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
Page 313 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3137-2. Steps to take in an emergency
7
When trouble arises
■Location
Location of the spare tire, jack and tool bag
Jack
Spare tire
Tool bag
Jack handleTie-down belt
Wheel nut wrench
Towing eyelet
L TOYOTA YARIS 2017 3.G Owners Manual 3137-2. Steps to take in an emergency
7
When trouble arises
■Location
Location of the spare tire, jack and tool bag
Jack
Spare tire
Tool bag
Jack handleTie-down belt
Wheel nut wrench
Towing eyelet
L](/img/14/6857/w960_6857-312.png)
3137-2. Steps to take in an emergency
7
When trouble arises
■Location
Location of the spare tire, jack and tool bag
Jack
Spare tire
Tool bag
Jack handleTie-down belt
Wheel nut wrench
Towing eyelet
Luggage floor cover1
2
3
4
5
6
7
8
Page 314 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3147-2. Steps to take in an emergency
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to d TOYOTA YARIS 2017 3.G Owners Manual 3147-2. Steps to take in an emergency
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to d](/img/14/6857/w960_6857-313.png)
3147-2. Steps to take in an emergency
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start the engine or drive the vehicle while the vehicle is sup-
ported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make su re that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.
Page 315 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3157-2. Steps to take in an emergency
7
When trouble arises
Move the driver’s seat to the
front most position and remove
the cover.
Take out the jack.For tightening
For loosening
Lift the deck board TOYOTA YARIS 2017 3.G Owners Manual 3157-2. Steps to take in an emergency
7
When trouble arises
Move the driver’s seat to the
front most position and remove
the cover.
Take out the jack.For tightening
For loosening
Lift the deck board](/img/14/6857/w960_6857-314.png)
3157-2. Steps to take in an emergency
7
When trouble arises
Move the driver’s seat to the
front most position and remove
the cover.
Take out the jack.For tightening
For loosening
Lift the deck board and pull it toward you to remove it. ( →P. 219)
Remove the luggage floor
cover.
Loosen the center fastener that
secures the spare tire.
Taking out the jack
1
2
1
2
Taking out the spare tire
1
2
3
Page 316 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3167-2. Steps to take in an emergency
Chock the tires.
For vehicles with steel wheels,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the TOYOTA YARIS 2017 3.G Owners Manual 3167-2. Steps to take in an emergency
Chock the tires.
For vehicles with steel wheels,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the](/img/14/6857/w960_6857-315.png)
3167-2. Steps to take in an emergency
Chock the tires.
For vehicles with steel wheels,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament.
Slightly loosen the wheel nuts
(one turn).
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3
Page 317 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3177-2. Steps to take in an emergency
7
When trouble arises
Turn the tire jack portion by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under TOYOTA YARIS 2017 3.G Owners Manual 3177-2. Steps to take in an emergency
7
When trouble arises
Turn the tire jack portion by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under](/img/14/6857/w960_6857-316.png)
3177-2. Steps to take in an emergency
7
When trouble arises
Turn the tire jack portion by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5
6
Page 318 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3187-2. Steps to take in an emergency
WARNING
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament TOYOTA YARIS 2017 3.G Owners Manual 3187-2. Steps to take in an emergency
WARNING
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament](/img/14/6857/w960_6857-317.png)
3187-2. Steps to take in an emergency
WARNING
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in handling the ornament to avoi d unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immedi- ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area
around the brakes will be extremel y hot. Touching these areas with
hands, feet or other body parts while changing a tire, etc., may
result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft·lbf
(103 N·m, 10.5 kgf·m) as soon as possible after changing wheels.
• When installing a tire, only use w heel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deforma tions in the bolt screws, nut threads
or bolt holes of the w heel, have the vehicle inspected by your Toyota
dealer.
• When installing the wheel nuts, be sure to install them with the
tapered ends facing inward. ( →P. 266)
Page 319 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3197-2. Steps to take in an emergency
7
When trouble arises
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may TOYOTA YARIS 2017 3.G Owners Manual 3197-2. Steps to take in an emergency
7
When trouble arises
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may](/img/14/6857/w960_6857-318.png)

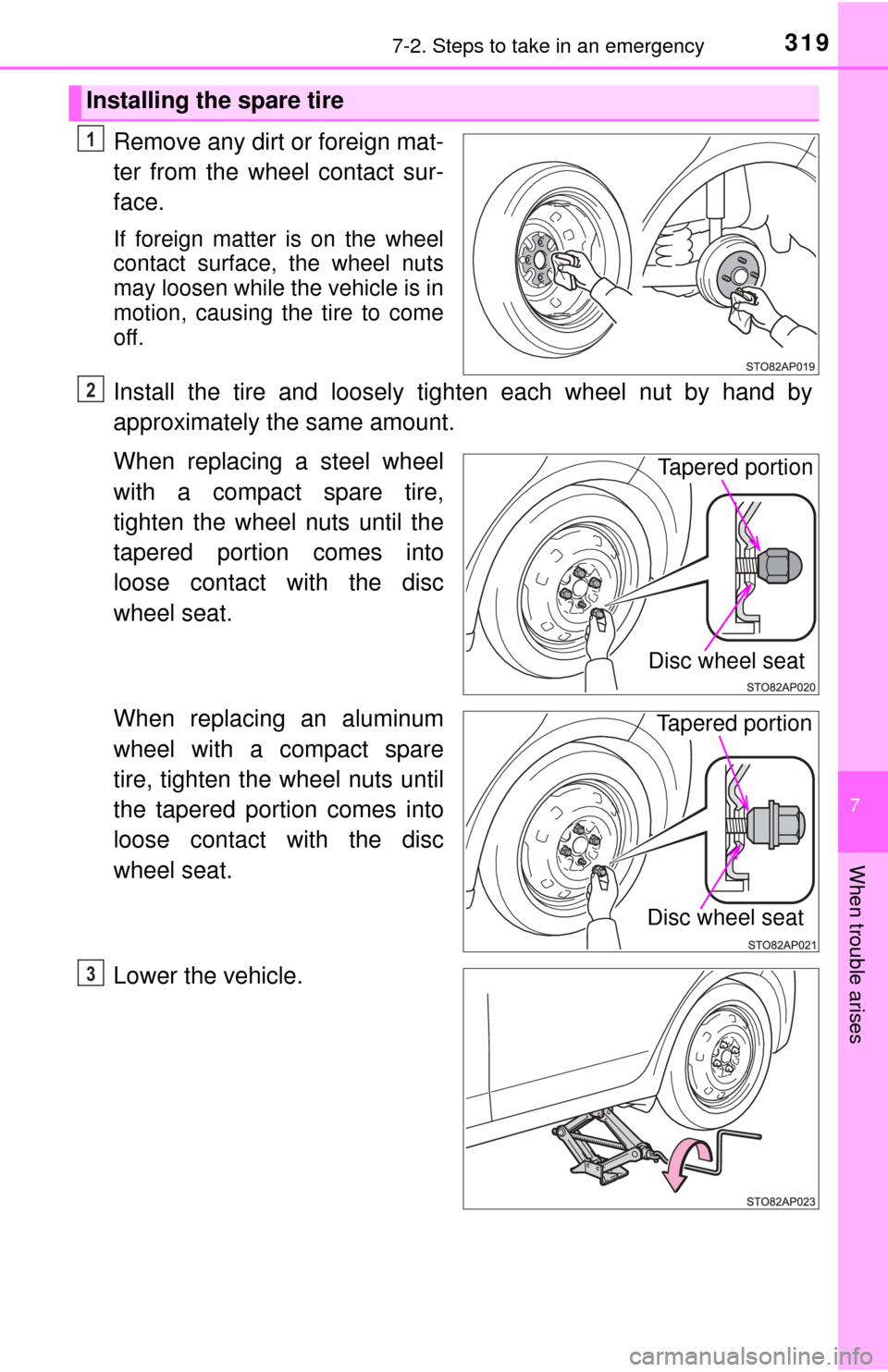

3197-2. Steps to take in an emergency
7
When trouble arises
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing a steel wheel
with a compact spare tire,
tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
When replacing an aluminum
wheel with a compact spare
tire, tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
Installing the spare tire
1
2
Tapered portion
Disc wheel seat
Tapered portion
Disc wheel seat
3
Page 320 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3207-2. Steps to take in an emergency
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft·lbf (103 N·m, 10.5 kgf·m)
Do not use other to TOYOTA YARIS 2017 3.G Owners Manual 3207-2. Steps to take in an emergency
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft·lbf (103 N·m, 10.5 kgf·m)
Do not use other to](/img/14/6857/w960_6857-319.png)
3207-2. Steps to take in an emergency
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft·lbf (103 N·m, 10.5 kgf·m)
Do not use other tools or any
additional leverage other than
your hands, such as a hammer,
pipe or your foot.
Stow the jack and all tools.
Return the deck board.
Vehicles with an aluminum
wheels, remove the center
wheel ornament by pushing
from the reverse side.
Be careful not to lose the wheel
ornament.
Hook each belt end to the cor-
responding anchor brackets.
Put the center portion of the
belt onto the rear center head
restraint.
4
Stowing the flat tire, jack and all tools
1
2
3
4
