TOYOTA YARIS 2017 3.G Owners Manual
Manufacturer: TOYOTA, Model Year: 2017, Model line: YARIS, Model: TOYOTA YARIS 2017 3.GPages: 396, PDF Size: 7.08 MB
Page 331 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3317-2. Steps to take in an emergency
7
When trouble arises
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning syst TOYOTA YARIS 2017 3.G Owners Manual 3317-2. Steps to take in an emergency
7
When trouble arises
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning syst](/img/14/6857/w960_6857-330.png)

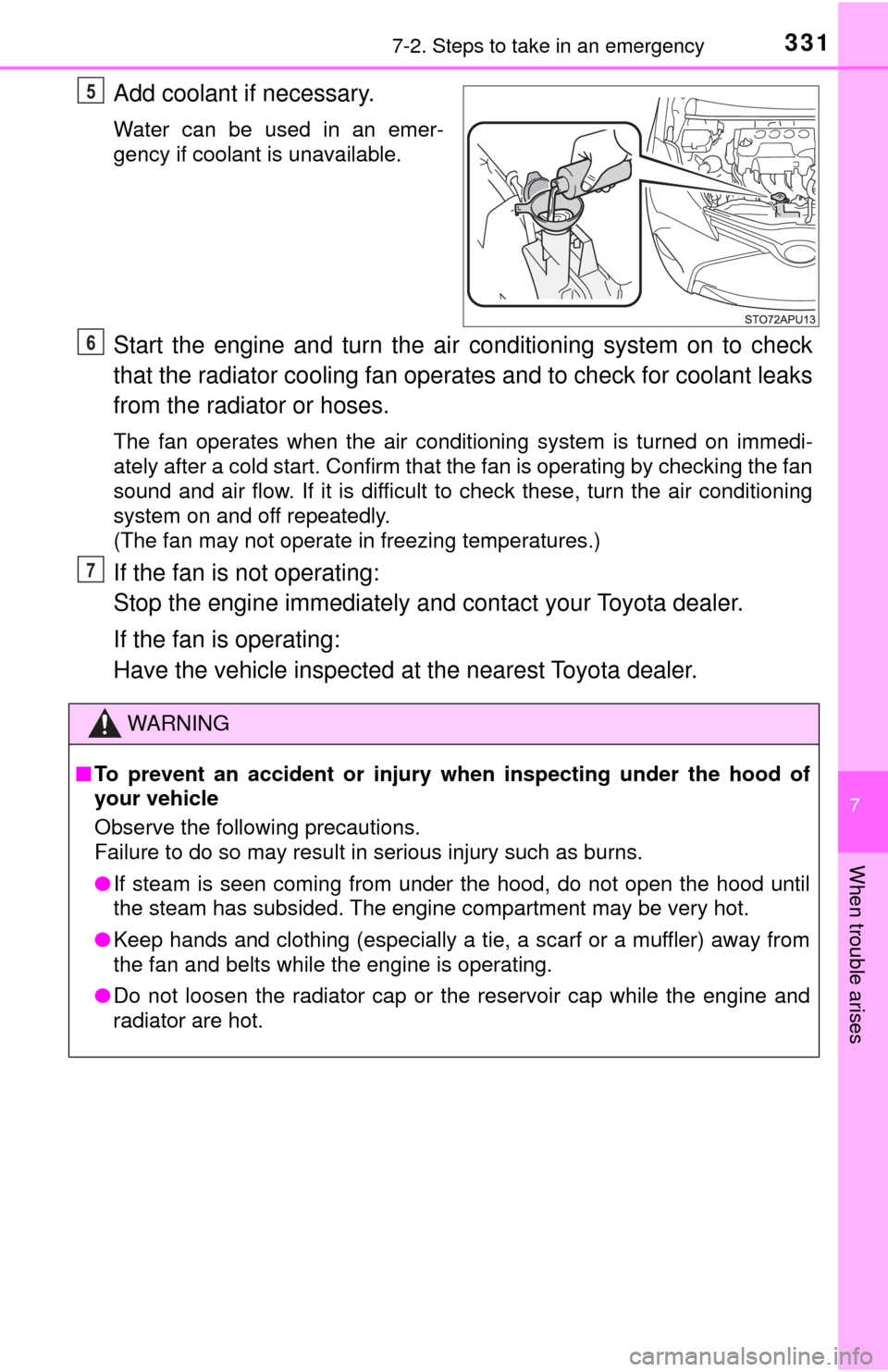

3317-2. Steps to take in an emergency
7
When trouble arises
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fan opera tes and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fan is operating:
Have the vehicle in spected at the nearest Toyota dealer.
5
WARNING
■To prevent an accident or injury when inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts while the engine is operating.
● Do not loosen the radiator cap or the reservoir cap while the engine and\
radiator are hot.
6
7
Page 332 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3327-2. Steps to take in an emergency
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause d TOYOTA YARIS 2017 3.G Owners Manual 3327-2. Steps to take in an emergency
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause d](/img/14/6857/w960_6857-331.png)
3327-2. Steps to take in an emergency
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust,
etc.,).
● Do not use any coolant additives.
Page 333 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 333
7
When trouble arises
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(automatic transmission) or N (manual tr TOYOTA YARIS 2017 3.G Owners Manual 333
7
When trouble arises
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(automatic transmission) or N (manual tr](/img/14/6857/w960_6857-332.png)

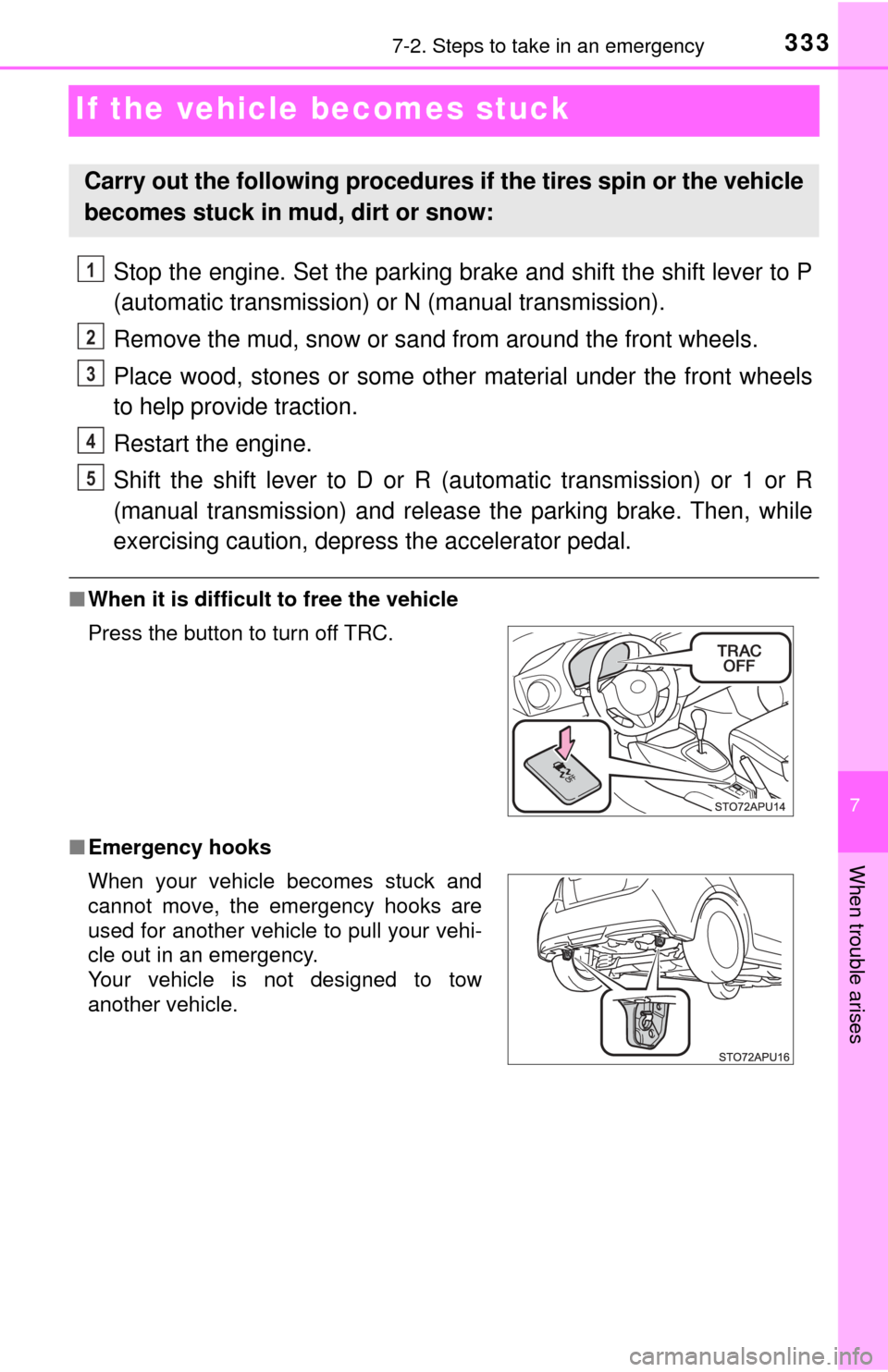

333
7
When trouble arises
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(automatic transmission) or N (manual transmission).
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some othe r material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (a utomatic transmission) or 1 or R
(manual transmission) and releas e the parking brake. Then, while
exercising caution, depre ss the accelerator pedal.
■When it is difficult to free the vehicle
■ Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press the button to turn off TRC.
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your vehi-
cle out in an emergency.
Your vehicle is not designed to tow
another vehicle.
1
2
3
4
5
Page 334 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3347-2. Steps to take in an emergency
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid s TOYOTA YARIS 2017 3.G Owners Manual 3347-2. Steps to take in an emergency
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid s](/img/14/6857/w960_6857-333.png)
3347-2. Steps to take in an emergency
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever (automatic transmission)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the tran smission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
Page 335 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 335
8Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .......... 336
Fuel information ................ 347
Tire information ................. 350
8-2. Customization C TOYOTA YARIS 2017 3.G Owners Manual 335
8Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .......... 336
Fuel information ................ 347
Tire information ................. 350
8-2. Customization C](/img/14/6857/w960_6857-334.png)
335
8Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .......... 336
Fuel information ................ 347
Tire information ................. 350
8-2. Customization Customizable features ...... 363
Items to initialize ............... 365
Page 336 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3368-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicles
*2: P175/65R15 tires
*3: P195/50R16 tires
Dimensions and weights
Overall length 155.5 in. (3950 mm)
Overall width 6 TOYOTA YARIS 2017 3.G Owners Manual 3368-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicles
*2: P175/65R15 tires
*3: P195/50R16 tires
Dimensions and weights
Overall length 155.5 in. (3950 mm)
Overall width 6](/img/14/6857/w960_6857-335.png)
3368-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicles
*2: P175/65R15 tires
*3: P195/50R16 tires
Dimensions and weights
Overall length 155.5 in. (3950 mm)
Overall width 66.7 in. (1695 mm)
Overall height*159.4 in. (1510 mm)
Wheelbase98.8 in. (2510 mm)
Tread
Front58.5 in. (1485 mm)*2
57.5 in. (1460 mm)*3
Rear57.9 in. (1470 mm)*2
56.9 in. (1445 mm)*3
Vehicle capacity weight
(Occupants + luggage) 845 lb. (380 kg)
Page 337 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3378-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification nu TOYOTA YARIS 2017 3.G Owners Manual 3378-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification nu](/img/14/6857/w960_6857-336.png)

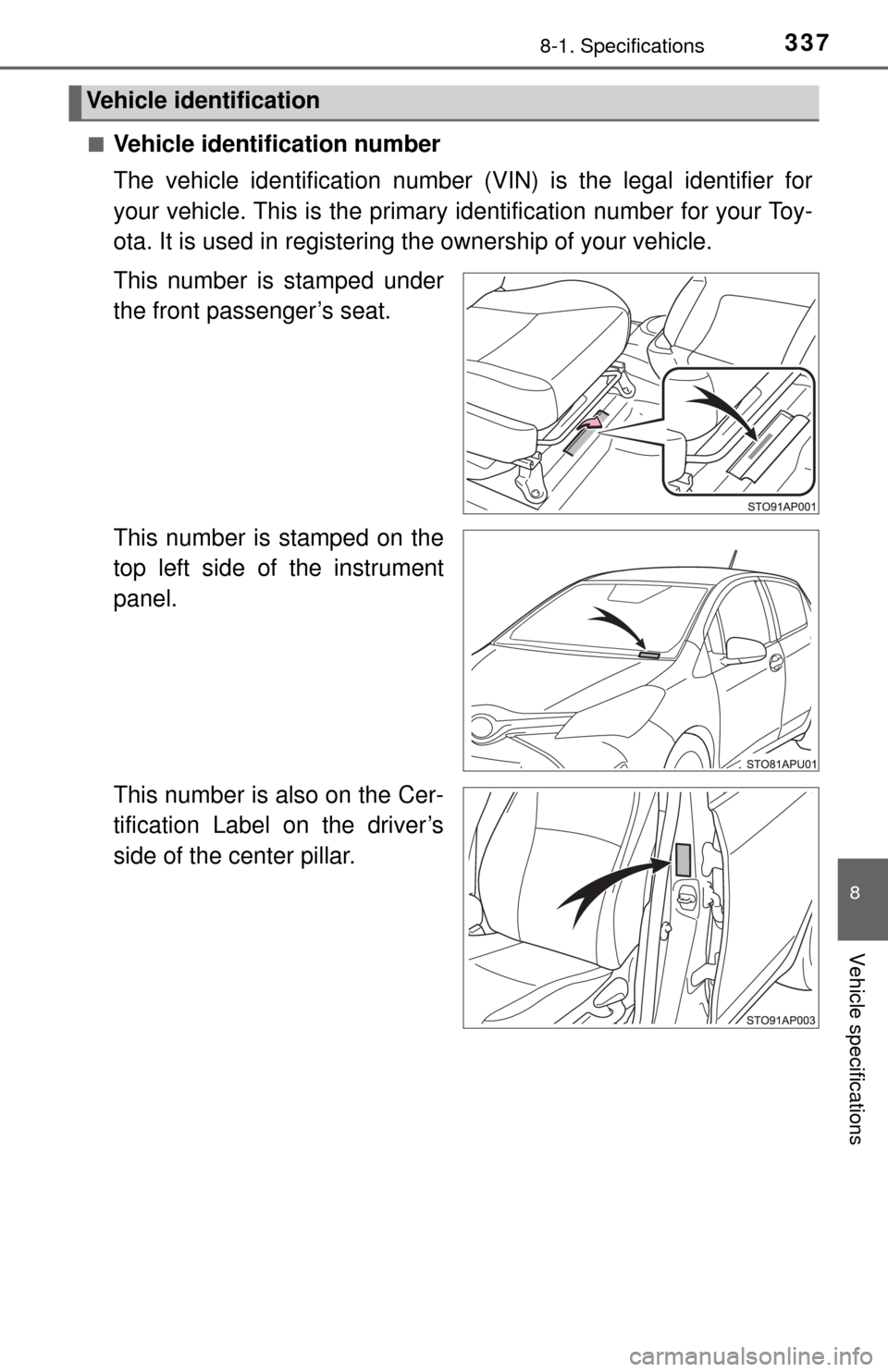

3378-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your Toy-
ota. It is used in registeri ng the ownership of your vehicle.
This number is stamped under
the front passenger’s seat.
This number is stamped on the
top left side of the instrument
panel.
This number is also on the Cer-
tification Label on the driver’s
side of the center pillar.
Vehicle identification
Page 338 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3388-1. Specifications
■Engine number
The engine number is stamped
on the engine block as shown. TOYOTA YARIS 2017 3.G Owners Manual 3388-1. Specifications
■Engine number
The engine number is stamped
on the engine block as shown.](/img/14/6857/w960_6857-337.png)

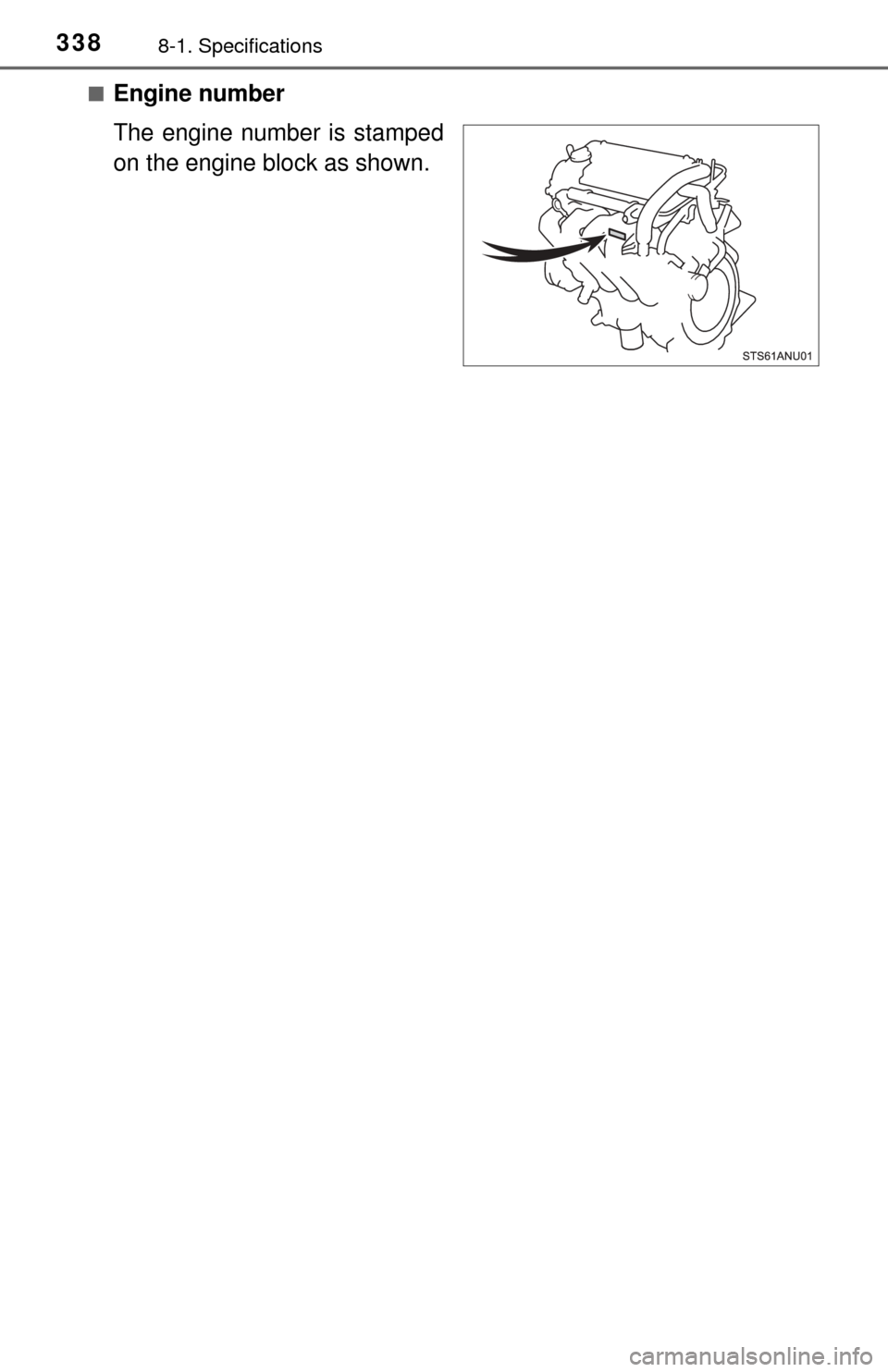

3388-1. Specifications
■Engine number
The engine number is stamped
on the engine block as shown.
Page 339 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3398-1. Specifications
8
Vehicle specifications
Engine
Model1NZ-FE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke2.95 × 3.33 in. (75.0 × 84.7 mm)
Displacement91.3 cu.in. (1497 cm3)
Dri TOYOTA YARIS 2017 3.G Owners Manual 3398-1. Specifications
8
Vehicle specifications
Engine
Model1NZ-FE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke2.95 × 3.33 in. (75.0 × 84.7 mm)
Displacement91.3 cu.in. (1497 cm3)
Dri](/img/14/6857/w960_6857-338.png)
3398-1. Specifications
8
Vehicle specifications
Engine
Model1NZ-FE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke2.95 × 3.33 in. (75.0 × 84.7 mm)
Displacement91.3 cu.in. (1497 cm3)
Drive belt tension
68 — 90 lbf (300 — 400 N, 31 — 41kgf)*
Vehicles without an air conditioning system
Vehicles with an air conditioning system
*: Drive belt tension measured with Boroughs
drive belt tension gauge No. BT-33-73F when
the engine is cold (used belt)
Generator
Water pump
Crankshaft
Generator
Crankshaft Water pump
Air
conditioning
compressor
Page 340 of 396
![TOYOTA YARIS 2017 3.G Owners Manual 3408-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on TOYOTA YARIS 2017 3.G Owners Manual 3408-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on](/img/14/6857/w960_6857-339.png)

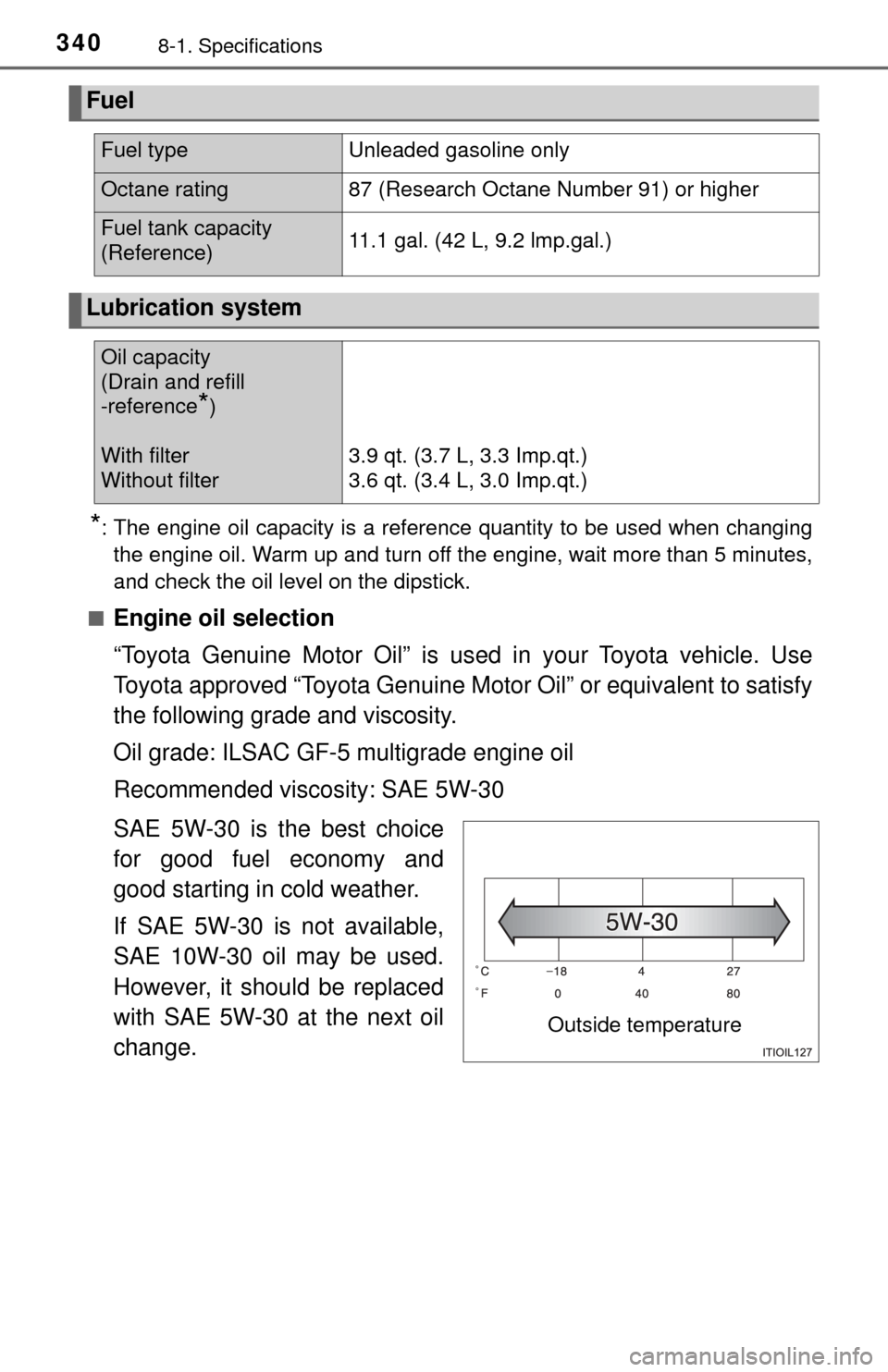

3408-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is us ed in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
Fuel
Fuel typeUnleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)11.1 gal. (42 L, 9.2 lmp.gal.)
Lubrication system
Oil capacity
(Drain and refill
-reference
*)
With filter
Without filter 3.9 qt. (3.7 L, 3.3 Imp.qt.)
3.6 qt. (3.4 L, 3.0 Imp.qt.)
Outside temperature
