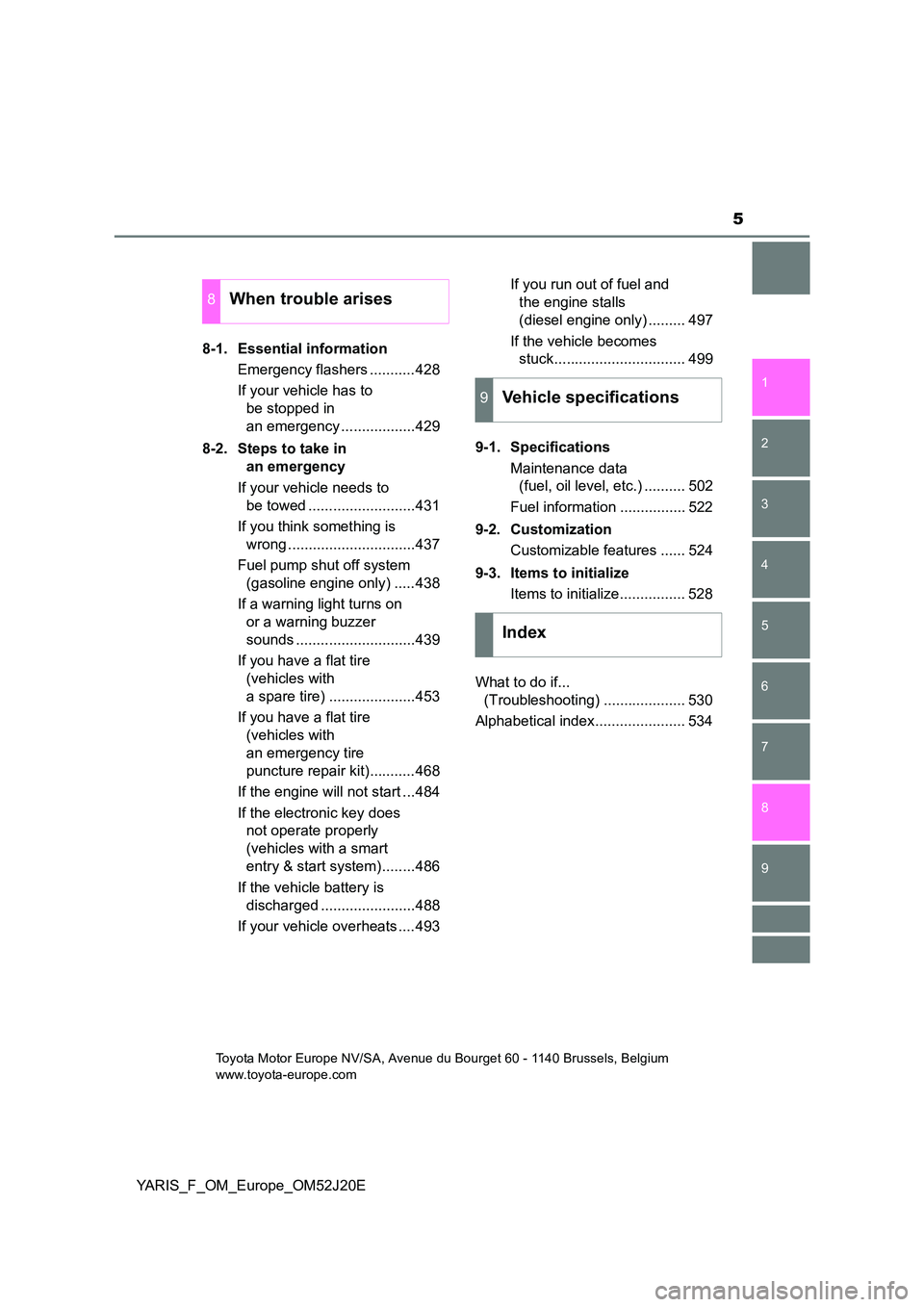

8-1. Essential information
Emergency flashers ...........428
If your vehicle has to
be stopped in
an emergency ..................429
8-2. Steps to take in
an emergency
If your vehicle needs to
be towed ..........................431
If you think something is
wrong ...............................437
Fuel pump shut off system
(gasoline engine only) .....438
If a warning light turns on
or a warning buzzer
sounds .............................439
If you have a flat tire
(vehicles with
a spare tire) .....................453
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit)...........468
If the engine will not start ...484
If the electronic key does
not operate properly
(vehicles with a smart
entry & start system)........486
If the vehicle battery is
discharged .......................488
If your vehicle overheats ....493
If you run out of fuel and
the engine stalls
(diesel engine only) ......... 497
If the vehicle becomes
stuck................................ 499
9-1. Specifications
Maintenance data
(fuel, oil level, etc.) .......... 502
Fuel information ................ 522
9-2. Customization
Customizable features ...... 524
9-3. Items to initialize
Items to initialize................ 528
What to do if...
(Troubleshooting) .................... 530
Alphabetical index...................... 534
8When trouble arises
9Vehicle specifications
Index
Toyota Motor Europe NV/SA, Avenue du Bourget 60 - 1140 Brussels, Belgium
www.toyota-europe.com

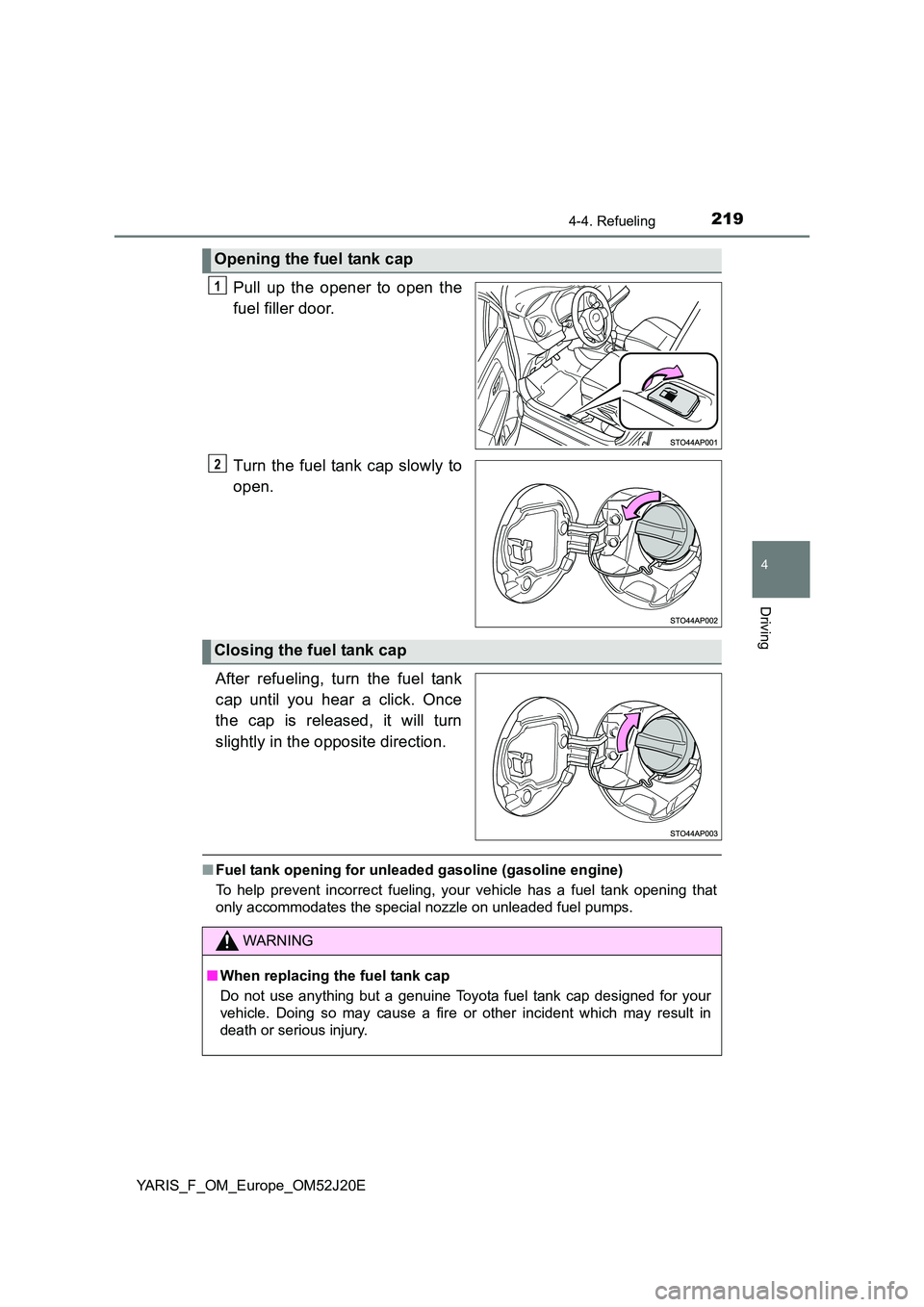

2194-4. Refueling
4
Driving
YARIS_F_OM_Europe_OM52J20E
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
open.
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
■ Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
Opening the fuel tank cap
1
2
Closing the fuel tank cap
WARNING
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

3296-1. Using the air conditioning system and defogger
6
Interior features
YARIS_F_OM_Europe_OM52J20E

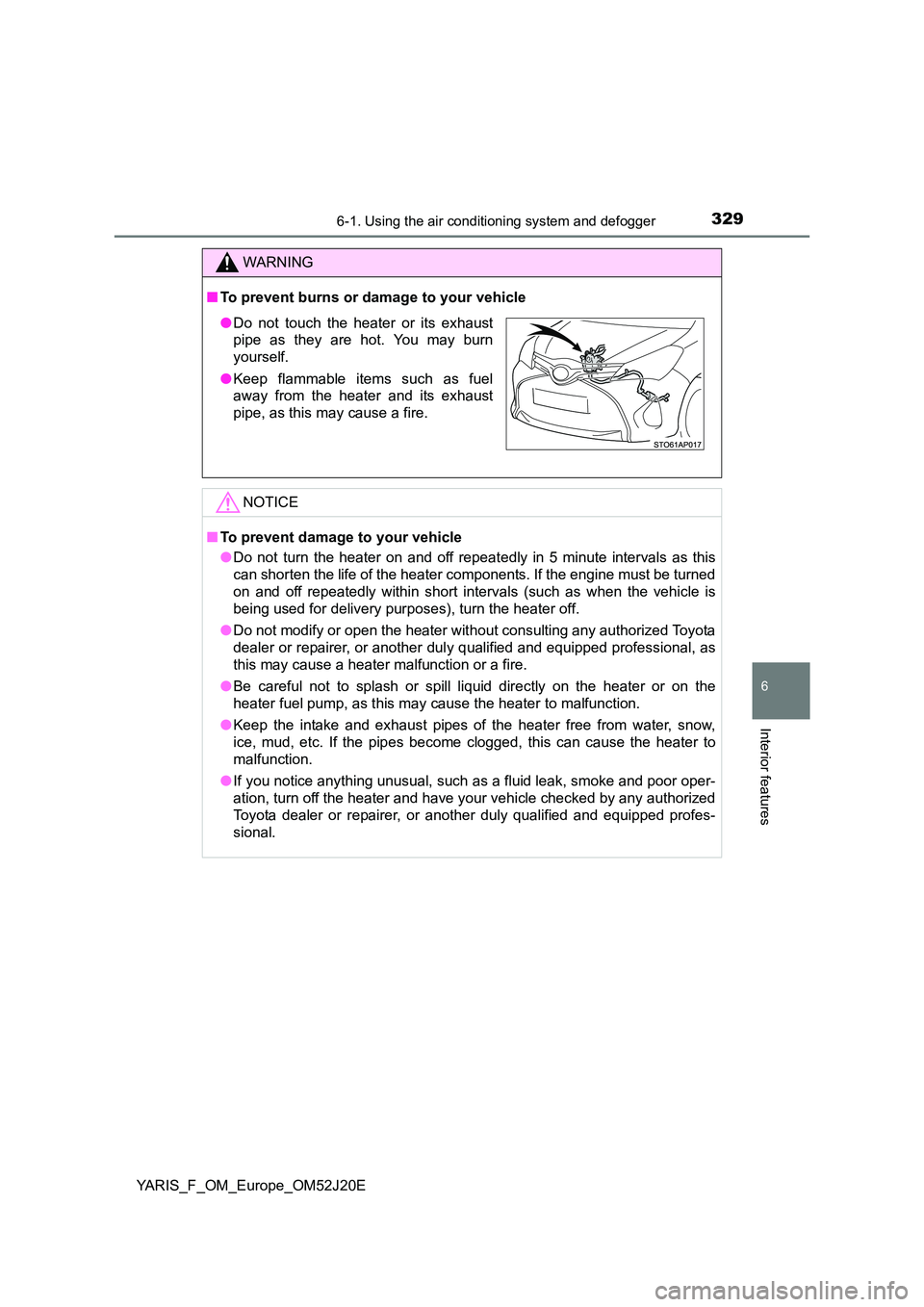

WARNING
■To prevent burns or damage to your vehicle
NOTICE
■To prevent damage to your vehicle
● Do not turn the heater on and off repeatedly in 5 minute intervals as this
can shorten the life of the heater components. If the engine must be turned
on and off repeatedly within short intervals (such as when the vehicle is
being used for delivery purposes), turn the heater off.
● Do not modify or open the heater without consulting any authorized Toyota
dealer or repairer, or another dul y qualified and equipped professional, as
this may cause a heater malfunction or a fire.
● Be careful not to splash or spill liquid directly on the heater or on the
heater fuel pump, as this may cause the heater to malfunction.
● Keep the intake and exhaust pipes of the heater free from water, snow,
ice, mud, etc. If the pipes become clogged, this can cause the heater to
malfunction.
● If you notice anything unusual, such as a fluid leak, smoke and poor oper-
ation, turn off the heater and have your vehicle checked by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
● Do not touch the heater or its exhaust
pipe as they are hot. You may burn
yourself.
● Keep flammable items such as fuel
away from the heater and its exhaust
pipe, as this may cause a fire.

3807-3. Do-it-yourself maintenance
YARIS_F_OM_Europe_OM52J20E

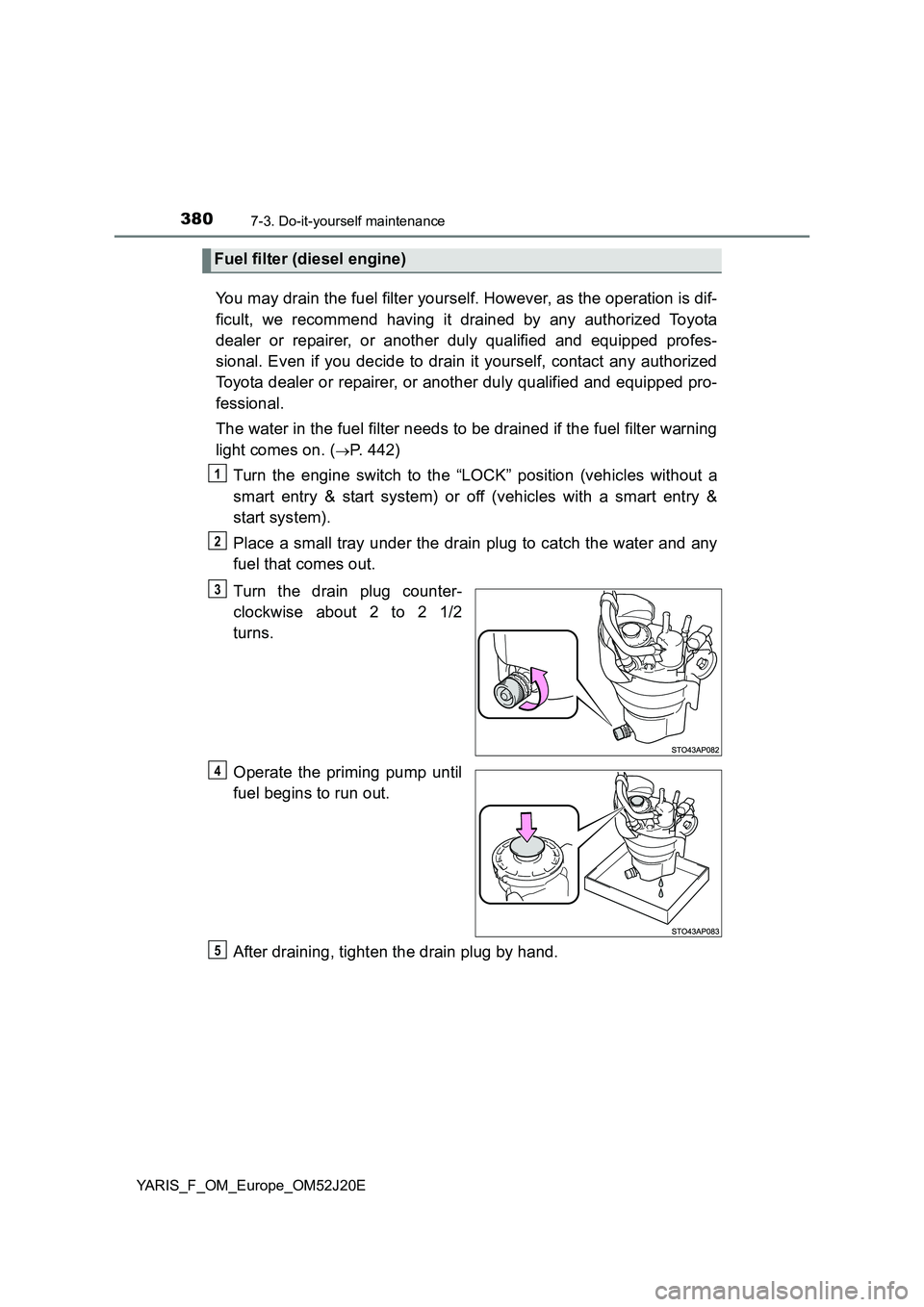

You may drain the fuel filter yourself. However, as the operation is dif-
ficult, we recommend having it drained by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional. Even if you decide to drain it yourself, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
The water in the fuel filter needs to be drained if the fuel filter warning
light comes on. (P. 442)
Turn the engine switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry &
start system).
Place a small tray under the drain plug to catch the water and any
fuel that comes out.
Turn the drain plug counter-
clockwise about 2 to 2 1/2
turns.
Operate the priming pump until
fuel begins to run out.
After draining, tighten the drain plug by hand.
Fuel filter (diesel engine)
1
2
3
4
5

427
8When trouble arises
YARIS_F_OM_Europe_OM52J20E

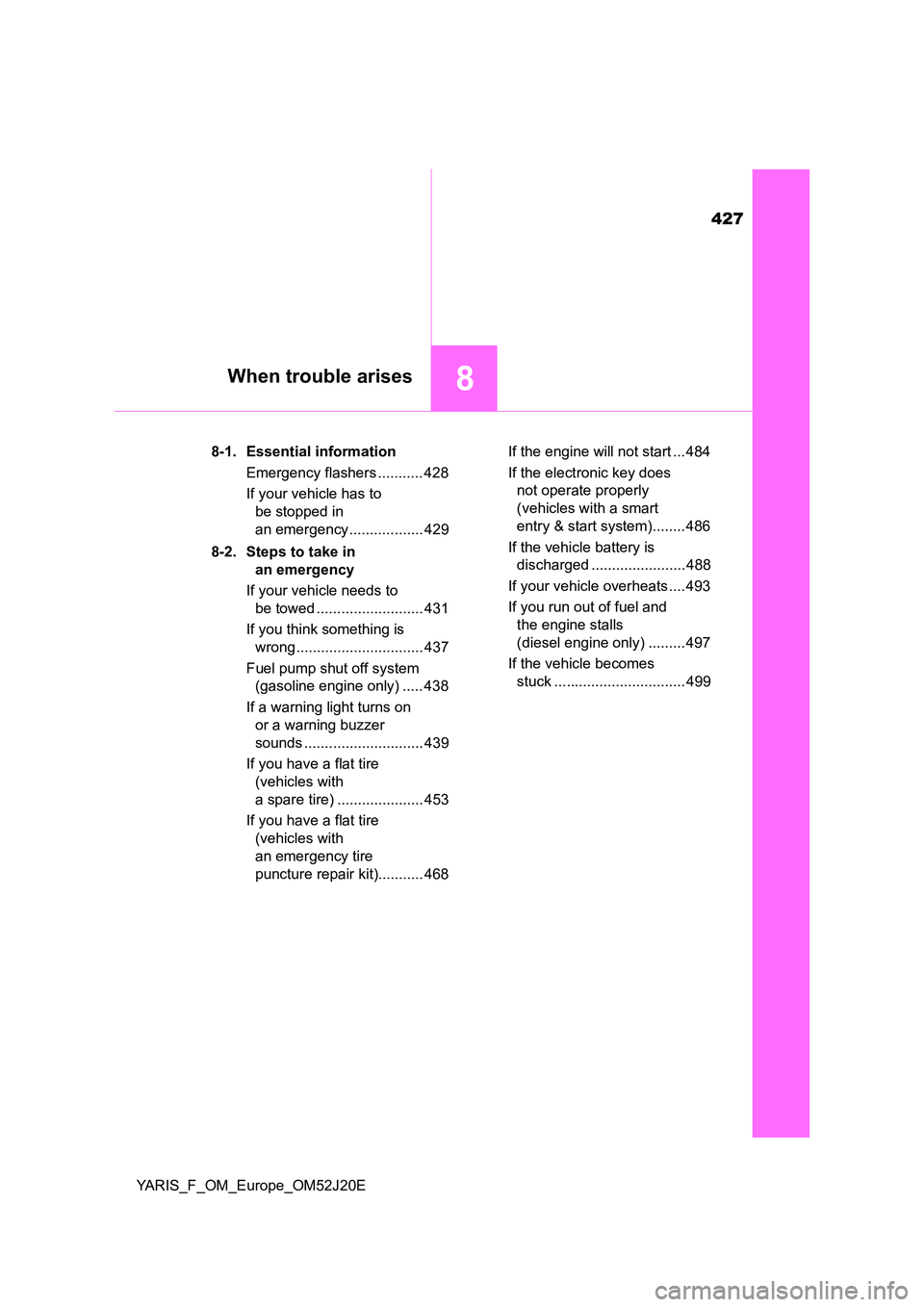

8-1. Essential information
Emergency flashers ........... 428
If your vehicle has to
be stopped in
an emergency .................. 429
8-2. Steps to take in
an emergency
If your vehicle needs to
be towed .......................... 431
If you think something is
wrong ............................... 437
Fuel pump shut off system
(gasoline engine only) ..... 438
If a warning light turns on
or a warning buzzer
sounds ............................. 439
If you have a flat tire
(vehicles with
a spare tire) ..................... 453
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit)........... 468
If the engine will not start ... 484
If the electronic key does
not operate properly
(vehicles with a smart
entry & start system)........ 486
If the vehicle battery is
discharged ....................... 488
If your vehicle overheats .... 493
If you run out of fuel and
the engine stalls
(diesel engine only) ......... 497
If the vehicle becomes
stuck ................................ 499

4388-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52J20E

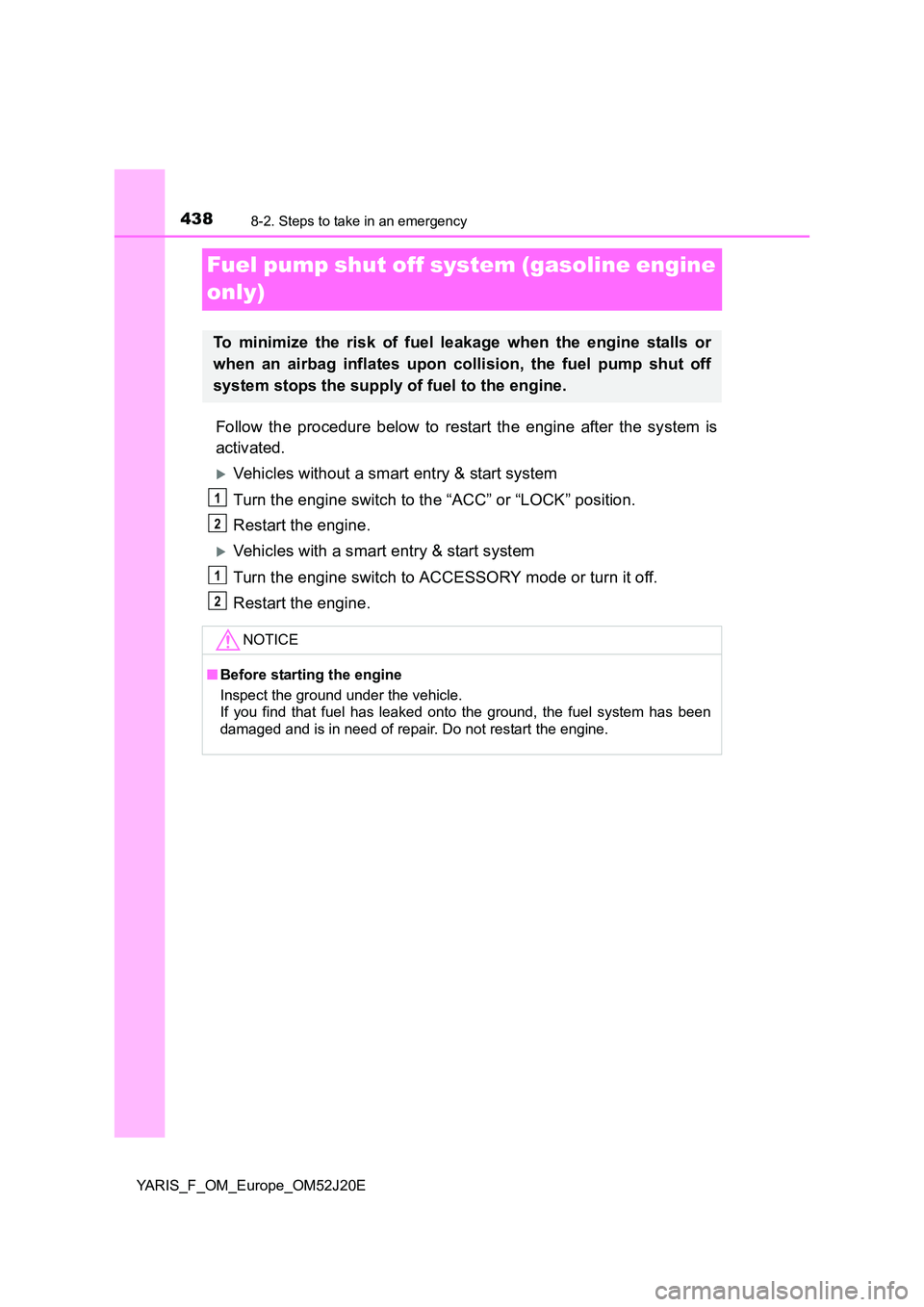

Fuel pump shut off system (gasoline engine
only)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart entry & start system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart entry & start system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
■ Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2

4508-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52J20E
NOTICE

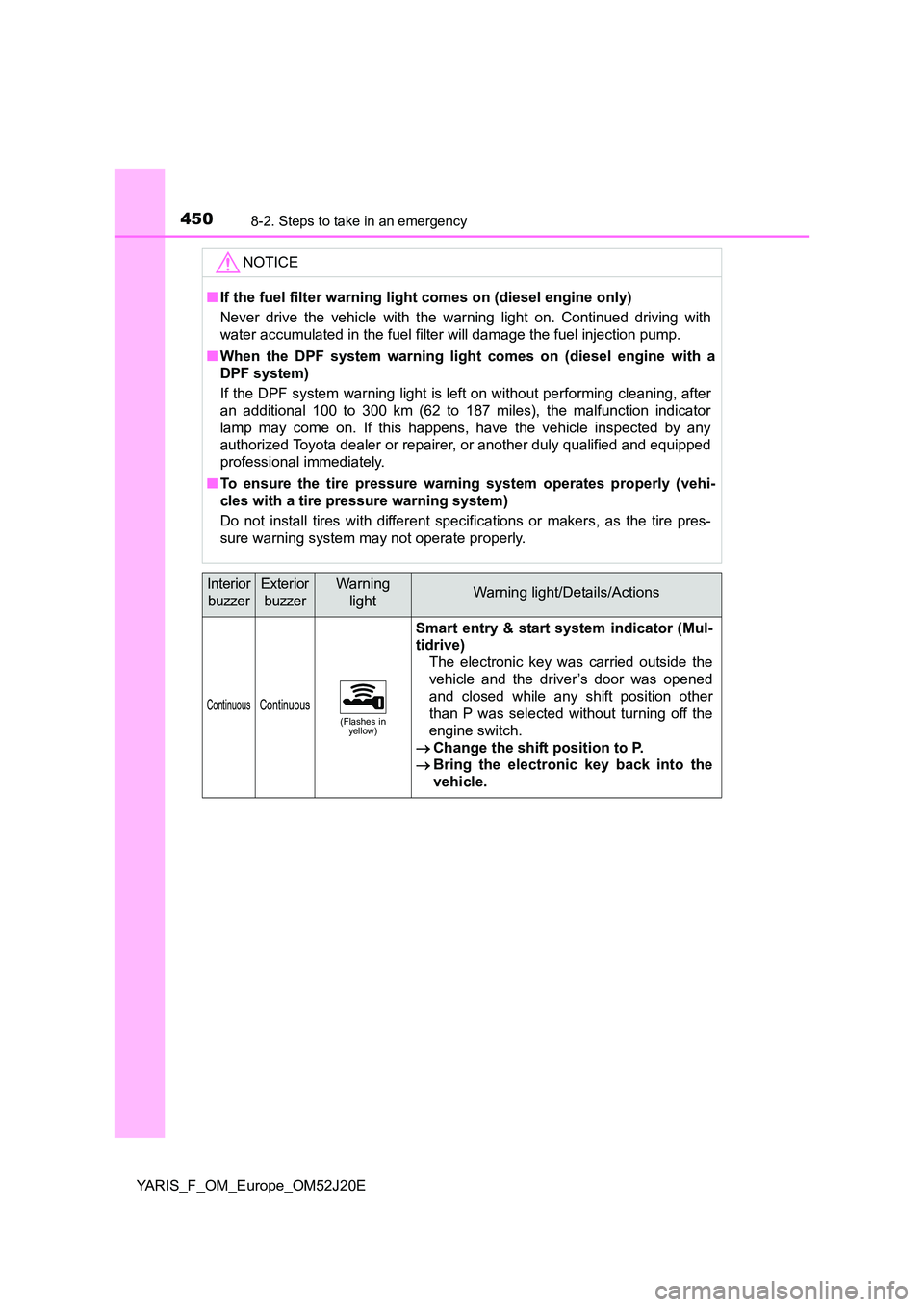

■If the fuel filter warning light comes on (diesel engine only)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
■ When the DPF system warning light comes on (diesel engine with a
DPF system)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
■ To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
Interior
buzzer
Exterior
buzzer
Warning
lightWarning light/Details/Actions
ContinuousContinuous(Flashes in yellow)
Smart entry & start system indicator (Mul-
tidrive)
The electronic key was carried outside the
vehicle and the driver’s door was opened
and closed while any shift position other
than P was selected without turning off the
engine switch.
 Change the shift position to P.
 Bring the electronic key back into the
vehicle.

4978-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52J20E

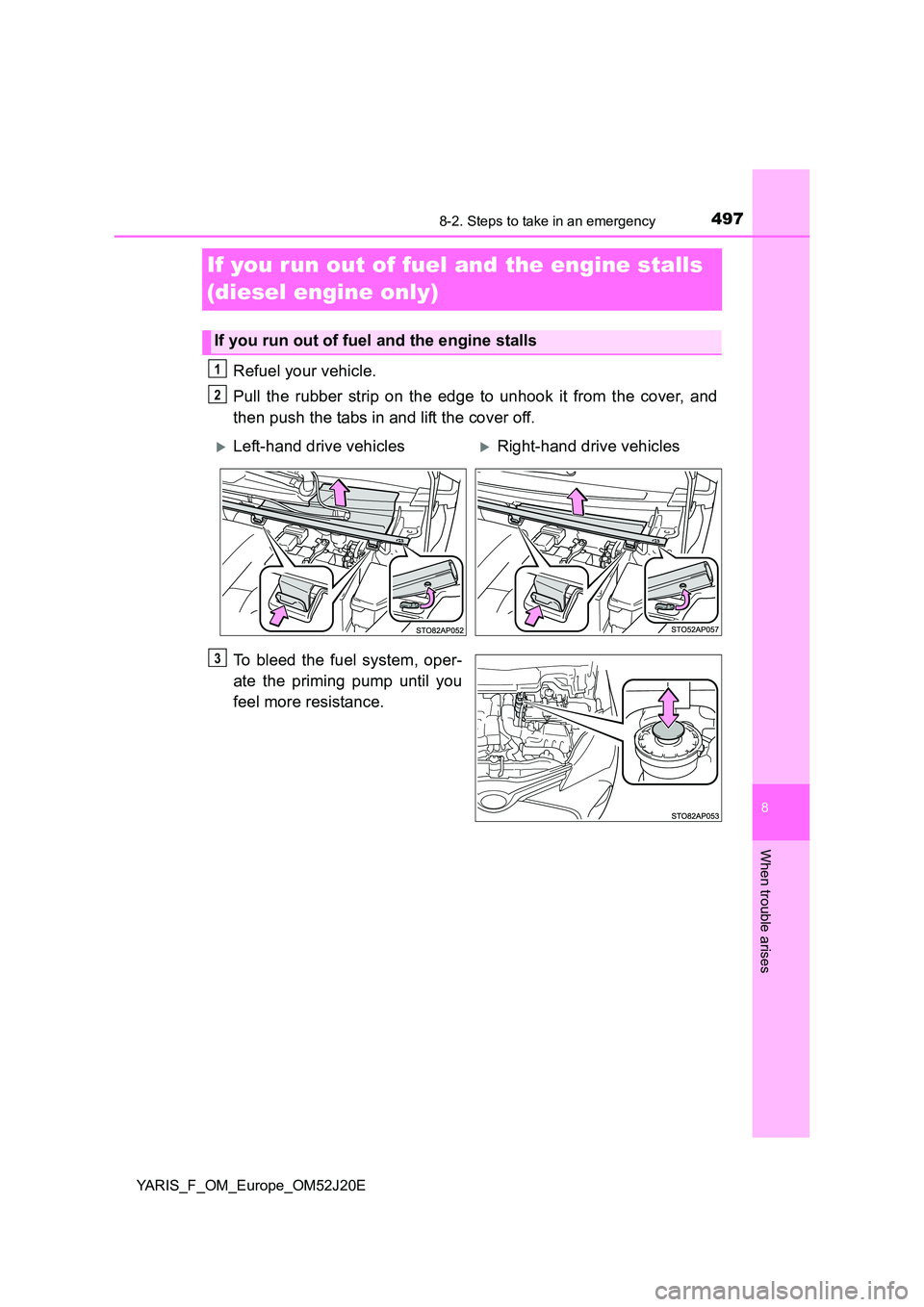

If you run out of fuel and the engine stalls
(diesel engine only)
Refuel your vehicle.
Pull the rubber strip on the edge to unhook it from the cover, and
then push the tabs in and lift the cover off.
To bleed the fuel system, oper-
ate the priming pump until you
feel more resistance.
If you run out of fuel and the engine stalls
1
2
Left-hand drive vehiclesRight-hand drive vehicles
3

4988-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52J20E

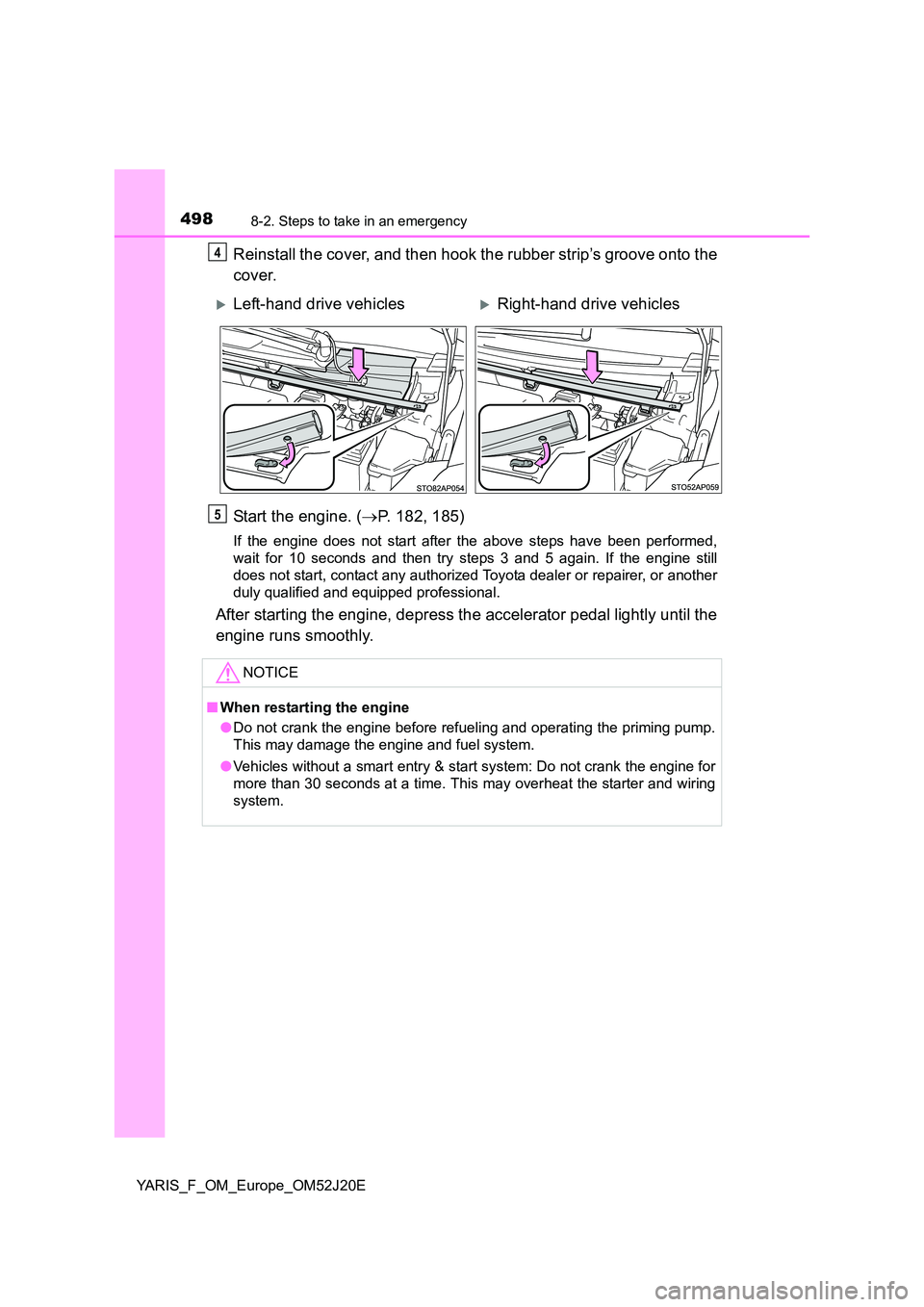

Reinstall the cover, and then hook the rubber strip’s groove onto the
cover.
Start the engine. ( P. 182, 185)
If the engine does not start after the above steps have been performed,
wait for 10 seconds and then try steps 3 and 5 again. If the engine still
does not start, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
After starting the engine, depress the accelerator pedal lightly until the
engine runs smoothly.
4
Left-hand drive vehiclesRight-hand drive vehicles
NOTICE
■ When restarting the engine
● Do not crank the engine before refueling and operating the priming pump.
This may damage the engine and fuel system.
● Vehicles without a smart entry & start system: Do not crank the engine for
more than 30 seconds at a time. This may overheat the starter and wiring
system.
5

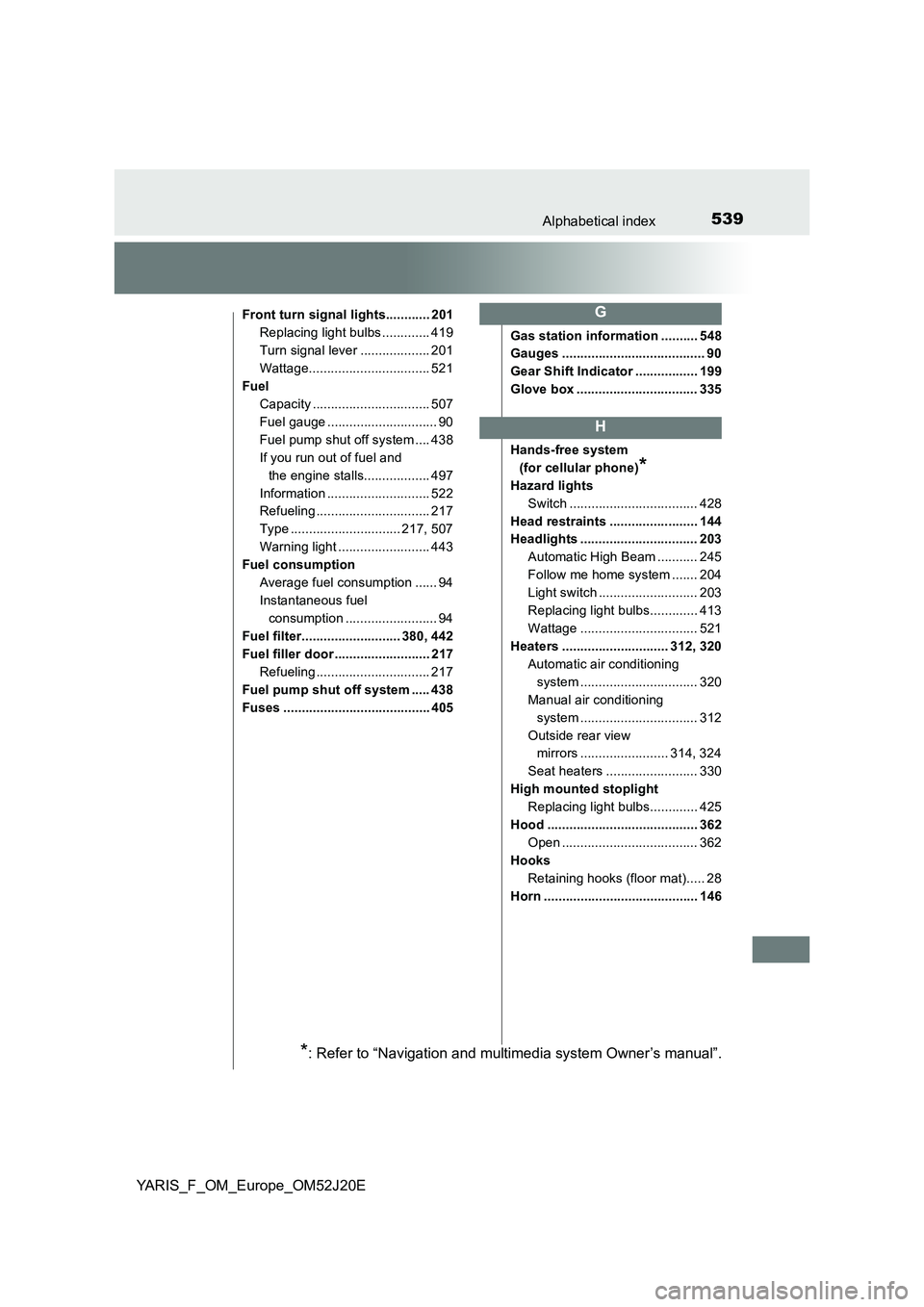

539Alphabetical index
YARIS_F_OM_Europe_OM52J20E
Front turn signal lights............ 201
Replacing light bulbs ............. 419
Turn signal lever ................... 201
Wattage................................. 521
Fuel
Capacity ................................ 507
Fuel gauge .............................. 90
Fuel pump shut off system .... 438
If you run out of fuel and
the engine stalls.................. 497
Information ............................ 522
Refueling ............................... 217
Type .............................. 217, 507
Warning light ......................... 443
Fuel consumption
Average fuel consumption ...... 94
Instantaneous fuel
consumption ......................... 94
Fuel filter........................... 380, 442
Fuel filler door .......................... 217
Refueling ............................... 217
Fuel pump shut off system ..... 438
Fuses ........................................ 405
Gas station information .......... 548
Gauges ....................................... 90
Gear Shift Indicator ................. 199
Glove box ................................. 335
Hands-free system
(for cellular phone)*
Hazard lights
Switch ................................... 428
Head restraints ........................ 144
Headlights ................................ 203
Automatic High Beam ........... 245
Follow me home system ....... 204
Light switch ........................... 203
Replacing light bulbs............. 413
Wattage ................................ 521
Heaters ............................. 312, 320
Automatic air conditioning
system ................................ 320
Manual air conditioning
system ................................ 312
Outside rear view
mirrors ........................ 314, 324
Seat heaters ......................... 330
High mounted stoplight
Replacing light bulbs............. 425
Hood ......................................... 362
Open ..................................... 362
Hooks
Retaining hooks (floor mat)..... 28
Horn .......................................... 146
G
H
*: Refer to “Navigation and multimedia system Owner’s manual”.
